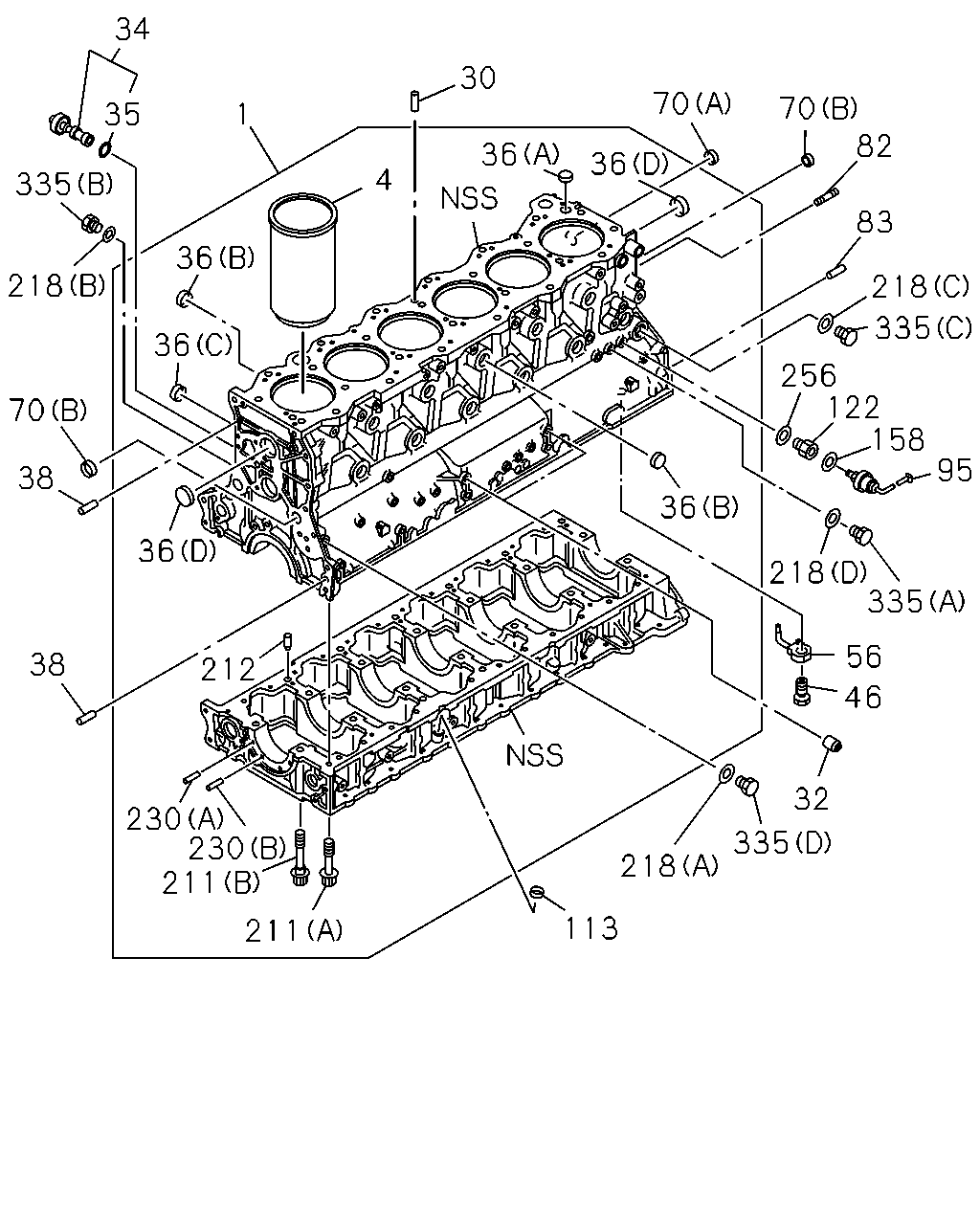

0-12 — CYLINDER BLOCK (#63109) — 41 parça

113 218 335 32 46 56 335 218 95 158 122 256 335 218 83 82 70 70 36 36 211 211 230 230 212 36 36 36 4 36 30 1 34 35 335 218 70 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	8-98180-452-1	01	1	1008-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-379-2	06	1	1008-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-380-2	06	1	1008-
30	PIN; CYL HD GASKET SETTING OD=10 L=18	9-08151-018-0	02	1	1008-
32	PIN; INJ PUMP BRKT	8-94325-506-1	02	1	1008-
34	VALVE; OIL RELIEF	1-13160-030-3	01	1	1008-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	1-09623-297-0	01	1	1008-
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	01	1	1008-
36	CUP; SEALING,WATER JACKET (B) OD=40	1-09600-065-1	02	1	1008-
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94241-637-0	13	1	1008-
36	CUP; SEALING,WATER JACKET (D) OD=45	8-97351-451-0	04	1	1008-
38	PIN; TIMING GEAR CASE OD=10 L=18	9-08151-018-0	02	1	1008-
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-014-0	06	1	1008-
56	JET; OIL,PISTON COOLING	1-13342-125-5	06	1	1008-
70	CUP; SEALING,FRT & RR (A) OD=32	1-09600-012-2	01	1	1008-
70	CUP; SEALING,FRT & RR (B) OD=25	1-09600-016-0	04	1	1008-
82	STUD; FLYWHEEL HSG M14X35 L=56	0-44011-435-0	01	1	1008-
83	PIN; FLYWHEEL HSG	9-08151-428-0	02	1	1008-
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	1008-
113	CUP; SEALING OD=15.6	5-11129-003-0	01	1	1008-
122	ADAPTER; OIL PRESSURE SWITCH	8-94390-391-0	01	1	1008-
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	1008-
211	BOLT; CRANKCASE (A) M12X114	1-09070-087-3	28	1	1008-
211	BOLT; CRANKCASE (B) M18X150	1-09070-151-0	14	1	1008-
212	PIN; CRANKCASE	1-09740-068-1	02	1	1008-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1008-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	01	1	1008-1312
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	8-98251-344-0	01	1	1401-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=22	1-09630-089-0	01	1	1008-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=14.2 OD=25	1-09630-141-0	01	1	1008-
230	PIN; THRUST METAL,CR/SHF (A) L=25	1-09749-025-1	02	1	1008-
230	PIN; THRUST METAL,CR/SHF (B) OD=5 L=10	9-08160-510-0	02	1	1008-
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	1008-
335	PLUG; C/BL,SIDE (C) M22X12	1-09604-035-0	01	1	1008-
335	PLUG; C/BL,SIDE (D) M10X7	1-09604-094-0	01	1	1008-
335	PLUG; C/BL,SIDE (A) M14X9	8-98042-944-0	01	1	1008-
335	PLUG; C/BL,SIDE (B) M12X9	8-98047-054-0	01	1	1008-

2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINER SET; ENG CYL GRADE=1X	1-87812-928-5	06	1	1008-
2	LINER SET; ENG CYL GRADE=3X	1-87812-929-5	06	1	1008-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-379-2	06	1	1008-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-380-2	06	1	1008-
