8-90 — RADIO AND TV (#63103) — 26 parça

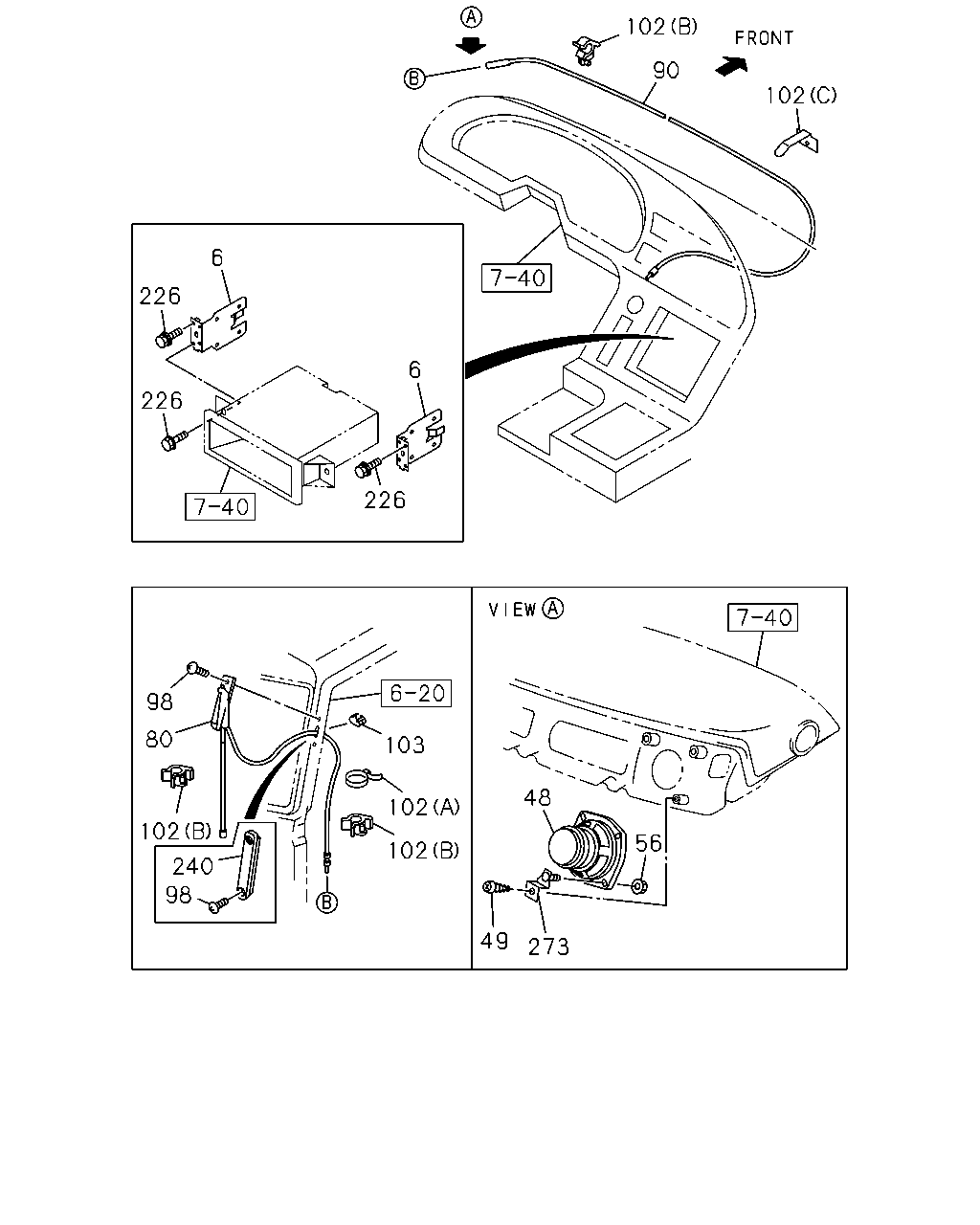

çizim 170462
102 90 102 6 226 6 226 226 103 102 102 98 80 102 240 98 49 48 56 273
BalonParca AdiParca NoAdetTipApplied Date A B
6 BRACKET; RADIO TO PANEL 1-65671-822-1 02 1 1008- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		8-98140-326-1 02 1 1008- ● ●
49 SCREW; SPEAKER
M5X14 		8-94279-325-0 06 1 1008-1410 ● ●
49 SCREW; SPEAKER
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5X14 		8-94279-325-0 06 1 1411- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 02 1 1008- ● ●
80 ANTENNA 1-84115-055-2 01 1 1008-1203 ● ●
80 ANTENNA 8-98210-874-1 01 1 1204-1410 ● ●
80 ANTENNA
ANTENNA RADIO<U73> 		8-98210-874-1 01 1 1411- ● ●
90 CABLE; ANTENNA,FEEDER 1-84113-011-2 01 1 1008-1410 ● ●
90 CABLE; ANTENNA,FEEDER
ANTENNA RADIO<U73> 		1-84113-011-2 01 1 1411- ● ●
98 SCREW; TAP,ANTENNA
M5X11 		1-09981-536-1 02 1 1008-1410 ● ●
98 SCREW; TAP,ANTENNA
ANTENNA RADIO<U73> M5X11 		1-09981-536-1 02 1 1411- ● ●
102 CLIP; CABLE
(C) L=20 SET=10 PIECE 		1-09987-246-2 01 1 1410-1410 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (C) L=20 SET=10 PIECE 		1-09987-246-2 01 1 1411- ● ●
102 CLIP; CABLE
(B) ID=4.8 		1-73907-618-0 05 1 1008-1410 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (B) ID=4.8 		1-73907-618-0 05 1 1411- ● ●
102 CLIP; CABLE
(A) L=140 		5-09707-031-1 01 1 1008-1410 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) L=140 		5-09707-031-1 01 1 1411- ● ●
102 CLIP; CABLE
(B) ID=4.8 		8-94128-483-0 02 1 1008-1410 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (B) ID=4.8 		8-94128-483-0 02 1 1411- ● ●
103 GROMMET; ANTENNA HOLE,FRT 8-97027-381-0 01 1 1008-1410 ● ●
103 GROMMET; ANTENNA HOLE,FRT
ANTENNA RADIO<U73> 		8-97027-381-0 01 1 1411- ● ●
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1008- ● ●
240 COVER; ANTENNA
EXC. ANTENNA RADIO<U73> 		1-79996-296-0 01 1 1411- ● ●
273 BRACKET; SPEAKER 1-65671-788-0 02 1 1008-1410 ● ●
273 BRACKET; SPEAKER
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-65671-788-0 02 1 1411- ● ●
