◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#63101) — 65 parça

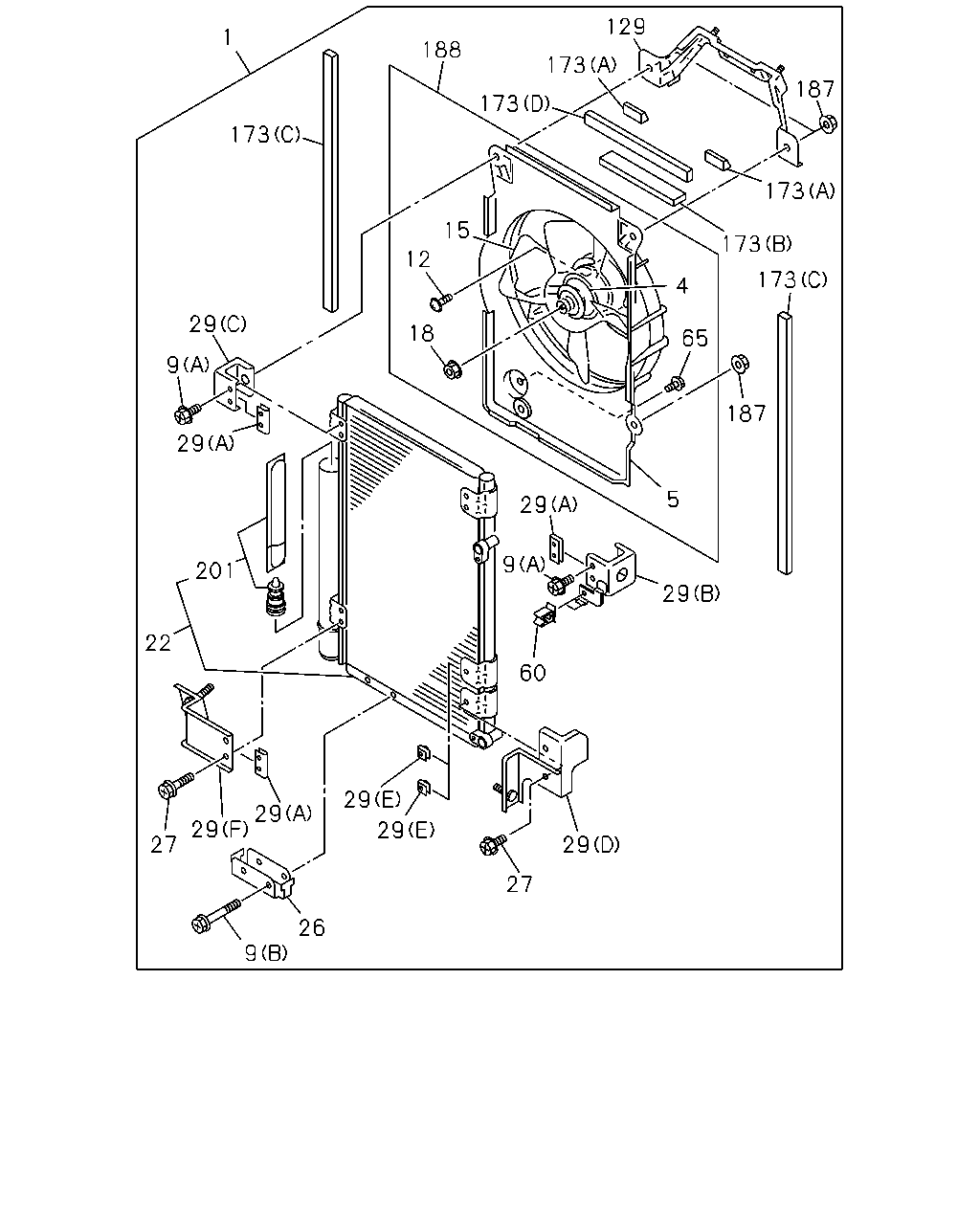

çizim 170472
173 1 188 173 173 129 187 173 173 4 65 173 187 5 9 29 18 12 15 29 9 29 201 22 29 29 27 26 29 29 60 29 29 27 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C 8-98076-090-0 01 1 1008-1201 ● ●
1 CONDENSER; A/C 8-98212-672-0 01 1 1202-1410 ● ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98220-337-0 01 1 1411- ● ●
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98304-642-0 01 1 1411- ● ●
4 MOTOR ASM; FAN 8-98078-763-0 01 1 1008-1410 ● ●
5 SHROUD; FAN MOTOR 8-98076-093-0 01 1 1008-1410 ● ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-093-0 01 1 1411- ● ●
9 BOLT; BRKT
(A) M6X16 		8-97096-525-0 04 1 1008-1410 ● ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16 		8-97096-525-0 04 1 1411- ● ●
9 BOLT; BRKT
(B) M5X25 		8-97178-770-0 02 1 1008-1410 ● ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X25 		8-97178-770-0 02 1 1411- ● ●
12 BOLT; FAN MOTOR 1-83539-314-0 03 1 1008-1410 ● ●
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-314-0 03 1 1411- ● ●
15 FAN; MOTOR 8-98076-092-0 01 1 1008-1410 ● ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-092-0 01 1 1411- ● ●
18 NUT; FAN,CENTER 1-83539-313-0 01 1 1008-1410 ● ●
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-313-0 01 1 1411- ● ●
22 CONDENSER ASM; A/C 1-83534-245-1 01 1 1008-1410 ● ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-245-1 01 1 1411- ● ●
26 BRACKET; LOW 1-83573-205-0 01 1 1008-1410 ● ●
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-205-0 01 1 1411- ● ●
27 BOLT; BRKT,LOW SIDE
M6X16 		8-97096-525-0 04 1 1008-1410 ● ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 		8-97096-525-0 04 1 1411- ● ●
29 BRACKET; SIDE
(A) 		1-83573-010-0 03 1 1008-1410 ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-010-0 03 1 1411- ● ●
29 BRACKET; SIDE
(B) 		1-83573-125-0 01 1 1008-1410 ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-125-0 01 1 1411- ● ●
29 BRACKET; SIDE
(C) 		1-83573-126-0 01 1 1008-1410 ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83573-126-0 01 1 1411- ● ●
29 BRACKET; SIDE
(D) 		1-83573-204-0 01 1 1008-1410 ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83573-204-0 01 1 1411- ● ●
29 BRACKET; SIDE
(F) 		1-83573-213-0 01 1 1008-1410 ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-83573-213-0 01 1 1411- ● ●
29 BRACKET; SIDE
(E) 		8-97180-263-0 02 1 1008-1410 ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		8-97180-263-0 02 1 1411- ● ●
60 CLIP; PIPE 1-83574-266-0 01 1 1008-1410 ● ●
60 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-266-0 01 1 1411- ● ●
65 BOLT; SHROUD
M6X16 		8-97096-525-0 01 1 1008-1410 ● ●
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 		8-97096-525-0 01 1 1411- ● ●
129 BRACKET; UPR 1-83573-129-0 01 1 1008-1201 ● ●
129 BRACKET; UPR 8-98212-673-0 01 1 1202-1410 ● ●
129 BRACKET; UPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-129-1 01 1 1411- ● ●
173 INSULATOR; CONDENSER
(A) 		8-98213-043-0 02 1 1202-1410 ● ●
173 INSULATOR; CONDENSER
(B) 		8-98213-044-0 01 1 1202-1410 ● ●
173 INSULATOR; CONDENSER
(C) 		8-98213-045-0 02 1 1202-1410 ● ●
173 INSULATOR; CONDENSER
(D) 		8-98213-046-0 01 1 1202-1410 ● ●
187 NUT; SHROUD
M6 		1-83539-354-0 04 1 1008-1410 ● ●
187 NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6 		1-83539-354-0 04 1 1411- ● ●
188 BLOWER ASM; SHROUD 8-98078-760-1 01 1 1008-1410 ● ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98228-443-0 01 1 1411- ● ●
201 DRYER ASM; CONDENSER 1-83535-098-0 01 1 1008-1410 ● ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-098-0 01 1 1411- ● ●

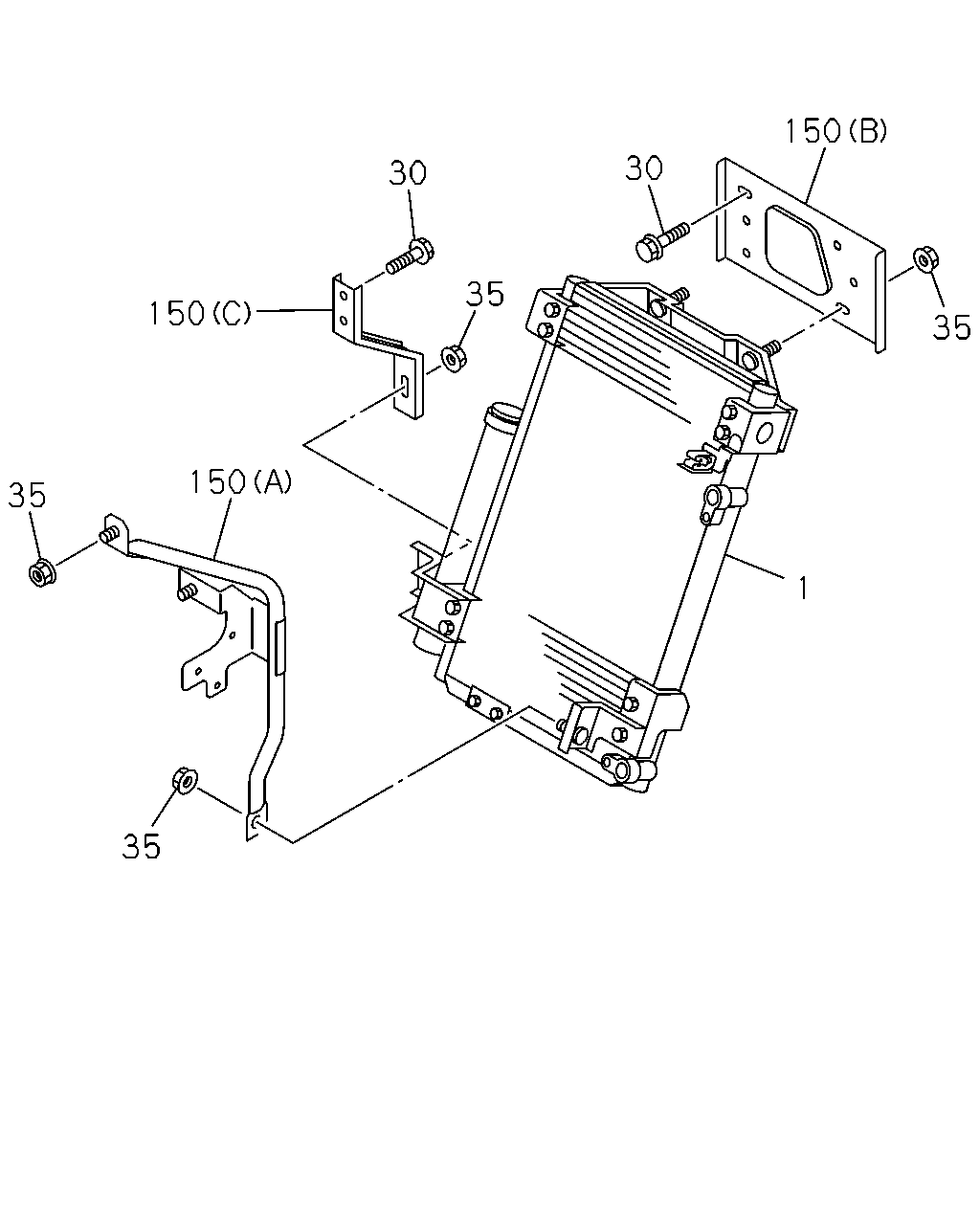

çizim 170480
30 30 150 35 1 150 150 35 35 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C 8-98076-090-0 01 1 1008-1201 ● ●
1 CONDENSER; A/C 8-98212-672-0 01 1 1202-1410 ● ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98220-337-0 01 1 1411- ● ●
30 BOLT; CONDENSER,A/C
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1008-1410 ● ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1411- ● ●
35 NUT; CONDENSER,A/C
M8 FLANGE 		0-91180-108-0 05 1 1008-1410 ● ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 05 1 1411- ● ●
150 BRACKET; CONDENSER,MTG
(A) 		1-83573-136-0 01 1 1008-1410 ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-136-0 01 1 1411- ● ●
150 BRACKET; CONDENSER,MTG
(B) 		1-83573-137-0 01 1 1008-1410 ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-137-0 01 1 1411- ● ●
150 BRACKET; CONDENSER,MTG
(C) 		1-83573-138-0 01 1 1008-1410 ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83573-138-0 01 1 1411- ● ●
