◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10723 - CVR LHD ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#6310) — 93 parça
çizim 9560
240
BalonParca AdiParca NoAdetTipApplied Date
240 REPAIR KIT; AIR CONT GOV 1-85576-303-0 01 1 9905-

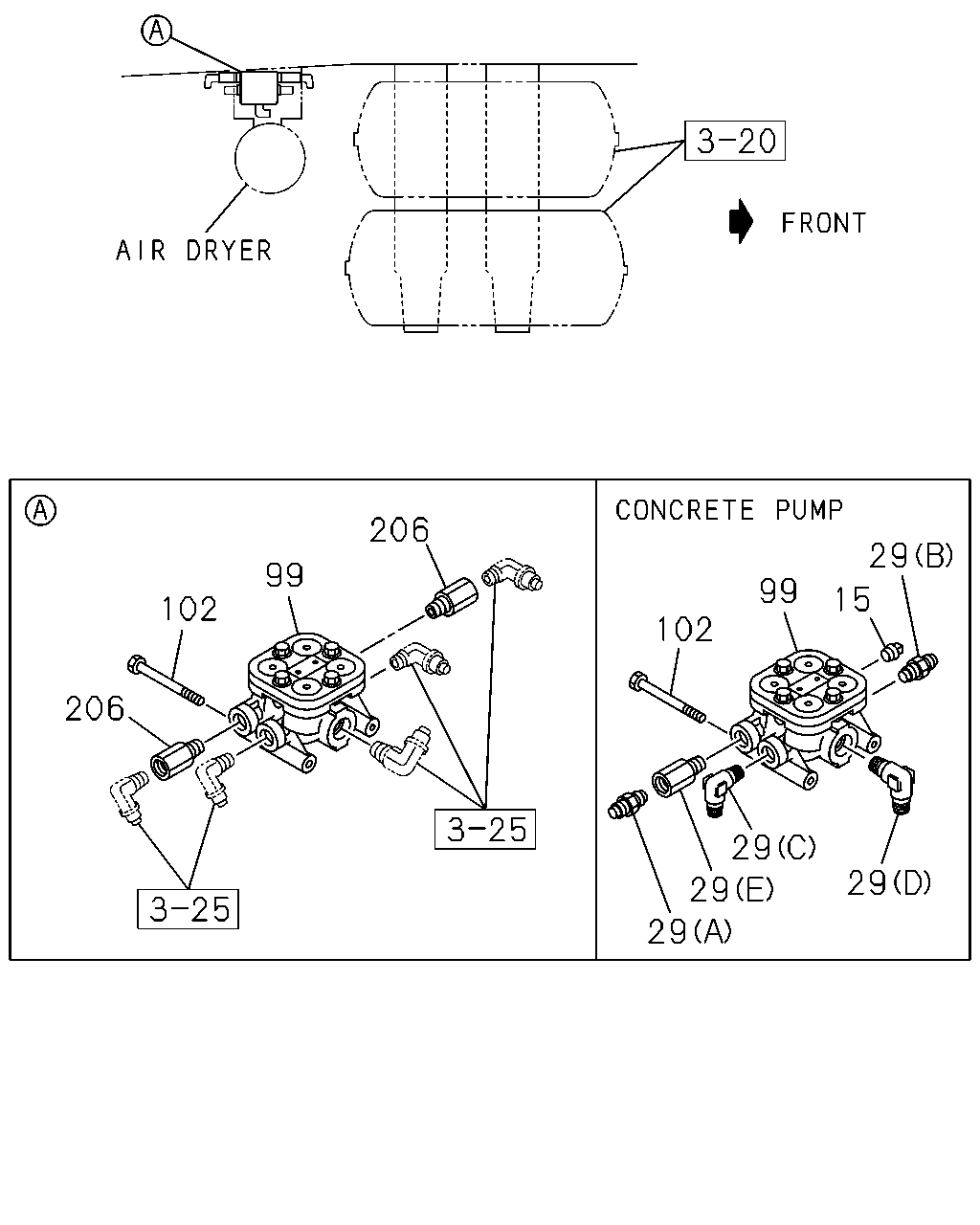

çizim 9708
206 29 99 99 15 102 102 206 29 29 29 29
BalonParca AdiParca NoAdetTipApplied Date
15 PLUG; VALVE
CONCRETE PUMP<RA5> PT3/8 		9-09204-517-0 01 1 9604-
29 CONNECTOR; AIR VLV
CONCRETE PUMP<RA5> (A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 9604-
29 CONNECTOR; AIR VLV
CONCRETE PUMP<RA5> (B) M20 & PT3/8 STRAIGHT 		1-09650-211-1 01 1 9604-
29 CONNECTOR; AIR VLV
CONCRETE PUMP<RA5> (C) M20 & PT3/8 ELBOW 		1-09650-439-0 01 1 9604-
29 CONNECTOR; AIR VLV
CONCRETE PUMP<RA5> (D) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 9604-
29 CONNECTOR; AIR VLV
CONCRETE PUMP<RA5> (E) PT3/8 		1-48319-058-0 01 1 9604-
99 VALVE; PROTECTION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-48110-079-0 01 1 9604-9604
99 VALVE; PROTECTION
CONCRETE PUMP<RA5> 		1-48110-079-0 01 1 9604-9604
99 VALVE; PROTECTION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) '960415- 		1-48110-079-0 01 1 9604-
99 VALVE; PROTECTION
CONCRETE PUMP<RA5> '960415- 		1-48110-079-0 01 1 9604-
102 BOLT; PROTECTION VALVE
M8X30 FLANGE 		0-28080-830-0 02 1 9604-9604
102 BOLT; PROTECTION VALVE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X30 FLANGE 		0-28080-830-0 02 1 9604-9606
102 BOLT; PROTECTION VALVE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X30 FLANGE 		0-28680-830-0 02 1 9607-
206 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) PT3/8 		1-48319-058-0 02 1 9604-9604
206 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) '960415- PT3/8 		1-48319-058-0 02 1 9604-

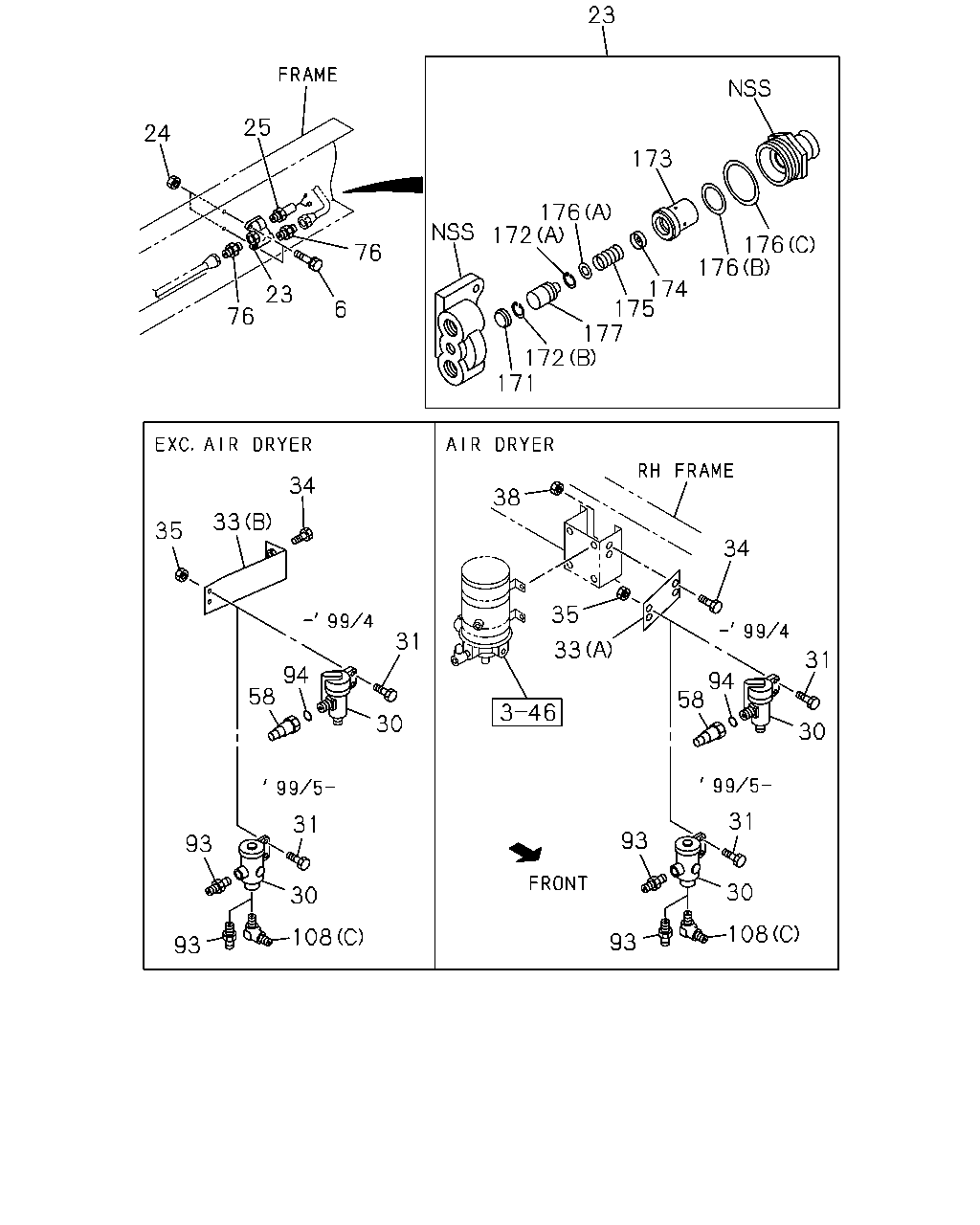

çizim 10881
23 25 24 173 176 172 176 176 76 174 175 177 172 171 23 6 76 34 38 33 35 34 35 31 33 31 94 58 94 58 30 30 31 31 93 93 30 30 108 108 93 93
BalonParca AdiParca NoAdetTipApplied Date
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE 		0-28080-830-0 02 1 9604-9606
6 BOLT; VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE 		0-28680-835-0 02 1 9607-
23 VALVE; PRESSURE CONT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48460-067-1 01 1 9604-
24 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 		9-09110-408-0 02 1 9604-9606
24 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91150-108-0 02 1 9607-
25 SWITCH; PRESSURE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48340-057-1 01 1 9604-
30 GOVERNOR; AIR CONT 1-48350-058-0 01 1 9604-9904
30 GOVERNOR; AIR CONT 1-48350-063-0 01 1 9905-
31 BOLT; GOV TO FRAME
M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28680-830-0 02 1 9607-
33 BRACKET; GOV,AIR CONT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48359-083-1 01 1 9604-9904
33 BRACKET; GOV,AIR CONT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48359-086-0 01 1 9905-
33 BRACKET; GOV,AIR CONT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) 		1-48359-082-2 01 1 9604-9904
33 BRACKET; GOV,AIR CONT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) 		1-48359-085-0 01 1 9905-
34 BOLT; BRKT,GOV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606
34 BOLT; BRKT,GOV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X25 FLANGE 		0-28680-825-0 02 1 9607-
34 BOLT; BRKT,GOV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M10X35 FLANGE 		0-28081-035-0 02 1 9604-9606
34 BOLT; BRKT,GOV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M10X40 FLANGE 		0-28681-040-0 02 1 9607-
35 NUT; GOV TO FRAME
M8 		9-09110-508-0 02 1 9604-9606
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 9607-
38 NUT; BRKT,GOV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8 		9-09110-508-0 02 1 9604-9606
38 NUT; BRKT,GOV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 02 1 9607-
58 ADAPTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M20 STRAIGHT 		1-09660-675-1 02 1 9604-9904
76 CONNECTOR; CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 R1/4 STRAIGHT 		1-09660-647-1 02 1 9604-9904
76 CONNECTOR; CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 9905-
93 CONNECTOR; GOV
CONCRETE PUMP<RA5> M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 9905-9905
93 CONNECTOR; GOV
CONCRETE PUMP<RA5> M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9906-
93 CONNECTOR; GOV
EXC. CONCRETE PUMP<RA5> DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 9905-
94 GASKET; GOV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18 		9-09572-510-0 02 1 9604-9904
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9904
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9604-9904
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9905-
108 CONNECTOR; ELBOW
CONCRETE PUMP<RA5> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9905-
171 FILTER; PRESS CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-88510-330-0 01 1 9604-
172 RING; RETAINING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-31829-081-0 01 1 9604-
172 RING; RETAINING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		9-88510-331-0 01 1 9604-
173 PISTON; PRESS CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48469-103-0 01 1 9604-
174 VALVE; PRESS CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48469-104-1 01 1 9604-
175 SPRING; PRESS CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48469-105-0 01 1 9604-
176 GASKET; PRESS CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-47849-010-0 01 1 9604-
176 GASKET; PRESS CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48212-004-0 01 1 9604-
176 GASKET; PRESS CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		1-48469-107-0 01 1 9604-
177 RETAINER; PRESS CONT VLVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48469-106-0 01 1 9604-

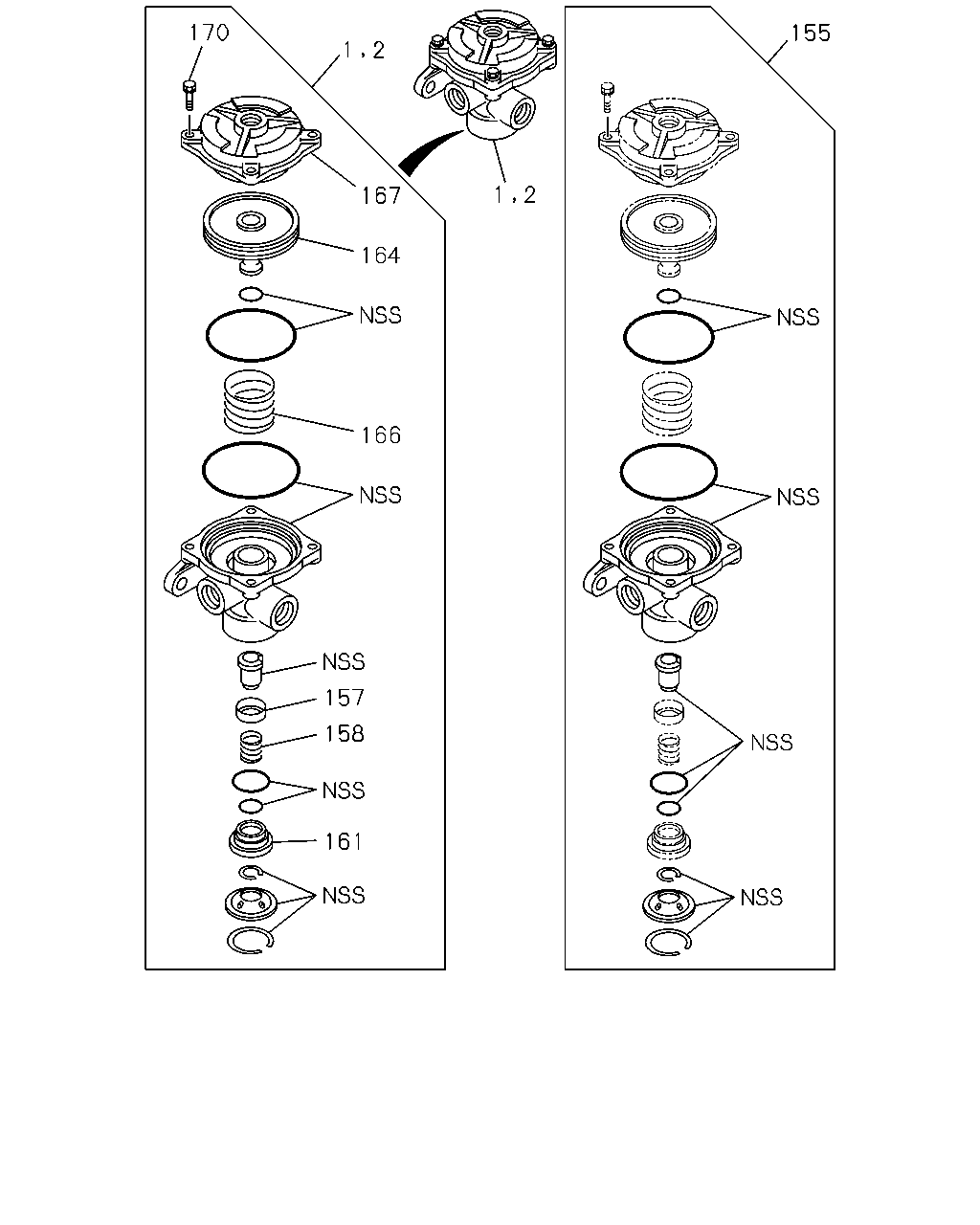

çizim 43002
170 155 2 1 2 1 167 164 166 157 158 161
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48210-278-0 01 1 9604-
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48210-278-0 01 1 9604-
155 REPAIR KIT; RELAY VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-85576-033-0 02 1 9604-
157 RETAINER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48213-002-0 02 1 9604-
158 SPRING; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47819-089-0 02 1 9604-
161 GUIDE; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48129-014-0 02 1 9604-
164 PISTON; RELAY VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48219-071-0 02 1 9604-
166 SPRING; PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47819-090-0 02 1 9604-
167 COVER; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48219-070-0 02 1 9604-
170 SCREW; COVER TO BODY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48219-039-0 08 1 9604-

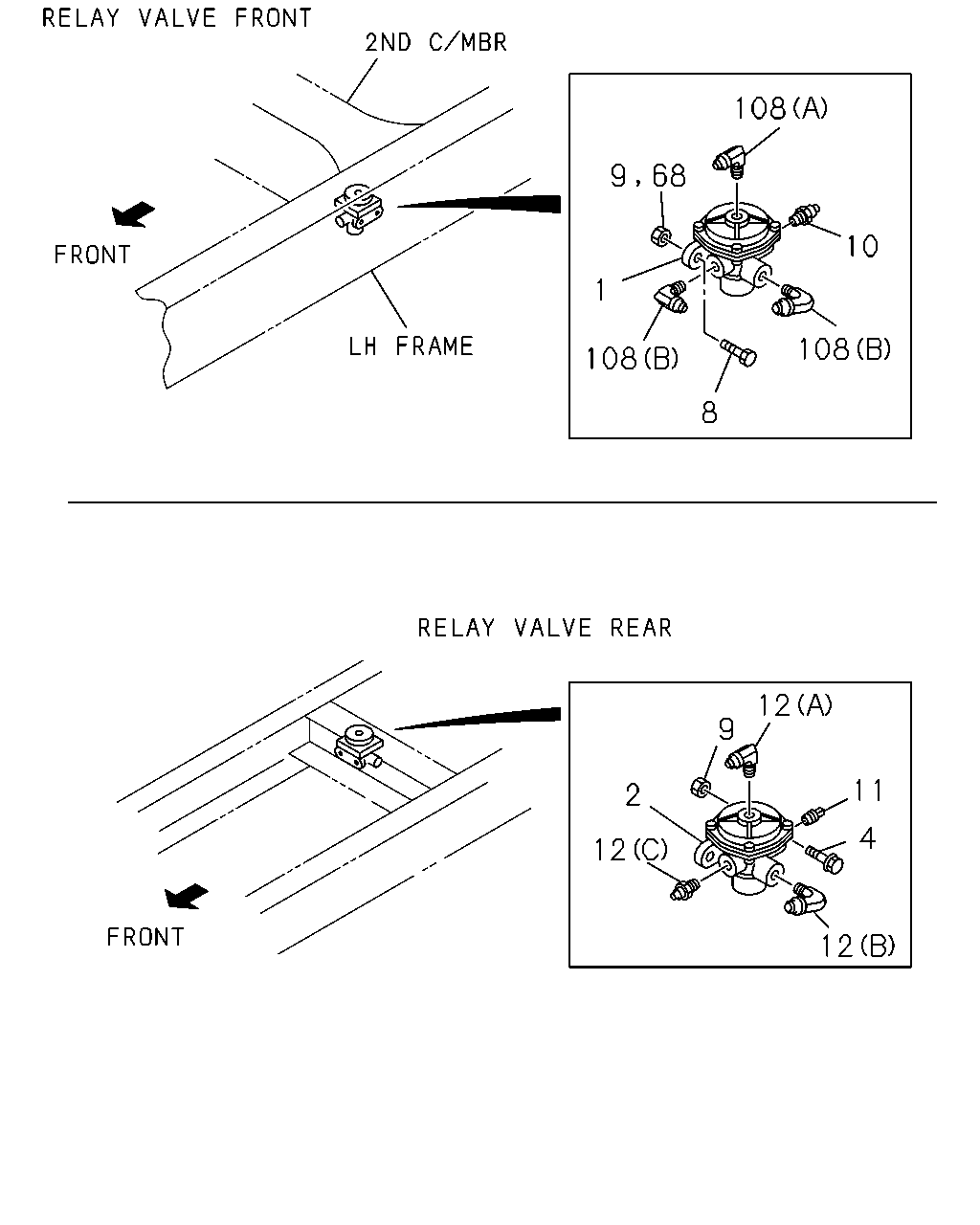

çizim 43060
108 68 10 1 108 108 8 12 9 11 2 4 12 12 9
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48210-278-0 01 1 9604-
2 VALVE; RELAY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48210-278-0 01 1 9604-
4 BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE 		0-28081-030-0 02 1 9604-9606
4 BOLT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE 		0-28681-035-0 02 1 9607-
8 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X40 FLANGE 		0-28081-040-0 02 1 9604-9606
8 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X40 FLANGE 		0-28681-040-0 02 1 9607-
9 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 		9-09110-510-0 04 1 9604-9606
9 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE 		0-91150-210-0 02 1 9607-
10 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9904
10 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-
11 PLUG
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/2 		9-09204-521-0 01 1 9604-
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9904
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 9604-9904
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 9905-
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 9604-9904
12 CONNECTOR; RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 9905-
68 NUT; RELAY VLV TO BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE 		0-91150-210-0 02 1 9607-
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9604-9904
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R1/2 ELBOW 		1-09660-654-1 02 1 9604-9904
108 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 9905-
108 CONNECTOR; ELBOW
CONCRETE PUMP<RA5> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9905-
