Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#63096) — 172 parça

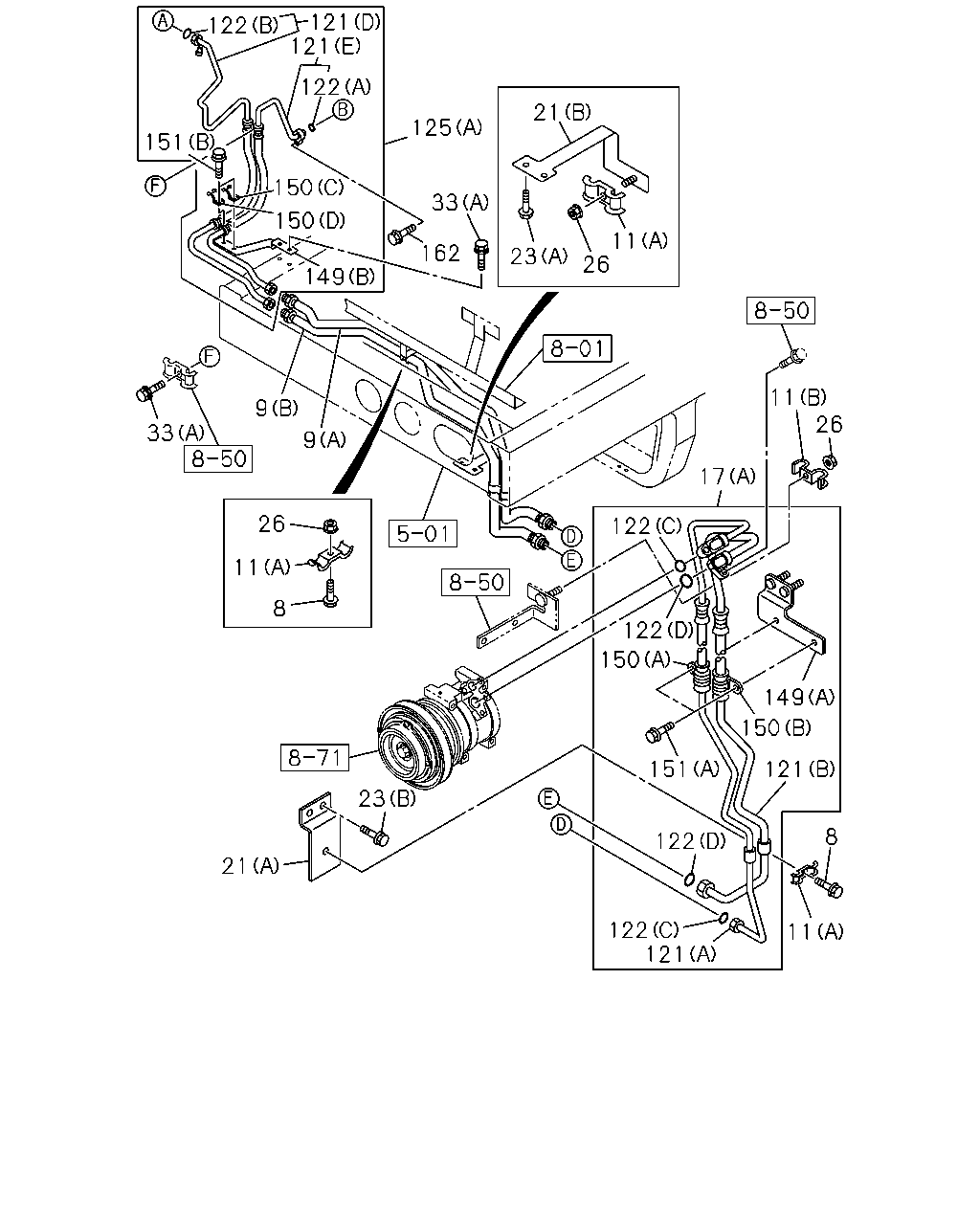

121 11 122 122 121 8 151 150 149 150 122 122 17 26 11 23 21 8 11 26 9 9 33 149 162 23 26 11 21 33 125 150 150 151 122 121 121 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1008-1410	●	●
9	PIPE; COOLER,HOSE TO HOSE (A)	1-83577-059-0	01	1	1008-1410	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98233-443-0	01	1	1411-	●	●
9	PIPE; COOLER,HOSE TO HOSE (B)	1-83577-060-0	01	1	1008-1410	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98233-444-0	01	1	1411-	●	●
11	CLIP; COOLER PIPE (A) ID=20 & 20	1-83574-195-1	03	1	1008-1410	●	●
11	CLIP; COOLER PIPE (B) ID=12 & 14.5	1-83574-257-0	01	1	1008-1410	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12 & 14.5	1-83574-257-0	01	1	1411-	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98286-395-0	01	1	1411-	●	●
17	HOSE; FLEX,CMPR TO PIPE (A)	1-83577-058-1	01	1	1008-1410	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98233-440-0	01	1	1411-	●	●
21	BRACKET; COOLER HOSE (A)	1-83573-295-0	01	1	1008-1410	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98233-463-0	01	1	1411-	●	●
21	BRACKET; COOLER HOSE MJT7S M/T(Y3E) (B)	1-83573-202-0	01	1	1008-1410	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98227-084-0	01	1	1411-	●	●
21	BRACKET; COOLER HOSE MJX16P M/T(Y3Z) (B)	1-83573-282-1	01	1	1008-1209	●	●
21	BRACKET; COOLER HOSE MJX16P M/T(Y3Z) (B)	1-83573-282-1	01	1	1210-1410		●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98239-925-0	01	1	1411-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X25 FLANGE	0-28651-025-0	02	1	1411-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1411-	●	●
23	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	1008-1410	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M8X25 FLANGE	0-28650-825-0	01	1	1411-	●	●
23	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1008-1410	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28650-825-0	02	1	1411-	●	●
26	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	1008-1410	●	●
26	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	1008-1410	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28650-825-0	02	1	1411-	●	●
33	BOLT; CLIP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1008-1410	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1411-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE> (H)	8-98290-738-0	01	1	1411-	●	●
121	HOSE; COOLER (C)	1-83567-795-0	01	1	1008-1410	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98233-361-0	01	1	1411-	●	●
121	HOSE; COOLER (D)	1-83572-801-1	01	1	1008-1410	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (F)	8-98241-660-0	01	1	1411-	●	●
121	HOSE; COOLER (E)	1-83572-802-1	01	1	1008-1410	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (G)	8-98241-661-0	01	1	1411-	●	●
121	HOSE; COOLER (A)	1-83577-066-0	01	1	1008-1410	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (H)	8-98242-700-0	01	1	1411-	●	●
121	HOSE; COOLER (B)	1-83577-067-0	01	1	1008-1410	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (I)	8-98242-701-0	01	1	1411-	●	●
122	GASKET (A) ID=11.7	1-83539-317-0	02	1	1008-1410	●	●
122	GASKET (B) ID=14.5	1-83539-324-0	02	1	1008-1410	●	●
122	GASKET (C) ID=11.7	8-97095-907-0	02	1	1008-1410	●	●
122	GASKET (D) ID=14.5	8-97095-908-0	02	1	1008-1410	●	●
125	HOSE; FLEX,UNIT TO CMPR (A)	1-83572-704-2	01	1	1008-1410	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98247-291-0	01	1	1411-	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98243-874-0	01	1	1411-	●	●
149	BRACKET; COOLER HOSE (B)	1-83573-206-1	01	1	1008-1410	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-206-1	01	1	1411-	●	●
149	BRACKET; COOLER HOSE (A)	1-83573-255-0	01	1	1008-1410	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98232-117-0	01	1	1411-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE> (E) ID=20 & 20	1-83574-195-1	01	1	1411-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (E)	1-83574-288-0	01	1	1411-	●	●
150	CLIP; HOSE (A)	1-83574-249-0	01	1	1008-1410	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-249-0	01	1	1411-	●	●
150	CLIP; HOSE (C)	1-83574-254-0	01	1	1008-1410	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83574-254-0	01	1	1411-	●	●
150	CLIP; HOSE (D)	1-83574-255-0	01	1	1008-1410	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83574-255-0	01	1	1411-	●	●
150	CLIP; HOSE (B)	1-83574-264-0	01	1	1008-1410	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-264-0	01	1	1411-	●	●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE> (A)	1-83575-098-0	02	1	1411-	●	●
151	BOLT; CLIP FIX,COOLER HOSE (B)	1-83539-336-0	02	1	1008-1410	●	●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-336-0	02	1	1411-	●	●
151	BOLT; CLIP FIX,COOLER HOSE (A)	1-83578-098-0	02	1	1008-1410	●	●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	1-83578-098-0	02	1	1411-	●	●
162	BOLT; FLEX HOSE M6X25 FLANGE	0-28050-625-0	02	1	1008-1410	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	02	1	1411-	●	●

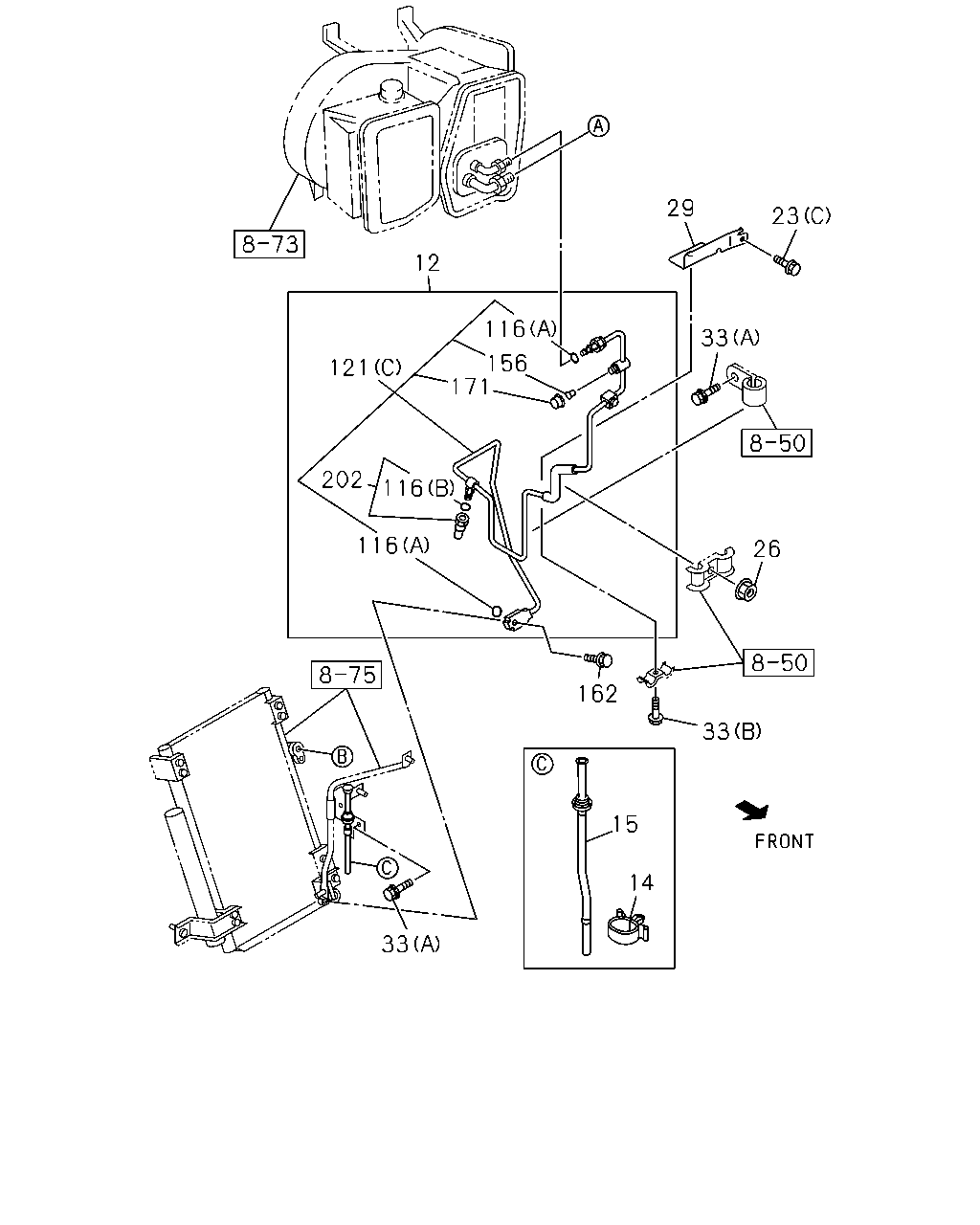

12 29 23 33 116 156 121 171 26 116 202 116 162 33 15 14 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	PIPE; COOLER,EVAP TO TANK	1-83567-718-3	01	1	1008-1410	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	8-98228-386-0	01	1	1411-	●	●
14	CLIP; BAND,EVAP DRAIN HOSE ID=20	8-94410-200-0	01	1	1008-1410	●	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	1411-	●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41)	1-83572-412-0	01	1	1411-	●	●
15	HOSE; DRAIN	1-83572-635-0	01	1	1008-1410	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-635-0	01	1	1411-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X25 FLANGE	0-28651-025-0	02	1	1411-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1411-	●	●
23	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	1008-1410	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M8X25 FLANGE	0-28650-825-0	01	1	1411-	●	●
23	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1008-1410	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28650-825-0	02	1	1411-	●	●
26	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	1008-1410	●	●
26	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	1008-1410	●	●
29	BRACKET; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98228-480-1	01	1	1411-	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28650-825-0	02	1	1411-	●	●
33	BOLT; CLIP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1008-1410	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1411-	●	●
116	GASKET; PIPE (A) ID=7.4	8-97095-906-0	02	1	1008-1410	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	02	1	1411-	●	●
116	GASKET; PIPE (B)	8-97178-772-0	01	1	1008-1410	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97178-772-0	01	1	1411-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE> (H)	8-98290-738-0	01	1	1411-	●	●
121	HOSE; COOLER (C)	1-83567-795-0	01	1	1008-1410	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98233-361-0	01	1	1411-	●	●
121	HOSE; COOLER (D)	1-83572-801-1	01	1	1008-1410	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (F)	8-98241-660-0	01	1	1411-	●	●
121	HOSE; COOLER (E)	1-83572-802-1	01	1	1008-1410	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (G)	8-98241-661-0	01	1	1411-	●	●
121	HOSE; COOLER (A)	1-83577-066-0	01	1	1008-1410	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (H)	8-98242-700-0	01	1	1411-	●	●
121	HOSE; COOLER (B)	1-83577-067-0	01	1	1008-1410	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (I)	8-98242-701-0	01	1	1411-	●	●
156	VALVE; PIPE	8-97095-909-0	01	1	1008-1410	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	1411-	●	●
162	BOLT; FLEX HOSE M6X25 FLANGE	0-28050-625-0	02	1	1008-1410	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	02	1	1411-	●	●
171	CAP; PIPE CAP MARK H	8-97095-911-0	01	1	1008-1410	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	1411-	●	●
202	SWITCH; PRESSURE	1-83564-392-1	01	1	1008-1410	●	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-392-1	01	1	1411-	●	●

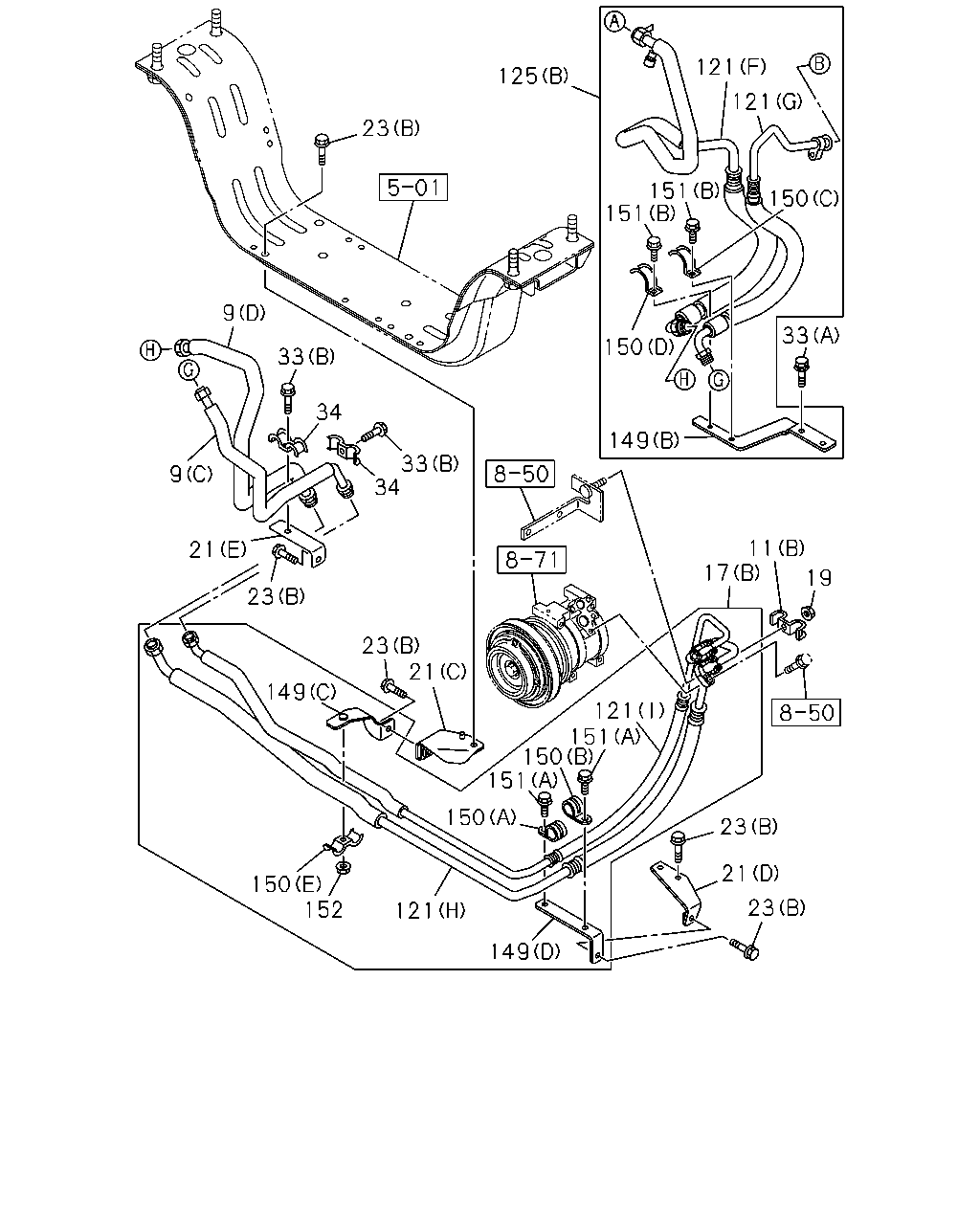

23 125 9 33 34 9 21 23 34 33 149 23 21 150 152 121 149 23 21 23 150 151 150 151 121 17 11 19 149 150 33 151 151 121 150 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	PIPE; COOLER,HOSE TO HOSE (A)	1-83577-059-0	01	1	1008-1410	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98233-443-0	01	1	1411-	●	●
9	PIPE; COOLER,HOSE TO HOSE (B)	1-83577-060-0	01	1	1008-1410	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98233-444-0	01	1	1411-	●	●
11	CLIP; COOLER PIPE (A) ID=20 & 20	1-83574-195-1	03	1	1008-1410	●	●
11	CLIP; COOLER PIPE (B) ID=12 & 14.5	1-83574-257-0	01	1	1008-1410	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12 & 14.5	1-83574-257-0	01	1	1411-	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98286-395-0	01	1	1411-	●	●
17	HOSE; FLEX,CMPR TO PIPE (A)	1-83577-058-1	01	1	1008-1410	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98233-440-0	01	1	1411-	●	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1411-	●	●
21	BRACKET; COOLER HOSE (A)	1-83573-295-0	01	1	1008-1410	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98233-463-0	01	1	1411-	●	●
21	BRACKET; COOLER HOSE MJT7S M/T(Y3E) (B)	1-83573-202-0	01	1	1008-1410	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98227-084-0	01	1	1411-	●	●
21	BRACKET; COOLER HOSE MJX16P M/T(Y3Z) (B)	1-83573-282-1	01	1	1008-1209	●	●
21	BRACKET; COOLER HOSE MJX16P M/T(Y3Z) (B)	1-83573-282-1	01	1	1210-1410		●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (E)	8-98239-925-0	01	1	1411-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X25 FLANGE	0-28651-025-0	02	1	1411-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	1411-	●	●
23	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	1008-1410	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M8X25 FLANGE	0-28650-825-0	01	1	1411-	●	●
23	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1008-1410	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28650-825-0	02	1	1411-	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28650-825-0	02	1	1411-	●	●
33	BOLT; CLIP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1008-1410	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1411-	●	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	02	1	1411-	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE> (H)	8-98290-738-0	01	1	1411-	●	●
121	HOSE; COOLER (C)	1-83567-795-0	01	1	1008-1410	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98233-361-0	01	1	1411-	●	●
121	HOSE; COOLER (D)	1-83572-801-1	01	1	1008-1410	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (F)	8-98241-660-0	01	1	1411-	●	●
121	HOSE; COOLER (E)	1-83572-802-1	01	1	1008-1410	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (G)	8-98241-661-0	01	1	1411-	●	●
121	HOSE; COOLER (A)	1-83577-066-0	01	1	1008-1410	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (H)	8-98242-700-0	01	1	1411-	●	●
121	HOSE; COOLER (B)	1-83577-067-0	01	1	1008-1410	●	●
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (I)	8-98242-701-0	01	1	1411-	●	●
125	HOSE; FLEX,UNIT TO CMPR (A)	1-83572-704-2	01	1	1008-1410	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98247-291-0	01	1	1411-	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98243-874-0	01	1	1411-	●	●
149	BRACKET; COOLER HOSE (B)	1-83573-206-1	01	1	1008-1410	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-206-1	01	1	1411-	●	●
149	BRACKET; COOLER HOSE (A)	1-83573-255-0	01	1	1008-1410	●	●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98232-117-0	01	1	1411-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE> (E) ID=20 & 20	1-83574-195-1	01	1	1411-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (E)	1-83574-288-0	01	1	1411-	●	●
150	CLIP; HOSE (A)	1-83574-249-0	01	1	1008-1410	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-249-0	01	1	1411-	●	●
150	CLIP; HOSE (C)	1-83574-254-0	01	1	1008-1410	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83574-254-0	01	1	1411-	●	●
150	CLIP; HOSE (D)	1-83574-255-0	01	1	1008-1410	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83574-255-0	01	1	1411-	●	●
150	CLIP; HOSE (B)	1-83574-264-0	01	1	1008-1410	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-264-0	01	1	1411-	●	●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE> (A)	1-83575-098-0	02	1	1411-	●	●
151	BOLT; CLIP FIX,COOLER HOSE (B)	1-83539-336-0	02	1	1008-1410	●	●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-336-0	02	1	1411-	●	●
151	BOLT; CLIP FIX,COOLER HOSE (A)	1-83578-098-0	02	1	1008-1410	●	●
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	1-83578-098-0	02	1	1411-	●	●
152	NUT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8	1-83539-319-0	01	1	1411-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
