8-45 — HEATER PIPING (#63094) — 43 parça

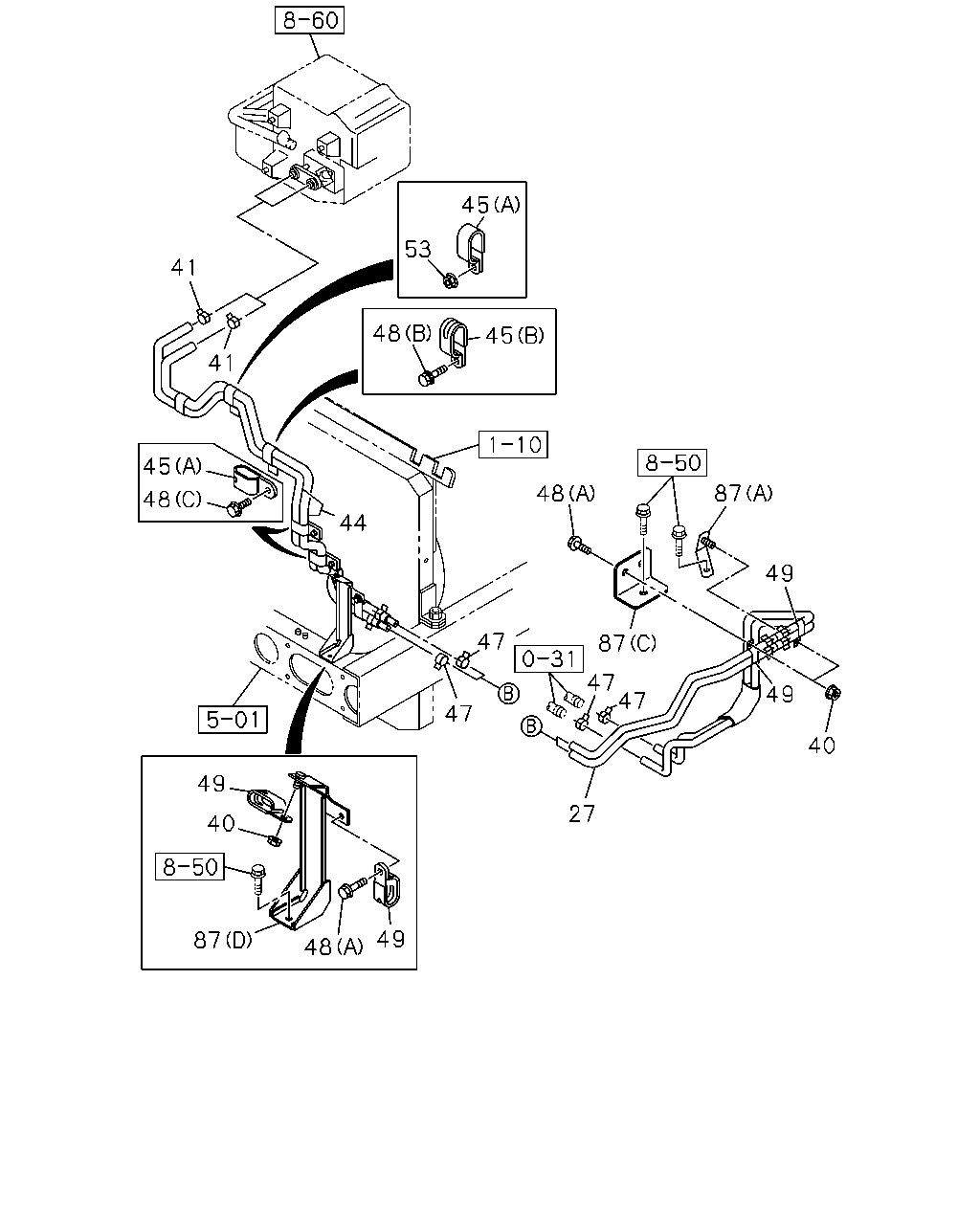

41 41 45 53 45 48 45 48 48 49 40 44 47 47 48 87 87 49 49 40 48 86 47 47 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE	1-83565-802-3	01	1	1008-1410	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE	8-98223-223-1	01	1	1411-	●	●
40	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1008-	●	●
41	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	02	1	1008-	●	●
44	HOSE; WATER,HTR,INL	8-98052-676-2	01	1	1008-1410	●	●
44	HOSE; WATER,HTR,INL	8-98226-524-2	01	1	1411-	●	●
45	CLIP; WATER PIPE (B) WO/SCREW	1-09701-143-1	01	1	1008-	●	●
45	CLIP; WATER PIPE (A)	1-09701-238-0	03	1	1008-1410	●	●
45	CLIP; WATER PIPE (A)	1-09701-238-0	02	1	1411-	●	●
47	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	04	1	1008-	●	●
48	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	1411-	●	●
48	BOLT; CLIP FIX (B) M8X25 FLANGE	0-28650-825-0	01	1	1008-1410	●	●
48	BOLT; CLIP FIX (C) M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	1008-1410	●	●
48	BOLT; CLIP FIX (C) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	1411-	●	●
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	03	1	1008-1410	●	●
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	04	1	1411-	●	●
53	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
86	CLIP; HTR HOSE	1-83573-076-0	01	1	1008-1410	●	●
87	BRACKET; HTR HOSE CLIP (C)	8-98239-443-0	01	1	1411-	●	●
87	BRACKET; HTR HOSE CLIP (B)	1-82698-358-0	01	1	1008-1410	●	●
87	BRACKET; HTR HOSE CLIP (D)	8-98225-548-0	01	1	1411-	●	●
87	BRACKET; HTR HOSE CLIP (A)	1-83573-251-1	01	1	1008-	●	●

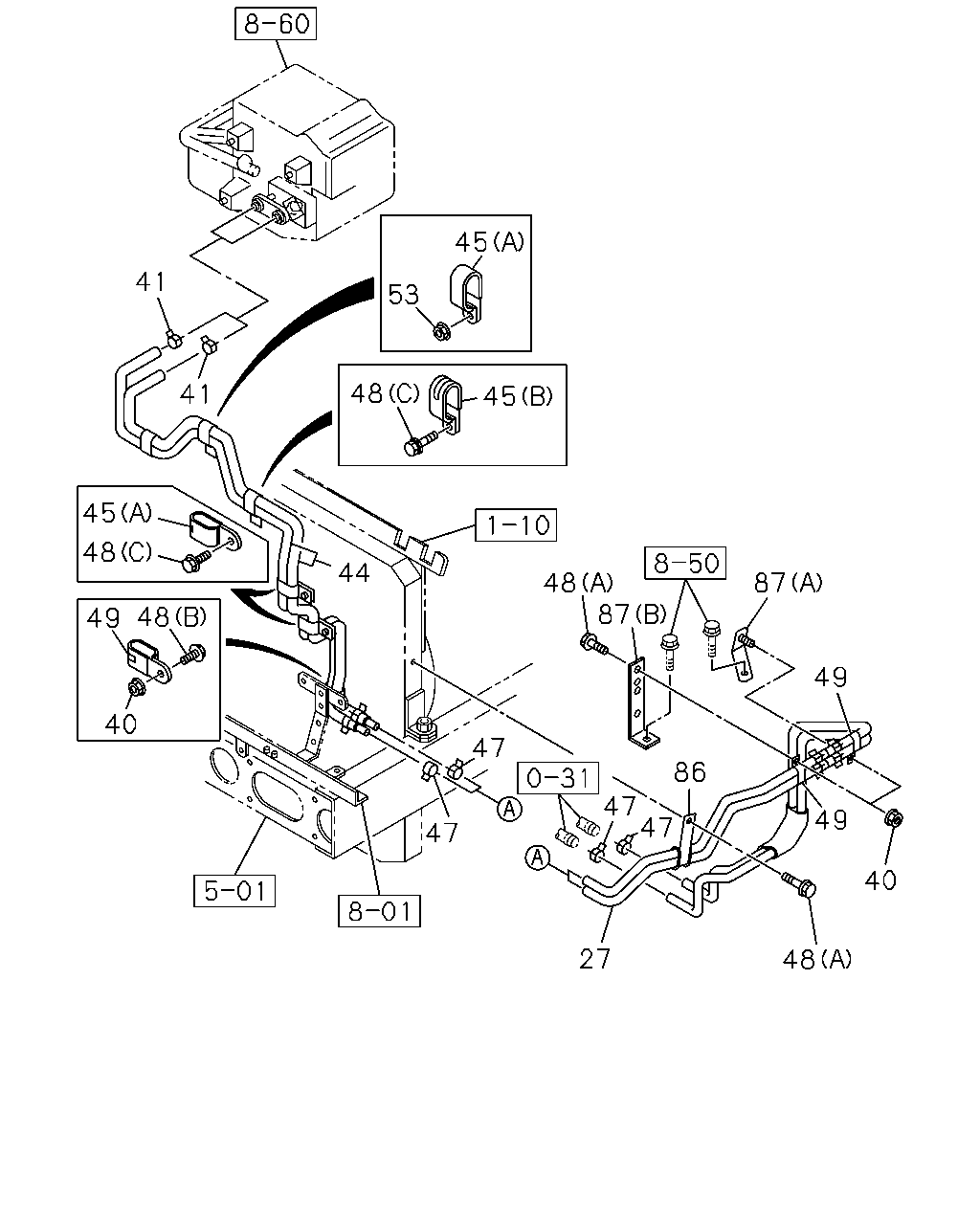

41 41 45 48 45 53 48 45 44 48 87 49 49 40 87 47 47 47 47 27 49 40 87 48 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE	1-83565-802-3	01	1	1008-1410	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE	8-98223-223-1	01	1	1411-	●	●
40	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1008-	●	●
41	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	02	1	1008-	●	●
44	HOSE; WATER,HTR,INL	8-98052-676-2	01	1	1008-1410	●	●
44	HOSE; WATER,HTR,INL	8-98226-524-2	01	1	1411-	●	●
45	CLIP; WATER PIPE (B) WO/SCREW	1-09701-143-1	01	1	1008-	●	●
45	CLIP; WATER PIPE (A)	1-09701-238-0	03	1	1008-1410	●	●
45	CLIP; WATER PIPE (A)	1-09701-238-0	02	1	1411-	●	●
47	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	04	1	1008-	●	●
48	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	1411-	●	●
48	BOLT; CLIP FIX (B) M8X25 FLANGE	0-28650-825-0	01	1	1008-1410	●	●
48	BOLT; CLIP FIX (C) M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	1008-1410	●	●
48	BOLT; CLIP FIX (C) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	1411-	●	●
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	03	1	1008-1410	●	●
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	04	1	1411-	●	●
53	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	01	1	1008-	●	●
87	BRACKET; HTR HOSE CLIP (C)	8-98239-443-0	01	1	1411-	●	●
87	BRACKET; HTR HOSE CLIP (B)	1-82698-358-0	01	1	1008-1410	●	●
87	BRACKET; HTR HOSE CLIP (D)	8-98225-548-0	01	1	1411-	●	●
87	BRACKET; HTR HOSE CLIP (A)	1-83573-251-1	01	1	1008-	●	●
