◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#63091) — 57 parça

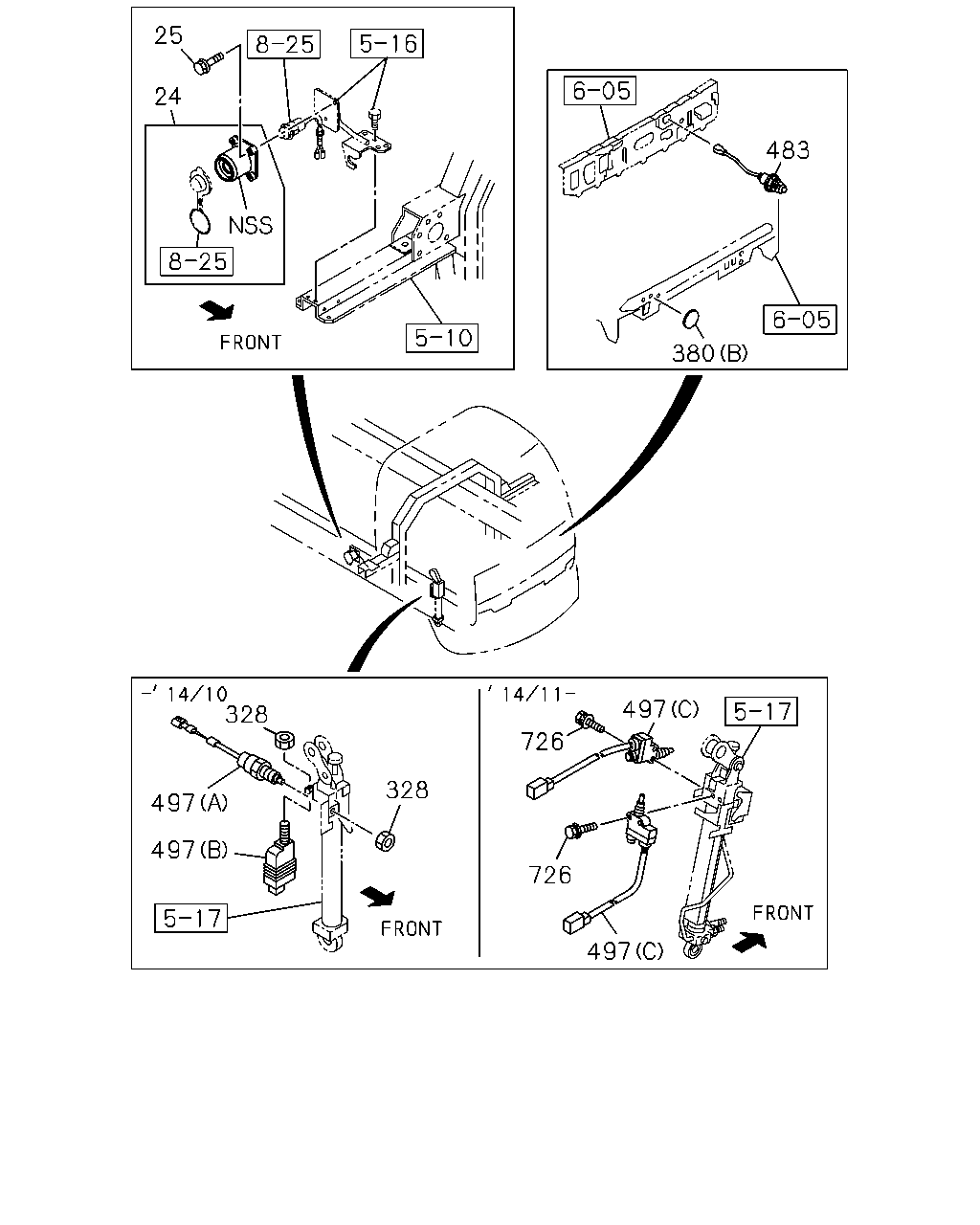

çizim 170427
25 24 483 380 328 497 497 328 726 497 726 497
BalonParca AdiParca NoAdetTipApplied Date A B
24 BOX; SW,CAB TILT 1-82389-007-1 01 1 1008-1410 ● ●
25 BOLT; SW BOX
M6X16 FLANGE 		0-28050-616-0 02 1 1008-1410 ● ●
328 NUT
M16 		0-91111-516-0 02 1 1008-1410 ● ●
380 SEAL
(A) 450X350 		1-76770-008-0 01 1 1008- ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1008-1210 ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1211-1410 ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1211-1410 ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1411- ● ●
483 SWITCH 8-97632-269-0 01 1 1411- ● ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 1008-1410 ● ●
497 SWITCH; CAB TILT
(C) STAMP NO 		1-82380-172-1 02 1 1411- ● ●
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 1008-1410 ● ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 1411- ● ●

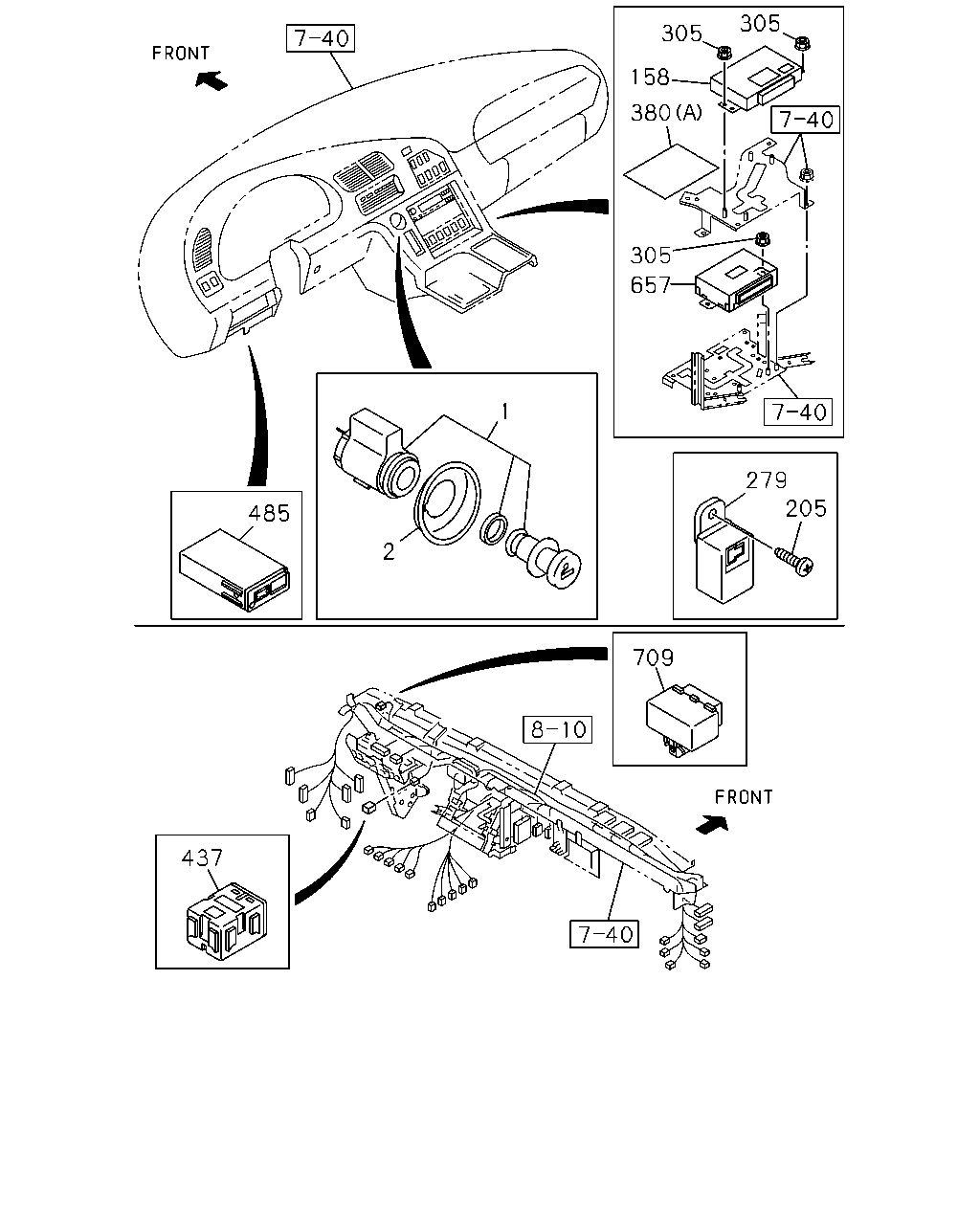

çizim 170464
305 305 158 380 305 657 279 205 709 1 2 485 437
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1008- ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 1008- ● ●
158 CONTROLLER; ABS 1-80119-244-1 01 1 1008-1201 ● ●
158 CONTROLLER; ABS 8-98196-720-0 01 1 1202- ● ●
205 SCREW; BUZZER
M5X14 		8-94279-325-0 01 1 1008- ● ●
279 BUZZER ASM; SEAT BELT WARNING
12V 		5-83460-004-1 01 1 1008- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1008-1008 ● ●
305 NUT; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION<NCR> M6 FLANGE 		0-91180-106-0 02 1 1009-1410 ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 1411- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 1411- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 1008-1410 ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1411- ● ●
305 NUT; CONT UNIT
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) M6 FLANGE 		0-91180-106-0 02 1 1411- ●
380 SEAL
(A) 450X350 		1-76770-008-0 01 1 1008- ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1008-1210 ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1211-1410 ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1211-1410 ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1411- ● ●
437 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 1008- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1008-1008 ● ●
485 CONTROL UNIT; SPEED SENSOR 8-98140-862-0 01 1 1009-1109 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1110- ● ●
657 CONTROL UNIT; MIMAMORI 1-80190-175-0 01 1 1008-1008 ● ●
657 CONTROL UNIT; MIMAMORI
MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-80190-175-0 01 1 1009-1410 ● ●
657 CONTROL UNIT; MIMAMORI 1-80190-175-0 01 1 1411- ● ●
709 RESISTOR; HD LAMP LEVELING 8-97359-130-1 01 1 1008-1410 ● ●

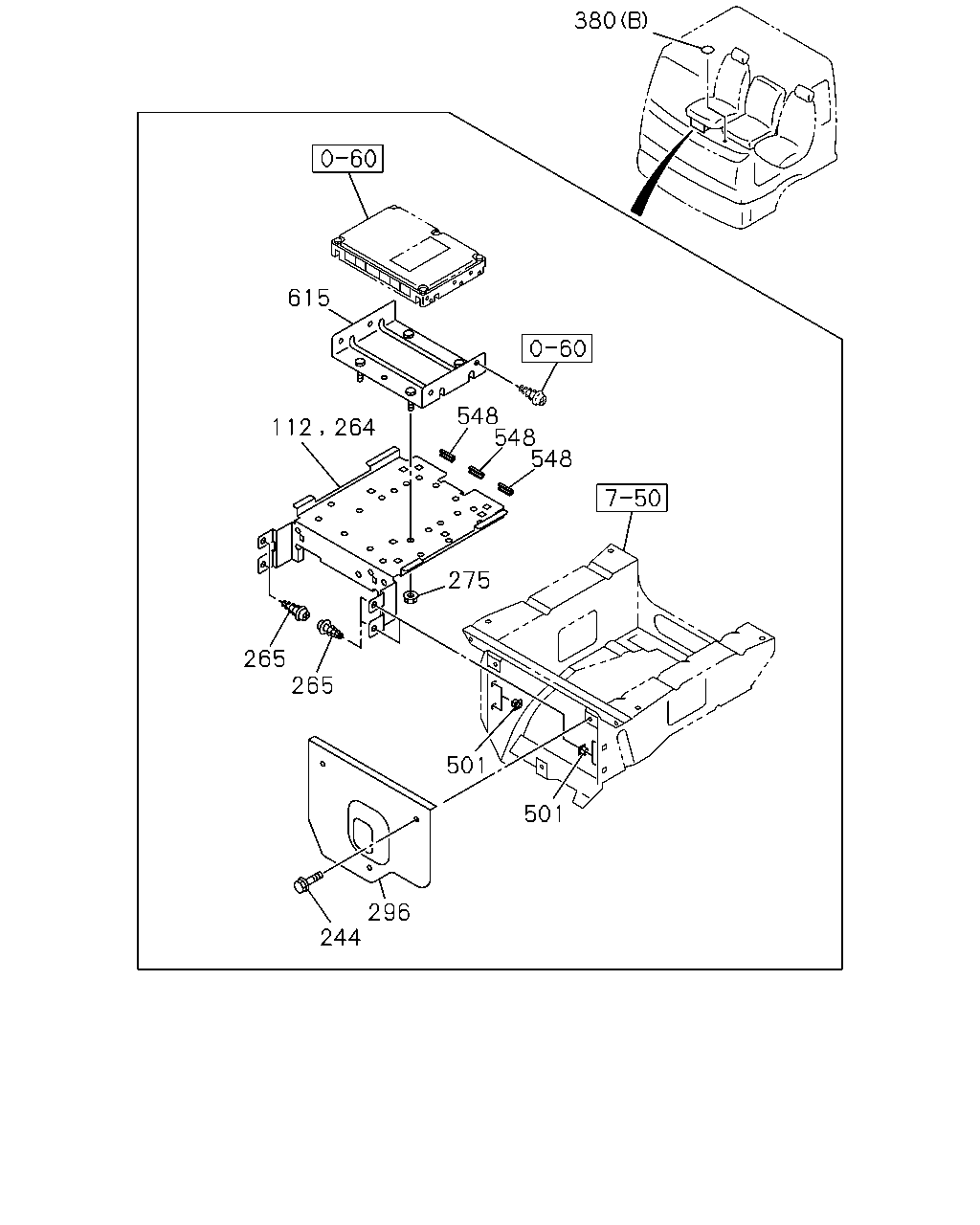

çizim 170470
380 615 264 112 548 548 548 275 265 265 501 501 296 244
BalonParca AdiParca NoAdetTipApplied Date A B
112 BRACKET; CONT UNIT 8-98220-230-0 01 1 1411- ● ●
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 1008- ● ●
264 BRACKET; CONT UNIT 8-97589-038-5 01 1 1008-1410 ● ●
265 SCREW; BRKT,CONT UNIT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 1008- ● ●
275 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 1008-1410 ● ●
296 COVER; CONT UNIT 8-98151-570-0 01 1 1008-1410 ● ●
296 COVER; CONT UNIT 8-98198-760-1 01 1 1411- ● ●
380 SEAL
(A) 450X350 		1-76770-008-0 01 1 1008- ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1008-1210 ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1211-1410 ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1211-1410 ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1411- ● ●
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 1008- ● ●
548 SEAL; NOISE
30X30 		8-98142-344-0 03 1 1008-1305 ● ●
548 SEAL; NOISE
30X30 		8-98142-344-0 01 1 1306- ● ●
615 BRACKET; ECU,SEAT STAND 8-97375-194-2 01 1 1411- ● ●

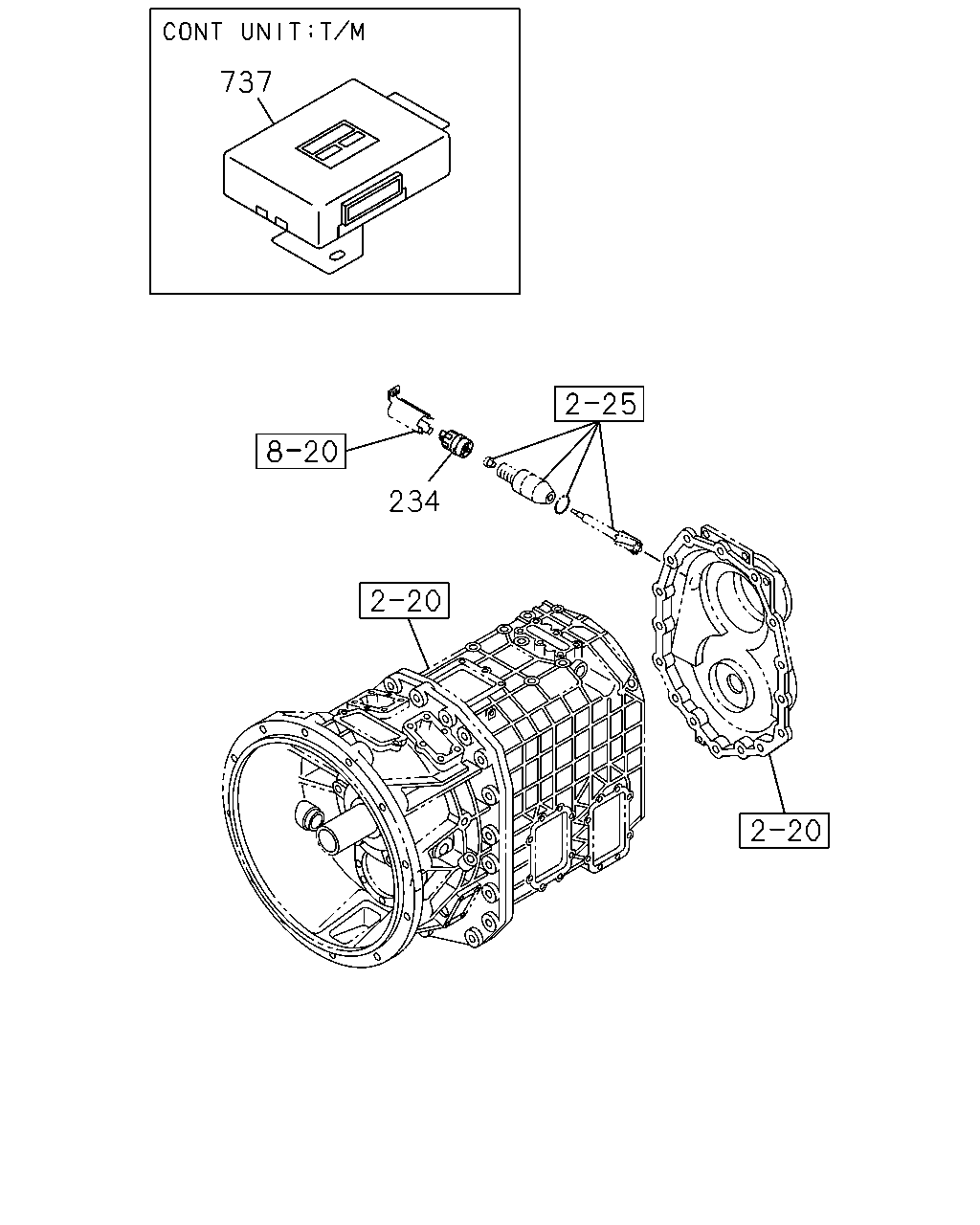

çizim 170493
737 234
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1008- ● ●
737 CONTROL UNIT; TRANSMISSION
MJX16P M/T(Y3Z) 		8-98230-160-0 01 1 1411- ●
