◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#63090) — 77 parça

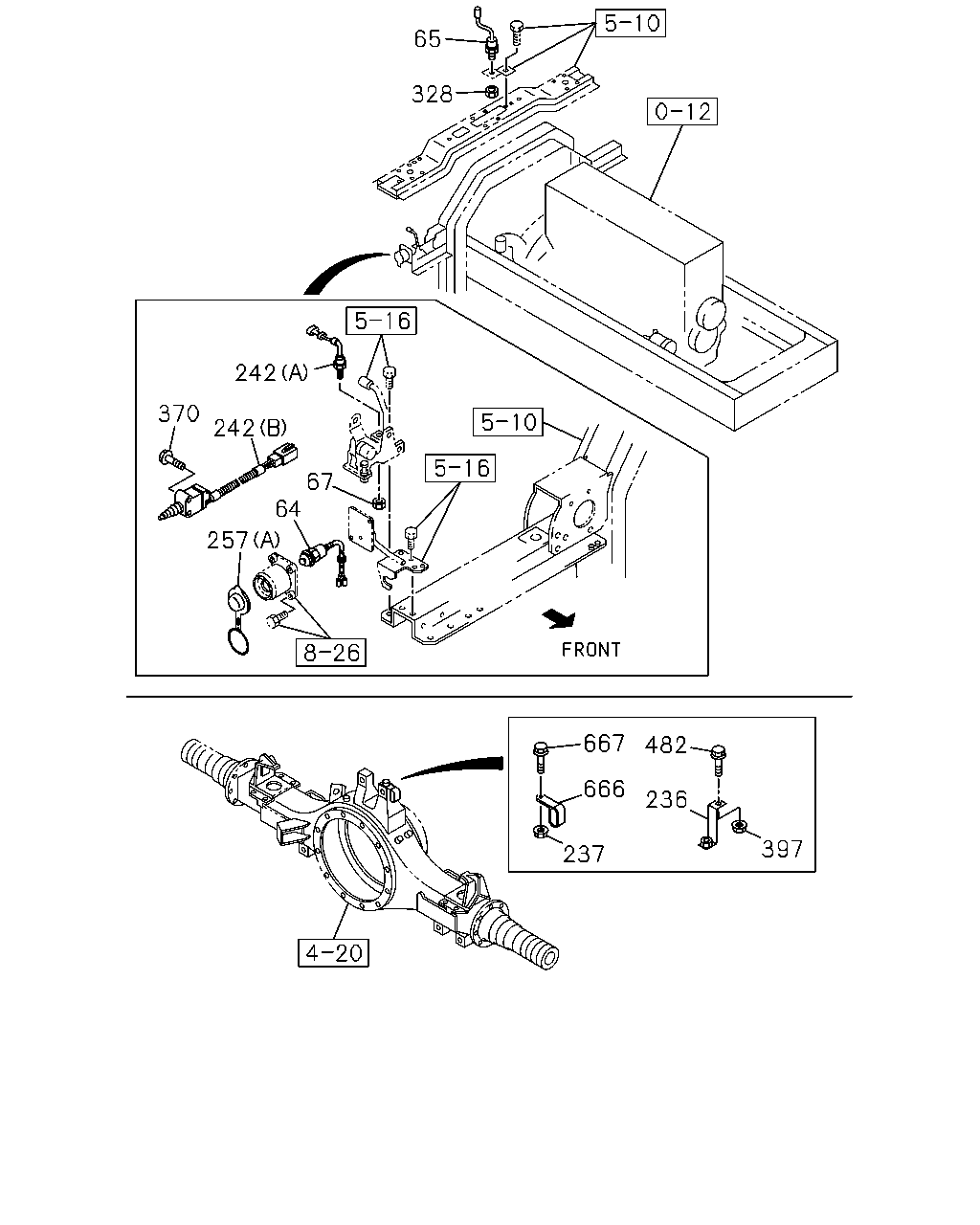

çizim 170436
65 328 242 242 370 257 64 67 667 482 236 666 237 397
BalonParca AdiParca NoAdetTipApplied Date A B
64 SWITCH; CAB TILT MAIN 1-82380-108-0 01 1 1008-1410 ● ●
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 1411- ● ●
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 1008- ● ●
67 NUT; SW,CAB TILT
M16 H=18.5 		1-09409-013-0 01 1 1008-1410 ● ●
236 BRACKET; AXLE HARNESS,RR
WHEEL BASE 5200MM(52W) 		1-47476-200-0 01 1 1008-1410 ●
236 BRACKET; AXLE HARNESS,RR
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) 		1-47476-200-0 01 1 1008-1410 ●
236 BRACKET; AXLE HARNESS,RR 1-47476-200-0 01 1 1411- ●
236 BRACKET; AXLE HARNESS,RR
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) 		1-47476-200-0 01 1 1411- ●
236 BRACKET; AXLE HARNESS,RR
WHEEL BASE 5900MM(59W) 		1-46147-101-0 02 1 1008- ●
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 1008- ● ●
242 SWITCH
(A) STAMP NO 		1-82380-126-0 01 1 1008-1410 ● ●
242 SWITCH
(B) STAMP NO 		1-82380-172-1 01 1 1411- ● ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 1008-1410 ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 1008- ● ●
328 NUT; SW
M16 		0-91110-516-0 01 1 1008- ● ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 1411- ● ●
397 NUT; BRKT FIX
WHEEL BASE 5200MM(52W) M8 FLANGE 		0-91180-108-0 01 1 1008-1410 ●
397 NUT; BRKT FIX
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 01 1 1008-1410 ●
397 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 1411- ●
397 NUT; BRKT FIX
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 01 1 1411- ●
397 NUT; BRKT FIX
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 02 1 1008- ●
482 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1008- ●
482 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) M8X35 FLANGE 		0-28650-835-0 01 1 1008- ●
482 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X35 FLANGE 		0-28650-835-0 02 1 1008-1109 ●
482 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X40 FLANGE 		0-28650-840-0 02 1 1110- ●
666 CLIP; AXLE HARNESS
ID=11X2 L=20 		1-09700-871-0 04 1 1008-1410 ● ●
666 CLIP; AXLE HARNESS
ID=11X2 L=20 		1-09700-871-0 02 1 1411- ● ●
666 CLIP; AXLE HARNESS
ID=11X2 L=20 		1-09700-871-0 02 1 1411- ● ●
667 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1411- ● ●
667 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1008-1410 ● ●
667 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1411- ● ●

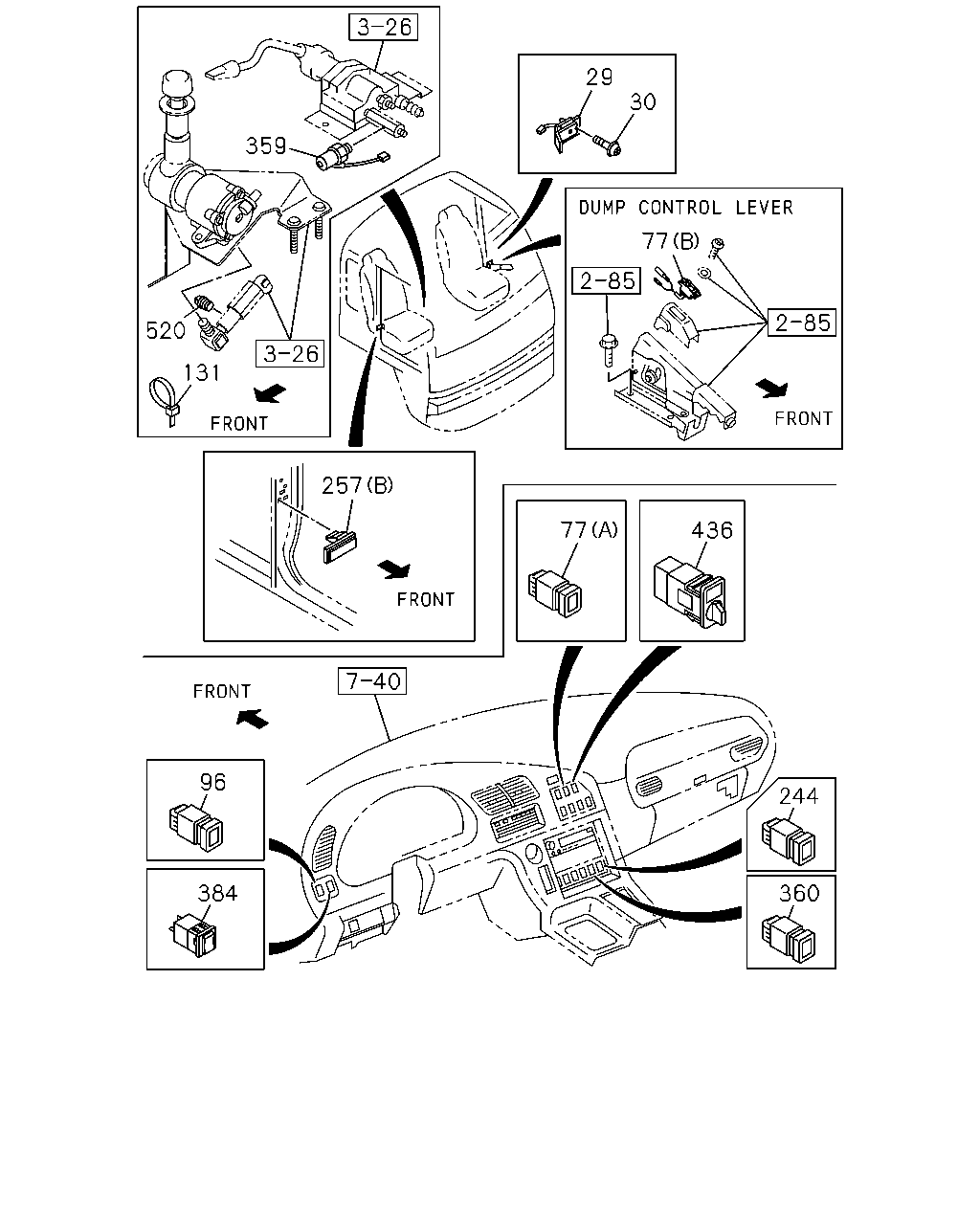

çizim 170437
29 30 77 359 520 131 257 77 436 96 384 244 360
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR 8-97855-032-3 01 1 1008- ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 1008- ● ●
77 SWITCH; PTO
MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-82340-413-0 01 1 1008-1209 ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-82340-413-0 01 1 1008-1209 ●
77 SWITCH; PTO
CONCRETE PUMP<RA5> (A) 		1-82340-413-0 01 1 1008-1209 ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A) 		1-82340-413-0 01 1 1008-1209 ●
77 SWITCH; PTO
(A) 		1-82340-413-0 01 1 1210-1410 ●
77 SWITCH; PTO
CONCRETE PUMP<RA5> (A) 		1-82340-413-0 01 1 1210-1410 ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A) 		1-82340-413-0 01 1 1210-1410 ●
77 SWITCH; PTO
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		8-97386-993-4 01 1 1411-1510 ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A) 		8-97386-993-4 01 1 1411-1510 ●
77 SWITCH; PTO
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		8-97386-993-4 01 1 1511- ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A) 		8-97386-993-4 01 1 1511- ●
77 SWITCH; PTO
CONCRETE PUMP<RA5> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		8-97386-993-4 01 1 1511- ●
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (B) 		1-82380-112-0 01 1 1008- ●
96 SWITCH; FOG LAMP 1-82340-628-0 01 1 1008-1410 ● ●
131 CLIP; BAND
TRAILER BRAKE HAND CONTROL(NLG) L=180 		1-09707-162-1 01 1 1008-1209 ● ●
131 CLIP; BAND
TRAILER BRAKE HAND CONTROL(NLG) L=180 		1-09707-162-1 01 1 1210-1410 ●
244 SWITCH; BATTERY
BATTERY SWITCH<WF2> 		8-98138-304-0 01 1 1008-1410 ●
244 SWITCH; BATTERY
HEAVY DUTY PACKAGE TRUCK<RD2> 		8-98138-304-0 01 1 1411- ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 1008-1410 ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 1008- ● ●
359 SWITCH; TRAILER BRAKE
TRAILER BRAKE HAND CONTROL(NLG) GREEN 		1-82410-176-1 01 1 1008-1209 ● ●
359 SWITCH; TRAILER BRAKE
TRAILER BRAKE HAND CONTROL(NLG) GREEN 		1-82410-176-1 01 1 1210-1410 ●
359 SWITCH; TRAILER BRAKE
TRAILER BRAKE HAND CONTROL(NLG) STAMP 0.3 		8-98010-857-0 01 1 1411- ●
360 SWITCH ASM; DIFF LK 1-82340-677-0 01 1 1008-1410 ● ●
360 SWITCH ASM; DIFF LK 8-98222-520-1 01 1 1411- ● ●
384 SWITCH; IDLING CONT,ELEC 1-82350-213-1 01 1 1008-1410 ● ●
384 SWITCH; IDLING CONT,ELEC 8-97620-588-1 01 1 1411- ● ●
436 SWITCH; HEADLAMP LEVELING 1-82330-043-0 01 1 1008-1410 ● ●
436 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 1411- ● ●
520 PLUG; CONNECTOR
FULL TRAILER PIPING<Z25> PT1/4 		9-99204-513-0 01 1 1008- ●

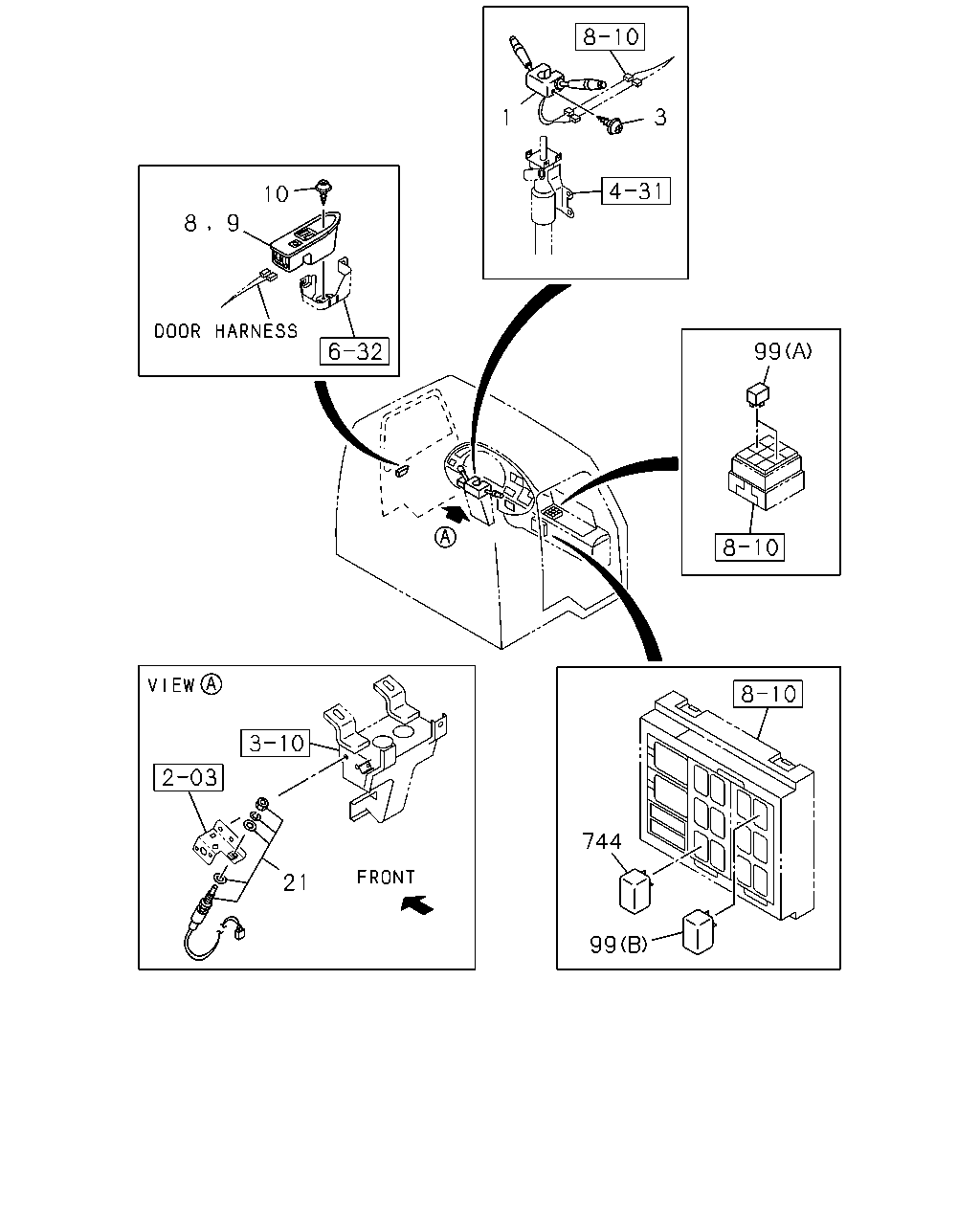

çizim 170446
1 3 10 9 8 99 744 99 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB 1-82360-704-1 01 1 1008- ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 1008- ● ●
8 SWITCH; POWER WINDOW
DRIVER SIDE 		1-82380-174-1 01 1 1008-1410 ● ●
8 SWITCH; POWER WINDOW
DRIVER SIDE 		1-82380-157-4 01 1 1411- ● ●
9 SWITCH; POWER WINDOW
PASSENGER SIDE 		1-82380-158-3 01 1 1008- ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 1008- ● ●
21 SWITCH; CLU 1-82380-114-3 01 1 1008- ● ●
21 SWITCH; CLU 1-82380-114-3 01 1 1008- ●
99 RELAY; FOG LAMP
(B) 24V 10A PANASONIC 		8-97173-035-1 02 1 1008-1410 ● ●
99 RELAY; FOG LAMP
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1411- ● ●
99 RELAY; FOG LAMP
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1008-1410 ● ●
99 RELAY; FOG LAMP
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1008-1410 ● ●
99 RELAY; FOG LAMP
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1411- ● ●
744 RELAY; TILT,LID OPEN
24V 10A PANASONIC 		8-97173-035-1 01 1 1411- ● ●
