Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#6309) — 390 parça

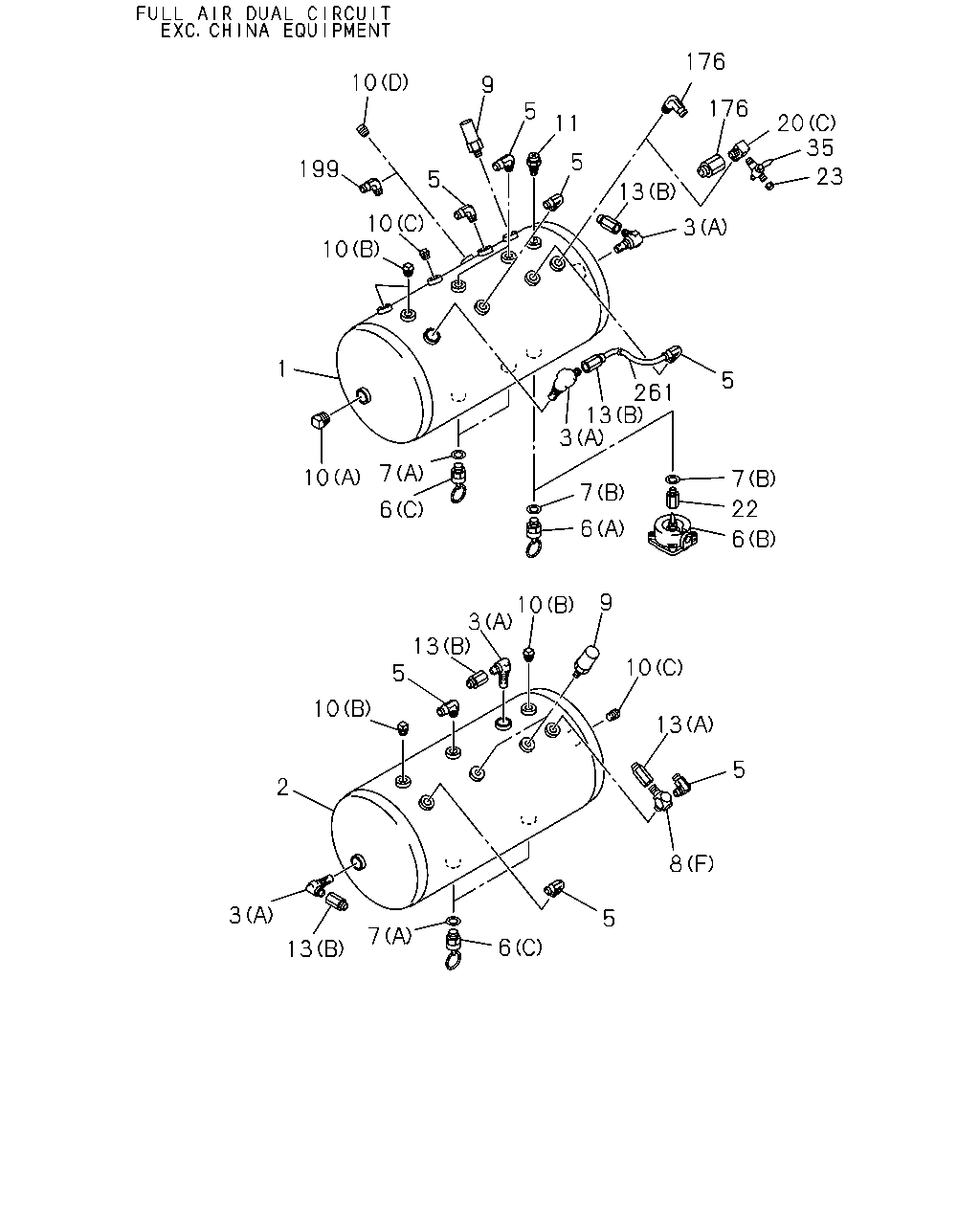

176 10 9 176 5 11 20 35 5 199 23 5 13 10 10 3 1 5 261 13 3 7 10 7 7 22 6 6 6 9 10 3 13 10 5 10 13 5 2 8 3 5 7 6 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-221-0	01	1	9604-
1	TANK ASM; AIR CONCRETE PUMP<RA5> (A)	1-48370-381-0	01	1	9604-9810
1	TANK ASM; AIR CONCRETE PUMP<RA5> (A)	1-48370-811-0	01	1	9811-
1	TANK ASM; AIR CONCRETE PUMP<RA5> (B)	1-48370-400-0	01	1	9604-
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-353-0	01	1	9604-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-48410-133-2	04	1	9604-9606
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	04	1	9607-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-48410-133-2	03	1	9604-9606
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-48410-133-2	03	1	9604-9606
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. AIR DRYER<PS7> (A)	1-48410-133-2	02	1	9604-9606
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-
3	VALVE; CHECK,AIR TANK CONCRETE PUMP<RA5> (B)	1-48410-182-3	01	1	9604-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-48410-182-3	01	1	9604-
3	VALVE; CHECK,AIR TANK CONCRETE PUMP<RA5> (A)	1-48410-327-1	01	1	9604-
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-653-1	06	1	9604-9612
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-653-1	05	1	9701-9904
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9905-
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-653-1	07	1	9604-9904
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	9905-
5	UNION; AIR TANK CONCRETE PUMP<RA5> (B) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9604-0005
5	UNION; AIR TANK CONCRETE PUMP<RA5> (A)	1-09656-675-0	01	1	9604-0005
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48312-015-0	04	1	9604-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9604-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9604-
6	COCK; DRAIN,AIR TANK CONCRETE PUMP<RA5> (A)	1-48312-015-0	03	1	9604-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9604-9604
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9608
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=14	1-09630-145-0	04	1	9609-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	9604-9608
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14	1-09630-145-0	01	1	9609-
7	GASKET; DRAIN COCK CONCRETE PUMP<RA5> (B) ID=14.2 OD=19.2	1-09630-085-0	03	1	9604-9604
7	GASKET; DRAIN COCK CONCRETE PUMP<RA5> (B) ID=14.2 OD=23.0	9-09572-014-0	03	1	9605-9608
7	GASKET; DRAIN COCK CONCRETE PUMP<RA5> (B) ID=14	1-09630-145-0	03	1	9609-
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9604-
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9604-0005
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (D)	1-09656-475-1	01	1	0006-
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (B)	1-09650-275-1	01	1	9604-
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (C)	1-09656-332-1	01	1	0006-
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (E) PT1/2	1-09664-041-1	01	1	0006-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-1	03	1	9604-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT3/4	9-09204-526-0	01	1	9604-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) PT1/4	9-99204-513-0	01	1	9604-0005
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) PT1/4	9-99204-513-0	01	1	0006-
10	PLUG; AIR TANK CONCRETE PUMP<RA5> (C) PT1/4	9-99204-513-0	01	1	0006-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	06	1	9604-9612
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	07	1	9701-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) PT3/8	9-09204-517-0	01	1	9604-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. AIR DRYER<PS7> (C) PT1/4	9-99204-513-0	02	1	9604-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) PT1/4	9-99204-513-0	02	1	9604-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	05	1	9604-
10	PLUG; AIR TANK CONCRETE PUMP<RA5> (E) PT1/2	9-09204-521-0	01	1	9604-
11	VALVE; SAFETY,AIR TANK CONCRETE PUMP<RA5>	1-48320-012-1	01	1	9604-
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48320-012-1	01	1	9604-
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9604-9904
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9905-0007
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	9604-9904
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) DIN12 & M20 STRAIGHT	1-09661-097-0	04	1	9905-0007
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	0008-
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	9604-9904
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9905-0007
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-
20	NIPPLE; AIR TANK AIR DRYER<PS7> CONCRETE PUMP<RA5> (A)	1-48410-133-2	01	1	9604-9606
20	NIPPLE; AIR TANK AIR DRYER<PS7> CONCRETE PUMP<RA5> (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-
20	NIPPLE; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9604-
20	NIPPLE; AIR TANK CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> (B) M22	1-09650-277-0	01	1	9604-9609
20	NIPPLE; AIR TANK CONCRETE PUMP<RA5>,BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) M22	1-09650-277-0	01	1	9610-9906
20	NIPPLE; AIR TANK CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> (B) M22	1-09650-277-0	01	1	9907-
22	ADAPTER; AUTO DRAIN VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUTO DRAIN<J78>	1-48319-031-0	01	1	9604-
23	CAP; COCK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	9604-
35	COCK; AIR,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	9604-0101
35	COCK; AIR,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0102-
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	9604-9904
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9905-0007
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<W47> DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9604-9904
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<W47> DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
199	CONNECTOR; AIR PIPE,AIR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9604-9904
199	CONNECTOR; AIR PIPE,AIR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-
261	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) L=300 SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9604-9904
261	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9905-

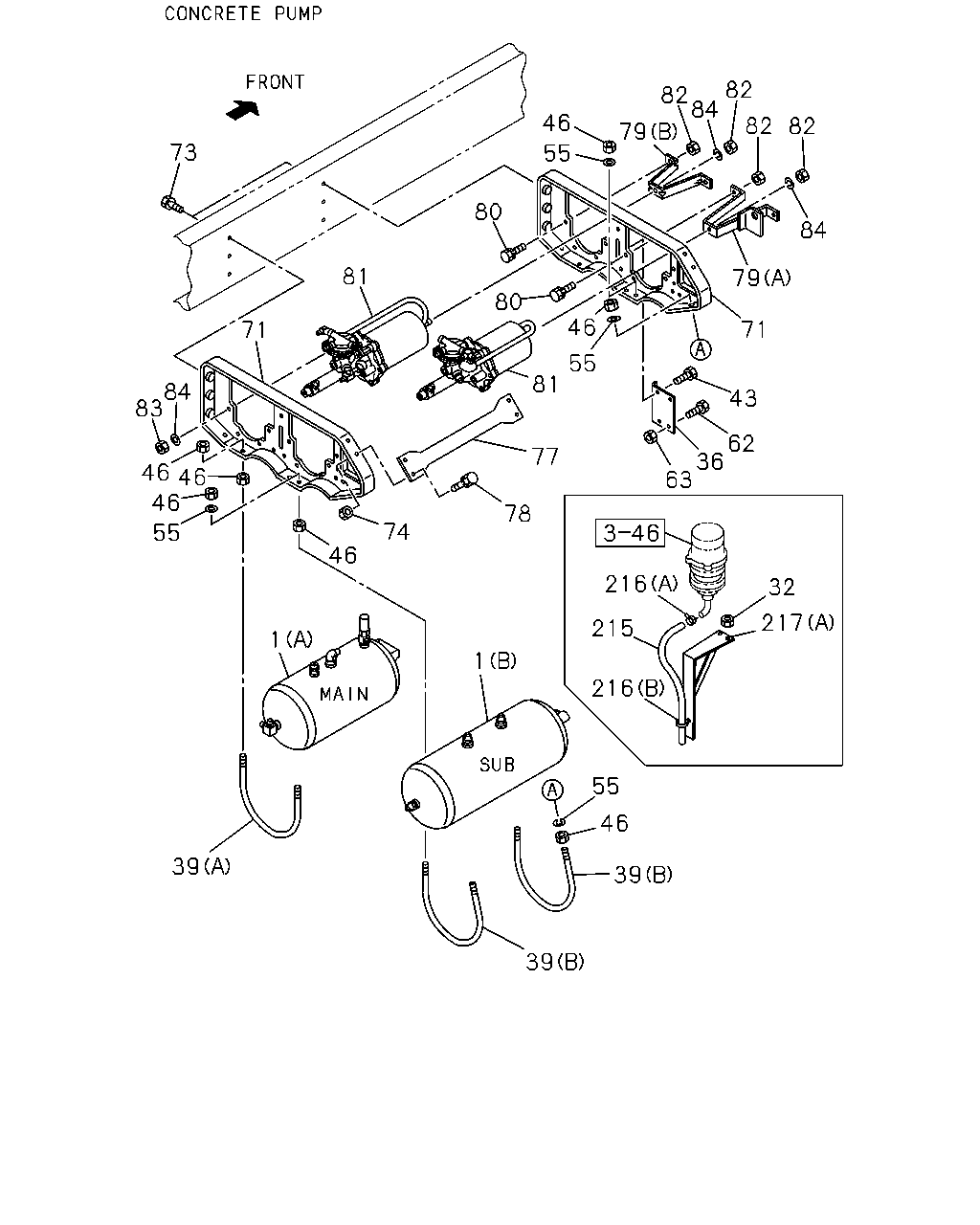

176 10 9 176 20 35 5 1 10 10 23 13 10 10 3 5 10 1 7 7 7 22 3 13 6 6 6 9 10 3 13 10 5 10 13 5 2 8 3 5 7 13 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-221-0	01	1	9604-
1	TANK ASM; AIR CONCRETE PUMP<RA5> (A)	1-48370-381-0	01	1	9604-9810
1	TANK ASM; AIR CONCRETE PUMP<RA5> (A)	1-48370-811-0	01	1	9811-
1	TANK ASM; AIR CONCRETE PUMP<RA5> (B)	1-48370-400-0	01	1	9604-
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-353-0	01	1	9604-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-48410-133-2	04	1	9604-9606
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	04	1	9607-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-48410-133-2	03	1	9604-9606
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-48410-133-2	03	1	9604-9606
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. AIR DRYER<PS7> (A)	1-48410-133-2	02	1	9604-9606
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-
3	VALVE; CHECK,AIR TANK CONCRETE PUMP<RA5> (B)	1-48410-182-3	01	1	9604-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-48410-182-3	01	1	9604-
3	VALVE; CHECK,AIR TANK CONCRETE PUMP<RA5> (A)	1-48410-327-1	01	1	9604-
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-653-1	06	1	9604-9612
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-653-1	05	1	9701-9904
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9905-
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-653-1	07	1	9604-9904
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	9905-
5	UNION; AIR TANK CONCRETE PUMP<RA5> (B) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9604-0005
5	UNION; AIR TANK CONCRETE PUMP<RA5> (A)	1-09656-675-0	01	1	9604-0005
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48312-015-0	04	1	9604-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9604-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9604-
6	COCK; DRAIN,AIR TANK CONCRETE PUMP<RA5> (A)	1-48312-015-0	03	1	9604-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9604-9604
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9608
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=14	1-09630-145-0	04	1	9609-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	9604-9608
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14	1-09630-145-0	01	1	9609-
7	GASKET; DRAIN COCK CONCRETE PUMP<RA5> (B) ID=14.2 OD=19.2	1-09630-085-0	03	1	9604-9604
7	GASKET; DRAIN COCK CONCRETE PUMP<RA5> (B) ID=14.2 OD=23.0	9-09572-014-0	03	1	9605-9608
7	GASKET; DRAIN COCK CONCRETE PUMP<RA5> (B) ID=14	1-09630-145-0	03	1	9609-
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9604-
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9604-0005
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (D)	1-09656-475-1	01	1	0006-
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (B)	1-09650-275-1	01	1	9604-
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (C)	1-09656-332-1	01	1	0006-
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (E) PT1/2	1-09664-041-1	01	1	0006-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-1	03	1	9604-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT3/4	9-09204-526-0	01	1	9604-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) PT1/4	9-99204-513-0	01	1	9604-0005
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) PT1/4	9-99204-513-0	01	1	0006-
10	PLUG; AIR TANK CONCRETE PUMP<RA5> (C) PT1/4	9-99204-513-0	01	1	0006-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	06	1	9604-9612
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	07	1	9701-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) PT3/8	9-09204-517-0	01	1	9604-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. AIR DRYER<PS7> (C) PT1/4	9-99204-513-0	02	1	9604-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) PT1/4	9-99204-513-0	02	1	9604-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	05	1	9604-
10	PLUG; AIR TANK CONCRETE PUMP<RA5> (E) PT1/2	9-09204-521-0	01	1	9604-
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9604-9904
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9905-0007
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	9604-9904
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) DIN12 & M20 STRAIGHT	1-09661-097-0	04	1	9905-0007
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	0008-
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	9604-9904
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9905-0007
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-
20	NIPPLE; AIR TANK AIR DRYER<PS7> CONCRETE PUMP<RA5> (A)	1-48410-133-2	01	1	9604-9606
20	NIPPLE; AIR TANK AIR DRYER<PS7> CONCRETE PUMP<RA5> (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-
20	NIPPLE; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9604-
20	NIPPLE; AIR TANK CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> (B) M22	1-09650-277-0	01	1	9604-9609
20	NIPPLE; AIR TANK CONCRETE PUMP<RA5>,BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) M22	1-09650-277-0	01	1	9610-9906
20	NIPPLE; AIR TANK CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> (B) M22	1-09650-277-0	01	1	9907-
22	ADAPTER; AUTO DRAIN VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUTO DRAIN<J78>	1-48319-031-0	01	1	9604-
23	CAP; COCK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	9604-
35	COCK; AIR,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	9604-0101
35	COCK; AIR,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0102-
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	9604-9904
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9905-0007
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<W47> DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9604-9904
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<W47> DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-

82 82 84 46 82 82 79 73 55 80 84 81 79 8 46 71 71 55 81 84 83 43 62 36 63 46 46 46 77 78 74 55 46 216 32 217 215 1 1 216 55 46 39 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-221-0	01	1	9604-
1	TANK ASM; AIR CONCRETE PUMP<RA5> (A)	1-48370-381-0	01	1	9604-9810
1	TANK ASM; AIR CONCRETE PUMP<RA5> (A)	1-48370-811-0	01	1	9811-
1	TANK ASM; AIR CONCRETE PUMP<RA5> (B)	1-48370-400-0	01	1	9604-
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9604-
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9604-0005
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (D)	1-09656-475-1	01	1	0006-
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (B)	1-09650-275-1	01	1	9604-
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (C)	1-09656-332-1	01	1	0006-
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (E) PT1/2	1-09664-041-1	01	1	0006-
32	NUT; BRKT TO FRAME AIR DRYER<PS7> CONCRETE PUMP<RA5> M8	9-09110-508-0	02	1	9604-9606
32	NUT; BRKT TO FRAME AIR DRYER<PS7> CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	02	1	9607-
32	NUT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8	9-09110-508-0	01	1	9604-9606
32	NUT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9607-
36	STAY; MAIN TANK CONCRETE PUMP<RA5>	1-48317-522-0	01	1	9604-
39	U-BOLT; AIR TANK CONCRETE PUMP<RA5> (A)	1-48317-301-0	01	1	9604-
39	U-BOLT; AIR TANK CONCRETE PUMP<RA5> (B)	1-48317-302-0	02	1	9604-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	06	1	9604-9606
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	06	1	9607-
43	BOLT; STAY,AIR TANK,MAIN CONCRETE PUMP<RA5> M10X25 FLANGE	0-28081-025-0	02	1	9604-9606
43	BOLT; STAY,AIR TANK,MAIN CONCRETE PUMP<RA5> M10X30 FLANGE	0-28681-030-0	02	1	9607-
46	NUT; U-BOLT CONCRETE PUMP<RA5> M8	9-09110-508-0	12	1	9604-9606
46	NUT; U-BOLT CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	12	1	9607-9608
46	NUT; U-BOLT CONCRETE PUMP<RA5> M8	9-09110-408-0	12	1	9609-
55	WASHER; PL,U-BOLT CONCRETE PUMP<RA5> ID=8.4 OD=18	9-09160-608-0	06	1	9604-
62	BOLT; SUPPORT CONCRETE PUMP<RA5> M10X25 FLANGE	0-28081-025-0	02	1	9604-9606
62	BOLT; SUPPORT CONCRETE PUMP<RA5> M10X30 FLANGE	0-28681-030-0	02	1	9607-
63	NUT; SUPPORT CONCRETE PUMP<RA5> M10	9-09110-510-0	02	1	9604-9606
63	NUT; SUPPORT CONCRETE PUMP<RA5> M10 FLANGE	0-91150-210-0	02	1	9607-
71	BRACKET; AIR MASTER,TANDEM CONCRETE PUMP<RA5>	1-53318-327-0	02	1	9604-
73	BOLT; BRKT TO FRAME,AIR MASTER CONCRETE PUMP<RA5> M12X40 FLANGE	0-28681-240-0	06	1	9604-
74	NUT; STAY AIR MASTER CONCRETE PUMP<RA5> M10	9-09110-510-0	04	1	9604-9606
74	NUT; STAY AIR MASTER CONCRETE PUMP<RA5> M10 FLANGE	0-91150-210-0	04	1	9607-
77	STAY; AIR MASTER UPR CONCRETE PUMP<RA5>	1-53318-293-1	01	1	9604-
78	BOLT; STAY AIR MASTER CONCRETE PUMP<RA5> M10X25 FLANGE	0-28081-025-0	04	1	9604-9606
78	BOLT; STAY AIR MASTER CONCRETE PUMP<RA5> M10X30 FLANGE	0-28681-030-0	04	1	9607-
79	STAY; AIR MASTER TO BRKT CONCRETE PUMP<RA5> (A)	1-47477-048-0	01	1	9604-
79	STAY; AIR MASTER TO BRKT CONCRETE PUMP<RA5> (B) H=203	1-53318-217-0	01	1	9604-
80	BOLT; BRKT CONCRETE PUMP<RA5> M10X20 FLANGE	0-28081-020-0	04	1	9604-9606
80	BOLT; BRKT CONCRETE PUMP<RA5> M10X25 FLANGE	0-28681-025-0	04	1	9607-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. CONCRETE PUMP<RA5> PRIMARY	1-47800-628-0	01	1	9604-9904
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PRIMARY	1-47800-628-0	01	1	9905-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. CONCRETE PUMP<RA5> SECONDARY	1-47800-629-0	01	1	9604-9904
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SECONDARY	1-47800-629-0	01	1	9905-
82	NUT; STAY,AIR MASTER BRKT CONCRETE PUMP<RA5> M10	9-09110-510-0	04	1	9604-9606
82	NUT; STAY,AIR MASTER BRKT CONCRETE PUMP<RA5> M10 FLANGE	0-91150-210-0	04	1	9607-
83	NUT; AIR MASTER CONCRETE PUMP<RA5> M10	9-09110-510-0	10	1	9604-9606
83	NUT; AIR MASTER CONCRETE PUMP<RA5> M10 FLANGE	0-91150-210-0	10	1	9607-
84	WASHER; LK,AIR MASTER CONCRETE PUMP<RA5> ID=10.2	9-09150-510-0	10	1	9604-9606
215	PIPE; VINYL AIR DRYER<PS7> L=500 SERVICED BY L=3000	0-03266-300-0	01	1	9604-
216	CLIP; PIPE,VINYL AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	9604-
216	CLIP; PIPE,VINYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) ID=25 L=55	9-09917-573-0	01	1	9604-
216	CLIP; PIPE,VINYL AIR DRYER<PS7> CONCRETE PUMP<RA5> (B) ID=25 L=55	9-09917-573-0	01	1	9604-
217	BRACKET; RUBBER HOSE AIR DRYER<PS7> CONCRETE PUMP<RA5> (A)	1-48317-682-1	01	1	9604-
217	BRACKET; RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) L=95	1-82699-085-0	01	1	9604-

20 166 20 10 11 1 7 6 8 5 3 8 5 1 3 7 6

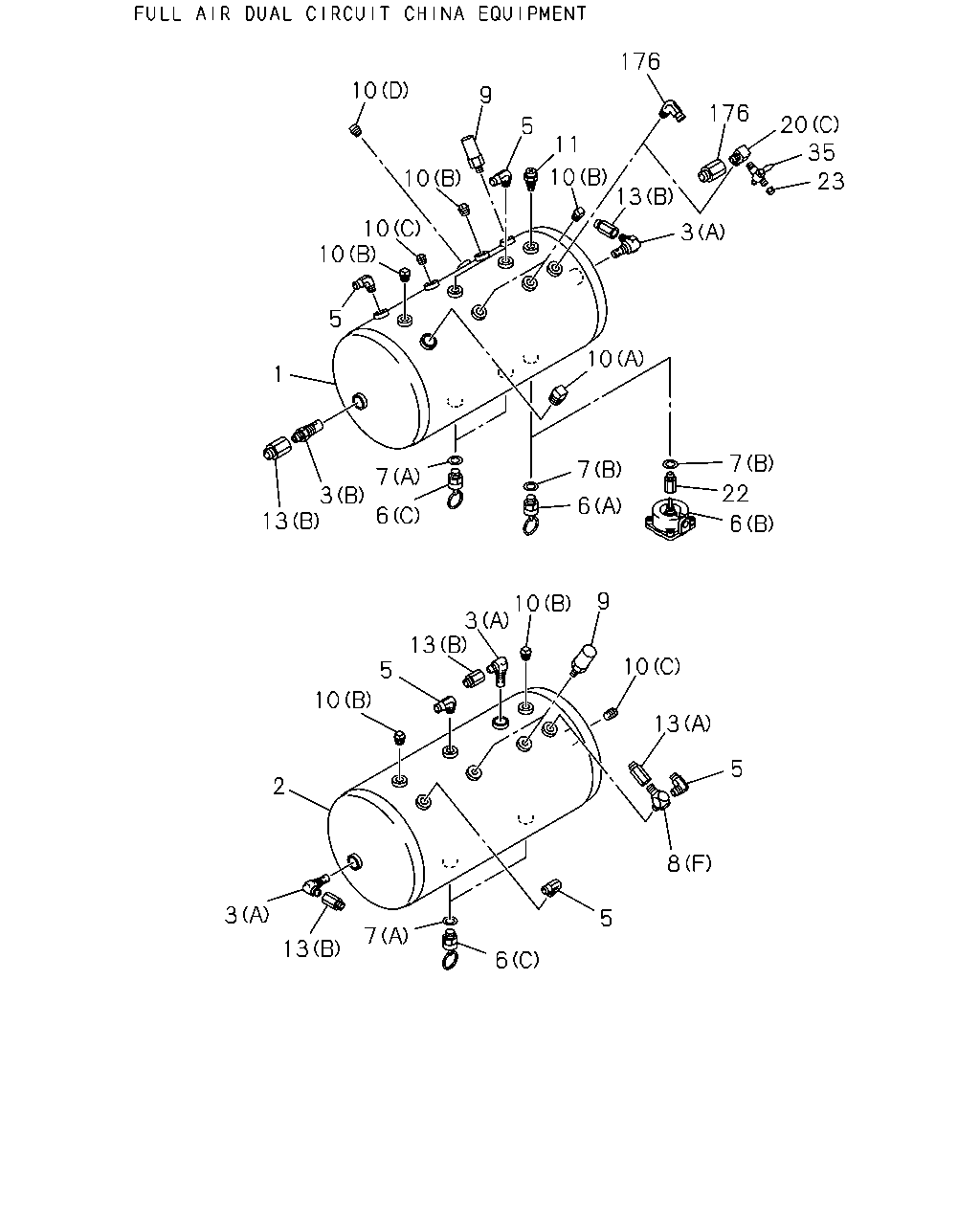

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-221-0	01	1	9604-
1	TANK ASM; AIR CONCRETE PUMP<RA5> (A)	1-48370-381-0	01	1	9604-9810
1	TANK ASM; AIR CONCRETE PUMP<RA5> (A)	1-48370-811-0	01	1	9811-
1	TANK ASM; AIR CONCRETE PUMP<RA5> (B)	1-48370-400-0	01	1	9604-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-48410-133-2	04	1	9604-9606
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	04	1	9607-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-48410-133-2	03	1	9604-9606
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-48410-133-2	03	1	9604-9606
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. AIR DRYER<PS7> (A)	1-48410-133-2	02	1	9604-9606
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-
3	VALVE; CHECK,AIR TANK CONCRETE PUMP<RA5> (B)	1-48410-182-3	01	1	9604-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-48410-182-3	01	1	9604-
3	VALVE; CHECK,AIR TANK CONCRETE PUMP<RA5> (A)	1-48410-327-1	01	1	9604-
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-653-1	06	1	9604-9612
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-653-1	05	1	9701-9904
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9905-
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-653-1	07	1	9604-9904
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	9905-
5	UNION; AIR TANK CONCRETE PUMP<RA5> (B) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9604-0005
5	UNION; AIR TANK CONCRETE PUMP<RA5> (A)	1-09656-675-0	01	1	9604-0005
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48312-015-0	04	1	9604-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9604-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9604-
6	COCK; DRAIN,AIR TANK CONCRETE PUMP<RA5> (A)	1-48312-015-0	03	1	9604-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9604-9604
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9608
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=14	1-09630-145-0	04	1	9609-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	9604-9608
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14	1-09630-145-0	01	1	9609-
7	GASKET; DRAIN COCK CONCRETE PUMP<RA5> (B) ID=14.2 OD=19.2	1-09630-085-0	03	1	9604-9604
7	GASKET; DRAIN COCK CONCRETE PUMP<RA5> (B) ID=14.2 OD=23.0	9-09572-014-0	03	1	9605-9608
7	GASKET; DRAIN COCK CONCRETE PUMP<RA5> (B) ID=14	1-09630-145-0	03	1	9609-
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9604-
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9604-0005
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (D)	1-09656-475-1	01	1	0006-
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (B)	1-09650-275-1	01	1	9604-
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (C)	1-09656-332-1	01	1	0006-
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (E) PT1/2	1-09664-041-1	01	1	0006-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT3/4	9-09204-526-0	01	1	9604-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) PT1/4	9-99204-513-0	01	1	9604-0005
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) PT1/4	9-99204-513-0	01	1	0006-
10	PLUG; AIR TANK CONCRETE PUMP<RA5> (C) PT1/4	9-99204-513-0	01	1	0006-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	06	1	9604-9612
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	07	1	9701-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) PT3/8	9-09204-517-0	01	1	9604-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. AIR DRYER<PS7> (C) PT1/4	9-99204-513-0	02	1	9604-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) PT1/4	9-99204-513-0	02	1	9604-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	05	1	9604-
10	PLUG; AIR TANK CONCRETE PUMP<RA5> (E) PT1/2	9-09204-521-0	01	1	9604-
11	VALVE; SAFETY,AIR TANK CONCRETE PUMP<RA5>	1-48320-012-1	01	1	9604-
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48320-012-1	01	1	9604-
20	NIPPLE; AIR TANK AIR DRYER<PS7> CONCRETE PUMP<RA5> (A)	1-48410-133-2	01	1	9604-9606
20	NIPPLE; AIR TANK AIR DRYER<PS7> CONCRETE PUMP<RA5> (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-
20	NIPPLE; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9604-
20	NIPPLE; AIR TANK CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> (B) M22	1-09650-277-0	01	1	9604-9609
20	NIPPLE; AIR TANK CONCRETE PUMP<RA5>,BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) M22	1-09650-277-0	01	1	9610-9906
20	NIPPLE; AIR TANK CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> (B) M22	1-09650-277-0	01	1	9907-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK CONCRETE PUMP<RA5> 530KPA	1-48340-054-0	01	1	9604-0005
166	SWITCH ASM; LOW PRESSURE,MAIN TANK CONCRETE PUMP<RA5> 530KPA	1-48340-054-1	02	1	0006-

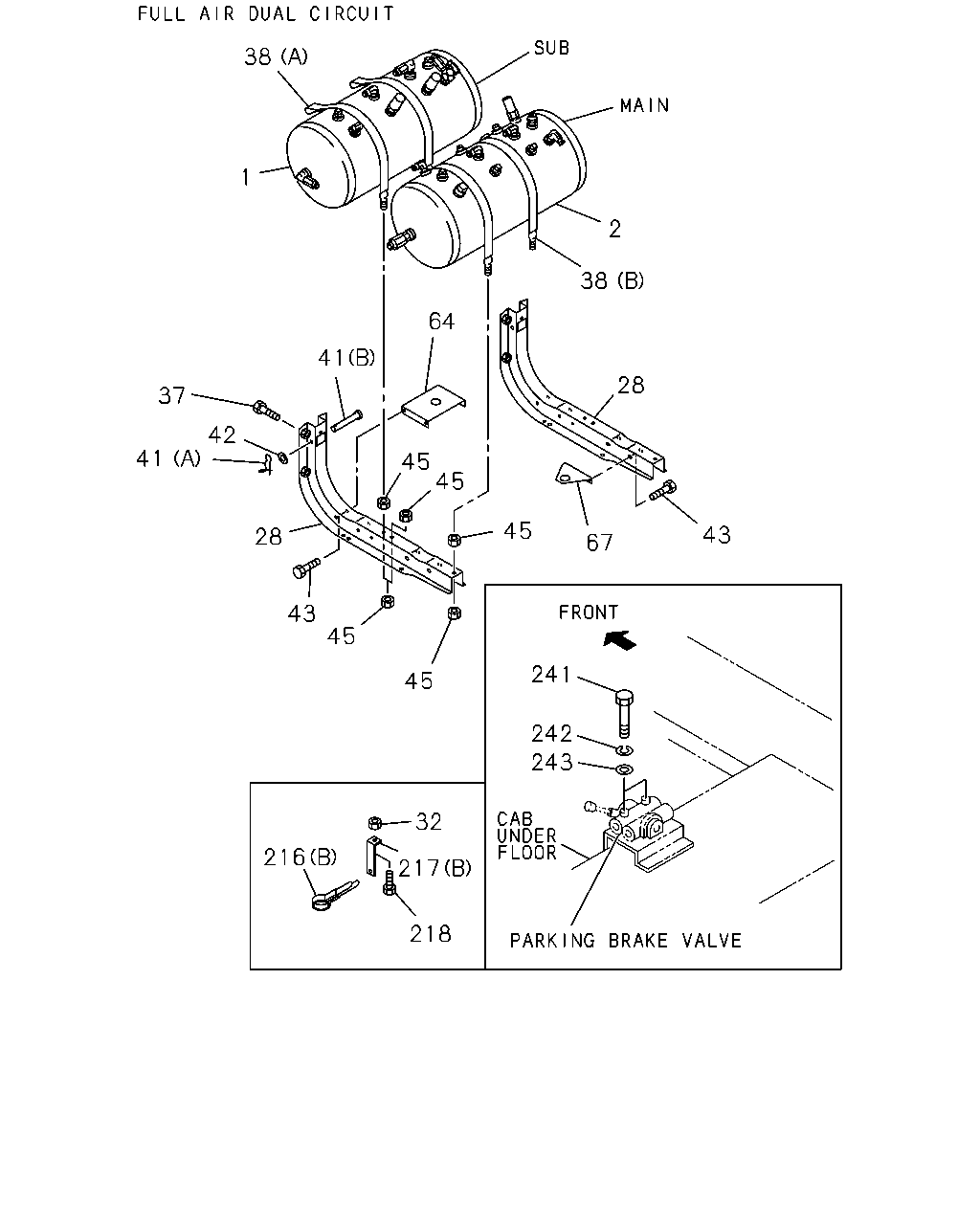

38 1 2 64 28 37 42 41 45 45 45 43 28 67 43 45 241 45 242 243 32 216 217 218 38 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-221-0	01	1	9604-
1	TANK ASM; AIR CONCRETE PUMP<RA5> (A)	1-48370-381-0	01	1	9604-9810
1	TANK ASM; AIR CONCRETE PUMP<RA5> (A)	1-48370-811-0	01	1	9811-
1	TANK ASM; AIR CONCRETE PUMP<RA5> (B)	1-48370-400-0	01	1	9604-
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-353-0	01	1	9604-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-601-5	02	1	9604-
32	NUT; BRKT TO FRAME AIR DRYER<PS7> CONCRETE PUMP<RA5> M8	9-09110-508-0	02	1	9604-9606
32	NUT; BRKT TO FRAME AIR DRYER<PS7> CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	02	1	9607-
32	NUT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8	9-09110-508-0	01	1	9604-9606
32	NUT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9607-
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	08	1	9604-
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-108-2	02	1	9604-
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-109-2	02	1	9604-
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=32.6	1-09987-142-0	02	1	9604-
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) OD=10 L=60	9-08224-060-0	02	1	9604-
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.5	9-09164-510-0	02	1	9604-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	06	1	9604-9606
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	06	1	9607-
43	BOLT; STAY,AIR TANK,MAIN CONCRETE PUMP<RA5> M10X25 FLANGE	0-28081-025-0	02	1	9604-9606
43	BOLT; STAY,AIR TANK,MAIN CONCRETE PUMP<RA5> M10X30 FLANGE	0-28681-030-0	02	1	9607-
45	NUT; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-508-0	12	1	9604-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-607-0	01	1	9604-
67	STAY; SUB TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-711-0	01	1	9604-
216	CLIP; PIPE,VINYL AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	9604-
216	CLIP; PIPE,VINYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) ID=25 L=55	9-09917-573-0	01	1	9604-
216	CLIP; PIPE,VINYL AIR DRYER<PS7> CONCRETE PUMP<RA5> (B) ID=25 L=55	9-09917-573-0	01	1	9604-
217	BRACKET; RUBBER HOSE AIR DRYER<PS7> CONCRETE PUMP<RA5> (A)	1-48317-682-1	01	1	9604-
217	BRACKET; RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) L=95	1-82699-085-0	01	1	9604-
218	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	01	1	9604-9606
218	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	9607-
241	BOLT; SET,CONT VLV SPRING BRAKE(SU9) M8X65	0-10805-865-0	02	1	9604-9703
241	BOLT; SET,CONT VLV SPRING BRAKE(SU9) M8X70 FLANGE	0-28080-870-0	02	1	9704-9708
242	WASHER; LK,CONT VLV SPRING BRAKE(SU9) ID=8.2	9-09150-508-0	02	1	9604-9703
243	WASHER; PL,CONT VLV SPRING BRAKE(SU9) ID=8.4	9-09160-508-0	02	1	9604-9703

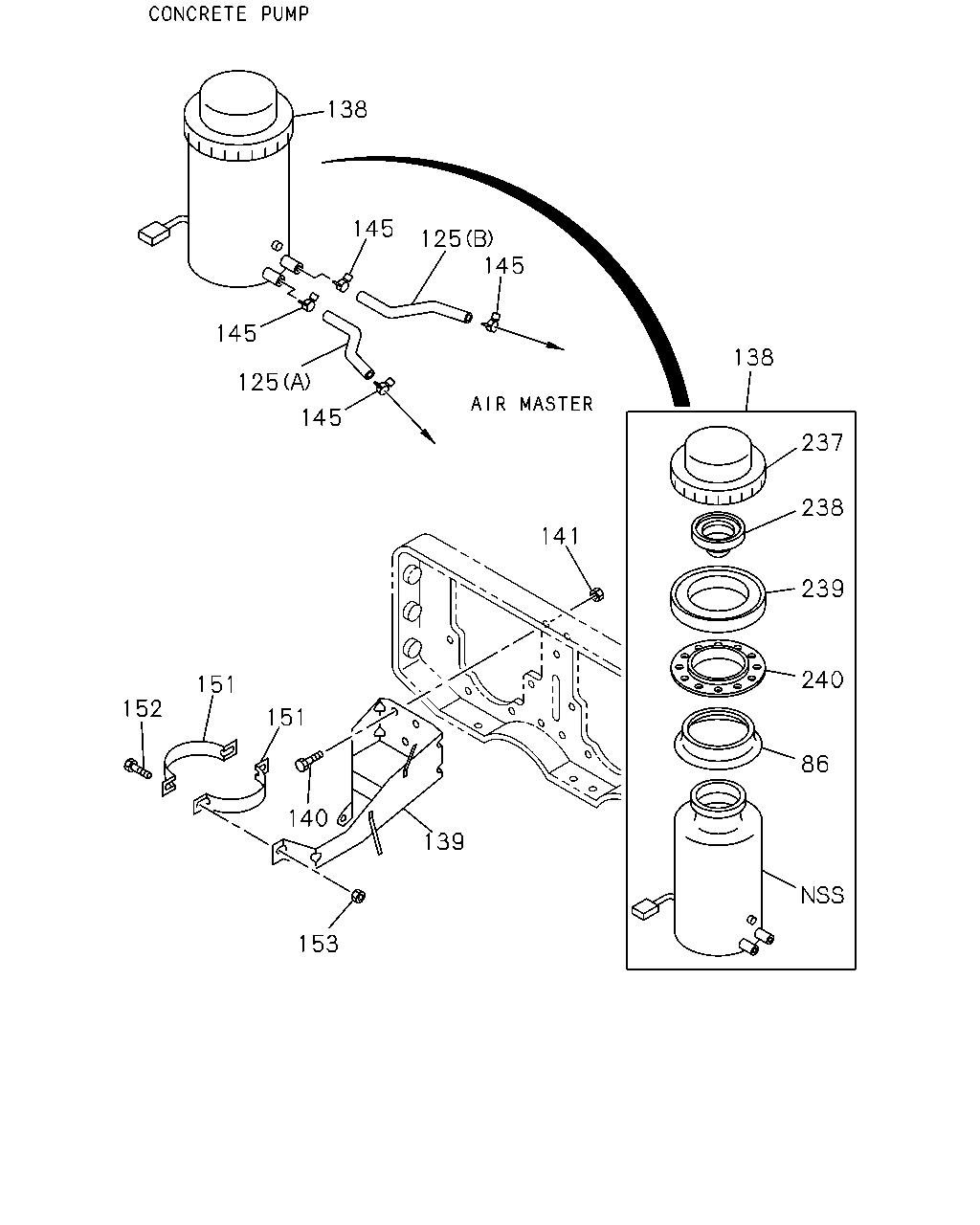

138 145 125 145 145 138 125 145 237 238 141 239 240 151 152 151 86 140 139 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
86	SEAL; DUST CONCRETE PUMP<RA5>	1-47529-019-0	01	1	9604-9904
86	SEAL; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-019-0	01	1	9905-
125	HOSE; OIL TANK TO AIR MASTER CONCRETE PUMP<RA5> (A) L=140	1-47469-051-1	01	1	9604-
125	HOSE; OIL TANK TO AIR MASTER CONCRETE PUMP<RA5> (B) L=190	1-47469-052-2	01	1	9604-
138	TANK ASM; OIL,AIR MASTER CONCRETE PUMP<RA5>	1-47530-170-1	01	1	9604-9904
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-170-1	01	1	9905-0011
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-184-0	01	1	0012-
139	BRACKET; OIL TANK CONCRETE PUMP<RA5>	1-47537-114-3	01	1	9604-
140	BOLT; OIL TANK TO BRKT CONCRETE PUMP<RA5> M10X20 FLANGE	0-28081-020-0	03	1	9604-9606
140	BOLT; OIL TANK TO BRKT CONCRETE PUMP<RA5> M10X25 FLANGE	0-28681-025-0	03	1	9607-
141	NUT; OIL TANK TO BRKT CONCRETE PUMP<RA5> M10	9-09110-510-0	03	1	9604-9606
141	NUT; OIL TANK TO BRKT CONCRETE PUMP<RA5> M10 FLANGE	0-91150-210-0	03	1	9607-
145	CLIP; OIL TANK TO AIR MASTER HOSE CONCRETE PUMP<RA5> ID=14	1-09704-102-0	04	1	9604-
151	BAND; OIL TANK,AIR MASTER CONCRETE PUMP<RA5>	1-47537-113-0	02	1	9604-
152	BOLT; OIL TANK TO BAND CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	02	1	9604-9606
152	BOLT; OIL TANK TO BAND CONCRETE PUMP<RA5> M8X25 FLANGE	0-28680-825-0	02	1	9607-
153	NUT; OIL TANK TO BAND CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	02	1	9604-
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-024-0	01	1	9905-0011
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-030-0	01	1	0012-
237	CAP; OIL TANK CONCRETE PUMP<RA5>	1-47525-019-2	01	1	9604-9904
238	PLATE; BAFFLE CONCRETE PUMP<RA5>	1-47529-022-0	01	1	9604-9904
238	PLATE; BAFFLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-022-0	01	1	9905-
239	FILTER; DUST CONCRETE PUMP<RA5>	1-47529-017-0	01	1	9604-9904
239	FILTER; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-017-0	01	1	9905-
240	HOLDER; FILTER CONCRETE PUMP<RA5>	1-47529-018-0	01	1	9604-9904
240	HOLDER; FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-018-0	01	1	9905-

20 20 10 10 11 1 7 6 8 3 8 8 1 166 166 3 7 6 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-221-0	01	1	9604-
1	TANK ASM; AIR CONCRETE PUMP<RA5> (A)	1-48370-381-0	01	1	9604-9810
1	TANK ASM; AIR CONCRETE PUMP<RA5> (A)	1-48370-811-0	01	1	9811-
1	TANK ASM; AIR CONCRETE PUMP<RA5> (B)	1-48370-400-0	01	1	9604-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-48410-133-2	04	1	9604-9606
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	04	1	9607-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-48410-133-2	03	1	9604-9606
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-48410-133-2	03	1	9604-9606
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	9607-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. AIR DRYER<PS7> (A)	1-48410-133-2	02	1	9604-9606
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-
3	VALVE; CHECK,AIR TANK CONCRETE PUMP<RA5> (B)	1-48410-182-3	01	1	9604-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-48410-182-3	01	1	9604-
3	VALVE; CHECK,AIR TANK CONCRETE PUMP<RA5> (A)	1-48410-327-1	01	1	9604-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48312-015-0	04	1	9604-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9604-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9604-
6	COCK; DRAIN,AIR TANK CONCRETE PUMP<RA5> (A)	1-48312-015-0	03	1	9604-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9604-9604
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9608
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=14	1-09630-145-0	04	1	9609-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	9604-9608
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14	1-09630-145-0	01	1	9609-
7	GASKET; DRAIN COCK CONCRETE PUMP<RA5> (B) ID=14.2 OD=19.2	1-09630-085-0	03	1	9604-9604
7	GASKET; DRAIN COCK CONCRETE PUMP<RA5> (B) ID=14.2 OD=23.0	9-09572-014-0	03	1	9605-9608
7	GASKET; DRAIN COCK CONCRETE PUMP<RA5> (B) ID=14	1-09630-145-0	03	1	9609-
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	9604-
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9604-0005
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (D)	1-09656-475-1	01	1	0006-
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (B)	1-09650-275-1	01	1	9604-
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (C)	1-09656-332-1	01	1	0006-
8	CONNECTOR; AIR TANK CONCRETE PUMP<RA5> (E) PT1/2	1-09664-041-1	01	1	0006-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT3/4	9-09204-526-0	01	1	9604-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) PT1/4	9-99204-513-0	01	1	9604-0005
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) PT1/4	9-99204-513-0	01	1	0006-
10	PLUG; AIR TANK CONCRETE PUMP<RA5> (C) PT1/4	9-99204-513-0	01	1	0006-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	06	1	9604-9612
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	07	1	9701-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (D) PT3/8	9-09204-517-0	01	1	9604-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. AIR DRYER<PS7> (C) PT1/4	9-99204-513-0	02	1	9604-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) PT1/4	9-99204-513-0	02	1	9604-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) PT3/8	9-09204-517-0	05	1	9604-
10	PLUG; AIR TANK CONCRETE PUMP<RA5> (E) PT1/2	9-09204-521-0	01	1	9604-
11	VALVE; SAFETY,AIR TANK CONCRETE PUMP<RA5>	1-48320-012-1	01	1	9604-
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48320-012-1	01	1	9604-
20	NIPPLE; AIR TANK AIR DRYER<PS7> CONCRETE PUMP<RA5> (A)	1-48410-133-2	01	1	9604-9606
20	NIPPLE; AIR TANK AIR DRYER<PS7> CONCRETE PUMP<RA5> (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-
20	NIPPLE; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9604-
20	NIPPLE; AIR TANK CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> (B) M22	1-09650-277-0	01	1	9604-9609
20	NIPPLE; AIR TANK CONCRETE PUMP<RA5>,BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) M22	1-09650-277-0	01	1	9610-9906
20	NIPPLE; AIR TANK CONCRETE PUMP<RA5> EXC. AIR DRYER<PS7> (B) M22	1-09650-277-0	01	1	9907-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK CONCRETE PUMP<RA5> 530KPA	1-48340-054-0	01	1	9604-0005
166	SWITCH ASM; LOW PRESSURE,MAIN TANK CONCRETE PUMP<RA5> 530KPA	1-48340-054-1	02	1	0006-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
