Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#63087) — 602 parça

119 64 340 515 524 24 219 294 340 515 515 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	NUT; HARNESS M8 FLANGE	0-91180-108-0	01	1	1008-1410	●	●
64	SCREW; CLIP M6X12 TAPPING W/PL WASHER	0-74100-612-0	02	1	1008-1202	●	●
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	1008-	●	●
219	NUT M8 FLANGE	0-91180-108-0	06	1	1411-	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1008-1209	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1008-1209	●	●
219	NUT EXC. ENGINE REAR PTO(SV1) M8 FLANGE	0-91180-108-0	01	1	1008-1209	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1008-1209		●
219	NUT FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91180-108-0	01	1	1008-1209		●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1210-1410	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1210-1410	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1210-1410		●
219	NUT FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91180-108-0	01	1	1210-1410		●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1411-	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1411-	●	●
219	NUT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1411-		●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1411-		●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1008-	●	●
219	NUT M8 FLANGE	0-91180-108-0	04	1	1008-1410	●	●
219	NUT M8 FLANGE	0-91180-108-0	04	1	1008-1410	●	●
219	NUT M8 FLANGE	0-91180-108-0	03	1	1411-	●	●
294	NUT M8 FLANGE	0-91180-108-0	01	1	1008-1410	●	●
294	NUT M8 FLANGE	0-91180-108-0	01	1	1008-1410	●	●
294	NUT M8 FLANGE	0-91180-108-0	01	1	1008-1410	●	●
294	NUT M8 FLANGE	0-91180-108-0	01	1	1411-	●	●
294	NUT M8 FLANGE	0-91180-108-0	01	1	1411-	●	●
294	NUT M8 FLANGE	0-91180-108-0	03	1	1008-	●	●
340	NUT; HARNESS CAB TO FRAME (A) M8 FLANGE	0-91180-108-0	02	1	1008-1410	●	●
340	NUT; HARNESS CAB TO FRAME (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	1411-	●	●
423	WASHER; HARNESS,EARTH FULL TRACTOR TRUCK<RD6> ID=8.4	1-09503-264-0	03	1	1411-		●
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	04	1	1008-1410	●	●
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	02	1	1411-	●
423	WASHER; HARNESS,EARTH EXC. FULL TRACTOR TRUCK<RD6> ID=8.4	1-09503-264-0	02	1	1411-		●
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1411-	●	●
515	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	01	1	1411-	●	●
515	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	06	1	1411-	●	●
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	1008-1410	●	●
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1411-	●	●
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	02	1	1008-	●	●

224 1 1 1 1 178 178 178 178 292 5 178 510 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SLEEVE; RUBBER (A) ID=38.1 L=25	1-09337-052-0	01	1	1008-1410	●	●
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=38.1 L=50	5-09360-835-0	01	1	1411-	●	●
1	SLEEVE; RUBBER (C) ID=17 OD=21 L=40	1-09337-012-0	01	1	1008-	●	●
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1008-	●	●
5	GUIDE; HARNESS L=360	1-82699-476-1	01	1	1008-1201	●	●
178	GROMMET; HARNESS (C) ID=28 OD=35 T=25	1-09332-011-1	01	1	1008-	●	●
178	GROMMET; HARNESS (C) ID=28 OD=35 T=25	1-09332-011-1	01	1	1008-	●	●
178	GROMMET; HARNESS (C) ID=28 OD=35 T=25	1-09332-011-1	01	1	1008-	●	●
178	GROMMET; HARNESS (D) ID=32 OD=40 T=23	1-09332-112-0	01	1	1008-1410	●	●
178	GROMMET; HARNESS (A) ID=15 OD=20 T=26	1-09332-132-0	01	1	1008-	●	●
178	GROMMET; HARNESS (E)	1-82699-891-0	01	1	1008-1410	●	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-2	03	1	1008-	●	●
224	SLEEVE; RUBBER,HARNESS ID=6 L=30	5-09360-352-0	01	1	1008-1410	●	●
292	CAP; RUBBER	1-82691-239-0	02	1	1008-1410	●	●
510	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	02	1	1008-1202	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	04	1	1008-1410	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	12	1	1411-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	08	1	1008-1410	●	●
530	SEAL; HARNESS 100X40	1-72498-022-1	01	1	1008-	●	●

27 27 53 53 59 59 53 53 69 211 312 312 312 312 312 312 312 334 335 335 375 342 342

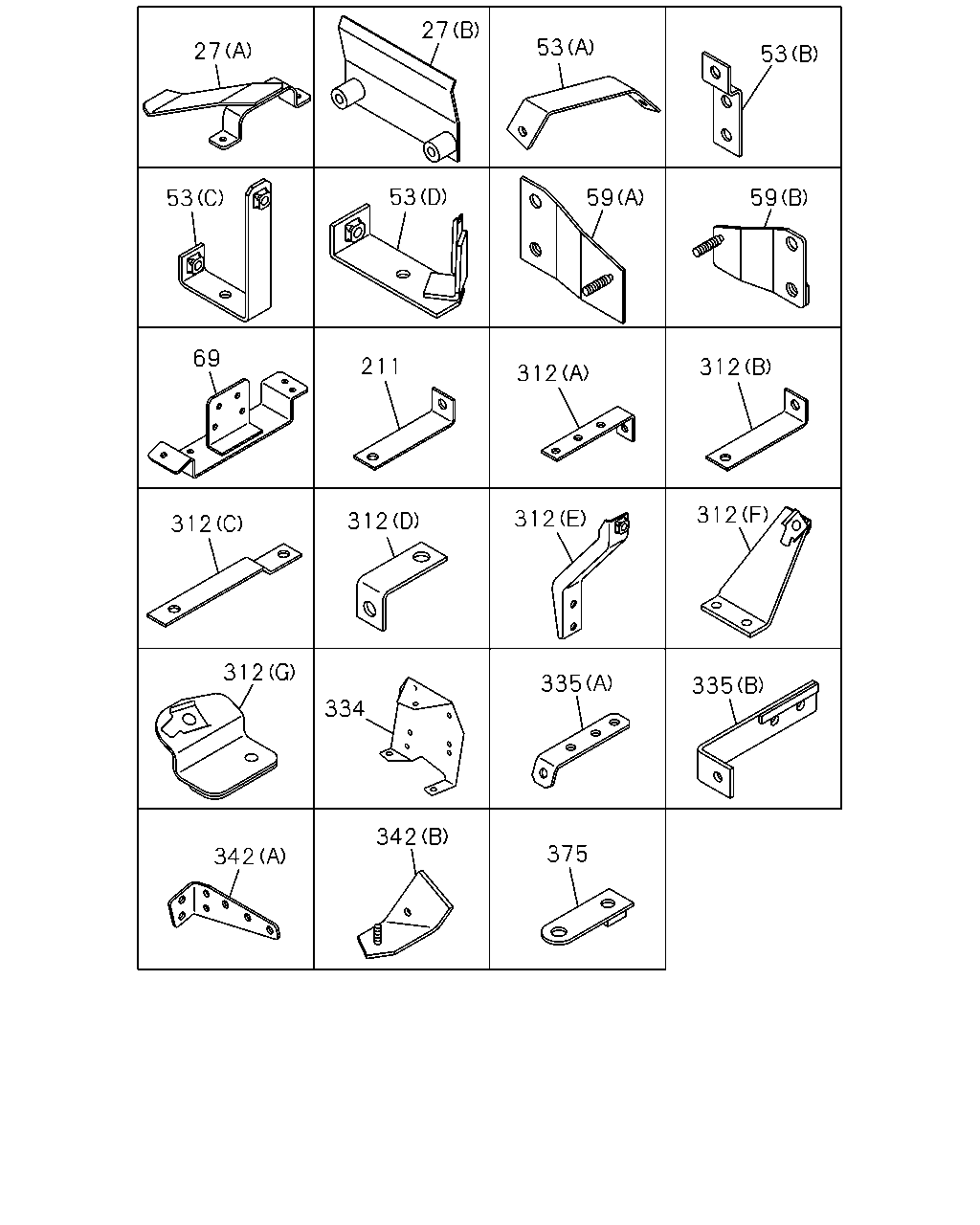

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	PROTECTOR; EDGE (A)	8-97618-028-0	01	1	1008-1410	●	●
27	PROTECTOR; EDGE (B)	8-98201-145-0	01	1	1411-	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	02	1	1411-	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	02	1	1411-	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	04	1	1008-1410	●	●
53	BRACKET; HARNESS (C)	8-98212-499-0	01	1	1411-	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	05	1	1008-1410	●	●
53	BRACKET; HARNESS (D)	8-98212-500-1	01	1	1411-	●	●
53	BRACKET; HARNESS (B)	8-98124-778-0	01	1	1008-	●	●
59	BRACKET; FRAME HARNESS (A)	8-98061-135-1	01	1	1411-	●	●
59	BRACKET; FRAME HARNESS (B)	8-98201-144-0	01	1	1411-	●	●
69	BRACKET; CLIP	8-98171-829-0	01	1	1411-	●	●
211	BRACKET; AXLE HARNESS L=95	1-82699-085-0	02	1	1008-	●	●
312	BRACKET; CLIP HARNESS (D)	1-47477-694-0	02	1	1411-	●	●
312	BRACKET; CLIP HARNESS (E)	8-97636-868-1	02	1	1411-	●	●
312	BRACKET; CLIP HARNESS (F)	8-98225-560-0	01	1	1411-	●	●
312	BRACKET; CLIP HARNESS (G)	8-98233-397-0	01	1	1411-	●	●
312	BRACKET; CLIP HARNESS (A) L=120 H=35	1-82698-088-0	01	1	1008-	●	●
312	BRACKET; CLIP HARNESS (B)	1-21464-481-0	01	1	1008-1410	●	●
312	BRACKET; CLIP HARNESS (C)	8-98201-136-0	01	1	1411-	●	●
334	BRACKET	8-98160-717-1	01	1	1008-1410	●	●
334	BRACKET	8-98212-895-0	01	1	1411-	●	●
335	BRACKET; CONNECTOR WHEEL BASE 5200MM(52W) (A)	1-82698-167-0	01	1	1008-	●
335	BRACKET; CONNECTOR WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) (A)	1-82698-167-0	01	1	1008-		●
335	BRACKET; CONNECTOR WHEEL BASE 5900MM(59W) (B)	1-82698-663-0	01	1	1008-		●
342	BRACKET; HARNESS CAB MTG EXC. ENGINE REAR PTO(SV1) (B)	1-47479-974-0	01	1	1008-1209	●
342	BRACKET; HARNESS CAB MTG (B)	1-47479-974-0	01	1	1008-1209		●
342	BRACKET; HARNESS CAB MTG (B)	1-47479-974-0	01	1	1210-1410		●
342	BRACKET; HARNESS CAB MTG (B)	8-98240-938-0	01	1	1411-		●
342	BRACKET; HARNESS CAB MTG (A)	1-82699-625-0	01	1	1008-	●	●
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	1008-	●	●

16 51 104 212 206 305 16 104 208 305 228 171 369 380 470 208 142 162 51 16 470 194 48 16 14 194 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

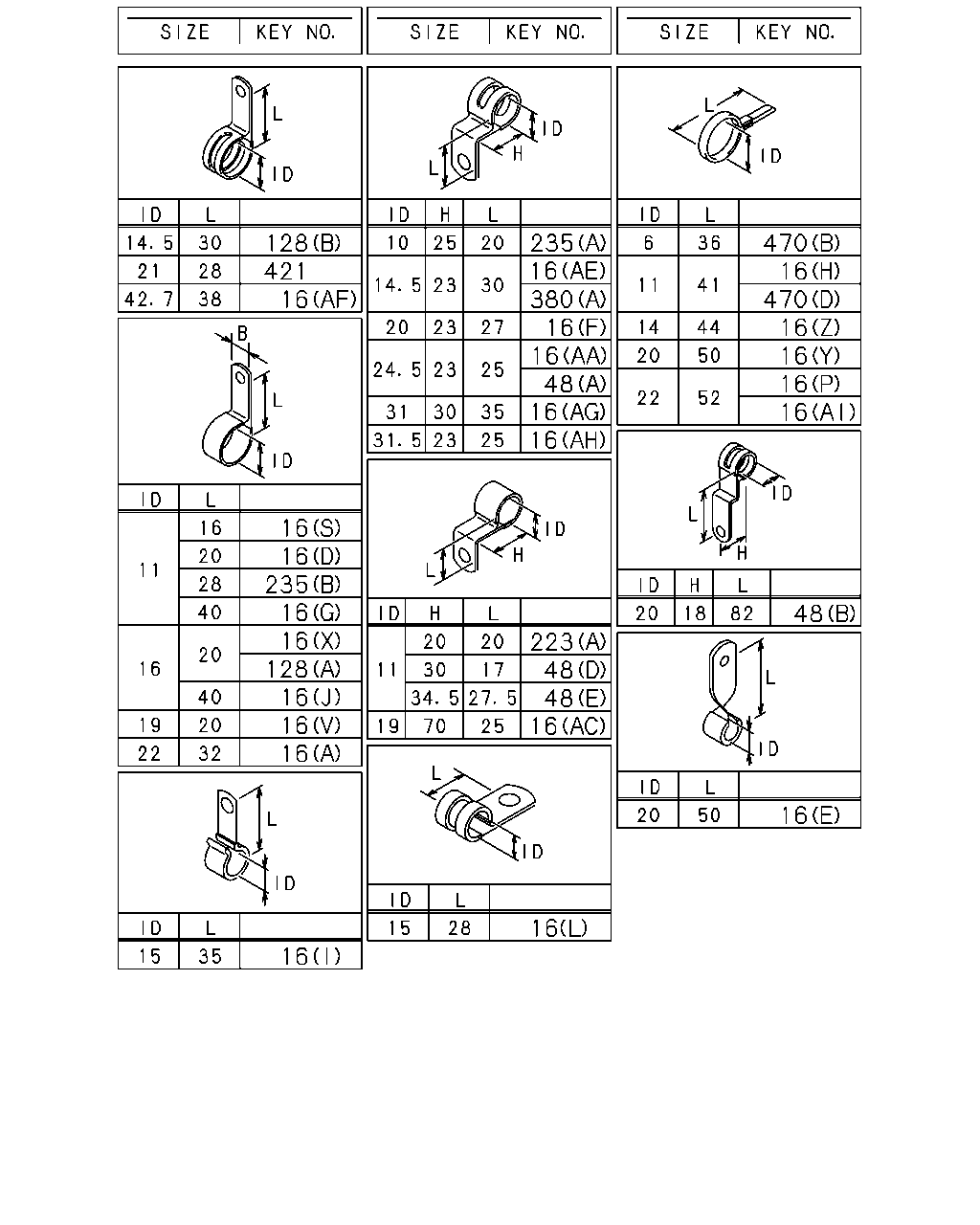

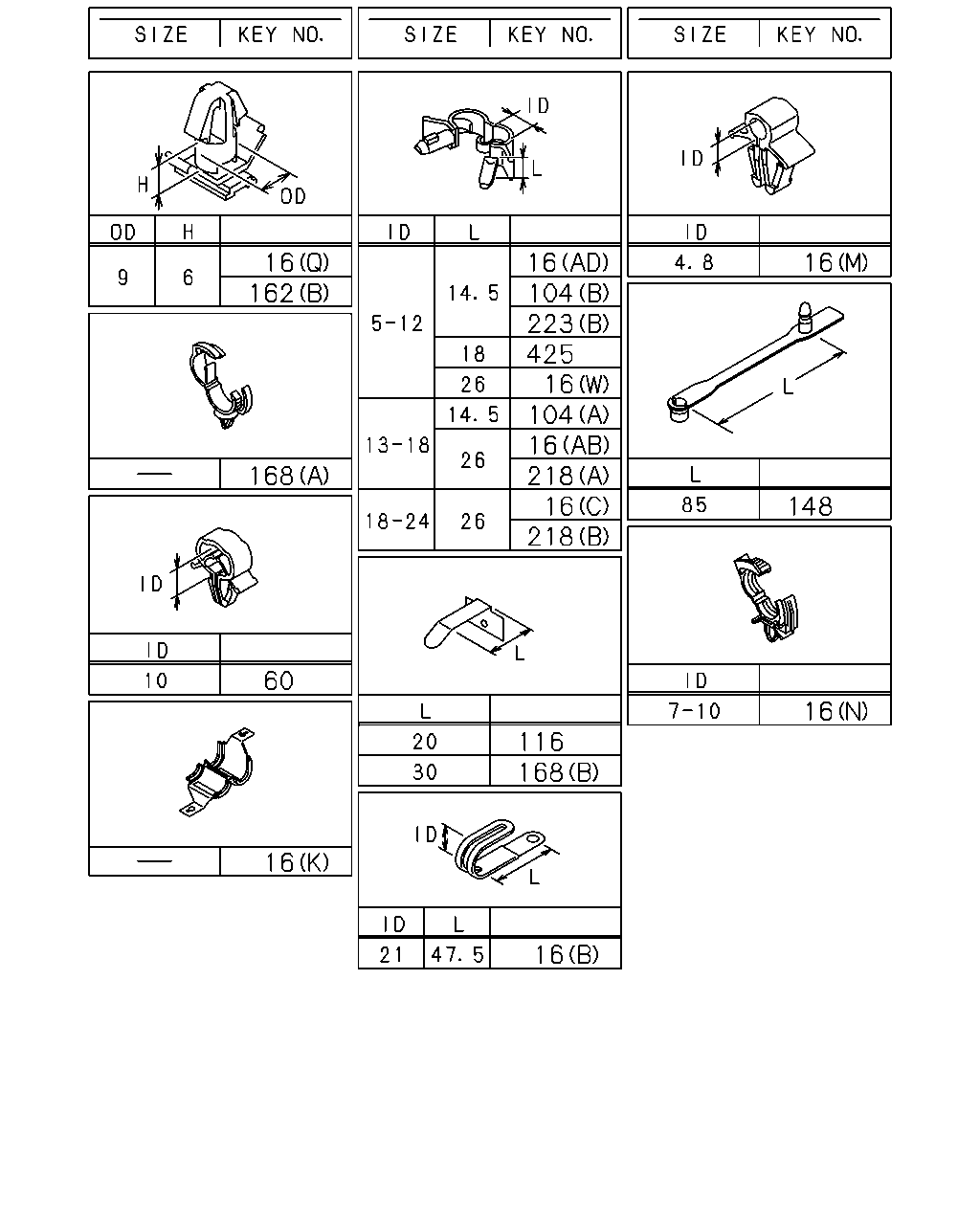

14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1008-	●	●
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	02	1	1008-1410	●	●
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	1411-	●	●
16	CLIP; HARNESS (P) ID=22 L=52	9-09917-431-0	03	1	1008-1410	●	●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	02	1	1008-	●	●
16	CLIP; HARNESS (AG) ID=31 H=30 L=35	1-09700-994-0	01	1	1202-	●	●
16	CLIP; HARNESS (AF) ID=42.7 L=38	1-09701-313-0	01	1	1008-1201	●	●
16	CLIP; HARNESS (AH) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1202-1410	●	●
16	CLIP; HARNESS (AH) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1411-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	03	1	1008-1410	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1411-	●	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	06	1	1008-1410	●	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	1411-	●	●
16	CLIP; HARNESS MIXER TRUCK<RA2> (V) B=18 ID=19 L=20	0-95235-836-0	01	1	1008-1209	●
16	CLIP; HARNESS (V) B=18 ID=19 L=20	0-95235-836-0	01	1	1210-1410	●
16	CLIP; HARNESS (V) ID=19 L=20	0-95235-836-0	01	1	1411-	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (V) ID=19 L=20	0-95235-836-0	01	1	1411-		●
16	CLIP; HARNESS WHEEL BASE 5200MM(52W) (C) ID=18-24 L=26	1-09709-296-0	01	1	1008-1410	●
16	CLIP; HARNESS WHEEL BASE 5500MM(55W) (C) ID=18-24 L=26	1-09709-296-0	01	1	1008-1410		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> (C) ID=18-24 L=26	1-09709-296-0	01	1	1008-1410		●
16	CLIP; HARNESS (C) ID=18-24 L=26	1-09709-296-0	01	1	1411-	●
16	CLIP; HARNESS EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) ID=18-24 L=26	1-09709-296-0	01	1	1411-		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> (C) ID=18-24 L=26	1-09709-296-0	01	1	1411-		●
16	CLIP; HARNESS (S) ID=11 L=16	0-95235-025-0	02	1	1008-	●	●
16	CLIP; HARNESS (D) B=14 ID=11 L=20	0-95235-032-0	01	1	1008-	●	●
16	CLIP; HARNESS (D) B=18 ID=11 L=20	0-95235-035-0	03	1	1008-1208	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (D) B=18 ID=11 L=20	0-95235-035-0	02	1	1209-1410	●	●
16	CLIP; HARNESS (D) B=18 ID=11 L=20	0-95235-035-0	02	1	1209-1410	●	●
16	CLIP; HARNESS (D) B=18 ID=11 L=20	0-95235-035-0	02	1	1411-	●	●
16	CLIP; HARNESS (X) ID=16 L=20	0-95235-535-0	01	1	1008-	●	●
16	CLIP; HARNESS (V) B=14 ID=19 L=20	0-95235-832-0	01	1	1008-	●	●
16	CLIP; HARNESS (A) ID=22 L=32	1-09700-126-1	01	1	1008-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	02	1	1008-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	03	1	1008-1410	●	●
16	CLIP; HARNESS (AI) ID=28 L=58	1-09700-400-0	02	1	1411-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	08	1	1008-1410	●	●
16	CLIP; HARNESS (AH) ID=31.5 H=23 L=25	1-09701-017-0	03	1	1411-	●	●
16	CLIP; HARNESS (I) ID=15 L=35	1-09700-507-0	01	1	1008-1410	●	●
16	CLIP; HARNESS (W) ID=5-12 L=26	1-09709-289-0	01	1	1411-	●	●
16	CLIP; HARNESS (W) ID=5-12 L=26	1-09709-289-0	01	1	1411-	●	●
16	CLIP; HARNESS (E) ID=20 L=50	1-09700-679-1	01	1	1008-	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-1209	●	●
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-1209	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-1209		●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1210-	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1210-		●
16	CLIP; HARNESS (AA) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-1410	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (D) B=18 ID=11 L=20	0-95235-035-0	01	1	1411-		●
16	CLIP; HARNESS (L) ID=15 L=28	1-09701-216-0	01	1	1008-	●	●
16	CLIP; HARNESS (M) ID=4.8	1-09701-218-0	01	1	1008-1410	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (X) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1411-		●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	01	1	1008-	●	●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	06	1	1008-1410	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1008-1410	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (T) L=350	1-09707-183-0	01	1	1411-		●
16	CLIP; HARNESS WHEEL BASE 5500MM(55W) (T) L=350	1-09707-183-0	01	1	1411-		●
16	CLIP; HARNESS (W) ID=5-12 L=26	1-09709-289-0	01	1	1008-1410	●	●
16	CLIP; HARNESS (W) ID=5-12 L=26	1-09709-289-0	01	1	1008-1410	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	03	1	1411-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	03	1	1411-	●	●
16	CLIP; HARNESS (AD) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-1410	●
16	CLIP; HARNESS EXC. BATTERY LAYOUT REAR VAR1<NCT> (AD) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-1410		●
16	CLIP; HARNESS (AD) ID=5-12 L=14.5	1-09987-221-0	02	1	1411-	●	●
16	CLIP; HARNESS (AD) ID=5-12 L=14.5	1-09987-221-0	02	1	1411-	●	●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	01	1	1008-1410	●	●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	01	1	1008-1410	●	●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (U) L=250	5-09707-030-1	01	1	1008-1410		●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	01	1	1411-	●	●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	01	1	1411-	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (U) L=250	5-09707-030-1	01	1	1411-		●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	1008-1410	●	●
16	CLIP; HARNESS (R) L=140	5-09707-031-1	01	1	1008-1209	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (R) L=140	5-09707-031-1	01	1	1008-1209	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (R) L=140	5-09707-031-1	01	1	1008-1209		●
16	CLIP; HARNESS (R) L=140	5-09707-031-1	01	1	1210-1410	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (R) L=140	5-09707-031-1	01	1	1210-1410		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (R) L=140	5-09707-031-1	01	1	1210-1410		●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	1411-	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (U) L=250	5-09707-030-1	02	1	1411-		●
16	CLIP; HARNESS (B) ID=21 L=47.5	8-94178-108-0	02	1	1008-	●	●
16	CLIP; HARNESS (N) ID=7-10	8-94472-578-0	01	1	1008-1410	●	●
16	CLIP; HARNESS (AC) ID=19 H=70 L=25	8-97360-209-0	01	1	1008-	●	●
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	03	1	1008-	●	●
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	03	1	1008-	●
16	CLIP; HARNESS EXC. FULL TRACTOR TRUCK<RD6> (Z) ID=14 L=44	9-09917-427-0	03	1	1008-		●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	01	1	1008-1410	●	●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	06	1	1411-	●	●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	05	1	1008-1410	●	●
16	CLIP; HARNESS (P) ID=22 L=52	9-09917-431-0	02	1	1008-1410	●	●
16	CLIP; HARNESS (P) ID=22 L=52	9-09917-431-0	03	1	1411-	●	●
16	CLIP; HARNESS MJT7S M/T(Y3E) (AE) ID=14.5 H=23 L=30	1-09700-859-0	02	1	1008-1410	●	●
16	CLIP; HARNESS MJT7S M/T(Y3E) (X) T=1.2 ID=16 L=20	0-95235-536-0	02	1	1411-	●	●
16	CLIP; HARNESS MJT7S M/T(Y3E) (Q) OD=9 H=6	1-09709-178-0	02	1	1008-1410	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (Q) OD=9 H=6	1-09709-178-0	06	1	1411-1506		●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	03	1	1507-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (D) B=18 ID=11 L=20	0-95235-035-0	02	1	1008-1208		●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (G) ID=11 L=40	0-95235-075-0	01	1	1008-1410		●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (J) ID=16 L=40	0-95235-576-0	01	1	1008-1410		●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (J) ID=16 L=40	0-95235-576-0	02	1	1411-		●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1008-1410	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1008-1410		●
16	CLIP; HARNESS (R) L=140	5-09707-031-1	03	1	1411-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (R) L=140	5-09707-031-1	03	1	1411-		●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (Q) OD=9 H=6	1-09709-178-0	03	1	1008-1410		●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) W/SPONGE RUBBER	1-09709-150-0	01	1	1411-		●
16	CLIP; HARNESS BATTERY LAYOUT REAR VAR1<NCT> (AD) ID=5-12 L=14.5	1-09987-221-0	03	1	1008-1410		●
16	CLIP; HARNESS (AD) ID=5-12 L=14.5	1-09987-221-0	01	1	1411-	●	●
16	CLIP; HARNESS BATTERY LAYOUT REAR VAR1<NCT> (AD) ID=5-12 L=14.5	1-09987-221-0	01	1	1411-		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (K) W/SPONGE RUBBER	1-09709-150-0	01	1	1008-1410		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AB) ID=13-18 L=26	1-09709-293-0	02	1	1411-		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AB) ID=13-18 L=26	1-09709-293-0	03	1	1008-1410		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. FULL TRACTOR TRUCK<RD6> (AB) ID=13-18 L=26	1-09709-293-0	03	1	1008-1410		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AB) ID=13-18 L=26	1-09709-293-0	01	1	1411-		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) EXC. FULL TRACTOR TRUCK<RD6> (AB) ID=13-18 L=26	1-09709-293-0	01	1	1411-		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (Y) ID=20 L=50	9-09917-430-0	03	1	1008-		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) EXC. FULL TRACTOR TRUCK<RD6> (AB) ID=13-18 L=26	1-09709-293-0	01	1	1008-1410		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AB) ID=13-18 L=26	1-09709-293-0	03	1	1411-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> (C) ID=18-24 L=26	1-09709-296-0	03	1	1008-1410		●
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1411-	●	●
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1411-	●	●
48	CLIP; FRAME HARNESS (D) ID=11 H=30 L=17	1-09700-113-0	01	1	1411-	●	●
48	CLIP; FRAME HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1411-	●	●
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-	●	●
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1008-	●	●
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	11	1	1008-1410	●	●
48	CLIP; FRAME HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1411-	●	●
51	CLIP; COOLER CMPR (A) L=180	1-09707-162-1	01	1	1008-1410	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	1411-	●	●
51	CLIP; COOLER CMPR (B) L=140	5-09707-031-1	01	1	1008-1410	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	1411-	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	1008-1410	●	●
104	CLIP; HEADLAMP HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	04	1	1008-1410	●	●
104	CLIP; HEADLAMP HARNESS (C) L=250	5-09707-030-1	02	1	1008-1410	●	●
104	CLIP; HEADLAMP HARNESS (D) L=140	5-09707-031-1	06	1	1008-1410	●	●
104	CLIP; HEADLAMP HARNESS (D) L=140	5-09707-031-1	02	1	1411-	●	●
142	CLIP; HARNESS,ENG L=180	1-09707-162-1	02	1	1008-1207	●	●
142	CLIP; HARNESS,ENG L=180	8-98216-427-0	02	1	1208-	●	●
162	CLIP; SW HARNESS (A) L=180	1-09707-162-1	01	1	1008-1410	●	●
162	CLIP; SW HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1411-	●	●
171	CLIP; STARTER HARNESS L=250	5-09707-030-1	05	1	1008-1410	●	●
171	CLIP; STARTER HARNESS L=250	5-09707-030-1	03	1	1411-	●	●
194	CLIP; BAND (B) L=350	1-09707-183-0	04	1	1008-	●	●
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	1008-	●	●
194	CLIP; BAND (B) L=350	1-09707-183-0	01	1	1008-	●	●
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	1008-	●	●
208	CLIP; HARNESS,MAG VLV (B) L=250	5-09707-030-1	01	1	1411-	●	●
208	CLIP; HARNESS,MAG VLV PTO CONTROL OPERATION CAB BACK<TBZ> (A) L=180	1-09707-162-1	01	1	1008-1209	●	●
208	CLIP; HARNESS,MAG VLV (A) L=180	1-09707-162-1	01	1	1210-1410	●
208	CLIP; HARNESS,MAG VLV PTO CONTROL OPERATION CAB BACK<TBZ> (A) L=180	1-09707-162-1	01	1	1210-1410		●
208	CLIP; HARNESS,MAG VLV PTO CONTROL OPERATION CAB BACK<TBZ> (A) L=180	1-09707-162-1	01	1	1411-	●	●
212	CLIP; HORN HARNESS L=140	5-09707-031-1	01	1	1008-1410	●	●
228	CLIP; COOLER HARNESS L=250	5-09707-030-1	02	1	1411-	●	●
305	CLIP; ENG HARNESS (B) L=250	5-09707-030-1	03	1	1411-	●	●
305	CLIP; ENG HARNESS (A) L=140	5-09707-031-1	01	1	1008-	●	●
369	CLIP; BAND EDS HARNESS L=250	5-09707-030-1	01	1	1008-1410	●	●
369	CLIP; BAND EDS HARNESS FULL TRACTOR TRUCK<RD6> L=250	5-09707-030-1	02	1	1008-		●
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	04	1	1008-1410	●	●
380	CLIP; EARTH HARNESS (A) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1008-1410	●	●
470	CLIP; HARNESS,LICENSE LAMP (D) ID=11 L=41	1-09700-403-0	01	1	1411-	●	●
470	CLIP; HARNESS,LICENSE LAMP (A) L=350	1-09707-183-0	02	1	1008-1111	●	●
470	CLIP; HARNESS,LICENSE LAMP (C) L=250	5-09707-030-1	04	1	1411-	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=6 L=36	9-09917-423-0	02	1	1008-1111	●	●

128 16 421 16 235 16 16 16 128 16 16 16 16 235 380 16 16 16 16 48 16 223 48 48 16 16 470 470 16 16 16 16 16 48 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (P) ID=22 L=52	9-09917-431-0	03	1	1008-1410	●	●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	02	1	1008-	●	●
16	CLIP; HARNESS (AG) ID=31 H=30 L=35	1-09700-994-0	01	1	1202-	●	●
16	CLIP; HARNESS (AF) ID=42.7 L=38	1-09701-313-0	01	1	1008-1201	●	●
16	CLIP; HARNESS (AH) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1202-1410	●	●
16	CLIP; HARNESS (AH) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1411-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	03	1	1008-1410	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1411-	●	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	06	1	1008-1410	●	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	1411-	●	●
16	CLIP; HARNESS MIXER TRUCK<RA2> (V) B=18 ID=19 L=20	0-95235-836-0	01	1	1008-1209	●
16	CLIP; HARNESS (V) B=18 ID=19 L=20	0-95235-836-0	01	1	1210-1410	●
16	CLIP; HARNESS (V) ID=19 L=20	0-95235-836-0	01	1	1411-	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (V) ID=19 L=20	0-95235-836-0	01	1	1411-		●
16	CLIP; HARNESS WHEEL BASE 5200MM(52W) (C) ID=18-24 L=26	1-09709-296-0	01	1	1008-1410	●
16	CLIP; HARNESS WHEEL BASE 5500MM(55W) (C) ID=18-24 L=26	1-09709-296-0	01	1	1008-1410		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> (C) ID=18-24 L=26	1-09709-296-0	01	1	1008-1410		●
16	CLIP; HARNESS (C) ID=18-24 L=26	1-09709-296-0	01	1	1411-	●
16	CLIP; HARNESS EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) ID=18-24 L=26	1-09709-296-0	01	1	1411-		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> (C) ID=18-24 L=26	1-09709-296-0	01	1	1411-		●
16	CLIP; HARNESS (S) ID=11 L=16	0-95235-025-0	02	1	1008-	●	●
16	CLIP; HARNESS (D) B=14 ID=11 L=20	0-95235-032-0	01	1	1008-	●	●
16	CLIP; HARNESS (D) B=18 ID=11 L=20	0-95235-035-0	03	1	1008-1208	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (D) B=18 ID=11 L=20	0-95235-035-0	02	1	1209-1410	●	●
16	CLIP; HARNESS (D) B=18 ID=11 L=20	0-95235-035-0	02	1	1209-1410	●	●
16	CLIP; HARNESS (D) B=18 ID=11 L=20	0-95235-035-0	02	1	1411-	●	●
16	CLIP; HARNESS (X) ID=16 L=20	0-95235-535-0	01	1	1008-	●	●
16	CLIP; HARNESS (V) B=14 ID=19 L=20	0-95235-832-0	01	1	1008-	●	●
16	CLIP; HARNESS (A) ID=22 L=32	1-09700-126-1	01	1	1008-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	02	1	1008-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	03	1	1008-1410	●	●
16	CLIP; HARNESS (AI) ID=28 L=58	1-09700-400-0	02	1	1411-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	08	1	1008-1410	●	●
16	CLIP; HARNESS (AH) ID=31.5 H=23 L=25	1-09701-017-0	03	1	1411-	●	●
16	CLIP; HARNESS (I) ID=15 L=35	1-09700-507-0	01	1	1008-1410	●	●
16	CLIP; HARNESS (W) ID=5-12 L=26	1-09709-289-0	01	1	1411-	●	●
16	CLIP; HARNESS (W) ID=5-12 L=26	1-09709-289-0	01	1	1411-	●	●
16	CLIP; HARNESS (E) ID=20 L=50	1-09700-679-1	01	1	1008-	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-1209	●	●
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-1209	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-1209		●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1210-	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1210-		●
16	CLIP; HARNESS (AA) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-1410	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (D) B=18 ID=11 L=20	0-95235-035-0	01	1	1411-		●
16	CLIP; HARNESS (L) ID=15 L=28	1-09701-216-0	01	1	1008-	●	●
16	CLIP; HARNESS (M) ID=4.8	1-09701-218-0	01	1	1008-1410	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (X) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1411-		●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	01	1	1008-	●	●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	06	1	1008-1410	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1008-1410	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (T) L=350	1-09707-183-0	01	1	1411-		●
16	CLIP; HARNESS WHEEL BASE 5500MM(55W) (T) L=350	1-09707-183-0	01	1	1411-		●
16	CLIP; HARNESS (W) ID=5-12 L=26	1-09709-289-0	01	1	1008-1410	●	●
16	CLIP; HARNESS (W) ID=5-12 L=26	1-09709-289-0	01	1	1008-1410	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	03	1	1411-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	03	1	1411-	●	●
16	CLIP; HARNESS (AD) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-1410	●
16	CLIP; HARNESS EXC. BATTERY LAYOUT REAR VAR1<NCT> (AD) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-1410		●
16	CLIP; HARNESS (AD) ID=5-12 L=14.5	1-09987-221-0	02	1	1411-	●	●
16	CLIP; HARNESS (AD) ID=5-12 L=14.5	1-09987-221-0	02	1	1411-	●	●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	01	1	1008-1410	●	●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	01	1	1008-1410	●	●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (U) L=250	5-09707-030-1	01	1	1008-1410		●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	01	1	1411-	●	●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	01	1	1411-	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (U) L=250	5-09707-030-1	01	1	1411-		●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	1008-1410	●	●
16	CLIP; HARNESS (R) L=140	5-09707-031-1	01	1	1008-1209	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (R) L=140	5-09707-031-1	01	1	1008-1209	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (R) L=140	5-09707-031-1	01	1	1008-1209		●
16	CLIP; HARNESS (R) L=140	5-09707-031-1	01	1	1210-1410	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (R) L=140	5-09707-031-1	01	1	1210-1410		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (R) L=140	5-09707-031-1	01	1	1210-1410		●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	1411-	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (U) L=250	5-09707-030-1	02	1	1411-		●
16	CLIP; HARNESS (B) ID=21 L=47.5	8-94178-108-0	02	1	1008-	●	●
16	CLIP; HARNESS (N) ID=7-10	8-94472-578-0	01	1	1008-1410	●	●
16	CLIP; HARNESS (AC) ID=19 H=70 L=25	8-97360-209-0	01	1	1008-	●	●
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	03	1	1008-	●	●
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	03	1	1008-	●
16	CLIP; HARNESS EXC. FULL TRACTOR TRUCK<RD6> (Z) ID=14 L=44	9-09917-427-0	03	1	1008-		●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	01	1	1008-1410	●	●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	06	1	1411-	●	●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	05	1	1008-1410	●	●
16	CLIP; HARNESS (P) ID=22 L=52	9-09917-431-0	02	1	1008-1410	●	●
16	CLIP; HARNESS (P) ID=22 L=52	9-09917-431-0	03	1	1411-	●	●
16	CLIP; HARNESS MJT7S M/T(Y3E) (AE) ID=14.5 H=23 L=30	1-09700-859-0	02	1	1008-1410	●	●
16	CLIP; HARNESS MJT7S M/T(Y3E) (X) T=1.2 ID=16 L=20	0-95235-536-0	02	1	1411-	●	●
16	CLIP; HARNESS MJT7S M/T(Y3E) (Q) OD=9 H=6	1-09709-178-0	02	1	1008-1410	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (Q) OD=9 H=6	1-09709-178-0	06	1	1411-1506		●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	03	1	1507-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (D) B=18 ID=11 L=20	0-95235-035-0	02	1	1008-1208		●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (G) ID=11 L=40	0-95235-075-0	01	1	1008-1410		●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (J) ID=16 L=40	0-95235-576-0	01	1	1008-1410		●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (J) ID=16 L=40	0-95235-576-0	02	1	1411-		●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1008-1410	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1008-1410		●
16	CLIP; HARNESS (R) L=140	5-09707-031-1	03	1	1411-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (R) L=140	5-09707-031-1	03	1	1411-		●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (Q) OD=9 H=6	1-09709-178-0	03	1	1008-1410		●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) W/SPONGE RUBBER	1-09709-150-0	01	1	1411-		●
16	CLIP; HARNESS BATTERY LAYOUT REAR VAR1<NCT> (AD) ID=5-12 L=14.5	1-09987-221-0	03	1	1008-1410		●
16	CLIP; HARNESS (AD) ID=5-12 L=14.5	1-09987-221-0	01	1	1411-	●	●
16	CLIP; HARNESS BATTERY LAYOUT REAR VAR1<NCT> (AD) ID=5-12 L=14.5	1-09987-221-0	01	1	1411-		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (K) W/SPONGE RUBBER	1-09709-150-0	01	1	1008-1410		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AB) ID=13-18 L=26	1-09709-293-0	02	1	1411-		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AB) ID=13-18 L=26	1-09709-293-0	03	1	1008-1410		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. FULL TRACTOR TRUCK<RD6> (AB) ID=13-18 L=26	1-09709-293-0	03	1	1008-1410		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AB) ID=13-18 L=26	1-09709-293-0	01	1	1411-		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) EXC. FULL TRACTOR TRUCK<RD6> (AB) ID=13-18 L=26	1-09709-293-0	01	1	1411-		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (Y) ID=20 L=50	9-09917-430-0	03	1	1008-		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) EXC. FULL TRACTOR TRUCK<RD6> (AB) ID=13-18 L=26	1-09709-293-0	01	1	1008-1410		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AB) ID=13-18 L=26	1-09709-293-0	03	1	1411-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> (C) ID=18-24 L=26	1-09709-296-0	03	1	1008-1410		●
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1411-	●	●
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1411-	●	●
48	CLIP; FRAME HARNESS (D) ID=11 H=30 L=17	1-09700-113-0	01	1	1411-	●	●
48	CLIP; FRAME HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1411-	●	●
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-	●	●
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1008-	●	●
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	11	1	1008-1410	●	●
48	CLIP; FRAME HARNESS (E) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1411-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	1008-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	1008-	●	●
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1411-	●	●
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	04	1	1008-1410	●	●
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	03	1	1411-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS MJX16P M/T(Y3Z) (B) ID=11 L=28	9-09917-544-0	01	1	1411-		●
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=10 H=25 L=20	1-09700-519-0	01	1	1008-1410	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS MJT7S M/T(Y3E) (A) ID=10 H=25 L=20	1-09700-519-0	01	1	1411-	●	●
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	04	1	1008-1410	●	●
380	CLIP; EARTH HARNESS (A) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1008-1410	●	●
421	CLIP; FLOOR HARNESS ID=21 L=28	1-09700-673-1	02	1	1008-1202	●	●
470	CLIP; HARNESS,LICENSE LAMP (D) ID=11 L=41	1-09700-403-0	01	1	1411-	●	●
470	CLIP; HARNESS,LICENSE LAMP (A) L=350	1-09707-183-0	02	1	1008-1111	●	●
470	CLIP; HARNESS,LICENSE LAMP (C) L=250	5-09707-030-1	04	1	1411-	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=6 L=36	9-09917-423-0	02	1	1008-1111	●	●

16 162 168 60 16 116 168 16 16 16 148 16 425 104 223 16 16 104 218 218 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (P) ID=22 L=52	9-09917-431-0	03	1	1008-1410	●	●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	02	1	1008-	●	●
16	CLIP; HARNESS (AG) ID=31 H=30 L=35	1-09700-994-0	01	1	1202-	●	●
16	CLIP; HARNESS (AF) ID=42.7 L=38	1-09701-313-0	01	1	1008-1201	●	●
16	CLIP; HARNESS (AH) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1202-1410	●	●
16	CLIP; HARNESS (AH) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1411-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	03	1	1008-1410	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1411-	●	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	06	1	1008-1410	●	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	1411-	●	●
16	CLIP; HARNESS MIXER TRUCK<RA2> (V) B=18 ID=19 L=20	0-95235-836-0	01	1	1008-1209	●
16	CLIP; HARNESS (V) B=18 ID=19 L=20	0-95235-836-0	01	1	1210-1410	●
16	CLIP; HARNESS (V) ID=19 L=20	0-95235-836-0	01	1	1411-	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (V) ID=19 L=20	0-95235-836-0	01	1	1411-		●
16	CLIP; HARNESS WHEEL BASE 5200MM(52W) (C) ID=18-24 L=26	1-09709-296-0	01	1	1008-1410	●
16	CLIP; HARNESS WHEEL BASE 5500MM(55W) (C) ID=18-24 L=26	1-09709-296-0	01	1	1008-1410		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> (C) ID=18-24 L=26	1-09709-296-0	01	1	1008-1410		●
16	CLIP; HARNESS (C) ID=18-24 L=26	1-09709-296-0	01	1	1411-	●
16	CLIP; HARNESS EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) ID=18-24 L=26	1-09709-296-0	01	1	1411-		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> (C) ID=18-24 L=26	1-09709-296-0	01	1	1411-		●
16	CLIP; HARNESS (S) ID=11 L=16	0-95235-025-0	02	1	1008-	●	●
16	CLIP; HARNESS (D) B=14 ID=11 L=20	0-95235-032-0	01	1	1008-	●	●
16	CLIP; HARNESS (D) B=18 ID=11 L=20	0-95235-035-0	03	1	1008-1208	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (D) B=18 ID=11 L=20	0-95235-035-0	02	1	1209-1410	●	●
16	CLIP; HARNESS (D) B=18 ID=11 L=20	0-95235-035-0	02	1	1209-1410	●	●
16	CLIP; HARNESS (D) B=18 ID=11 L=20	0-95235-035-0	02	1	1411-	●	●
16	CLIP; HARNESS (X) ID=16 L=20	0-95235-535-0	01	1	1008-	●	●
16	CLIP; HARNESS (V) B=14 ID=19 L=20	0-95235-832-0	01	1	1008-	●	●
16	CLIP; HARNESS (A) ID=22 L=32	1-09700-126-1	01	1	1008-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	02	1	1008-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	03	1	1008-1410	●	●
16	CLIP; HARNESS (AI) ID=28 L=58	1-09700-400-0	02	1	1411-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	08	1	1008-1410	●	●
16	CLIP; HARNESS (AH) ID=31.5 H=23 L=25	1-09701-017-0	03	1	1411-	●	●
16	CLIP; HARNESS (I) ID=15 L=35	1-09700-507-0	01	1	1008-1410	●	●
16	CLIP; HARNESS (W) ID=5-12 L=26	1-09709-289-0	01	1	1411-	●	●
16	CLIP; HARNESS (W) ID=5-12 L=26	1-09709-289-0	01	1	1411-	●	●
16	CLIP; HARNESS (E) ID=20 L=50	1-09700-679-1	01	1	1008-	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-1209	●	●
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-1209	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-1209		●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1210-	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1210-		●
16	CLIP; HARNESS (AA) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-1410	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (D) B=18 ID=11 L=20	0-95235-035-0	01	1	1411-		●
16	CLIP; HARNESS (L) ID=15 L=28	1-09701-216-0	01	1	1008-	●	●
16	CLIP; HARNESS (M) ID=4.8	1-09701-218-0	01	1	1008-1410	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (X) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1411-		●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	01	1	1008-	●	●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	06	1	1008-1410	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1008-1410	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (T) L=350	1-09707-183-0	01	1	1411-		●
16	CLIP; HARNESS WHEEL BASE 5500MM(55W) (T) L=350	1-09707-183-0	01	1	1411-		●
16	CLIP; HARNESS (W) ID=5-12 L=26	1-09709-289-0	01	1	1008-1410	●	●
16	CLIP; HARNESS (W) ID=5-12 L=26	1-09709-289-0	01	1	1008-1410	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	03	1	1411-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	03	1	1411-	●	●
16	CLIP; HARNESS (AD) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-1410	●
16	CLIP; HARNESS EXC. BATTERY LAYOUT REAR VAR1<NCT> (AD) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-1410		●
16	CLIP; HARNESS (AD) ID=5-12 L=14.5	1-09987-221-0	02	1	1411-	●	●
16	CLIP; HARNESS (AD) ID=5-12 L=14.5	1-09987-221-0	02	1	1411-	●	●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	01	1	1008-1410	●	●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	01	1	1008-1410	●	●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (U) L=250	5-09707-030-1	01	1	1008-1410		●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	01	1	1411-	●	●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	01	1	1411-	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (U) L=250	5-09707-030-1	01	1	1411-		●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	1008-1410	●	●
16	CLIP; HARNESS (R) L=140	5-09707-031-1	01	1	1008-1209	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (R) L=140	5-09707-031-1	01	1	1008-1209	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (R) L=140	5-09707-031-1	01	1	1008-1209		●
16	CLIP; HARNESS (R) L=140	5-09707-031-1	01	1	1210-1410	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (R) L=140	5-09707-031-1	01	1	1210-1410		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (R) L=140	5-09707-031-1	01	1	1210-1410		●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	1411-	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (U) L=250	5-09707-030-1	02	1	1411-		●
16	CLIP; HARNESS (B) ID=21 L=47.5	8-94178-108-0	02	1	1008-	●	●
16	CLIP; HARNESS (N) ID=7-10	8-94472-578-0	01	1	1008-1410	●	●
16	CLIP; HARNESS (AC) ID=19 H=70 L=25	8-97360-209-0	01	1	1008-	●	●
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	03	1	1008-	●	●
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	03	1	1008-	●
16	CLIP; HARNESS EXC. FULL TRACTOR TRUCK<RD6> (Z) ID=14 L=44	9-09917-427-0	03	1	1008-		●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	01	1	1008-1410	●	●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	06	1	1411-	●	●
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	05	1	1008-1410	●	●
16	CLIP; HARNESS (P) ID=22 L=52	9-09917-431-0	02	1	1008-1410	●	●
16	CLIP; HARNESS (P) ID=22 L=52	9-09917-431-0	03	1	1411-	●	●
16	CLIP; HARNESS MJT7S M/T(Y3E) (AE) ID=14.5 H=23 L=30	1-09700-859-0	02	1	1008-1410	●	●
16	CLIP; HARNESS MJT7S M/T(Y3E) (X) T=1.2 ID=16 L=20	0-95235-536-0	02	1	1411-	●	●
16	CLIP; HARNESS MJT7S M/T(Y3E) (Q) OD=9 H=6	1-09709-178-0	02	1	1008-1410	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (Q) OD=9 H=6	1-09709-178-0	06	1	1411-1506		●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	03	1	1507-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (D) B=18 ID=11 L=20	0-95235-035-0	02	1	1008-1208		●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (G) ID=11 L=40	0-95235-075-0	01	1	1008-1410		●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (J) ID=16 L=40	0-95235-576-0	01	1	1008-1410		●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (J) ID=16 L=40	0-95235-576-0	02	1	1411-		●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1008-1410	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1008-1410		●
16	CLIP; HARNESS (R) L=140	5-09707-031-1	03	1	1411-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (R) L=140	5-09707-031-1	03	1	1411-		●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (Q) OD=9 H=6	1-09709-178-0	03	1	1008-1410		●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) W/SPONGE RUBBER	1-09709-150-0	01	1	1411-		●
16	CLIP; HARNESS BATTERY LAYOUT REAR VAR1<NCT> (AD) ID=5-12 L=14.5	1-09987-221-0	03	1	1008-1410		●
16	CLIP; HARNESS (AD) ID=5-12 L=14.5	1-09987-221-0	01	1	1411-	●	●
16	CLIP; HARNESS BATTERY LAYOUT REAR VAR1<NCT> (AD) ID=5-12 L=14.5	1-09987-221-0	01	1	1411-		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (K) W/SPONGE RUBBER	1-09709-150-0	01	1	1008-1410		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AB) ID=13-18 L=26	1-09709-293-0	02	1	1411-		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AB) ID=13-18 L=26	1-09709-293-0	03	1	1008-1410		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. FULL TRACTOR TRUCK<RD6> (AB) ID=13-18 L=26	1-09709-293-0	03	1	1008-1410		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AB) ID=13-18 L=26	1-09709-293-0	01	1	1411-		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) EXC. FULL TRACTOR TRUCK<RD6> (AB) ID=13-18 L=26	1-09709-293-0	01	1	1411-		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (Y) ID=20 L=50	9-09917-430-0	03	1	1008-		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) EXC. FULL TRACTOR TRUCK<RD6> (AB) ID=13-18 L=26	1-09709-293-0	01	1	1008-1410		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AB) ID=13-18 L=26	1-09709-293-0	03	1	1411-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> (C) ID=18-24 L=26	1-09709-296-0	03	1	1008-1410		●
60	CLIP; CONSOLE HARNESS,SW PTO DUMP CONTROL LEVER<RC4> ID=10	8-94450-392-0	01	1	1008-		●
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	1008-1410	●	●
104	CLIP; HEADLAMP HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	04	1	1008-1410	●	●
104	CLIP; HEADLAMP HARNESS (C) L=250	5-09707-030-1	02	1	1008-1410	●	●
104	CLIP; HEADLAMP HARNESS (D) L=140	5-09707-031-1	06	1	1008-1410	●	●
104	CLIP; HEADLAMP HARNESS (D) L=140	5-09707-031-1	02	1	1411-	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	05	1	1008-1409	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	1410-	●	●
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	01	1	1008-	●	●
162	CLIP; SW HARNESS (A) L=180	1-09707-162-1	01	1	1008-1410	●	●
162	CLIP; SW HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1411-	●	●
168	CLIP; DASH HARNESS HEATER & DEFROSTER(C41) (B) L=30 SET=10 PIECE	1-09987-265-0	01	1	1411-	●	●
168	CLIP; DASH HARNESS (A) ID=6 & 10-13	8-97069-515-0	02	1	1008-	●	●
218	CLIP; BAND,RR COMB WHEEL BASE 5200MM(52W) (A) ID=13-18 L=26	1-09709-293-0	06	1	1008-1410	●
218	CLIP; BAND,RR COMB (A) ID=13-18 L=26	1-09709-293-0	06	1	1411-	●
218	CLIP; BAND,RR COMB EXC. FULL TRACTOR TRUCK<RD6> (A) ID=13-18 L=26	1-09709-293-0	06	1	1411-		●
218	CLIP; BAND,RR COMB WHEEL BASE 5200MM(52W) (B) ID=18-24 L=26	1-09709-296-0	01	1	1008-1410	●
218	CLIP; BAND,RR COMB WHEEL BASE 5500MM(55W) (B) ID=18-24 L=26	1-09709-296-0	01	1	1008-1410		●
218	CLIP; BAND,RR COMB FULL TRACTOR TRUCK<RD6> (B) ID=18-24 L=26	1-09709-296-0	01	1	1411-		●
218	CLIP; BAND,RR COMB (A) ID=13-18 L=26	1-09709-293-0	05	1	1008-1410		●
218	CLIP; BAND,RR COMB FULL TRACTOR TRUCK<RD6> (A) ID=13-18 L=26	1-09709-293-0	05	1	1411-		●
218	CLIP; BAND,RR COMB EXC. FULL TRACTOR TRUCK<RD6> (A) ID=13-18 L=26	1-09709-293-0	01	1	1008-1410		●
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1411-	●	●
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	04	1	1008-1410	●	●
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	03	1	1411-	●	●
425	CLIP; MODULATOR ID=5-12 L=18	1-09709-287-0	01	1	1411-	●	●

38 150 242 150 38 242 38 38 133 38 377 386 38 150 242 386 480 38 242 313 38 139 242 313 38 86 139 313 139 38 242 516 19 19 358 239 38 88 313

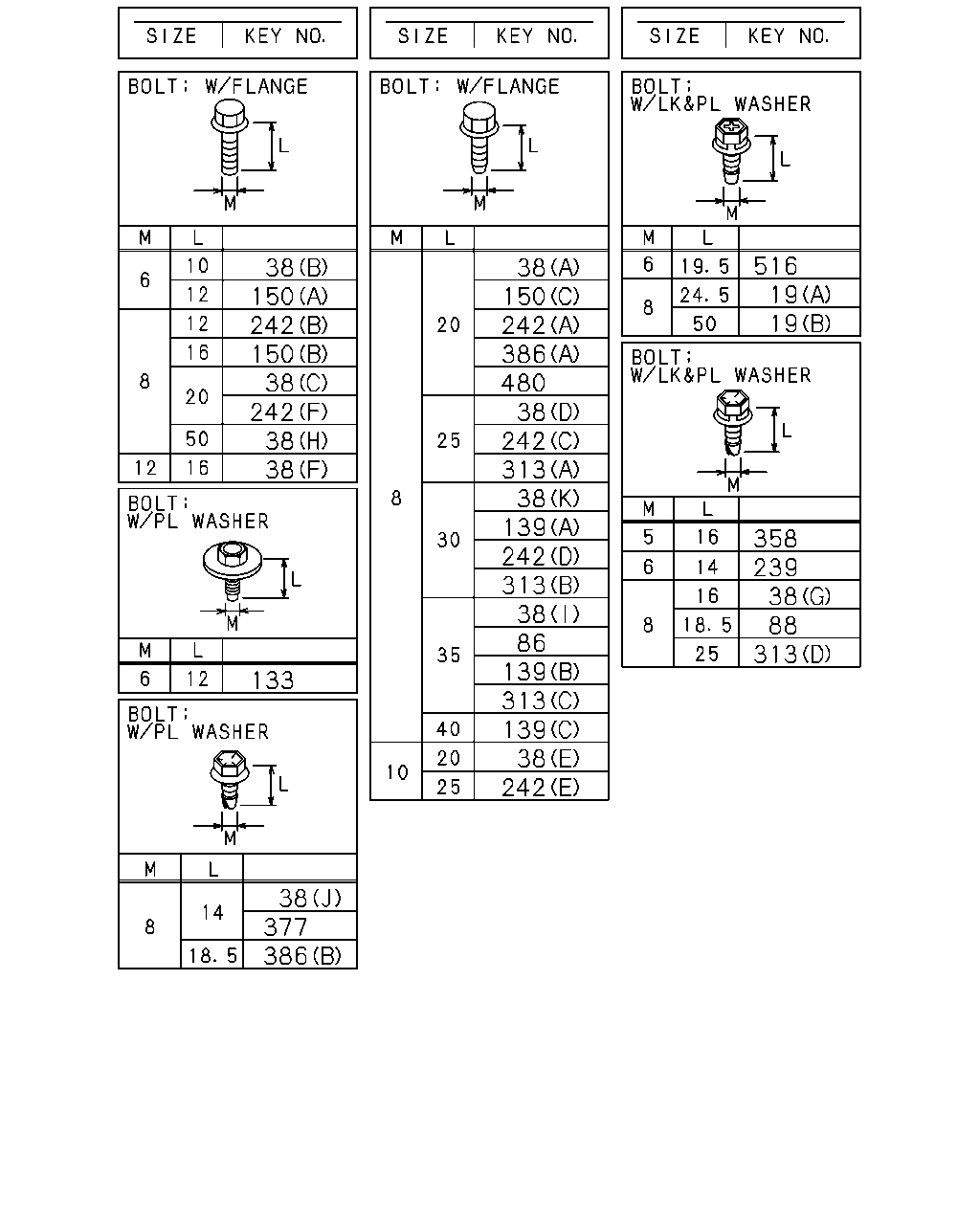

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	BOLT; PROTECTOR (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1008-1410	●	●
19	BOLT; PROTECTOR (B) M8X50 W/LK&PL WASHER	0-50640-850-0	02	1	1411-	●	●
38	BOLT; CLIP,HARNESS FULL TRACTOR TRUCK<RD6> (J) M8X14 W/PL WASHER	8-98164-837-0	03	1	1411-		●
38	BOLT; CLIP,HARNESS (B) M6X10 FLANGE	0-28050-610-0	01	1	1008-	●	●
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	01	1	1008-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-1209	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-1209	●	●
38	BOLT; CLIP,HARNESS ENGINE REAR PTO(SV1) (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-1209	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1210-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1210-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1210-	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-1410	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-1410	●	●
38	BOLT; CLIP,HARNESS MJX16P M/T(Y3Z) (A) M8X20 FLANGE	0-28650-820-0	05	1	1411-		●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28650-825-0	01	1	1008-1410	●	●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28650-825-0	01	1	1008-1410	●	●
38	BOLT; CLIP,HARNESS (K) M8X30 FLANGE	0-28650-830-0	06	1	1411-	●	●
38	BOLT; CLIP,HARNESS (E) M10X20 FLANGE	0-28751-020-0	01	1	1008-1410	●	●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28650-825-0	01	1	1411-	●	●
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	1-09044-079-0	01	1	1008-1105	●	●
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	0-28051-216-0	01	1	1106-	●	●
38	BOLT; CLIP,HARNESS (G) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	1008-1201	●	●
38	BOLT; CLIP,HARNESS (J) M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-1410	●	●
38	BOLT; CLIP,HARNESS (K) M8X30 FLANGE	0-28650-830-0	01	1	1411-	●	●
38	BOLT; CLIP,HARNESS MJT7S M/T(Y3E) (A) M8X20 FLANGE	0-28650-820-0	03	1	1008-1410	●	●
38	BOLT; CLIP,HARNESS MJT7S M/T(Y3E) (A) M8X20 FLANGE	0-28650-820-0	02	1	1411-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1411-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1411-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1411-	●	●
38	BOLT; CLIP,HARNESS MJX16P M/T(Y3Z) (A) M8X20 FLANGE	0-28650-820-0	05	1	1008-1410		●
38	BOLT; CLIP,HARNESS (E) M10X20 FLANGE	0-28751-020-0	01	1	1411-	●	●
38	BOLT; CLIP,HARNESS WHEEL BASE 5500MM(55W) FULL TRACTOR TRUCK<RD6> (H) M8X50 FLANGE	0-28050-850-0	01	1	1008-1410		●
38	BOLT; CLIP,HARNESS (J) M8X14 W/PL WASHER	8-98164-837-0	02	1	1411-	●
38	BOLT; CLIP,HARNESS EXC. FULL TRACTOR TRUCK<RD6> (J) M8X14 W/PL WASHER	8-98164-837-0	02	1	1411-		●
38	BOLT; CLIP,HARNESS WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> (I) M8X35 FLANGE	0-28650-835-0	01	1	1008-1410		●
38	BOLT; CLIP,HARNESS FULL TRAILER PIPING<Z25> (I) M8X35 FLANGE	0-28650-835-0	01	1	1411-		●
86	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	1008-	●	●
88	BOLT; DOOR HARNESS EARTH M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1411-	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	1008-	●	●
139	BOLT; BRKT WHEEL BASE 5900MM(59W) (C) M8X40 FLANGE	0-28650-840-0	02	1	1110-1410		●
139	BOLT; BRKT WHEEL BASE 5900MM(59W) (C) M8X40 FLANGE	0-28650-840-0	01	1	1411-		●
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1008-1410	●	●
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1411-	●	●
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1411-	●	●
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	05	1	1008-1410	●	●
139	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	1008-1109	●	●
139	BOLT; BRKT WHEEL BASE 5200MM(52W) (B) M8X35 FLANGE	0-28650-835-0	01	1	1110-	●
139	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6600MM(66W) (B) M8X35 FLANGE	0-28650-835-0	01	1	1110-		●
150	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1202-	●	●
150	BOLT; CLIP (A) M6X12 FLANGE	0-28050-612-0	02	1	1008-	●	●
150	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	04	1	1008-1208	●	●
150	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	03	1	1209-	●	●
239	BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-	●	●
242	BOLT; BRKT,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1411-	●	●
242	BOLT; BRKT,HARNESS (E) M10X25 FLANGE	0-28651-025-0	01	1	1411-	●	●
242	BOLT; BRKT,HARNESS EXC. ENGINE REAR PTO(SV1) (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-1209	●
242	BOLT; BRKT,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-1209		●
242	BOLT; BRKT,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1210-		●
242	BOLT; BRKT,HARNESS (B) M8X12 FLANGE	0-28050-812-0	01	1	1008-	●	●
242	BOLT; BRKT,HARNESS (C) M8X25 FLANGE	0-28650-825-0	02	1	1008-1410	●	●
242	BOLT; BRKT,HARNESS (F) M8X20 FLANGE	0-28050-820-0	02	1	1411-	●	●
313	BOLT; BRKT (D) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	1411-	●	●
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1008-1410	●	●
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1008-1410	●	●
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1411-	●	●
313	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	01	1	1008-	●	●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1008-	●	●
377	BOLT; CAB EARTH M8X14 W/PL WASHER	8-98164-837-0	01	1	1411-	●	●
386	BOLT; GRAND HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-1410	●	●
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1411-	●	●
480	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	03	1	1411-	●	●
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1008-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
