◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#63086) — 168 parça

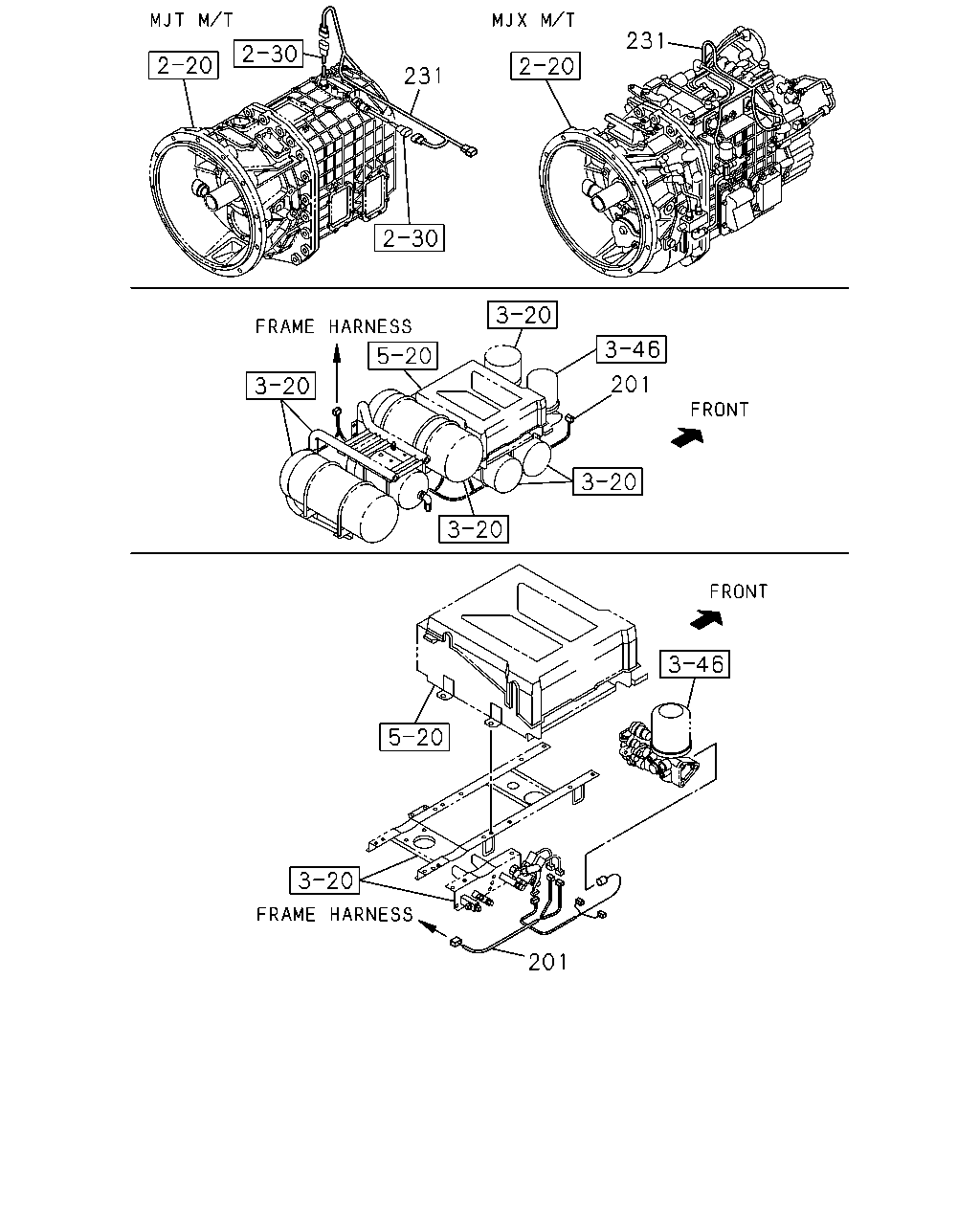

çizim 170413
231 231 201 201
BalonParca AdiParca NoAdetTipApplied Date A B
201 HARNESS; AIR TANK 8-98139-495-3 01 1 1008-1410 ● ●
201 HARNESS; AIR TANK 8-98240-929-1 01 1 1411- ● ●
231 HARNESS; TRANS
MJT7S M/T(Y3E) 		8-97615-725-1 01 1 1008- ● ●
231 HARNESS; TRANS
MJX16P M/T(Y3Z) 		8-98139-486-4 01 1 1008-1410 ●
231 HARNESS; TRANS
MJX16P M/T(Y3Z) 		8-98221-994-2 01 1 1411- ●

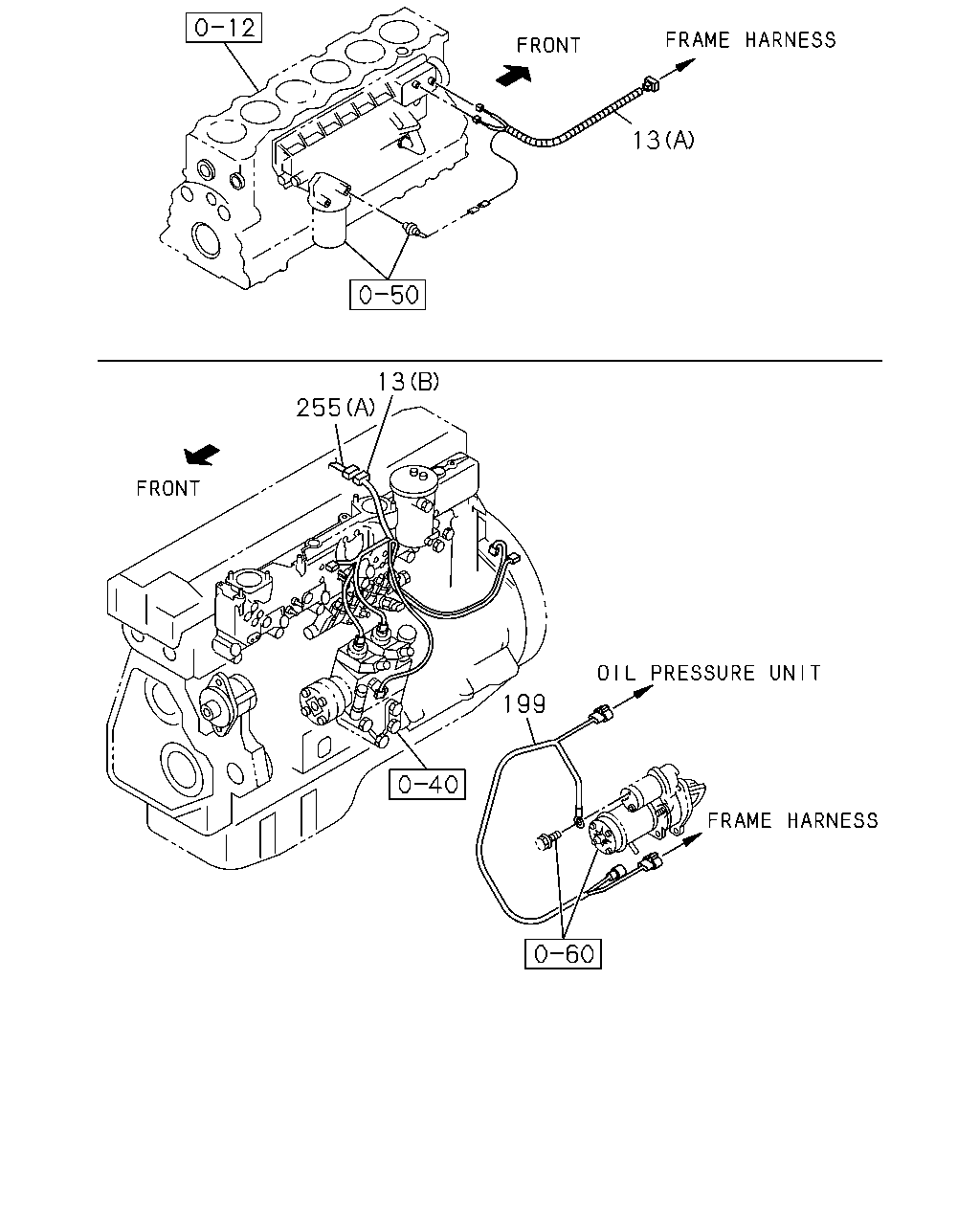

çizim 170414
13 13 255 199
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
(B) 		8-98169-641-0 01 1 1008-1201 ● ●
13 HARNESS; ENG
(B) 		8-98180-788-0 01 1 1202- ● ●
13 HARNESS; ENG
(A) 		1-82640-553-4 01 1 1008- ● ●
199 HARNESS; STARTER
ENGINE REAR PTO(SV1) 		8-98147-121-0 01 1 1008-1209 ●
199 HARNESS; STARTER 8-98147-121-0 01 1 1210- ●
199 HARNESS; STARTER
EXC. ENGINE REAR PTO(SV1) 		8-98139-485-0 01 1 1008-1209 ●
199 HARNESS; STARTER 8-98139-485-0 01 1 1008-1209 ●
199 HARNESS; STARTER 8-98139-485-0 01 1 1210- ●
255 HARNESS; ELEC GOV
(A) 		1-82662-241-2 01 1 1008-1201 ● ●
255 HARNESS; ELEC GOV
(A) 		8-98181-558-0 01 1 1202-1202 ● ●
255 HARNESS; ELEC GOV
(A) 		8-97641-992-1 01 1 1203-1410 ● ●
255 HARNESS; ELEC GOV
(A) 		8-97646-352-0 01 1 1411- ● ●
255 HARNESS; ELEC GOV
(B) 		1-82662-741-1 01 1 1008-1202 ● ●
255 HARNESS; ELEC GOV
(B) 		8-97641-997-0 01 1 1203-1410 ● ●

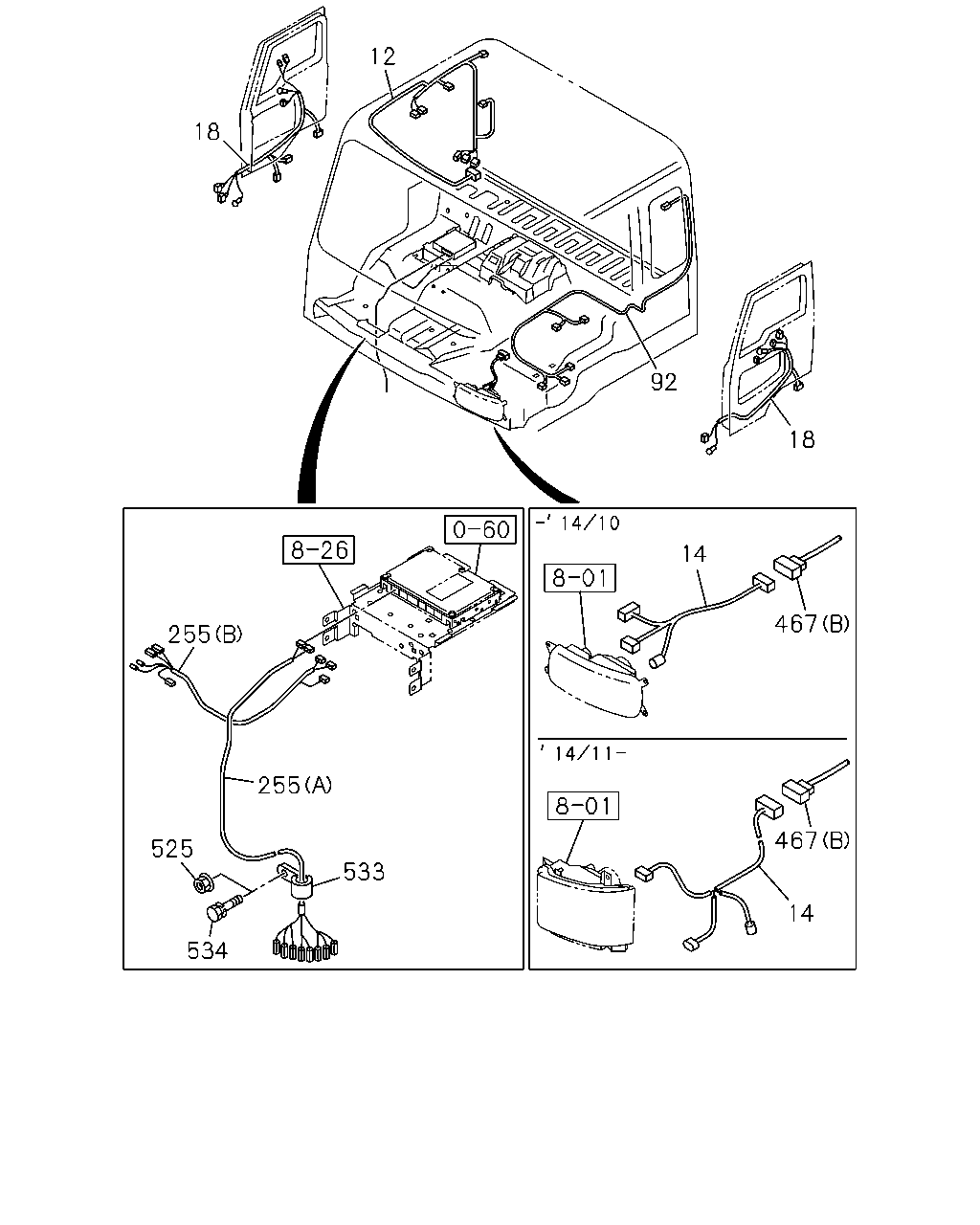

çizim 170426
12 18 92 18 14 467 467 14 533 255 525 534 255
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF 1-82629-921-2 01 1 1008-1410 ● ●
12 HARNESS; ROOF 8-97646-390-0 01 1 1411- ● ●
14 HARNESS; HEADLAMP 1-82677-628-3 02 1 1008-1410 ● ●
14 HARNESS; HEADLAMP 8-98156-953-2 02 1 1411- ● ●
18 HARNESS; DOOR
PASSENGER 		8-97644-086-0 01 1 1008- ● ●
18 HARNESS; DOOR
DRIVER 		8-97644-087-0 01 1 1008- ● ●
92 HARNESS; FLOOR
MJT7S M/T(Y3E) 		8-97646-345-0 01 1 1411- ● ●
92 HARNESS; FLOOR
MJX16P M/T(Y3Z) 		8-97646-346-0 01 1 1411- ●
92 HARNESS; FLOOR 8-98093-664-0 01 1 1008-1410 ● ●
92 HARNESS; FLOOR 8-97646-495-0 01 1 1411- ● ●
255 HARNESS; ELEC GOV
(A) 		1-82662-241-2 01 1 1008-1201 ● ●
255 HARNESS; ELEC GOV
(A) 		8-98181-558-0 01 1 1202-1202 ● ●
255 HARNESS; ELEC GOV
(A) 		8-97641-992-1 01 1 1203-1410 ● ●
255 HARNESS; ELEC GOV
(A) 		8-97646-352-0 01 1 1411- ● ●
255 HARNESS; ELEC GOV
(B) 		1-82662-741-1 01 1 1008-1202 ● ●
255 HARNESS; ELEC GOV
(B) 		8-97641-997-0 01 1 1203-1410 ● ●
467 HARNESS; FACIA
(B) LOWER 		8-98144-223-7 01 1 1008-1410 ● ●
467 HARNESS; FACIA
(B) LOWER 		8-97646-336-2 01 1 1411- ● ●
467 HARNESS; FACIA
(A) UPPER 		8-98145-590-1 01 1 1008-1410 ● ●
467 HARNESS; FACIA
(A) UPPER 		8-97646-373-0 01 1 1411- ● ●
525 NUT; CLIP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 1411- ● ●
533 CLIP
ID=32 L=50 		1-09701-055-1 02 1 1411- ● ●
533 CLIP
ID=25 L=40 		1-09700-215-1 02 1 1008- ● ●
534 BOLT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1008- ● ●

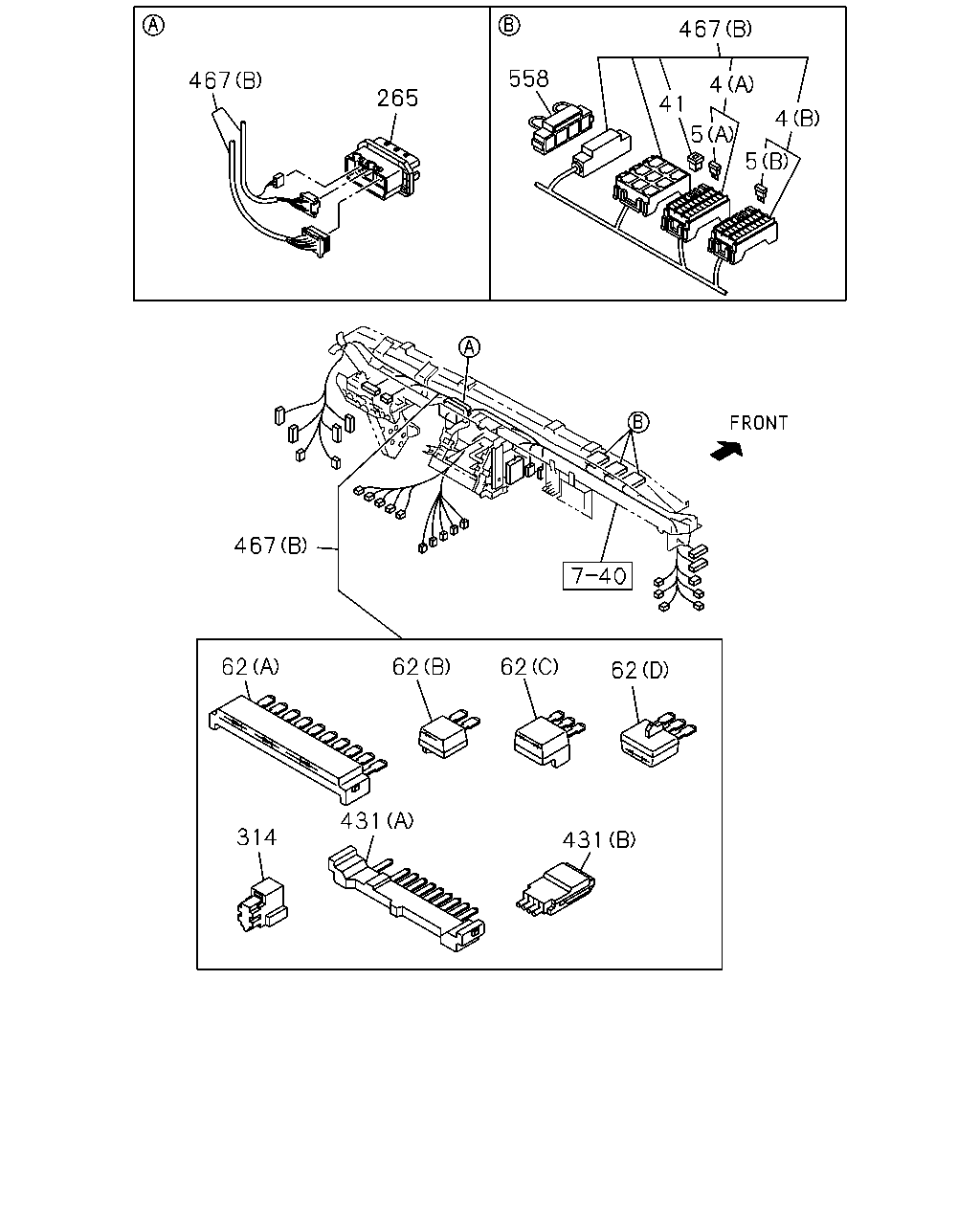

çizim 170433
467 265 558 467 41 4 5 5 4 467 62 62 62 62 314 431 431
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX21 		1-82510-420-0 01 1 1008-1410 ● ●
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX26 		1-82510-624-0 01 1 1411- ● ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX22 25AX3 		8-98126-046-0 01 1 1411- ● ●
5 FUSE; FACIA HARNESS
(B) 15A BLUE 		5-82516-003-0 22 1 1411- ● ●
5 FUSE; FACIA HARNESS
(B) 25A CLEAR 		5-82516-005-0 02 1 1411- ● ●
5 FUSE; FACIA HARNESS
(A) 7.5A BROWN 		8-94159-007-0 20 1 1411- ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 1008- ● ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 1411- ● ●
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 04 1 1008-1410 ● ●
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 02 1 1411- ● ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 04 1 1008-1112 ● ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 06 1 1411-1510 ● ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 07 1 1511- ● ●
62 DIODE; HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 01 1 1411- ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 1008- ● ●
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1008- ● ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 02 1 1008- ● ●
431 CONNECTOR; JOINT
(B) 4P 		8-97376-776-0 03 1 1008-1410 ● ●
431 CONNECTOR; JOINT
(B) 4P 		8-97376-776-0 06 1 1411- ● ●
467 HARNESS; FACIA
(B) LOWER 		8-98144-223-7 01 1 1008-1410 ● ●
467 HARNESS; FACIA
(B) LOWER 		8-97646-336-2 01 1 1411- ● ●
467 HARNESS; FACIA
(A) UPPER 		8-98145-590-1 01 1 1008-1410 ● ●
467 HARNESS; FACIA
(A) UPPER 		8-97646-373-0 01 1 1411- ● ●
558 CONNECTOR; HARNESS
4P 		1-82629-690-0 01 1 1008- ● ●

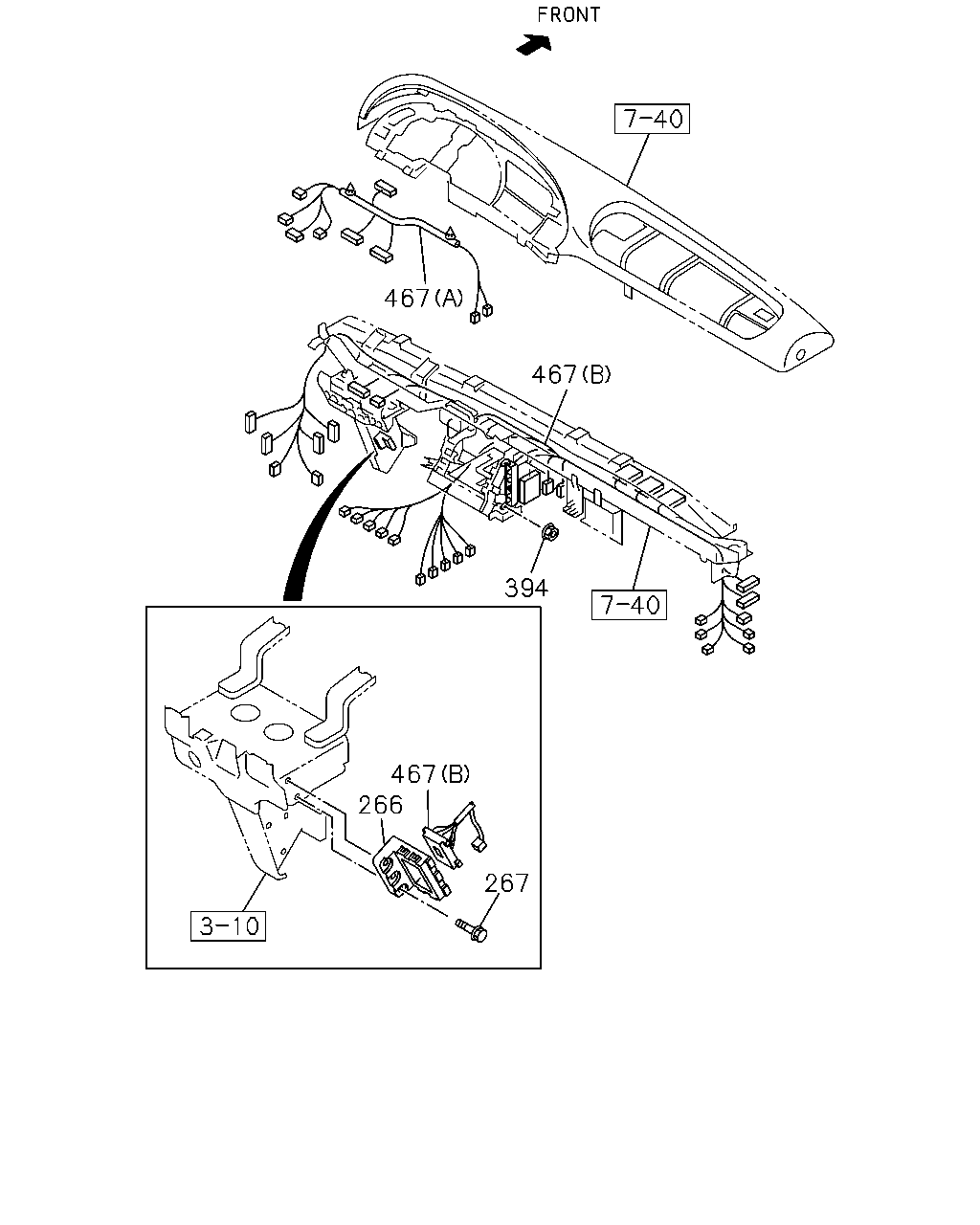

çizim 170438
467 467 394 467 266 267
BalonParca AdiParca NoAdetTipApplied Date A B
266 BRACKET; CONN BOX 1-82699-580-0 01 1 1008- ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 1008- ● ●
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 1008- ● ●
467 HARNESS; FACIA
(B) LOWER 		8-98144-223-7 01 1 1008-1410 ● ●
467 HARNESS; FACIA
(B) LOWER 		8-97646-336-2 01 1 1411- ● ●
467 HARNESS; FACIA
(A) UPPER 		8-98145-590-1 01 1 1008-1410 ● ●
467 HARNESS; FACIA
(A) UPPER 		8-97646-373-0 01 1 1411- ● ●

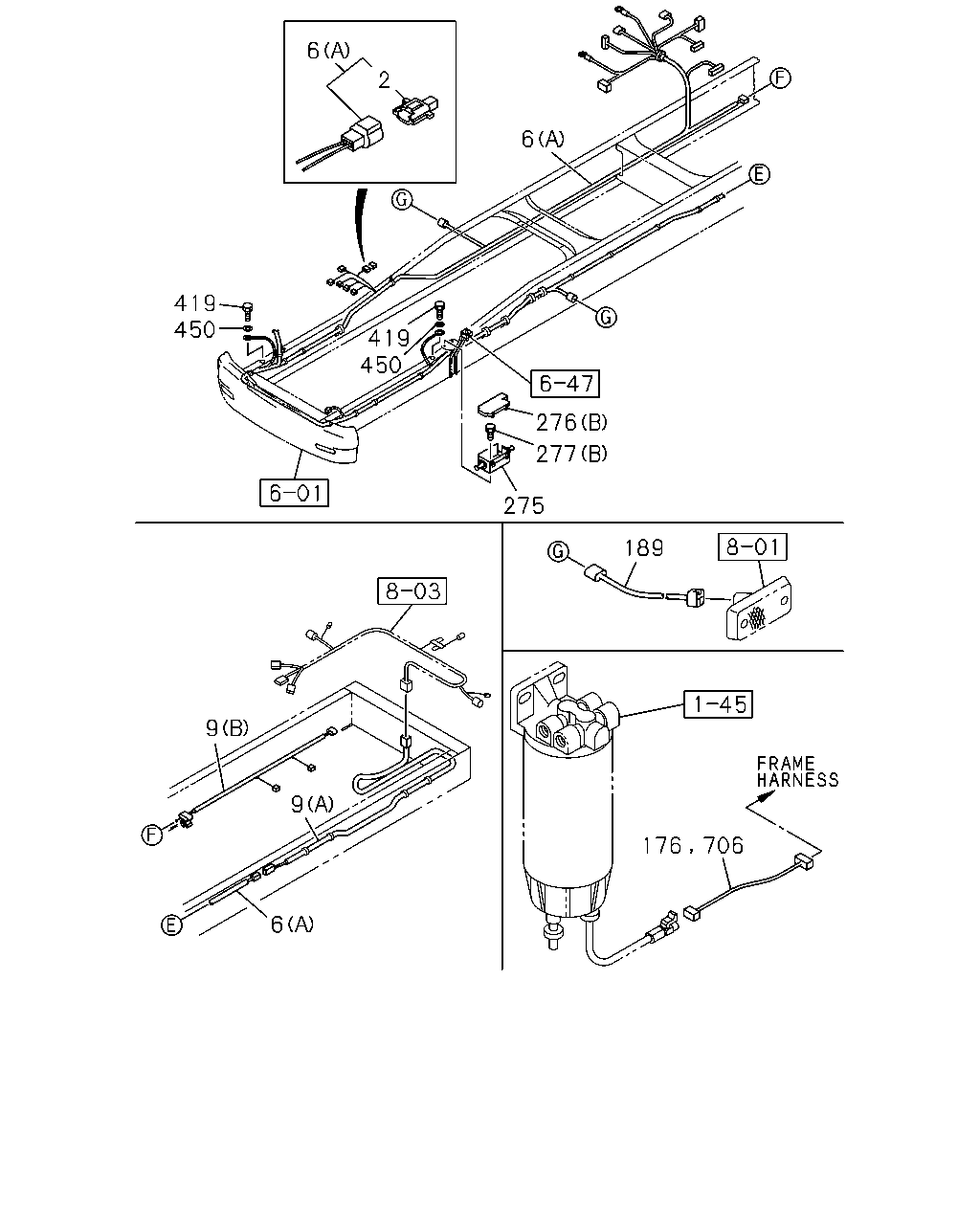

çizim 170439
176 706 6 9 9 189 275 277 276 450 419 450 419 6 2 6
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
GRAY 2P-1.3A 		1-81514-015-0 01 1 1008-1410 ● ●
6 HARNESS; FRAME
(A) 		8-98144-970-5 01 1 1008-1410 ●
6 HARNESS; FRAME
EXC. BATTERY LAYOUT REAR VAR1<NCT>,FULL TRAILER PIPING<Z25> (A) 		8-98144-970-5 01 1 1008-1410 ●
6 HARNESS; FRAME
(A) 		8-98242-630-3 01 1 1411- ●
6 HARNESS; FRAME
EXC. BATTERY LAYOUT REAR VAR1<NCT>,FULL TRAILER PIPING<Z25> (A) 		8-98242-630-3 01 1 1411- ●
6 HARNESS; FRAME
(B) 		1-82677-378-3 01 1 1008-1201 ● ●
6 HARNESS; FRAME
(B) 		8-98181-560-0 01 1 1202-1410 ● ●
6 HARNESS; FRAME
(B) 		8-98242-637-0 01 1 1411- ● ●
6 HARNESS; FRAME
BATTERY LAYOUT REAR VAR1<NCT> FULL TRAILER PIPING<Z25> (A) 		8-98144-995-3 01 1 1008-1410 ●
6 HARNESS; FRAME
BATTERY LAYOUT REAR VAR1<NCT> EXC. FULL TRAILER PIPING<Z25> (A) 		8-98144-996-3 01 1 1008-1410 ●
6 HARNESS; FRAME
BATTERY LAYOUT REAR VAR1<NCT> EXC. FULL TRAILER PIPING<Z25> (A) 		8-98242-632-3 01 1 1411- ●
6 HARNESS; FRAME
FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		8-98144-971-5 01 1 1008-1410 ●
6 HARNESS; FRAME
FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		8-98242-631-3 01 1 1411- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) FULL TRAILER PIPING<Z25> (A) 		8-98139-412-1 01 1 1511- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5200MM(52W) (A) 		8-98144-772-1 01 1 1008- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5200MM(52W) (B) 		8-98144-773-1 01 1 1008-1410 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5200MM(52W) (B) 		8-98240-418-0 01 1 1411- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) (B) 		8-98149-041-0 01 1 1008-1410 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) (B) 		8-98240-927-0 01 1 1411- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) FULL TRAILER PIPING<Z25> (A) 		8-98139-412-1 01 1 1008-1410 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) (B) 		8-98242-639-0 01 1 1411- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W) EXC. FULL TRAILER PIPING<Z25> (A) 		8-98139-414-1 01 1 1008- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) (B) 		8-98149-042-0 01 1 1008-1410 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) (B) 		8-98240-928-0 01 1 1411- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> (A) 		8-98139-418-1 01 1 1008- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) EXC. FULL TRAILER PIPING<Z25> (A) 		8-98139-425-1 01 1 1008- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) (B) 		8-98149-043-0 01 1 1008-1410 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) (B) 		8-98139-443-1 01 1 1411- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) FULL TRAILER PIPING<Z25> (A) 		8-98139-436-1 01 1 1008-1410 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) EXC. FULL TRAILER PIPING<Z25> (B) 		8-98139-443-1 01 1 1008-1410 ●
176 HARNESS; FUEL SEDIMENTER 8-98139-487-2 01 1 1008-1203 ●
176 HARNESS; FUEL SEDIMENTER
EXC. BATTERY LAYOUT REAR VAR1<NCT> 		8-98139-487-2 01 1 1008-1203 ●
176 HARNESS; FUEL SEDIMENTER
BATTERY LAYOUT REAR VAR1<NCT> 		8-98154-763-1 01 1 1008-1203 ●
189 HARNESS; EXT 1-82673-735-0 06 1 1008-1410 ●
189 HARNESS; EXT 1-82673-735-0 08 1 1008-1410 ●
275 BOX ASM; FRAME HARNESS 1-82699-474-2 01 1 1008-1201 ● ●
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 1008-1201 ● ●
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 1008- ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 1008- ● ●
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 1008-1201 ● ●
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1008-1201 ● ●
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-1410 ● ●
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 05 1 1411- ● ●
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 05 1 1008-1201 ● ●
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-1410 ● ●
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1411- ● ●
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 1008-1201 ● ●
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 05 1 1202-1410 ● ●
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 03 1 1411- ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 1008-1410 ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 03 1 1411- ● ●
706 HARNESS; EXT,SEDIMENTER 8-98139-487-2 01 1 1204-1410 ●
706 HARNESS; EXT,SEDIMENTER
EXC. BATTERY LAYOUT REAR VAR1<NCT> 		8-98139-487-2 01 1 1204-1410 ●
706 HARNESS; EXT,SEDIMENTER
BATTERY LAYOUT REAR VAR1<NCT> 		8-98154-763-1 01 1 1204-1410 ●

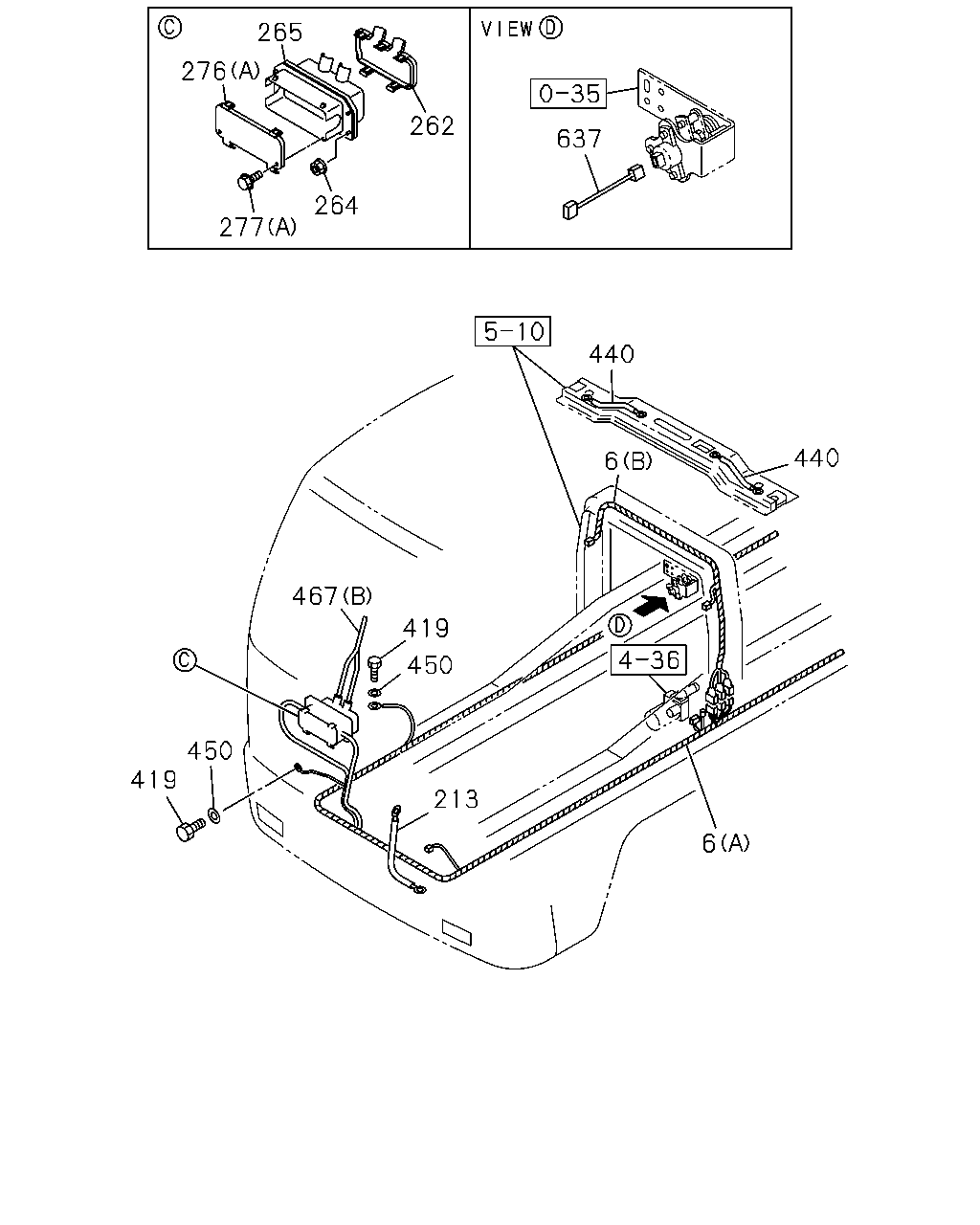

çizim 170443
265 276 262 264 277 637 440 440 6 419 467 450 213 6 450 419
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
(A) 		8-98144-970-5 01 1 1008-1410 ●
6 HARNESS; FRAME
EXC. BATTERY LAYOUT REAR VAR1<NCT>,FULL TRAILER PIPING<Z25> (A) 		8-98144-970-5 01 1 1008-1410 ●
6 HARNESS; FRAME
(A) 		8-98242-630-3 01 1 1411- ●
6 HARNESS; FRAME
EXC. BATTERY LAYOUT REAR VAR1<NCT>,FULL TRAILER PIPING<Z25> (A) 		8-98242-630-3 01 1 1411- ●
6 HARNESS; FRAME
(B) 		1-82677-378-3 01 1 1008-1201 ● ●
6 HARNESS; FRAME
(B) 		8-98181-560-0 01 1 1202-1410 ● ●
6 HARNESS; FRAME
(B) 		8-98242-637-0 01 1 1411- ● ●
6 HARNESS; FRAME
BATTERY LAYOUT REAR VAR1<NCT> FULL TRAILER PIPING<Z25> (A) 		8-98144-995-3 01 1 1008-1410 ●
6 HARNESS; FRAME
BATTERY LAYOUT REAR VAR1<NCT> EXC. FULL TRAILER PIPING<Z25> (A) 		8-98144-996-3 01 1 1008-1410 ●
6 HARNESS; FRAME
BATTERY LAYOUT REAR VAR1<NCT> EXC. FULL TRAILER PIPING<Z25> (A) 		8-98242-632-3 01 1 1411- ●
6 HARNESS; FRAME
FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		8-98144-971-5 01 1 1008-1410 ●
6 HARNESS; FRAME
FULL TRAILER PIPING<Z25> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) 		8-98242-631-3 01 1 1411- ●
213 CABLE; EARTH,CAB TO FRAME 1-82677-900-1 01 1 1008-1410 ● ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 1008- ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1008- ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 1008- ● ●
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 1008-1201 ● ●
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 1008- ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 1008- ● ●
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 1008-1201 ● ●
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1008-1201 ● ●
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-1410 ● ●
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 05 1 1411- ● ●
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 05 1 1008-1201 ● ●
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-1410 ● ●
419 BOLT; CAB EARTH
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1411- ● ●
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 1008-1201 ● ●
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 05 1 1202-1410 ● ●
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 03 1 1411- ● ●
440 CABLE; EARTH 1-82678-273-0 02 1 1008- ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 1008-1410 ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 03 1 1411- ● ●
467 HARNESS; FACIA
(B) LOWER 		8-98144-223-7 01 1 1008-1410 ● ●
467 HARNESS; FACIA
(B) LOWER 		8-97646-336-2 01 1 1411- ● ●
467 HARNESS; FACIA
(A) UPPER 		8-98145-590-1 01 1 1008-1410 ● ●
467 HARNESS; FACIA
(A) UPPER 		8-97646-373-0 01 1 1411- ● ●
637 HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 1008-1209 ● ●
637 HARNESS; EXT,S/SENSOR 1-82675-934-0 01 1 1210-1410 ●
637 HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 1210-1410 ●
637 HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 1411- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
