◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#63083) — 214 parça
çizim 170404
1 12 14 23 202 202 18 13 211 339 338 13 13 5 340 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 8-98097-190-1 01 1 1008-1410 ● ●
1 LAMP ASM; HEAD 8-98241-314-0 01 1 1411- ● ●
1 LAMP ASM; HEAD 8-98097-191-1 01 1 1008-1410 ● ●
1 LAMP ASM; HEAD 8-98241-315-0 01 1 1411- ● ●
4 HEADLAMP UNIT 1-82119-212-0 01 1 1008-1410 ● ●
4 HEADLAMP UNIT 8-98199-568-0 01 1 1411- ● ●
4 HEADLAMP UNIT 1-82119-213-0 01 1 1008-1410 ● ●
4 HEADLAMP UNIT 8-98199-569-0 01 1 1411- ● ●
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1411- ● ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		8-94405-657-0 02 1 1008-1410 ● ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1411- ● ●
12 HARNESS; HEADLAMP 1-82118-014-0 02 1 1008-1410 ● ●
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 02 1 1008-1410 ● ●
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 1008-1410 ● ●
14 CAP; BULB,LAMP 1-86830-148-0 02 1 1008-1410 ● ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 1008-1410 ● ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 1008-1410 ● ●
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1411- ● ●
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 1008-1410 ● ●
211 TUBE; HEADLAMP 8-98101-137-0 01 1 1008-1410 ● ●
211 TUBE; HEADLAMP 8-98101-138-0 01 1 1008-1410 ● ●
338 LEVELING; HEADLAMP 8-98010-256-0 02 1 1008- ● ●
339 GASKET; LEVELING 1-86830-158-0 02 1 1008- ● ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 1008-1410 ● ●

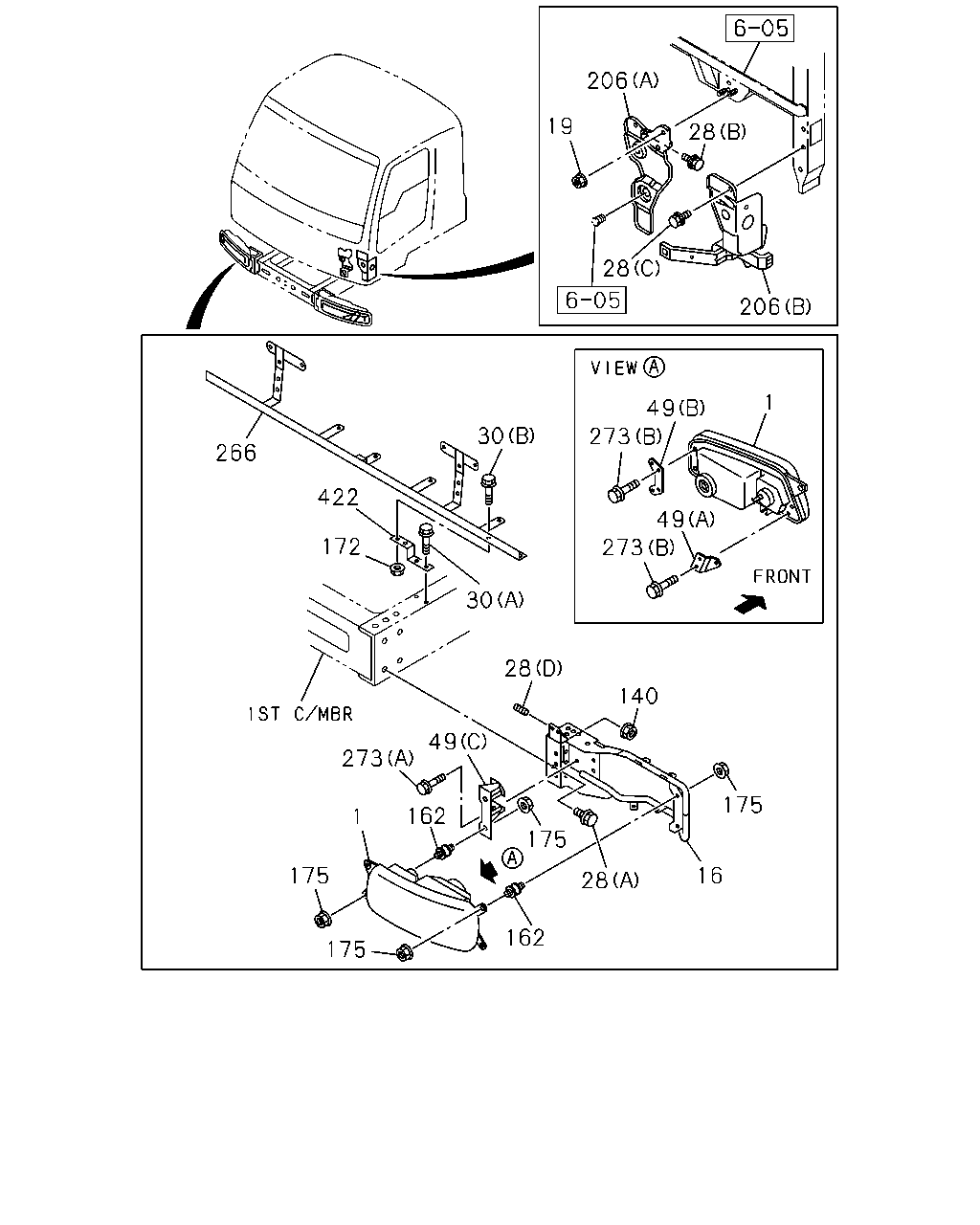

çizim 170454
19 206 28 206 28 49 49 273 273 140 175 16 28 175 162 162 273 49 28 30 172 422 266 30 175 1 175 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 8-98097-190-1 01 1 1008-1410 ● ●
1 LAMP ASM; HEAD 8-98241-314-0 01 1 1411- ● ●
1 LAMP ASM; HEAD 8-98097-191-1 01 1 1008-1410 ● ●
1 LAMP ASM; HEAD 8-98241-315-0 01 1 1411- ● ●
16 BRACKET; HEADLAMP 8-97608-505-1 01 1 1008-1410 ● ●
16 BRACKET; HEADLAMP 8-98121-414-3 01 1 1411- ● ●
16 BRACKET; HEADLAMP 8-97608-506-2 01 1 1008-1410 ● ●
16 BRACKET; HEADLAMP 8-98121-415-3 01 1 1411- ● ●
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 1008- ● ●
28 BOLT; HEADLAMP
(A) M10X30 FLANGE 		0-28651-030-0 06 1 1008-1410 ● ●
28 BOLT; HEADLAMP
(A) M12X35 FLANGE 		0-28051-235-0 04 1 1411- ● ●
28 BOLT; HEADLAMP
(D) M10X28,M10X15 L=50 		5-09300-050-0 02 1 1008-1410 ● ●
28 BOLT; HEADLAMP
(D) M12X30,M12X16 L=56 		8-98144-947-0 04 1 1411- ● ●
28 BOLT; HEADLAMP
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1008- ● ●
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1008- ● ●
30 BOLT; STAY
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1008-1410 ● ●
30 BOLT; STAY
(A) M10X25 FLANGE 		0-28651-025-0 04 1 1008-1410 ● ●
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 1008-1410 ● ●
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 1008-1410 ● ●
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 1008-1410 ● ●
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 1008-1410 ● ●
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 1008-1410 ● ●
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 1008-1410 ● ●
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 1008-1410 ● ●
140 NUT
M10 FLANGE 		0-91180-210-0 02 1 1008-1410 ● ●
140 NUT
M12 FLANGE 		0-91180-212-0 04 1 1411- ● ●
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 1008- ● ●
172 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 1008-1410 ● ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 1008- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 1008-1410 ● ●
206 HOLDER; HEADLAMP
(A) 		8-98198-637-0 01 1 1411- ● ●
206 HOLDER; HEADLAMP
(B) 		1-65671-762-3 01 1 1008-1410 ● ●
206 HOLDER; HEADLAMP
(B) 		8-98121-335-0 01 1 1411- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 1008-1410 ● ●
206 HOLDER; HEADLAMP
(A) 		8-98121-330-0 01 1 1411- ● ●
206 HOLDER; HEADLAMP
(B) 		1-65671-761-3 01 1 1008-1410 ● ●
206 HOLDER; HEADLAMP
(B) 		8-98121-218-2 01 1 1411- ● ●
266 STAY; BRKT,HEADLAMP 1-82117-163-2 01 1 1008-1410 ● ●
273 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 04 1 1008-1410 ● ●
273 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 08 1 1008-1410 ● ●
422 BRACKET; HEADLAMP STAY 1-82698-605-0 02 1 1008-1410 ● ●
çizim 170459
292 82 83 80 174 84 28 325 80 256 121 256
BalonParca AdiParca NoAdetTipApplied Date A B
28 BOLT; HEADLAMP
(A) M10X30 FLANGE 		0-28651-030-0 06 1 1008-1410 ● ●
28 BOLT; HEADLAMP
(A) M12X35 FLANGE 		0-28051-235-0 04 1 1411- ● ●
28 BOLT; HEADLAMP
(D) M10X28,M10X15 L=50 		5-09300-050-0 02 1 1008-1410 ● ●
28 BOLT; HEADLAMP
(D) M12X30,M12X16 L=56 		8-98144-947-0 04 1 1411- ● ●
28 BOLT; HEADLAMP
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1008- ● ●
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1008- ● ●
80 BULB; MARKER LAMP
(B) 24V 3W 		1-82219-035-0 06 1 1008-1410 ●
80 BULB; MARKER LAMP
(A) 24V 5W 		8-94135-397-0 02 1 1008- ● ●
80 BULB; MARKER LAMP
(B) 24V 3W 		1-82219-035-0 08 1 1008-1410 ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 1008- ● ●
83 LENS; MARKER LAMP 1-82215-046-0 02 1 1008- ● ●
84 GASKET; MARKER LAMP 1-86830-288-0 04 1 1008- ● ●
121 REFLECTOR; REFLEX 8-98013-990-1 02 1 1008-1410 ● ●
174 BOLT
(A) M6X20 FLANGE 		0-28650-620-0 04 1 1008-1410 ● ●
174 BOLT
(B) M6X25 W/PL WASHER 		8-98064-173-0 04 1 1008- ● ●
256 LAMP; MARKER
(B) 		1-82210-244-0 06 1 1008-1410 ●
256 LAMP; MARKER
(B) 		1-82210-244-0 08 1 1008-1410 ●
256 LAMP; MARKER
(A) 		1-86830-292-0 01 1 1008- ● ●
256 LAMP; MARKER
(A) 		1-86830-293-0 01 1 1008- ● ●
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 1008- ● ●
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		0-71040-514-0 12 1 1411- ● ●

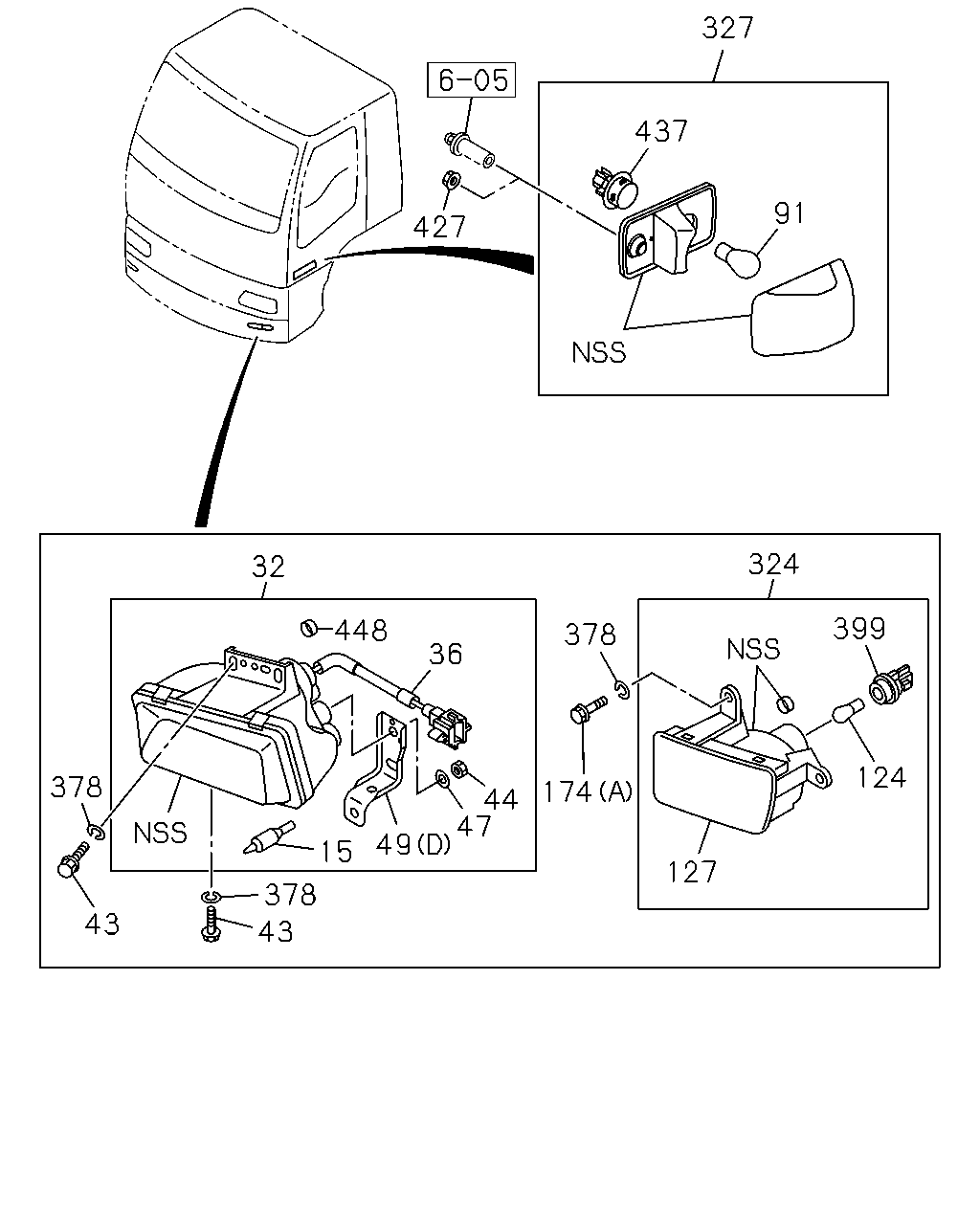

çizim 170483
91 437 327 324 378 174 127 124 399 44 47 49 15 378 43 43 378 448 36 32 427
BalonParca AdiParca NoAdetTipApplied Date A B
15 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 1008-1410 ● ●
32 LAMP ASM; FOG 8-98149-150-1 01 1 1008-1301 ● ●
32 LAMP ASM; FOG 8-98232-065-0 01 1 1302-1410 ● ●
32 LAMP ASM; FOG 8-98149-149-1 01 1 1008-1301 ● ●
32 LAMP ASM; FOG 8-98232-064-0 01 1 1302-1410 ● ●
36 CORD; FOG LAMP 1-82118-016-0 01 1 1008-1410 ● ●
36 CORD; FOG LAMP 1-82118-015-0 01 1 1008-1410 ● ●
43 BOLT; FOG LAMP
M6X20 FLANGE 		0-28650-620-0 06 1 1008-1410 ● ●
44 NUT; FOG LAMP
M6 		8-98217-430-0 02 1 1205-1410 ● ●
47 WASHER; PL,FOG LAMP 8-98217-429-0 02 1 1205-1410 ● ●
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 1008-1410 ● ●
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 1008-1410 ● ●
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 1008-1410 ● ●
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 1008-1410 ● ●
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 1008-1410 ● ●
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 1008-1410 ● ●
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 1008-1410 ● ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1008- ● ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-105-0 02 1 1008-1410 ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-074-0 01 1 1008-1410 ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-073-0 01 1 1008-1410 ● ●
174 BOLT
(A) M6X20 FLANGE 		0-28650-620-0 04 1 1008-1410 ● ●
174 BOLT
(B) M6X25 W/PL WASHER 		8-98064-173-0 04 1 1008- ● ●
324 LAMP; FRT FLASHER 1-82210-260-1 01 1 1008-1410 ● ●
324 LAMP; FRT FLASHER 1-82210-259-1 01 1 1008-1410 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1008- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1008- ● ●
378 WASHER; PL
ID=6.4 		0-91610-606-0 10 1 1008-1410 ● ●
399 SOCKET; TURN SIGNAL 1-82219-038-0 02 1 1008-1410 ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1307- ● ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1008- ● ●
448 CAP ASM; LAMP 8-97378-874-0 02 1 1008-1410 ● ●
çizim 455293
20 420 4 1 338 408 339 5 5 382 457 23 60 305 67 304 438 68 439 75 68
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 8-98097-190-1 01 1 1008-1410 ● ●
1 LAMP ASM; HEAD 8-98241-314-0 01 1 1411- ● ●
1 LAMP ASM; HEAD 8-98097-191-1 01 1 1008-1410 ● ●
1 LAMP ASM; HEAD 8-98241-315-0 01 1 1411- ● ●
4 HEADLAMP UNIT 1-82119-212-0 01 1 1008-1410 ● ●
4 HEADLAMP UNIT 8-98199-568-0 01 1 1411- ● ●
4 HEADLAMP UNIT 1-82119-213-0 01 1 1008-1410 ● ●
4 HEADLAMP UNIT 8-98199-569-0 01 1 1411- ● ●
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1411- ● ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		8-94405-657-0 02 1 1008-1410 ● ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1411- ● ●
20 SCREW; HEADLAMP 8-97378-871-0 06 1 1411- ● ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 1008-1410 ● ●
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1411- ● ●
60 LAMP ASM; FRT COMB 8-98238-625-0 01 1 1411- ● ●
60 LAMP ASM; FRT COMB 8-98238-626-0 01 1 1411- ● ●
67 GASKET; FRT COMB LAMP 8-98238-656-0 02 1 1411- ● ●
68 BULB; FRT COMB LAMP
(A) 24V 70W 		1-82194-106-0 02 1 1411- ● ●
68 BULB; FRT COMB LAMP
(B) 24V 21W 		8-98051-495-0 02 1 1411- ● ●
75 SCREW; FRT COMB LAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 1411- ● ●
75 SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1411- ● ●
75 SCREW; FRT COMB LAMP
(A) 		8-98074-439-0 02 1 1411- ● ●
304 PLUG; SOCKET,FRT COMB LAMP 8-98051-390-0 02 1 1411- ● ●
305 COVER; FRT COMB LAMP 8-98240-559-0 02 1 1411- ● ●
338 LEVELING; HEADLAMP 8-98010-256-0 02 1 1008- ● ●
339 GASKET; LEVELING 1-86830-158-0 02 1 1008- ● ●
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1411- ● ●
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1411- ● ●
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1411- ● ●
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 02 1 1411- ● ●
439 SPRING SET; COMB LAMP 8-98075-644-0 02 1 1411- ● ●
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1411- ● ●

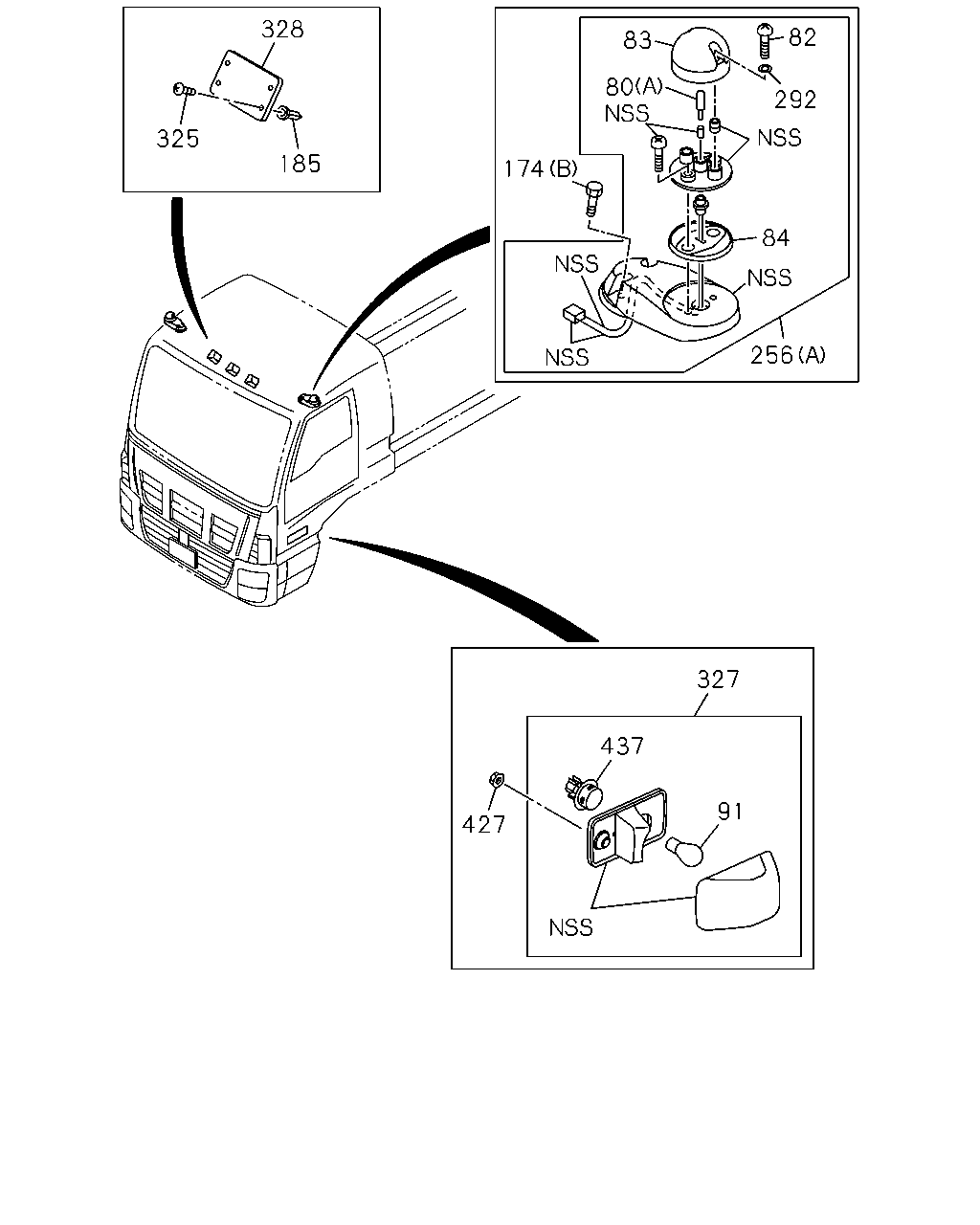

çizim 455701
174 80 83 292 82 84 185 328 325 437 327 91 427 256
BalonParca AdiParca NoAdetTipApplied Date A B
80 BULB; MARKER LAMP
(B) 24V 3W 		1-82219-035-0 06 1 1008-1410 ●
80 BULB; MARKER LAMP
(A) 24V 5W 		8-94135-397-0 02 1 1008- ● ●
80 BULB; MARKER LAMP
(B) 24V 3W 		1-82219-035-0 08 1 1008-1410 ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 1008- ● ●
83 LENS; MARKER LAMP 1-82215-046-0 02 1 1008- ● ●
84 GASKET; MARKER LAMP 1-86830-288-0 04 1 1008- ● ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1008- ● ●
174 BOLT
(A) M6X20 FLANGE 		0-28650-620-0 04 1 1008-1410 ● ●
174 BOLT
(B) M6X25 W/PL WASHER 		8-98064-173-0 04 1 1008- ● ●
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 1411- ● ●
256 LAMP; MARKER
(B) 		1-82210-244-0 06 1 1008-1410 ●
256 LAMP; MARKER
(B) 		1-82210-244-0 08 1 1008-1410 ●
256 LAMP; MARKER
(A) 		1-86830-292-0 01 1 1008- ● ●
256 LAMP; MARKER
(A) 		1-86830-293-0 01 1 1008- ● ●
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 1008- ● ●
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		0-71040-514-0 12 1 1411- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1008- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1008- ● ●
328 COVER; LAMP 1-76217-122-1 03 1 1411- ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1307- ● ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1008- ● ●

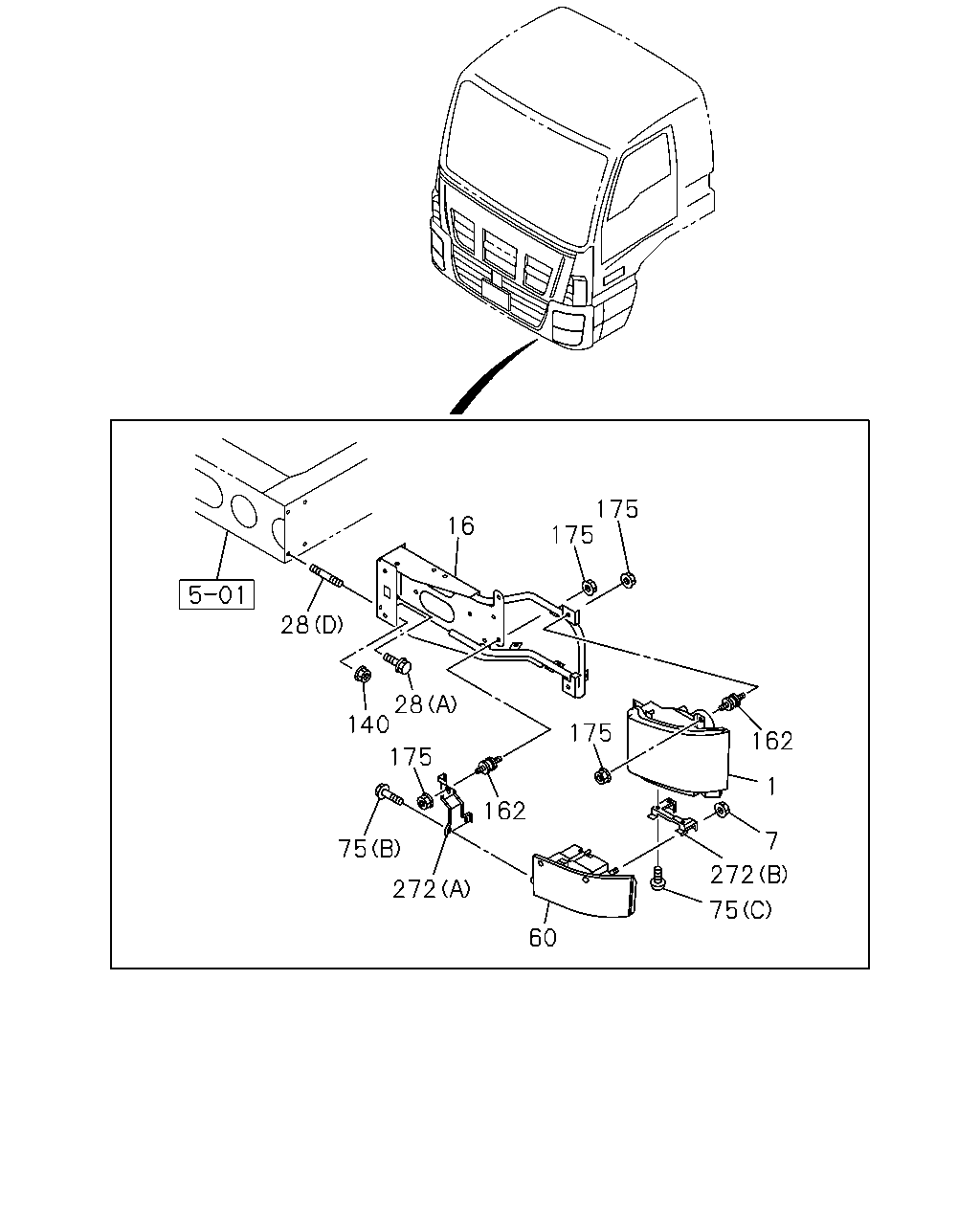

çizim 455775
175 175 16 28 140 75 162 28 175 162 1 7 272 75 60 272 75
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 8-98097-190-1 01 1 1008-1410 ● ●
1 LAMP ASM; HEAD 8-98241-314-0 01 1 1411- ● ●
1 LAMP ASM; HEAD 8-98097-191-1 01 1 1008-1410 ● ●
1 LAMP ASM; HEAD 8-98241-315-0 01 1 1411- ● ●
7 NUT; FRT COMB LAMP
M6 FLANGE 		0-91180-106-0 04 1 1411- ● ●
16 BRACKET; HEADLAMP 8-97608-505-1 01 1 1008-1410 ● ●
16 BRACKET; HEADLAMP 8-98121-414-3 01 1 1411- ● ●
16 BRACKET; HEADLAMP 8-97608-506-2 01 1 1008-1410 ● ●
16 BRACKET; HEADLAMP 8-98121-415-3 01 1 1411- ● ●
28 BOLT; HEADLAMP
(A) M10X30 FLANGE 		0-28651-030-0 06 1 1008-1410 ● ●
28 BOLT; HEADLAMP
(A) M12X35 FLANGE 		0-28051-235-0 04 1 1411- ● ●
28 BOLT; HEADLAMP
(D) M10X28,M10X15 L=50 		5-09300-050-0 02 1 1008-1410 ● ●
28 BOLT; HEADLAMP
(D) M12X30,M12X16 L=56 		8-98144-947-0 04 1 1411- ● ●
28 BOLT; HEADLAMP
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1008- ● ●
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1008- ● ●
60 LAMP ASM; FRT COMB 8-98238-625-0 01 1 1411- ● ●
60 LAMP ASM; FRT COMB 8-98238-626-0 01 1 1411- ● ●
75 SCREW; FRT COMB LAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 1411- ● ●
75 SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1411- ● ●
75 SCREW; FRT COMB LAMP
(A) 		8-98074-439-0 02 1 1411- ● ●
140 NUT
M10 FLANGE 		0-91180-210-0 02 1 1008-1410 ● ●
140 NUT
M12 FLANGE 		0-91180-212-0 04 1 1411- ● ●
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 1008- ● ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 1008- ● ●
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-934-0 01 1 1411- ● ●
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-935-0 01 1 1411- ● ●
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-937-0 01 1 1411- ● ●
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-938-0 01 1 1411- ● ●

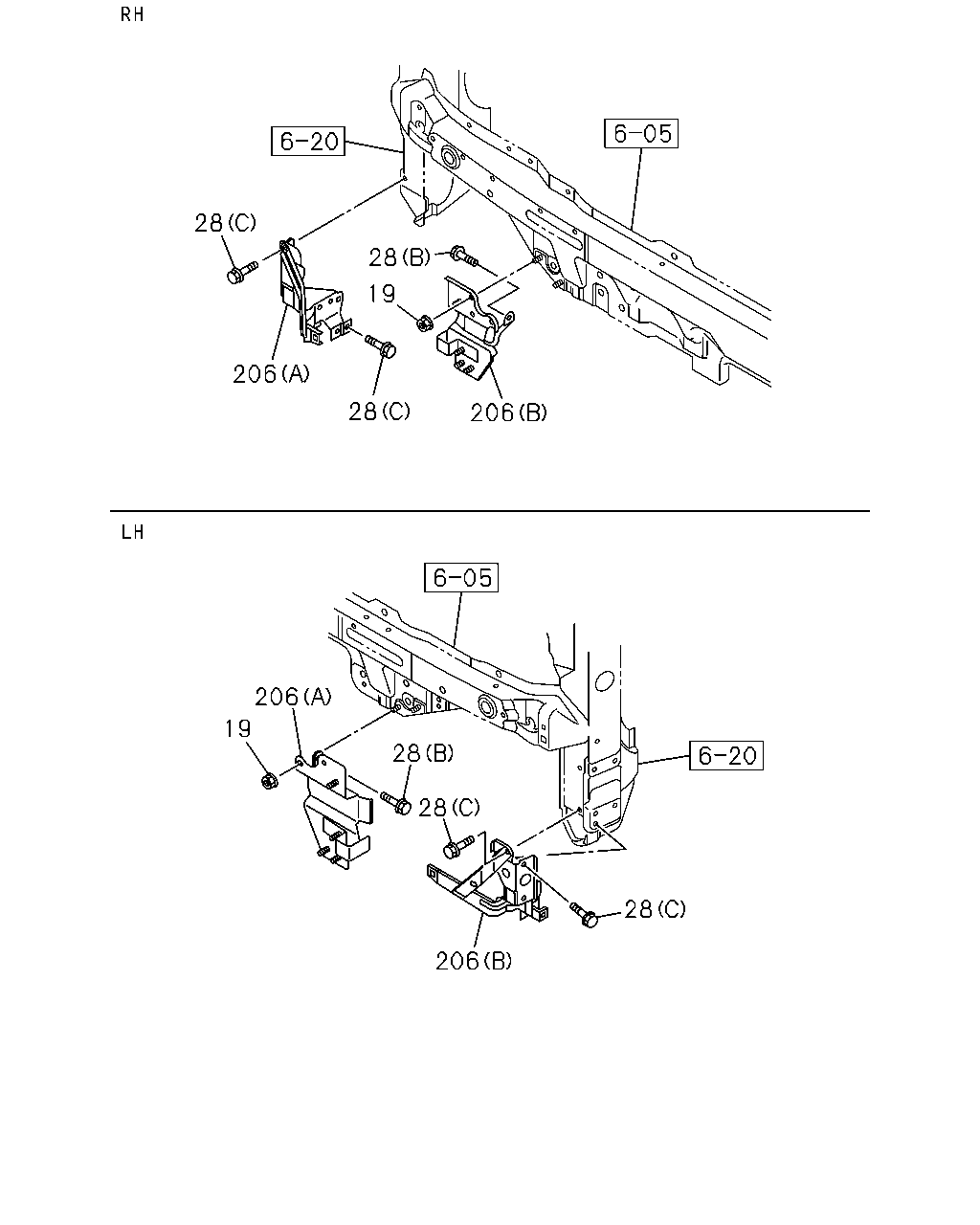

çizim 455829
28 28 19 28 206 206 206 19 28 28 206 28
BalonParca AdiParca NoAdetTipApplied Date A B
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 1008- ● ●
28 BOLT; HEADLAMP
(A) M10X30 FLANGE 		0-28651-030-0 06 1 1008-1410 ● ●
28 BOLT; HEADLAMP
(A) M12X35 FLANGE 		0-28051-235-0 04 1 1411- ● ●
28 BOLT; HEADLAMP
(D) M10X28,M10X15 L=50 		5-09300-050-0 02 1 1008-1410 ● ●
28 BOLT; HEADLAMP
(D) M12X30,M12X16 L=56 		8-98144-947-0 04 1 1411- ● ●
28 BOLT; HEADLAMP
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1008- ● ●
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1008- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 1008-1410 ● ●
206 HOLDER; HEADLAMP
(A) 		8-98198-637-0 01 1 1411- ● ●
206 HOLDER; HEADLAMP
(B) 		1-65671-762-3 01 1 1008-1410 ● ●
206 HOLDER; HEADLAMP
(B) 		8-98121-335-0 01 1 1411- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 1008-1410 ● ●
206 HOLDER; HEADLAMP
(A) 		8-98121-330-0 01 1 1411- ● ●
206 HOLDER; HEADLAMP
(B) 		1-65671-761-3 01 1 1008-1410 ● ●
206 HOLDER; HEADLAMP
(B) 		8-98121-218-2 01 1 1411- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
