◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11323 - CYZ LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#63079) — 13 parça

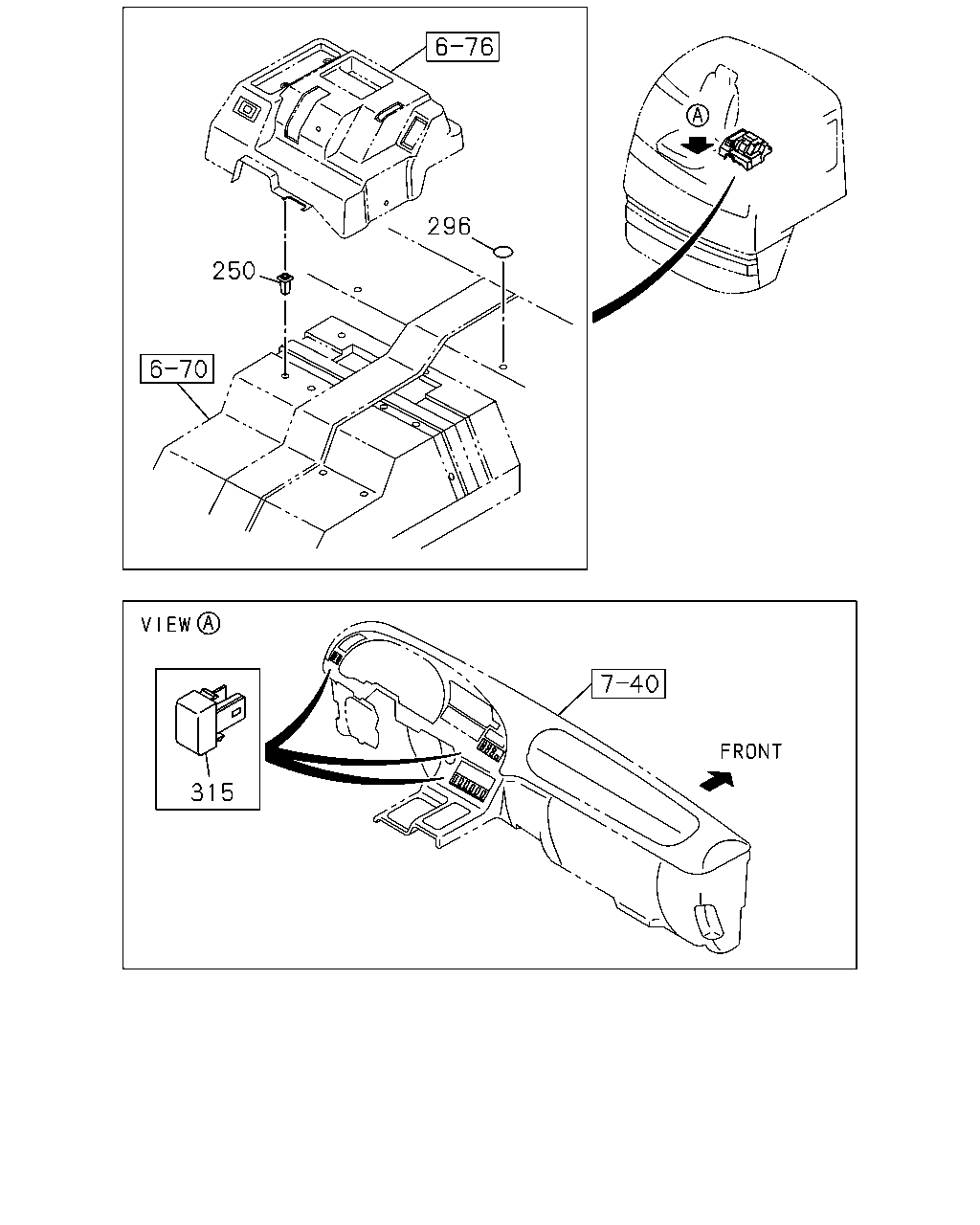

çizim 170504
296 250 315
BalonParca AdiParca NoAdetTipApplied Date A B
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1008- ● ●
296 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1008- ● ●
315 COVER; HOLE,SW 8-98025-954-1 01 1 1511- ● ●
315 COVER; HOLE,SW 8-98025-954-1 01 1 1511- ● ●
315 COVER; HOLE,SW 8-98025-954-1 01 1 1511- ● ●
315 COVER; HOLE,SW
EXC. PTO CONTROL OPERATION CAB BACK<TBZ> 		8-98025-954-1 01 1 1511- ●
315 COVER; HOLE,SW
WHEEL BASE 5200MM(52W) 		8-98025-954-1 01 1 1511- ●
315 COVER; HOLE,SW
DUMP TRUCK<RA1> TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTOWO/LEVER(SH5) 		8-98025-954-1 01 1 1511- ●
315 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),DUMP TRUCK<RA1>, CONCRETE PUMP<RA5>,TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98025-954-1 01 1 1511- ●
315 COVER; HOLE,SW
WHEEL BASE 5500MM(55W),WHEEL BASE 5900MM(59W), WHEEL BASE 6600MM(66W) EXC. FUEL TANK TRUCK<RD5> 		8-98025-954-1 01 1 1511- ●
315 COVER; HOLE,SW 8-98025-954-1 07 1 1511- ● ●
315 COVER; HOLE,SW 1-82359-069-2 AR 1 1008-1410 ● ●
315 COVER; HOLE,SW 8-98025-954-1 AR 1 1411- ● ●
