3-22 — AIR CONTROL PARTS (#63071) — 154 parça

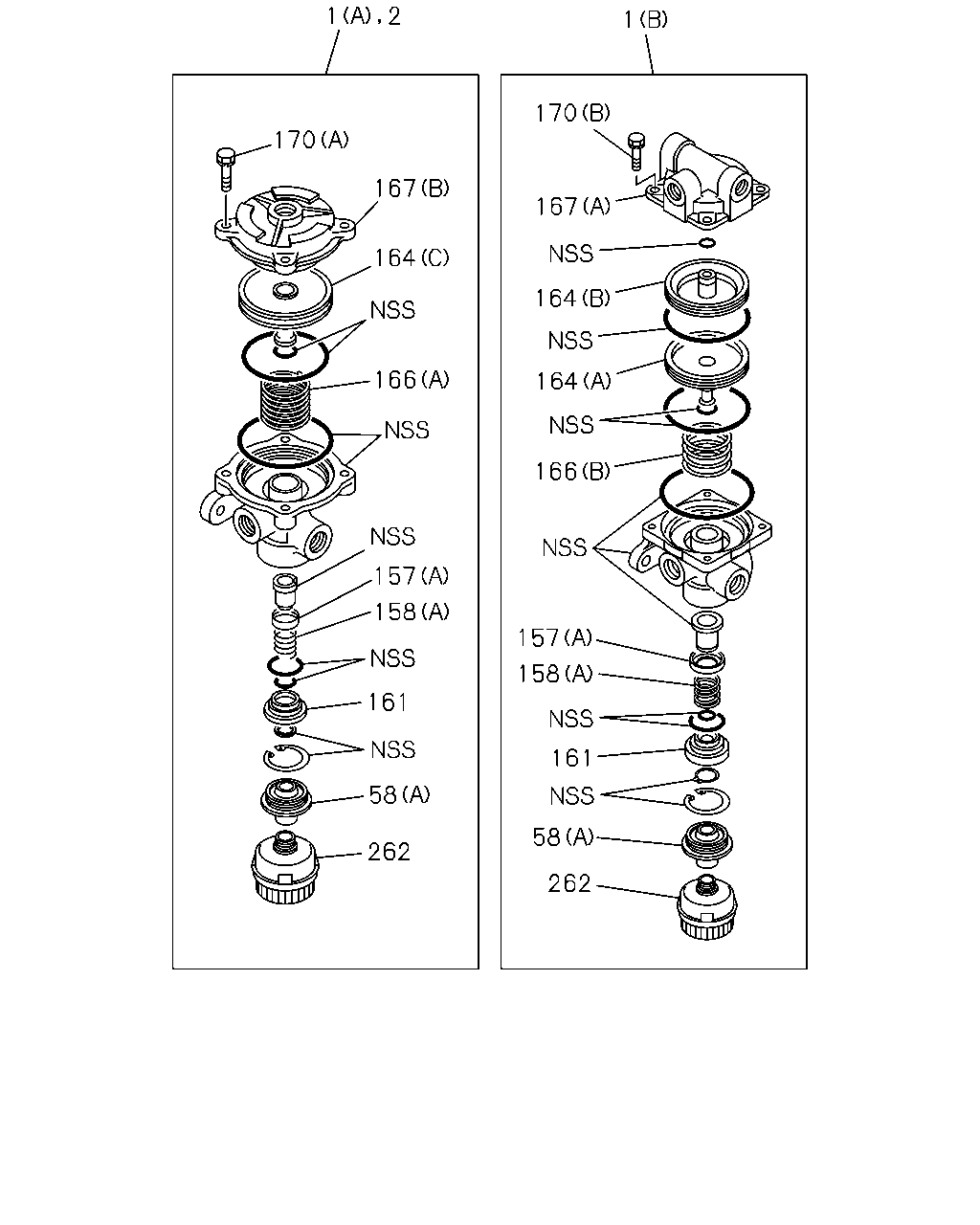

2 1 1 170 170 167 167 164 164 166 164 166 157 158 157 158 161 161 58 58 262 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR (A)	1-48210-997-0	01	1	1008-
1	VALVE; RELAY RWD RR (B)	1-48240-469-0	01	1	1008-
2	VALVE; RELAY	1-48210-997-0	01	1	1008-
2	VALVE; RELAY	1-48210-997-0	02	1	1008-
58	ADAPTER (A)	1-48219-154-0	03	1	1008-
58	ADAPTER (A)	1-48219-154-0	01	1	1008-
58	ADAPTER (A)	1-48219-154-0	01	1	1008-
58	ADAPTER FULL TRAILER PIPING<Z25> (B) PT3/8 4WAY	1-09661-489-0	01	1	1008-
157	RETAINER; VALVE (A)	1-48213-002-0	03	1	1008-
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1008-
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1008-
157	RETAINER; VALVE (B)	1-48419-036-0	04	1	1008-1008
157	RETAINER; VALVE (B)	1-48419-020-0	04	1	1009-
158	SPRING; VALVE (A)	1-47819-089-0	03	1	1008-
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1008-
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1008-
158	SPRING; VALVE (B)	9-48419-003-0	04	1	1008-
161	GUIDE; VALVE	1-48129-014-0	03	1	1008-
161	GUIDE; VALVE	1-48129-014-0	01	1	1008-
161	GUIDE; VALVE	1-48129-014-0	01	1	1008-
164	PISTON; RELAY VALVE (A)	1-48219-032-0	01	1	1008-
164	PISTON; RELAY VALVE (B)	1-48219-047-0	01	1	1008-
164	PISTON; RELAY VALVE (C)	1-48219-071-0	01	1	1008-
164	PISTON; RELAY VALVE (C)	1-48219-071-0	03	1	1008-
166	SPRING; PISTON (A)	1-47819-090-0	01	1	1008-
166	SPRING; PISTON (A)	1-47819-090-0	03	1	1008-
166	SPRING; PISTON (B)	1-48219-048-0	01	1	1008-
167	COVER; VALVE (A)	1-48219-050-1	01	1	1008-
167	COVER; VALVE (B)	1-48219-070-0	01	1	1008-
167	COVER; VALVE (B)	1-48219-070-0	03	1	1008-
167	COVER; VALVE (C)	8-98043-421-0	02	1	1008-
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	1008-
170	SCREW; COVER TO BODY (A)	1-48219-039-0	12	1	1008-
170	SCREW; COVER TO BODY (B)	1-48219-041-0	04	1	1008-
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1008-
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1008-
262	SILENCER; RELAY VALVE	1-48219-149-0	07	1	1008-
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	1009-

13 45 158 216 157 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE	1-48410-733-0	02	1	1008-1008
13	VALVE ASM; QUICK RELEASE	8-98170-207-0	02	1	1009-
45	VALVE; QUICK RELEASE	1-48410-733-0	02	1	1008-1008
45	VALVE; QUICK RELEASE	8-98170-207-0	02	1	1009-
157	RETAINER; VALVE (A)	1-48213-002-0	03	1	1008-
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1008-
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	1008-
157	RETAINER; VALVE (B)	1-48419-036-0	04	1	1008-1008
157	RETAINER; VALVE (B)	1-48419-020-0	04	1	1009-
158	SPRING; VALVE (A)	1-47819-089-0	03	1	1008-
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1008-
158	SPRING; VALVE (A)	1-47819-089-0	01	1	1008-
158	SPRING; VALVE (B)	9-48419-003-0	04	1	1008-
216	REPAIR KIT; QUICK RELEASE VLV	1-85579-062-0	04	1	1008-1008
216	REPAIR KIT; QUICK RELEASE VLV	8-98171-596-0	04	1	1009-
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1008-
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1008-
262	SILENCER; RELAY VALVE	1-48219-149-0	07	1	1008-
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	1009-

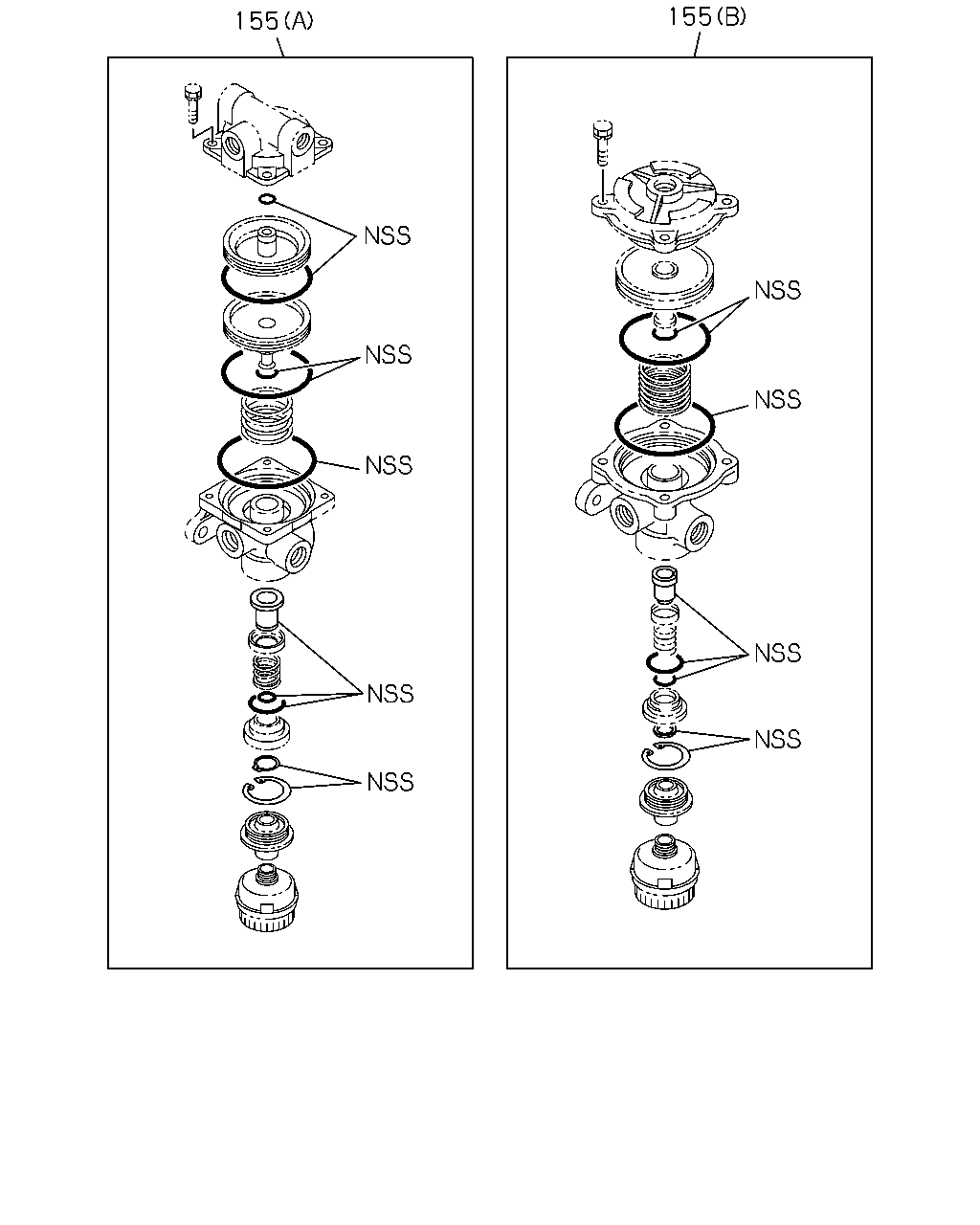

155 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	REPAIR KIT; RELAY VALVE (B)	1-85576-294-0	01	1	1008-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-294-0	03	1	1008-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-453-0	01	1	1008-

47 62 47 63 66 167 19 47 45 37 63 47 62 47 66 167 19 47 45 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	BRACKET; QUICK RELEASE VLV (A)	1-47471-014-0	02	1	1008-
19	BRACKET; QUICK RELEASE VLV (B)	1-47471-390-0	02	1	1008-
37	BOLT; COVER M8X10 FLANGE	0-28050-810-0	04	1	1008-
45	VALVE; QUICK RELEASE	1-48410-733-0	02	1	1008-1008
45	VALVE; QUICK RELEASE	8-98170-207-0	02	1	1009-
47	CONNECTOR; RELAY VLV,CONT DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1008-
62	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	04	1	1008-
62	BOLT; BRKT FIX (B) M10X35 FLANGE	0-28651-035-0	02	1	1008-
63	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	04	1	1008-
63	NUT; BRKT FIX (B) M10 FLANGE	0-91180-210-0	02	1	1008-
66	BOLT; BRKT,RELAY VLV RR M8X16 FLANGE	0-28050-816-0	04	1	1008-
167	COVER; VALVE (A)	1-48219-050-1	01	1	1008-
167	COVER; VALVE (B)	1-48219-070-0	01	1	1008-
167	COVER; VALVE (B)	1-48219-070-0	03	1	1008-
167	COVER; VALVE (C)	8-98043-421-0	02	1	1008-

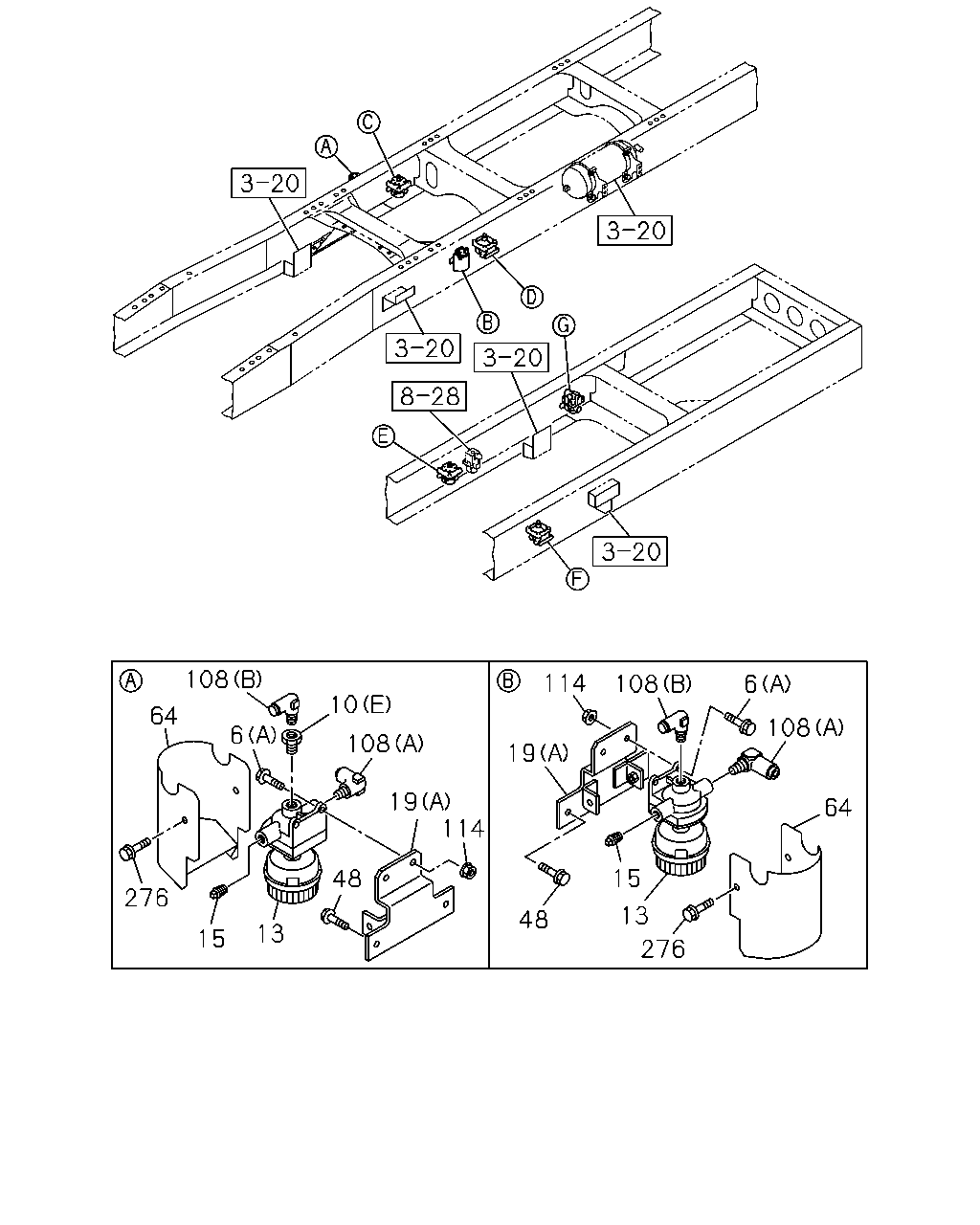

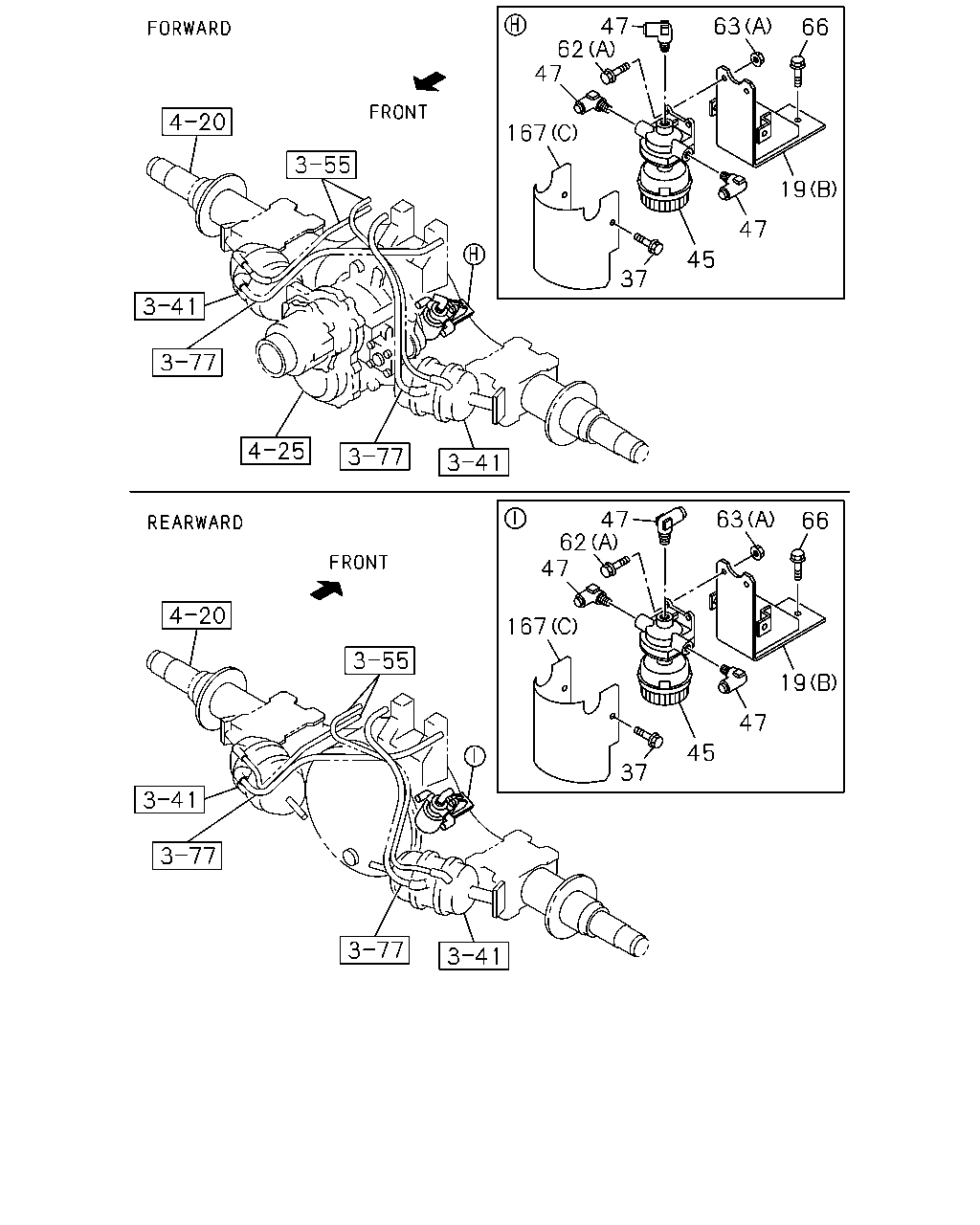

108 114 108 6 10 64 108 6 108 19 19 114 64 15 48 276 13 48 13 15 276

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BOLT; VLV (A) M8X25 FLANGE	0-28650-825-0	04	1	1008-
6	BOLT; VLV (B) M8X35 FLANGE	0-28650-835-0	02	1	1008-
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1008-
10	CONNECTOR (E) PT3/8	1-09664-210-0	01	1	1008-
10	CONNECTOR (D) DIN8 & RC1/4 & R3/8 3WAY	8-97620-116-0	01	1	1008-
10	CONNECTOR FULL TRAILER PIPING<Z25> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1008-
10	CONNECTOR FULL TRAILER PIPING<Z25> (G) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1008-
10	CONNECTOR FULL TRAILER PIPING<Z25> (H) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	1008-
10	CONNECTOR EXC. FULL TRAILER PIPING<Z25> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1008-
10	CONNECTOR EXC. FULL TRAILER PIPING<Z25> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1008-
10	CONNECTOR 6WF1 TC-C(1B8) FULL TRAILER PIPING<Z25> (F) PT3/8 ELBOW	1-09660-696-0	02	1	1008-
10	CONNECTOR 6WG1 TC-R(75L) FULL TRAILER PIPING<Z25> (F) PT3/8 ELBOW	1-09660-696-0	01	1	1008-
10	CONNECTOR 6WF1 TC-C(1B8) EXC. FULL TRAILER PIPING<Z25> (F) PT3/8 ELBOW	1-09660-696-0	01	1	1008-
13	VALVE ASM; QUICK RELEASE	1-48410-733-0	02	1	1008-1008
13	VALVE ASM; QUICK RELEASE	8-98170-207-0	02	1	1009-
15	PLUG; VALVE PT3/8	9-09204-517-0	02	1	1008-
19	BRACKET; QUICK RELEASE VLV (A)	1-47471-014-0	02	1	1008-
19	BRACKET; QUICK RELEASE VLV (B)	1-47471-390-0	02	1	1008-
48	BOLT; QUICK RELEASE VLV M8X35 FLANGE	0-28650-835-0	04	1	1008-
64	PROTECTOR; QUICK RELEASE VALVE	8-98043-421-0	02	1	1008-
108	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1008-
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1008-
114	NUT; VLV M8 FLANGE	0-91180-108-0	04	1	1008-
276	BOLT; PROTECTOR M8X20 FLANGE	0-28650-820-0	04	1	1008-

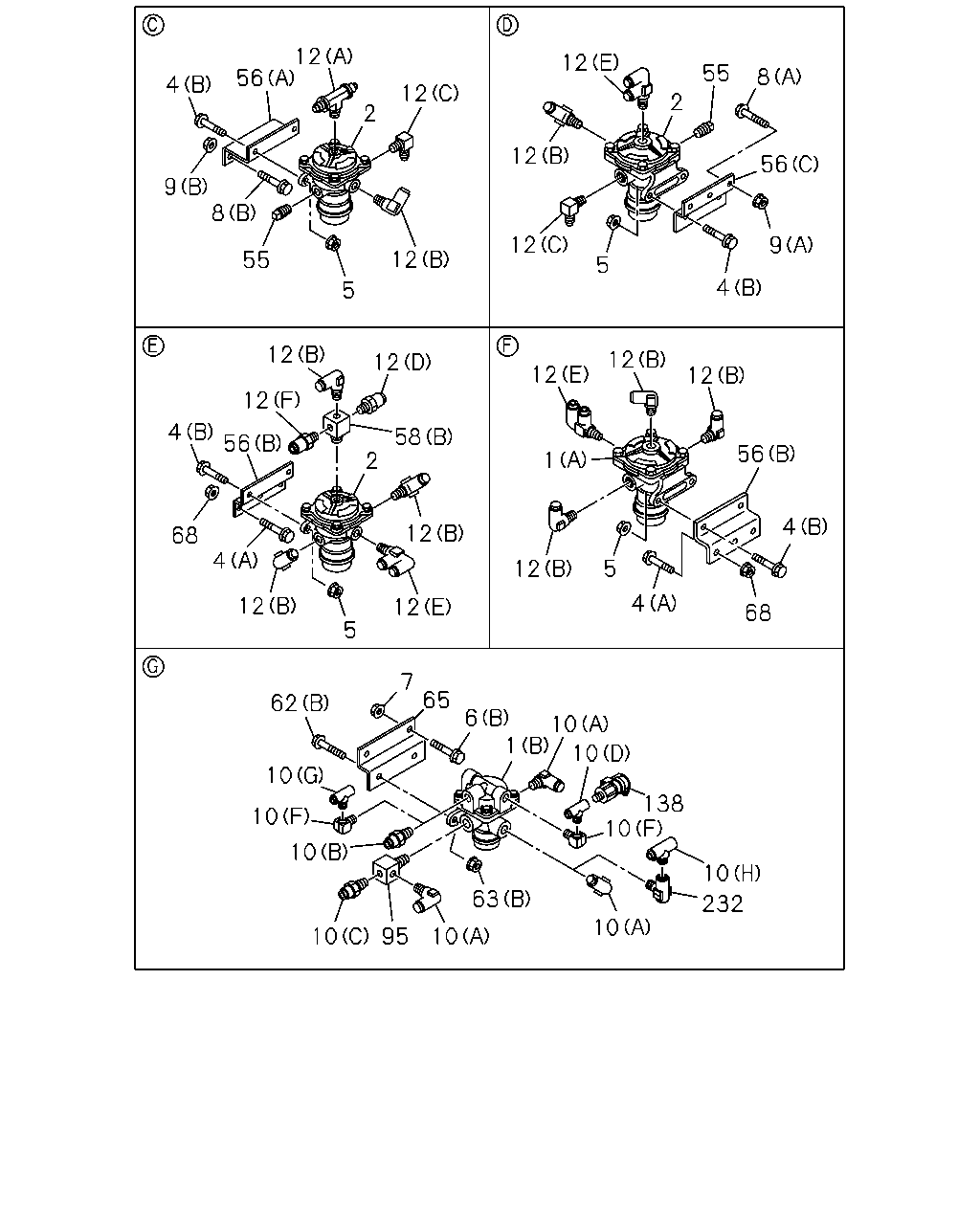

12 12 55 8 56 4 12 2 2 12 56 9 8 12 9 12 55 5 4 5 12 12 12 12 12 12 4 58 56 56 1 2 4 12 68 4 5 12 4 12 12 68 5 7 65 62 6 10 1 10 10 138 10 10 10 10 63 232 10 10 95 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR (A)	1-48210-997-0	01	1	1008-
1	VALVE; RELAY RWD RR (B)	1-48240-469-0	01	1	1008-
2	VALVE; RELAY	1-48210-997-0	01	1	1008-
2	VALVE; RELAY	1-48210-997-0	02	1	1008-
4	BOLT; RELAY VLV TO BRKT (A) M8X35 FLANGE	0-28650-835-0	04	1	1008-
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1008-
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28651-035-0	06	1	1008-
5	NUT M10 FLANGE	0-91180-210-0	02	1	1008-
5	NUT M10 FLANGE	0-91180-210-0	06	1	1008-
6	BOLT; VLV (A) M8X25 FLANGE	0-28650-825-0	04	1	1008-
6	BOLT; VLV (B) M8X35 FLANGE	0-28650-835-0	02	1	1008-
7	NUT; RELAY VLV M8 FLANGE	0-91180-108-0	02	1	1008-
8	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	02	1	1008-
8	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1008-
9	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1008-
9	NUT (B) M10 FLANGE	0-91180-110-0	02	1	1008-
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1008-
10	CONNECTOR (E) PT3/8	1-09664-210-0	01	1	1008-
10	CONNECTOR (D) DIN8 & RC1/4 & R3/8 3WAY	8-97620-116-0	01	1	1008-
10	CONNECTOR FULL TRAILER PIPING<Z25> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1008-
10	CONNECTOR FULL TRAILER PIPING<Z25> (G) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1008-
10	CONNECTOR FULL TRAILER PIPING<Z25> (H) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	1008-
10	CONNECTOR EXC. FULL TRAILER PIPING<Z25> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1008-
10	CONNECTOR EXC. FULL TRAILER PIPING<Z25> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1008-
10	CONNECTOR 6WF1 TC-C(1B8) FULL TRAILER PIPING<Z25> (F) PT3/8 ELBOW	1-09660-696-0	02	1	1008-
10	CONNECTOR 6WG1 TC-R(75L) FULL TRAILER PIPING<Z25> (F) PT3/8 ELBOW	1-09660-696-0	01	1	1008-
10	CONNECTOR 6WF1 TC-C(1B8) EXC. FULL TRAILER PIPING<Z25> (F) PT3/8 ELBOW	1-09660-696-0	01	1	1008-
12	CONNECTOR; RELAY VLV (C) M22 & PT3/8 ELBOW	1-09650-440-0	02	1	1008-
12	CONNECTOR; RELAY VLV (A) DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	1008-
12	CONNECTOR; RELAY VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	1008-
12	CONNECTOR; RELAY VLV (E) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	1008-
12	CONNECTOR; RELAY VLV EXC. FULL TRAILER PIPING<Z25> (E) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	1008-
12	CONNECTOR; RELAY VLV FULL TRAILER PIPING<Z25> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1008-
12	CONNECTOR; RELAY VLV FULL TRAILER PIPING<Z25> (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1008-
12	CONNECTOR; RELAY VLV FULL TRAILER PIPING<Z25> (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1008-
12	CONNECTOR; RELAY VLV FULL TRAILER PIPING<Z25> (E) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1008-
12	CONNECTOR; RELAY VLV EXC. FULL TRAILER PIPING<Z25> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1008-
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1008-
56	BRACKET; RELAY VLV (A)	1-47478-233-0	01	1	1008-
56	BRACKET; RELAY VLV (B)	1-47479-328-0	01	1	1008-
56	BRACKET; RELAY VLV (C)	8-98174-437-0	01	1	1008-
58	ADAPTER (A)	1-48219-154-0	03	1	1008-
58	ADAPTER (A)	1-48219-154-0	01	1	1008-
58	ADAPTER (A)	1-48219-154-0	01	1	1008-
58	ADAPTER FULL TRAILER PIPING<Z25> (B) PT3/8 4WAY	1-09661-489-0	01	1	1008-
62	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	04	1	1008-
62	BOLT; BRKT FIX (B) M10X35 FLANGE	0-28651-035-0	02	1	1008-
63	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	04	1	1008-
63	NUT; BRKT FIX (B) M10 FLANGE	0-91180-210-0	02	1	1008-
65	BRACKET; RELAY VLV RR	1-47479-328-0	01	1	1008-
68	NUT; RELAY VLV TO BRKT M8 FLANGE	0-91180-108-0	04	1	1008-
95	UNION; AIR VLV PT3/8 3WAY	1-09661-300-0	01	1	1008-
138	SWITCH; RELAY VALVE 6WF1 TC-C(1B8)	1-48340-067-0	01	1	1008-
138	SWITCH; RELAY VALVE 6WG1 TC-R(75L) STAMP 2.0	8-98010-856-2	01	1	1008-
232	VALVE; CHECK FULL TRAILER PIPING<Z25>	1-48320-031-1	01	1	1008-
