◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11271 - CYH LHD EURO2/3/4 WITH 3STEPS ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#63070) — 185 parça

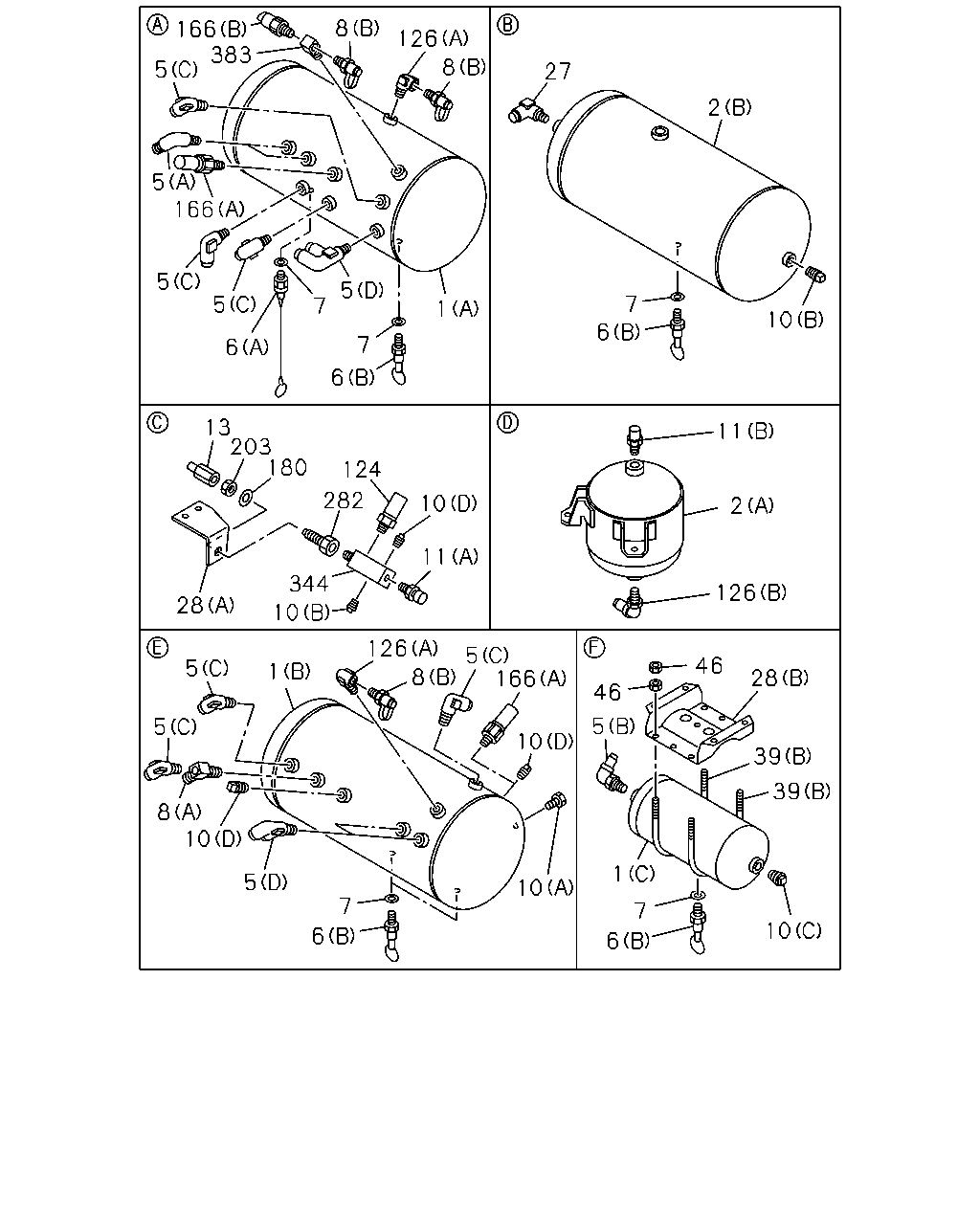

çizim 166824
8 166 383 126 8 5 27 2 5 166 5 5 7 6 5 7 1 10 7 6 6 13 203 180 11 124 282 10 2 11 344 126 28 10 126 5 166 46 5 1 8 28 46 5 5 39 39 8 10 1 5 10 7 7 10 6 6
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(C) 		1-48371-165-3 01 1 1008-
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 1008-
1 TANK ASM; AIR
(B) 		1-48371-434-1 01 1 1008-
2 TANK; AIR
(A) 		1-48371-166-3 01 1 1008-
2 TANK; AIR
(B) 		1-48371-389-1 02 1 1008-
2 TANK; AIR
(C) 		8-98145-093-0 01 1 1008-
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1008-
5 UNION; AIR TANK
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 03 1 1008-
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1008-
5 UNION; AIR TANK
(A) 		1-09661-550-0 02 1 1008-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-006-1 01 1 1008-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 03 1 1008-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 05 1 1008-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1008-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 1008-
8 CONNECTOR; AIR TANK
(A) DIN8 & R3/8 & RC3/8 3WAY 		1-09661-271-0 01 1 1008-
8 CONNECTOR; AIR TANK
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 04 1 1008-
8 CONNECTOR; AIR TANK
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 03 1 1008-
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 01 1 1008-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1008-
10 PLUG; AIR TANK
(C) PT3/4 		9-09204-526-0 01 1 1008-
10 PLUG; AIR TANK
6WF1 TC-C(1B8) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (D) PT1/4 		9-99204-513-0 01 1 1008-
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1008-
10 PLUG; AIR TANK
6WG1 TC-R(75L) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (D) PT1/4 		9-99204-513-0 02 1 1008-
10 PLUG; AIR TANK
6WG1 TC-R(75L) EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (D) PT1/4 		9-99204-513-0 03 1 1008-
11 VALVE; SAFETY,AIR TANK
(A) 		1-48320-012-2 01 1 1008-
11 VALVE; SAFETY,AIR TANK
(B) 		1-48320-047-2 01 1 1008-
13 ADAPTER; NYLON TUBE
DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 1008-
27 UNION; ELBOW,AIR TANK
DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1008-
28 BRACKET; AIR TANK
(A) 		1-47471-153-0 01 1 1008-
28 BRACKET; AIR TANK
(F) 		1-48316-024-3 01 1 1008-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 1008-
28 BRACKET; AIR TANK
(E) 		1-48317-473-2 01 1 1008-
28 BRACKET; AIR TANK
(B) 		1-48317-985-1 01 1 1008-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 1008-
28 BRACKET; AIR TANK
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (G) 		1-82698-424-0 01 1 1008-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1008-
39 U-BOLT; AIR TANK
(C) 		1-48317-302-0 02 1 1008-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1008-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1008-
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1008-
124 SWITCH; AIR PRESSURE
6WF1 TC-C(1B8) 		1-48340-065-0 01 1 1008-
124 SWITCH; AIR PRESSURE
6WG1 TC-R(75L) STAMP 5.5 		8-97609-249-0 01 1 1008-
126 CONNECTOR; ELBOW
(A) PT1/4 2WAY 		1-09660-693-0 02 1 1008-
126 CONNECTOR; ELBOW
(B) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1008-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
6WF1 TC-C(1B8) (A) 		1-48340-058-2 02 1 1008-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
6WF1 TC-C(1B8) (B) 		1-48340-065-0 01 1 1008-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
6WG1 TC-R(75L) (B) STAMP 5.5 		8-97609-249-0 01 1 1008-
180 WASHER; LK
ID=16.2 		0-91510-516-0 01 1 1008-
203 NUT
M16 		0-91110-516-0 01 1 1008-
282 UNION; 2 WAY 1-09650-222-1 01 1 1008-
344 CONNECTOR; 4WAY 1-09660-521-2 01 1 1008-
383 UNION; 3 WAY 1-09660-363-0 01 1 1008-

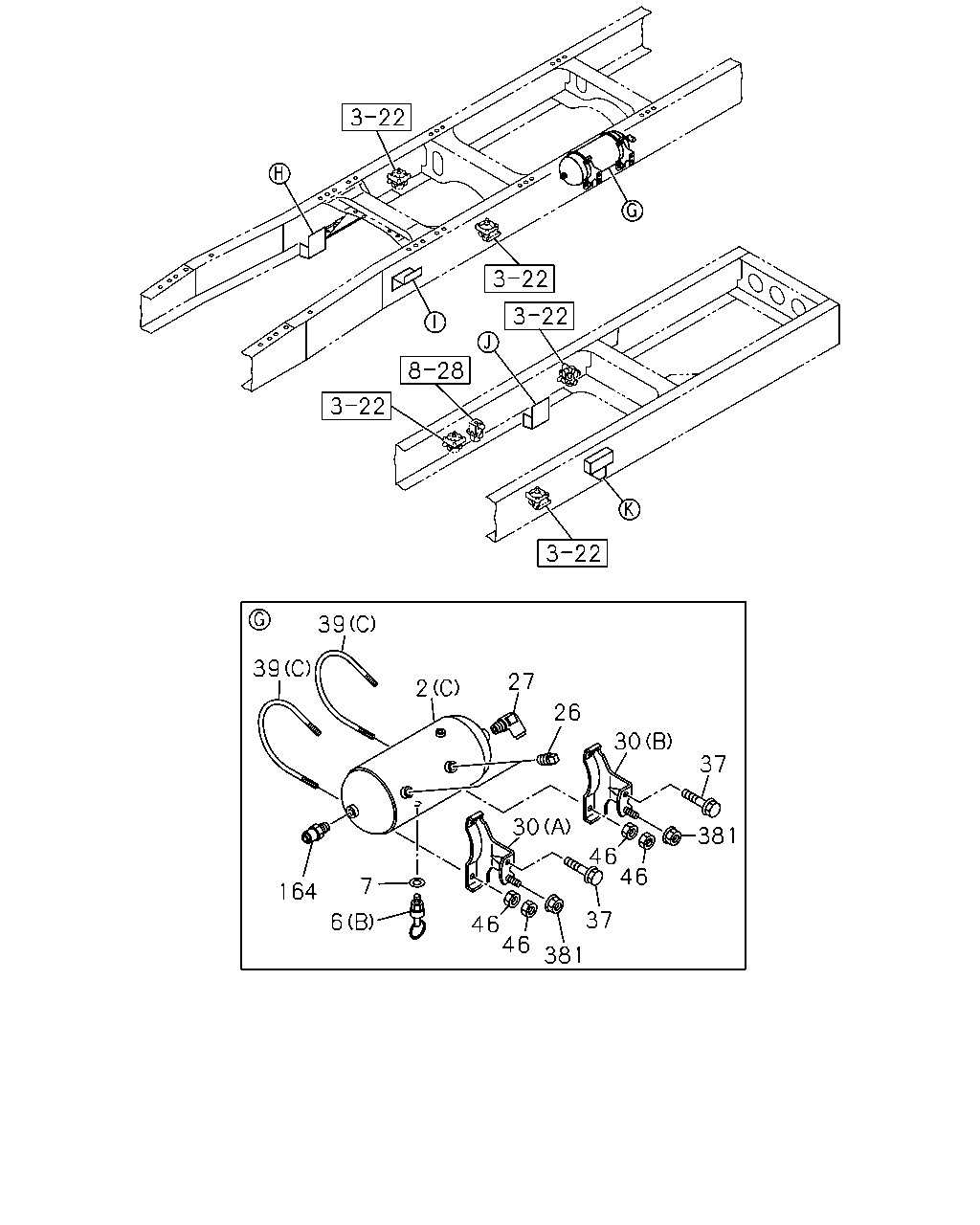

çizim 166829
39 39 27 2 26 30 37 30 381 46 46 7 164 37 6 46 46 381
BalonParca AdiParca NoAdetTipApplied Date
2 TANK; AIR
(A) 		1-48371-166-3 01 1 1008-
2 TANK; AIR
(B) 		1-48371-389-1 02 1 1008-
2 TANK; AIR
(C) 		8-98145-093-0 01 1 1008-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-006-1 01 1 1008-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 03 1 1008-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 05 1 1008-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1008-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 1008-
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 04 1 1008-
27 UNION; ELBOW,AIR TANK
DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1008-
30 BRACKET; AIR TANK,SUB
(A) 		1-48316-076-1 01 1 1008-
30 BRACKET; AIR TANK,SUB
(B) 		8-98149-219-0 01 1 1008-
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28651-035-0 02 1 1008-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1008-
39 U-BOLT; AIR TANK
(C) 		1-48317-302-0 02 1 1008-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1008-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1008-
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1008-
164 CONNECTOR; SUB AIR TANK
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008-
381 NUT; SUB TANK
M10 FLANGE 		0-91180-210-0 02 1 1008-

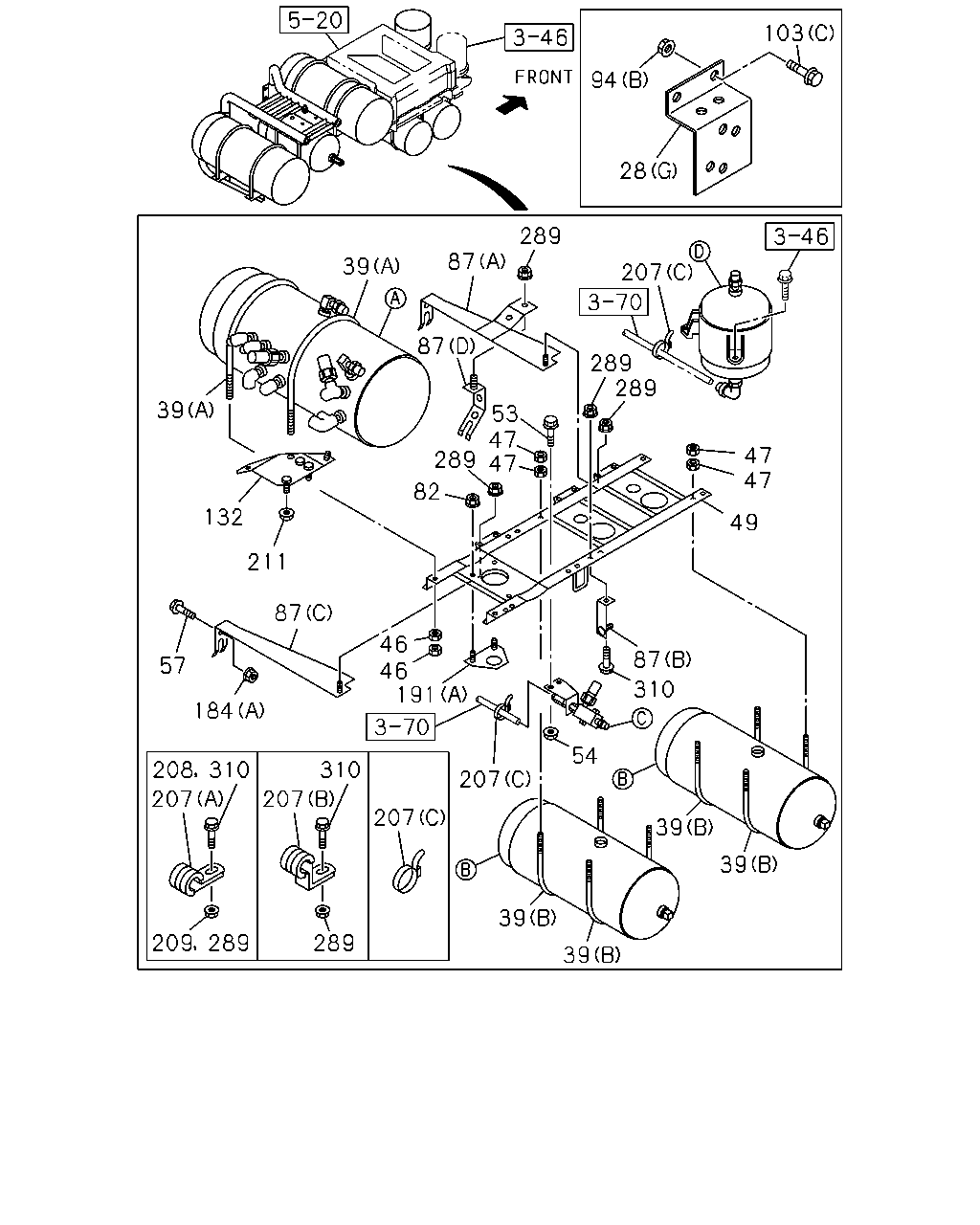

çizim 166832
103 94 28 289 207 87 39 87 289 289 53 47 47 39 47 47 289 82 132 49 211 87 46 46 191 87 57 310 184 54 208 310 310 207 207 207 207 39 39 39 209 289 289 39
BalonParca AdiParca NoAdetTipApplied Date
28 BRACKET; AIR TANK
(A) 		1-47471-153-0 01 1 1008-
28 BRACKET; AIR TANK
(F) 		1-48316-024-3 01 1 1008-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 1008-
28 BRACKET; AIR TANK
(E) 		1-48317-473-2 01 1 1008-
28 BRACKET; AIR TANK
(B) 		1-48317-985-1 01 1 1008-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 1008-
28 BRACKET; AIR TANK
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (G) 		1-82698-424-0 01 1 1008-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1008-
39 U-BOLT; AIR TANK
(C) 		1-48317-302-0 02 1 1008-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1008-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1008-
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1008-
47 NUT; LK,U BOLT,AIR TANK
M8 		0-91110-508-0 16 1 1008-
49 BRACKET; AIR TANK 1-48316-065-1 01 1 1008-
53 BOLT; STAY,AIR TANK
M8X20 FLANGE 		0-28650-820-0 02 1 1008-
54 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 1008-
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28651-025-0 04 1 1008-
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91180-108-0 02 1 1008-
87 BRACKET; AIR PIPE JOINT
(B) 		1-47471-189-0 02 1 1008-
87 BRACKET; AIR PIPE JOINT
(C) 		1-47471-241-0 01 1 1008-
87 BRACKET; AIR PIPE JOINT
(E) 		8-98053-747-0 01 1 1008-
87 BRACKET; AIR PIPE JOINT
(A) 		8-98054-525-0 01 1 1008-
87 BRACKET; AIR PIPE JOINT
(D) 		8-98060-053-0 01 1 1008-
94 NUT; BRKT FIX
(A) M14 		0-91110-514-0 04 1 1008-
94 NUT; BRKT FIX
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (B) M8 FLANGE 		0-91180-108-0 02 1 1008-
103 BOLT; BRKT
(A) M14X35 		0-20851-435-0 04 1 1008-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 1008-
103 BOLT; BRKT
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (C) M8X35 FLANGE 		0-28650-835-0 02 1 1008-
132 BRACKET; STRING GUIDE 8-98140-096-0 01 1 1008-
184 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 1008-
184 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 01 1 1008-
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 1008-
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-023-1 01 1 1008-
207 CLIP; AIR PIPE
(A) ID=7 L=20 		0-95234-635-0 01 1 1008-
207 CLIP; AIR PIPE
(A) ID=16 L=20 		0-95235-535-0 01 1 1008-
207 CLIP; AIR PIPE
(A) ID=35 L=33 		1-09700-945-0 02 1 1008-
207 CLIP; AIR PIPE
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 1008-
207 CLIP; AIR PIPE
(C) L=350 		1-09707-183-0 19 1 1008-
207 CLIP; AIR PIPE
6WF1 TC-C(1B8) (C) L=350 		1-09707-183-0 01 1 1008-
208 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1008-
209 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1008-
211 NUT; STRING GUIDE
M8 FLANGE 		0-91180-108-0 02 1 1008-
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 06 1 1008-
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 06 1 1008-

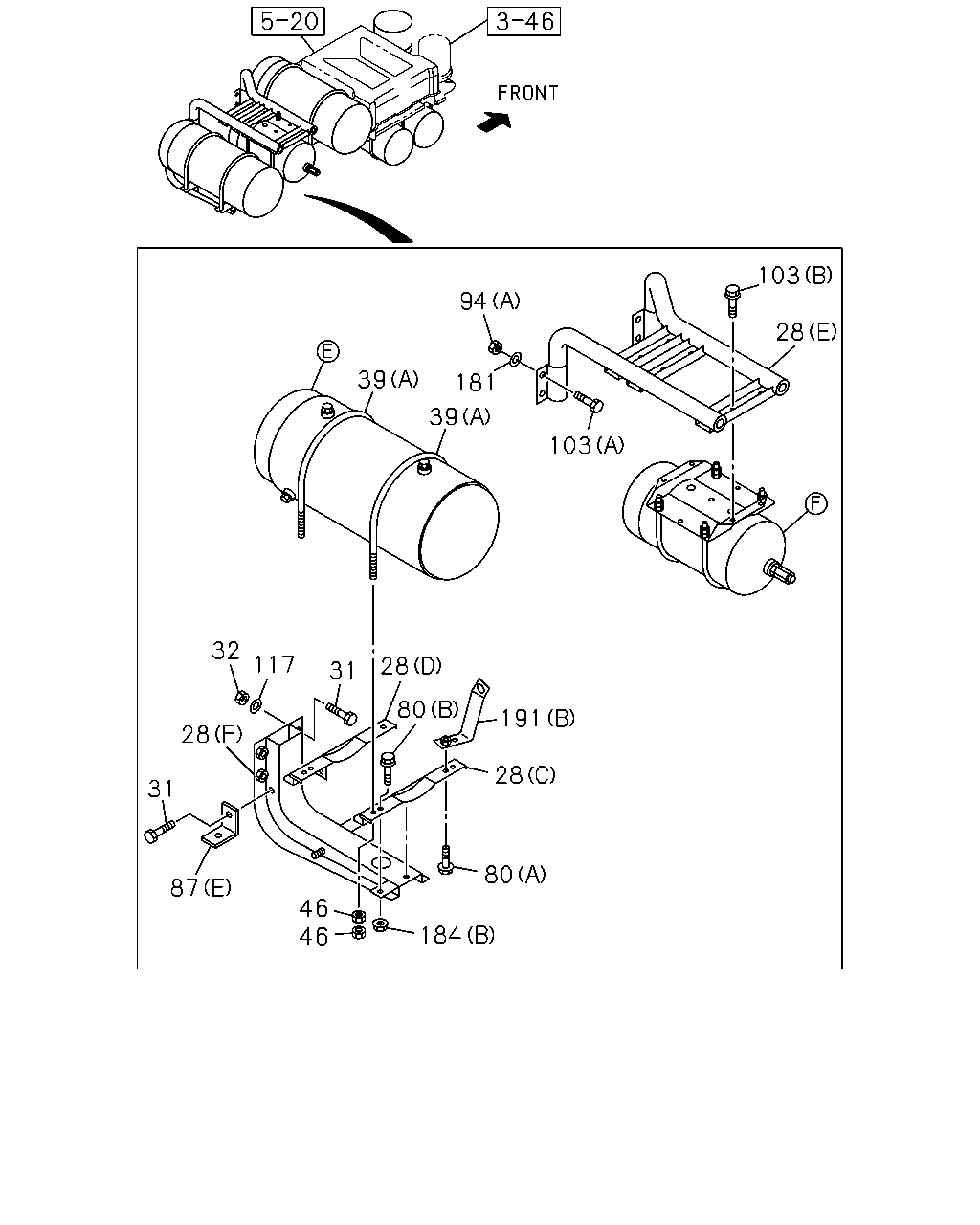

çizim 166834
103 94 28 39 181 39 103 32 117 28 31 80 191 28 28 31 80 87 46 46 184
BalonParca AdiParca NoAdetTipApplied Date
28 BRACKET; AIR TANK
(A) 		1-47471-153-0 01 1 1008-
28 BRACKET; AIR TANK
(F) 		1-48316-024-3 01 1 1008-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 1008-
28 BRACKET; AIR TANK
(E) 		1-48317-473-2 01 1 1008-
28 BRACKET; AIR TANK
(B) 		1-48317-985-1 01 1 1008-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 1008-
28 BRACKET; AIR TANK
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (G) 		1-82698-424-0 01 1 1008-
31 BOLT; BRKT TO FRAME
M14X50 		0-20851-450-0 04 1 1008-
32 NUT; BRKT TO FRAME
M14 		0-91110-514-0 04 1 1008-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 1008-
39 U-BOLT; AIR TANK
(C) 		1-48317-302-0 02 1 1008-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1008-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 04 1 1008-
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 1008-
80 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1008-
80 BOLT; BRKT
(B) M12X25 FLANGE 		0-28651-225-0 04 1 1008-
87 BRACKET; AIR PIPE JOINT
(B) 		1-47471-189-0 02 1 1008-
87 BRACKET; AIR PIPE JOINT
(C) 		1-47471-241-0 01 1 1008-
87 BRACKET; AIR PIPE JOINT
(E) 		8-98053-747-0 01 1 1008-
87 BRACKET; AIR PIPE JOINT
(A) 		8-98054-525-0 01 1 1008-
87 BRACKET; AIR PIPE JOINT
(D) 		8-98060-053-0 01 1 1008-
94 NUT; BRKT FIX
(A) M14 		0-91110-514-0 04 1 1008-
94 NUT; BRKT FIX
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (B) M8 FLANGE 		0-91180-108-0 02 1 1008-
103 BOLT; BRKT
(A) M14X35 		0-20851-435-0 04 1 1008-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 1008-
103 BOLT; BRKT
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (C) M8X35 FLANGE 		0-28650-835-0 02 1 1008-
117 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 04 1 1008-
181 WASHER; LK,AIR TANK
ID=14.2 		0-91510-514-0 04 1 1008-
184 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 1008-
184 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 01 1 1008-
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 1008-
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-023-1 01 1 1008-

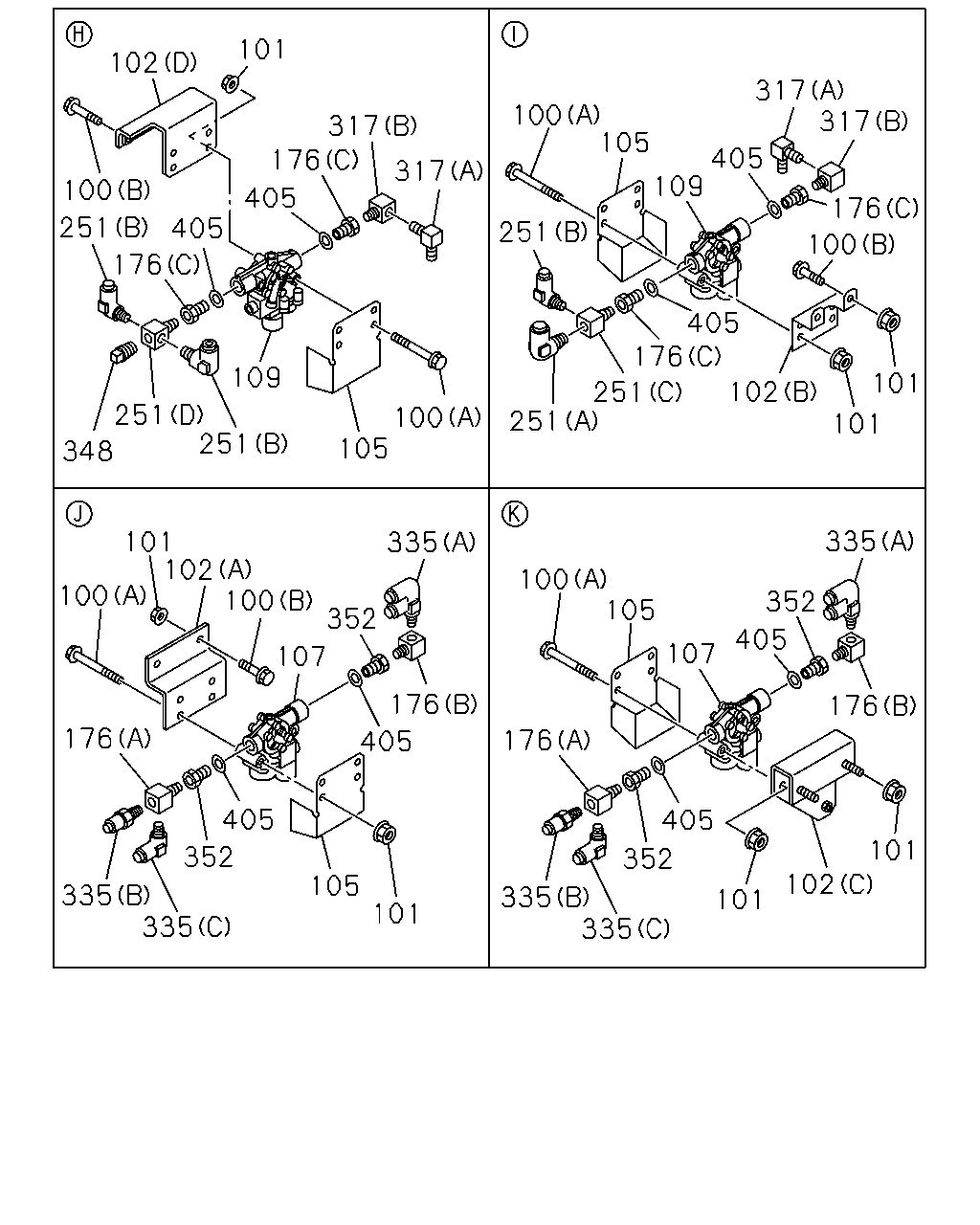

çizim 166836
102 101 317 176 317 405 100 176 251 405 100 105 251 251 348 109 100 109 251 405 317 176 317 100 101 101 102 176 405 251 251 105 335 352 405 107 105 100 176 405 176 101 102 101 352 335 335 101 100 102 335 352 176 405 105 101 405 352 335 335 176 107 100
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 08 1 1008-1504
100 BOLT; MODULATOR
(A) M8X85 		1-09044-074-0 08 1 1505-
100 BOLT; MODULATOR
(B) M8X35 FLANGE 		0-28650-835-0 06 1 1008-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 12 1 1008-
102 BRACKET; MODULATOR
(B) 		1-47479-635-0 01 1 1008-1504
102 BRACKET; MODULATOR
(B) 		8-98302-564-0 01 1 1505-
102 BRACKET; MODULATOR
(D) 		8-98144-754-0 01 1 1008-1504
102 BRACKET; MODULATOR
(D) 		8-98302-582-0 01 1 1505-
102 BRACKET; MODULATOR
(C) 		8-98043-398-0 01 1 1008-1504
102 BRACKET; MODULATOR
(C) 		8-98300-022-0 01 1 1505-
102 BRACKET; MODULATOR
(A) 		1-47471-180-0 01 1 1008-1504
102 BRACKET; MODULATOR
(A) 		8-98300-018-0 01 1 1505-
105 COVER; MODULATOR 8-98302-925-0 02 1 1505-
105 COVER; MODULATOR 1-47471-354-0 04 1 1008-1504
105 COVER; MODULATOR 8-98302-924-0 02 1 1505-
107 MODULATOR; RR 1-48240-115-0 02 1 1008-1504
107 MODULATOR; RR 8-98215-454-0 02 1 1505-
109 MODULATOR; FRT 1-48240-115-0 02 1 1008-1504
109 MODULATOR; FRT 8-98215-454-0 02 1 1505-
176 ADAPTER
(C) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1008-
176 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 1008-
176 ADAPTER
(A) PT3/8 3WAY 		1-09661-300-0 02 1 1008-
251 CONNECTOR; DELIVERY
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 01 1 1008-
251 CONNECTOR; DELIVERY
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1008-
251 CONNECTOR; DELIVERY
(C) PT3/8 3WAY 		1-09661-300-0 01 1 1008-
251 CONNECTOR; DELIVERY
(D) PT3/8 4WAY 		1-09661-489-0 01 1 1008-
317 CONNECTOR; MODULATOR
(A) M22 & PT3/8 ELBOW 		1-09650-440-0 02 1 1008-
317 CONNECTOR; MODULATOR
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 1008-
335 CONNECTOR; MODULATOR
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1008-
335 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1008-
335 CONNECTOR; MODULATOR
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1008-
348 PLUG
PT3/8 		9-09204-517-0 01 1 1008-
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1008-
405 GASKET
ID=22.5 		9-09571-422-0 08 1 1008-
çizim 166943
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
FULL TRAILER PIPING<Z25> M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 1008-
241 BOLT; SET,CONT VLV
EXC. FULL TRAILER PIPING<Z25> M8X70 FLANGE 		0-28050-870-0 02 1 1008-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
