Isuzu WW
▶
TRUCKS
▶
CVR
▶
10723 - CVR LHD
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶
3-10 — BRAKE PEDAL AND CONTROL
(#6307) — 35 parça
◀
[310A] NO.2 (18 parça)

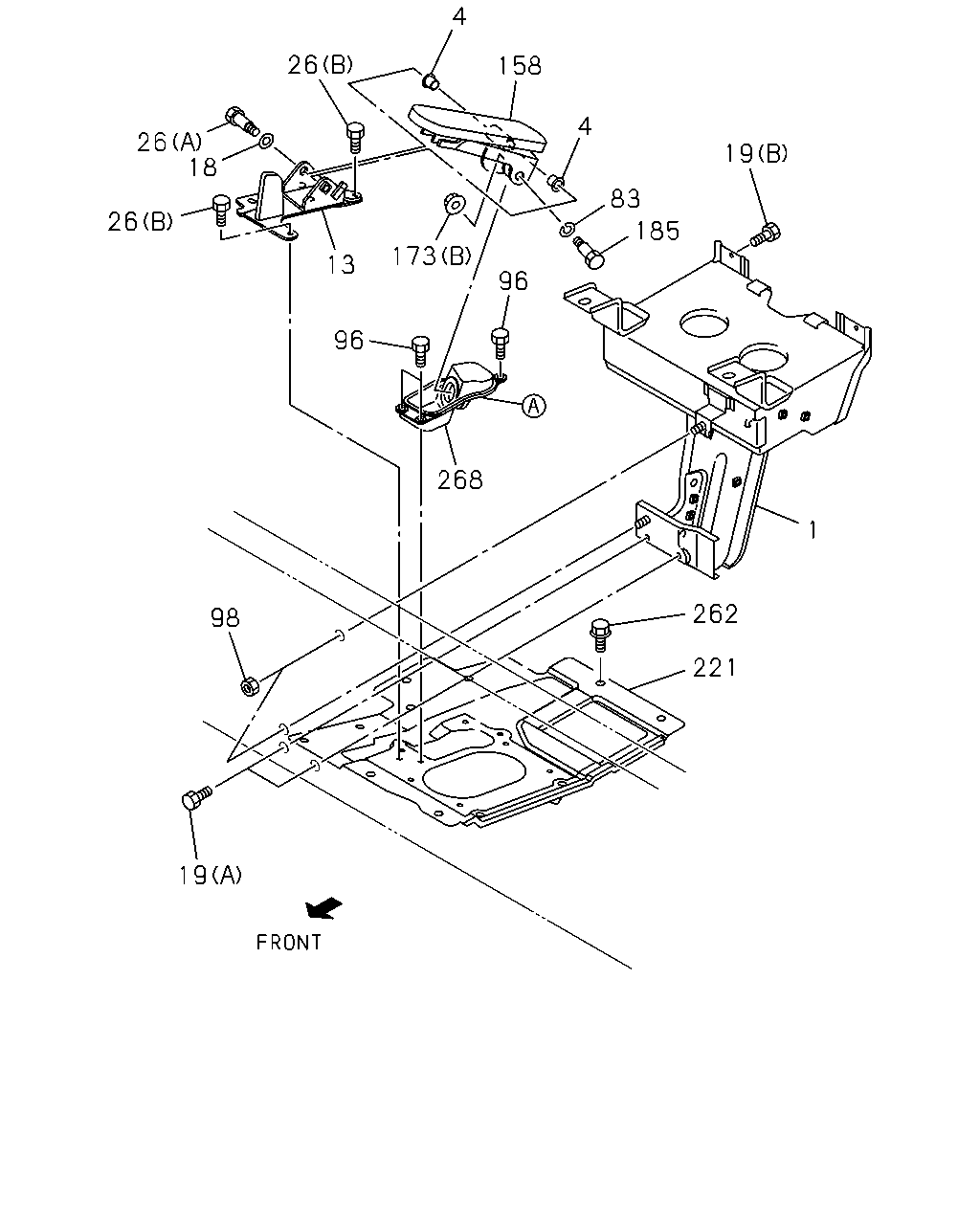

[310A] NO.1 (17 parça)
▶
4
26
158
4
26
18
19
83
26
185
173
13
96
96
268
1
262
98
221
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
1-73908-144-6
01
1
9604-
4
BUSHING; BRK PEDAL
1-73908-201-1
02
1
9604-
13
BRACKET; BRK PEDAL
1-73908-203-1
01
1
9604-
18
WASHER; PL
ID=12.5
9-09164-512-0
01
1
9604-
19
BOLT; BRKT
(A) M8X20
1-79198-002-0
02
1
9604-
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
9604-
26
BOLT; PEDAL
(A)
1-09980-614-0
01
1
9604-
26
BOLT; PEDAL
(B) M6X25
8-94279-204-0
02
1
9604-
83
WASHER; LK,BRKT
ID=14.2
9-09150-814-0
01
1
9604-
96
BOLT; COVER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
9604-
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
9604-
158
PEDAL ASM; BRK
1-73908-068-5
01
1
9604-
173
NUT; JOINT LOCK
(B) M10 FLANGE
0-91150-110-0
01
1
9604-
173
NUT; JOINT LOCK
(A) M12
9-99110-412-0
01
1
9604-
185
BOLT; BRKT
1-73996-282-1
01
1
9604-
221
PLATE ASM; SIDE
1-73996-280-4
01
1
9604-
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
10
1
9604-
268
COVER; ROD
1-73908-192-1
01
1
9604-
20
20
20
183
191
173
172
266
34
7
16
16
7
7
7
7
7
7
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
CONNECTOR; BRK VALVE
(D)
1-09656-708-0
02
1
9604-
7
CONNECTOR; BRK VALVE
(C) DIN8,R3/8 STRAIGHT
1-09660-651-1
01
1
9604-9911
7
CONNECTOR; BRK VALVE
(C) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
9912-
7
CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> (A) DIN6 & R1/8 STRAIGHT
1-09660-691-1
02
1
9604-9911
7
CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> (F)
1-09661-285-0
02
1
9912-
7
CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> (B)
1-09660-803-0
02
1
9604-9911
7
CONNECTOR; BRK VALVE
EXC. DUAL AIR GAUGE<UG2> (E) DIN12 & R3/8 STRAIGHT
1-09660-669-1
02
1
9604-9911
7
CONNECTOR; BRK VALVE
EXC. DUAL AIR GAUGE<UG2> (E) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
9912-
16
SWITCH; STOP LAMP
GREEN
1-82410-176-0
02
1
9604-
20
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
9604-
34
BRACKET ASM; BRK VLV
1-79738-808-3
01
1
9604-
172
JOINT; JAW,BRK PEDAL
1-73908-167-1
01
1
9604-
173
NUT; JOINT LOCK
(B) M10 FLANGE
0-91150-110-0
01
1
9604-
173
NUT; JOINT LOCK
(A) M12
9-99110-412-0
01
1
9604-
183
BOLT; BRK VLV
M10X25 W/LK WASHER
1-09980-503-0
03
1
9604-
191
JOINT; BALL,PUSH ROD
1-47355-001-0
01
1
9604-
266
JOINT ROD
1-73908-166-3
01
1
9604-
