1 |
SHOE; BRK,RR

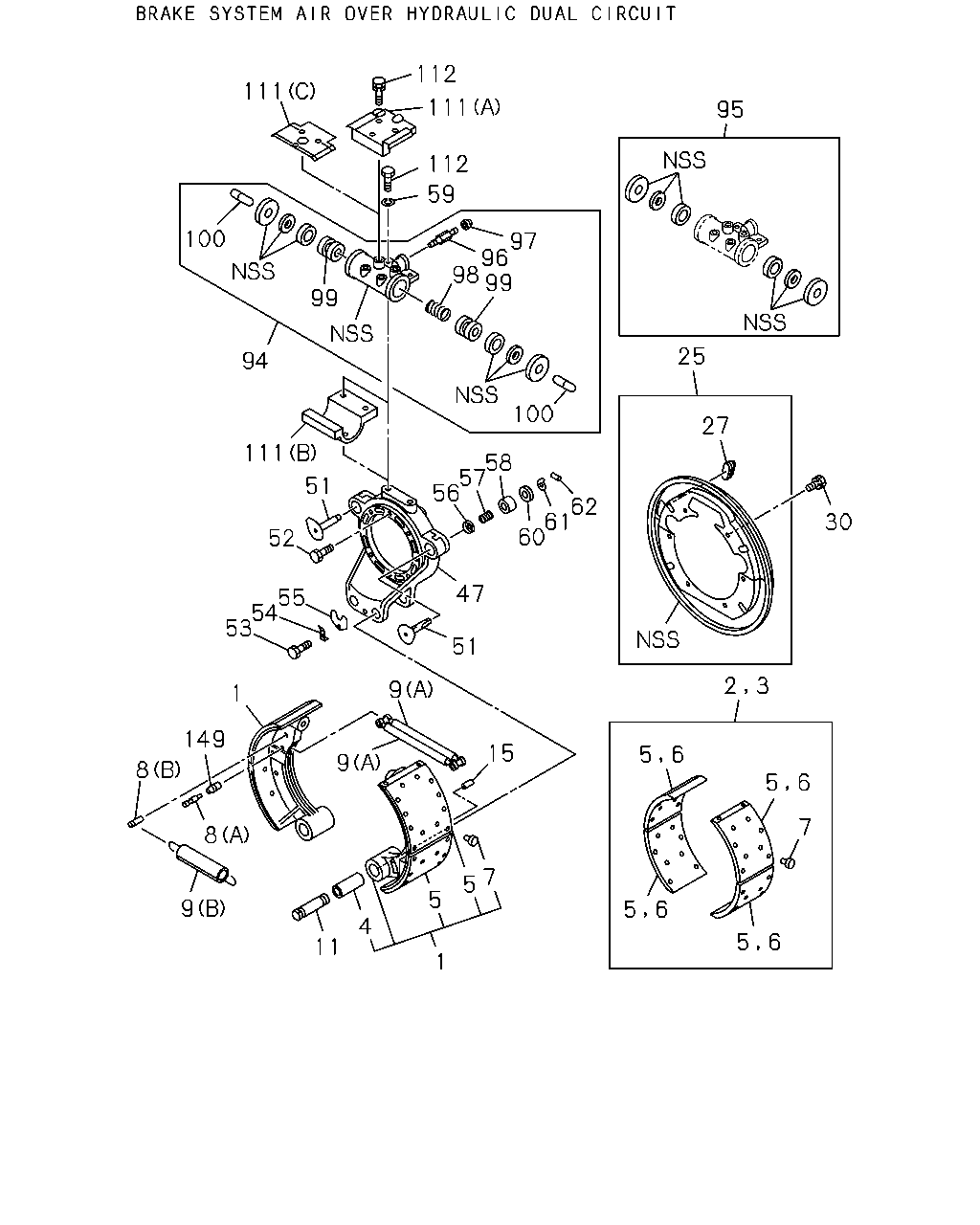

BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47110-893-0 |
04 |
1 |
9604-0001 |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
1-47110-893-0 |
04 |
1 |
0002-0006 |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
1-47120-708-0 |
04 |
1 |
0007- |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
1-47120-329-0 |
04 |
1 |
0002- |
| |
1 |
SHOE; BRK,RR

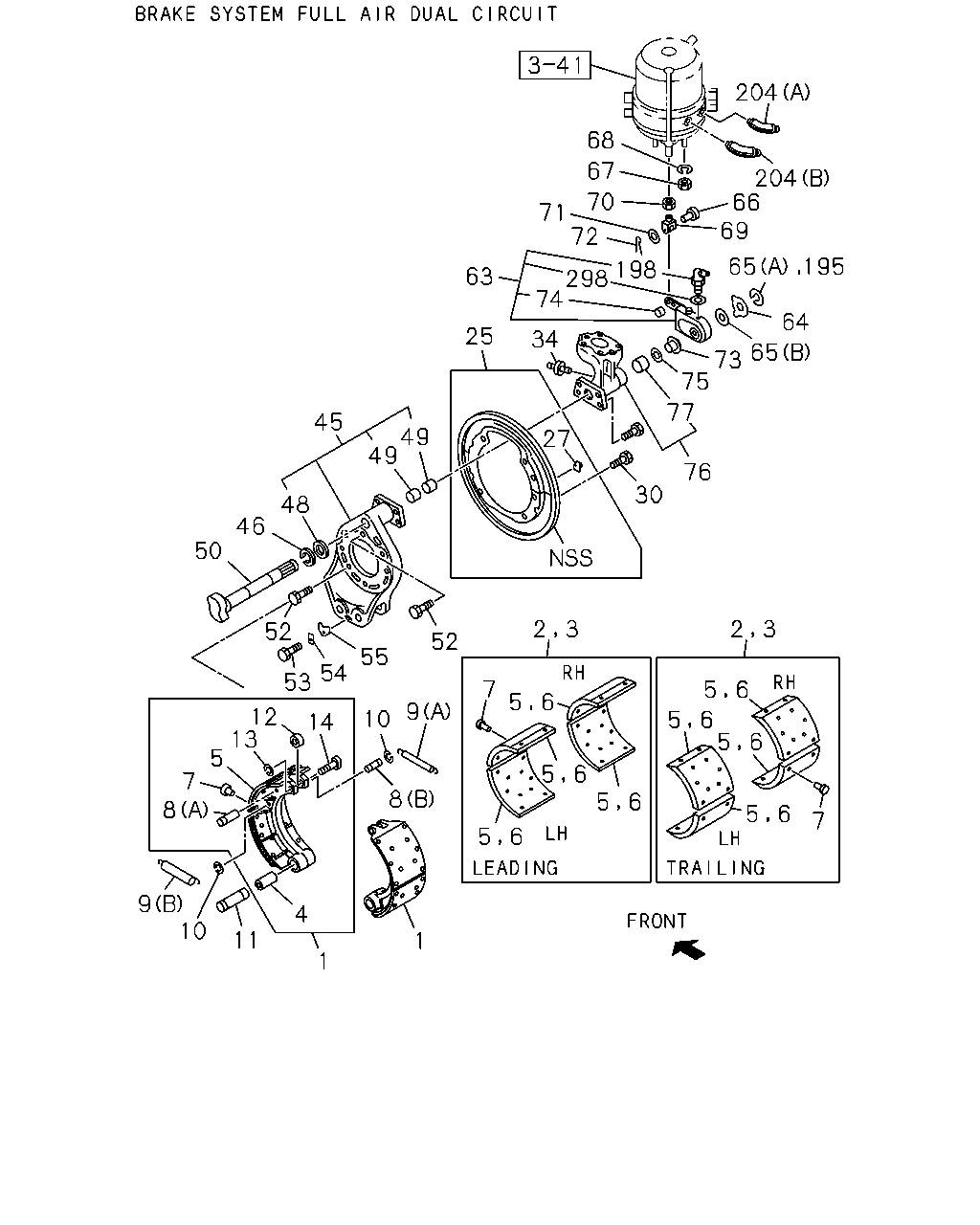

BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-47110-969-0 |
01 |
1 |
9604-0001 |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47110-969-0 |
01 |
1 |
0002-0006 |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47120-715-0 |
01 |
1 |
0007- |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-47110-970-0 |
01 |
1 |
9604-0001 |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47110-970-0 |
01 |
1 |
0002-0006 |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47120-716-0 |
01 |
1 |
0007- |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-47110-967-0 |
01 |
1 |
9604-0001 |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47110-967-0 |
01 |
1 |
0002-0006 |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47120-713-0 |
01 |
1 |
0007- |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-47110-968-0 |
01 |
1 |
9604-0001 |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47110-968-0 |
01 |
1 |
0002-0006 |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47120-714-0 |
01 |
1 |
0007- |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47120-338-0 |
01 |
1 |
0002- |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47120-339-0 |
01 |
1 |
0002- |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47120-336-0 |
01 |
1 |
0002- |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47120-337-0 |
01 |
1 |
0002- |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-88302-925-0 |
02 |
1 |
9604-0001 |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
1-88302-925-0 |
02 |
1 |
0002-0006 |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
1-88310-313-0 |
02 |
1 |
0002- |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
T=16
|
1-88310-529-0 |
02 |
1 |
0007- |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-88302-925-0 |
01 |
1 |
9604-0001 |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88302-925-0 |
01 |
1 |
0002-0006 |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88310-521-0 |
01 |
1 |
0007- |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-88302-933-0 |
01 |
1 |
9604-0001 |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88302-933-0 |
01 |
1 |
0002-0006 |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88310-523-0 |
01 |
1 |
0007- |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88310-313-0 |
01 |
1 |
0002- |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88310-315-0 |
01 |
1 |
0002- |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-88302-926-0 |
02 |
1 |
9604-0001 |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
1-88302-926-0 |
02 |
1 |
0002-0006 |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
1-88310-314-0 |
02 |
1 |
0002- |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
T=17
|
1-88310-530-0 |
02 |
1 |
0007- |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-88302-926-0 |
01 |
1 |
9604-0001 |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88302-926-0 |
01 |
1 |
0002-0006 |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88310-522-0 |
01 |
1 |
0007- |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-88302-934-0 |
01 |
1 |
9604-0001 |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88302-934-0 |
01 |
1 |
0002-0006 |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88310-524-0 |
01 |
1 |
0007- |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88310-314-0 |
01 |
1 |
0002- |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88310-316-0 |
01 |
1 |
0002- |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
|
1-47112-012-0 |
04 |
1 |
9604- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47115-773-0 |
08 |
1 |
9604-0001 |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
1-47115-773-0 |
08 |
1 |
0002-0006 |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
T=16
|
1-47125-813-0 |
08 |
1 |
0007- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
WO/INDICATOR HOLE
|
1-47125-435-0 |
08 |
1 |
0002- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
W/INDICATOR HOLE
|
1-47125-445-0 |
08 |
1 |
0002- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-47115-773-0 |
04 |
1 |
9604-0001 |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47115-773-0 |
04 |
1 |
0002-0006 |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47125-797-0 |
04 |
1 |
0007- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-47115-817-0 |
04 |
1 |
9604-0001 |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47115-817-0 |
04 |
1 |
0002-0006 |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47125-799-0 |
04 |
1 |
0007- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
WO/INDICATOR HOLE
|
1-47125-435-0 |
04 |
1 |
0002- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
T=16
|
1-47125-436-0 |
04 |
1 |
0002- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
W/INDICATOR HOLE
|
1-47125-445-0 |
04 |
1 |
0002- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47115-774-0 |
08 |
1 |
9604-0001 |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
1-47115-774-0 |
08 |
1 |
0002-0006 |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
T=17
|
1-47125-814-0 |
08 |
1 |
0007- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
WO/INDICATOR HOLE
|
1-47125-437-0 |
08 |
1 |
0002- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
W/INDICATOR HOLE
|
1-47125-446-0 |
08 |
1 |
0002- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-47115-774-0 |
04 |
1 |
9604-0001 |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47115-774-0 |
04 |
1 |
0002-0006 |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47125-798-0 |
04 |
1 |
0007- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-47115-818-0 |
04 |
1 |
9604-0001 |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47115-818-0 |
04 |
1 |
0002-0006 |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47125-800-0 |
04 |
1 |
0007- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
WO/INDICATOR HOLE
|
1-47125-437-0 |
04 |
1 |
0002- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
T=17
|
1-47125-438-0 |
04 |
1 |
0002- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
W/INDICATOR HOLE
|
1-47125-446-0 |
04 |
1 |
0002- |
| |
7 |
RIVET; LINING,RR BRK
L=18.5
|
1-09732-034-0 |
AR |
1 |
9604- |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-09744-051-0 |
04 |
1 |
9604- |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
|
1-47119-025-0 |
04 |
1 |
9604- |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-47119-021-0 |
04 |
1 |
9604- |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-47119-029-0 |
04 |
1 |
9604- |
| |
9 |
SPRING; RETURN,BRK SHOE
(B)
|
1-09583-175-0 |
02 |
1 |
9604- |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-09583-210-0 |
04 |
1 |
9604- |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-09583-196-0 |
02 |
1 |
9604- |
| |
10 |
RING; SNAP,SPR PIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=10
|
9-09185-410-0 |
08 |
1 |
9604- |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
L=121.5
|
1-47131-039-0 |
04 |
1 |
9604- |
| |
12 |
ROLLER; CAM,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47113-005-0 |
04 |
1 |
9604- |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
9-47119-022-0 |
04 |
1 |
9604- |
| |
14 |
PIN; CAM ROLLER,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09744-061-0 |
04 |
1 |
9604- |
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47151-526-1 |
02 |
1 |
9604-9704 |
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47151-461-1 |
02 |
1 |
9705-0006 |
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
1-47151-461-1 |
02 |
1 |
0007-0007 |
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47151-461-1 |
02 |
1 |
0008- |
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47151-462-1 |
02 |
1 |
9604- |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
9604- |
| |
30 |
BOLT; DRUM COVER
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
9604-0011 |
| |
30 |
BOLT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
0012- |
| |
30 |
BOLT; DRUM COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
0012- |
| |
30 |
BOLT; DRUM COVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
M10X12
|
1-47159-187-0 |
12 |
1 |
0012- |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
9604- |
| |
45 |
BRACKET; ANCHOR PIN,W/BUSHING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47137-120-2 |
02 |
1 |
9604- |
| |
46 |
RING; SPACER,CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47143-005-0 |
02 |
1 |
9604- |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09625-228-0 |
02 |
1 |
9604- |
| |
49 |
BUSHING; CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47146-003-1 |
02 |
1 |
9604- |
| |
50 |
CAMSHAFT; BRK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47141-053-0 |
01 |
1 |
9604- |
| |
50 |
CAMSHAFT; BRK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47141-054-0 |
01 |
1 |
9604- |
| |
52 |
BOLT; ANCHOR BRKT
M14X50
|
1-09040-066-0 |
02 |
1 |
9604- |
| |
53 |
BOLT; LOCK PLATE
M10X16
|
0-20801-016-0 |
02 |
1 |
9604- |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
|
1-47133-011-0 |
02 |
1 |
9604- |
| |
55 |
PLATE; LK,RR WHEEL CYL
|
1-47133-005-0 |
02 |
1 |
9604- |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48270-045-0 |
01 |
1 |
9604- |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48270-046-0 |
01 |
1 |
9604- |
| |
64 |
PLATE; STOPPER,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47149-022-0 |
02 |
1 |
9604- |
| |
65 |
SPACER; SLACK ADJ,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-47143-004-0 |
02 |
1 |
9604- |
| |
65 |
SPACER; SLACK ADJ,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
9-09180-038-0 |
01 |
1 |
9604- |
| |
66 |
PIN; JAW JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09744-088-0 |
02 |
1 |
9604- |
| |
67 |
NUT; POWER CHAMBER FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M16
|
9-99110-416-0 |
08 |
1 |
9604- |
| |
68 |
WASHER; LK,CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=16.2
|
9-09150-516-0 |
08 |
1 |
9604- |
| |
69 |
JOINT; JAW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09768-060-1 |
02 |
1 |
9604- |
| |
70 |
NUT; LK,JAW JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M16
|
9-99111-416-0 |
02 |
1 |
9604- |
| |
71 |
WASHER; PL,JAW JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=17 OD=32
|
9-09160-616-0 |
02 |
1 |
9604- |
| |
72 |
PIN; SPLIT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
OD=3.7 L=28
|
9-08114-028-0 |
02 |
1 |
9604- |
| |
73 |
COLLAR; FELT RING,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47143-003-0 |
02 |
1 |
9604-9708 |
| |
73 |
COLLAR; FELT RING,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47143-016-0 |
02 |
1 |
9709- |
| |
74 |
BUSHING; SLACK ADJ
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09330-041-0 |
02 |
1 |
9604- |
| |
75 |
RING; FELT,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09620-009-0 |
02 |
1 |
9604- |
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48258-084-0 |
01 |
1 |
9604- |
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48258-083-0 |
01 |
1 |
9604- |
| |
77 |
BUSHING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47146-003-1 |
02 |
1 |
9604- |
| |
195 |
RING; SNAP,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
9-09180-038-0 |
01 |
1 |
9604- |
| |
198 |
NIPPLE; GREASE,SLACK ADJ
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
9604- |
| |
204 |
CONNECTOR; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
DIN8 & R3/8 ELBOW
|
1-09660-652-1 |
01 |
1 |
9604- |
| |
204 |
CONNECTOR; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
DIN12 & R3/8 ELBOW
|
1-09660-653-1 |
01 |
1 |
9604- |
| |
298 |
GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=23.3
|
9-09561-223-0 |
02 |
1 |
9905- |
