2-07 — CLUTCH BOOSTER; MINIPACK (#63051) — 150 parça

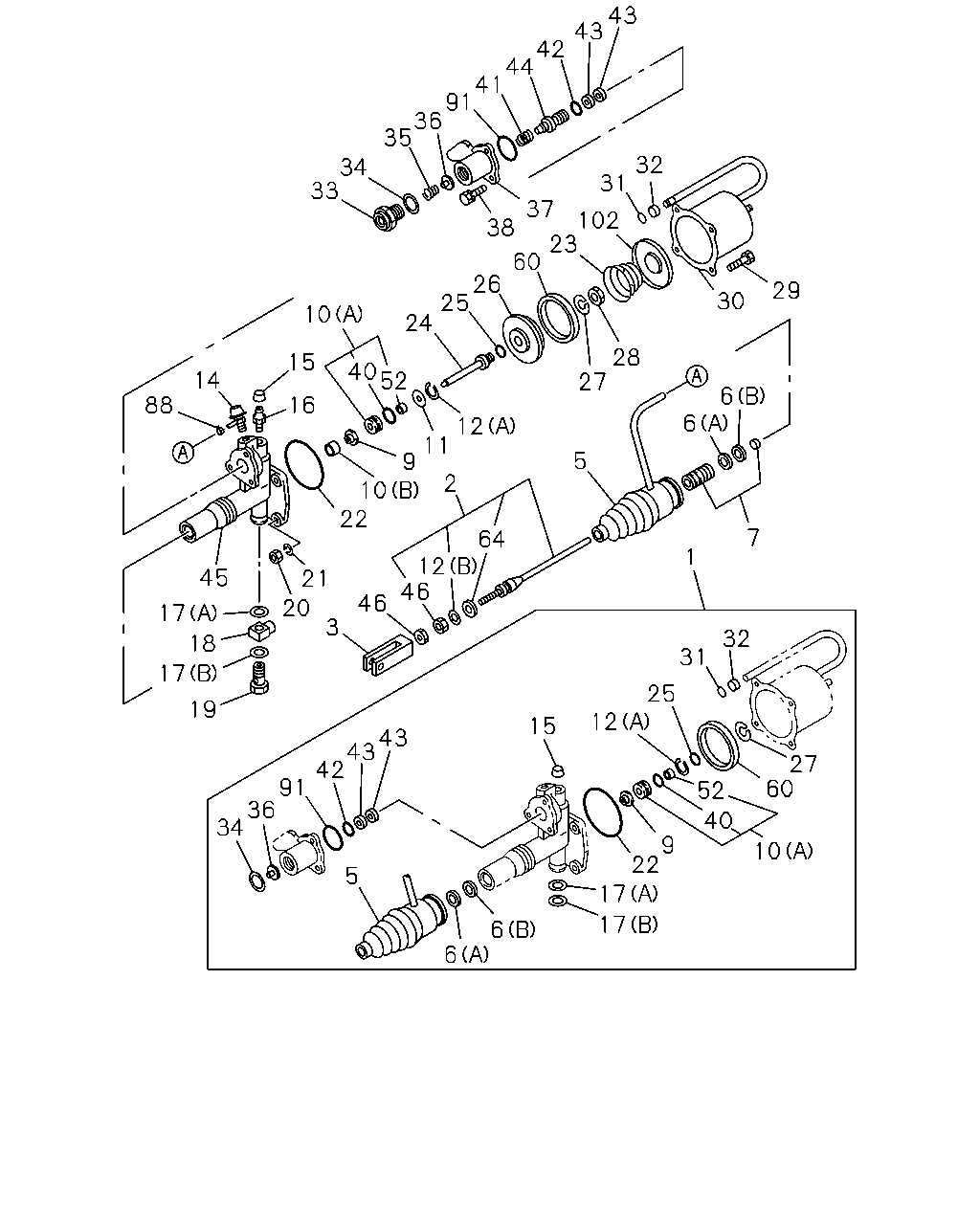

43 43 42 44 41 91 36 35 32 34 33 31 37 102 23 60 38 26 25 24 29 30 10 28 27 15 40 52 14 6 88 16 6 12 11 5 9 10 22 2 7 64 12 46 1 45 21 46 20 17 3 32 18 31 17 25 19 12 15 43 43 42 27 60 91 36 34 52 40 9 22 17 10 5 17 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	REPAIR KIT; CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-523-0	01	1	1008-	●
1	REPAIR KIT; CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-501-0	01	1	1008-	●
1	REPAIR KIT; CLU BOOSTER	1-31829-560-0	01	1	1008-		●
2	ROD; PUSH,CLU BOOSTER	1-31824-233-0	01	1	1008-	●
2	ROD; PUSH,CLU BOOSTER	1-31824-227-0	01	1	1008-		●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	1008-	●	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-503-0	01	1	1008-	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-555-0	01	1	1008-		●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	1008-	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	1008-	●	●
7	PISTON; CLU BOOSTER	1-31821-048-0	01	1	1008-	●	●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	1008-	●	●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	1008-	●	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	1008-	●	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	1008-	●	●
12	RING; RET,CLU BOOSTER (A)	1-31829-142-0	01	1	1008-	●	●
12	RING; RET,CLU BOOSTER (B)	8-94415-036-0	01	1	1008-		●
14	COVER; EXH,CLU BOOSTER	1-31829-564-0	01	1	1008-	●
14	COVER; EXH,CLU BOOSTER	1-31829-366-0	01	1	1008-		●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	1008-	●	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	1008-	●	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	1008-	●	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	1008-	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	1008-	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	1008-	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	1008-	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	1008-	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-31829-281-0	01	1	1008-	●	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-350-0	01	1	1008-	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-554-0	01	1	1008-		●
24	ROD; PUSH,CLU BOOSTER	1-31824-158-0	01	1	1008-	●
24	ROD; PUSH,CLU BOOSTER	1-31824-224-0	01	1	1008-		●
25	GASKET; PUSH ROD,CLU BOOSTER	1-31829-277-0	01	1	1008-	●	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-072-0	01	1	1008-	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-050-0	01	1	1008-		●
27	SPRING; CLU BOOSTER	1-31829-291-0	01	1	1008-	●	●
28	NUT; PUSH ROD,CLU BOOSTER	1-31829-290-0	01	1	1008-	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	1008-	●	●
30	SHELL; CYL,CLU BOOSTER	1-31811-117-0	01	1	1008-	●
30	SHELL; CYL,CLU BOOSTER	1-31811-128-0	01	1	1008-		●
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	1008-	●	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	1008-	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-214-0	01	1	1008-	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-448-0	01	1	1008-	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-448-0	01	1	1008-		●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	1008-	●	●
35	SPRING; POPPET VLV,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-451-0	01	1	1008-	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	1008-		●
35	SPRING; POPPET VLV,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-537-0	01	1	1008-	●
36	VALVE; POPPET,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-452-0	01	1	1008-	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	1008-		●
36	VALVE; POPPET,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-536-0	01	1	1008-	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	1008-	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	1008-	●	●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	1008-	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-458-0	01	1	1008-	●	●
42	GASKET; FITTING,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-123-0	01	1	1008-	●
42	GASKET; FITTING,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-148-0	01	1	1008-	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-148-0	01	1	1008-		●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	1008-	●	●
44	PISTON; UPR VLV,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31821-089-0	01	1	1008-	●
44	PISTON; UPR VLV,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31821-058-0	01	1	1008-	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-058-0	01	1	1008-		●
45	PLATE; END,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31811-138-0	01	1	1008-	●
45	PLATE; END,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31811-067-0	01	1	1008-	●
45	PLATE; END,CLU BOOSTER	1-31811-133-0	01	1	1008-		●
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	1008-	●	●
52	SEAL; OIL,END PLATE,CLU BOOSTER	1-47819-027-0	01	1	1008-		●
60	GASKET; SHELL,CLU BOOSTER	1-31829-454-0	01	1	1008-	●
60	GASKET; SHELL,CLU BOOSTER	1-31829-292-0	01	1	1008-		●
64	WASHER; PUSH ROD ID=10.5 OD=22	9-09164-610-0	01	1	1008-		●
88	CLAMP; HOSE,CLU BOOSTER	1-31829-063-0	01	1	1008-		●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	1008-	●	●
102	PLATE; BOOSTER	1-31829-559-0	01	1	1008-		●

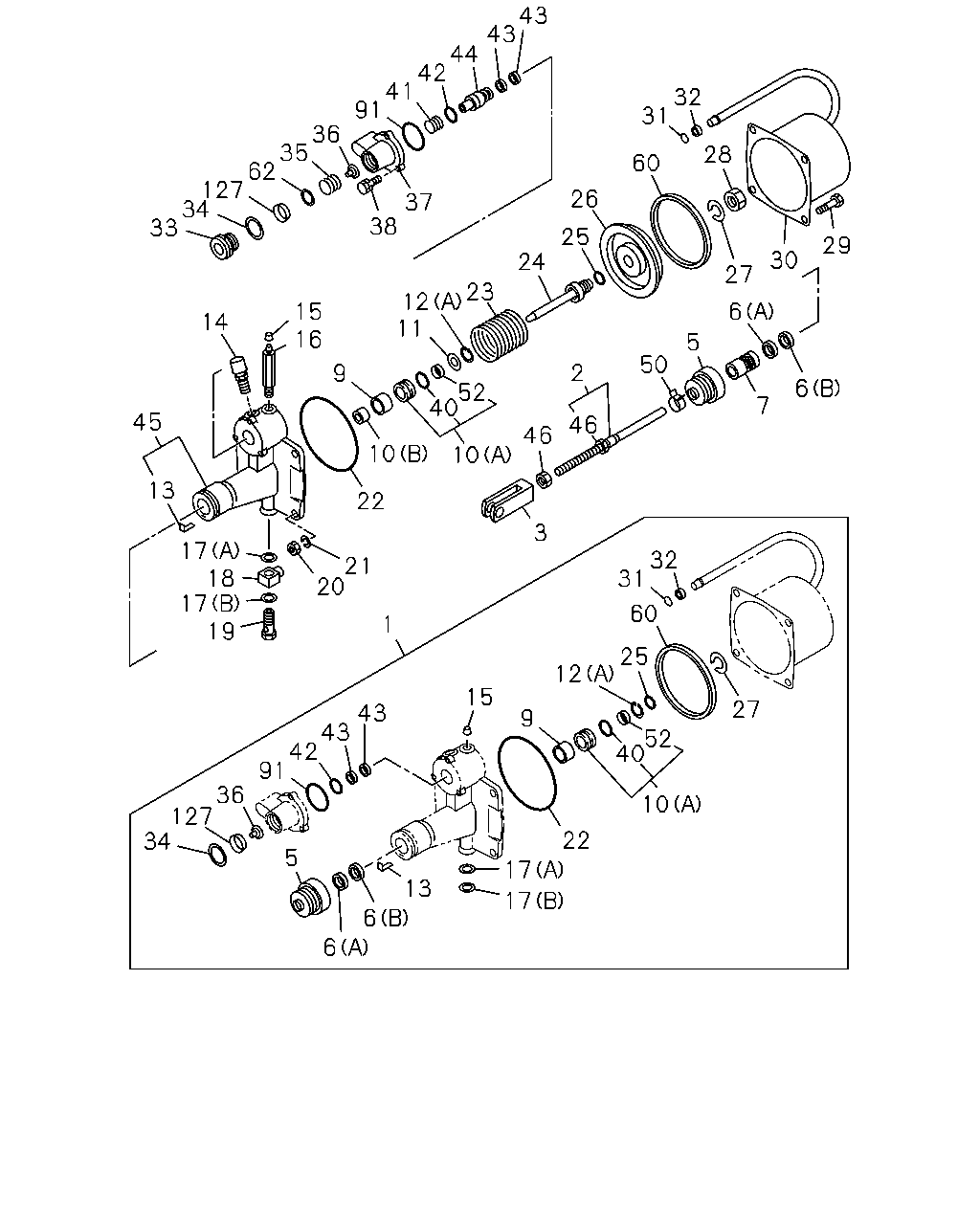

43 43 44 42 41 91 32 31 36 35 62 127 34 33 28 60 26 37 38 25 29 30 24 27 23 12 11 6 15 16 14 5 50 2 9 6 52 40 7 45 46 46 10 10 13 22 3 17 18 17 19 32 31 21 20 60 1 25 12 15 27 43 43 42 91 9 52 40 36 127 34 10 22 17 5 13 17 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	REPAIR KIT; CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-523-0	01	1	1008-	●
1	REPAIR KIT; CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-501-0	01	1	1008-	●
1	REPAIR KIT; CLU BOOSTER	1-31829-560-0	01	1	1008-		●
2	ROD; PUSH,CLU BOOSTER	1-31824-233-0	01	1	1008-	●
2	ROD; PUSH,CLU BOOSTER	1-31824-227-0	01	1	1008-		●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	1008-	●	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-503-0	01	1	1008-	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-555-0	01	1	1008-		●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	1008-	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	1008-	●	●
7	PISTON; CLU BOOSTER	1-31821-048-0	01	1	1008-	●	●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	1008-	●	●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	1008-	●	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	1008-	●	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	1008-	●	●
12	RING; RET,CLU BOOSTER (A)	1-31829-142-0	01	1	1008-	●	●
12	RING; RET,CLU BOOSTER (B)	8-94415-036-0	01	1	1008-		●
13	PIN; SPR	1-31829-109-0	01	1	1008-	●
14	COVER; EXH,CLU BOOSTER	1-31829-564-0	01	1	1008-	●
14	COVER; EXH,CLU BOOSTER	1-31829-366-0	01	1	1008-		●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	1008-	●	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	1008-	●	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	1008-	●	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	1008-	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	1008-	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	1008-	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	1008-	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	1008-	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-31829-281-0	01	1	1008-	●	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-350-0	01	1	1008-	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-554-0	01	1	1008-		●
24	ROD; PUSH,CLU BOOSTER	1-31824-158-0	01	1	1008-	●
24	ROD; PUSH,CLU BOOSTER	1-31824-224-0	01	1	1008-		●
25	GASKET; PUSH ROD,CLU BOOSTER	1-31829-277-0	01	1	1008-	●	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-072-0	01	1	1008-	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-050-0	01	1	1008-		●
27	SPRING; CLU BOOSTER	1-31829-291-0	01	1	1008-	●	●
28	NUT; PUSH ROD,CLU BOOSTER	1-31829-290-0	01	1	1008-	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	1008-	●	●
30	SHELL; CYL,CLU BOOSTER	1-31811-117-0	01	1	1008-	●
30	SHELL; CYL,CLU BOOSTER	1-31811-128-0	01	1	1008-		●
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	1008-	●	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	1008-	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-214-0	01	1	1008-	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-448-0	01	1	1008-	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-448-0	01	1	1008-		●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	1008-	●	●
35	SPRING; POPPET VLV,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-451-0	01	1	1008-	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	1008-		●
35	SPRING; POPPET VLV,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-537-0	01	1	1008-	●
36	VALVE; POPPET,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-452-0	01	1	1008-	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	1008-		●
36	VALVE; POPPET,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-536-0	01	1	1008-	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	1008-	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	1008-	●	●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	1008-	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-458-0	01	1	1008-	●	●
42	GASKET; FITTING,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-123-0	01	1	1008-	●
42	GASKET; FITTING,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-148-0	01	1	1008-	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-148-0	01	1	1008-		●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	1008-	●	●
44	PISTON; UPR VLV,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31821-089-0	01	1	1008-	●
44	PISTON; UPR VLV,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31821-058-0	01	1	1008-	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-058-0	01	1	1008-		●
45	PLATE; END,CLU BOOSTER CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31811-138-0	01	1	1008-	●
45	PLATE; END,CLU BOOSTER EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31811-067-0	01	1	1008-	●
45	PLATE; END,CLU BOOSTER	1-31811-133-0	01	1	1008-		●
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	1008-	●	●
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-504-0	01	1	1008-	●
52	SEAL; OIL,END PLATE,CLU BOOSTER	1-47819-027-0	01	1	1008-		●
60	GASKET; SHELL,CLU BOOSTER	1-31829-454-0	01	1	1008-	●
60	GASKET; SHELL,CLU BOOSTER	1-31829-292-0	01	1	1008-		●
62	RETAINER; POPPET	1-31829-489-0	01	1	1008-	●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	1008-	●	●
127	FILTER; POPPET CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-495-0	01	1	1008-	●
127	FILTER; POPPET EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31829-488-0	01	1	1008-	●
