Sayfa 3-01 - Isuzu EPC

3-01 — FRONT WHEEL BRAKE (#6305) — 222 parça

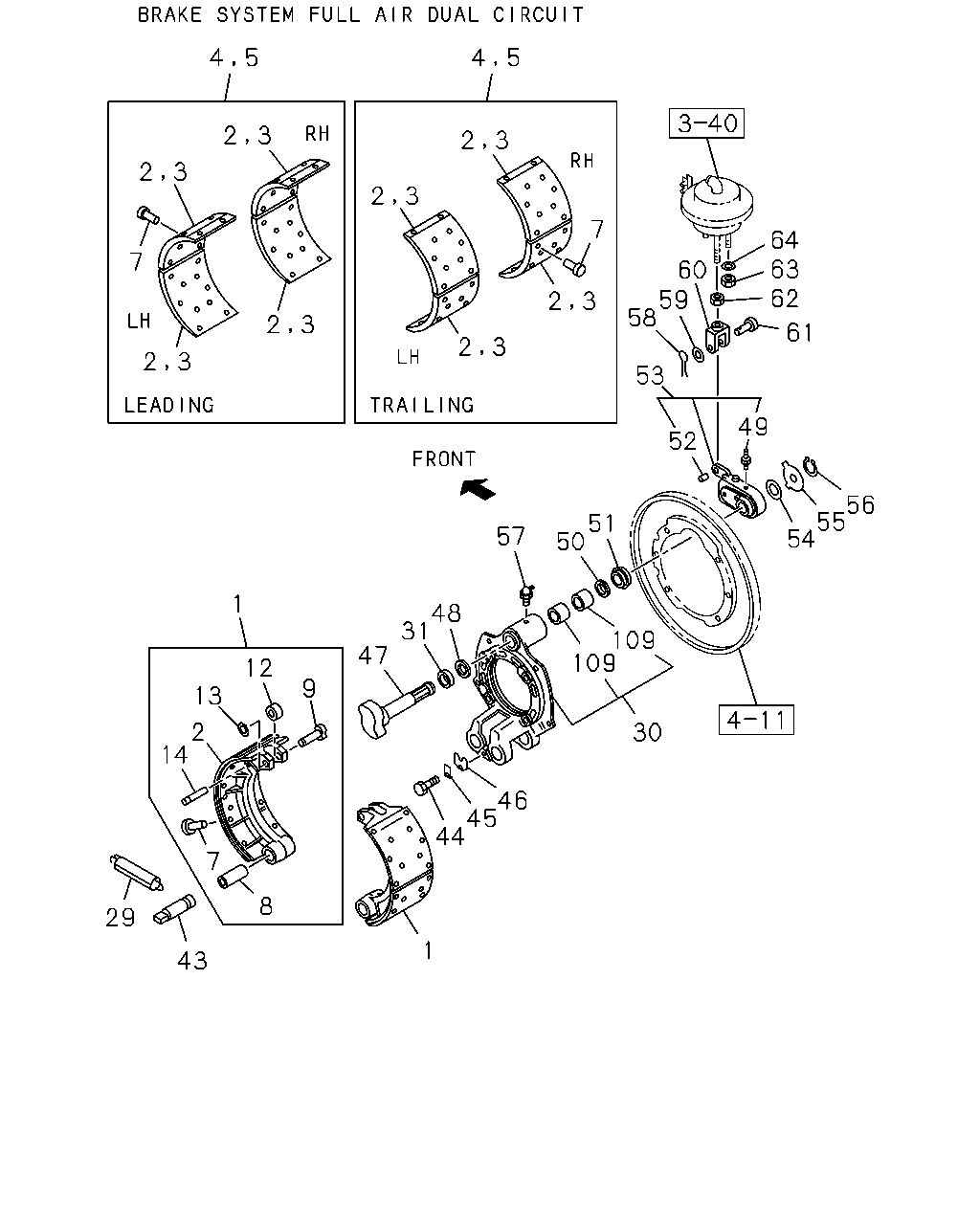

7 64 63 62 7 60 59 58 61 53 49 52 56 55 54 51 50 57 1 48 31 109 109 47 12 9 13 2 14 30 46 45 44 7 8 29 1 43 4 5 4 5 2 3 2 3 2 3 2 3 2 3 2 3 2 3 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47110-853-0	04	1	9604-0001
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-47110-853-0	04	1	0002-0006
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-47120-706-0	04	1	0007-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47120-328-0	04	1	0002-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-965-0	01	1	9604-0001
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-965-0	01	1	0002-0006
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-711-0	01	1	0007-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-966-0	01	1	9604-0001
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-966-0	01	1	0002-0006
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-712-0	01	1	0007-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-963-0	01	1	9604-0001
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-963-0	01	1	0002-0006
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-709-0	01	1	0007-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-964-0	01	1	9604-0001
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-964-0	01	1	0002-0006
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-710-0	01	1	0007-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-334-0	01	1	0002-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-335-0	01	1	0002-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-332-0	01	1	0002-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-333-0	01	1	0002-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47115-771-0	08	1	9604-0001
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-47115-771-0	08	1	0002-0006
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-47125-811-0	08	1	0007-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> W/INDICATOR HOLE	1-47125-431-0	08	1	0002-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> WO/INDICATOR HOLE	1-47125-443-0	08	1	0002-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-771-0	04	1	9604-0001
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-771-0	04	1	0002-0006
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-793-0	04	1	0007-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-814-0	04	1	9604-0001
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-814-0	04	1	0002-0006
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-795-0	04	1	0007-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-431-0	04	1	0002-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-432-0	04	1	0002-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE	1-47125-443-0	04	1	0002-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47115-772-0	08	1	9604-0001
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-47115-772-0	08	1	0002-0006
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-47125-812-0	08	1	0007-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> W/INDICATOR HOLE	1-47125-433-0	08	1	0002-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> WO/INDICATOR HOLE	1-47125-444-0	08	1	0002-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-772-0	04	1	9604-0001
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-772-0	04	1	0002-0006
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-794-0	04	1	0007-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-815-0	04	1	9604-0001
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-815-0	04	1	0002-0006
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-796-0	04	1	0007-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-433-0	04	1	0002-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-434-0	04	1	0002-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE	1-47125-444-0	04	1	0002-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88302-923-0	02	1	9604-0001
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-88302-923-0	02	1	0002-0006
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-88310-309-0	02	1	0002-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-88310-495-0	02	1	0007-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88302-923-0	01	1	9604-0001
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-923-0	01	1	0002-0006
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-497-0	01	1	0007-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-931-0	01	1	9604-0001
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-931-0	01	1	0002-0006
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-499-0	01	1	0007-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-309-0	01	1	0002-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-311-0	01	1	0002-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88302-924-0	02	1	9604-0001
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-88302-924-0	02	1	0002-0006
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-88310-310-0	02	1	0002-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-88310-496-0	02	1	0008-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88302-924-0	01	1	9604-0001
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-924-0	01	1	0002-0006
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-498-0	01	1	0007-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-932-0	01	1	9604-0001
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-932-0	01	1	0002-0006
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-500-0	01	1	0007-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-310-0	01	1	0002-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-312-0	01	1	0002-
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	AR	1	9604-
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	9604-
9	PIN; SHOE HOLDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-060-0	04	1	9604-
12	ROLLER; CAM,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47113-007-0	04	1	9604-
13	CLIP; ROLLER PIN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-47119-022-0	04	1	9604-
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	9604-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09583-269-1	02	1	9604-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09583-185-2	02	1	9604-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-149-0	02	1	9604-9901
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-435-0	02	1	9902-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-119-3	01	1	9604-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-118-3	01	1	9604-
31	SEAL; OIL,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09625-228-0	02	1	9604-
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	9604-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	9604-
45	WASHER; LK	1-47133-011-0	02	1	9604-
46	PLATE; LOCK	1-47133-005-0	02	1	9604-
47	CAMSHAFT; FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-052-0	01	1	9604-
47	CAMSHAFT; FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-051-0	01	1	9604-
48	RING; SPACER,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-005-0	02	1	9604-
49	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT	9-09031-010-0	01	1	9604-
49	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9604-
50	RING; FELT,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09620-009-0	02	1	9604-
51	COLLAR; RING,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-003-0	02	1	9604-9708
51	COLLAR; RING,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-016-0	02	1	9709-
52	BUSHING; SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09330-041-0	02	1	9604-
53	ADJUSTER ASM; SLACK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-044-0	01	1	9604-
53	ADJUSTER ASM; SLACK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-043-0	01	1	9604-
54	SPACER; CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-004-0	02	1	9604-
55	PLATE; STOPPER,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47149-021-0	02	1	9604-
56	CLIP; ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09180-038-0	02	1	9604-
57	NIPPLE; GREASE,ANCHOR BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT	9-09031-010-0	02	1	9604-
58	PIN; SPLIT,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3.7 L=28	9-08114-028-0	02	1	9604-
59	WASHER; PL,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17 OD=32	9-09160-616-0	02	1	9604-
60	JOINT; JAW,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09768-060-1	02	1	9604-
61	PIN; JAW JOINT,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-088-0	02	1	9604-
62	NUT; LK,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	02	1	9604-
63	NUT; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99110-416-0	04	1	9604-
64	WASHER; LK,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	04	1	9604-
109	BUSHING; CM/SHF,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47146-003-1	04	1	9604-

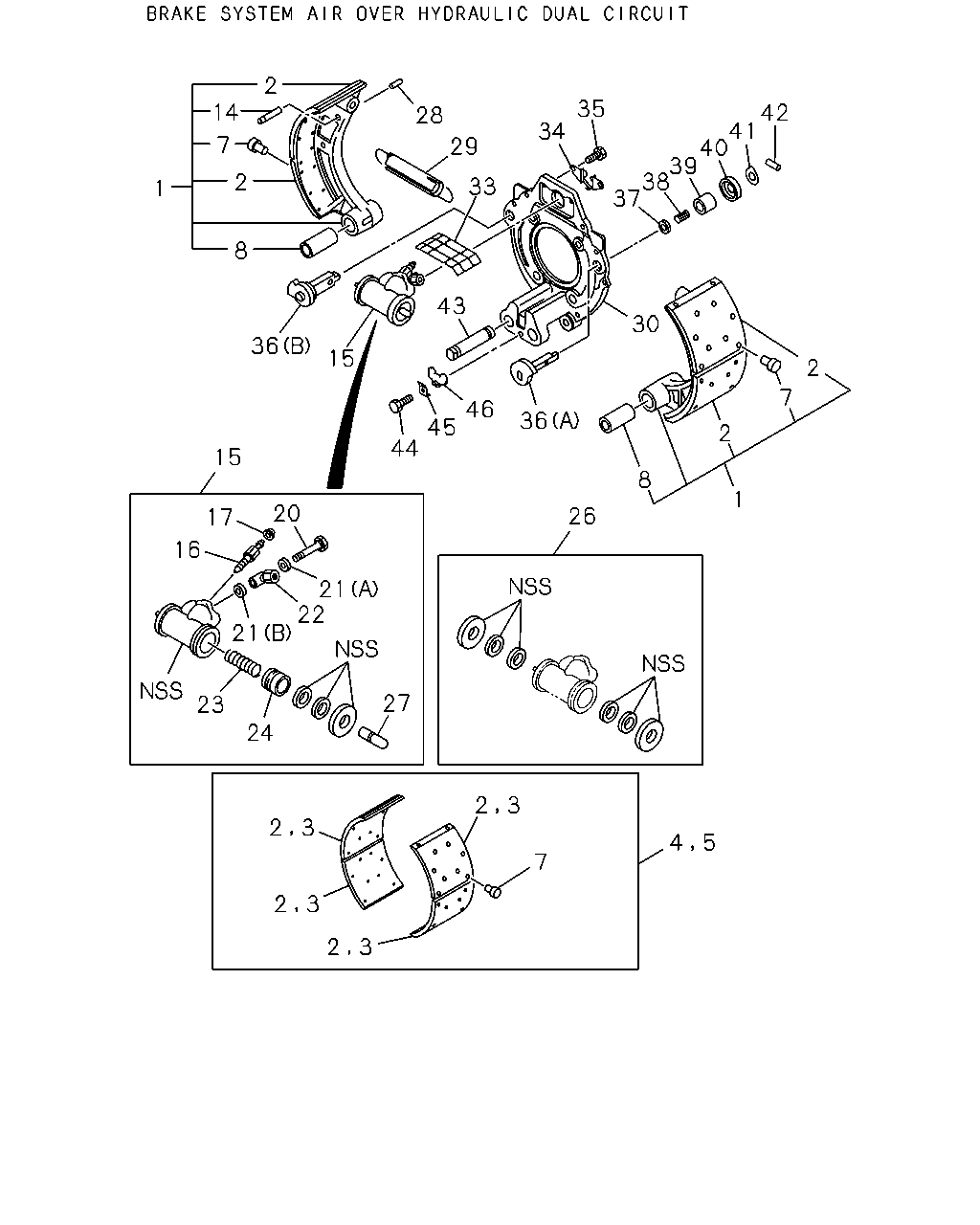

2 35 14 42 41 40 39 38 37 28 34 7 29 2 33 1 8 43 30 36 15 2 7 46 45 44 36 2 15 8 1 20 26 17 16 21 22 21 27 23 24 7 4 5 2 3 2 3 2 3 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47110-853-0	04	1	9604-0001
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-47110-853-0	04	1	0002-0006
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-47120-706-0	04	1	0007-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47120-328-0	04	1	0002-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-965-0	01	1	9604-0001
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-965-0	01	1	0002-0006
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-711-0	01	1	0007-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-966-0	01	1	9604-0001
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-966-0	01	1	0002-0006
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-712-0	01	1	0007-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-963-0	01	1	9604-0001
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-963-0	01	1	0002-0006
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-709-0	01	1	0007-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-964-0	01	1	9604-0001
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-964-0	01	1	0002-0006
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-710-0	01	1	0007-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-334-0	01	1	0002-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-335-0	01	1	0002-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-332-0	01	1	0002-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-333-0	01	1	0002-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47115-771-0	08	1	9604-0001
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-47115-771-0	08	1	0002-0006
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-47125-811-0	08	1	0007-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> W/INDICATOR HOLE	1-47125-431-0	08	1	0002-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> WO/INDICATOR HOLE	1-47125-443-0	08	1	0002-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-771-0	04	1	9604-0001
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-771-0	04	1	0002-0006
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-793-0	04	1	0007-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-814-0	04	1	9604-0001
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-814-0	04	1	0002-0006
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-795-0	04	1	0007-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-431-0	04	1	0002-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-432-0	04	1	0002-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE	1-47125-443-0	04	1	0002-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47115-772-0	08	1	9604-0001
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-47115-772-0	08	1	0002-0006
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-47125-812-0	08	1	0007-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> W/INDICATOR HOLE	1-47125-433-0	08	1	0002-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> WO/INDICATOR HOLE	1-47125-444-0	08	1	0002-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-772-0	04	1	9604-0001
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-772-0	04	1	0002-0006
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-794-0	04	1	0007-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-815-0	04	1	9604-0001
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-815-0	04	1	0002-0006
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-796-0	04	1	0007-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-433-0	04	1	0002-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-434-0	04	1	0002-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE	1-47125-444-0	04	1	0002-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88302-923-0	02	1	9604-0001
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-88302-923-0	02	1	0002-0006
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-88310-309-0	02	1	0002-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-88310-495-0	02	1	0007-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88302-923-0	01	1	9604-0001
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-923-0	01	1	0002-0006
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-497-0	01	1	0007-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-931-0	01	1	9604-0001
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-931-0	01	1	0002-0006
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-499-0	01	1	0007-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-309-0	01	1	0002-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-311-0	01	1	0002-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88302-924-0	02	1	9604-0001
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-88302-924-0	02	1	0002-0006
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-88310-310-0	02	1	0002-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-88310-496-0	02	1	0008-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88302-924-0	01	1	9604-0001
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-924-0	01	1	0002-0006
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-498-0	01	1	0007-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-932-0	01	1	9604-0001
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-932-0	01	1	0002-0006
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-500-0	01	1	0007-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-310-0	01	1	0002-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-312-0	01	1	0002-
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	AR	1	9604-
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	9604-
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	9604-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47600-688-0	01	1	9604-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47600-687-0	01	1	9604-
16	SCREW; BLEEDER,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=66.5	1-47615-005-0	02	1	9604-
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	9604-
20	BOLT; JOINT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40.5 EYE BOLT	1-47634-006-0	02	1	9604-
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=15.2	1-09630-019-0	02	1	9604-
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=12.2	1-09630-020-0	02	1	9604-
22	JOINT; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47631-057-1	02	1	9604-
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09580-019-0	02	1	9604-
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47624-043-0	04	1	9604-9701
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47624-302-0	04	1	9702-
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-87830-527-0	02	1	9604-
27	ROD; PUSH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-009-0	04	1	9604-
28	PIN; SHOE ADJ CAM GUIDE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47116-002-0	04	1	9604-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09583-269-1	02	1	9604-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09583-185-2	02	1	9604-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-149-0	02	1	9604-9901
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-435-0	02	1	9902-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-119-3	01	1	9604-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-118-3	01	1	9604-
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-080-0	02	1	9604-
34	PLATE; DIRECTION,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-094-0	02	1	9604-
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 W/LK WASHER	0-50051-235-0	04	1	9604-
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47165-058-1	02	1	9604-
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47165-059-1	02	1	9604-
37	WASHER; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-033-0	04	1	9604-
38	SPRING; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-046-0	04	1	9604-
39	BOOT; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-034-0	04	1	9604-
40	COVER; BOOT,ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-031-0	04	1	9604-
41	INDICATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-032-1	04	1	9604-
42	PIN; SPINDLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-030-0	04	1	9604-
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	9604-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	9604-
45	WASHER; LK	1-47133-011-0	02	1	9604-
46	PLATE; LOCK	1-47133-005-0	02	1	9604-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
