1-41 — FUEL PIPING; CHASSIS (#63044) — 97 parça

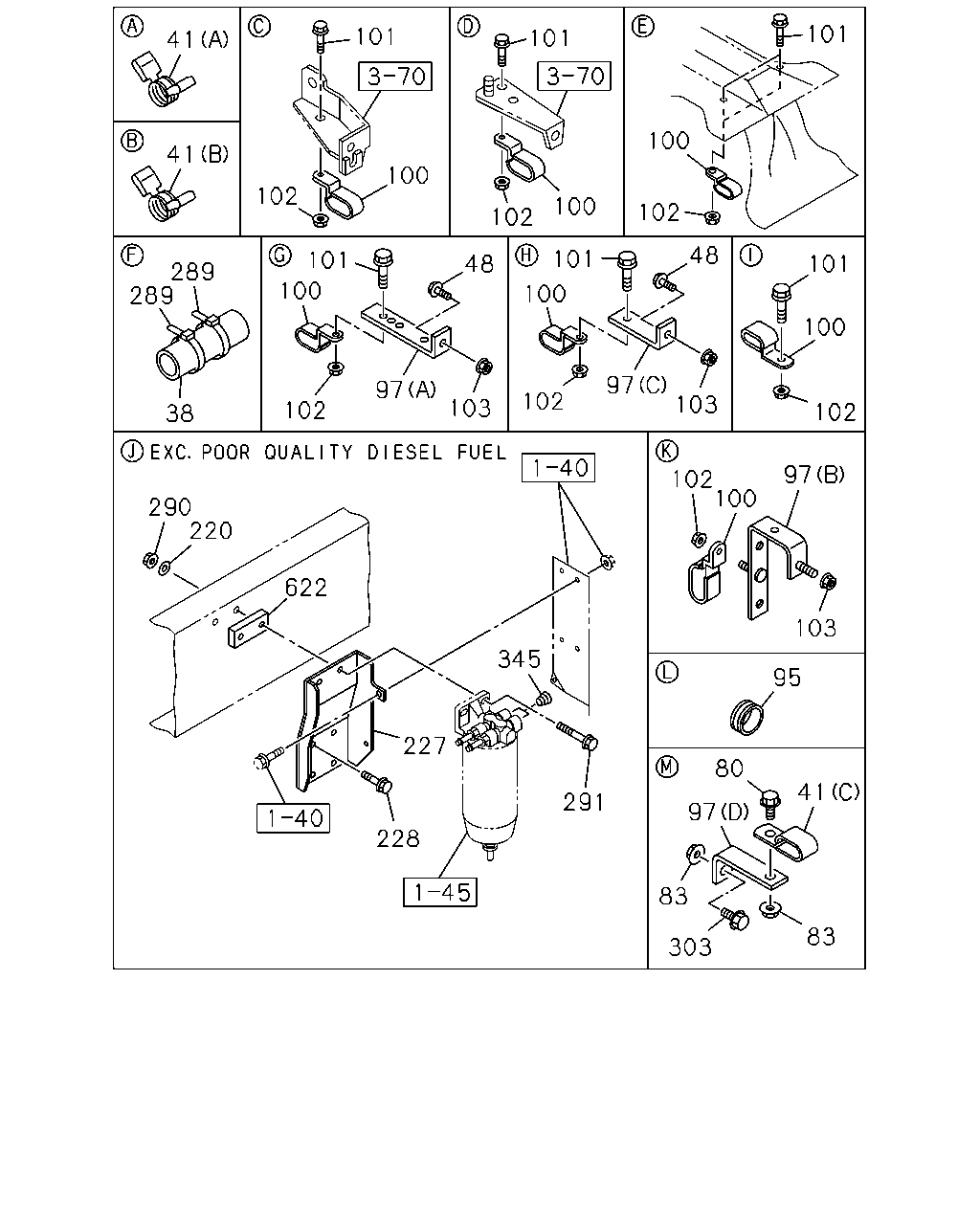

çizim 166769
101 101 101 41 100 41 100 102 100 102 102 48 101 101 48 101 289 289 100 100 100 97 103 97 102 103 102 102 38 97 102 100 290 220 622 103 345 95 227 80 41 291 97 228 83 83 303
BalonParca AdiParca NoAdetTipApplied Date
38 SLEEVE; RUBBER,RUBBER HOSE
WHEEL BASE 6500MM(65W) L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1008-1105
38 SLEEVE; RUBBER,RUBBER HOSE
WHEEL BASE 6500MM(65W) EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1106-
38 SLEEVE; RUBBER,RUBBER HOSE
POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1106-
38 SLEEVE; RUBBER,RUBBER HOSE
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 1008-1105
38 SLEEVE; RUBBER,RUBBER HOSE
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 1106-
41 CLIP; FUEL PIPE,FUEL TANK
POOR QUALITY DIESEL FUEL<KF0> (C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1106-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 04 1 1008-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=19 		8-94238-569-0 02 1 1008-
48 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1008-
48 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 1008-
80 BOLT; CLIP,FUEL TANK
POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE 		0-28650-820-0 01 1 1106-
83 NUT; CLIP,FUEL TANK
POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE 		0-91180-108-0 01 1 1106-
95 BUSHING; PIPE,FUEL TANK
ID=32 OD=40 T=23 		1-09332-112-0 01 1 1008-
97 BRACKET; CLIP
POOR QUALITY DIESEL FUEL<KF0> (D) L=68 		1-47475-525-0 01 1 1106-
97 BRACKET; CLIP
POOR QUALITY DIESEL FUEL<KF0> (E) 		8-98186-869-0 01 1 1106-
97 BRACKET; CLIP
(C) L=55 		1-47475-304-0 01 1 1008-
97 BRACKET; CLIP
(B) 		1-47479-797-0 01 1 1008-
97 BRACKET; CLIP
(A) 		8-98172-059-0 03 1 1008-
100 CLIP; FUEL PIPE
ID=19X32 H=17.5 L=22.5 		1-09701-315-0 10 1 1008-
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28650-820-0 07 1 1008-
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 1008-
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 10 1 1008-
103 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1008-
220 WASHER; PL
EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26 		0-91614-710-0 02 1 1108-
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 02 1 1008-1107
220 WASHER; PL
POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26 		0-91614-710-0 04 1 1108-
227 BRACKET; FUEL SEDIMENTER
WHEEL BASE 6500MM(65W) 		8-98144-960-0 01 1 1008-1107
227 BRACKET; FUEL SEDIMENTER
WHEEL BASE 6500MM(65W) EXC. POOR QUALITY DIESEL FUEL<KF0> 		8-98144-960-0 01 1 1108-
228 BOLT; BRKT,SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> M8X35 FLANGE 		0-28650-835-0 02 1 1106-
228 BOLT; BRKT,SEDIMENTER
WHEEL BASE 6500MM(65W) M10X35 FLANGE 		0-28051-035-0 04 1 1008-1107
228 BOLT; BRKT,SEDIMENTER
WHEEL BASE 6500MM(65W) EXC. POOR QUALITY DIESEL FUEL<KF0> M10X35 FLANGE 		0-28051-035-0 04 1 1108-
289 CLIP; BAND,HOSE
WHEEL BASE 6500MM(65W) L=250 		5-09707-030-1 04 1 1008-1105
289 CLIP; BAND,HOSE
WHEEL BASE 6500MM(65W) EXC. POOR QUALITY DIESEL FUEL<KF0> L=250 		5-09707-030-1 04 1 1106-
289 CLIP; BAND,HOSE
POOR QUALITY DIESEL FUEL<KF0> L=250 		5-09707-030-1 04 1 1106-
289 CLIP; BAND,HOSE
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) L=250 		5-09707-030-1 06 1 1008-1105
289 CLIP; BAND,HOSE
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) EXC. POOR QUALITY DIESEL FUEL<KF0> L=250 		5-09707-030-1 06 1 1106-
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 1008-1107
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 1108-
291 BOLT; FILER TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 1008-1107
291 BOLT; FILER TO BRKT
EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE 		0-28051-060-0 02 1 1108-
303 BOLT; BRKT
POOR QUALITY DIESEL FUEL<KF0> M8X35 FLANGE 		0-28650-835-0 01 1 1106-
345 PLUG
RUSSIA EQUIPMENT(B12),CHINA EQUIPMENT(YT2) NPTF3/8-18 		8-97329-623-0 02 1 1009-1109
345 PLUG
RUSSIA EQUIPMENT(B12),CHINA EQUIPMENT(YT2) EXC. POOR QUALITY DIESEL FUEL<KF0> NPTF3/8-18 		8-97329-623-0 02 1 1110-
622 SPACER; BRKT
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) RUSSIA EQUIPMENT(B12) 		8-98124-944-0 01 1 1008-1008

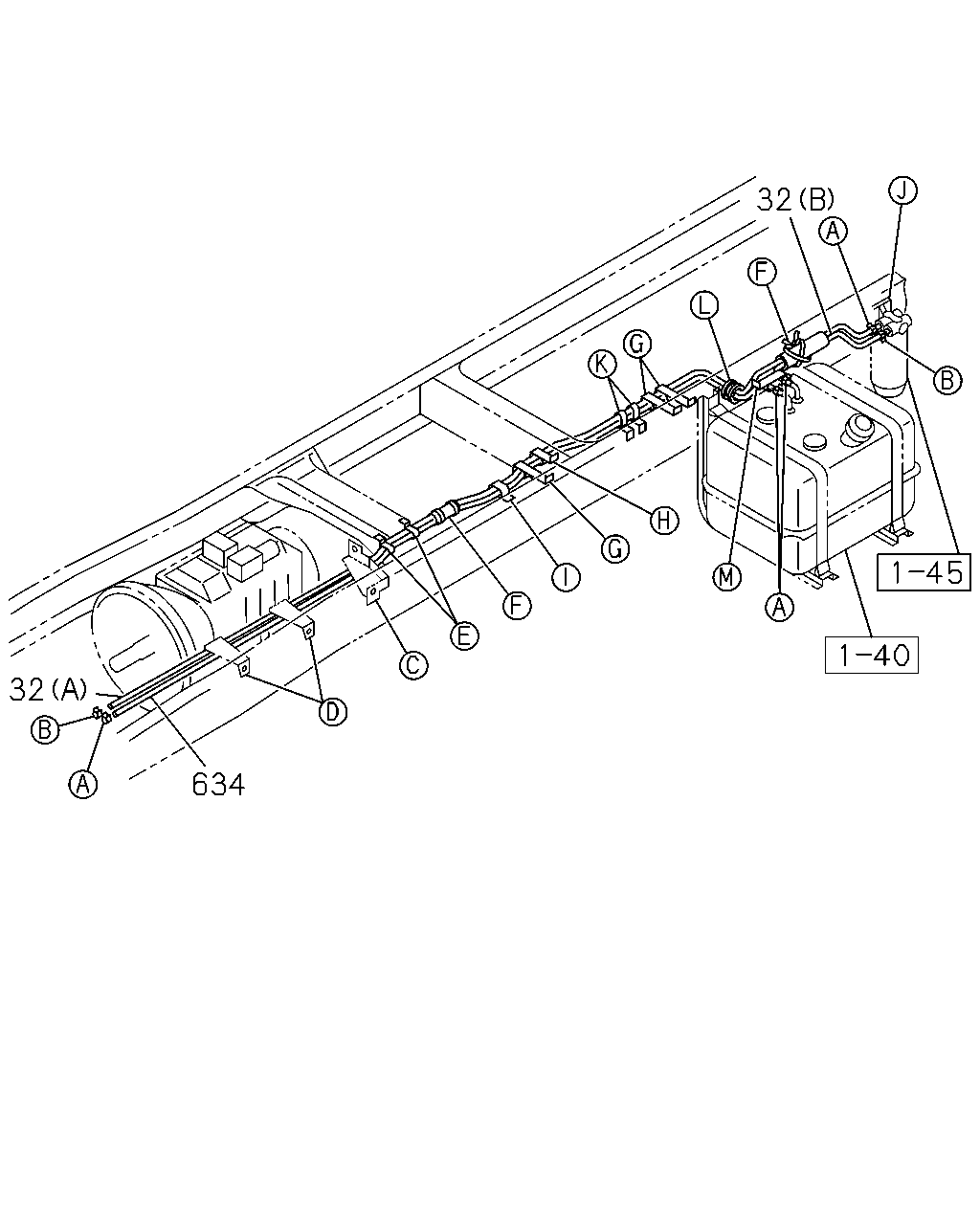

çizim 166777
32 32 634
BalonParca AdiParca NoAdetTipApplied Date
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 6500MM(65W) POOR QUALITY DIESEL FUEL<KF0> (B) L=500 SERVICED BY L=3000 		0-01260-300-0 01 1 1106-
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 6500MM(65W) POOR QUALITY DIESEL FUEL<KF0> (A) L=3600 SERVICED BY L=5350 		0-01262-535-0 01 1 1106-
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) POOR QUALITY DIESEL FUEL<KF0> (B) L=580 SERVICED BY L=3000 		0-01260-300-0 01 1 1106-
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) POOR QUALITY DIESEL FUEL<KF0> (A) L=3700 SERVICED BY L=5050 		0-01262-505-0 01 1 1106-
32 PIPE; DELIVERY,FUEL TANK
(B) L=820 SERVICED BY L=3000 		0-01260-300-0 01 1 1008-1105
32 PIPE; DELIVERY,FUEL TANK
EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=820 SERVICED BY L=3000 		0-01260-300-0 01 1 1106-
32 PIPE; DELIVERY,FUEL TANK
(A) L=3950 SERVICED BY L=5050 		0-01262-505-0 01 1 1008-1105
32 PIPE; DELIVERY,FUEL TANK
EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=3950 SERVICED BY L=5050 		0-01262-505-0 01 1 1106-
634 HOSE; RUBBER RETURN
L=3650 SERVICED BY L=8000 		0-01260-800-0 01 1 1008-

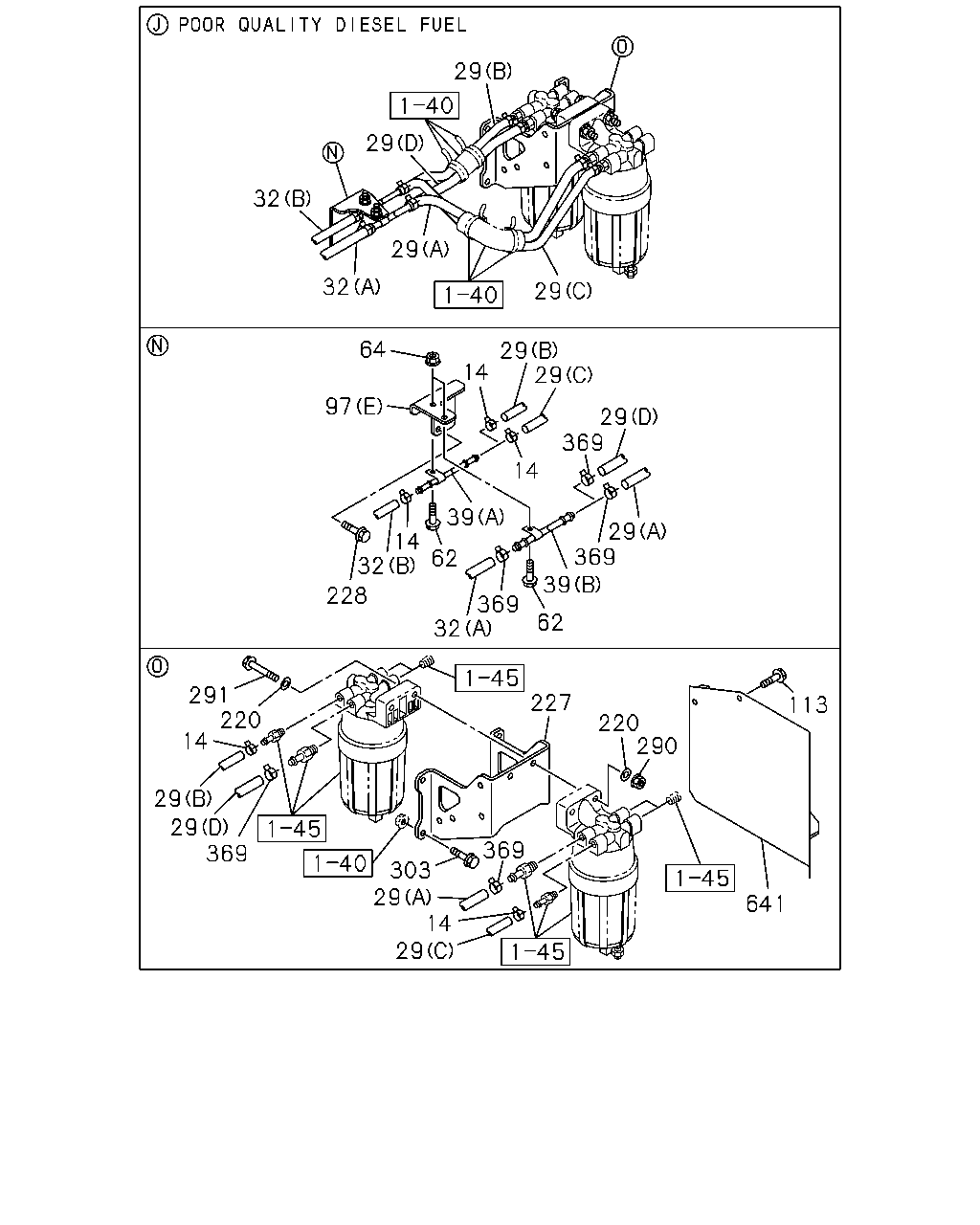

çizim 167114
29 29 32 29 32 29 64 29 29 14 97 29 369 14 39 29 369 39 14 32 62 228 369 32 62 291 220 227 113 220 290 14 29 29 369 369 303 29 14 29 641
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; HOSE
POOR QUALITY DIESEL FUEL<KF0> ID=14 		1-09704-102-0 04 1 1106-
29 HOSE; FUEL
WHEEL BASE 6500MM(65W) POOR QUALITY DIESEL FUEL<KF0> (B) 		8-98188-440-0 01 1 1106-
29 HOSE; FUEL
WHEEL BASE 6500MM(65W) POOR QUALITY DIESEL FUEL<KF0> (C) L=350 OD=14.5 		8-98188-445-0 01 1 1106-
29 HOSE; FUEL
WHEEL BASE 6500MM(65W) POOR QUALITY DIESEL FUEL<KF0> (D) 		8-98188-455-0 01 1 1106-
29 HOSE; FUEL
WHEEL BASE 6500MM(65W) POOR QUALITY DIESEL FUEL<KF0> (A) L=310 OD=19 		8-98188-459-0 01 1 1106-
29 HOSE; FUEL
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) POOR QUALITY DIESEL FUEL<KF0> (B) L=330 OD=14.5 		8-98188-444-0 01 1 1106-
29 HOSE; FUEL
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) POOR QUALITY DIESEL FUEL<KF0> (D) L=330 OD=19 		8-98188-461-0 01 1 1106-
29 HOSE; FUEL
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) POOR QUALITY DIESEL FUEL<KF0> (A) L=390 OD=19 		8-98188-465-0 01 1 1106-
29 HOSE; FUEL
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) POOR QUALITY DIESEL FUEL<KF0> (C) L=430 OD=14.5 		8-98188-469-0 01 1 1106-
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 6500MM(65W) POOR QUALITY DIESEL FUEL<KF0> (B) L=500 SERVICED BY L=3000 		0-01260-300-0 01 1 1106-
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 6500MM(65W) POOR QUALITY DIESEL FUEL<KF0> (A) L=3600 SERVICED BY L=5350 		0-01262-535-0 01 1 1106-
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) POOR QUALITY DIESEL FUEL<KF0> (B) L=580 SERVICED BY L=3000 		0-01260-300-0 01 1 1106-
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) POOR QUALITY DIESEL FUEL<KF0> (A) L=3700 SERVICED BY L=5050 		0-01262-505-0 01 1 1106-
32 PIPE; DELIVERY,FUEL TANK
(B) L=820 SERVICED BY L=3000 		0-01260-300-0 01 1 1008-1105
32 PIPE; DELIVERY,FUEL TANK
EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=820 SERVICED BY L=3000 		0-01260-300-0 01 1 1106-
32 PIPE; DELIVERY,FUEL TANK
(A) L=3950 SERVICED BY L=5050 		0-01262-505-0 01 1 1008-1105
32 PIPE; DELIVERY,FUEL TANK
EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=3950 SERVICED BY L=5050 		0-01262-505-0 01 1 1106-
39 PIPE; FUEL
POOR QUALITY DIESEL FUEL<KF0> (A) 		8-98186-862-1 01 1 1106-
39 PIPE; FUEL
POOR QUALITY DIESEL FUEL<KF0> (B) 		8-98186-864-1 01 1 1106-
62 BOLT; CLIP FIX
POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE 		0-28650-820-0 02 1 1106-
64 NUT; CLIP
POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE 		0-91180-108-0 02 1 1106-
97 BRACKET; CLIP
POOR QUALITY DIESEL FUEL<KF0> (D) L=68 		1-47475-525-0 01 1 1106-
97 BRACKET; CLIP
POOR QUALITY DIESEL FUEL<KF0> (E) 		8-98186-869-0 01 1 1106-
97 BRACKET; CLIP
(C) L=55 		1-47475-304-0 01 1 1008-
97 BRACKET; CLIP
(B) 		1-47479-797-0 01 1 1008-
97 BRACKET; CLIP
(A) 		8-98172-059-0 03 1 1008-
113 BOLT; PROTECTOR
POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> M8X25 FLANGE 		0-28050-825-0 02 1 1108-
113 BOLT; PROTECTOR
WHEEL BASE 6500MM(65W) POOR QUALITY DIESEL FUEL<KF0> EXC. FUEL SEDIMENTER WITH HEATER<6HU> M8X25 FLANGE 		0-28050-825-0 02 1 1108-
220 WASHER; PL
EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26 		0-91614-710-0 02 1 1108-
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 02 1 1008-1107
220 WASHER; PL
POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26 		0-91614-710-0 04 1 1108-
227 BRACKET; FUEL SEDIMENTER
WHEEL BASE 6500MM(65W) 		8-98144-960-0 01 1 1008-1107
227 BRACKET; FUEL SEDIMENTER
WHEEL BASE 6500MM(65W) EXC. POOR QUALITY DIESEL FUEL<KF0> 		8-98144-960-0 01 1 1108-
228 BOLT; BRKT,SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> M8X35 FLANGE 		0-28650-835-0 02 1 1106-
228 BOLT; BRKT,SEDIMENTER
WHEEL BASE 6500MM(65W) M10X35 FLANGE 		0-28051-035-0 04 1 1008-1107
228 BOLT; BRKT,SEDIMENTER
WHEEL BASE 6500MM(65W) EXC. POOR QUALITY DIESEL FUEL<KF0> M10X35 FLANGE 		0-28051-035-0 04 1 1108-
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 1008-1107
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 1108-
291 BOLT; FILER TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 1008-1107
291 BOLT; FILER TO BRKT
EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE 		0-28051-060-0 02 1 1108-
303 BOLT; BRKT
POOR QUALITY DIESEL FUEL<KF0> M8X35 FLANGE 		0-28650-835-0 01 1 1106-
369 CLAMP; HOSE,FUEL
POOR QUALITY DIESEL FUEL<KF0> ID=19 		8-94238-569-0 04 1 1106-
641 PROTECTOR; SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> 		8-98184-816-0 01 1 1108-
641 PROTECTOR; SEDIMENTER
WHEEL BASE 6500MM(65W) POOR QUALITY DIESEL FUEL<KF0> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98184-816-0 01 1 1108-
