◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11271 - CYH LHD EURO2/3/4 WITH 3STEPS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#63043) — 48 parça

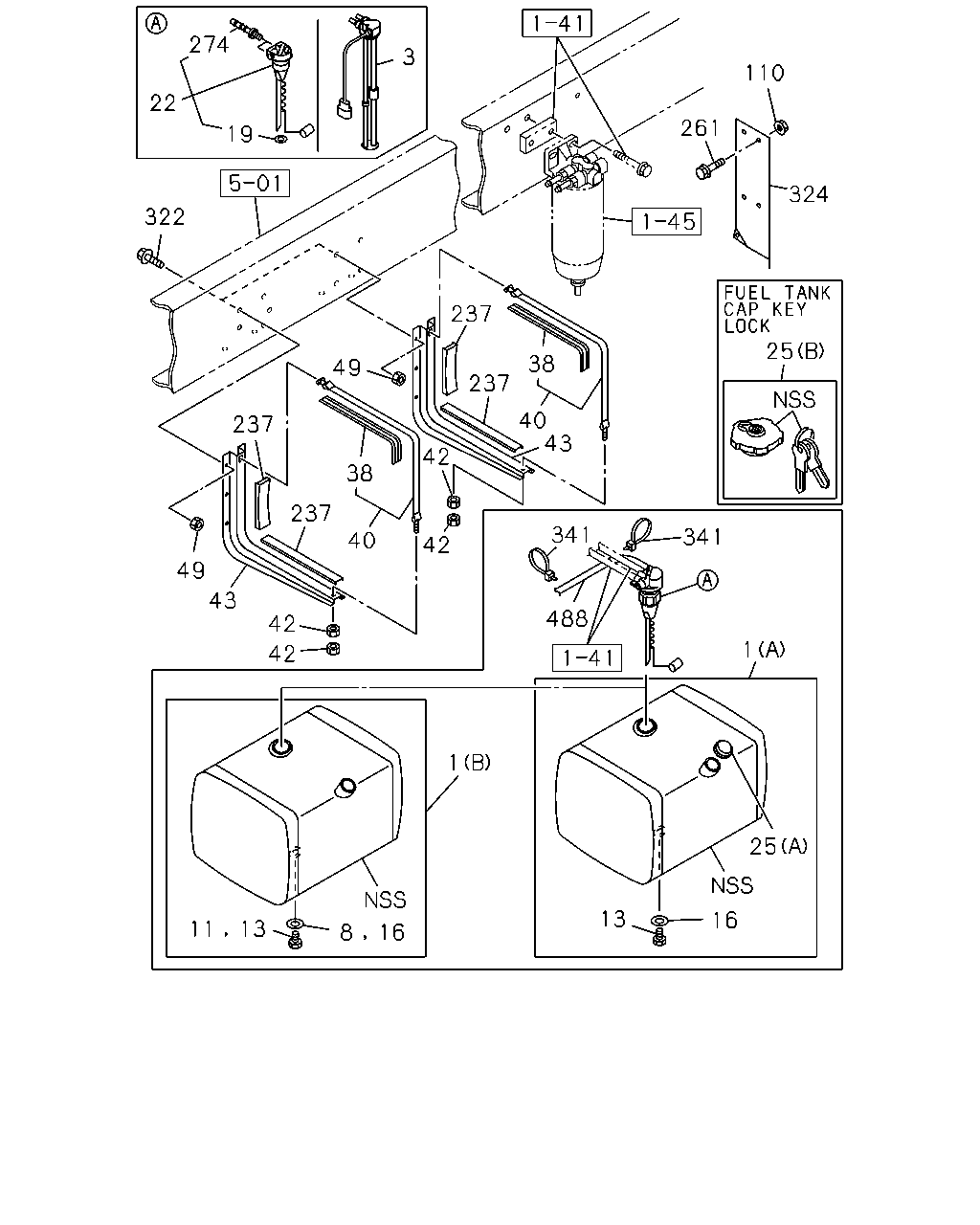

çizim 166775
274 22 110 261 324 3 19 322 49 237 237 38 40 42 38 237 237 40 49 43 42 42 42 43 341 341 488 1 25 16 3 1 16 8 13 11 25
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; FUEL
FUEL TANK 400L<SDH> CHINA EQUIPMENT(YT2) (A) 1050X680X625 400L 		1-87411-699-1 01 1 1008-1109
1 TANK; FUEL
FUEL TANK 400L<SDH> CHINA EQUIPMENT(YT2) (B) 1050X680X625 400L 		1-87412-299-1 01 1 1110-
1 TANK; FUEL
FUEL TANK 400L<SDH> EXC. CHINA EQUIPMENT(YT2) (A) 1050X680X625 400L 		1-87412-050-4 01 1 1008-
3 UNIT; FUEL TANK,SUB
FUEL TANK 400L<SDH> CHINA EQUIPMENT(YT2) 		8-98217-749-0 01 1 1211-1304
3 UNIT; FUEL TANK,SUB
FUEL TANK 400L<SDH> 		8-98217-749-0 01 1 1305-
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 400L<SDH> CHINA EQUIPMENT(YT2) ID=18.2 T=1.6 		8-98030-453-0 01 1 1211-1304
8 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 400L<SDH> ID=18.2 T=1.6 		8-98030-453-0 01 1 1305-
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 400L<SDH> CHINA EQUIPMENT(YT2) M18X12 		0-92002-418-0 01 1 1211-1304
11 PLUG; DRAIN,FUEL TANK
FUEL TANK 400L<SDH> M18X12 		0-92002-418-0 01 1 1305-
13 PLUG; SCREW,SUB TANK JOINT
FUEL TANK 400L<SDH> M18X12 		0-92002-418-0 01 1 1008-1210
13 PLUG; SCREW,SUB TANK JOINT
FUEL TANK 400L<SDH> EXC. CHINA EQUIPMENT(YT2) M18X12 		0-92002-418-0 01 1 1211-1304
16 GASKET; PLUG
FUEL TANK 400L<SDH> ID=18.2 T=1.6 		8-98030-453-0 01 1 1008-1210
16 GASKET; PLUG
FUEL TANK 400L<SDH> EXC. CHINA EQUIPMENT(YT2) ID=18.2 T=1.6 		8-98030-453-0 01 1 1211-1304
19 GASKET; FUEL TANK UNIT
FUEL TANK 400L<SDH> CHINA EQUIPMENT(YT2) ID=54.5 		8-98299-580-0 01 1 1211-1304
19 GASKET; FUEL TANK UNIT
FUEL TANK 400L<SDH> ID=54.5 		8-98299-580-0 01 1 1305-
19 GASKET; FUEL TANK UNIT
FUEL TANK 400L<SDH> ID=58 		1-83149-005-0 01 1 1008-1210
19 GASKET; FUEL TANK UNIT
FUEL TANK 400L<SDH> EXC. CHINA EQUIPMENT(YT2) ID=58 		1-83149-005-0 01 1 1211-1304
22 UNIT; FUEL TANK
FUEL TANK 400L<SDH> 		1-83141-132-0 01 1 1008-1210
22 UNIT; FUEL TANK
FUEL TANK 400L<SDH> EXC. CHINA EQUIPMENT(YT2) 		1-83141-132-0 01 1 1211-1304
25 CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (B) 		8-98108-595-0 01 1 1008-1210
25 CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> EXC. CHINA EQUIPMENT(YT2) (B) 		8-98108-595-0 01 1 1211-
25 CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH> CHINA EQUIPMENT(YT2) (B) 		8-98108-595-0 01 1 1211-
25 CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH> (A) 		8-98115-780-0 01 1 1008-1109
25 CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH> EXC. CHINA EQUIPMENT(YT2) (A) 		8-98182-306-0 01 1 1110-
38 INSULATION; SUPPORT BELT
FUEL TANK 400L<SDH> L=1156 		1-22553-039-1 02 1 1008-
40 BELT; SUPPORT,FUEL TANK
FUEL TANK 400L<SDH> L=1210 		1-22550-261-0 02 1 1008-1110
40 BELT; SUPPORT,FUEL TANK
FUEL TANK 400L<SDH> L=1210 		8-98202-448-0 02 1 1111-
42 NUT; SUPPORT BELT
M10 		0-91110-510-0 04 1 1008-
43 BRACKET; FUEL TANK
FUEL TANK 400L<SDH> 		1-53461-525-1 02 1 1008-
49 NUT; BRKT
FUEL TANK 400L<SDH> M12 		0-91110-512-0 12 1 1008-1008
110 NUT; PROTECTOR
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 1008-1107
110 NUT; PROTECTOR
WHEEL BASE 6500MM(65W) EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE 		0-91180-108-0 02 1 1108-
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 400L<SDH> 		1-22553-037-1 04 1 1008-
261 BOLT; PROTECTOR
WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 02 1 1008-1107
261 BOLT; PROTECTOR
WHEEL BASE 6500MM(65W) EXC. POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE 		0-28650-820-0 02 1 1108-
274 CONNECTOR; ELBOW,FUEL TANK PIPE
FUEL TANK 400L<SDH> 		1-83149-006-0 02 1 1008-1210
274 CONNECTOR; ELBOW,FUEL TANK PIPE
FUEL TANK 400L<SDH> EXC. CHINA EQUIPMENT(YT2) 		1-83149-006-0 02 1 1211-1304
322 BOLT; BRKT FIX
FUEL TANK 400L<SDH> M12X40 FLANGE 		0-28051-240-0 12 1 1008-
324 PROTECTOR; FUEL SEDIMENTER
WHEEL BASE 6500MM(65W) 		1-47471-216-0 01 1 1008-1107
324 PROTECTOR; FUEL SEDIMENTER
WHEEL BASE 6500MM(65W) EXC. POOR QUALITY DIESEL FUEL<KF0> 		1-47471-216-0 01 1 1108-
341 CLIP; BAND,RUBBER HOSE
L=350 		1-09707-183-0 02 1 1008-
488 HOSE; RUBBER 8-98134-936-0 01 1 1008-

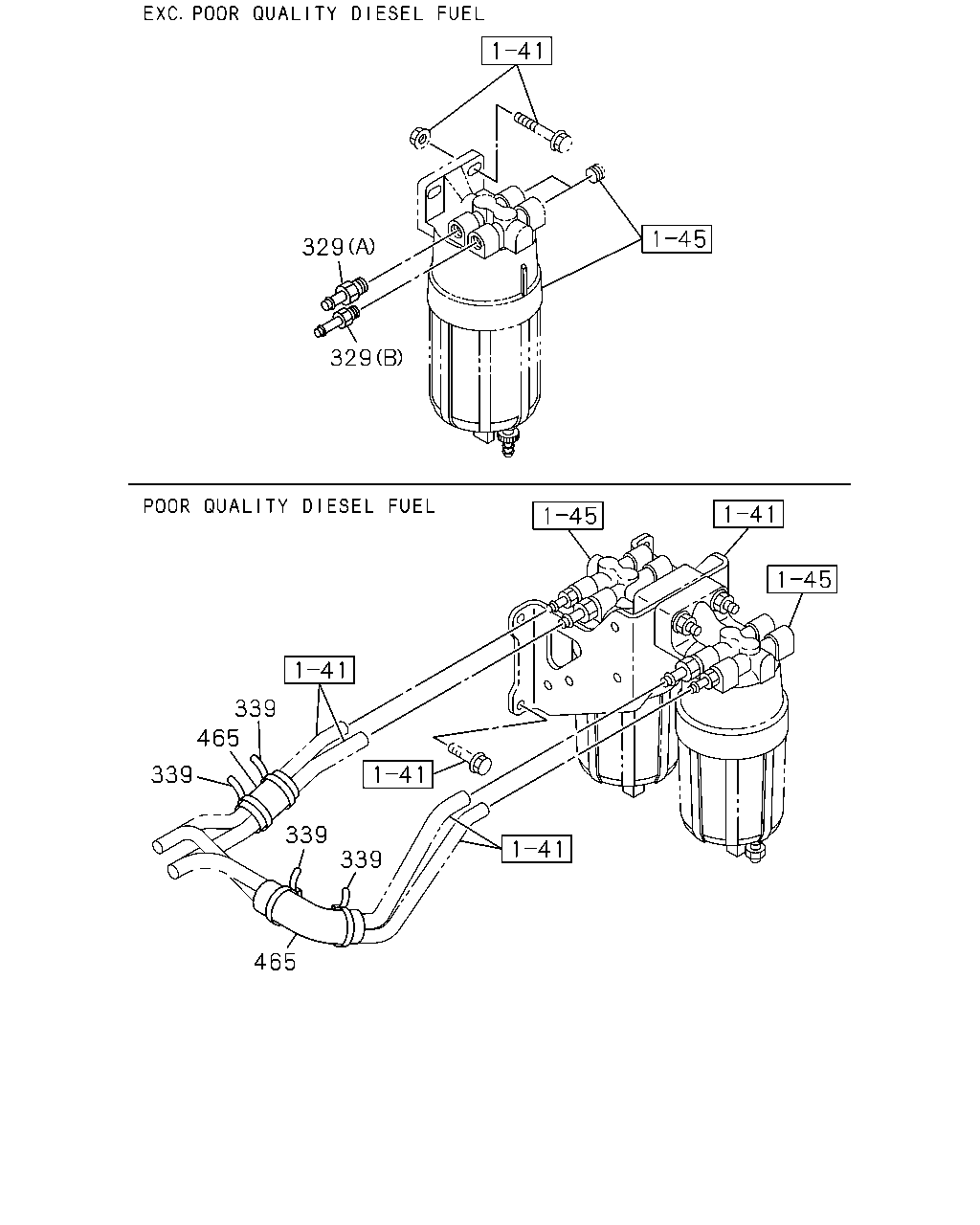

çizim 167145
329 329 339 465 339 339 339 465
BalonParca AdiParca NoAdetTipApplied Date
329 JOINT ASM; EYE,FUEL PIPE
RUSSIA EQUIPMENT(B12),CHINA EQUIPMENT(YT2) (A) NPTF3/8-18 OD=12 		8-98122-952-0 01 1 1009-1109
329 JOINT ASM; EYE,FUEL PIPE
RUSSIA EQUIPMENT(B12),CHINA EQUIPMENT(YT2) EXC. POOR QUALITY DIESEL FUEL<KF0> (A) NPTF3/8-18 OD=12 		8-98122-952-0 01 1 1110-
329 JOINT ASM; EYE,FUEL PIPE
RUSSIA EQUIPMENT(B12),CHINA EQUIPMENT(YT2) (B) NPTF3/8-18 OD=10 		8-98122-953-0 01 1 1009-1109
329 JOINT ASM; EYE,FUEL PIPE
RUSSIA EQUIPMENT(B12),CHINA EQUIPMENT(YT2) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) NPTF3/8-18 OD=10 		8-98122-953-0 01 1 1110-
339 CLIP; BAND,FUEL HOSE
POOR QUALITY DIESEL FUEL<KF0> L=250 		5-09707-030-1 04 1 1106-
465 SLEEVE; RUBBER
POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1106-
