2-85 — POWER TAKE OFF CONTROL (#6304) — 47 parça

3 3 132 1 55 47 48 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LEVER ASM; PTO & DUMP CONT CONCRETE PUMP<RA5>	1-79996-273-1	01	1	9604-
1	LEVER ASM; PTO & DUMP CONT DUMP CONTROL LEVER<RC4>	1-79996-244-0	01	1	9604-
3	BOLT; BRKT,DUMP CONT LEVER CONCRETE PUMP<RA5> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9604-
3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9604-
47	GASKET; FLEX HOSE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=11 OD=18	9-09572-510-0	02	1	9604-9702
48	HOSE; FLEX,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=430	0-07150-430-0	01	1	9604-9702
48	HOSE; FLEX,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=430	1-09363-677-0	01	1	9703-
55	GROMMET; CABLE EXC. CONCRETE PUMP<RA5>,DUMP CONTROL LEVER<RC4>	1-09983-068-0	01	1	9604-9612
55	GROMMET; CABLE EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6)	1-09983-068-0	01	1	9701-
132	COVER; PTO CONT CONCRETE PUMP<RA5>	1-82380-114-3	01	1	9604-
132	COVER; PTO CONT DUMP CONTROL LEVER<RC4>	1-79997-376-0	01	1	9604-

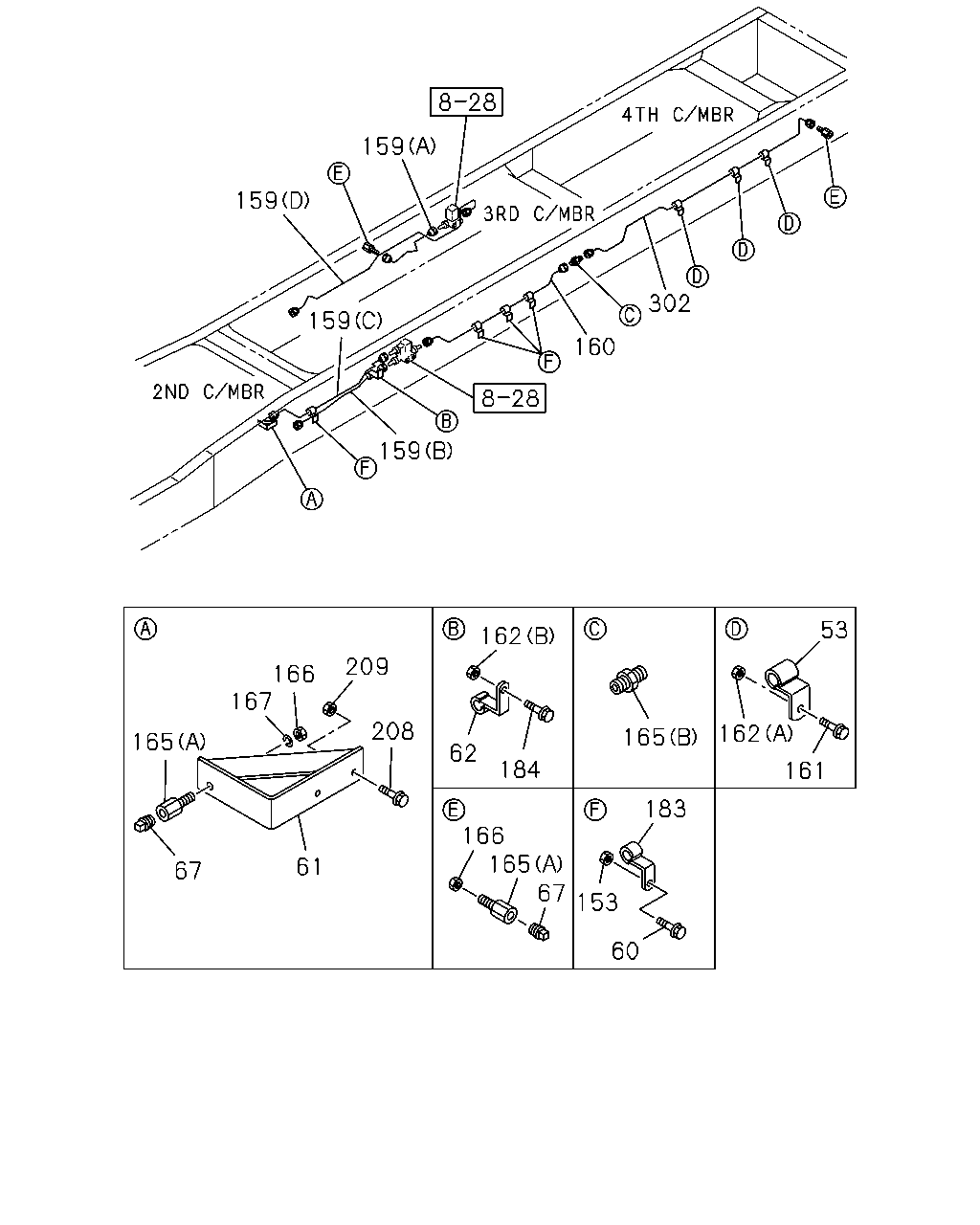

159 159 302 159 160 159 53 162 209 166 167 208 162 165 165 62 184 161 183 166 165 67 61 67 153 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	CLIP; AIR PIPE CONCRETE PUMP<RA5> ID=6 H=20 L=20	1-09700-603-0	04	1	9604-
60	BOLT; CLIP FIX CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	04	1	9604-9606
60	BOLT; CLIP FIX CONCRETE PUMP<RA5> M8X30 FLANGE	0-28680-830-0	04	1	9607-
61	BRACKET; AIR PIPE CONCRETE PUMP<RA5>	1-47476-521-1	01	1	9604-
62	CLIP; PIPE,AIR CONCRETE PUMP<RA5> ID=6 H=20 L=20	1-09700-603-0	01	1	9604-
67	PLUG CONCRETE PUMP<RA5> PT1/4	9-99204-513-0	03	1	9604-9904
67	PLUG CONCRETE PUMP<RA5> PT1/4	9-99204-513-0	02	1	9905-
153	NUT; CLIP CONCRETE PUMP<RA5> M8	9-09110-508-0	04	1	9604-9606
153	NUT; CLIP CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	04	1	9607-
159	PIPE; AIR,UNION TO MAG VLV CONCRETE PUMP<RA5> (A)	1-49115-944-0	01	1	9604-9904
159	PIPE; AIR,UNION TO MAG VLV CONCRETE PUMP<RA5> (B)	1-49119-642-0	01	1	9905-
159	PIPE; AIR,UNION TO MAG VLV CONCRETE PUMP<RA5> (B)	1-49116-180-0	01	1	9604-9904
159	PIPE; AIR,UNION TO MAG VLV CONCRETE PUMP<RA5> (C)	1-49119-643-0	01	1	9905-
159	PIPE; AIR,UNION TO MAG VLV CONCRETE PUMP<RA5> (C)	1-49116-181-0	01	1	9604-9904
159	PIPE; AIR,UNION TO MAG VLV CONCRETE PUMP<RA5> (A)	1-49119-644-0	01	1	9905-
159	PIPE; AIR,UNION TO MAG VLV CONCRETE PUMP<RA5> (D)	1-49116-535-0	01	1	9604-9905
159	PIPE; AIR,UNION TO MAG VLV CONCRETE PUMP<RA5> (D)	1-49122-011-0	01	1	9906-
160	PIPE; AIR,MAG VLV CONCRETE PUMP<RA5>	1-49115-219-0	01	1	9604-9905
160	PIPE; AIR,MAG VLV CONCRETE PUMP<RA5>	1-49122-010-0	01	1	9906-
161	BOLT; CLIP CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	04	1	9604-9606
161	BOLT; CLIP CONCRETE PUMP<RA5> M8X30 FLANGE	0-28680-830-0	04	1	9607-
162	NUT; CLIP CONCRETE PUMP<RA5> (A) M8	9-09110-408-0	04	1	9604-9606
162	NUT; CLIP CONCRETE PUMP<RA5> (A),(B) M8 FLANGE	0-91150-108-0	05	1	9607-
162	NUT; CLIP CONCRETE PUMP<RA5> (B) M8	9-09110-508-0	01	1	9604-9606
165	UNION; AIR PIPE CONCRETE PUMP<RA5> (A)	1-09654-280-1	03	1	9604-
165	UNION; AIR PIPE CONCRETE PUMP<RA5> (B) M12 L=40	9-09223-006-1	01	1	9604-
166	NUT; UNION CONCRETE PUMP<RA5> M12	9-09840-280-0	03	1	9604-
167	WASHER; LK,UNION CONCRETE PUMP<RA5> ID=12.2	9-09150-512-0	01	1	9604-
183	CLIP; OIL PIPE CONCRETE PUMP<RA5> ID=6 H=20 L=20	1-09700-603-0	04	1	9604-
184	BOLT; CLIP FIX CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	01	1	9604-9606
184	BOLT; CLIP FIX CONCRETE PUMP<RA5> M8X30 FLANGE	0-28680-830-0	01	1	9607-
208	BOLT; BRKT,AIR PIPE CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	02	1	9604-9606
208	BOLT; BRKT,AIR PIPE CONCRETE PUMP<RA5> M8X30 FLANGE	0-28680-830-0	02	1	9607-
209	NUT; BRKT,AIR PIPE CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9604-9606
209	NUT; BRKT,AIR PIPE CONCRETE PUMP<RA5> M8 FLANGE	0-91150-108-0	02	1	9607-
302	PIPE ASM; AIR,UNION TO UNION CONCRETE PUMP<RA5>	1-49115-948-0	01	1	9604-
