0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#63032) — 104 parça

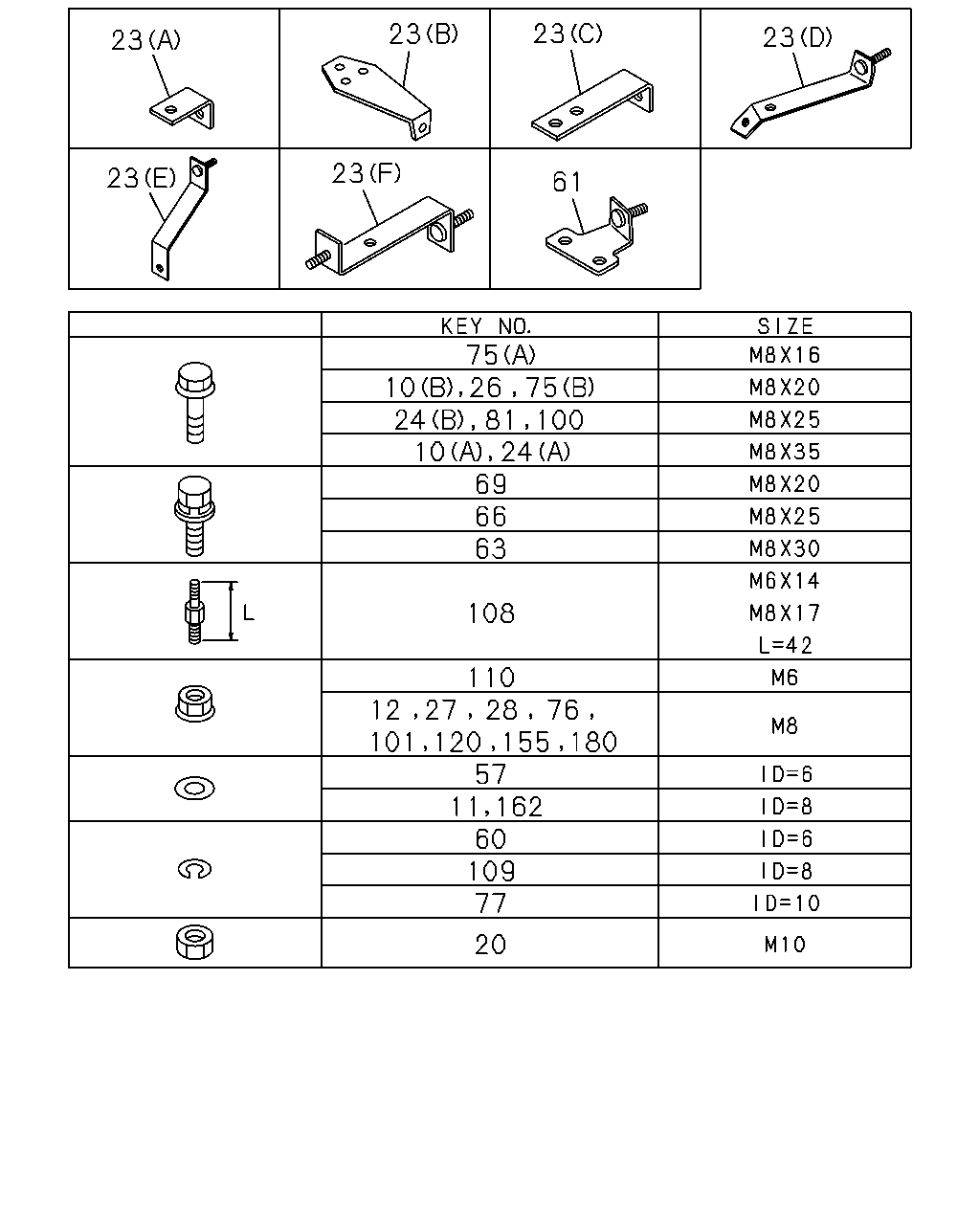

çizim 166752
23 23 23 23 23 23 61 75 100 69 66 63 108 110 101 57 11 162 60 109 77 20 24 10 81 24 10 26 75 12 27 76 120 155 180 28
BalonParca AdiParca NoAdetTipApplied Date
10 BOLT; BATTERY CABLE CLIP
(B) M8X20 FLANGE 		0-28650-820-0 05 1 1008-
10 BOLT; BATTERY CABLE CLIP
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1008-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 1008-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 09 1 1008-
20 NUT; STARTER CABLE
M10 		8-98011-328-0 01 1 1008-
23 BRACKET; CABLE CLIP TO FRAME
(A) L=40 		1-47478-410-0 01 1 1008-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82698-557-0 01 1 1008-
23 BRACKET; CABLE CLIP TO FRAME
(D) 		1-82698-574-0 01 1 1008-
23 BRACKET; CABLE CLIP TO FRAME
(F) 		1-82698-590-0 01 1 1008-
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98171-604-0 01 1 1008-
23 BRACKET; CABLE CLIP TO FRAME
ENGINE REAR PTO(SV1) (E) 		1-82698-628-0 01 1 1008-
23 BRACKET; CABLE CLIP TO FRAME
EXC. ENGINE REAR PTO(SV1) (E) 		1-82698-575-1 01 1 1008-
24 BOLT; BRKT TO FRAME
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1008-
24 BOLT; BRKT TO FRAME
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1008-
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 1008-
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91180-108-0 03 1 1008-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 1008-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 1008-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 1008-
61 BRACKET; BATTERY CABLE
6WF1 TC-C(1B8) 		8-98147-302-0 01 1 1008-1112
61 BRACKET; BATTERY CABLE
6WF1 TC-C(1B8) 		8-98147-302-0 01 1 1201-
61 BRACKET; BATTERY CABLE
6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> 		8-98147-302-0 01 1 1201-
61 BRACKET; BATTERY CABLE
6WG1 TC-R(75L) 		1-82698-587-0 01 1 1008-
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1008-
66 BOLT; COVER,BATTERY RELAY
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 1008-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 1008-
75 BOLT; BRKT
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28050-820-0 02 1 1008-1112
75 BOLT; BRKT
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28050-820-0 02 1 1201-
75 BOLT; BRKT
6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (B) M8X20 FLANGE 		0-28050-820-0 02 1 1201-
75 BOLT; BRKT
6WG1 TC-R(75L) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1008-
76 NUT; BATTERY CABLE
M8 FLANGE 		0-91180-108-0 04 1 1008-
77 WASHER; LK,STARTER CABLE
ID=10.2 		0-91510-610-0 01 1 1008-
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28650-825-0 05 1 1008-
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 05 1 1008-
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 05 1 1008-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 1008-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 1008-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 1008-
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91180-108-0 01 1 1008-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 1008-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 1008-
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 02 1 1008-

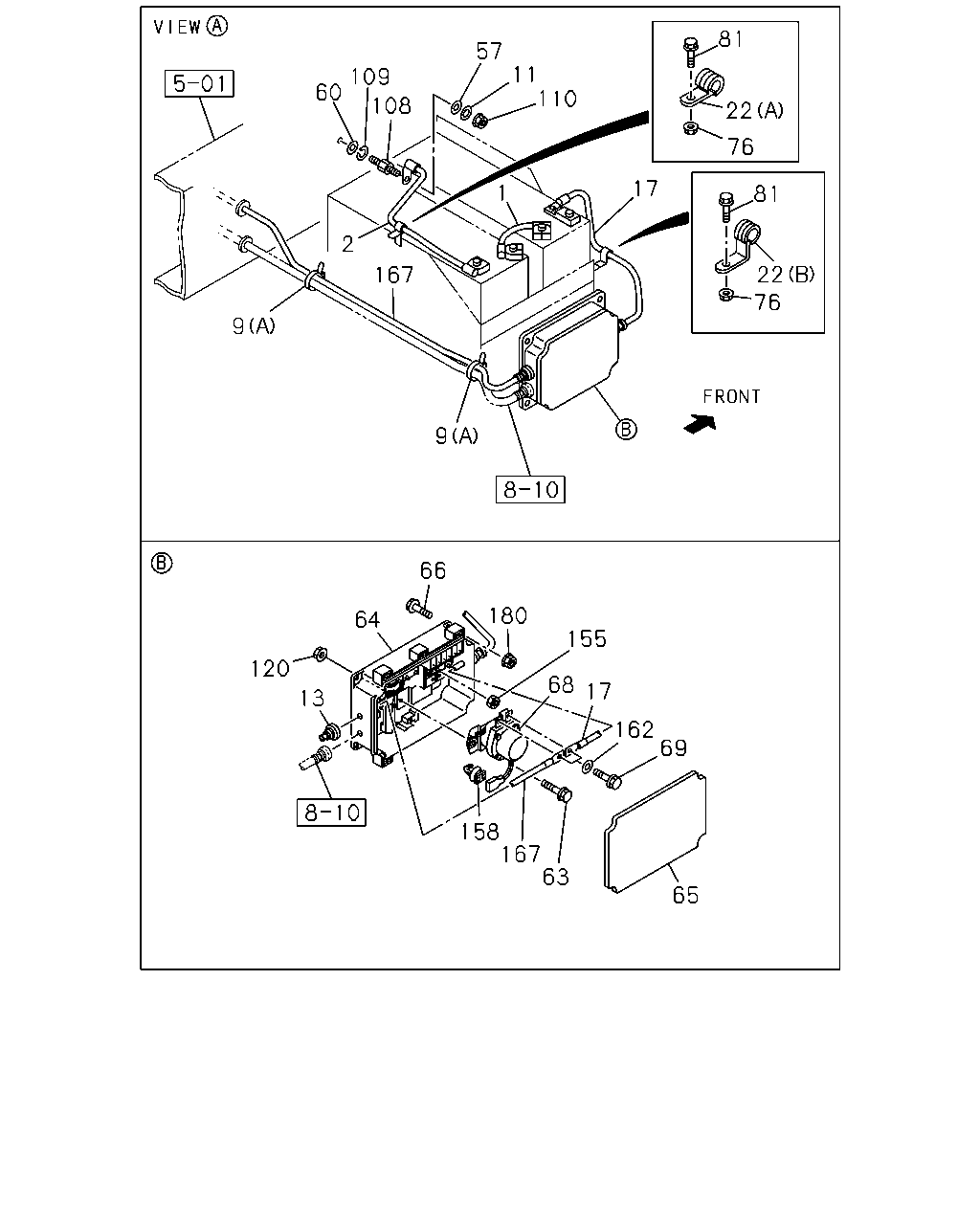

çizim 166753
81 57 11 110 109 60 108 22 76 17 1 81 2 22 76 167 9 9 66 180 64 155 120 68 17 13 162 69 158 167 63 65
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3> L=265 		1-82650-388-1 01 1 1008-
1 CABLE; BATTERY
BATTERY 195G51 NX300-15<PU6>,BATTERY 145G51 N150<SJ8> L=450 		1-82650-389-1 01 1 1008-
2 CABLE; BATTERY
L=680 		1-82650-385-1 01 1 1008-
9 CLIP; BATTERY CABLE
(E) ID=18 L=28 H=30 		1-09701-110-0 02 1 1008-
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 04 1 1008-
9 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-94176-807-1 02 1 1008-
9 CLIP; BATTERY CABLE
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
9 CLIP; BATTERY CABLE
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 1008-
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 03 1 1008-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 1008-
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 1008-
17 CABLE; BATTERY (+) TO RELAY
L=640 		1-82652-760-3 01 1 1008-
22 CLIP; BATTERY CABLE
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
22 CLIP; BATTERY CABLE
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-
22 CLIP; BATTERY CABLE
(A) ID=25 L=50 		1-09701-019-0 01 1 1008-
22 CLIP; BATTERY CABLE
(C) ID=11 & 13 H=26 L=48 		1-09701-270-0 02 1 1008-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 1008-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 1008-
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1008-
64 BOX; BATTERY RELAY
GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) 		1-82510-648-0 01 1 1008-
64 BOX; BATTERY RELAY
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 		1-82510-651-0 01 1 1008-
65 COVER; BATTERY RELAY 1-82510-654-1 01 1 1008-
66 BOLT; COVER,BATTERY RELAY
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 1008-
68 RELAY; BATTERY 1-82550-313-0 01 1 1008-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 1008-
76 NUT; BATTERY CABLE
M8 FLANGE 		0-91180-108-0 04 1 1008-
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28650-825-0 05 1 1008-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 1008-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 1008-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 1008-
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91180-108-0 01 1 1008-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 1008-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 1008-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 1008-
167 CABLE; BATTERY RELAY TO STARTER
ENGINE REAR PTO(SV1) 		8-98155-276-1 01 1 1008-
167 CABLE; BATTERY RELAY TO STARTER
EXC. ENGINE REAR PTO(SV1) 		8-98155-192-1 01 1 1008-
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 02 1 1008-
çizim 166755
64 208 208 208
BalonParca AdiParca NoAdetTipApplied Date
64 BOX; BATTERY RELAY
GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) 		1-82510-648-0 01 1 1008-
64 BOX; BATTERY RELAY
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 		1-82510-651-0 01 1 1008-
208 FUSE
(C) 80A 		1-82516-031-0 01 1 1008-
208 FUSE
(A) 40A GREEN 		8-94468-662-0 05 1 1008-
208 FUSE
GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) (B) 100A 		1-82516-032-0 01 1 1008-
208 FUSE
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) 125A 		9-82941-130-1 01 1 1008-
çizim 166764
9 99 9 18 22 22 99 25 99 9 9 22 9 158 9 22
BalonParca AdiParca NoAdetTipApplied Date
9 CLIP; BATTERY CABLE
(E) ID=18 L=28 H=30 		1-09701-110-0 02 1 1008-
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 04 1 1008-
9 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-94176-807-1 02 1 1008-
9 CLIP; BATTERY CABLE
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
9 CLIP; BATTERY CABLE
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 1008-
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 03 1 1008-
18 CLIP; BATTERY CABLE
ID=21 L=24 		8-94176-807-1 01 1 1008-
22 CLIP; BATTERY CABLE
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
22 CLIP; BATTERY CABLE
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-
22 CLIP; BATTERY CABLE
(A) ID=25 L=50 		1-09701-019-0 01 1 1008-
22 CLIP; BATTERY CABLE
(C) ID=11 & 13 H=26 L=48 		1-09701-270-0 02 1 1008-
25 CLIP; BATTERY CABLE TO BRKT
ID=18 H=23 L=28 		1-09701-070-0 03 1 1008-
99 CLIP; BATTERY CABLE
(C) ID=18 L=54 		1-09701-068-0 01 1 1008-
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 03 1 1008-
99 CLIP; BATTERY CABLE
(B) ID=18 L=25 H=50 		1-09701-096-0 01 1 1008-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 1008-

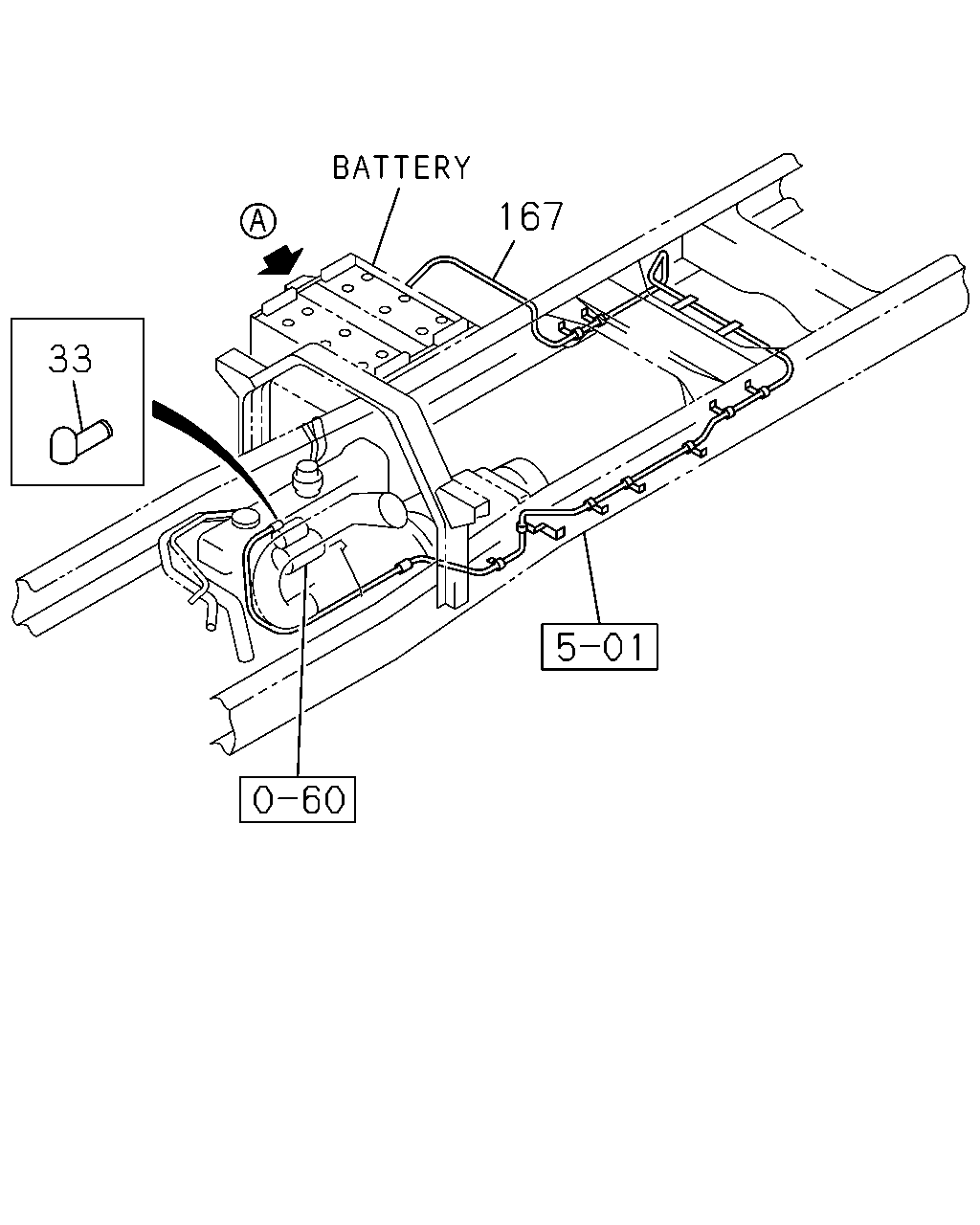

çizim 166767
167 33
BalonParca AdiParca NoAdetTipApplied Date
33 CAP; INSULATOR 8-97181-965-0 01 1 1008-
167 CABLE; BATTERY RELAY TO STARTER
ENGINE REAR PTO(SV1) 		8-98155-276-1 01 1 1008-
167 CABLE; BATTERY RELAY TO STARTER
EXC. ENGINE REAR PTO(SV1) 		8-98155-192-1 01 1 1008-
