◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11271 - CYH LHD EURO2/3/4 WITH 3STEPS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#63031) — 132 parça
çizim 166743
441 428 428 441 441 428 428 428 428
BalonParca AdiParca NoAdetTipApplied Date
428 CLIP; HARNESS
ENGINE CONTROL-B2(Q4T) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (H) ID=25 L=40 		1-09700-215-1 01 1 1104-
428 CLIP; HARNESS
ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) ID=35 L=35 		1-09700-684-0 03 1 1104-
428 CLIP; HARNESS
(C) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1008-
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 1008-
428 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (A) ID=35 L=35 		1-09700-684-0 01 1 1008-
428 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-1103
428 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1104-
428 CLIP; HARNESS
ENGINE CONTROL-B2(Q4T) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1104-
428 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (E) ID=22 L=52 		9-09917-431-0 03 1 1008-
428 CLIP; HARNESS
ENGINE CONTROL-B2(Q4T) (A) ID=35 L=35 		1-09700-684-0 03 1 1008-1103
428 CLIP; HARNESS
ENGINE CONTROL-B2(Q4T) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (A) ID=35 L=35 		1-09700-684-0 02 1 1104-
428 CLIP; HARNESS
ENGINE CONTROL-B2(Q4T) (B) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 1008-1103
428 CLIP; HARNESS
ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 1104-
428 CLIP; HARNESS
ENGINE CONTROL-B2(Q4T) (E) ID=26 L=26 		1-09701-236-0 01 1 1008-1103
428 CLIP; HARNESS
ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (E) ID=26 L=26 		1-09701-236-0 01 1 1104-
428 CLIP; HARNESS
ENGINE CONTROL-B2(Q4T) (F) L=350 		1-09707-183-0 01 1 1008-
428 CLIP; HARNESS
6WF1 TC-C(1B8) (G) ID=11 L=28 		9-09917-544-0 01 1 1008-
441 BOLT; HARNESS TO FRAME
ENGINE CONTROL-B2(Q4T) M8X20 FLANGE 		0-28650-820-0 02 1 1008-1103
441 BOLT; HARNESS TO FRAME
ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> M8X20 FLANGE 		0-28650-820-0 02 1 1104-
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 1008-
441 BOLT; HARNESS TO FRAME
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1008-

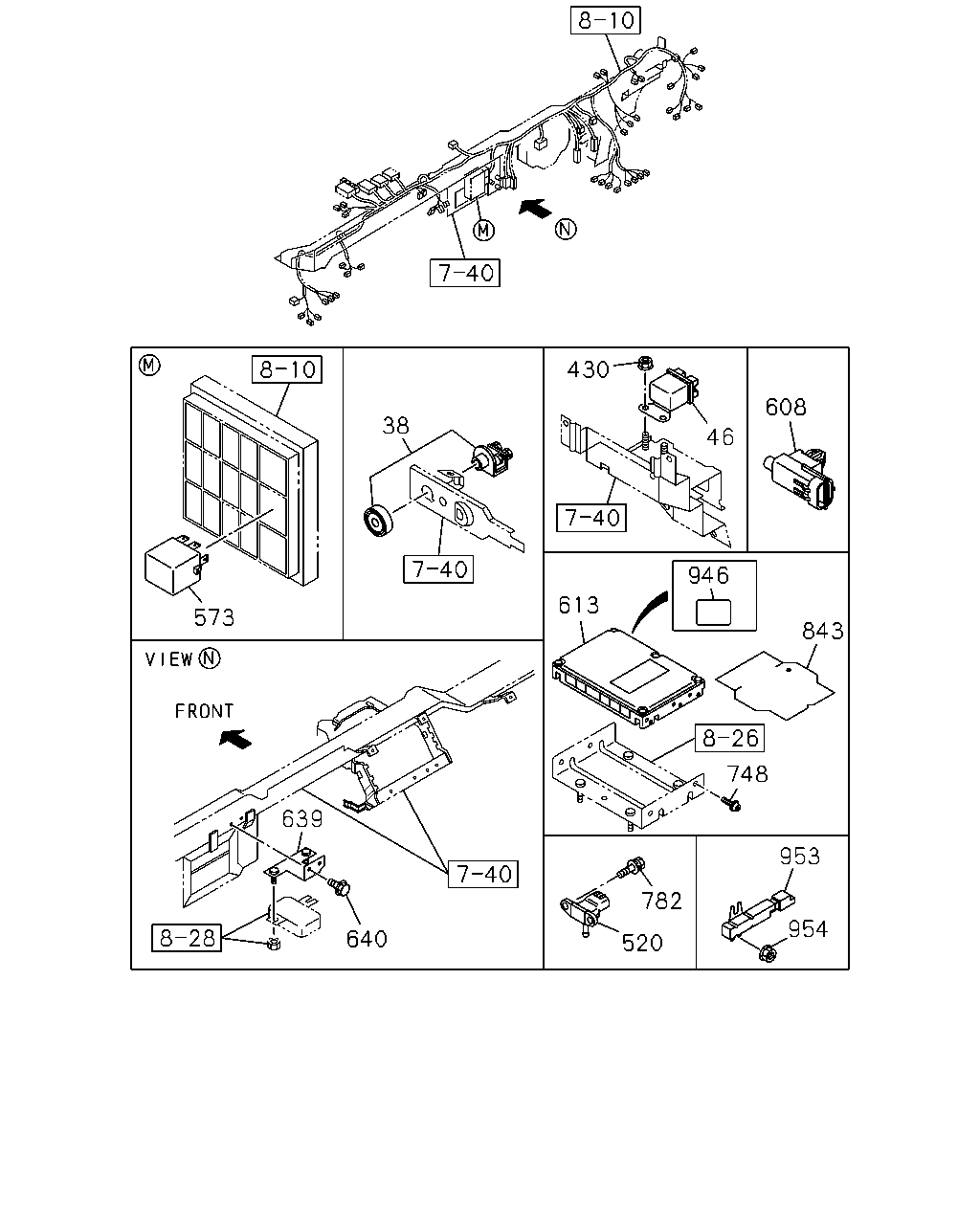

çizim 166756
430 608 38 46 946 613 573 843 748 639 953 782 954 640 520
BalonParca AdiParca NoAdetTipApplied Date
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 1008-
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 1008-
430 NUT; RELAY FIX
M6 FLANGE 		0-91180-106-0 01 1 1008-
520 SENSOR; PRESSURE
ENGINE CONTROL-B2(Q4T) 		8-98020-514-0 01 1 1008-
573 RELAY; ELEC GOV
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1008-
608 SENSOR; AIR TEMP
ENGINE CONTROL COMMON RAIL(Q4R) 		8-97177-549-0 01 1 1008-1204
608 SENSOR; AIR TEMP
ENGINE CONTROL COMMON RAIL(Q4R) 		8-98214-375-0 01 1 1205-
613 CONTROL UNIT; ENG
6WG1 TC-R(75L) RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION<KBT> EXC. SPEED LIMITER 90KM(NMJ) 		8-98176-535-2 01 1 1008-1104
613 CONTROL UNIT; ENG
6WG1 TC-R(75L) RUSSIA EQUIPMENT(B12) TRANSMISSION CONTROL LINK TYPE(B2A) EURO4 SPECIFICATION<KBT> EXC. SPEED LIMITER 90KM(NMJ) 		8-98176-535-2 01 1 1105-
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> 		1-80111-424-1 01 1 1008-1104
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) EURO2 SPECIFICATION<THN> 		1-80111-424-1 01 1 1105-
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> SPEED LIMITER 90KM(NMJ) 		1-80111-448-2 01 1 1008-1104
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) EURO3 SPECIFICATION<NJX> SPEED LIMITER 90KM(NMJ) 		1-80111-448-2 01 1 1105-
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> EXC. SPEED LIMITER 90KM(NMJ) 		1-80111-114-2 01 1 1008-1104
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) EURO3 SPECIFICATION<NJX> EXC. SPEED LIMITER 90KM(NMJ) 		1-80111-114-2 01 1 1105-
613 CONTROL UNIT; ENG
6WG1 TC-R(75L) RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION<KBT> SPEED LIMITER 90KM(NMJ) 		8-98174-552-2 01 1 1008-1104
613 CONTROL UNIT; ENG
6WG1 TC-R(75L) RUSSIA EQUIPMENT(B12) TRANSMISSION CONTROL LINK TYPE(B2A) EURO4 SPECIFICATION<KBT> SPEED LIMITER 90KM(NMJ) 		8-98174-552-2 01 1 1105-
613 CONTROL UNIT; ENG
6WG1 TC-R(75L) EURO4 SPECIFICATION<KBT> CHINA EQUIPMENT(YT2) EXC. SPEED LIMITER 90KM(NMJ) 		8-98038-098-4 01 1 1008-1104
613 CONTROL UNIT; ENG
6WG1 TC-R(75L) TRANSMISSION CONTROL LINK TYPE(B2A) EURO4 SPECIFICATION<KBT> CHINA EQUIPMENT(YT2) EXC. SPEED LIMITER 90KM(NMJ) 		8-98038-098-4 01 1 1105-1112
613 CONTROL UNIT; ENG
6WG1 TC-R(75L) TRANSMISSION CONTROL LINK TYPE(B2A) EURO4 SPECIFICATION<KBT> CHINA EQUIPMENT(YT2) EXC. SPEED LIMITER 90KM(NMJ) 		8-97985-494-0 01 1 1201-
639 BRACKET; QOS GLOW TIMER
FULL TRAILER PIPING<Z25> EXC. ENGINE CONTROL-B2(Q4T) 		1-73908-161-0 01 1 1008-
640 BOLT; BRKT,QOS GLOW TIMER
ENGINE CONTROL-B2(Q4T) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-
640 BOLT; BRKT,QOS GLOW TIMER
FULL TRAILER PIPING<Z25> EXC. ENGINE CONTROL-B2(Q4T) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-
748 BOLT; CONT UNIT
M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 1008-
782 BOLT; SENSOR
ENGINE CONTROL-B2(Q4T) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 1008-
843 SEAL; BRKT 1-76770-009-2 01 1 1008-1101
843 SEAL; BRKT 8-98119-974-0 01 1 1102-
946 SEAL; TAPE
RUSSIA EQUIPMENT(B12) EURO4 SPECIFICATION<KBT> SPEED LIMITER 90KM(NMJ) 		8-98166-639-0 02 1 1008-
953 RESISTOR; CONT UNIT
ENGINE CONTROL-B2(Q4T) 		8-97357-613-0 01 1 1008-
954 NUT; RESISTOR
ENGINE CONTROL-B2(Q4T) M6 FLANGE 		0-91180-106-0 02 1 1008-

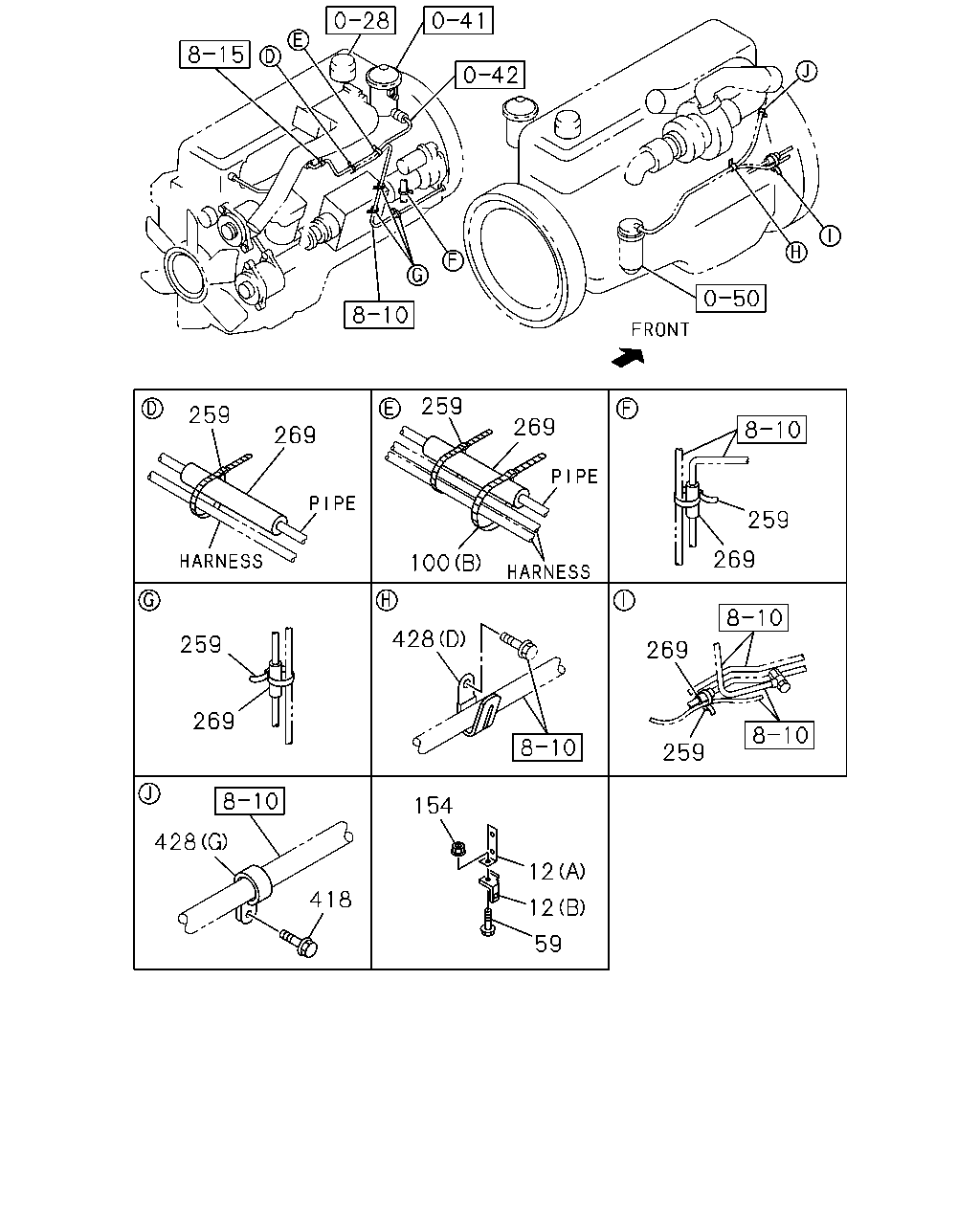

çizim 166757
259 259 269 269 259 269 100 428 259 269 269 259 154 428 12 418 12 59
BalonParca AdiParca NoAdetTipApplied Date
12 BRACKET; STARTER RELAY
ENGINE CONTROL COMMON RAIL(Q4R) (A) L=90 B=25 		1-47476-630-0 01 1 1008-
12 BRACKET; STARTER RELAY
ENGINE CONTROL COMMON RAIL(Q4R) (B) 		8-97304-944-0 01 1 1008-
59 BOLT; BRKT,HARNESS CLIP
ENGINE CONTROL COMMON RAIL(Q4R) M8X20 FLANGE 		0-28650-820-0 01 1 1008-
59 BOLT; BRKT,HARNESS CLIP
ENGINE CONTROL COMMON RAIL(Q4R) M8X25 FLANGE 		0-28650-825-0 01 1 1008-
100 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1008-
100 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 1008-1205
100 CLIP; HARNESS
(B) L=140 		8-98216-431-0 02 1 1206-
154 NUT; BRKT FIX
ENGINE CONTROL COMMON RAIL(Q4R) M8 FLANGE 		0-91180-108-0 01 1 1008-
259 CLIP; BAND,HARNESS TO OIL PIPE
6WF1 TC-C(1B8) L=250 		5-09707-030-1 04 1 1008-1205
259 CLIP; BAND,HARNESS TO OIL PIPE
6WF1 TC-C(1B8) L=250 		8-98216-430-0 04 1 1206-1208
259 CLIP; BAND,HARNESS TO OIL PIPE
6WF1 TC-C(1B8) L=250 		8-98216-430-0 05 1 1209-
259 CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-R(75L) L=140 		5-09707-031-1 05 1 1008-1205
259 CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-R(75L) L=140 		8-98216-431-0 05 1 1206-
259 CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-R(75L) L=251 		8-97619-917-0 01 1 1008-
269 SLEEVE; RUBBER,CABLE
6WF1 TC-C(1B8) ID=10 OD=14 L=30 		9-09956-682-0 02 1 1008-
269 SLEEVE; RUBBER,CABLE
6WG1 TC-R(75L) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1008-
418 BOLT; CLIP
6WF1 TC-C(1B8) M10X16 FLANGE 		0-28151-016-0 01 1 1008-
428 CLIP; HARNESS
ENGINE CONTROL-B2(Q4T) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (H) ID=25 L=40 		1-09700-215-1 01 1 1104-
428 CLIP; HARNESS
ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) ID=35 L=35 		1-09700-684-0 03 1 1104-
428 CLIP; HARNESS
(C) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1008-
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 1008-
428 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (A) ID=35 L=35 		1-09700-684-0 01 1 1008-
428 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-1103
428 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1104-
428 CLIP; HARNESS
ENGINE CONTROL-B2(Q4T) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1104-
428 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (E) ID=22 L=52 		9-09917-431-0 03 1 1008-
428 CLIP; HARNESS
ENGINE CONTROL-B2(Q4T) (A) ID=35 L=35 		1-09700-684-0 03 1 1008-1103
428 CLIP; HARNESS
ENGINE CONTROL-B2(Q4T) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (A) ID=35 L=35 		1-09700-684-0 02 1 1104-
428 CLIP; HARNESS
ENGINE CONTROL-B2(Q4T) (B) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 1008-1103
428 CLIP; HARNESS
ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 1104-
428 CLIP; HARNESS
ENGINE CONTROL-B2(Q4T) (E) ID=26 L=26 		1-09701-236-0 01 1 1008-1103
428 CLIP; HARNESS
ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (E) ID=26 L=26 		1-09701-236-0 01 1 1104-
428 CLIP; HARNESS
ENGINE CONTROL-B2(Q4T) (F) L=350 		1-09707-183-0 01 1 1008-
428 CLIP; HARNESS
6WF1 TC-C(1B8) (G) ID=11 L=28 		9-09917-544-0 01 1 1008-

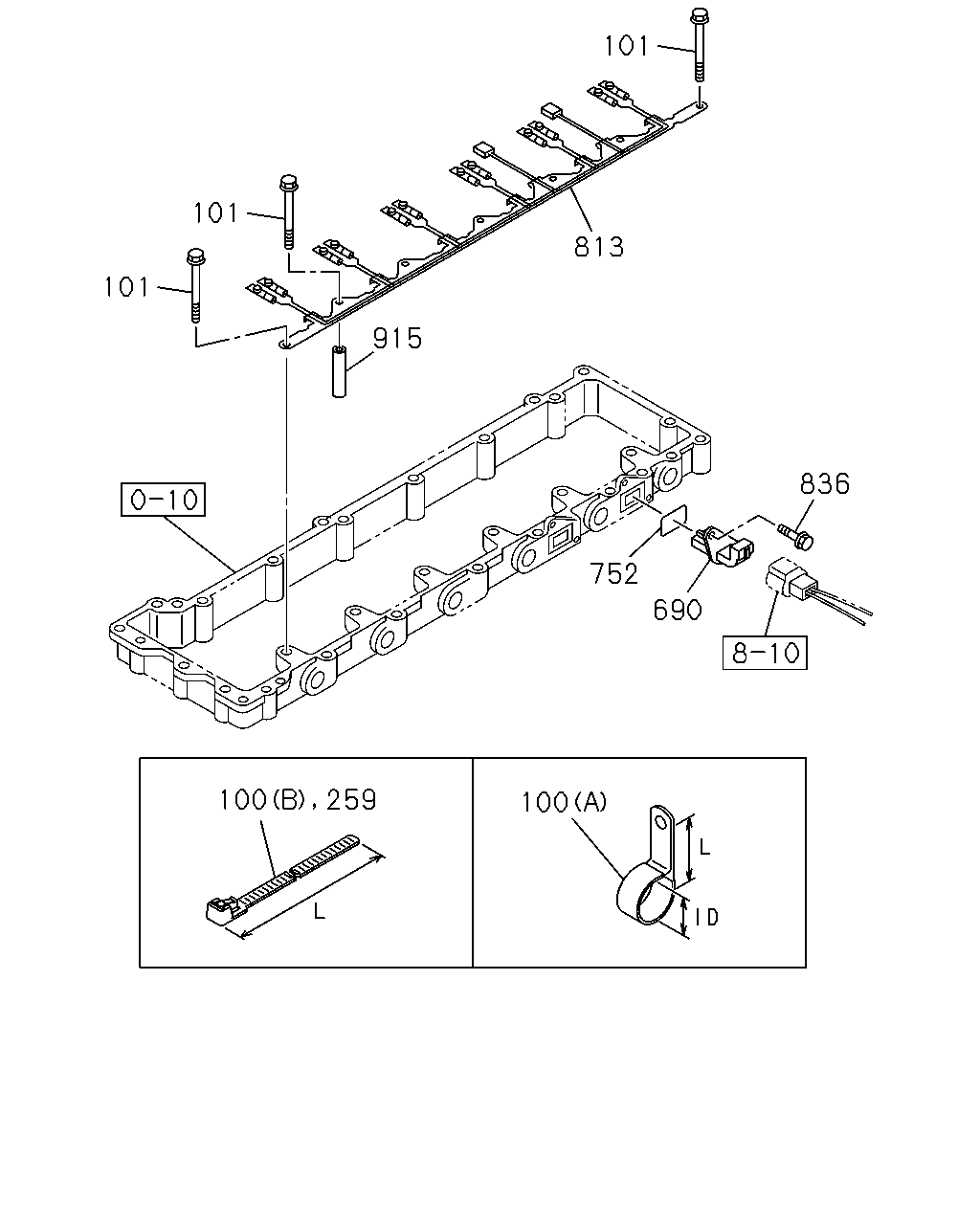

çizim 166761
101 101 813 101 915 836 752 690 100 100 259
BalonParca AdiParca NoAdetTipApplied Date
100 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1008-
100 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 1008-1205
100 CLIP; HARNESS
(B) L=140 		8-98216-431-0 02 1 1206-
101 BOLT; HARNESS
M8X70 FLANGE 		0-28050-870-0 07 1 1008-
259 CLIP; BAND,HARNESS TO OIL PIPE
6WF1 TC-C(1B8) L=250 		5-09707-030-1 04 1 1008-1205
259 CLIP; BAND,HARNESS TO OIL PIPE
6WF1 TC-C(1B8) L=250 		8-98216-430-0 04 1 1206-1208
259 CLIP; BAND,HARNESS TO OIL PIPE
6WF1 TC-C(1B8) L=250 		8-98216-430-0 05 1 1209-
259 CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-R(75L) L=140 		5-09707-031-1 05 1 1008-1205
259 CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-R(75L) L=140 		8-98216-431-0 05 1 1206-
259 CLIP; BAND,HARNESS TO OIL PIPE
6WG1 TC-R(75L) L=251 		8-97619-917-0 01 1 1008-
690 CONNECTOR 8-94390-858-1 02 1 1008-
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 1008-
813 HARNESS; INJECTOR 1-82641-338-1 01 1 1008-
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 1008-
915 SPACER; HARNESS
L=51 		1-11369-157-0 05 1 1008-

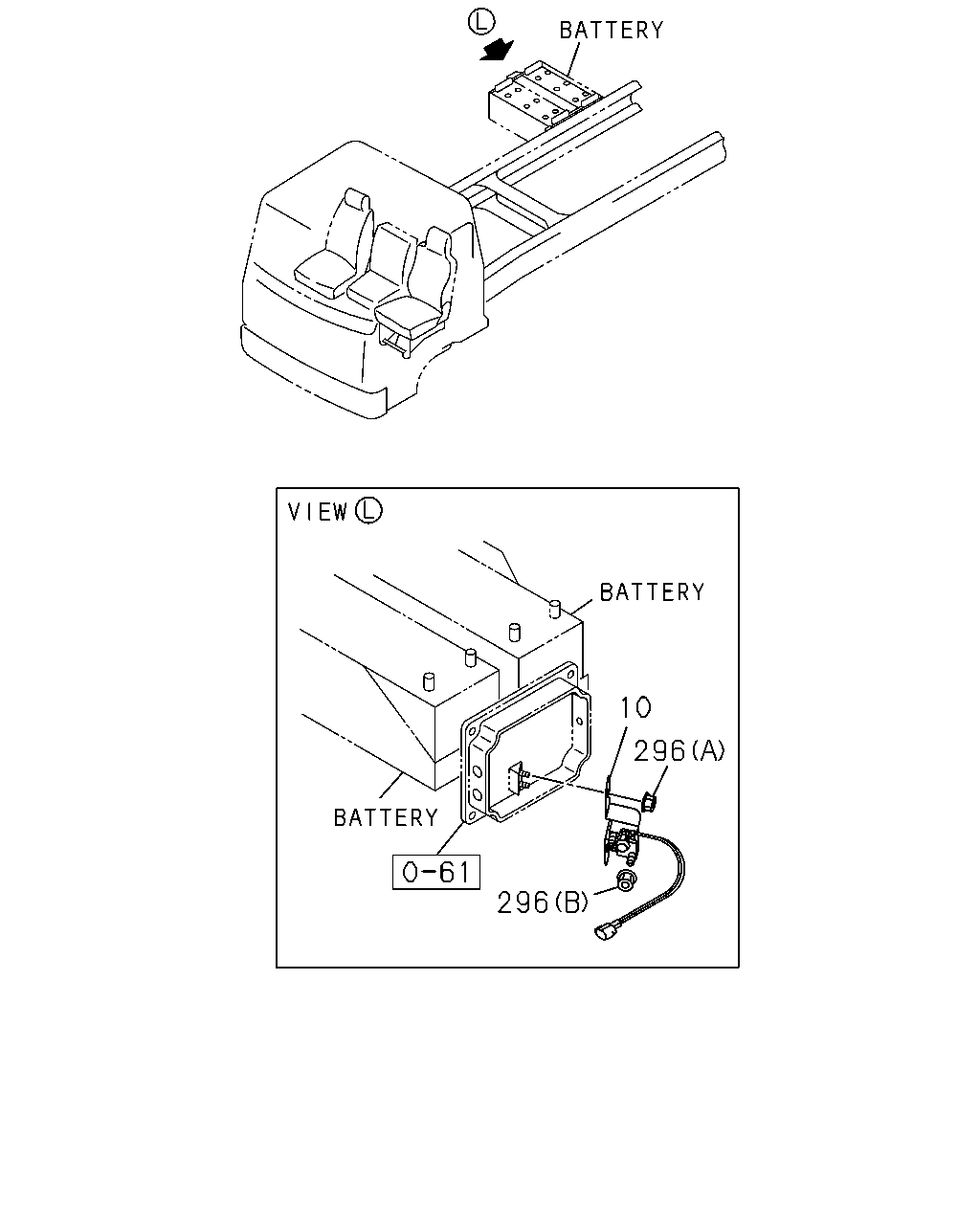

çizim 166766
10 296 296
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER
ENGINE CONTROL COMMON RAIL(Q4R) 		1-81171-097-1 01 1 1008-
10 RELAY; STARTER
ENGINE CONTROL-B2(Q4T) 		1-81171-100-1 01 1 1008-
296 NUT; RELAY,STARTER
(A) M8 FLANGE 		0-91180-108-0 02 1 1008-
296 NUT; RELAY,STARTER
(B) M6 FLANGE 		0-91180-206-0 02 1 1008-

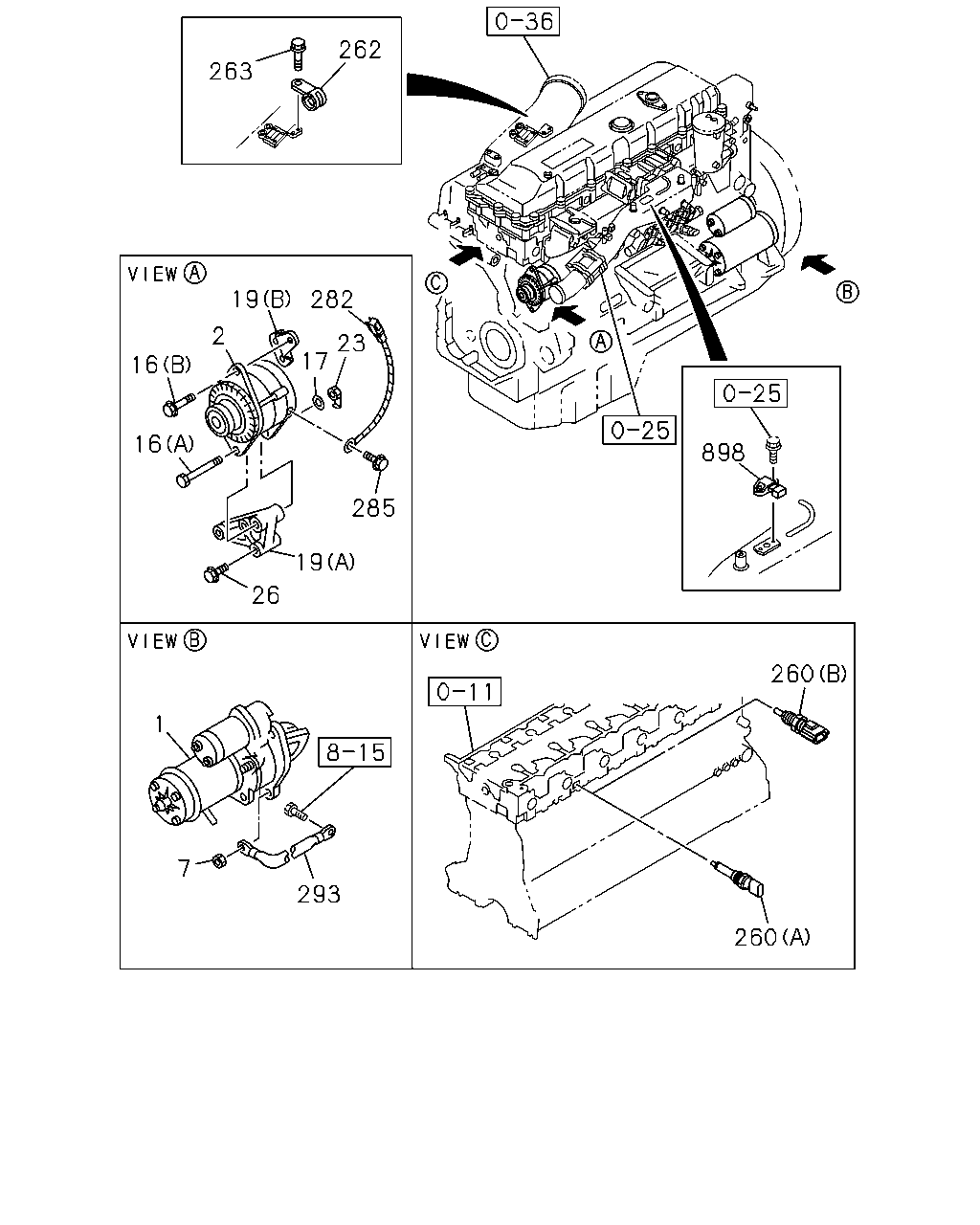

çizim 166838
263 262 16 16 2 19 282 23 17 285 19 26 1 7 293 260 260 898
BalonParca AdiParca NoAdetTipApplied Date
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI 		8-97380-509-4 01 1 1008-
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI 		8-97380-508-4 01 1 1008-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) 24V 60A MITSUBISHI 		1-81200-572-8 01 1 1008-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 24V 90A MITSUBISHI 		1-81200-647-3 01 1 1008-
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 1008-
16 BOLT; GEN
(B) M12X40 FLANGE 		0-28051-240-0 01 1 1008-
16 BOLT; GEN
GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) (A) M14X123 		1-09040-105-0 01 1 1008-
16 BOLT; GEN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) M14X157 		1-09040-106-0 01 1 1008-
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 1008-
19 BRACKET; GEN
(B) 		8-97606-317-0 01 1 1008-
19 BRACKET; GEN
6WF1 TC-C(1B8) (A) 		8-97604-177-0 01 1 1008-
19 BRACKET; GEN
6WG1 TC-R(75L) (A) 		8-97607-133-0 01 1 1008-
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 1008-
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28151-060-0 02 1 1008-
260 SENSOR; WATER TEMP
6WF1 TC-C(1B8) (A) 		1-80210-005-1 01 1 1008-
260 SENSOR; WATER TEMP
6WG1 TC-R(75L) (B) MITSUBISHI 		8-98023-883-0 01 1 1008-1406
260 SENSOR; WATER TEMP
6WG1 TC-R(75L) (B) NISHIDA 		8-98260-257-0 01 1 1407-
262 CLIP; HARNESS
6WG1 TC-R(75L) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ID=17 L=20 		8-97619-251-0 01 1 1201-
262 CLIP; HARNESS
6WG1 TC-R(75L) ID=17 L=20 		8-97619-251-0 01 1 1008-1112
262 CLIP; HARNESS
6WG1 TC-R(75L) POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ID=17 L=20 		8-97619-251-0 03 1 1201-
263 BOLT; CLIP
6WG1 TC-R(75L) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X16 FLANGE 		0-28050-816-0 01 1 1201-
263 BOLT; CLIP
6WG1 TC-R(75L) M8X16 FLANGE 		0-28050-816-0 01 1 1008-1112
263 BOLT; CLIP
6WG1 TC-R(75L) POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X16 FLANGE 		0-28050-816-0 03 1 1201-
282 HARNESS; EXT,GEN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) 		1-82640-682-2 01 1 1008-
285 BOLT; GEN
GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) M8X12 FLANGE 		0-28050-812-0 01 1 1008-
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 1008-
898 SENSOR; BOOST
6WF1 TC-C(1B8) 		1-80220-014-0 01 1 1008-
898 SENSOR; BOOST
6WG1 TC-R(75L) 		8-98009-418-0 01 1 1008-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
