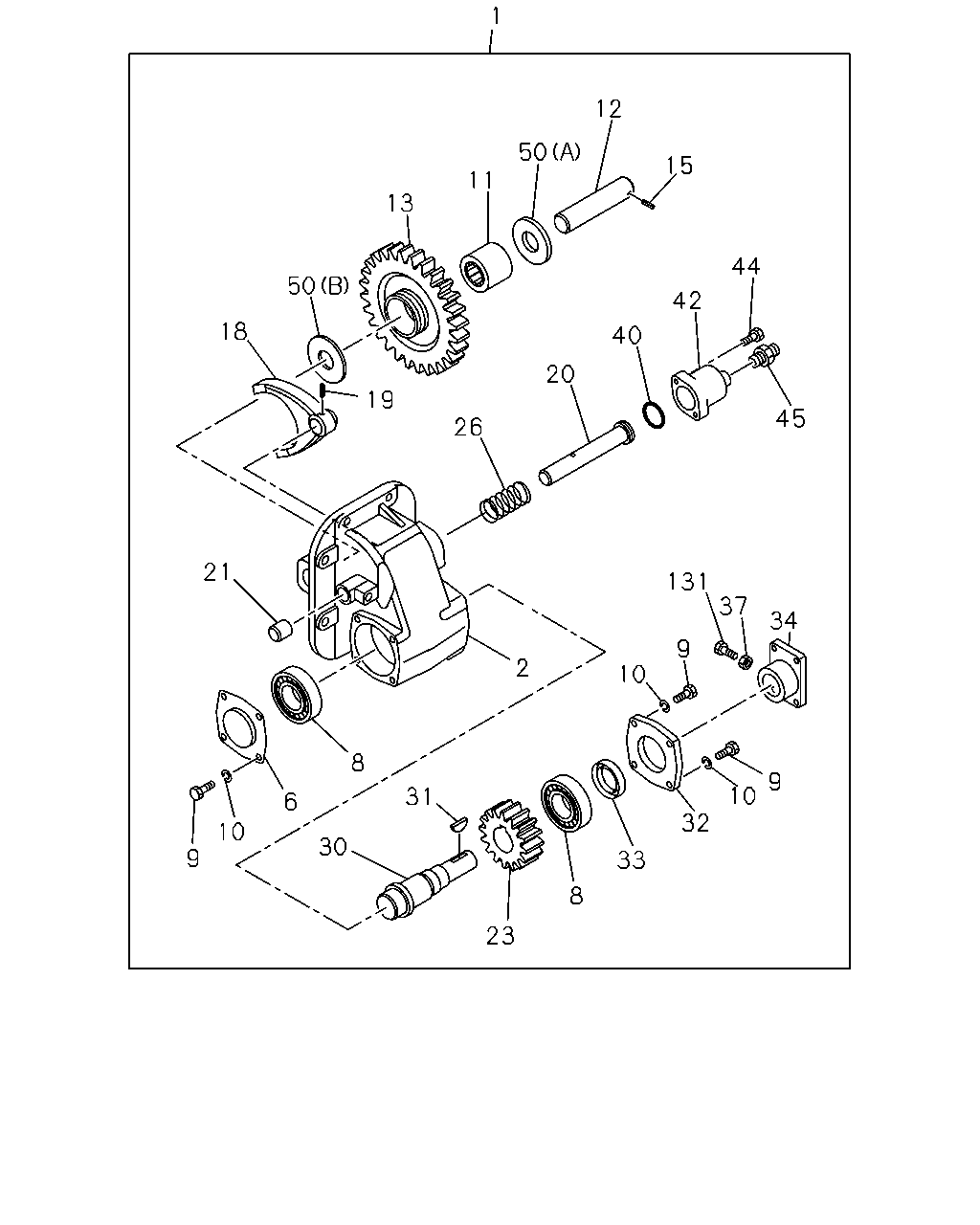

1 |
POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38000-247-1 |
01 |
1 |
9604-9612 |
| |
1 |
POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38000-325-0 |
01 |
1 |
9701-9702 |
| |
1 |
POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38000-326-1 |
01 |
1 |
9703- |
| |
2 |
CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38111-065-0 |
01 |
1 |
9604- |
| |
6 |
COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38151-006-0 |
01 |
1 |
9604- |
| |
8 |
BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
5-00098-057-0 |
02 |
1 |
9604- |
| |
9 |
BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5)
M10X16
|
9-02341-016-0 |
08 |
1 |
9604- |
| |
10 |
WASHER; OUTPUT SHAFT COVER,SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
ID=10.2
|
9-09150-510-0 |
08 |
1 |
9604- |
| |
11 |
BEARING; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-09811-144-0 |
01 |
1 |
9604- |
| |
12 |
SHAFT; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38211-018-0 |
01 |
1 |
9604-9702 |
| |
12 |
SHAFT; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38221-024-0 |
01 |
1 |
9703- |
| |
13 |
GEAR; IDLE,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
Z=35
|
1-38241-056-0 |
01 |
1 |
9604- |
| |
15 |
PIN; SPR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
L=16
|
9-09878-613-0 |
01 |
1 |
9604- |
| |
18 |
ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38361-027-0 |
01 |
1 |
9604-9702 |
| |
18 |
ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38361-025-0 |
01 |
1 |
9703- |
| |
19 |
PIN; SPR,SHIFT ARM,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-09748-019-0 |
01 |
1 |
9604- |
| |
20 |
ROD; GEAR SHIFTER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38371-049-1 |
01 |
1 |
9604- |
| |
21 |
COVER; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
9-33545-001-0 |
01 |
1 |
9604- |
| |
23 |
GEAR; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
Z=21
|
1-38241-087-0 |
01 |
1 |
9604- |
| |
26 |
SPRING; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38121-004-1 |
01 |
1 |
9604- |
| |
30 |
SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38211-023-0 |
01 |
1 |
9604-9612 |
| |
30 |
SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38211-030-0 |
01 |
1 |
9701- |
| |
31 |
KEY; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
9-08050-732-0 |
01 |
1 |
9604-9612 |
| |
32 |
COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38152-016-0 |
01 |
1 |
9604- |
| |
33 |
SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
9-09924-142-0 |
01 |
1 |
9604-9612 |
| |
33 |
SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38119-040-0 |
01 |
1 |
9701- |
| |
34 |
FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38512-013-1 |
01 |
1 |
9604-9612 |
| |
34 |
FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38512-019-1 |
01 |
1 |
9701- |
| |
37 |
NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
M8
|
9-09111-508-0 |
01 |
1 |
9604-9612 |
| |
37 |
NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
M16
|
1-38119-036-0 |
01 |
1 |
9701- |
| |
40 |
GASKET; AIR SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
9-09561-324-0 |
01 |
1 |
9604- |
| |
42 |
CYLINDER; AIR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
|
1-38377-007-0 |
01 |
1 |
9604- |
| |
44 |
BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
M10X25 FLANGE
|
0-28181-025-0 |
02 |
1 |
9604- |
| |
45 |
NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
M20 & PT1/4
|
9-09902-386-0 |
01 |
1 |
9604- |
| |
50 |
WASHER; THRUST,IDLE GEAR,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5)
(A)
|
1-38226-045-0 |
01 |
1 |
9604- |
| |
50 |
WASHER; THRUST,IDLE GEAR,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5)
(B)
|
1-38226-052-0 |
01 |
1 |
9604- |
| |
131 |
BOLT; FLANGE
TRANSMISSION SIDE PTO WO/LEVER(SH5)
M8X20
|
0-20800-820-0 |
01 |
1 |
9604-9612 |
