0-52 — OIL AND VACUUM PIPING; ENGINE (#63029) — 138 parça

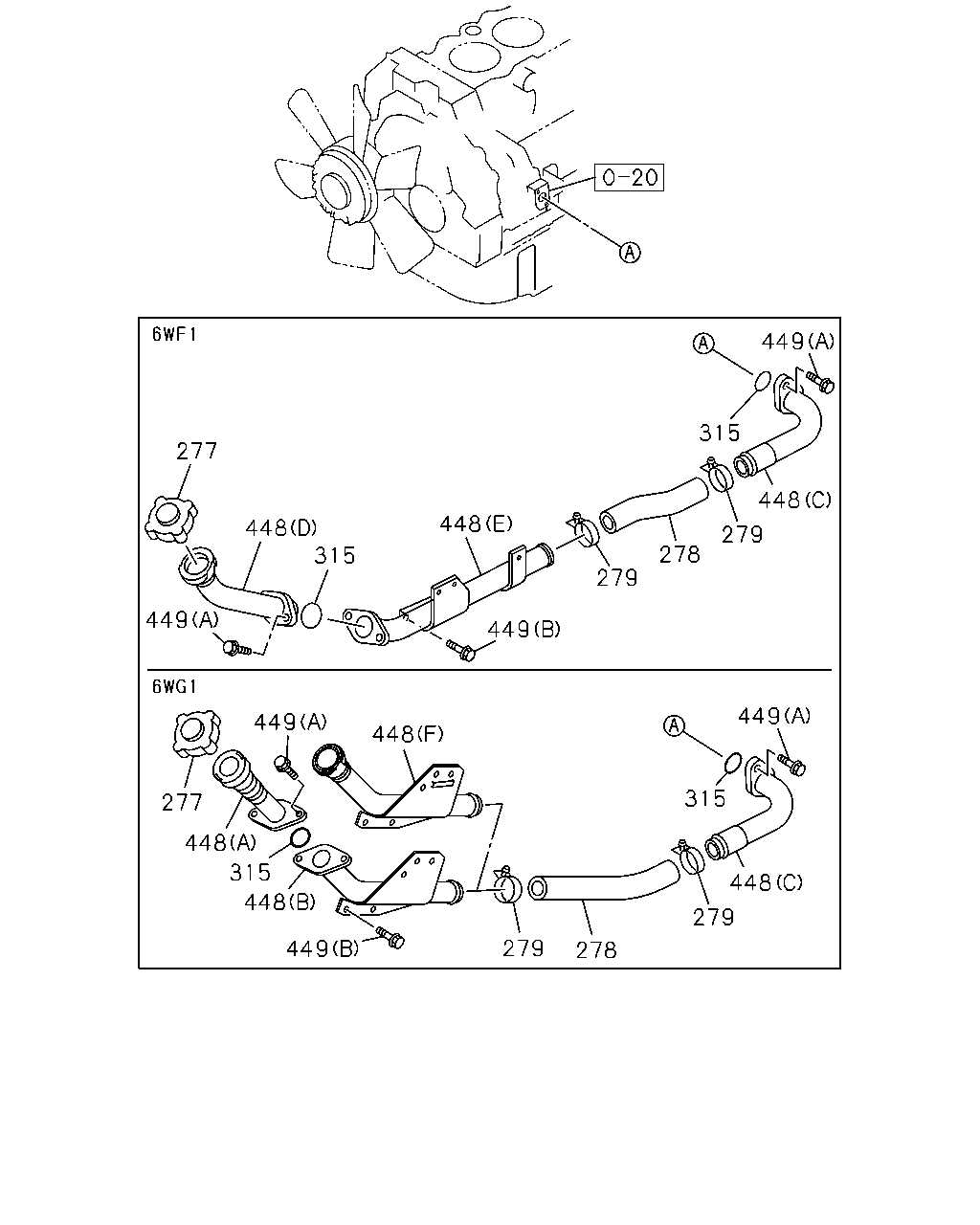

449 315 277 448 448 448 315 279 278 279 449 449 449 449 448 315 277 448 315 448 448 279 279 449 278

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
277	CAP; OIL FILLER	1-11750-028-0	01	1	1008-	●	●
278	HOSE; RUBBER,OIL FILLER	1-11749-205-0	01	1	1008-	●
278	HOSE; RUBBER,OIL FILLER	1-11749-216-0	01	1	1008-		●
279	CLIP; RUBBER HOSE ID=48	9-09915-512-1	02	1	1008-	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-299-0	01	1	1008-	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-299-0	01	1	1008-	●	●
448	FILLER; OIL (D)	1-11741-175-4	01	1	1008-	●
448	FILLER; OIL (E)	1-11741-304-0	01	1	1008-	●
448	FILLER; OIL (C)	1-11740-227-2	01	1	1008-	●	●
448	FILLER; OIL (A)	1-11741-313-0	01	1	1008-1103		●
448	FILLER; OIL EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A)	1-11741-313-0	01	1	1104-		●
448	FILLER; OIL (B)	1-11741-314-0	01	1	1008-1103		●
448	FILLER; OIL EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B)	1-11741-314-0	01	1	1104-		●
448	FILLER; OIL LOW DECK WO/REAR BODY VAR2<XR8> (F)	8-97624-451-0	01	1	1104-		●
449	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-	●	●
449	BOLT; OIL FILLER (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-	●	●
449	BOLT; OIL FILLER (B) M8X25 FLANGE	0-28650-825-0	02	1	1008-1103	●	●
449	BOLT; OIL FILLER EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) M8X25 FLANGE	0-28650-825-0	02	1	1104-	●	●

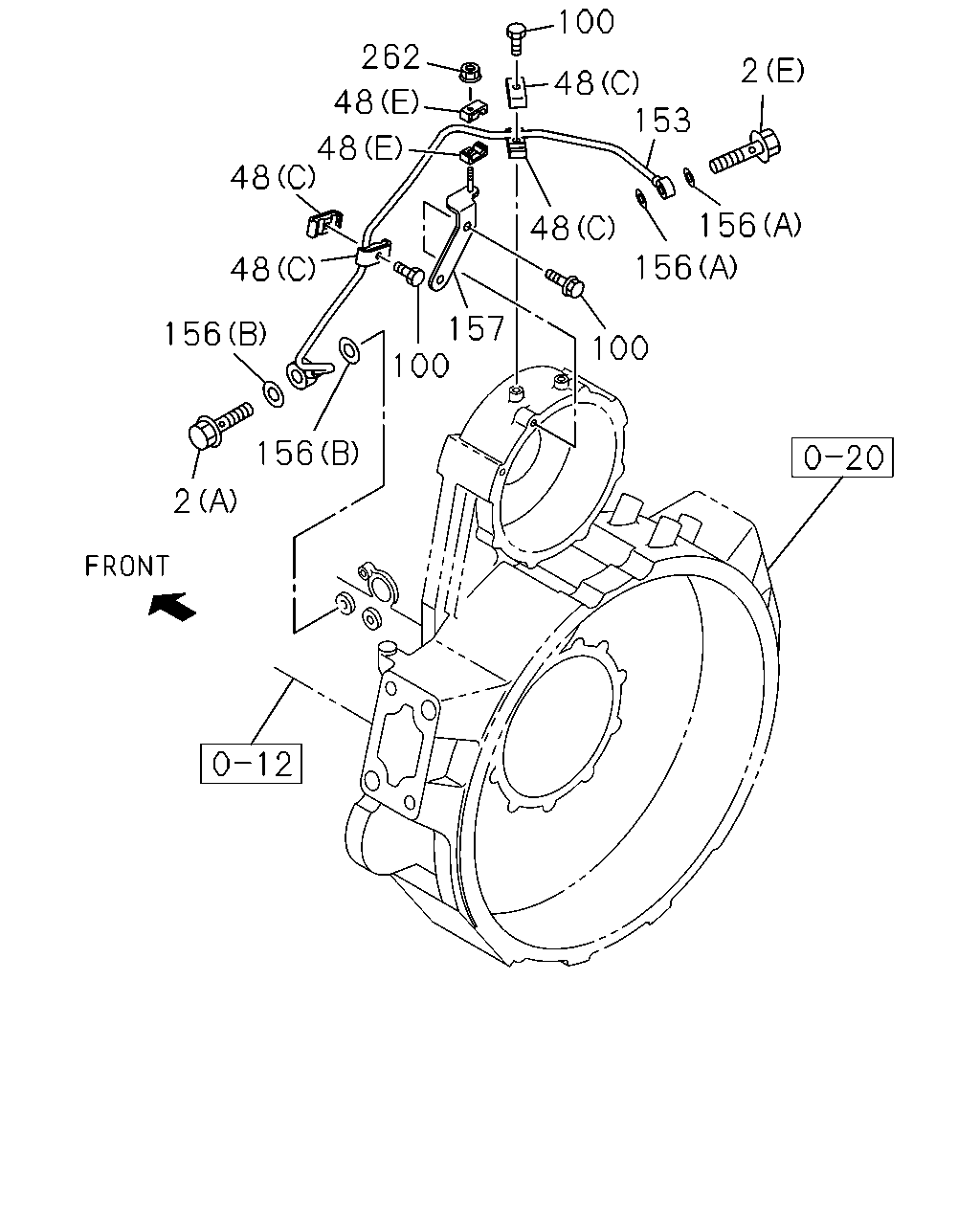

100 262 2 48 153 48 48 48 156 48 156 48 157 100 156 100 156 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE (F) M10X28	8-98037-823-0	01	1	1008-	●
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	1008-	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M14X27 FLANGE	1-09675-086-0	01	1	1008-	●	●
2	BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	8-97372-238-0	03	1	1008-	●	●
2	BOLT; EYE,OIL PIPE (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1008-	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (E) M10X21 FLANGE	8-97372-238-0	01	1	1008-	●	●
2	BOLT; EYE,OIL PIPE (B) M12X28	8-97388-295-0	01	1	1008-		●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-132-1	02	1	1104-1210		●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-240-0	02	1	1211-		●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (E) ID=5.5 L=10.5	8-98029-953-1	02	1	1104-		●
48	CLIP; OIL PIPE (D) ID=9 & 9 L=25	1-09701-212-2	01	1	1008-	●
48	CLIP; OIL PIPE (B) ID=9 & 11 L=28	1-09701-265-1	02	1	1008-	●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-132-1	04	1	1008-1103	●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-132-1	04	1	1104-1210	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-240-0	04	1	1211-	●
48	CLIP; OIL PIPE (A) ID=7 & 11 L=28	1-09701-231-1	01	1	1008-		●
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28650-630-0	01	1	1104-		●
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28650-630-0	02	1	1008-1103	●	●
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28650-630-0	02	1	1104-	●
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO(SV1)	8-97610-104-0	01	1	1008-	●
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO(SV1)	8-97611-055-0	01	1	1008-		●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1008-	●	●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	1008-1312	●	●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
157	BRACKET; OIL PIPE ENGINE REAR PTO(SV1)	8-97621-112-0	01	1	1104-		●
262	NUT; CLIP,OIL PIPE ENGINE REAR PTO(SV1) M6 FLANGE	0-91180-106-0	01	1	1104-		●

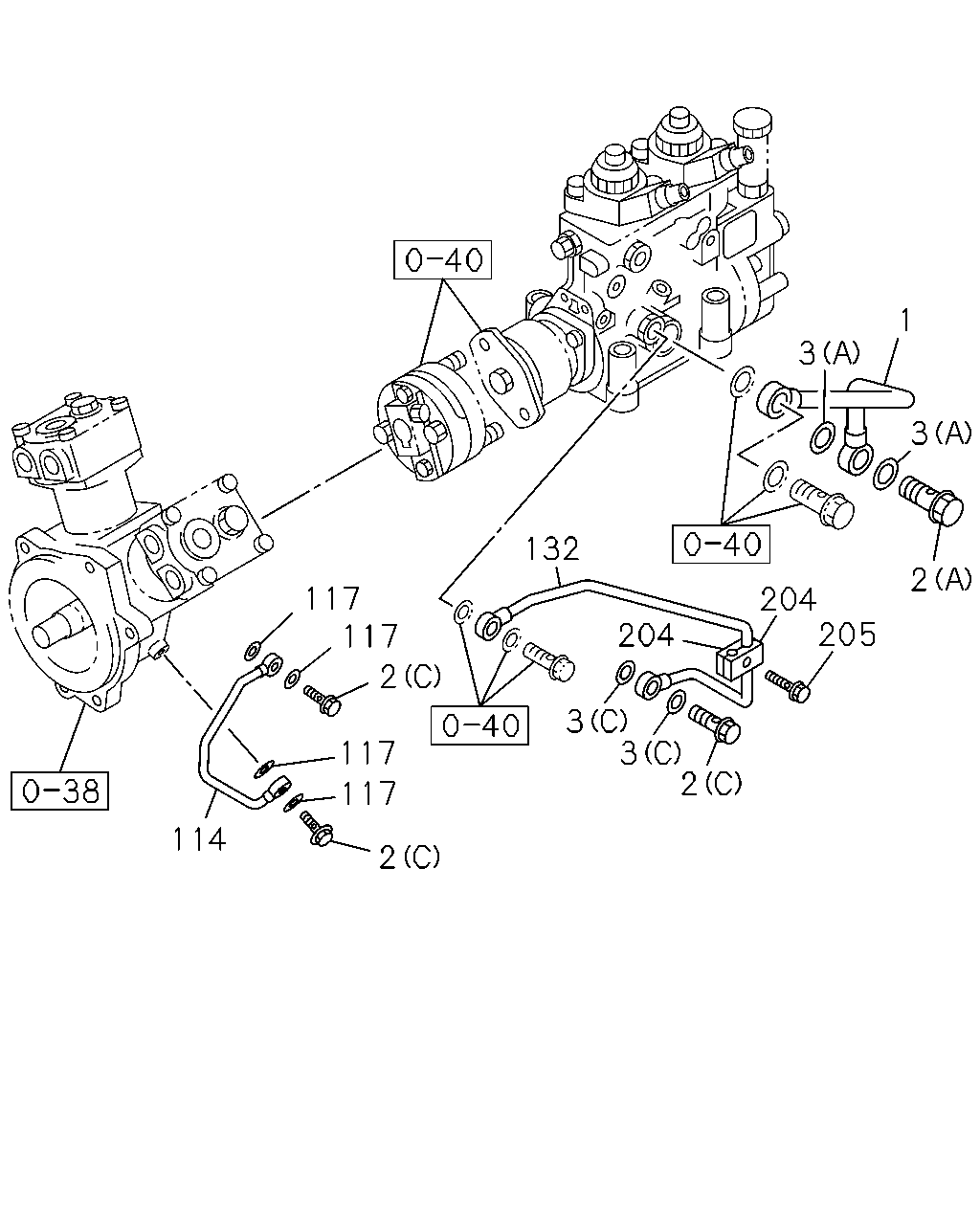

1 3 3 132 2 117 117 204 205 204 2 3 3 2 117 117 114 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL	1-13314-022-0	01	1	1008-	●	●
2	BOLT; EYE,OIL PIPE (F) M10X28	8-98037-823-0	01	1	1008-	●
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	1008-	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M14X27 FLANGE	1-09675-086-0	01	1	1008-	●	●
2	BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	8-97372-238-0	03	1	1008-	●	●
2	BOLT; EYE,OIL PIPE (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1008-	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (E) M10X21 FLANGE	8-97372-238-0	01	1	1008-	●	●
2	BOLT; EYE,OIL PIPE (B) M12X28	8-97388-295-0	01	1	1008-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=10.2 OD=16.0	9-09571-410-0	02	1	1008-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2	1-09630-083-0	02	1	1008-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.2	1-09630-084-0	02	1	1008-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.2	8-98251-344-0	02	1	1401-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	1008-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	9-09571-412-0	02	1	1008-		●
114	PIPE ASM; OIL,BODY	1-13314-040-0	01	1	1008-	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	1008-	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13314-021-0	01	1	1008-	●	●
204	CLIP; OIL PIPE	1-09701-132-1	02	1	1008-1210	●	●
204	CLIP; OIL PIPE	1-09701-240-0	02	1	1211-	●	●
205	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	1008-	●	●

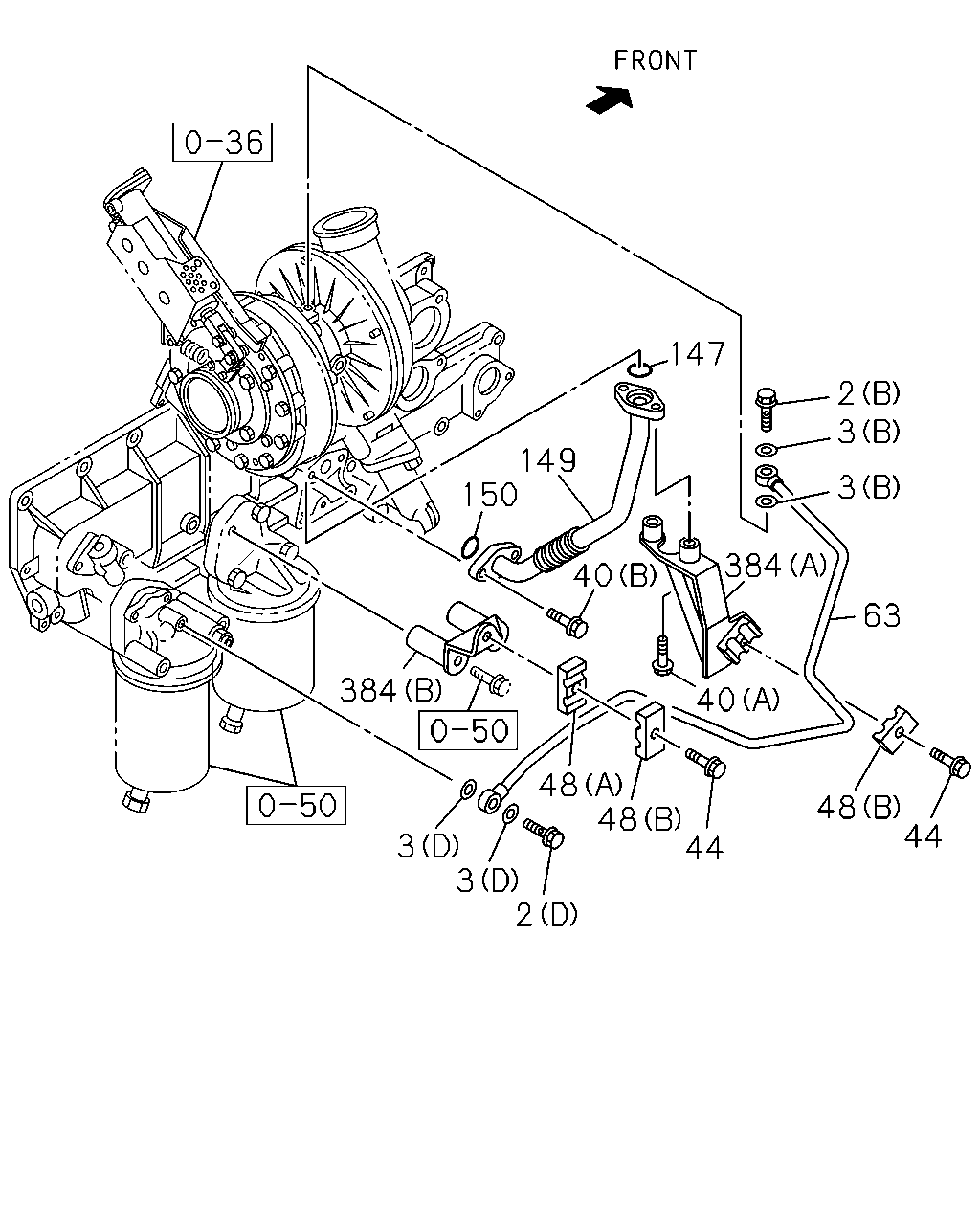

147 150 2 3 63 149 3 40 44 48 384 384 40 48 44 3 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE (F) M10X28	8-98037-823-0	01	1	1008-	●
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	1008-	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M14X27 FLANGE	1-09675-086-0	01	1	1008-	●	●
2	BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	8-97372-238-0	03	1	1008-	●	●
2	BOLT; EYE,OIL PIPE (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1008-	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (E) M10X21 FLANGE	8-97372-238-0	01	1	1008-	●	●
2	BOLT; EYE,OIL PIPE (B) M12X28	8-97388-295-0	01	1	1008-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=10.2 OD=16.0	9-09571-410-0	02	1	1008-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2	1-09630-083-0	02	1	1008-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.2	1-09630-084-0	02	1	1008-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.2	8-98251-344-0	02	1	1401-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	1008-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	9-09571-412-0	02	1	1008-		●
40	BOLT; OIL PIPE (C) M10X30 FLANGE	0-28151-030-0	02	1	1008-	●
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28751-025-0	02	1	1008-	●	●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	1008-		●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28050-630-0	02	1	1008-	●
44	BOLT; CLIP,OIL PIPE M6X35 FLANGE	0-28050-635-0	02	1	1008-		●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-132-1	02	1	1104-1210		●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-240-0	02	1	1211-		●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (E) ID=5.5 L=10.5	8-98029-953-1	02	1	1104-		●
48	CLIP; OIL PIPE (D) ID=9 & 9 L=25	1-09701-212-2	01	1	1008-	●
48	CLIP; OIL PIPE (B) ID=9 & 11 L=28	1-09701-265-1	02	1	1008-	●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-132-1	04	1	1008-1103	●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-132-1	04	1	1104-1210	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-240-0	04	1	1211-	●
48	CLIP; OIL PIPE (A) ID=7 & 11 L=28	1-09701-231-1	01	1	1008-		●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-734-0	01	1	1008-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97609-509-0	01	1	1008-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	01	1	1008-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-735-2	01	1	1008-	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13314-024-1	01	1	1008-		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	1008-	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (C)	1-13345-191-0	01	1	1008-	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (D)	1-13345-201-0	01	1	1008-	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-216-0	01	1	1008-		●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-225-1	01	1	1008-		●

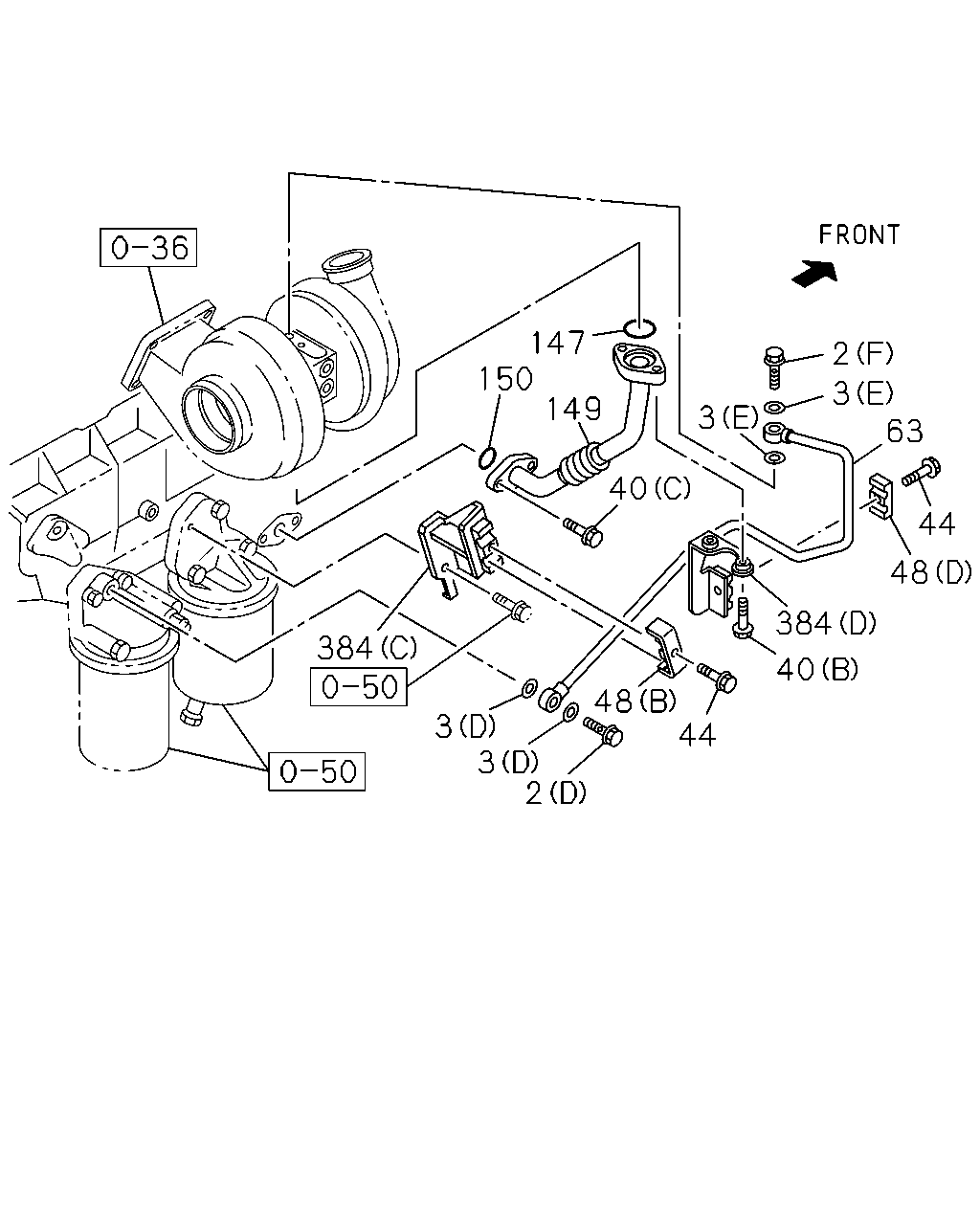

147 2 3 149 150 3 384 40 63 384 40 48 48 44 48 44 3 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE (F) M10X28	8-98037-823-0	01	1	1008-	●
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE	1-09675-086-0	01	1	1008-	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M14X27 FLANGE	1-09675-086-0	01	1	1008-	●	●
2	BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	8-97372-238-0	03	1	1008-	●	●
2	BOLT; EYE,OIL PIPE (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1008-	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (E) M10X21 FLANGE	8-97372-238-0	01	1	1008-	●	●
2	BOLT; EYE,OIL PIPE (B) M12X28	8-97388-295-0	01	1	1008-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=10.2 OD=16.0	9-09571-410-0	02	1	1008-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2	1-09630-083-0	02	1	1008-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.2	1-09630-084-0	02	1	1008-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.2	8-98251-344-0	02	1	1401-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	1008-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	9-09571-412-0	02	1	1008-		●
40	BOLT; OIL PIPE (C) M10X30 FLANGE	0-28151-030-0	02	1	1008-	●
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28751-025-0	02	1	1008-	●	●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	1008-		●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28050-630-0	02	1	1008-	●
44	BOLT; CLIP,OIL PIPE M6X35 FLANGE	0-28050-635-0	02	1	1008-		●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-132-1	02	1	1104-1210		●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-240-0	02	1	1211-		●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (E) ID=5.5 L=10.5	8-98029-953-1	02	1	1104-		●
48	CLIP; OIL PIPE (D) ID=9 & 9 L=25	1-09701-212-2	01	1	1008-	●
48	CLIP; OIL PIPE (B) ID=9 & 11 L=28	1-09701-265-1	02	1	1008-	●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-132-1	04	1	1008-1103	●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-132-1	04	1	1104-1210	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (C)	1-09701-240-0	04	1	1211-	●
48	CLIP; OIL PIPE (A) ID=7 & 11 L=28	1-09701-231-1	01	1	1008-		●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-734-0	01	1	1008-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97609-509-0	01	1	1008-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	01	1	1008-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-735-2	01	1	1008-	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13314-024-1	01	1	1008-		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	1008-	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (C)	1-13345-191-0	01	1	1008-	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (D)	1-13345-201-0	01	1	1008-	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-216-0	01	1	1008-		●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-225-1	01	1	1008-		●
