◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11271 - CYH LHD EURO2/3/4 WITH 3STEPS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#63019) — 6 parça

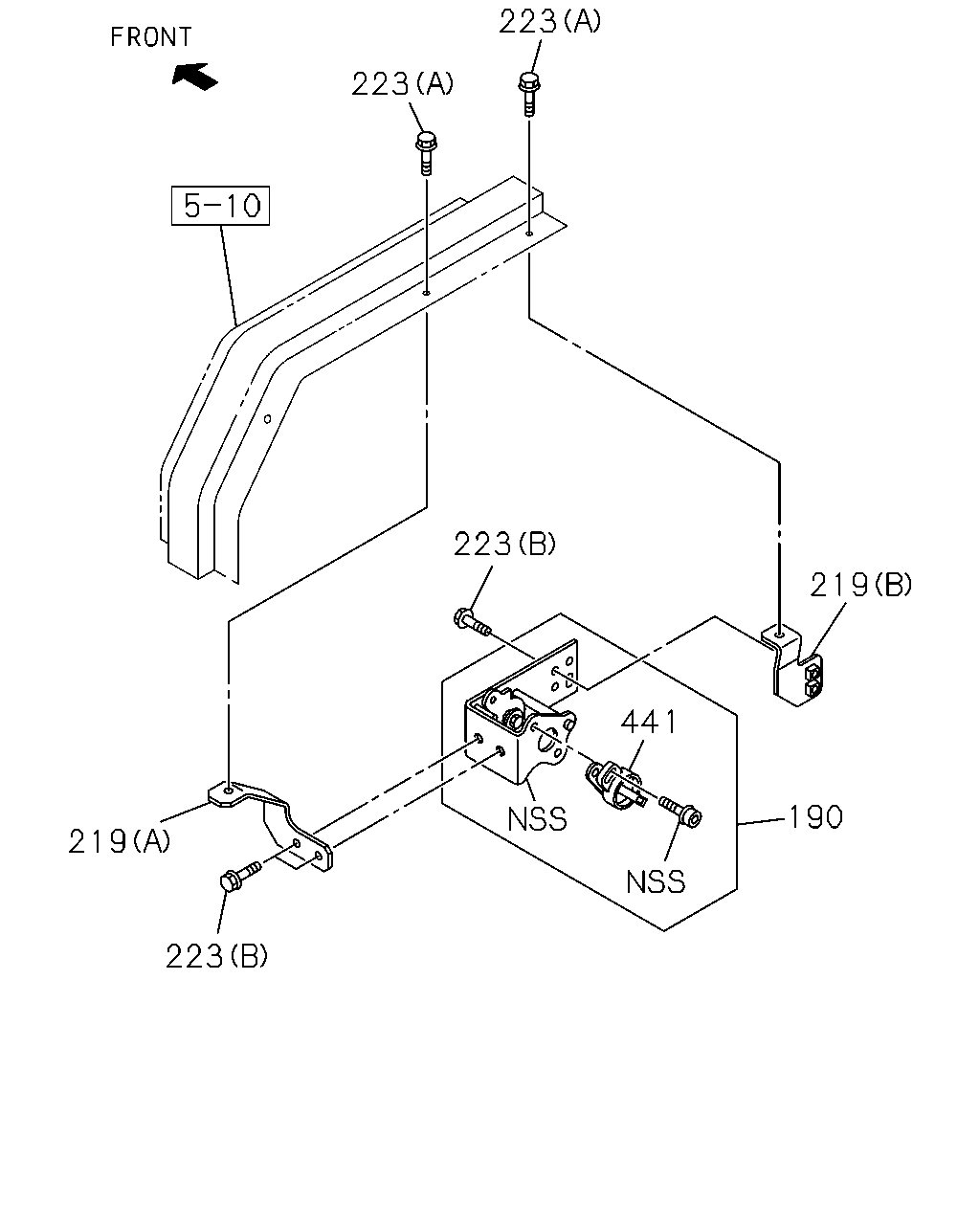

çizim 166717
223 223 223 219 441 190 219 223
BalonParca AdiParca NoAdetTipApplied Date A B
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-97219-466-4 01 1 1008- ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		8-98046-183-0 01 1 1008- ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		8-98046-184-0 01 1 1008- ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X16 FLANGE 		0-28050-816-0 04 1 1008- ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1008- ● ●
441 SENSOR; THROTTLE POSITION
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-97200-308-0 01 1 1008- ● ●
