Sayfa 0-28 - Isuzu EPC

0-28 — VENTILATION SYSTEM (#63014) — 257 parça

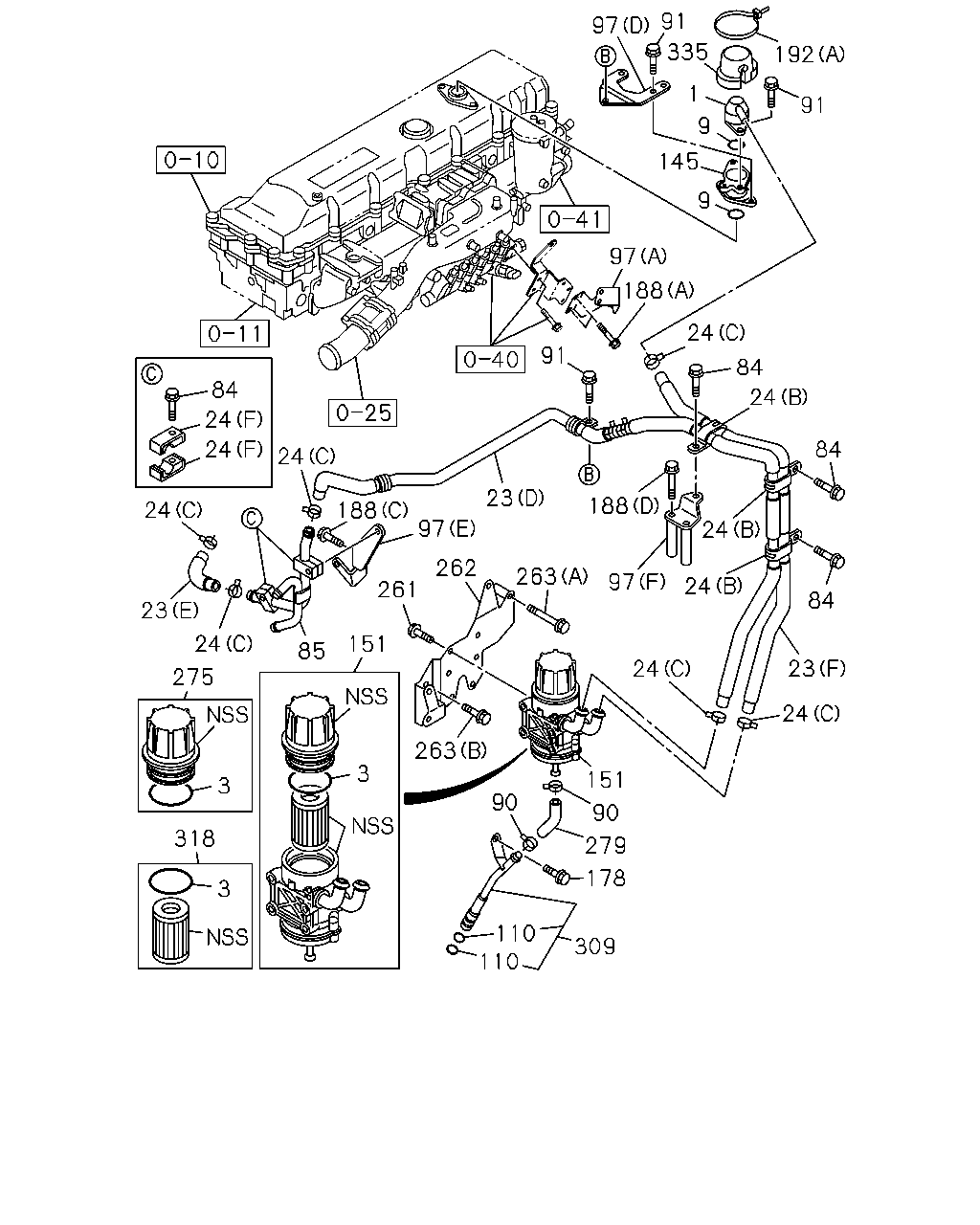

91 97 1 335 192 91 9 145 9 97 24 188 84 84 24 84 23 24 24 24 24 188 97 263 23 97 261 151 85 3 110 178 110 309 279 151 90 90 263 262 91 3 3 318 275 23 24 24 24 24 24 84 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BREATHER; AIR	1-11740-181-1	01	1	1008-	●	●
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	1008-1112		●
3	GASKET; BODY TO CAP CAUTIONS ENGLISH<RR8>	8-97385-921-0	01	1	1201-		●
9	GASKET; AIR BREATHER ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6	1-09623-565-0	01	1	1008-	●
9	GASKET; AIR BREATHER ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6	1-09623-565-0	02	1	1008-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (A)	8-97611-033-3	01	1	1008-1112		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (G)	8-98204-684-0	01	1	1201-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (B)	8-97611-034-2	01	1	1008-1112		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (C)	8-97611-035-3	01	1	1008-1112		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS ENGLISH<RR8> (D)	8-98163-389-2	01	1	1008-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS ENGLISH<RR8> (E)	8-98163-545-0	01	1	1008-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS ENGLISH<RR8> (F)	8-98165-843-0	01	1	1008-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (B) ID=30X2 L=28	1-09701-266-0	03	1	1412-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (A) ID=33 L=30	8-97619-250-0	02	1	1412-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (G) ID=35 H=45 L=33	1-09700-947-0	02	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (C) ID=28.5	1-09707-150-0	06	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR (B) ID=30X2 L=28	1-09701-266-0	03	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (B) ID=30X2 L=28	1-09701-266-0	03	1	1201-1210		●
24	CLIP; RUBBER HOSE,VENTILATOR (C) ID=28.5	1-09707-150-0	06	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (C) ID=28.5	1-09707-150-0	01	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR (D) L=250	5-09707-030-1	01	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (D) L=250	5-09707-030-1	01	1	1201-1205		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (D) L=250	8-98216-430-0	01	1	1206-		●
24	CLIP; RUBBER HOSE,VENTILATOR (A) ID=33 L=30	8-97619-250-0	02	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (A) ID=33 L=30	8-97619-250-0	02	1	1201-1210		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (E) ID=31 L=30	1-09700-969-0	01	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (A) ID=33 L=30	8-97619-250-0	03	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (F) ID=24.5 L=22	8-97603-362-1	04	1	1008-		●
84	BOLT; PIPE CLIP,VENTILATOR M8X16 FLANGE	0-28050-816-0	05	1	1008-1210		●
84	BOLT; PIPE CLIP,VENTILATOR M8X16 FLANGE	0-28050-816-0	07	1	1211-1411		●
84	BOLT; PIPE CLIP,VENTILATOR M8X16 FLANGE	0-28050-816-0	05	1	1412-		●
84	BOLT; PIPE CLIP,VENTILATOR CAUTIONS CHINESE<SL7> M8X50 FLANGE	0-28050-850-0	01	1	1008-1112		●
84	BOLT; PIPE CLIP,VENTILATOR CAUTIONS ENGLISH<RR8> M8X50 FLANGE	0-28050-850-0	02	1	1008-		●
85	PIPE; BREATHER CAUTIONS CHINESE<SL7>	8-97611-021-1	01	1	1008-1112		●
85	PIPE; BREATHER CAUTIONS ENGLISH<RR8>	8-98163-543-0	01	1	1008-		●
90	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	1008-1112		●
90	CLIP; RUBBER HOSE CAUTIONS ENGLISH<RR8> ID=14	1-09704-102-0	02	1	1201-		●
91	BOLT; AIR BREATHER M10X20 FLANGE	0-28151-020-0	02	1	1008-	●	●
91	BOLT; AIR BREATHER CAUTIONS CHINESE<SL7> M10X20 FLANGE	0-28151-020-0	02	1	1008-		●
91	BOLT; AIR BREATHER CAUTIONS ENGLISH<RR8> M10X25 FLANGE	0-28151-025-0	02	1	1008-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (H)	8-98227-930-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (I)	8-98227-931-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (G)	8-98195-254-0	01	1	1201-		●
97	BRACKET; HOSE (C)	8-97629-739-0	01	1	1008-	●
97	BRACKET; HOSE (A)	1-15419-726-0	01	1	1008-	●	●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (B)	8-97620-560-0	01	1	1008-1210		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (B)	8-98227-929-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (D)	8-98163-390-1	01	1	1008-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (E)	8-98163-544-0	01	1	1008-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (F)	8-98167-201-0	01	1	1008-		●
110	GASKET; PIPE ID=11	1-09623-469-0	02	1	1008-1112		●
110	GASKET; PIPE CAUTIONS ENGLISH<RR8> ID=11	1-09623-469-0	02	1	1201-		●
145	ADAPTER; AIR BREATHER	8-98073-548-0	01	1	1008-		●
151	SEPARATOR; OIL,PCV	8-97604-118-0	01	1	1008-1112		●
151	SEPARATOR; OIL,PCV CAUTIONS ENGLISH<RR8>	8-97604-118-0	01	1	1201-		●
178	BOLT; PIPE M8X16 FLANGE	0-28050-816-0	01	1	1008-1112		●
178	BOLT; PIPE CAUTIONS ENGLISH<RR8> M8X16 FLANGE	0-28050-816-0	01	1	1201-		●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (E) M8X20 FLANGE	0-28050-820-0	02	1	1201-1210		●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (E) M8X20 FLANGE	0-28050-820-0	04	1	1211-		●
188	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (B) M10X140 FLANGE	0-28156-014-0	02	1	1008-		●
188	BOLT; BRKT CAUTIONS ENGLISH<RR8> (C) M8X25 FLANGE	0-28050-825-0	01	1	1008-		●
188	BOLT; BRKT CAUTIONS ENGLISH<RR8> (D) M10X130 FLANGE	0-28156-013-0	02	1	1008-		●
192	CLIP; BAND CAUTIONS ENGLISH<RR8> (A) L=500	1-09707-082-1	01	1	1008-1207		●
192	CLIP; BAND CAUTIONS ENGLISH<RR8> (A) L=500	8-98216-422-0	01	1	1208-		●
192	CLIP; BAND CAUTIONS ENGLISH<RR8> (B) L=700	1-09707-190-0	02	1	1008-1207		●
192	CLIP; BAND CAUTIONS ENGLISH<RR8> (B)	8-98216-429-0	02	1	1208-		●
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	1008-1112		●
261	BOLT; SEPARETOR CAUTIONS ENGLISH<RR8> M8X16 FLANGE	0-28050-816-0	04	1	1201-		●
262	BRACKET; OIL SEPARETOR	1-13345-220-1	01	1	1008-	●	●
263	BOLT; BRKT,OIL SEPARETOR (A) M10X90 FLANGE	0-28151-090-0	01	1	1008-	●	●
263	BOLT; BRKT,OIL SEPARETOR (B) M14X25 FLANGE	0-28951-425-0	02	1	1008-	●	●
275	CAP; PCV	8-97385-918-0	01	1	1008-1112		●
275	CAP; PCV CAUTIONS ENGLISH<RR8>	8-97385-918-0	01	1	1201-		●
279	HOSE; RUBBER,OIL DRAIN L=90 SERVICED BY L=1000	0-02759-100-0	01	1	1008-1112		●
279	HOSE; RUBBER,OIL DRAIN CAUTIONS ENGLISH<RR8> L=90 SERVICED BY L=1000	0-02759-100-0	01	1	1201-		●
309	PIPE ASM; OIL SEPARATOR	1-13314-045-1	01	1	1008-1112		●
309	PIPE ASM; OIL SEPARATOR CAUTIONS ENGLISH<RR8>	1-13314-045-1	01	1	1201-		●
318	ELEMENT KIT; PCV	8-97385-919-0	01	1	1008-1112		●
318	ELEMENT KIT; PCV CAUTIONS ENGLISH<RR8>	8-97385-919-0	01	1	1201-		●
335	COVER; AIR BREATHER CAUTIONS ENGLISH<RR8>	8-98074-852-0	01	1	1008-		●

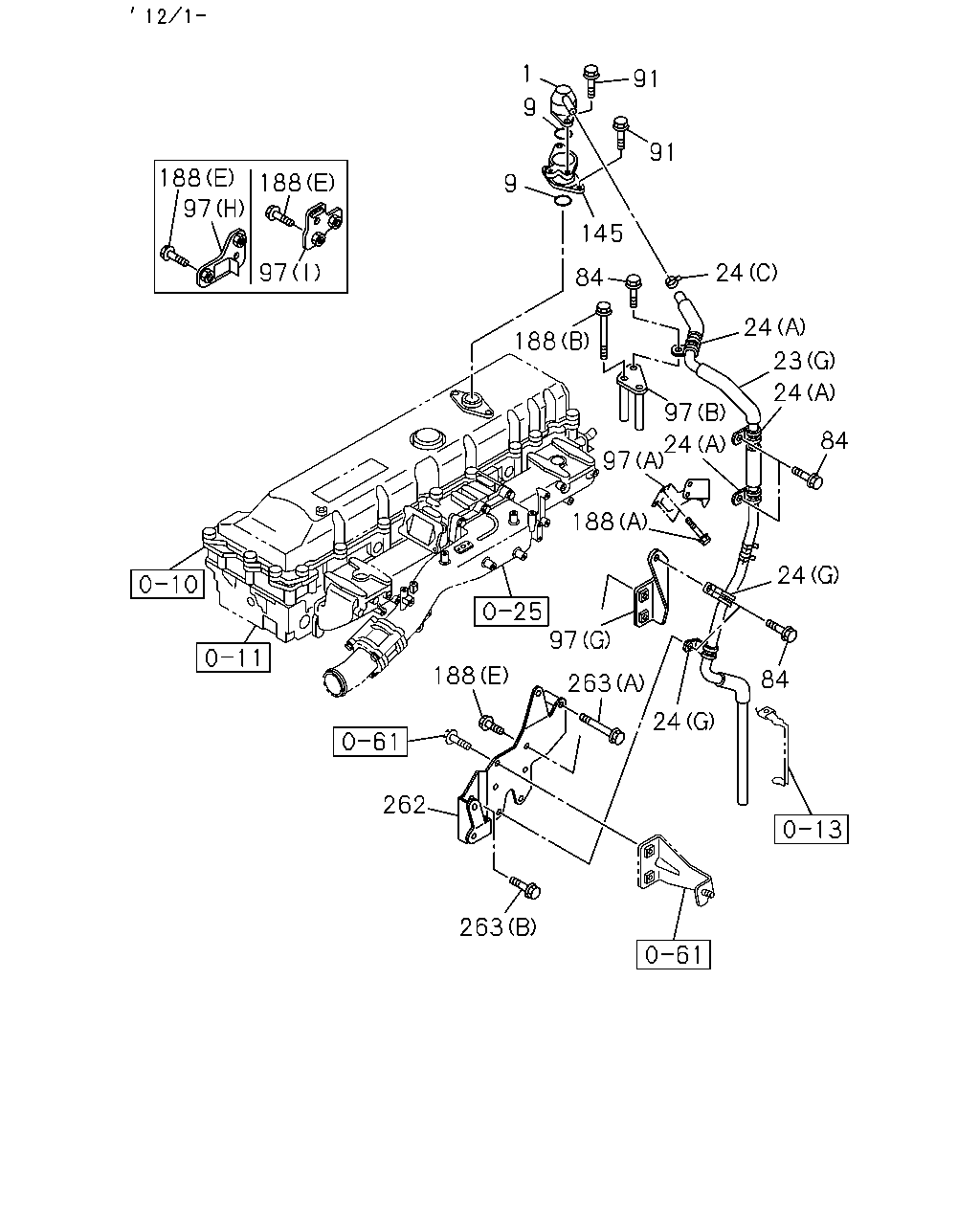

91 10 1 9 59 106 11 97 10 10 106 106 263 97 262 188 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BREATHER; AIR	1-11740-181-1	01	1	1008-	●	●
9	GASKET; AIR BREATHER ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6	1-09623-565-0	01	1	1008-	●
9	GASKET; AIR BREATHER ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6	1-09623-565-0	02	1	1008-		●
10	CLIP; AIR BREATHER (B) ID=31 L=30	1-09700-969-0	03	1	1008-1208	●
10	CLIP; AIR BREATHER (B) ID=29 L=30	8-98225-679-0	04	1	1209-	●
10	CLIP; AIR BREATHER (A) ID=28.5	1-09707-150-0	01	1	1008-	●
11	HOSE; RUBBER,AIR	1-11742-086-3	01	1	1008-1208	●
11	HOSE; RUBBER,AIR	8-98225-542-0	01	1	1209-	●
59	CLIP; HOSE ID=33.6	8-94362-518-0	01	1	1008-1208	●
91	BOLT; AIR BREATHER M10X20 FLANGE	0-28151-020-0	02	1	1008-	●	●
91	BOLT; AIR BREATHER CAUTIONS CHINESE<SL7> M10X20 FLANGE	0-28151-020-0	02	1	1008-		●
91	BOLT; AIR BREATHER CAUTIONS ENGLISH<RR8> M10X25 FLANGE	0-28151-025-0	02	1	1008-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (H)	8-98227-930-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (I)	8-98227-931-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (G)	8-98195-254-0	01	1	1201-		●
97	BRACKET; HOSE (C)	8-97629-739-0	01	1	1008-	●
97	BRACKET; HOSE (A)	1-15419-726-0	01	1	1008-	●	●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (B)	8-97620-560-0	01	1	1008-1210		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (B)	8-98227-929-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (D)	8-98163-390-1	01	1	1008-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (E)	8-98163-544-0	01	1	1008-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (F)	8-98167-201-0	01	1	1008-		●
106	BOLT; DRAIN PIPE M8X12 FLANGE	0-28050-812-0	01	1	1008-	●
106	BOLT; DRAIN PIPE M8X16 FLANGE	0-28050-816-0	01	1	1008-1208	●
106	BOLT; DRAIN PIPE M8X16 FLANGE	0-28050-816-0	02	1	1209-	●
106	BOLT; DRAIN PIPE M8X25 FLANGE	0-28050-825-0	02	1	1008-	●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (E) M8X20 FLANGE	0-28050-820-0	02	1	1201-1210		●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (E) M8X20 FLANGE	0-28050-820-0	04	1	1211-		●
188	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (B) M10X140 FLANGE	0-28156-014-0	02	1	1008-		●
188	BOLT; BRKT CAUTIONS ENGLISH<RR8> (C) M8X25 FLANGE	0-28050-825-0	01	1	1008-		●
188	BOLT; BRKT CAUTIONS ENGLISH<RR8> (D) M10X130 FLANGE	0-28156-013-0	02	1	1008-		●
262	BRACKET; OIL SEPARETOR	1-13345-220-1	01	1	1008-	●	●
263	BOLT; BRKT,OIL SEPARETOR (A) M10X90 FLANGE	0-28151-090-0	01	1	1008-	●	●
263	BOLT; BRKT,OIL SEPARETOR (B) M14X25 FLANGE	0-28951-425-0	02	1	1008-	●	●

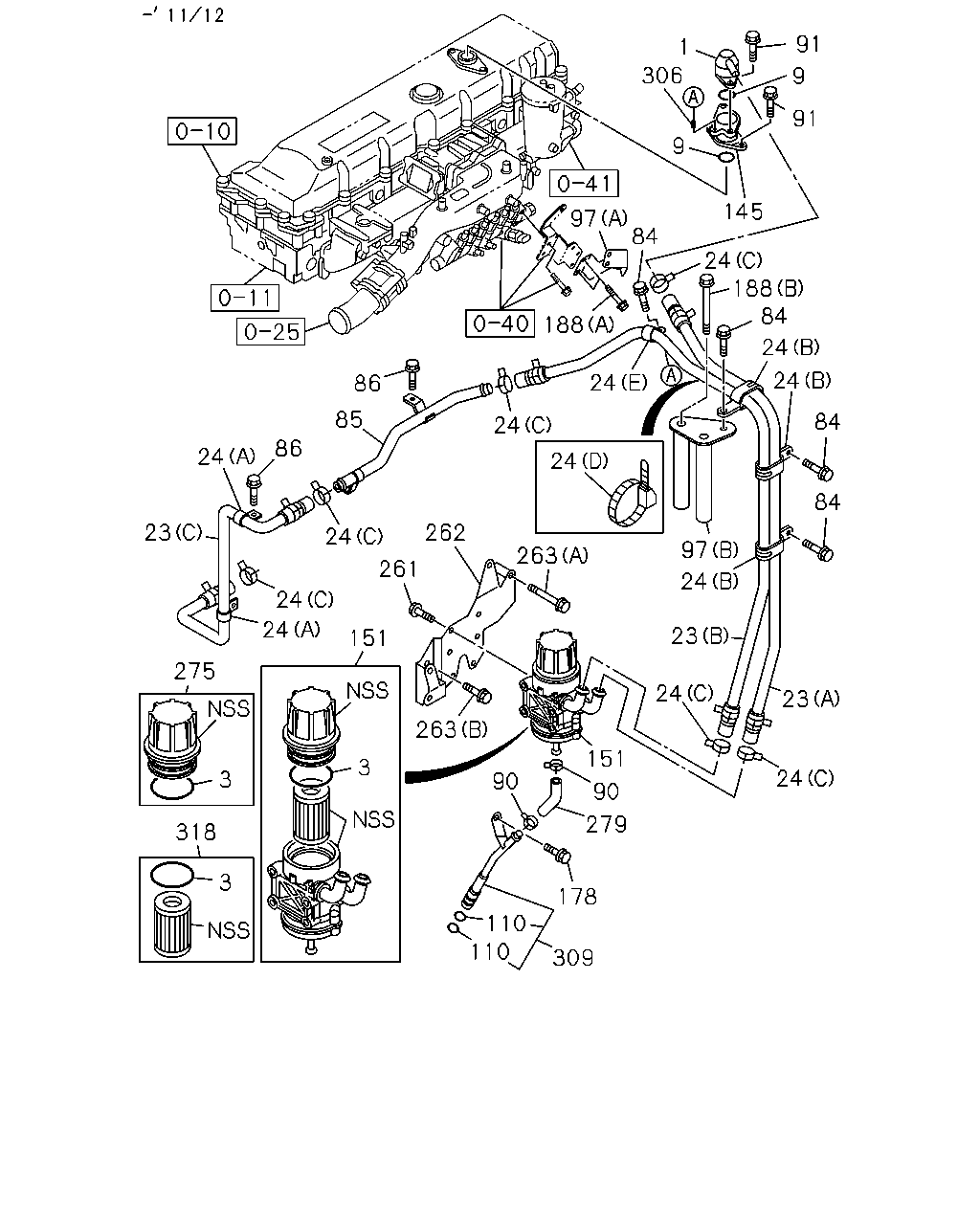

91 1 91 9 9 188 188 97 97 145 24 84 24 24 97 97 24 84 24 84 24 263 97 188 188 188 262 263 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BREATHER; AIR	1-11740-181-1	01	1	1008-	●	●
9	GASKET; AIR BREATHER ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6	1-09623-565-0	01	1	1008-	●
9	GASKET; AIR BREATHER ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6	1-09623-565-0	02	1	1008-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (A)	8-97611-033-3	01	1	1008-1112		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (G)	8-98204-684-0	01	1	1201-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (B)	8-97611-034-2	01	1	1008-1112		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (C)	8-97611-035-3	01	1	1008-1112		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS ENGLISH<RR8> (D)	8-98163-389-2	01	1	1008-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS ENGLISH<RR8> (E)	8-98163-545-0	01	1	1008-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS ENGLISH<RR8> (F)	8-98165-843-0	01	1	1008-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (B) ID=30X2 L=28	1-09701-266-0	03	1	1412-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (A) ID=33 L=30	8-97619-250-0	02	1	1412-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (G) ID=35 H=45 L=33	1-09700-947-0	02	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (C) ID=28.5	1-09707-150-0	06	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR (B) ID=30X2 L=28	1-09701-266-0	03	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (B) ID=30X2 L=28	1-09701-266-0	03	1	1201-1210		●
24	CLIP; RUBBER HOSE,VENTILATOR (C) ID=28.5	1-09707-150-0	06	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (C) ID=28.5	1-09707-150-0	01	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR (D) L=250	5-09707-030-1	01	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (D) L=250	5-09707-030-1	01	1	1201-1205		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (D) L=250	8-98216-430-0	01	1	1206-		●
24	CLIP; RUBBER HOSE,VENTILATOR (A) ID=33 L=30	8-97619-250-0	02	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (A) ID=33 L=30	8-97619-250-0	02	1	1201-1210		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (E) ID=31 L=30	1-09700-969-0	01	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (A) ID=33 L=30	8-97619-250-0	03	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (F) ID=24.5 L=22	8-97603-362-1	04	1	1008-		●
84	BOLT; PIPE CLIP,VENTILATOR M8X16 FLANGE	0-28050-816-0	05	1	1008-1210		●
84	BOLT; PIPE CLIP,VENTILATOR M8X16 FLANGE	0-28050-816-0	07	1	1211-1411		●
84	BOLT; PIPE CLIP,VENTILATOR M8X16 FLANGE	0-28050-816-0	05	1	1412-		●
84	BOLT; PIPE CLIP,VENTILATOR CAUTIONS CHINESE<SL7> M8X50 FLANGE	0-28050-850-0	01	1	1008-1112		●
84	BOLT; PIPE CLIP,VENTILATOR CAUTIONS ENGLISH<RR8> M8X50 FLANGE	0-28050-850-0	02	1	1008-		●
91	BOLT; AIR BREATHER M10X20 FLANGE	0-28151-020-0	02	1	1008-	●	●
91	BOLT; AIR BREATHER CAUTIONS CHINESE<SL7> M10X20 FLANGE	0-28151-020-0	02	1	1008-		●
91	BOLT; AIR BREATHER CAUTIONS ENGLISH<RR8> M10X25 FLANGE	0-28151-025-0	02	1	1008-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (H)	8-98227-930-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (I)	8-98227-931-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (G)	8-98195-254-0	01	1	1201-		●
97	BRACKET; HOSE (C)	8-97629-739-0	01	1	1008-	●
97	BRACKET; HOSE (A)	1-15419-726-0	01	1	1008-	●	●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (B)	8-97620-560-0	01	1	1008-1210		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (B)	8-98227-929-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (D)	8-98163-390-1	01	1	1008-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (E)	8-98163-544-0	01	1	1008-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (F)	8-98167-201-0	01	1	1008-		●
145	ADAPTER; AIR BREATHER	8-98073-548-0	01	1	1008-		●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (E) M8X20 FLANGE	0-28050-820-0	02	1	1201-1210		●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (E) M8X20 FLANGE	0-28050-820-0	04	1	1211-		●
188	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (B) M10X140 FLANGE	0-28156-014-0	02	1	1008-		●
188	BOLT; BRKT CAUTIONS ENGLISH<RR8> (C) M8X25 FLANGE	0-28050-825-0	01	1	1008-		●
188	BOLT; BRKT CAUTIONS ENGLISH<RR8> (D) M10X130 FLANGE	0-28156-013-0	02	1	1008-		●
262	BRACKET; OIL SEPARETOR	1-13345-220-1	01	1	1008-	●	●
263	BOLT; BRKT,OIL SEPARETOR (A) M10X90 FLANGE	0-28151-090-0	01	1	1008-	●	●
263	BOLT; BRKT,OIL SEPARETOR (B) M14X25 FLANGE	0-28951-425-0	02	1	1008-	●	●

1 9 91 9 91 306 145 24 188 24 84 24 84 84 23 24 24 23 24 97 24 24 24 188 84 97 86 85 86 24 23 24 24 261 262 263 263 90 151 90 279 178 309 110 110 3 151 24 275 3 318 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BREATHER; AIR	1-11740-181-1	01	1	1008-	●	●
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	1008-1112		●
3	GASKET; BODY TO CAP CAUTIONS ENGLISH<RR8>	8-97385-921-0	01	1	1201-		●
9	GASKET; AIR BREATHER ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6	1-09623-565-0	01	1	1008-	●
9	GASKET; AIR BREATHER ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6	1-09623-565-0	02	1	1008-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (A)	8-97611-033-3	01	1	1008-1112		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (G)	8-98204-684-0	01	1	1201-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (B)	8-97611-034-2	01	1	1008-1112		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (C)	8-97611-035-3	01	1	1008-1112		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS ENGLISH<RR8> (D)	8-98163-389-2	01	1	1008-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS ENGLISH<RR8> (E)	8-98163-545-0	01	1	1008-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS ENGLISH<RR8> (F)	8-98165-843-0	01	1	1008-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (B) ID=30X2 L=28	1-09701-266-0	03	1	1412-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (A) ID=33 L=30	8-97619-250-0	02	1	1412-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (G) ID=35 H=45 L=33	1-09700-947-0	02	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (C) ID=28.5	1-09707-150-0	06	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR (B) ID=30X2 L=28	1-09701-266-0	03	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (B) ID=30X2 L=28	1-09701-266-0	03	1	1201-1210		●
24	CLIP; RUBBER HOSE,VENTILATOR (C) ID=28.5	1-09707-150-0	06	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (C) ID=28.5	1-09707-150-0	01	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR (D) L=250	5-09707-030-1	01	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (D) L=250	5-09707-030-1	01	1	1201-1205		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (D) L=250	8-98216-430-0	01	1	1206-		●
24	CLIP; RUBBER HOSE,VENTILATOR (A) ID=33 L=30	8-97619-250-0	02	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (A) ID=33 L=30	8-97619-250-0	02	1	1201-1210		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (E) ID=31 L=30	1-09700-969-0	01	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (A) ID=33 L=30	8-97619-250-0	03	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (F) ID=24.5 L=22	8-97603-362-1	04	1	1008-		●
84	BOLT; PIPE CLIP,VENTILATOR M8X16 FLANGE	0-28050-816-0	05	1	1008-1210		●
84	BOLT; PIPE CLIP,VENTILATOR M8X16 FLANGE	0-28050-816-0	07	1	1211-1411		●
84	BOLT; PIPE CLIP,VENTILATOR M8X16 FLANGE	0-28050-816-0	05	1	1412-		●
84	BOLT; PIPE CLIP,VENTILATOR CAUTIONS CHINESE<SL7> M8X50 FLANGE	0-28050-850-0	01	1	1008-1112		●
84	BOLT; PIPE CLIP,VENTILATOR CAUTIONS ENGLISH<RR8> M8X50 FLANGE	0-28050-850-0	02	1	1008-		●
85	PIPE; BREATHER CAUTIONS CHINESE<SL7>	8-97611-021-1	01	1	1008-1112		●
85	PIPE; BREATHER CAUTIONS ENGLISH<RR8>	8-98163-543-0	01	1	1008-		●
86	BOLT; BREATHER PIPE CAUTIONS CHINESE<SL7> M8X16 FLANGE	0-28050-816-0	02	1	1008-1112		●
90	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	1008-1112		●
90	CLIP; RUBBER HOSE CAUTIONS ENGLISH<RR8> ID=14	1-09704-102-0	02	1	1201-		●
91	BOLT; AIR BREATHER M10X20 FLANGE	0-28151-020-0	02	1	1008-	●	●
91	BOLT; AIR BREATHER CAUTIONS CHINESE<SL7> M10X20 FLANGE	0-28151-020-0	02	1	1008-		●
91	BOLT; AIR BREATHER CAUTIONS ENGLISH<RR8> M10X25 FLANGE	0-28151-025-0	02	1	1008-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (H)	8-98227-930-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (I)	8-98227-931-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (G)	8-98195-254-0	01	1	1201-		●
97	BRACKET; HOSE (C)	8-97629-739-0	01	1	1008-	●
97	BRACKET; HOSE (A)	1-15419-726-0	01	1	1008-	●	●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (B)	8-97620-560-0	01	1	1008-1210		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (B)	8-98227-929-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (D)	8-98163-390-1	01	1	1008-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (E)	8-98163-544-0	01	1	1008-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (F)	8-98167-201-0	01	1	1008-		●
110	GASKET; PIPE ID=11	1-09623-469-0	02	1	1008-1112		●
110	GASKET; PIPE CAUTIONS ENGLISH<RR8> ID=11	1-09623-469-0	02	1	1201-		●
145	ADAPTER; AIR BREATHER	8-98073-548-0	01	1	1008-		●
151	SEPARATOR; OIL,PCV	8-97604-118-0	01	1	1008-1112		●
151	SEPARATOR; OIL,PCV CAUTIONS ENGLISH<RR8>	8-97604-118-0	01	1	1201-		●
178	BOLT; PIPE M8X16 FLANGE	0-28050-816-0	01	1	1008-1112		●
178	BOLT; PIPE CAUTIONS ENGLISH<RR8> M8X16 FLANGE	0-28050-816-0	01	1	1201-		●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (E) M8X20 FLANGE	0-28050-820-0	02	1	1201-1210		●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (E) M8X20 FLANGE	0-28050-820-0	04	1	1211-		●
188	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (B) M10X140 FLANGE	0-28156-014-0	02	1	1008-		●
188	BOLT; BRKT CAUTIONS ENGLISH<RR8> (C) M8X25 FLANGE	0-28050-825-0	01	1	1008-		●
188	BOLT; BRKT CAUTIONS ENGLISH<RR8> (D) M10X130 FLANGE	0-28156-013-0	02	1	1008-		●
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	1008-1112		●
261	BOLT; SEPARETOR CAUTIONS ENGLISH<RR8> M8X16 FLANGE	0-28050-816-0	04	1	1201-		●
262	BRACKET; OIL SEPARETOR	1-13345-220-1	01	1	1008-	●	●
263	BOLT; BRKT,OIL SEPARETOR (A) M10X90 FLANGE	0-28151-090-0	01	1	1008-	●	●
263	BOLT; BRKT,OIL SEPARETOR (B) M14X25 FLANGE	0-28951-425-0	02	1	1008-	●	●
275	CAP; PCV	8-97385-918-0	01	1	1008-1112		●
275	CAP; PCV CAUTIONS ENGLISH<RR8>	8-97385-918-0	01	1	1201-		●
279	HOSE; RUBBER,OIL DRAIN L=90 SERVICED BY L=1000	0-02759-100-0	01	1	1008-1112		●
279	HOSE; RUBBER,OIL DRAIN CAUTIONS ENGLISH<RR8> L=90 SERVICED BY L=1000	0-02759-100-0	01	1	1201-		●
306	SPACER; CLIP CAUTIONS CHINESE<SL7> L=33	8-97329-615-0	01	1	1008-1112		●
309	PIPE ASM; OIL SEPARATOR	1-13314-045-1	01	1	1008-1112		●
309	PIPE ASM; OIL SEPARATOR CAUTIONS ENGLISH<RR8>	1-13314-045-1	01	1	1201-		●
318	ELEMENT KIT; PCV	8-97385-919-0	01	1	1008-1112		●
318	ELEMENT KIT; PCV CAUTIONS ENGLISH<RR8>	8-97385-919-0	01	1	1201-		●

270 270 151 192 192 270

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
151	SEPARATOR; OIL,PCV	8-97604-118-0	01	1	1008-1112		●
151	SEPARATOR; OIL,PCV CAUTIONS ENGLISH<RR8>	8-97604-118-0	01	1	1201-		●
192	CLIP; BAND CAUTIONS ENGLISH<RR8> (A) L=500	1-09707-082-1	01	1	1008-1207		●
192	CLIP; BAND CAUTIONS ENGLISH<RR8> (A) L=500	8-98216-422-0	01	1	1208-		●
192	CLIP; BAND CAUTIONS ENGLISH<RR8> (B) L=700	1-09707-190-0	02	1	1008-1207		●
192	CLIP; BAND CAUTIONS ENGLISH<RR8> (B)	8-98216-429-0	02	1	1208-		●
270	COVER; VENTILATOR CAUTIONS ENGLISH<RR8> (A)	8-98165-302-0	01	1	1008-		●
270	COVER; VENTILATOR CAUTIONS ENGLISH<RR8> (B)	8-98165-304-0	01	1	1008-		●
270	COVER; VENTILATOR RUSSIA EQUIPMENT(B12) (C)	8-98165-305-2	01	1	1008-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
