0-25 — INLET MANIFOLD
(#63012) — 121 parça
Tümü
A - 6WF1 TC-C
B - 6WG1 TC-R
◀

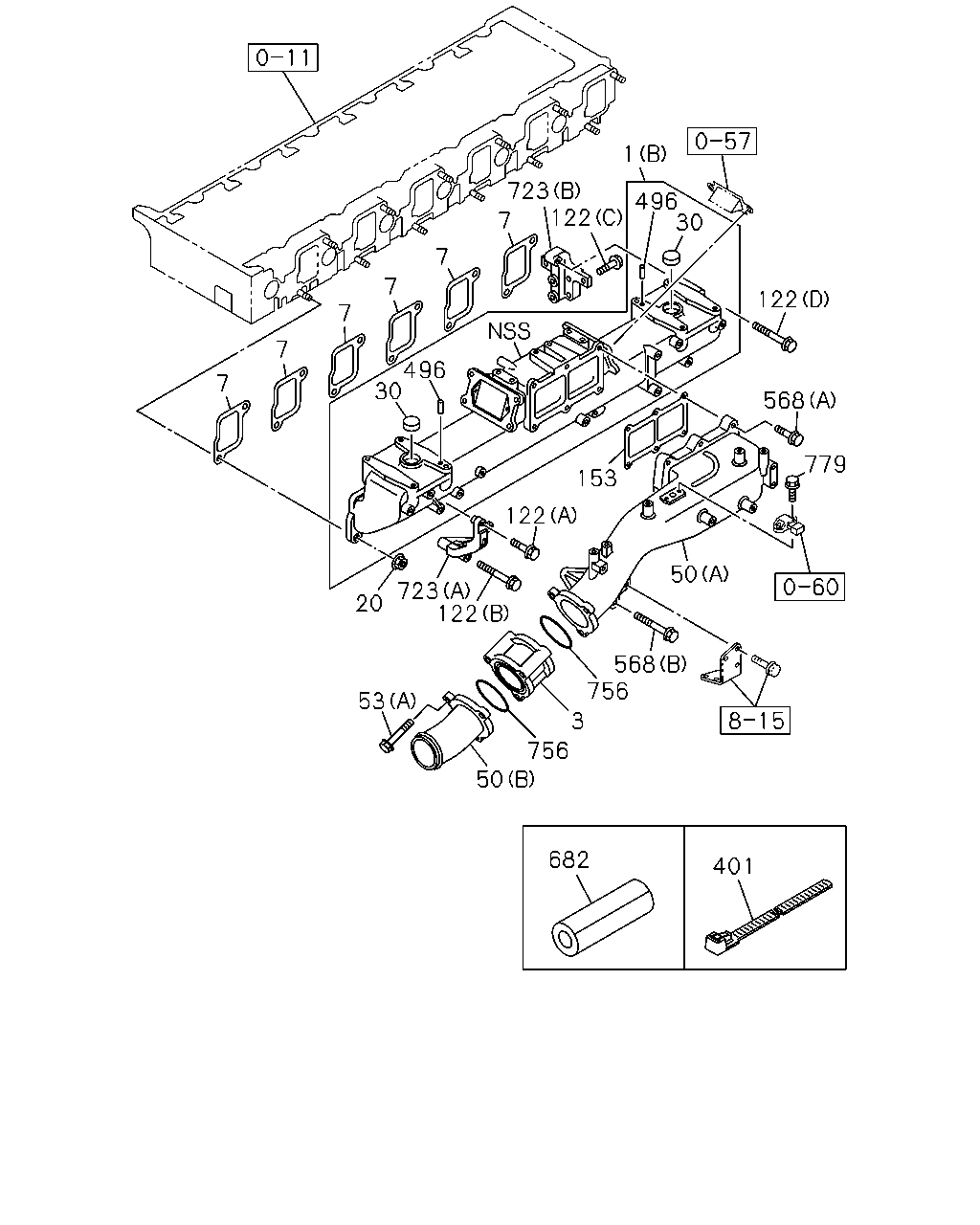

[025A] 6WG1;MANIFOLD ASM AND INL PIPE (31 parça)

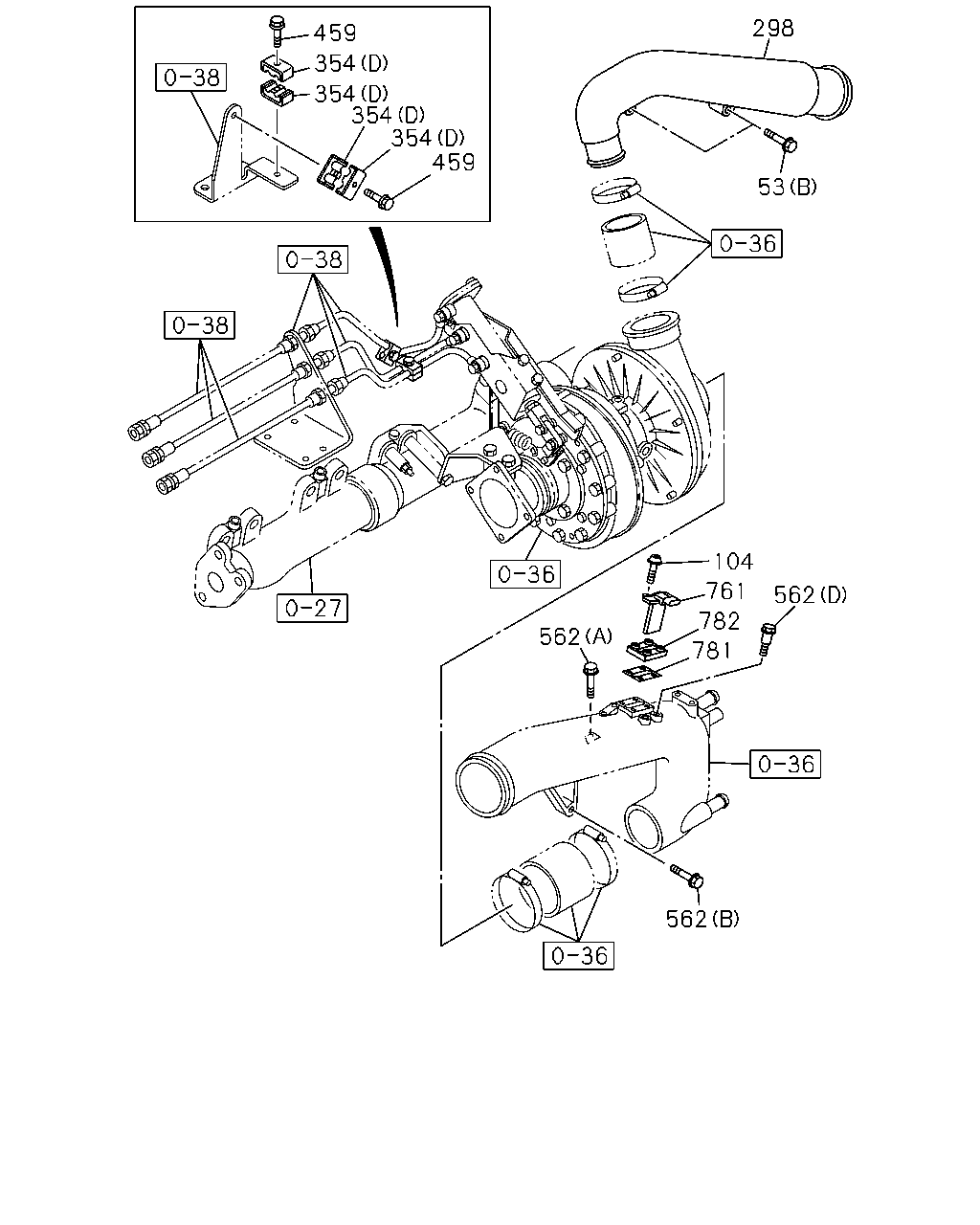

[025A] 6WG1;INL TO TURBOCHAGER (20 parça)

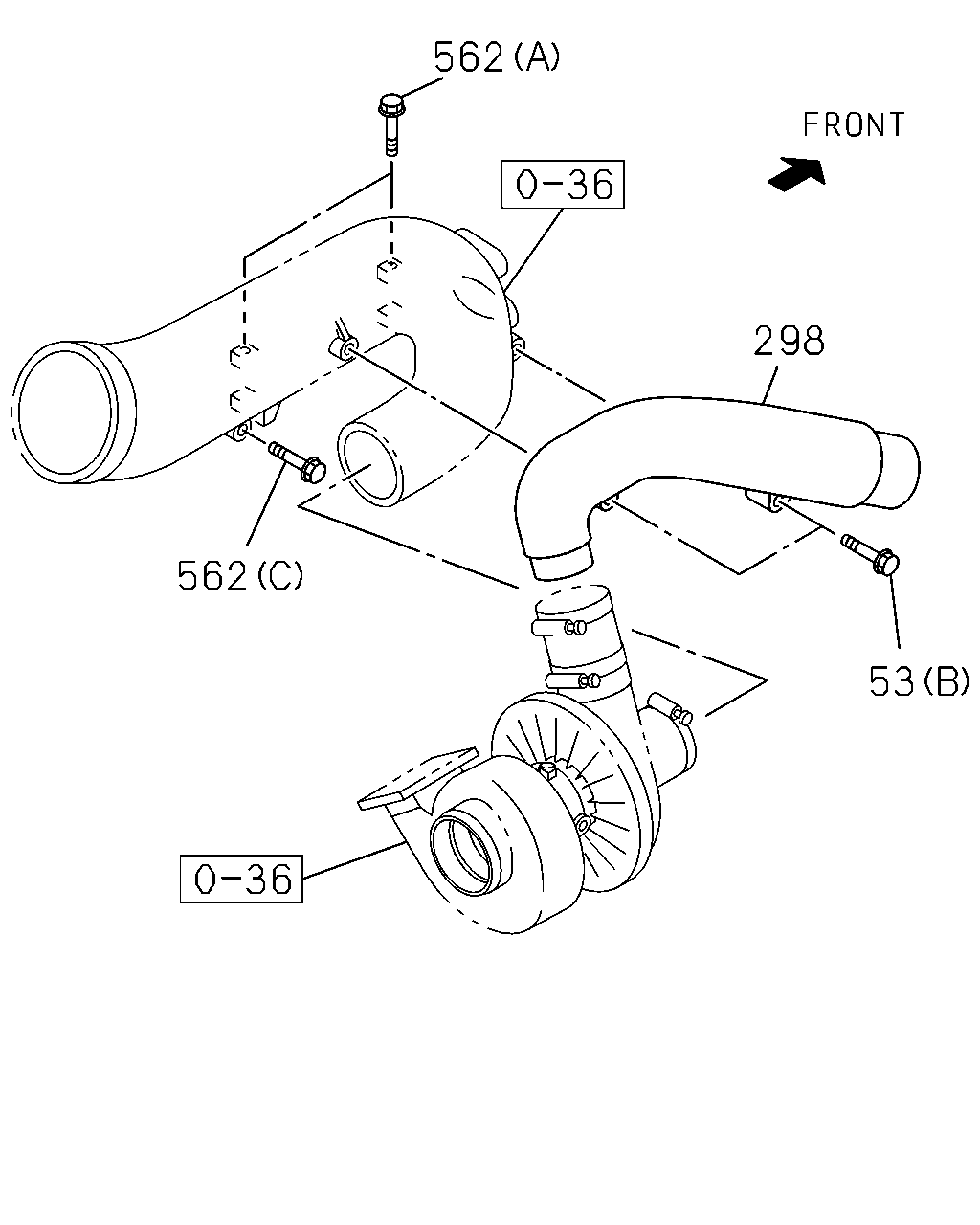

[025A] 6WF1;INL TO TURBOCHARGER (9 parça)

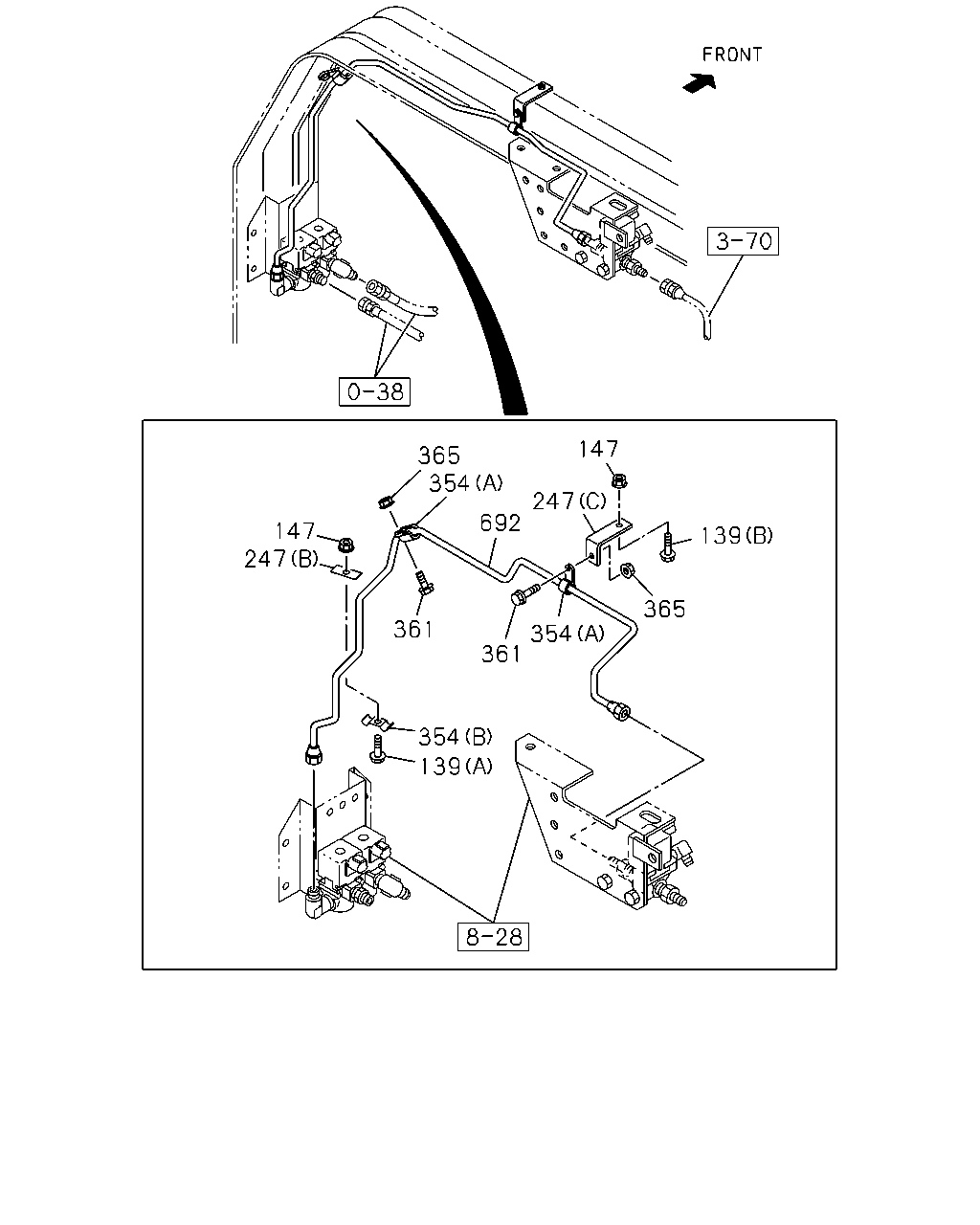

[025A] 6WF1;AIR MAG VLV PIPE;MIXER TRUCK (18 parça)

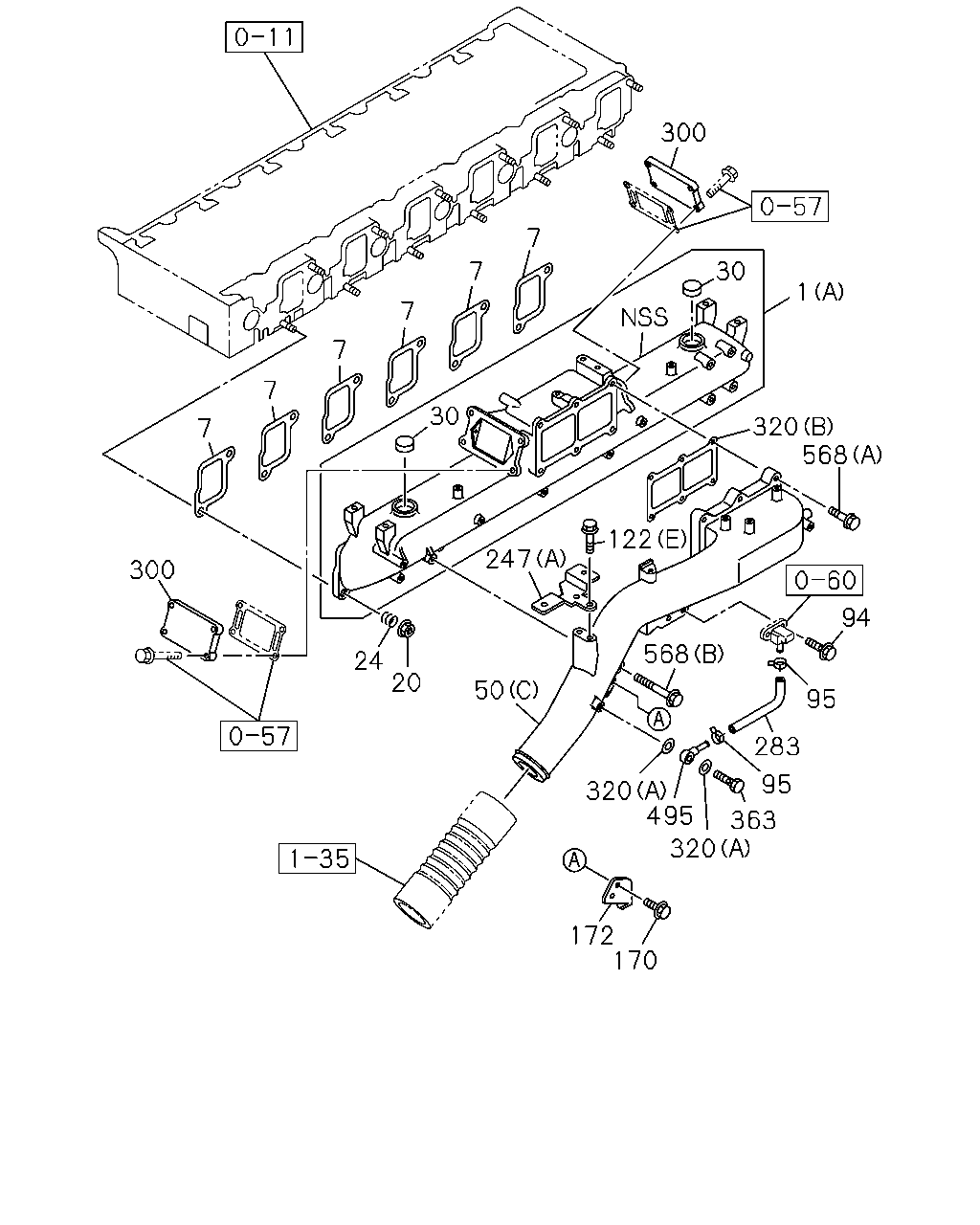

[025A] 6WF1;MANIFOLD ASM AND INL PIPE (33 parça)

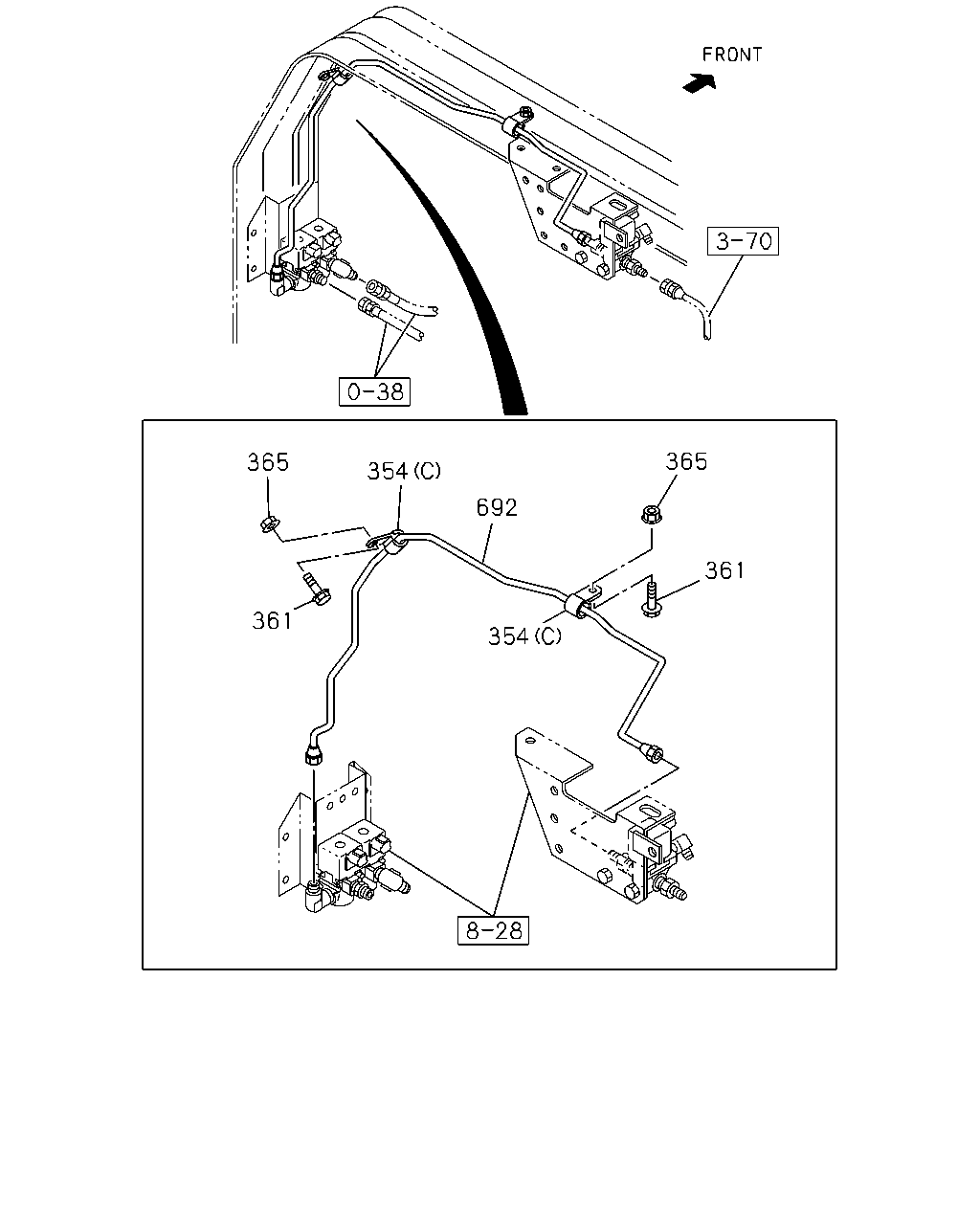

[025A] 6WF1;AIR MAG VLV PIPE;EXC.MIXER TRUCK (10 parça)
▶
1
723
122
496
30
7
7
7
122
7
7
496
30
7
568
779
153
122
50
723
122
20
568
756
53
3
756
50
682
401
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MANIFOLD; INL
(A)
1-14110-620-0
01
1
1008-1010
●
1
MANIFOLD; INL
(A)
8-98167-210-0
01
1
1011-
●
1
MANIFOLD; INL
(B)
8-98119-442-2
01
1
1008-
●
3
DUCT; INT
8-97606-246-0
01
1
1008-
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14115-096-1
06
1
1008-
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97615-623-1
06
1
1008-
●
20
NUT; INL MANIF
M10 FLANGE
0-91180-110-0
12
1
1008-
●
●
30
CUP; SEALING,INL MANIF
OD=40
8-94241-637-0
02
1
1008-1010
●
●
30
CUP; SEALING,INL MANIF
OD=40
8-94241-637-0
02
1
1011-
●
50
PIPE; INL
(A)
8-98133-285-1
01
1
1008-
●
50
PIPE; INL
(C)
8-97617-049-0
01
1
1008-
●
50
PIPE; INL
(B)
8-97608-883-0
01
1
1008-
●
53
BOLT; INL PIPE
(B) M10X60 FLANGE
0-28151-060-0
02
1
1008-
●
●
53
BOLT; INL PIPE
(A) M8X80 FLANGE
0-28050-880-0
03
1
1008-
●
122
BOLT; BRKT
(E) M10X20 FLANGE
0-28151-020-0
02
1
1008-
●
122
BOLT; BRKT
(B) M10X100 FLANGE
0-28151-000-0
01
1
1008-1111
●
122
BOLT; BRKT
(A) M10X35 FLANGE
0-28151-035-0
01
1
1008-1111
●
122
BOLT; BRKT
(D) M10X110 FLANGE
0-28156-011-0
01
1
1008-
●
122
BOLT; BRKT
(C) M12X60 FLANGE
0-28161-260-0
02
1
1008-
●
153
GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14115-094-1
01
1
1008-
●
401
CLIP; BAND
L=250
5-09707-030-1
01
1
1008-1205
●
401
CLIP; BAND
L=250
8-98216-430-0
01
1
1206-
●
496
PIN; INL MANIF
OD=4 L=12
1-09740-032-0
02
1
1008-
●
568
BOLT; PIPE
(A) M10X30 FLANGE
0-28151-030-0
06
1
1008-
●
●
568
BOLT; PIPE
(B) M10X80 FLANGE
0-28151-080-0
01
1
1008-
●
●
682
COVER; RUBBER
ID=10 OD=14 L=30
9-09956-682-0
01
1
1008-
●
723
BRACKET; INL MANIF
(A)
8-97608-884-1
01
1
1008-1111
●
723
BRACKET; INL MANIF
(B)
8-97618-557-0
01
1
1008-
●
756
GASKET; INTAKE,THROTTLE
ID=89.6
8-98004-323-0
02
1
1008-1105
●
756
GASKET; INTAKE,THROTTLE
ID=94.6
1-09623-593-0
02
1
1106-
●
779
BOLT; SENSOR
M4X10 W/PL WASHER
8-97316-615-0
02
1
1008-
●
298
459
354
354
354
354
459
53
104
761
562
782
562
781
562
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
53
BOLT; INL PIPE
(B) M10X60 FLANGE
0-28151-060-0
02
1
1008-
●
●
53
BOLT; INL PIPE
(A) M8X80 FLANGE
0-28050-880-0
03
1
1008-
●
104
SCREW
M4X20 W/LK&PL WASHER
9-03920-420-0
04
1
1008-
●
298
PIPE; INL,TURBOCHARGER TO INL COVER
1-14112-710-1
01
1
1008-
●
298
PIPE; INL,TURBOCHARGER TO INL COVER
1-14112-773-2
01
1
1008-1309
●
298
PIPE; INL,TURBOCHARGER TO INL COVER
8-98254-536-0
01
1
1310-
●
354
CLIP; AIR PIPE
EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (C) ID=7 L=20
0-95234-635-0
02
1
1008-
●
354
CLIP; AIR PIPE
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> (A) ID=7X2 L=20
0-95324-635-0
02
1
1008-
●
354
CLIP; AIR PIPE
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> (B) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
01
1
1008-
●
354
CLIP; AIR PIPE
(D)
1-09701-240-0
04
1
1008-
●
459
BOLT; CLIP FIX
M6X35 FLANGE
0-28050-635-0
02
1
1008-
●
562
BOLT; INL DUCT
(C) M10X40 FLANGE
0-28151-040-0
01
1
1008-
●
562
BOLT; INL DUCT
(A) M10X50 FLANGE
0-28151-050-0
02
1
1008-
●
●
562
BOLT; INL DUCT
(B) M10X70 FLANGE
0-28151-070-0
01
1
1008-
●
562
BOLT; INL DUCT
(D) M10X49.8
8-97039-586-0
02
1
1008-
●
761
SENSOR; MANIF
8-97601-967-0
01
1
1008-
●
781
GASKET; SENSOR
8-98212-728-0
01
1
1204-
●
781
GASKET; SENSOR
8-97611-157-2
01
1
1008-1201
●
782
ADAPTER; SENSOR
8-97609-808-4
01
1
1008-1201
●
782
ADAPTER; SENSOR
8-98169-371-0
01
1
1202-
●
562
298
562
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
53
BOLT; INL PIPE
(B) M10X60 FLANGE
0-28151-060-0
02
1
1008-
●
●
53
BOLT; INL PIPE
(A) M8X80 FLANGE
0-28050-880-0
03
1
1008-
●
298
PIPE; INL,TURBOCHARGER TO INL COVER
1-14112-710-1
01
1
1008-
●
298
PIPE; INL,TURBOCHARGER TO INL COVER
1-14112-773-2
01
1
1008-1309
●
298
PIPE; INL,TURBOCHARGER TO INL COVER
8-98254-536-0
01
1
1310-
●
562
BOLT; INL DUCT
(C) M10X40 FLANGE
0-28151-040-0
01
1
1008-
●
562
BOLT; INL DUCT
(A) M10X50 FLANGE
0-28151-050-0
02
1
1008-
●
●
562
BOLT; INL DUCT
(B) M10X70 FLANGE
0-28151-070-0
01
1
1008-
●
562
BOLT; INL DUCT
(D) M10X49.8
8-97039-586-0
02
1
1008-
●
139
354
361
361
247
354
365
147
247
139
692
354
365
147
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
139
BOLT; BRKT FIX
EURO3 SPECIFICATION<NJX> (B) M8X20 FLANGE
0-28650-820-0
01
1
1312-
●
139
BOLT; BRKT FIX
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> (A) M8X16 FLANGE
0-28050-816-0
01
1
1008-
●
147
NUT; BRKT
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> M8 FLANGE
0-91180-108-0
01
1
1008-1311
●
147
NUT; BRKT
EURO3 SPECIFICATION<NJX> M8 FLANGE
0-91180-108-0
01
1
1312-
●
●
147
NUT; BRKT
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> M8 FLANGE
0-91180-108-0
01
1
1312-
●
●
247
BRACKET; CLIP
EURO3 SPECIFICATION<NJX> (C) L=75
1-47477-119-0
01
1
1312-
●
247
BRACKET; CLIP
(A)
1-14319-130-1
01
1
1008-
●
247
BRACKET; CLIP
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> (B) L=50
1-47475-299-2
01
1
1008-
●
354
CLIP; AIR PIPE
EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (C) ID=7 L=20
0-95234-635-0
02
1
1008-
●
354
CLIP; AIR PIPE
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> (A) ID=7X2 L=20
0-95324-635-0
02
1
1008-
●
354
CLIP; AIR PIPE
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> (B) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
01
1
1008-
●
354
CLIP; AIR PIPE
(D)
1-09701-240-0
04
1
1008-
●
361
BOLT; CLIP
EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> M8X20 FLANGE
0-28650-820-0
02
1
1008-1008
●
361
BOLT; CLIP
EURO3 SPECIFICATION<NJX> M8X20 FLANGE
0-28650-820-0
02
1
1009-
●
365
NUT; CLIP
EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> M8 FLANGE
0-91180-108-0
02
1
1008-1008
●
365
NUT; CLIP
EURO3 SPECIFICATION<NJX> M8 FLANGE
0-91180-108-0
02
1
1009-
●
692
PIPE; AIR,MAG VLV
EURO3 SPECIFICATION<NJX> L=1263 SERVICED BY L=1370
1-47428-818-0
01
1
1008-1311
●
692
PIPE; AIR,MAG VLV
EURO3 SPECIFICATION<NJX> L=1253 SERVICED BY L=1370
1-47428-818-0
01
1
1312-
●
300
7
30
7
1
7
7
7
30
320
568
7
122
247
300
94
568
24
20
50
95
283
95
320
495
363
320
172
170
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MANIFOLD; INL
(A)
1-14110-620-0
01
1
1008-1010
●
1
MANIFOLD; INL
(A)
8-98167-210-0
01
1
1011-
●
1
MANIFOLD; INL
(B)
8-98119-442-2
01
1
1008-
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14115-096-1
06
1
1008-
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97615-623-1
06
1
1008-
●
20
NUT; INL MANIF
M10 FLANGE
0-91180-110-0
12
1
1008-
●
●
24
SPRING; INL MANIF
1-09580-156-0
12
1
1008-
●
30
CUP; SEALING,INL MANIF
OD=40
8-94241-637-0
02
1
1008-1010
●
●
30
CUP; SEALING,INL MANIF
OD=40
8-94241-637-0
02
1
1011-
●
50
PIPE; INL
(A)
8-98133-285-1
01
1
1008-
●
50
PIPE; INL
(C)
8-97617-049-0
01
1
1008-
●
50
PIPE; INL
(B)
8-97608-883-0
01
1
1008-
●
94
BOLT
M6X12 FLANGE
0-28050-612-0
02
1
1008-
●
95
CLIP; RUBBER HOSE
ID=11 WHITE
5-09707-005-1
02
1
1008-
●
122
BOLT; BRKT
(E) M10X20 FLANGE
0-28151-020-0
02
1
1008-
●
122
BOLT; BRKT
(B) M10X100 FLANGE
0-28151-000-0
01
1
1008-1111
●
122
BOLT; BRKT
(A) M10X35 FLANGE
0-28151-035-0
01
1
1008-1111
●
122
BOLT; BRKT
(D) M10X110 FLANGE
0-28156-011-0
01
1
1008-
●
122
BOLT; BRKT
(C) M12X60 FLANGE
0-28161-260-0
02
1
1008-
●
170
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
02
1
1008-
●
172
BRACKET; HARNESS
1-14119-428-1
01
1
1008-
●
247
BRACKET; CLIP
EURO3 SPECIFICATION<NJX> (C) L=75
1-47477-119-0
01
1
1312-
●
247
BRACKET; CLIP
(A)
1-14319-130-1
01
1
1008-
●
247
BRACKET; CLIP
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> (B) L=50
1-47475-299-2
01
1
1008-
●
283
RUBBER
1-14119-416-0
01
1
1008-
●
300
COVER; INL MANIF
EURO2 SPECIFICATION<THN>
1-11749-208-0
02
1
1008-1011
●
300
COVER; INL MANIF
EURO2 SPECIFICATION<THN>
8-98178-944-0
02
1
1012-
●
320
GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2
1-09630-082-0
02
1
1008-
●
320
GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
1-14115-094-1
01
1
1008-
●
363
BOLT; EYE
M8X24
8-97257-826-0
01
1
1008-
●
495
PIPE; BOOST SENSOR
8-94428-807-0
01
1
1008-
●
568
BOLT; PIPE
(A) M10X30 FLANGE
0-28151-030-0
06
1
1008-
●
●
568
BOLT; PIPE
(B) M10X80 FLANGE
0-28151-080-0
01
1
1008-
●
●
365
365
354
692
361
361
354
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
354
CLIP; AIR PIPE
EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (C) ID=7 L=20
0-95234-635-0
02
1
1008-
●
354
CLIP; AIR PIPE
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> (A) ID=7X2 L=20
0-95324-635-0
02
1
1008-
●
354
CLIP; AIR PIPE
MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> (B) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
01
1
1008-
●
354
CLIP; AIR PIPE
(D)
1-09701-240-0
04
1
1008-
●
361
BOLT; CLIP
EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> M8X20 FLANGE
0-28650-820-0
02
1
1008-1008
●
361
BOLT; CLIP
EURO3 SPECIFICATION<NJX> M8X20 FLANGE
0-28650-820-0
02
1
1009-
●
365
NUT; CLIP
EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> M8 FLANGE
0-91180-108-0
02
1
1008-1008
●
365
NUT; CLIP
EURO3 SPECIFICATION<NJX> M8 FLANGE
0-91180-108-0
02
1
1009-
●
692
PIPE; AIR,MAG VLV
EURO3 SPECIFICATION<NJX> L=1263 SERVICED BY L=1370
1-47428-818-0
01
1
1008-1311
●
692
PIPE; AIR,MAG VLV
EURO3 SPECIFICATION<NJX> L=1253 SERVICED BY L=1370
1-47428-818-0
01
1
1312-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
