Isuzu WW
▶
TRUCKS
▶
CYH
▶
11271 - CYH LHD EURO2/3/4 WITH 3STEPS
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#63009) — 45 parça
Tümü

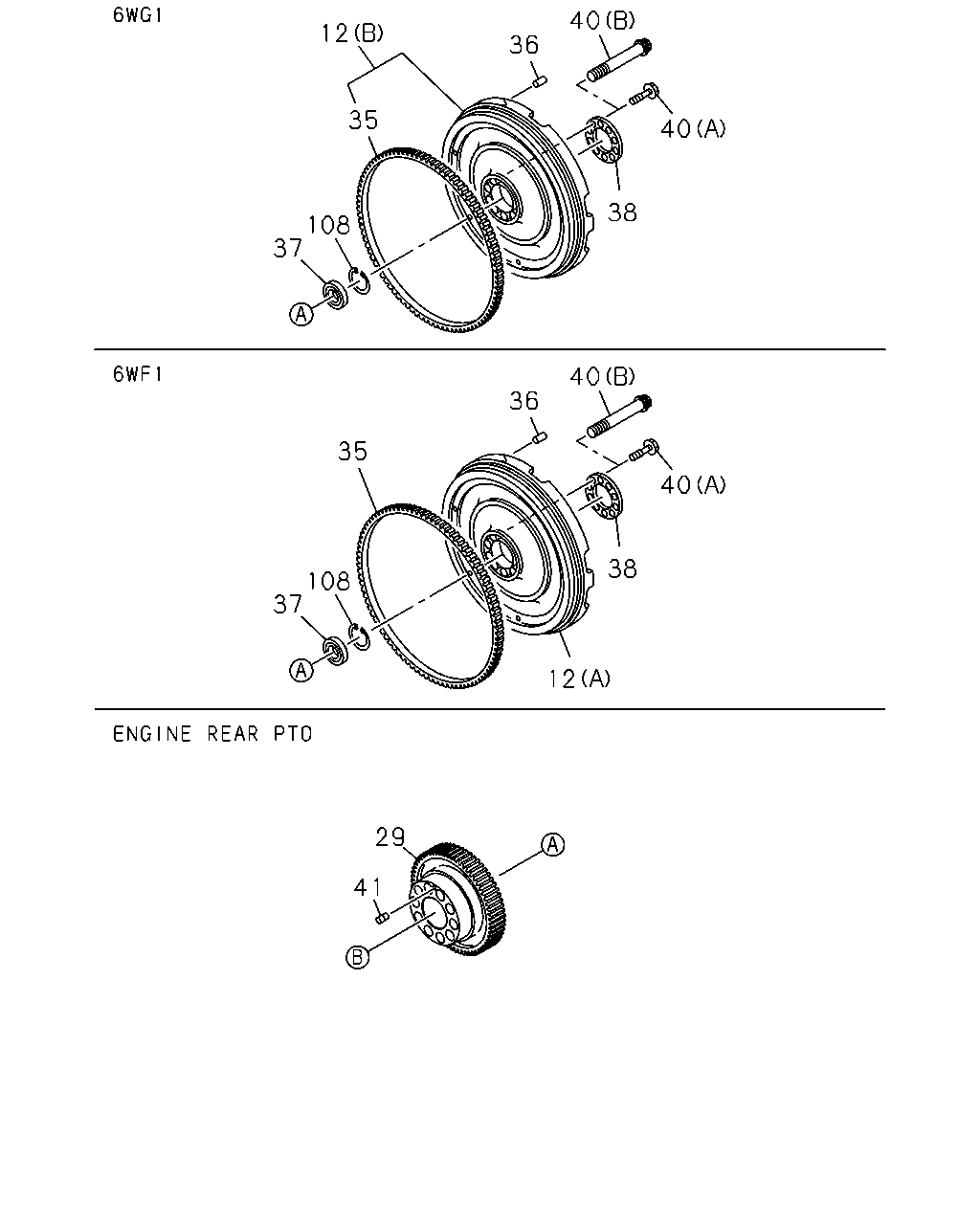

A - 6WG1 TC-R
B - 6WF1 TC-C
◀
[015A] NO.2 (14 parça)
[015A] NO.1 (31 parça)
▶
40
40
36
38
12
35
108
37
35
36
40
40
38
12
108
37
29
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
FLYWHEEL
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B)
8-97610-230-0
01
1
1008-
●
12
FLYWHEEL
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)
1-12331-418-1
01
1
1008-
●
12
FLYWHEEL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (A)
1-12331-410-0
01
1
1008-
●
12
FLYWHEEL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (B)
8-97610-231-0
01
1
1008-
●
29
GEAR; CR/SHF,PTO
ENGINE REAR PTO(SV1)
1-38261-041-0
01
1
1008-
●
●
35
GEAR; RING
Z=139
1-12333-013-1
01
1
1008-
●
●
36
PIN; FLYWHEEL
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) OD=10 L=22
9-08151-022-0
02
1
1008-
●
●
37
BEARING; PILOT,TOP GEAR SHAFT
1-09800-257-0
01
1
1008-
●
●
37
BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS
1-87610-158-0
01
1
1008-
●
●
38
WASHER; FLYWHEEL
1-12336-011-0
01
1
1008-
●
●
40
BOLT; FLYWHEEL
ENGINE REAR PTO(SV1) (B)
1-09070-133-1
10
1
1008-
●
●
40
BOLT; FLYWHEEL
EXC. ENGINE REAR PTO(SV1) (A)
1-09070-017-1
10
1
1008-
●
●
41
PIN; GEAR,CR/SHF PTO
ENGINE REAR PTO(SV1) OD=8 L=16
9-08150-816-0
01
1
1008-
●
●
108
RING; SNAP,BRG SET
OD=67.2
9-09180-163-0
01
1
1008-
●
●

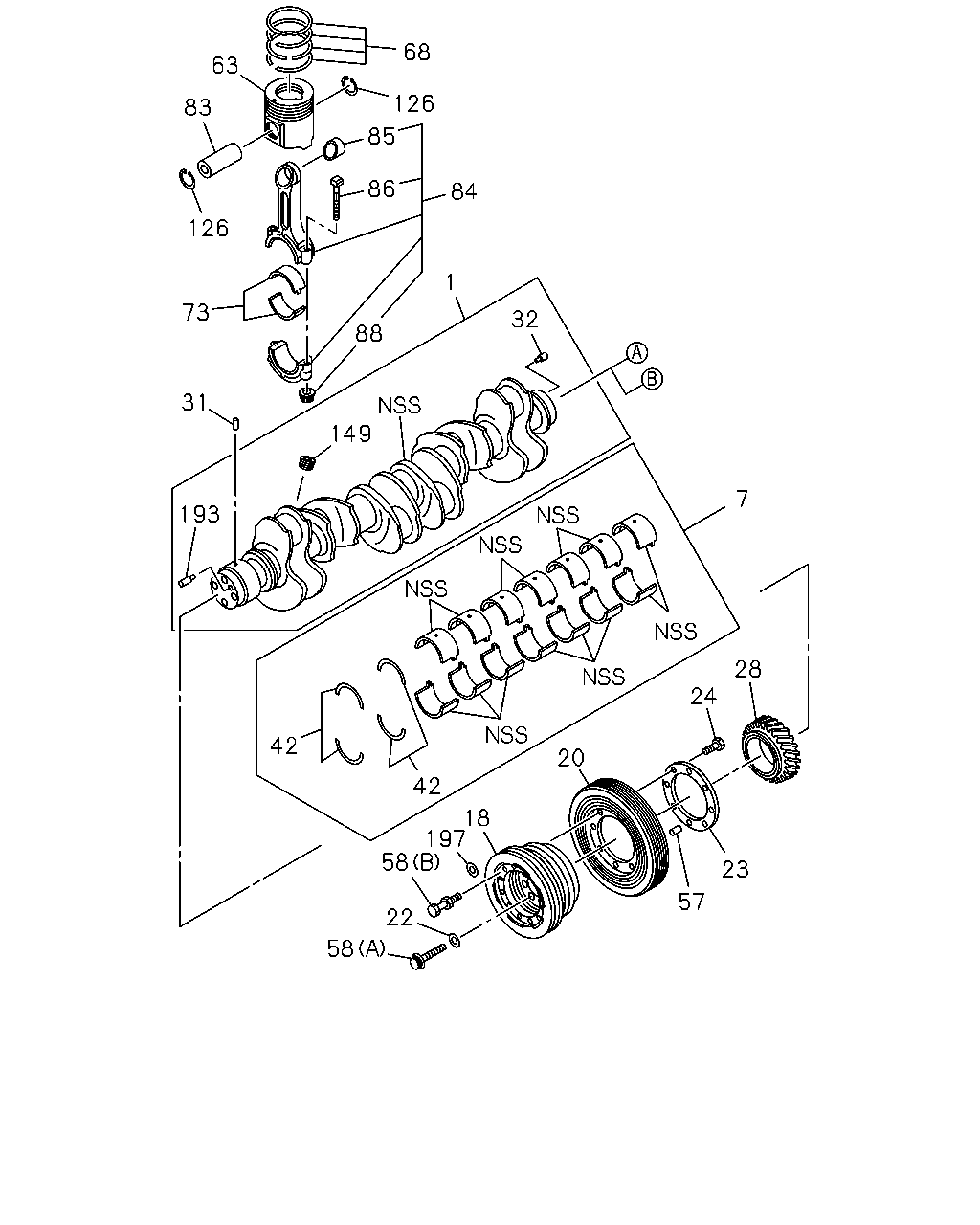

68
126
85
63
83
126
86
84
73
31
88
1
32
149
193
7
28
24
20
18
42
42
197
58
22
58
57
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CRANKSHAFT
1-12310-682-2
01
1
1008-
●
1
CRANKSHAFT
1-12310-715-1
01
1
1008-1106
●
1
CRANKSHAFT
8-98172-014-0
01
1
1107-
●
7
METAL KIT; CRANKSHAFT,STANDARD
8-98151-849-1
01
1
1008-
●
●
18
PULLEY; CR/SHF
3-GROOVE
8-97606-321-0
01
1
1008-
●
●
20
DAMPER; CR/SHF
1-12375-214-2
01
1
1008-
●
20
DAMPER; CR/SHF
8-98147-154-0
01
1
1008-
●
22
PLATE; PULLEY
ID=18
9-09851-862-0
08
1
1008-
●
●
23
WASHER; DAMPER
1-12379-039-1
01
1
1008-
●
24
BOLT; DAMPER
M12X30 FLANGE
0-28761-230-0
08
1
1008-
●
●
28
GEAR; CR/SHF
Z=48
1-12521-061-2
01
1
1008-
●
●
31
KEY; FEATHER,CR/SHF
OD=5 L=6
9-09878-626-0
01
1
1008-
●
●
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
01
1
1008-
●
●
42
WASHER; THRUST,CR/SHF
8-98151-850-0
02
1
1008-
●
●
57
PIN; PULLEY
OD=8 L=20
9-08160-820-0
01
1
1008-
●
58
BOLT; CR/SHF PULLEY
(A)
1-09070-017-1
08
1
1008-
●
●
58
BOLT; CR/SHF PULLEY
(B) M10X24 FLANGE
8-97603-593-0
06
1
1008-
●
●
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
1-12112-009-1
06
1
1008-
●
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
8-98028-808-2
06
1
1008-
●
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
1-12121-154-1
06
1
1008-
●
●
73
METAL SET; CONN ROD,STANDARD
1-12271-096-0
06
1
1008-
●
●
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
1-12211-029-1
06
1
1008-
●
●
84
ROD ASM; CONN
1-12230-185-2
06
1
1008-
●
84
ROD ASM; CONN
8-98115-948-0
06
1
1008-
●
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-98115-959-0
06
1
1008-
●
●
86
BOLT; CONNROD
1-12235-036-3
12
1
1008-
●
●
88
NUT; CONNROD
1-12239-005-1
12
1
1008-
●
●
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
1-09587-082-0
12
1
1008-
●
●
149
PLUG
PT1
1-09605-021-1
06
1
1008-
●
●
193
PIN; FLANGE
OD=8 L=20
9-08160-820-0
01
1
1008-
●
197
WASHER; PL,FAN DRIVE
ID=10.5
9-09164-510-0
06
1
1008-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
