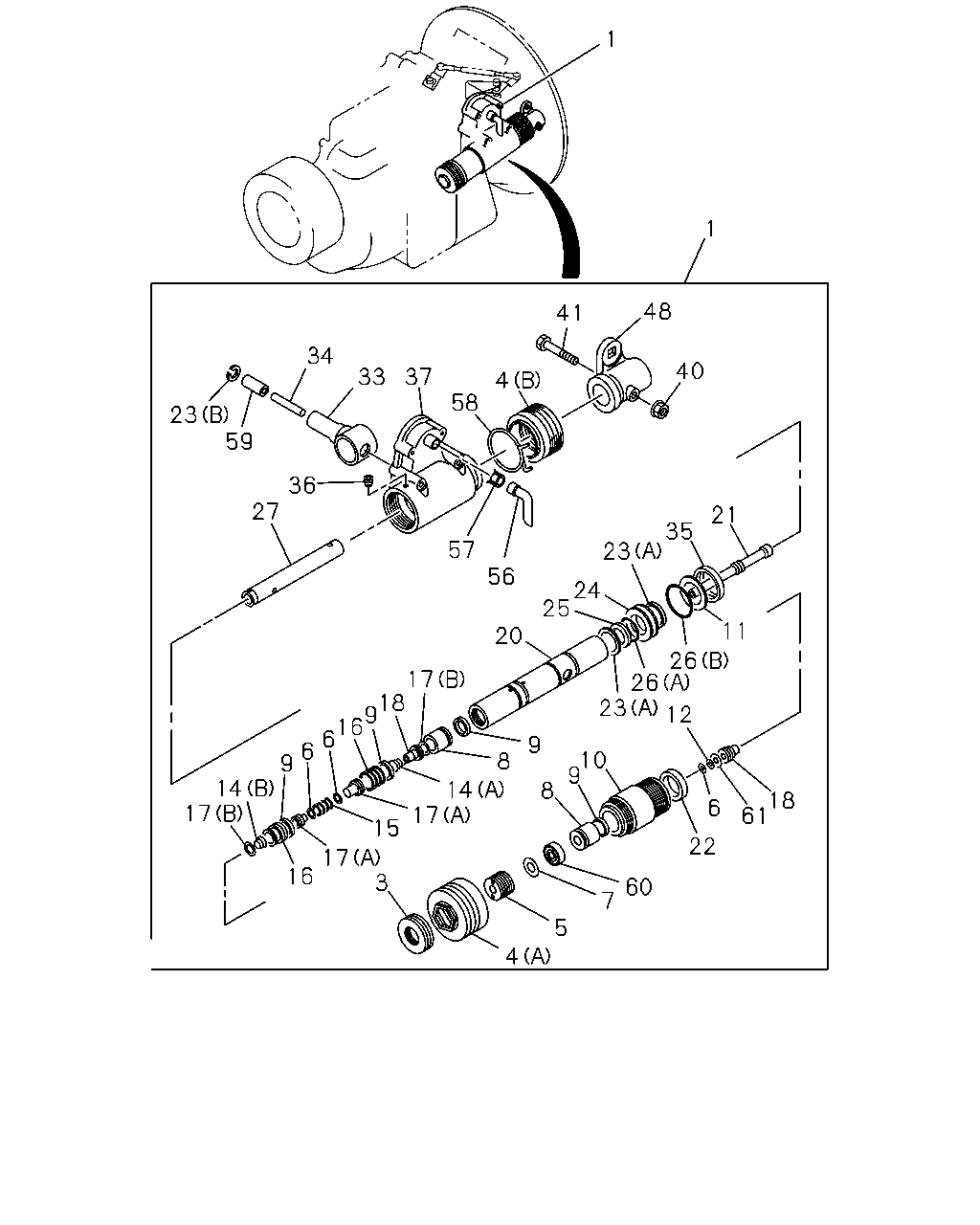

2-39 — POWER ASSISTOR (#6300) — 136 parça

1 1 48 41 34 40 33 37 4 58 23 59 36 27 21 35 57 23 56 24 25 11 20 26 26 23 17 18 9 16 6 6 9 14 17 12 9 10 9 8 14 17 8 18 61 6 15 22 17 3 16 60 7 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ASSISTOR ASM; POWER,SHIFT MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33730-104-0	01	1	9604-9805
1	ASSISTOR ASM; POWER,SHIFT MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33730-210-1	01	1	9806-9807
1	ASSISTOR ASM; POWER,SHIFT MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33730-223-0	01	1	9808-9904
1	ASSISTOR ASM; POWER,SHIFT ASSISTER SHIFT CONTROL<WX8>	1-33730-223-0	01	1	9905-0004
1	ASSISTOR ASM; POWER,SHIFT ASSISTER SHIFT CONTROL<WX8>	1-33730-275-1	01	1	0005-
3	NUT; LK,ROD MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-025-0	01	1	9604-9904
3	NUT; LK,ROD ASSISTER SHIFT CONTROL<WX8>	1-33739-025-0	01	1	9905-
4	BOOT; POWER SHIFTER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-038-0	01	1	9604-9904
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-038-0	01	1	9905-
4	BOOT; POWER SHIFTER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-571-0	01	1	9604-9904
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-571-0	01	1	9905-
5	CONNECTOR; CYL MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-596-0	01	1	9604-9904
5	CONNECTOR; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-596-0	01	1	9905-
6	GASKET MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-013-0	03	1	9604-9904
6	GASKET ASSISTER SHIFT CONTROL<WX8>	1-33739-013-0	03	1	9905-
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8>	1-33739-036-0	01	1	0005-
7	FILTER; AIR MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-033-0	01	1	9604-9904
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8>	1-33739-033-0	01	1	9905-
8	TUBE MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-560-0	02	1	9604-9904
8	TUBE ASSISTER SHIFT CONTROL<WX8>	1-33739-560-0	02	1	9905-
9	RING; SQUARE MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-086-0	04	1	9604-9904
9	RING; SQUARE ASSISTER SHIFT CONTROL<WX8>	1-33739-086-0	04	1	9905-
10	CYLINDER; POWER SHIFTER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-352-0	01	1	9604-9904
10	CYLINDER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-352-0	01	1	9905-
11	PLATE; CYL MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-108-0	01	1	9604-9904
11	PLATE; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-108-0	01	1	9905-
12	RING; RET MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-016-0	01	1	9604-9904
12	RING; RET ASSISTER SHIFT CONTROL<WX8>	1-33739-016-0	01	1	9905-
14	SPRING; VALVE LIFTER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-347-0	01	1	9604-9904
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-347-0	01	1	9905-
14	SPRING; VALVE LIFTER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-354-0	01	1	9604-9904
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-354-0	01	1	9905-
15	SPRING; VALVE SEAL MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-014-0	01	1	9604-9904
15	SPRING; VALVE SEAL ASSISTER SHIFT CONTROL<WX8>	1-33739-014-0	01	1	9905-
16	SEAT; VALVE MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-067-0	02	1	9604-9904
16	SEAT; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-067-0	02	1	9905-
17	SEAL ASM; VALVE MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-012-0	02	1	9604-9904
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-012-0	02	1	9905-
17	SEAL ASM; VALVE MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8> (B)	9-83335-055-0	02	1	9604-9904
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8> (B)	9-83335-055-0	02	1	9905-
18	LIFTER; VALVE MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-586-0	02	1	9604-9904
18	LIFTER; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-586-0	02	1	9905-
20	ROD ASM; W/CAP MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-599-0	01	1	9604-9904
20	ROD ASM; W/CAP ASSISTER SHIFT CONTROL<WX8>	1-33739-599-0	01	1	9905-
21	PIPE; AIR,POWER SHIFTER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-598-0	01	1	9604-9904
21	PIPE; AIR,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-598-0	01	1	9905-
22	SEAL; OIL MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-353-0	01	1	9604-9904
22	SEAL; OIL ASSISTER SHIFT CONTROL<WX8>	1-33739-353-0	01	1	9905-
23	RING; RET MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-022-0	02	1	9604-9904
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-022-0	02	1	9905-
23	RING; RET MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	9604-9807
23	RING; RET MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-944-0	01	1	9808-9904
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-944-0	01	1	9905-0004
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	0005-
24	PISTON MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-499-0	01	1	9604-9904
24	PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-499-0	01	1	9905-
25	RING; "X",PISTON MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-350-0	01	1	9604-9904
25	RING; "X",PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-350-0	01	1	9905-
26	GASKET MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-122-0	01	1	9604-9904
26	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-122-0	01	1	9905-
26	GASKET MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-124-0	01	1	9604-9904
26	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-124-0	01	1	9905-
27	ROD; POWER SHIFTER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-597-0	01	1	9604-9904
27	ROD; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-597-0	01	1	9905-
33	STRIKER; POWER SHIFTER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-609-0	01	1	9604-9807
33	STRIKER; POWER SHIFTER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-943-0	01	1	9808-9904
33	STRIKER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-943-0	01	1	9905-0004
33	STRIKER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-609-0	01	1	0005-
34	PIN; STRAIGHT,POWER SHIFTER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-575-0	01	1	9604-9904
34	PIN; STRAIGHT,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-575-0	01	1	9905-
35	GASKET; CUP MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-073-0	01	1	9604-9904
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8>	1-33739-073-0	01	1	9905-
36	SCREW; SET MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-040-0	01	1	9604-9904
36	SCREW; SET ASSISTER SHIFT CONTROL<WX8>	1-33739-040-0	01	1	9905-
37	HOUSING; POWER SHIFTER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-606-0	01	1	9604-9904
37	HOUSING; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-606-0	01	1	9905-
40	NUT; LEVER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-363-0	01	1	9604-9805
40	NUT; LEVER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-940-0	01	1	9806-9904
40	NUT; LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-940-0	01	1	9905-
41	BOLT; SET,LEVER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-043-0	01	1	9604-9805
41	BOLT; SET,LEVER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-339-0	01	1	9806-9806
41	BOLT; SET,LEVER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-939-0	01	1	9806-9904
41	BOLT; SET,LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-939-0	01	1	9905-
48	LEVER; CONT,CABLE MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-592-0	01	1	9604-9904
48	LEVER; CONT,CABLE ASSISTER SHIFT CONTROL<WX8>	1-33739-592-0	01	1	9905-
56	HOSE; POWER SHIFTER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-570-0	01	1	9604-9904
56	HOSE; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-570-0	01	1	9905-
57	CLAMP; HOSE MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-569-0	01	1	9604-9904
57	CLAMP; HOSE ASSISTER SHIFT CONTROL<WX8>	1-33739-569-0	01	1	9905-
58	CLAMP; BOOT MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-562-0	01	1	9604-9904
58	CLAMP; BOOT ASSISTER SHIFT CONTROL<WX8>	1-33739-562-0	01	1	9905-
59	SHIM; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-563-0	01	1	0005-
59	SHIM; POWER SHIFTER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-563-0	01	1	9604-9807
60	COLLAR; CYL MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-595-0	01	1	9604-9904
60	COLLAR; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-595-0	01	1	9905-
61	PLATE; VLV LIFTER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-581-0	01	1	9604-9904
61	PLATE; VLV LIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-581-0	01	1	9905-

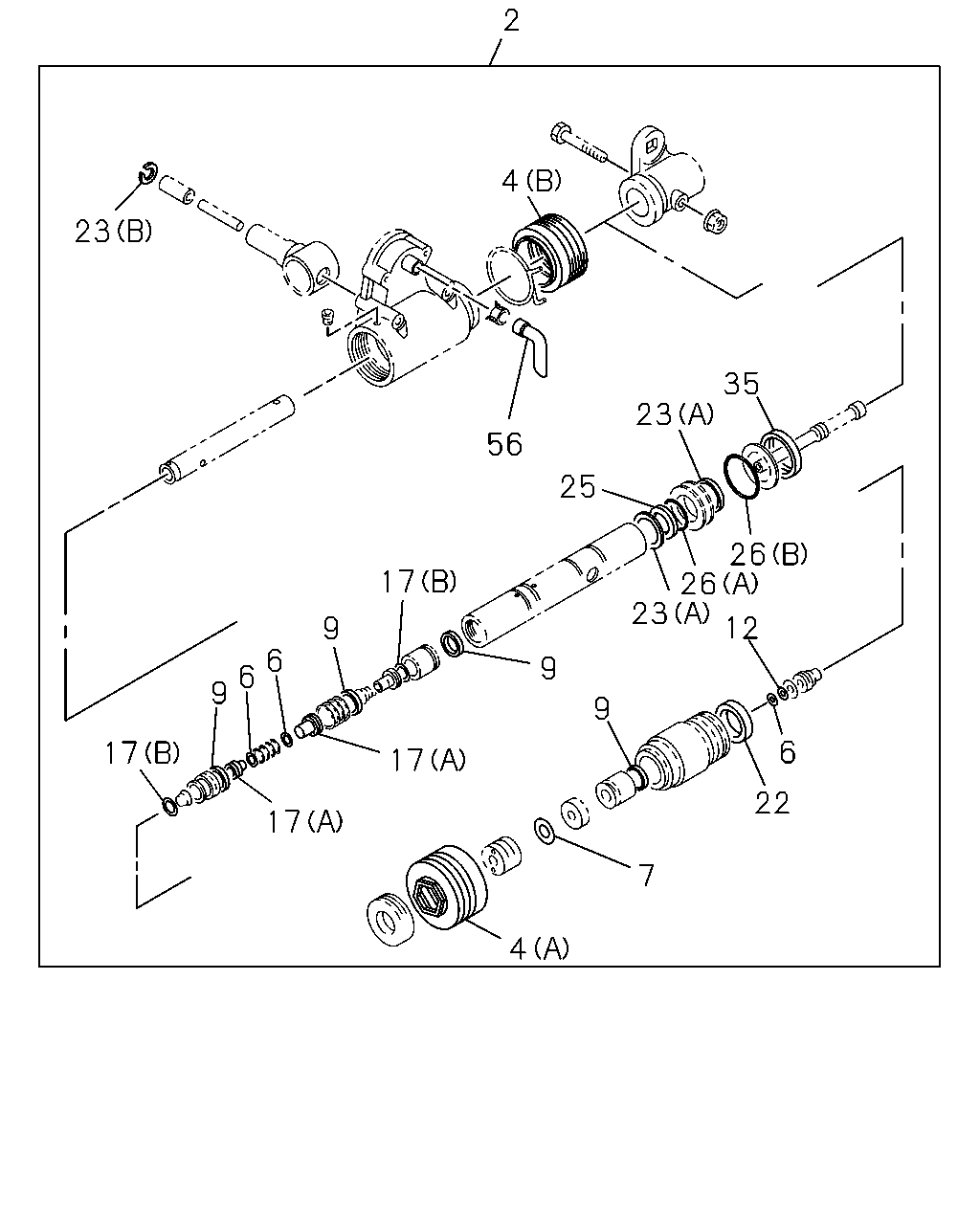

2 4 23 35 23 56 25 26 26 23 17 12 9 6 6 9 9 9 6 17 17 22 17 7 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; POWER SHIFTER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-608-0	01	1	9604-9807
2	REPAIR KIT; POWER SHIFTER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-945-0	01	1	9808-9904
2	REPAIR KIT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-945-0	01	1	9905-0004
2	REPAIR KIT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-608-0	01	1	0005-
4	BOOT; POWER SHIFTER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-038-0	01	1	9604-9904
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-038-0	01	1	9905-
4	BOOT; POWER SHIFTER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-571-0	01	1	9604-9904
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-571-0	01	1	9905-
6	GASKET MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-013-0	03	1	9604-9904
6	GASKET ASSISTER SHIFT CONTROL<WX8>	1-33739-013-0	03	1	9905-
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8>	1-33739-036-0	01	1	0005-
7	FILTER; AIR MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-033-0	01	1	9604-9904
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8>	1-33739-033-0	01	1	9905-
9	RING; SQUARE MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-086-0	04	1	9604-9904
9	RING; SQUARE ASSISTER SHIFT CONTROL<WX8>	1-33739-086-0	04	1	9905-
12	RING; RET MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-016-0	01	1	9604-9904
12	RING; RET ASSISTER SHIFT CONTROL<WX8>	1-33739-016-0	01	1	9905-
17	SEAL ASM; VALVE MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-012-0	02	1	9604-9904
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-012-0	02	1	9905-
17	SEAL ASM; VALVE MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8> (B)	9-83335-055-0	02	1	9604-9904
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8> (B)	9-83335-055-0	02	1	9905-
22	SEAL; OIL MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-353-0	01	1	9604-9904
22	SEAL; OIL ASSISTER SHIFT CONTROL<WX8>	1-33739-353-0	01	1	9905-
23	RING; RET MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-022-0	02	1	9604-9904
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-022-0	02	1	9905-
23	RING; RET MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	9604-9807
23	RING; RET MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-944-0	01	1	9808-9904
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-944-0	01	1	9905-0004
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	0005-
25	RING; "X",PISTON MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-350-0	01	1	9604-9904
25	RING; "X",PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-350-0	01	1	9905-
26	GASKET MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-122-0	01	1	9604-9904
26	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-122-0	01	1	9905-
26	GASKET MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-124-0	01	1	9604-9904
26	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-124-0	01	1	9905-
35	GASKET; CUP MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-073-0	01	1	9604-9904
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8>	1-33739-073-0	01	1	9905-
56	HOSE; POWER SHIFTER MAL5T M/T(Y1K),MAL6Q M/T(Y1M) ASSISTER SHIFT CONTROL<WX8>	1-33739-570-0	01	1	9604-9904
56	HOSE; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-570-0	01	1	9905-
