5-15 — CAB MOUNTING; CAB SIDE (#63) — 153 parça

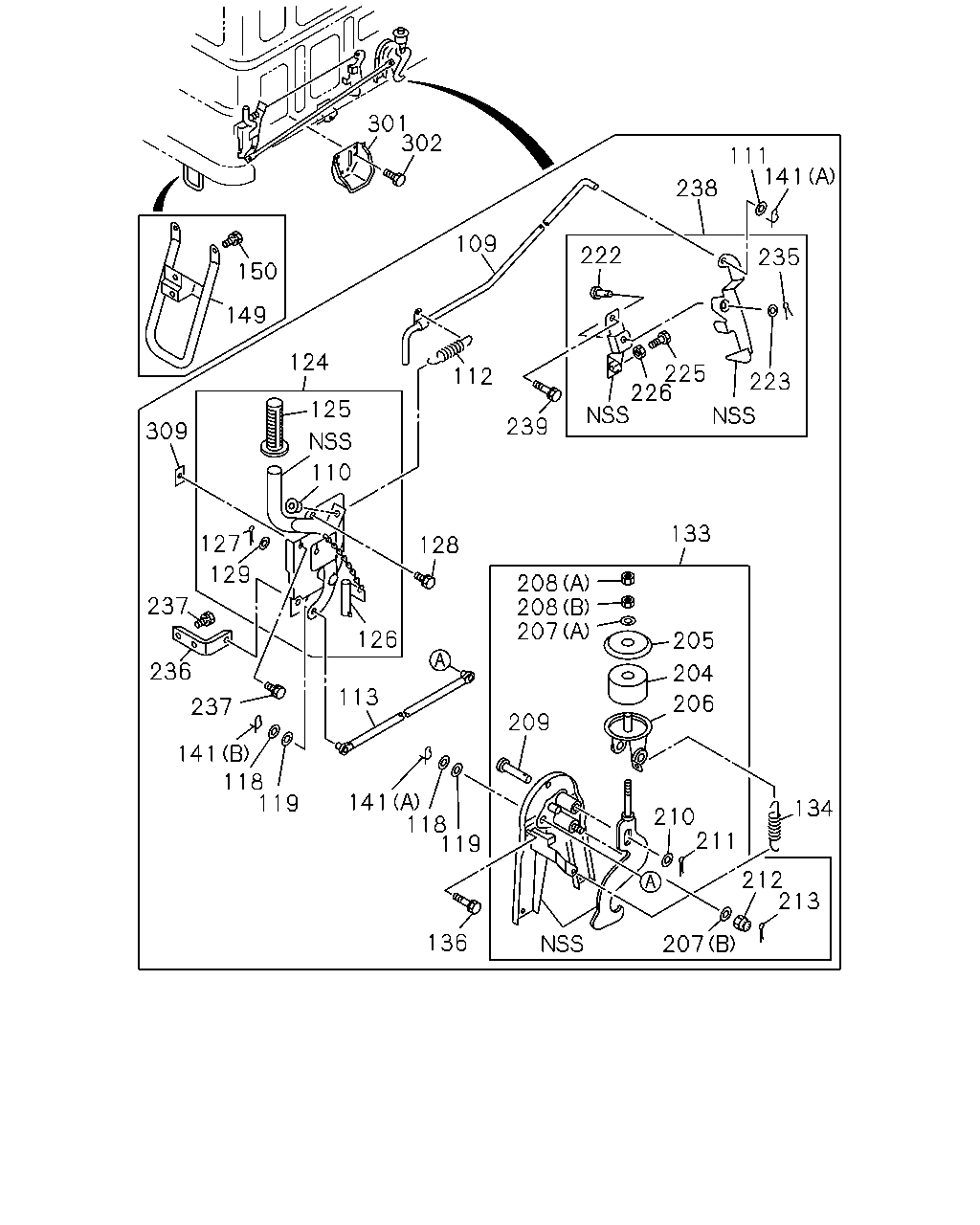

301 302 111 141 238 109 222 235 150 149 112 124 225 226 223 125 239 309 110 133 127 128 129 208 208 207 237 126 205 236 204 113 206 237 209 141 118 119 141 118 119 134 210 211 212 213 136 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
109	ROD; SAFETY,CAB LK	1-79718-276-8	01	1	9202-	●
110	BUSHING; SAFETY ROD,CAB LOCK	1-79718-319-1	01	1	9202-	●
111	WASHER; PL,SAFETY ROD	1-09985-137-0	01	1	9202-	●
112	SPRING; RETURN,SAFETY ROD	1-79718-285-1	01	1	9202-	●
113	ROD; CONN,CAB LK	1-79718-267-1	01	1	9202-	●	●
118	WASHER; PL,CONNROD ID=10.5	1-09985-107-0	02	1	9202-	●	●
119	WASHER; WAVE,CAB LOCK ROD	1-09985-045-0	02	1	9202-	●	●
124	LEVER ASM; HAND,CAB LK	1-79718-477-1	01	1	9202-	●
124	LEVER ASM; HAND,CAB LK	1-79718-480-1	01	1	9202-		●
125	GRIP; HAND LEVER,CAB LOCK	1-79718-303-2	01	1	9202-	●	●
126	PIN; LK,HAND LEVER	1-79718-479-0	01	1	9202-	●	●
127	PIN; SPLIT,BRKT L=30 L=30	1-09987-080-0	01	1	9202-9508	●	●
128	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09980-548-0	03	1	9202-	●	●
129	WASHER; PL,BRKT ID=17	1-09985-109-0	01	1	9202-9508	●	●
133	LOCK ASM; CAB	1-79718-426-4	01	1	9202-9311	●	●
133	LOCK ASM; CAB	1-79718-550-2	01	1	9312-	●	●
134	SPRING; CAB LK LEVER	1-09985-044-0	01	1	9202-	●	●
136	BOLT; CAB LK M10X25 W/LK&PL WASHER	1-09980-488-0	05	1	9202-	●	●
141	PIN; SNAP,CAB LOCK ROD (B) L=27.7	1-09987-141-0	01	1	9202-	●
141	PIN; SNAP,CAB LOCK ROD (A) L=32.6	1-09987-142-0	02	1	9202-	●	●
149	HANDLE; TILT	1-71998-522-0	01	1	9202-	●
150	BOLT; TILT HANDLE M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9202-	●
204	RUBBER; REBOUND,CAB LK	1-79718-429-1	01	1	9202-	●	●
205	PLATE; SUPPORT,REBOUND RUBBER	1-79718-129-1	01	1	9202-	●	●
206	SUPPORT; REBOUND RUBBER	1-79718-434-0	01	1	9202-	●	●
207	WASHER; PL,SUPPORT PLATE (A) ID=15 OD=36	1-09985-112-0	01	1	9202-	●	●
207	WASHER; PL,SUPPORT PLATE (B) ID=19 OD=44	1-09985-113-0	01	1	9202-	●	●
208	NUT; SUPPORT PLATE (A) M14	1-09984-066-0	01	1	9202-	●	●
208	NUT; SUPPORT PLATE (B) M14	1-09984-067-0	01	1	9202-	●	●
209	PIN; JOINT,SUPPORT	1-09987-083-0	01	1	9202-	●	●
210	WASHER; PL,SUPPORT ID=17	1-09985-109-0	01	1	9202-	●	●
211	PIN; SPLIT,SUPPORT L=30 L=30	1-09987-080-0	01	1	9202-	●	●
212	NUT; BRKT,CAB LOCK M18 SLOTTED	1-09984-079-0	01	1	9202-	●	●
213	PIN; SPLIT,BRKT,CAB LK L=30	1-09987-080-0	01	1	9202-	●	●
222	PIN; JOINT,SAFETY LK	1-09987-159-0	01	1	9202-	●
223	WASHER; PL,SAFETY LK ID=12.5 OD=22 T=1.6	1-09985-108-0	01	1	9202-	●
225	BOLT; SAFETY LK M8X30	1-09980-277-0	01	1	9202-	●
226	NUT; SAFETY LK M8	1-09984-065-0	01	1	9202-	●
235	PIN; SNAP	1-09987-158-1	01	1	9202-	●
236	SUPPORT ASM; HAND LEVER,CAB LOCK	1-79718-286-3	01	1	9202-	●	●
237	BOLT; HAND LEVER SUPPORT,CAB LOCK M8X25	1-09980-491-0	02	1	9202-	●	●
238	LOCK ASM; SAFETY,CAB TILT	1-79718-307-9	01	1	9202-9507	●
238	LOCK ASM; SAFETY,CAB TILT	1-79718-602-1	01	1	9508-	●
239	BOLT; SAFETY LK	1-09980-487-0	02	1	9202-	●
301	BRACKET; RR MTG,CAB	1-62580-165-0	01	1	9202-	●
301	BRACKET; RR MTG,CAB	1-62580-053-2	01	1	9202-	●
301	BRACKET; RR MTG,CAB	1-62580-189-1	01	1	9202-		●
301	BRACKET; RR MTG,CAB	1-62580-188-0	01	1	9202-		●
302	BOLT; BRKT,CAB M8X25 W/LK&PL WASHER	1-09980-526-0	12	1	9202-	●	●
309	SEAL; WATER 25X25	8-94272-533-0	08	1	9202-	●	●

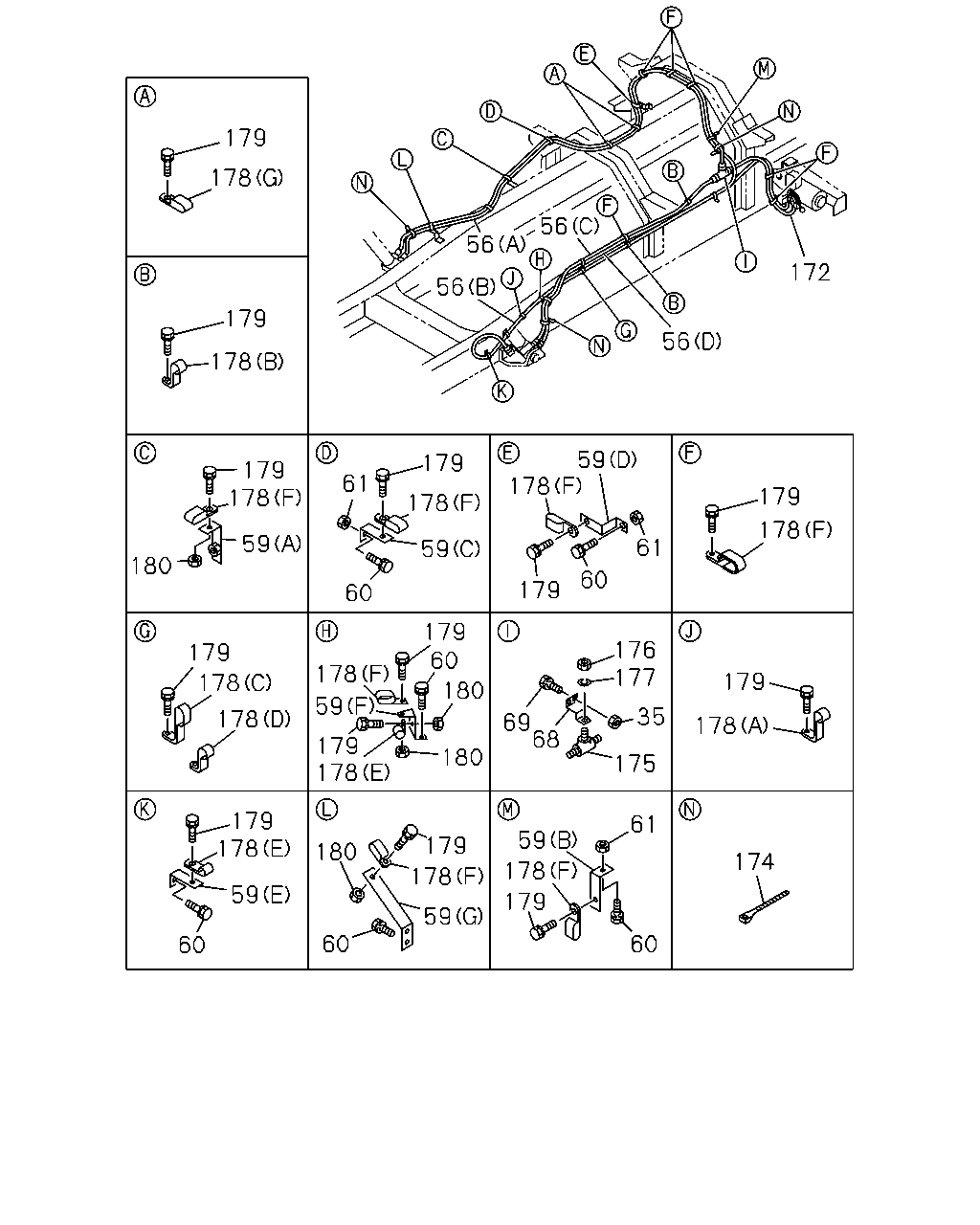

179 178 56 56 172 56 179 56 178 59 178 179 179 178 61 179 178 178 59 61 59 180 60 179 60 179 60 176 177 179 178 179 178 180 59 35 178 69 68 178 179 178 180 175 179 178 61 59 179 180 174 178 178 59 179 59 60 60 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
35	NUT; BRKT M8	9-09110-408-0	02	1	9202-	●
56	HOSE; FLEX,OIL PIPE (C) L=1900	1-09364-576-3	01	1	9202-	●
56	HOSE; FLEX,OIL PIPE (D) L=2570	1-09364-622-1	01	1	9202-	●
56	HOSE; FLEX,OIL PIPE (A) L=3380	1-09364-578-4	01	1	9202-	●
56	HOSE; FLEX,OIL PIPE (B) L=5800	1-09364-587-3	01	1	9202-	●
59	BRACKET; CLIP (C) L=60	1-47475-455-0	02	1	9202-	●
59	BRACKET; CLIP (B)	1-47475-519-0	01	1	9202-	●
59	BRACKET; CLIP (A)	1-47475-588-0	02	1	9202-	●
59	BRACKET; CLIP (G)	1-47475-649-2	01	1	9202-9211	●
59	BRACKET; CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (G)	1-47475-649-2	01	1	9212-	●
59	BRACKET; CLIP (D)	1-47475-654-2	01	1	9202-	●
59	BRACKET; CLIP (E)	1-47475-746-2	01	1	9202-9202	●
59	BRACKET; CLIP (E) L=68	1-47475-525-0	01	1	9203-	●
59	BRACKET; CLIP (F)	1-53459-700-0	01	1	9202-	●
60	BOLT; BRKT M8X16 FLANGE	0-28010-816-0	07	1	9202-9204	●
60	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	07	1	9205-9211	●
60	BOLT; BRKT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	07	1	9212-	●
60	BOLT; BRKT M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●
60	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9205-	●
60	BOLT; BRKT M8X20	0-28410-820-0	02	1	9202-9204	●
60	BOLT; BRKT M8X20 FLANGE	0-28480-820-0	02	1	9205-	●
60	BOLT; BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	05	1	9212-	●
61	NUT; BRKT M8	9-09110-408-0	04	1	9202-	●
68	BRACKET; UNION	1-47475-749-0	01	1	9202-	●
69	BOLT; BRKT M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●
69	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9205-	●
172	HOSE; FLEX,OIL TILT L=650	1-09364-432-2	01	1	9202-	●
174	CLIP; BAND,FLEX HOSE L=140	5-09707-031-0	02	1	9202-	●
175	UNION; FLEX HOSE	9-09228-608-1	01	1	9202-	●
176	NUT; UNION M14	9-99111-414-0	01	1	9202-	●
177	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9202-	●
178	CLIP; FLEX HOSE (A) ID=11 H=30 L=17	1-09700-113-0	01	1	9202-	●
178	CLIP; FLEX HOSE (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9202-	●
178	CLIP; FLEX HOSE (A) ID=13 H=40 L=25	1-09700-620-0	01	1	9202-	●
178	CLIP; FLEX HOSE (C) ID=11X2 H=35 L=20	1-09700-847-0	01	1	9202-	●
178	CLIP; FLEX HOSE (D) ID=11 H=20 L=25	1-09700-848-0	01	1	9202-	●
178	CLIP; FLEX HOSE (E) ID=11 L=16	9-09525-025-0	03	1	9202-	●
178	CLIP; FLEX HOSE (G) ID=11X2 L=50	9-09535-085-0	02	1	9202-	●
178	CLIP; FLEX HOSE (F) ID=13X2 L=16	9-09535-225-0	16	1	9202-9211	●
178	CLIP; FLEX HOSE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (F) ID=13X2 L=16	9-09535-225-0	15	1	9212-	●
178	CLIP; FLEX HOSE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (F) ID=13X2 L=16	9-09535-225-0	16	1	9212-	●
179	BOLT; CLIP,FLEX HOSE M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●
179	BOLT; CLIP,FLEX HOSE M8X16 FLANGE	0-28080-816-0	01	1	9205-	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28010-820-0	21	1	9202-9204	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28080-820-0	21	1	9205-9211	●
179	BOLT; CLIP,FLEX HOSE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	23	1	9212-	●
179	BOLT; CLIP,FLEX HOSE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	24	1	9212-	●
180	NUT; CLIP M8	9-09110-408-0	12	1	9202-9211	●
180	NUT; CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	11	1	9212-	●
180	NUT; CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	12	1	9212-	●

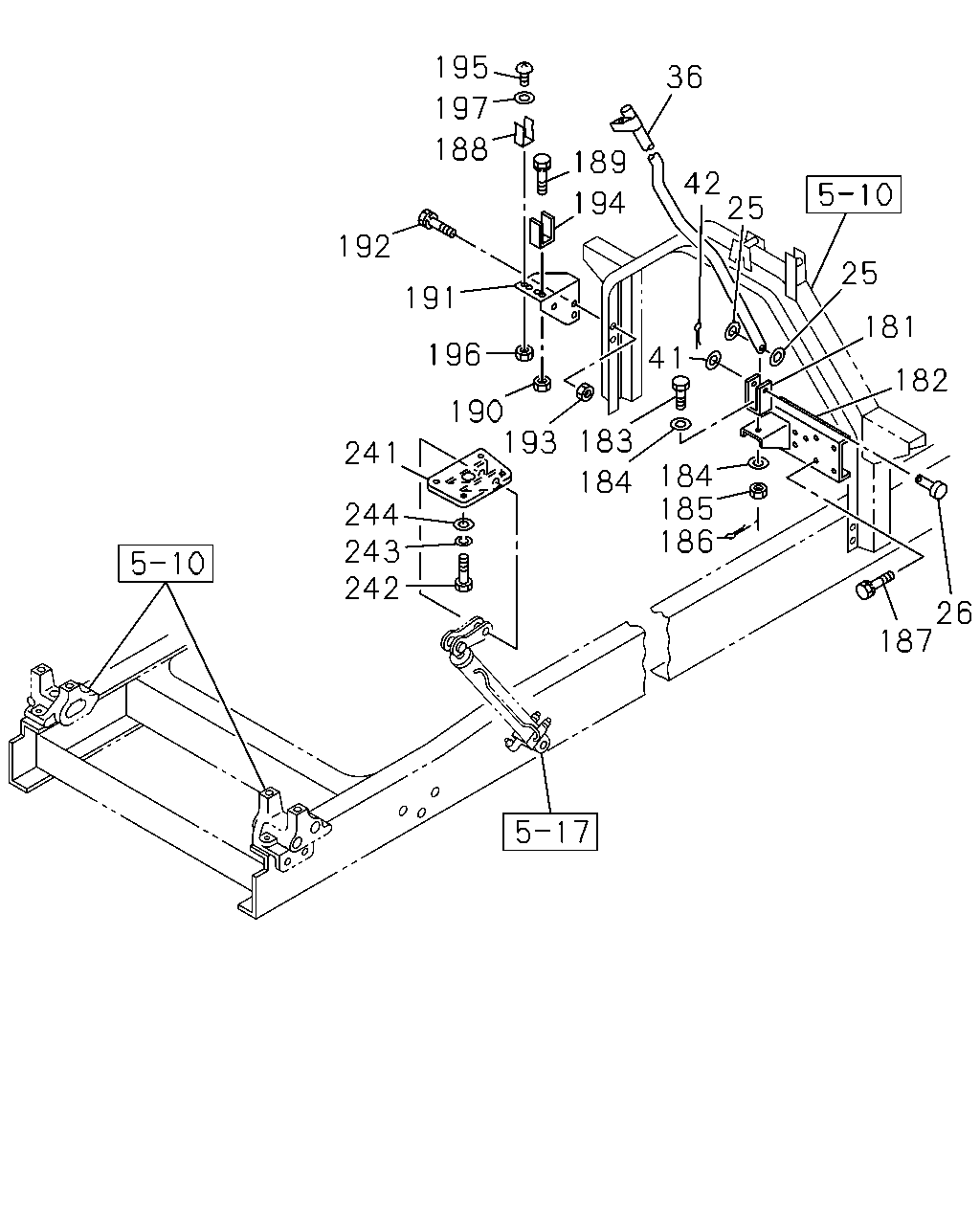

195 36 197 188 189 42 25 194 192 25 191 181 196 41 182 190 193 183 241 184 185 186 184 244 243 242 26 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
25	WASHER; PL,STAY ID=15 OD=30	9-09164-614-0	02	1	9202-	●
26	PIN; STAY OD=14 L=62	9-08234-462-0	01	1	9202-	●
36	STAY; OIL TILT	1-53719-029-0	01	1	9202-	●
41	WASHER; PL,STAY ID=15	9-09160-514-0	01	1	9202-	●
42	PIN; SPLIT,STAY OD=3.7 L=25	9-08114-025-0	01	1	9202-	●
181	BRACKET; STAY,OIL TILT	1-53719-018-1	01	1	9202-	●
182	BRACKET; STAY BRKT,OIL TILT	1-53719-022-7	01	1	9202-	●
183	BOLT; BRKT M16X40 W/PIN HOLE	1-09042-043-0	01	1	9202-	●
184	WASHER; PL,BRKT ID=17	9-09160-516-0	03	1	9202-	●
185	NUT; BRKT M16 SLOTTED	9-99116-516-0	01	1	9202-	●
186	PIN; BRKT OD=3.7 L=25	9-08114-025-0	01	1	9202-	●
187	BOLT; BRKT M8X25 FLANGE	0-28010-825-0	04	1	9202-9204	●
187	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	04	1	9205-	●
188	CLIP; STAY,OIL TILT	1-09709-114-0	01	1	9202-	●
189	BOLT; CLIP M6X12	0-28010-612-0	02	1	9202-9204	●
189	BOLT; CLIP M6X12 FLANGE	0-28080-612-0	02	1	9205-	●
190	NUT; CLIP M6	9-09110-406-0	02	1	9202-	●
191	BRACKET; CLIP,STAY	1-53719-028-1	01	1	9202-	●
192	BOLT; BRKT M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●
192	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9205-	●
193	NUT; BRKT M8	9-09110-408-0	02	1	9202-	●
194	GUIDE; STAY	1-53719-020-0	01	1	9202-	●
195	SCREW; GUIDE M4X12	9-93490-412-0	02	1	9202-	●
196	NUT; GUIDE M4	9-99110-404-0	02	1	9202-	●
197	WASHER; LK,GUIDE ID=4.1	9-09150-504-0	02	1	9202-	●
241	BRACKET; POWER CYL UPR,CAB TILT	1-53739-012-0	02	1	9202-	●
242	BOLT; POWER CYL BRKT,CAB TILT M12X35	1-09980-530-0	08	1	9202-	●
243	WASHER; LK,POWER CYL BRKT	1-09985-189-0	08	1	9202-	●
244	WASHER; PL,POWER CYL BRKT ID=12.5	1-09503-171-0	08	1	9202-	●

73 76 1 13 7 3 1 7 3 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	LEVER; TORSION BAR	1-53459-768-2	01	1	9202-	●
1	LEVER; TORSION BAR	1-53459-767-2	01	1	9202-	●
3	BOLT; LEVER M10X32	1-09000-435-0	04	1	9202-	●
7	NUT; LK,LEVER M10	9-09110-510-0	04	1	9202-	●
13	BOLT; BUSHING,TORSION BAR M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9202-	●
73	PAD; TORSION BAR	1-53459-790-1	02	1	9202-	●
76	BOLT; PAD M10X30	1-09980-517-0	06	1	9202-	●

81 91 100 98 103 81 245 245 245 245 245 245 108 87 88 87 88 245 230 102 85 231 83 245 228 245 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
81	STAY ASM; CAB TILT CAB SUSPENSION SEMI FLOATING<SDK>	1-62500-576-4	01	1	9202-	●
81	STAY ASM; CAB TILT EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-62500-578-4	01	1	9202-	●
83	PIN; JOINT,CAB STAY OD=10 L=42	1-09744-106-0	01	1	9202-	●
85	LEVER; LOCK,CAB STAY	1-62500-503-0	01	1	9202-	●
87	PIN; SPLIT,CAB STAY PIN	1-09746-021-0	02	1	9202-	●
88	WASHER; PL,CAB STAY PIN ID=10.5 T=2.0	1-09985-183-0	02	1	9202-	●
91	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9203-	●
98	WASHER; CAB STAY ID=10.5 T=2.0	1-09985-183-0	01	1	9202-	●
100	PIN; SNAP,CAB STAY TO CAB	1-09987-158-1	01	1	9202-9202	●
102	WASHER; PL,CAB STAY ID=8.4 OD=16	1-09985-174-0	01	1	9202-	●
103	PIN; JOINT,CAB STAY	1-09744-108-1	01	1	9202-	●
108	PIN; ADJ,CAB STAY OD=10 L=42	1-09744-106-0	01	1	9202-	●
228	PIN; SAFETY LOCK SPRING,CAB STAY	1-09744-086-2	01	1	9202-	●
230	PIN; SPLIT CAB STAY	1-09746-019-0	01	1	9202-	●
231	SPRING; RETURN,LOCK LEVER,CAB STAY	1-09583-244-0	01	1	9202-	●
245	BUSHING; CAB STAY (A)	1-62500-587-0	06	1	9202-	●
245	BUSHING; CAB STAY (B)	1-62500-588-0	04	1	9202-	●
