2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#6299) — 94 parça

57 39 58 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	GASKET; FLEX HOSE ASSISTER SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	02	1	9604-9904	●	●
39	GASKET; FLEX HOSE ASSISTER SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	02	1	9905-	●	●	●
57	NIPPLE; POWER ASSISTOR ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9604-9904	●	●
57	NIPPLE; POWER ASSISTOR ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9905-	●	●	●
58	HOSE; FLEX,POWER ASSISTOR 8PE1S(59L) ASSISTER SHIFT CONTROL<WX8> L=230	0-07150-230-0	01	1	9604-9904	●	●
58	HOSE; FLEX,POWER ASSISTOR ASSISTER SHIFT CONTROL<WX8> L=230	0-07150-230-0	01	1	9905-	●	●	●

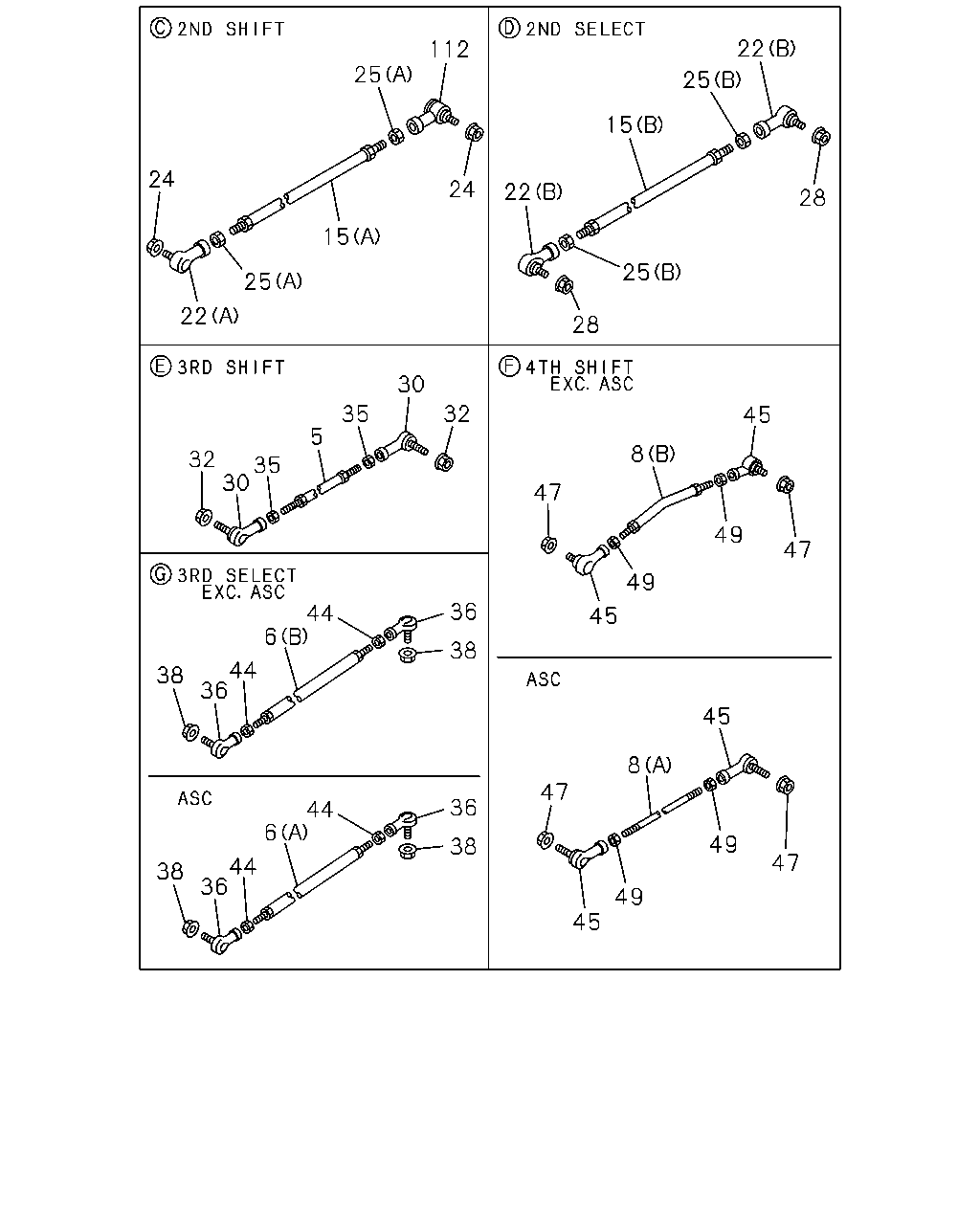

22 112 25 25 15 24 24 22 28 15 25 25 22 28 30 32 35 45 5 8 32 35 30 47 49 47 49 36 44 6 45 38 44 36 38 45 8 47 36 44 6 49 38 47 44 36 38 49 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	ROD; LINK,3RD SHIFT L=855	1-33652-321-0	01	1	9604-9904	●	●
5	ROD; LINK,3RD SHIFT L=855	1-33652-321-0	01	1	9905-	●	●	●
6	ROD; LINK,3RD SELECT 8PE1S(59L) ASSISTER SHIFT CONTROL<WX8> (A) L=1245	1-33652-673-0	01	1	9604-9807	●	●
6	ROD; LINK,3RD SELECT 8PE1S(59L) ASSISTER SHIFT CONTROL<WX8> (A) L=1246	1-33652-822-0	01	1	9808-9904	●	●
6	ROD; LINK,3RD SELECT ASSISTER SHIFT CONTROL<WX8> (A) L=1246	1-33652-822-0	01	1	9905-	●	●	●
6	ROD; LINK,3RD SELECT 8PE1S(59L) EXC. ASSISTER SHIFT CONTROL<WX8> (B) L=1255	1-33652-330-0	01	1	9604-9904	●	●
6	ROD; LINK,3RD SELECT EXC. ASSISTER SHIFT CONTROL<WX8> (B) L=1255	1-33652-330-0	01	1	9905-	●	●	●
8	ROD; LINK,4TH SHIFT 8PE1S(59L) ASSISTER SHIFT CONTROL<WX8> (A) L=165	1-09765-249-1	01	1	9604-9904	●	●
8	ROD; LINK,4TH SHIFT ASSISTER SHIFT CONTROL<WX8> (A) L=165	1-09765-249-1	01	1	9905-	●	●	●
8	ROD; LINK,4TH SHIFT 8PE1S(59L) EXC. ASSISTER SHIFT CONTROL<WX8> (B) L=337	1-33652-767-0	01	1	9604-9904	●	●
8	ROD; LINK,4TH SHIFT EXC. ASSISTER SHIFT CONTROL<WX8> (B) L=337	1-33652-767-0	01	1	9905-	●	●	●
15	ROD; LINK 1ST SHIFT (B) L=440	1-33652-672-0	01	1	9604-9904	●	●
15	ROD; LINK 1ST SHIFT (B) L=440	1-33652-672-0	01	1	9905-	●	●	●
15	ROD; LINK 1ST SHIFT (A) L=490	1-33652-700-0	01	1	9604-9904	●	●
15	ROD; LINK 1ST SHIFT (A) L=490	1-33652-700-0	01	1	9905-	●	●	●
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	9604-9904	●	●
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	9905-	●	●	●
22	JOINT; BALL,SCREW,LINK ROD (B)	1-09760-108-0	02	1	9604-9904	●	●
22	JOINT; BALL,SCREW,LINK ROD (B)	1-09760-108-0	02	1	9905-	●	●	●
22	JOINT; BALL,SCREW,LINK ROD (A)	1-09760-111-0	01	1	9604-9710	●	●
22	JOINT; BALL,SCREW,LINK ROD (A)	1-09760-125-0	01	1	9711-9904	●	●
22	JOINT; BALL,SCREW,LINK ROD (A)	1-09760-125-0	01	1	9905-	●	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9604-9708	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	01	1	9709-9710	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-056-0	01	1	9709-9710	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-056-0	02	1	9711-9802	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9803-9904	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9905-	●	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M8	9-09111-408-0	02	1	9604-9904	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M8	9-09111-408-0	02	1	9905-	●	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	9604-9904	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	9905-	●	●	●
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-049-0	02	1	9604-9804	●	●
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	9805-9904	●	●
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	9905-	●	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-110-0	02	1	9604-9710	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	9711-9904	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	9905-	●	●	●
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-050-0	02	1	9604-9710	●	●
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-056-0	02	1	9711-9802	●	●
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	9803-9904	●	●
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	9905-	●	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9604-9904	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9905-	●	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 8PE1S(59L)	1-09760-108-0	02	1	9604-9904	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-108-0	02	1	9905-	●	●	●
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-049-0	02	1	9604-9804	●	●
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-1	02	1	9805-9904	●	●
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-062-1	02	1	9905-	●	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 8PE1S(59L) M8	9-09111-408-0	02	1	9604-9904	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9905-	●	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 8PE1S(59L)	1-09760-117-0	02	1	9604-9710	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 8PE1S(59L)	1-09760-125-0	02	1	9711-9904	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	9905-	●	●	●
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-050-0	02	1	9604-9710	●	●
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-056-0	02	1	9711-9802	●	●
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	9803-9904	●	●
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	9905-	●	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD 8PE1S(59L) M12	9-99111-412-0	02	1	9604-9904	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	9905-	●	●	●
112	JOINT; RUBBER 8PE1S(59L)	1-33670-413-1	02	1	9604-9904	●	●
112	JOINT; RUBBER 8PE1S(59L)	1-33670-413-1	01	1	9905-	●	●

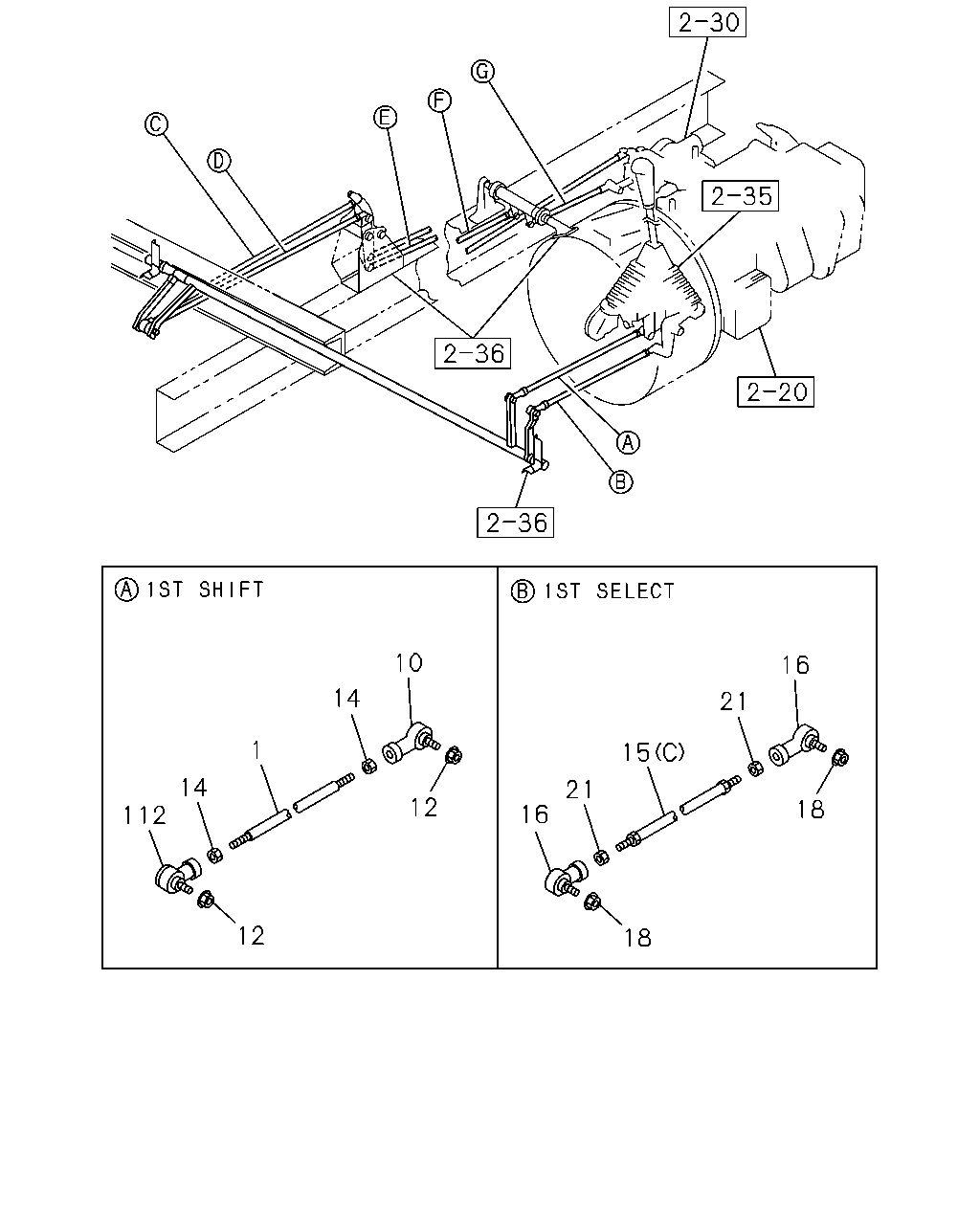

10 16 14 21 1 15 14 21 12 18 16 112 12 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	9604-9904	●	●
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	9905-	●	●	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-117-0	01	1	9604-9710	●	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	9711-9904	●	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	9905-	●	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9604-9708	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-056-0	02	1	9709-9802	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9803-9904	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	9905-	●	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	9604-9904	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	9905-	●	●	●
15	ROD; LINK 1ST SHIFT (B) L=440	1-33652-672-0	01	1	9604-9904	●	●
15	ROD; LINK 1ST SHIFT (B) L=440	1-33652-672-0	01	1	9905-	●	●	●
15	ROD; LINK 1ST SHIFT (A) L=490	1-33652-700-0	01	1	9604-9904	●	●
15	ROD; LINK 1ST SHIFT (A) L=490	1-33652-700-0	01	1	9905-	●	●	●
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	9604-9904	●	●
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	9905-	●	●	●
16	JOINT ASM; BALL,CONT ROD	1-09760-108-0	02	1	9604-9904	●	●
16	JOINT ASM; BALL,CONT ROD	1-09760-108-0	02	1	9905-	●	●	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-049-0	02	1	9604-9804	●	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	9805-9904	●	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	9905-	●	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9604-9904	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	9905-	●	●	●
112	JOINT; RUBBER 8PE1S(59L)	1-33670-413-1	02	1	9604-9904	●	●
112	JOINT; RUBBER 8PE1S(59L)	1-33670-413-1	01	1	9905-	●	●
