Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#62989) — 233 parça

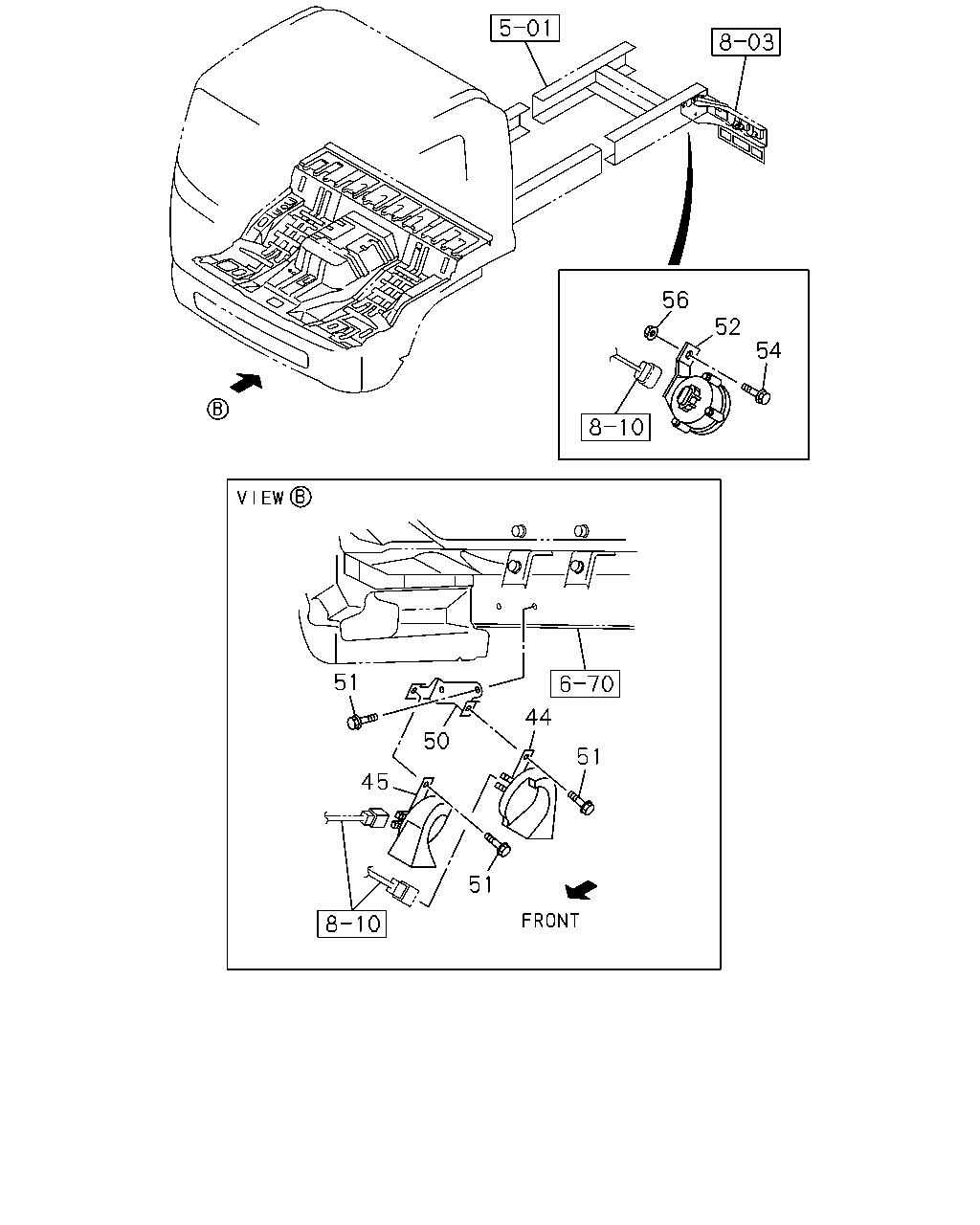

56 52 54 51 44 50 51 45 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE	8-97611-677-2	01	1	0906-	●	●
45	HORN; LOW NOTE	8-97611-676-2	01	1	0906-	●	●
50	BRACKET; HORN	8-97613-300-2	01	1	0906-	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	0906-1008	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1009-	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1009-	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9>	8-97617-027-0	01	1	0906-	●	●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X30 FLANGE	0-28651-030-0	01	1	0906-	●	●
56	NUT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10 FLANGE	0-91180-210-0	01	1	0906-	●	●

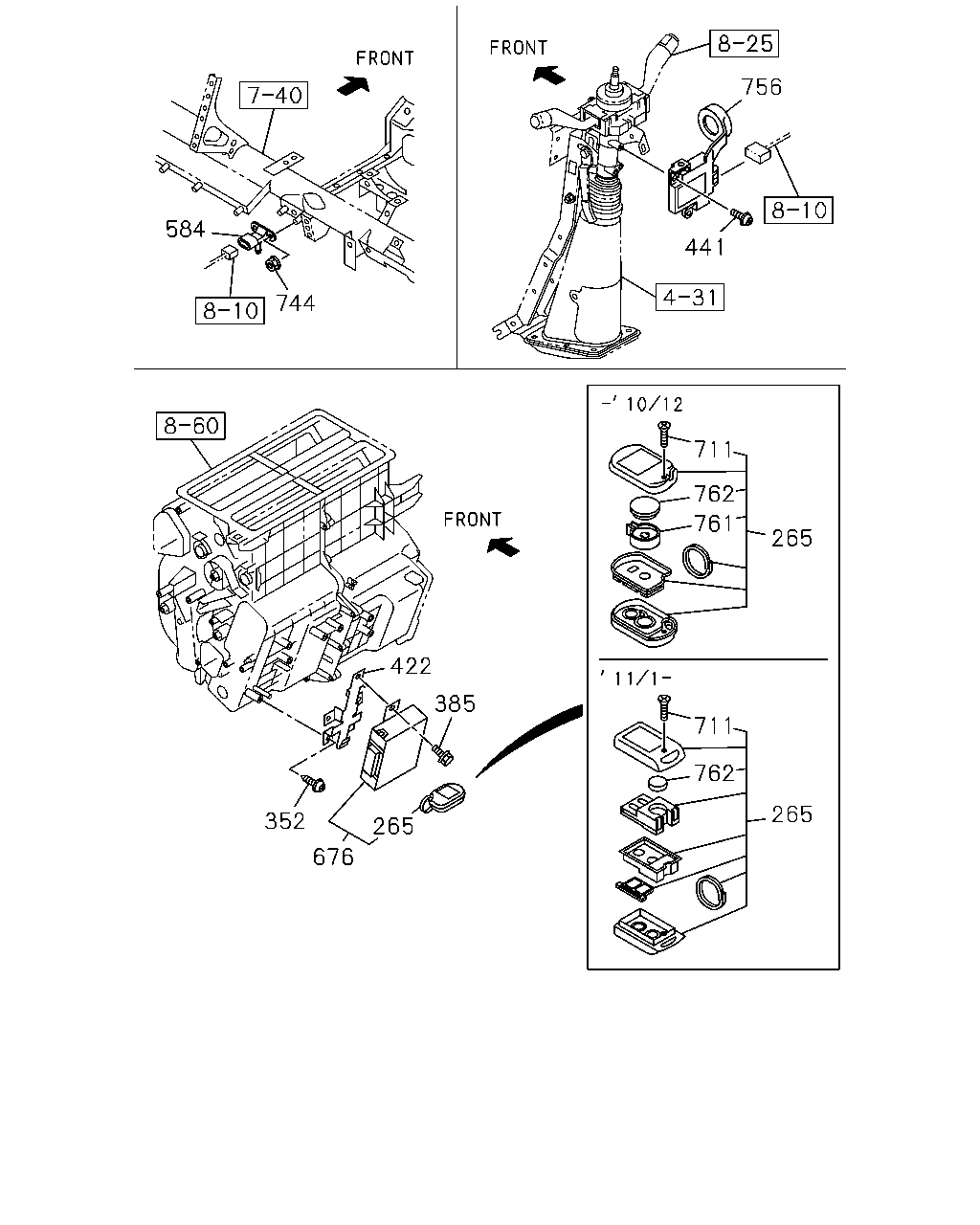

756 584 441 744 711 762 761 265 422 385 711 762 265 352 265 676

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-459-1	02	1	0906-1012	●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98180-751-0	02	1	1101-1205	●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98218-236-0	02	1	1206-	●	●
352	SCREW; BRKT M5X16 TAPPING	0-72180-516-0	02	1	0906-	●	●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0906-	●	●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	0906-	●	●
441	SCREW; CONT UNIT M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0906-	●	●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	0906-	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98017-258-1	01	1	0906-1012	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98181-809-0	01	1	1101-1205	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98218-231-0	01	1	1206-	●	●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	0906-1205	●	●
711	SCREW; TRANSMITTER M2X5	8-98218-239-0	02	1	1206-	●	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	0906-	●	●
756	CONTROL UNIT; IMMOBILIZER	8-98097-554-0	01	1	0906-1005	●	●
756	CONTROL UNIT; IMMOBILIZER	8-98158-127-0	01	1	1006-	●	●
761	HOLDER; BATTERY	8-98078-063-0	02	1	0906-1012	●	●
762	BATTERY	8-98078-061-0	02	1	0906-	●	●

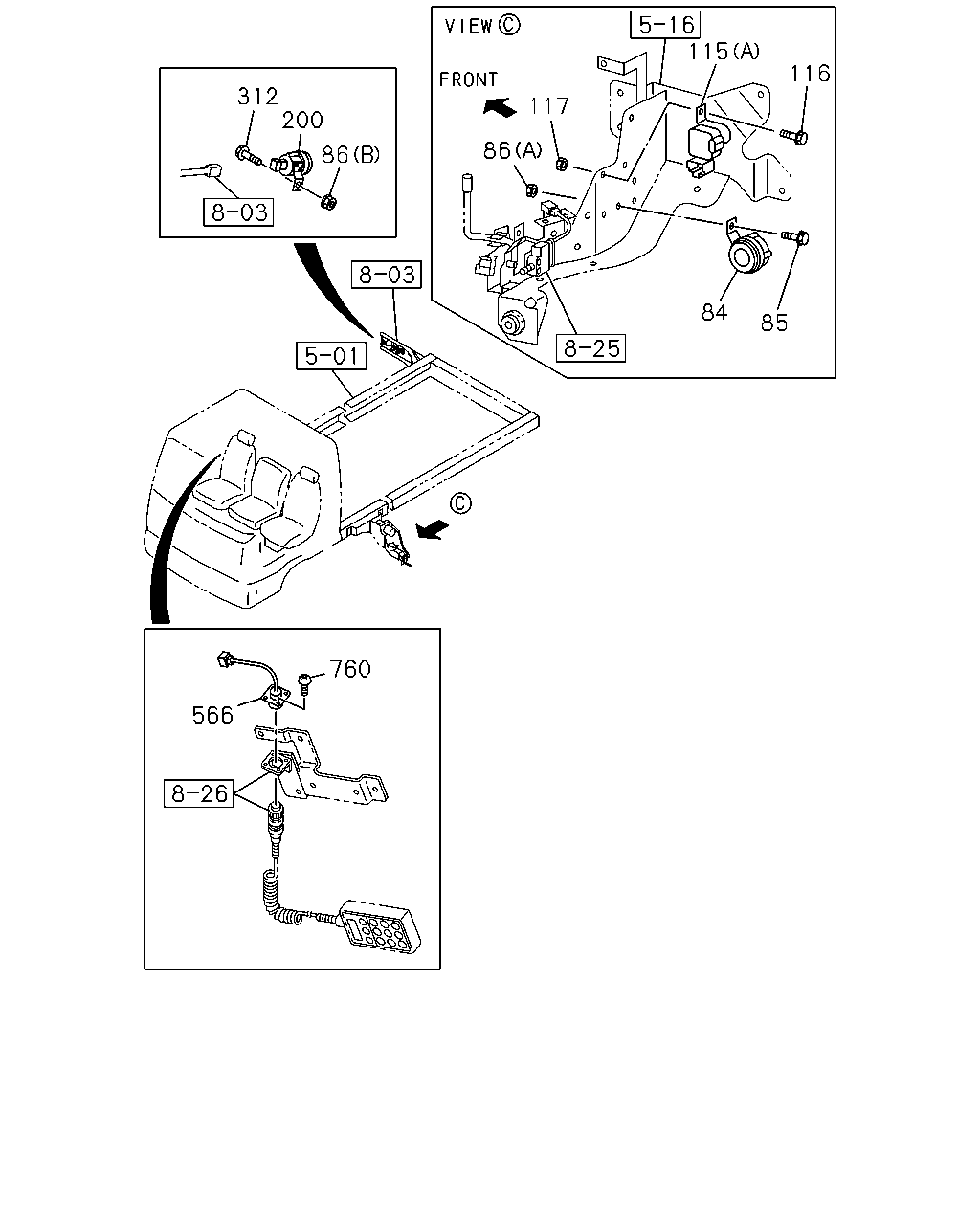

115 116 312 200 117 86 86 84 85 760 566

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
84	BUZZER; POWER CAB TILT METRO	8-98069-860-0	01	1	0906-	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0906-	●	●
86	NUT; BUZZER (B) M10 FLANGE	0-91180-210-0	01	1	0906-	●
86	NUT; BUZZER (A) M8 FLANGE	0-91180-108-0	01	1	0906-	●	●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0906-	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	0906-	●	●
116	BOLT; RELAY FIX M8X20 FLANGE	0-28650-820-0	02	1	0906-	●	●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0906-	●	●
200	BUZZER; WARNING,AIR SUSP	1-83460-104-0	01	1	0906-	●
312	BOLT; BUZZER M10X30 FLANGE	0-28651-030-0	01	1	0906-	●
566	HARNESS; REMOTE CONT	1-82626-888-1	01	1	0906-	●
760	SCREW; HARNESS CONN M3X10	9-93490-310-0	04	1	0906-	●

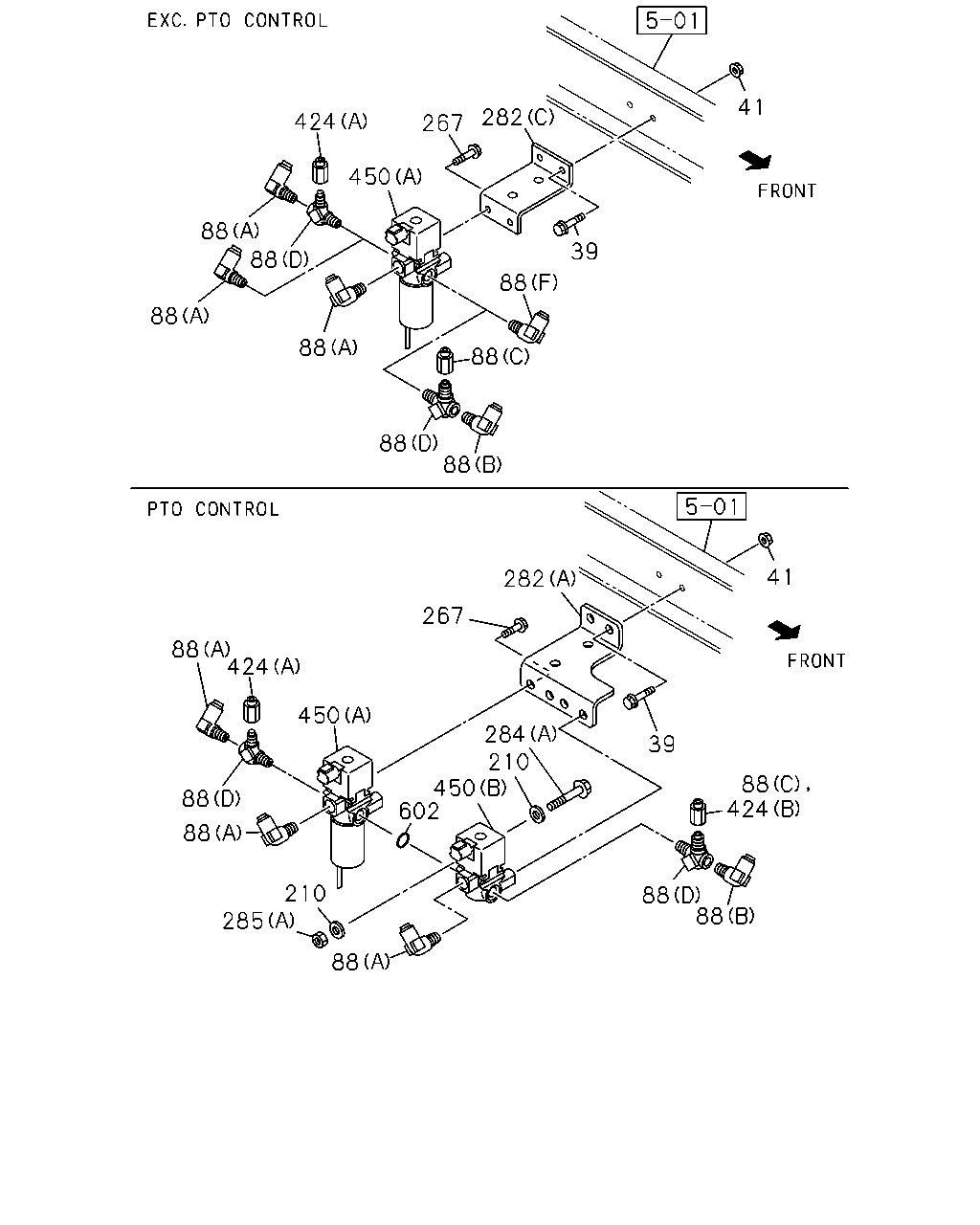

41 282 424 267 450 88 39 88 88 88 88 88 88 88 41 282 267 88 424 450 284 210 450 602 39 88 424 88 88 210 88 88 285 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV M8X35 FLANGE	0-28650-835-0	02	1	0906-	●	●
41	NUT; BRKT,MAG VLV M8 FLANGE	0-91180-108-0	02	1	0906-	●	●
88	CONNECTOR; MAG VLV (E) DIN12 & M22 STRAIGHT	1-09661-050-0	03	1	0906-	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0906-	●
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-1011	●
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-1011		●
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1111	●
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1111		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1112-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY	1-09656-586-1	02	1	0906-1111	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0906-1111	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0906-1111	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1112-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0906-1111	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0906-1111		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1112-		●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0906-1011	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0906-1011	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1111	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1111	●	●
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1111	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1112-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1112-		●
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0906-1011	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0906-1011	●	●
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1112-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1112-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1112-		●
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-1011	●	●
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1012-1111	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0906-		●
210	WASHER; PL,BRKT ZF9S1110 M/T(Y5E) PTO CONTROL<SV6>	1-82569-266-0	02	1	0906-1011	●	●
210	WASHER; PL,BRKT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6>	1-82569-266-0	02	1	1012-1111	●	●
210	WASHER; PL,BRKT ZF9S1110 M/T(Y5E) PTO CONTROL<SV6>	1-82569-266-0	02	1	1112-		●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0906-1111	●	●
267	BOLT; VLV TO BRKT ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28650-820-0	02	1	1112-		●
282	BRACKET; MAG VLV (B)	1-47478-319-0	01	1	0906-	●
282	BRACKET; MAG VLV FULLER FSO5206B OD M/T(Y4V) (C)	1-47471-374-1	01	1	0906-1004	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C)	1-47471-374-1	01	1	0906-1004	●	●
282	BRACKET; MAG VLV FULLER FSO5206B OD M/T(Y4V) (C)	8-98154-633-0	01	1	1005-1011	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C)	8-98154-633-0	01	1	1005-1011	●	●
282	BRACKET; MAG VLV FULLER FSO5206B OD M/T(Y4V) (C)	8-98154-633-0	01	1	1012-1111	●	●
282	BRACKET; MAG VLV MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C)	8-98154-633-0	01	1	1012-1111	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C)	8-98154-633-0	01	1	1112-		●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A)	8-98101-296-0	01	1	0906-1011	●	●
282	BRACKET; MAG VLV MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A)	8-98101-296-0	01	1	1012-1111	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A)	8-98101-296-0	01	1	1112-		●
284	BOLT; MAG VLV (B) M8X70	0-10855-870-0	02	1	0906-	●
284	BOLT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	0906-1011	●	●
284	BOLT; MAG VLV MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-1111	●	●
284	BOLT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1112-		●
285	NUT; MAG VLV (B) M8 FLANGE	0-91180-108-0	02	1	0906-	●
285	NUT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	0906-1011	●	●
285	NUT; MAG VLV MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	1012-1111	●	●
285	NUT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	1112-		●
424	ADAPTER (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0906-1011	●
424	ADAPTER FULLER FSO5206B OD M/T(Y4V) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0906-1011		●
424	ADAPTER (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1012-1111	●
424	ADAPTER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1012-1111		●
424	ADAPTER ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0906-		●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	0906-1011	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0906-1011	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	1012-1111	●	●
450	VALVE; MAG MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1012-1111	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (B)	1-82563-871-2	01	1	1112-	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1112-		●
450	VALVE; MAG ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B)	1-82563-871-2	01	1	1112-		●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0906-0910	●	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	0911-1111	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (A)	8-97633-075-0	01	1	1112-		●
602	GASKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0906-1011	●	●
602	GASKET; MAG VLV MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1012-1111	●	●
602	GASKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1112-		●

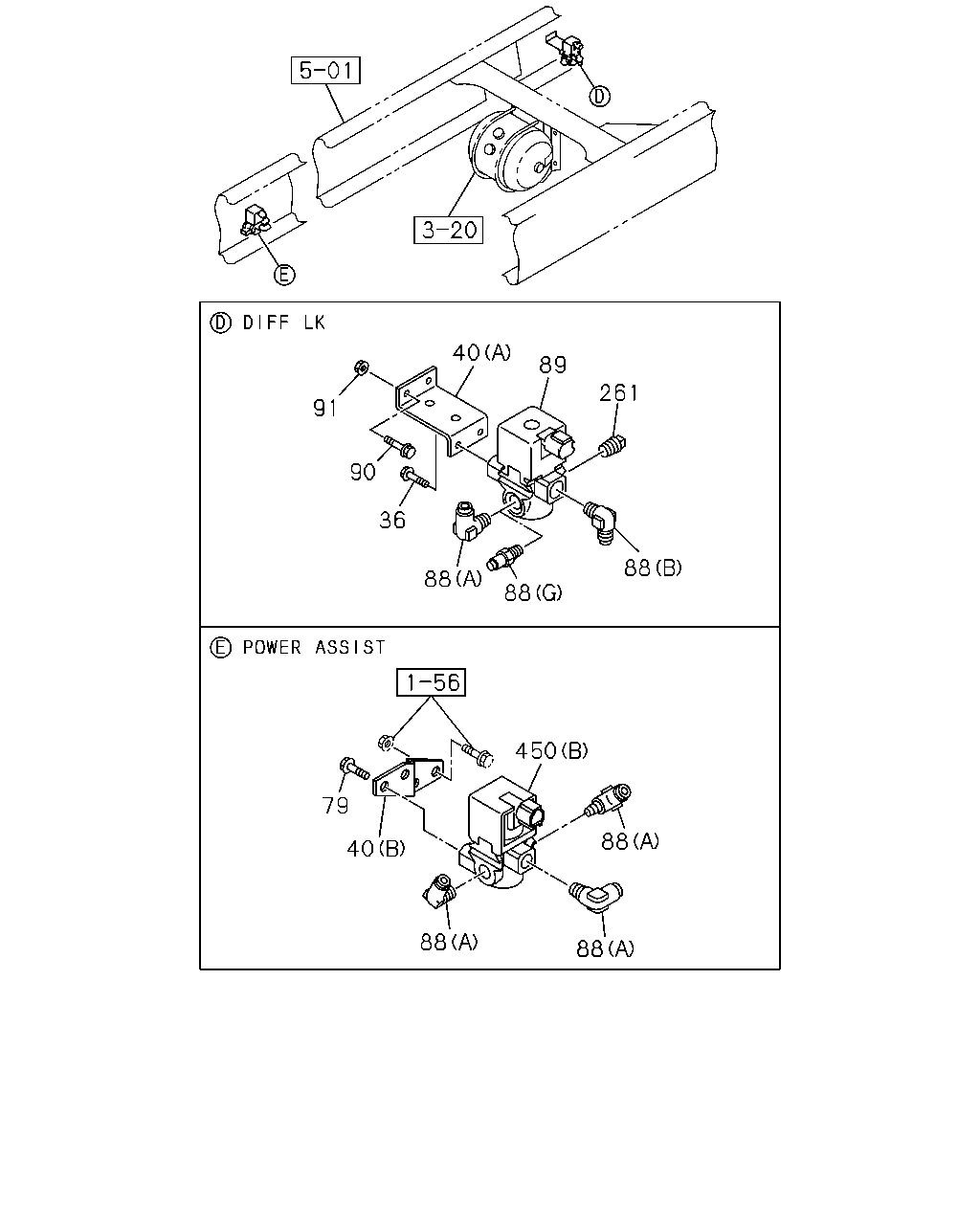

40 89 261 91 90 36 88 88 88 450 79 88 40 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	BOLT; MAG VLV,PTO CONT DIFF LOCK<C3N> M8X20 FLANGE	0-28650-820-0	02	1	0906-	●	●
40	BRACKET; MAG VLV DIFF LOCK<C3N> (A)	1-47471-374-1	01	1	0906-1004	●	●
40	BRACKET; MAG VLV DIFF LOCK<C3N> (A)	8-98154-633-0	01	1	1005-	●	●
40	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) (B)	8-98057-863-0	01	1	0906-	●	●
79	BOLT; MAG VLV ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28650-820-0	02	1	0906-	●	●
88	CONNECTOR; MAG VLV (E) DIN12 & M22 STRAIGHT	1-09661-050-0	03	1	0906-	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0906-	●
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-1011	●
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-1011		●
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1111	●
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1111		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1112-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY	1-09656-586-1	02	1	0906-1111	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0906-1111	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0906-1111	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1112-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0906-1111	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0906-1111		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1112-		●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0906-1011	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0906-1011	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1111	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1111	●	●
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1111	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1112-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1112-		●
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0906-1011	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0906-1011	●	●
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1112-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1112-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1112-		●
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-1011	●	●
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1012-1111	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0906-		●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N>	1-82563-871-2	01	1	0906-1205	●	●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N>	8-97641-594-0	01	1	1206-	●	●
90	BOLT; MAG VLV DIFF LOCK<C3N> M8X35 FLANGE	0-28650-835-0	02	1	0906-	●	●
91	NUT; MAG VLV DIFF LOCK<C3N> M8 FLANGE	0-91180-108-0	02	1	0906-	●	●
261	PLUG; MAG VLV DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	0906-1205	●	●
261	PLUG; MAG VLV DIFF LOCK<C3N>	0-92004-813-0	01	1	1206-1206	●	●
261	PLUG; MAG VLV DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	1207-	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	0906-1011	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0906-1011	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	1012-1111	●	●
450	VALVE; MAG MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1012-1111	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (B)	1-82563-871-2	01	1	1112-	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1112-		●
450	VALVE; MAG ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B)	1-82563-871-2	01	1	1112-		●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0906-0910	●	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	0911-1111	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (A)	8-97633-075-0	01	1	1112-		●

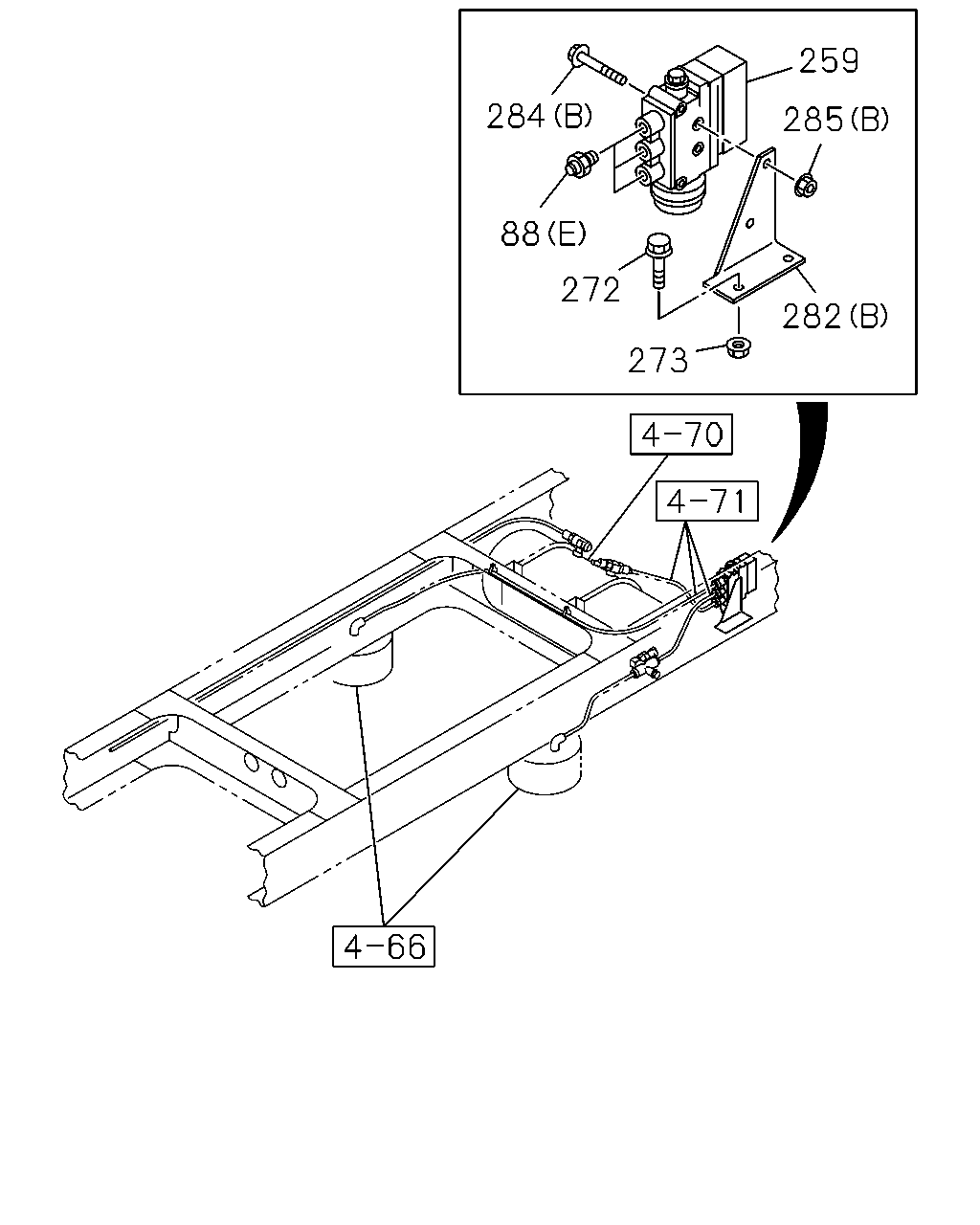

259 284 285 88 272 282 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
88	CONNECTOR; MAG VLV (E) DIN12 & M22 STRAIGHT	1-09661-050-0	03	1	0906-	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0906-	●
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-1011	●
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0906-1011		●
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1111	●
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1111		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1112-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY	1-09656-586-1	02	1	0906-1111	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0906-1111	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0906-1111	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1112-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0906-1111	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0906-1111		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1112-		●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0906-1011	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0906-1011	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1111	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1111	●	●
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ) PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1111	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1112-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1112-		●
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0906-1011	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0906-1011	●	●
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1012-1111	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W), WHEEL BASE 6500MM(65W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1112-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1112-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1112-		●
88	CONNECTOR; MAG VLV FULLER FSO5206B OD M/T(Y4V) (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0906-1011	●	●
88	CONNECTOR; MAG VLV MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (F) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1012-1111	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0906-		●
259	VALVE; MAG,AIR SUSP CONT	1-82563-978-0	01	1	0906-	●
272	BOLT; MAG VLV M10X30 FLANGE	0-28651-030-0	02	1	0906-	●
273	NUT; MAG VLV M10 FLANGE	0-91180-210-0	02	1	0906-	●
282	BRACKET; MAG VLV (B)	1-47478-319-0	01	1	0906-	●
282	BRACKET; MAG VLV FULLER FSO5206B OD M/T(Y4V) (C)	1-47471-374-1	01	1	0906-1004	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C)	1-47471-374-1	01	1	0906-1004	●	●
282	BRACKET; MAG VLV FULLER FSO5206B OD M/T(Y4V) (C)	8-98154-633-0	01	1	1005-1011	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C)	8-98154-633-0	01	1	1005-1011	●	●
282	BRACKET; MAG VLV FULLER FSO5206B OD M/T(Y4V) (C)	8-98154-633-0	01	1	1012-1111	●	●
282	BRACKET; MAG VLV MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C)	8-98154-633-0	01	1	1012-1111	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C)	8-98154-633-0	01	1	1112-		●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A)	8-98101-296-0	01	1	0906-1011	●	●
282	BRACKET; MAG VLV MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A)	8-98101-296-0	01	1	1012-1111	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A)	8-98101-296-0	01	1	1112-		●
284	BOLT; MAG VLV (B) M8X70	0-10855-870-0	02	1	0906-	●
284	BOLT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	0906-1011	●	●
284	BOLT; MAG VLV MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1012-1111	●	●
284	BOLT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1112-		●
285	NUT; MAG VLV (B) M8 FLANGE	0-91180-108-0	02	1	0906-	●
285	NUT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	0906-1011	●	●
285	NUT; MAG VLV MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	1012-1111	●	●
285	NUT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) M6 FLANGE	0-91180-106-0	01	1	1112-		●

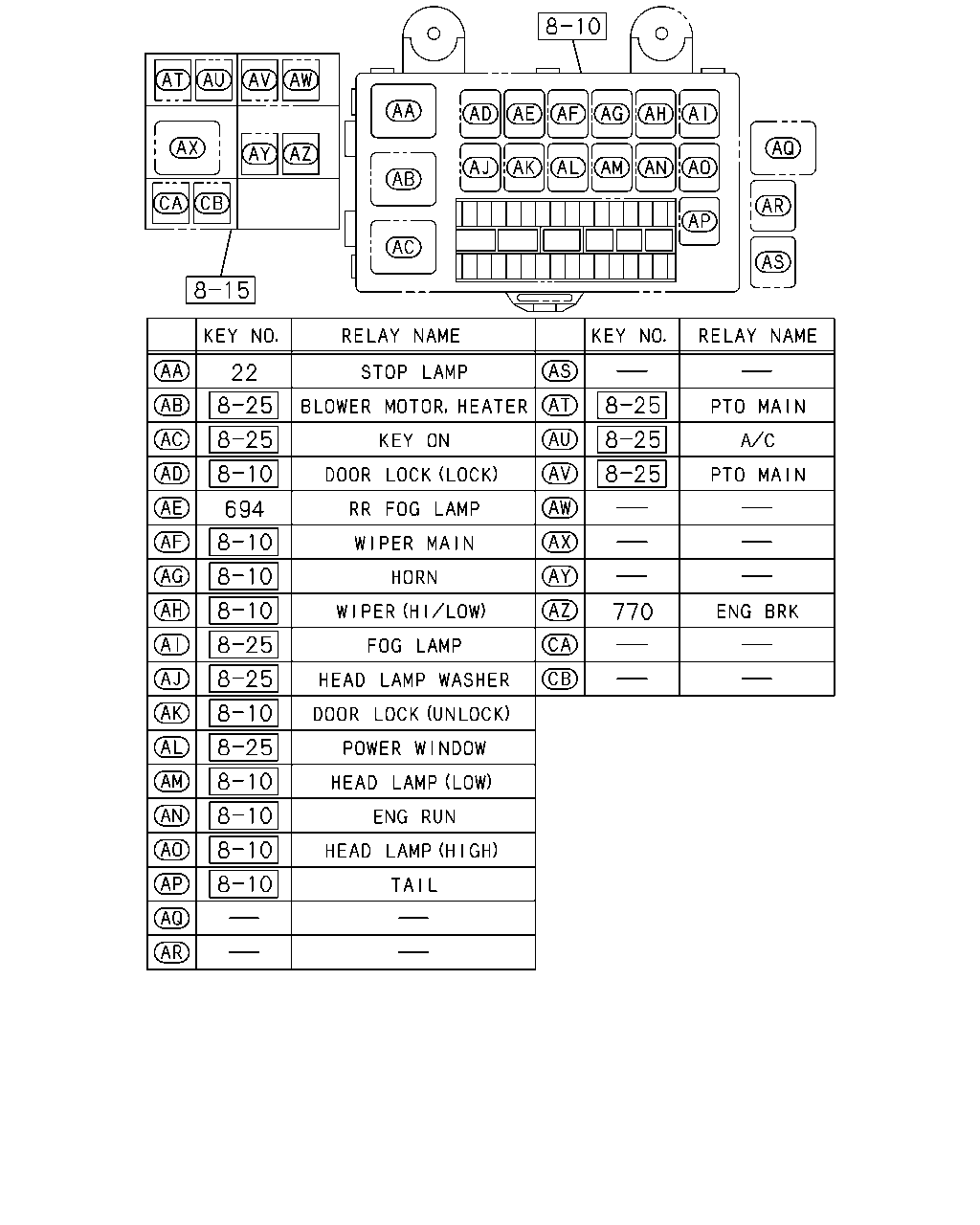

22 694 770

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0906-	●	●
694	RELAY; RR FOG LAMP 24V 10A MATSUSHITA	8-97173-035-1	01	1	0906-	●	●
770	RELAY; ENG BRK 24V 10A MATSUSHITA	8-97173-035-1	01	1	0906-	●	●

531 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0906-	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	0906-	●	●
531	RELAY; MAIN 24V 30A JIDECO	8-97238-540-0	01	1	0906-1402	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●

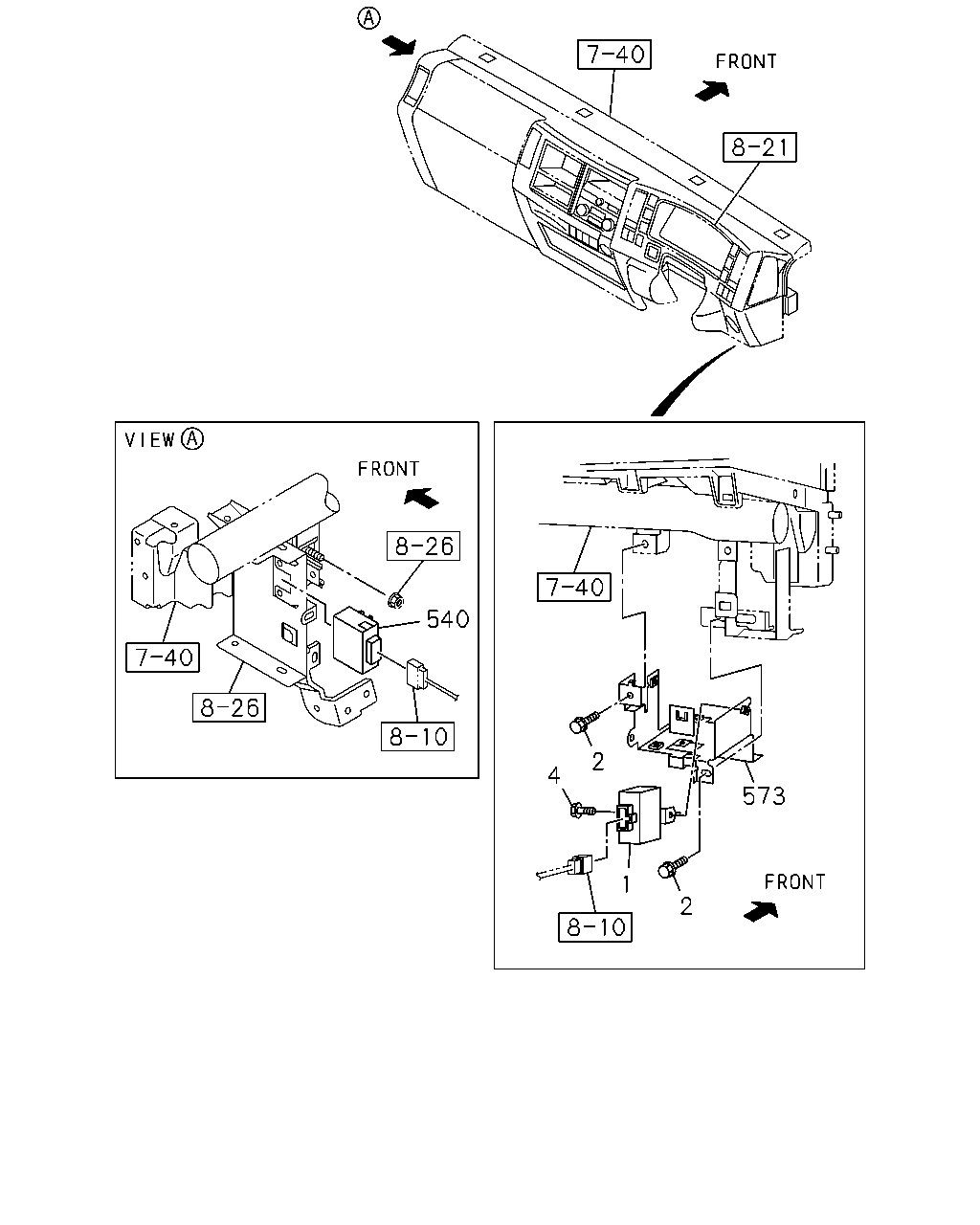

540 2 4 573 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	8-98025-533-1	01	1	0906-	●	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	0906-	●	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	0906-	●	●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	0906-1308	●	●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-	●	●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	0906-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
