◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11240 - FVR-RHD(EUROPE)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#62985) — 36 parça

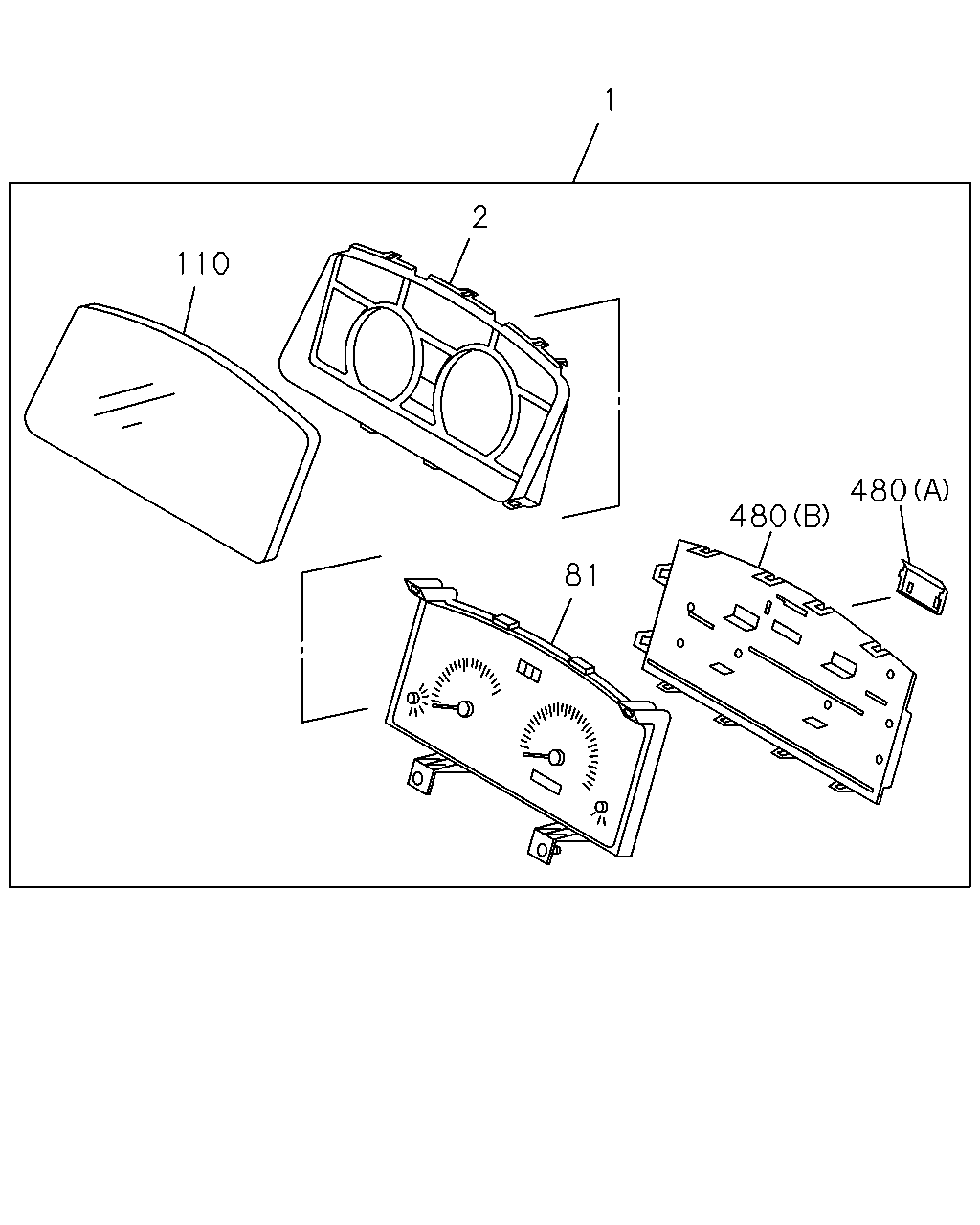

çizim 166576
1 2 110 480 480 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
KILOMETER SPEEDOMETER<U18> 		8-98064-916-6 01 1 0906-1103 ● ●
1 METER COMPL; CLUSTER
KILOMETER SPEEDOMETER<U18> 		8-98182-220-1 01 1 1104- ● ●
1 METER COMPL; CLUSTER
MILE SPEEDOMETER<UC1> 		8-98064-924-7 01 1 0906-1103 ● ●
1 METER COMPL; CLUSTER
MILE SPEEDOMETER<UC1> 		8-98182-221-1 01 1 1104- ● ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 0906- ● ●
81 METER SUB ASM
KILOMETER SPEEDOMETER<U18> 		8-98079-688-0 01 1 0906-1103 ● ●
81 METER SUB ASM
KILOMETER SPEEDOMETER<U18> 		8-98182-228-0 01 1 1104- ● ●
81 METER SUB ASM
MILE SPEEDOMETER<UC1> 		8-98079-703-0 01 1 0906-1103 ● ●
81 METER SUB ASM
MILE SPEEDOMETER<UC1> 		8-98182-229-0 01 1 1104- ● ●
110 GLASS; CLUSTER METER 8-98054-642-0 01 1 0906- ● ●
480 COVER; METER
(B) BLACK 		8-98054-433-0 01 1 0906- ● ●
480 COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 0906- ● ●

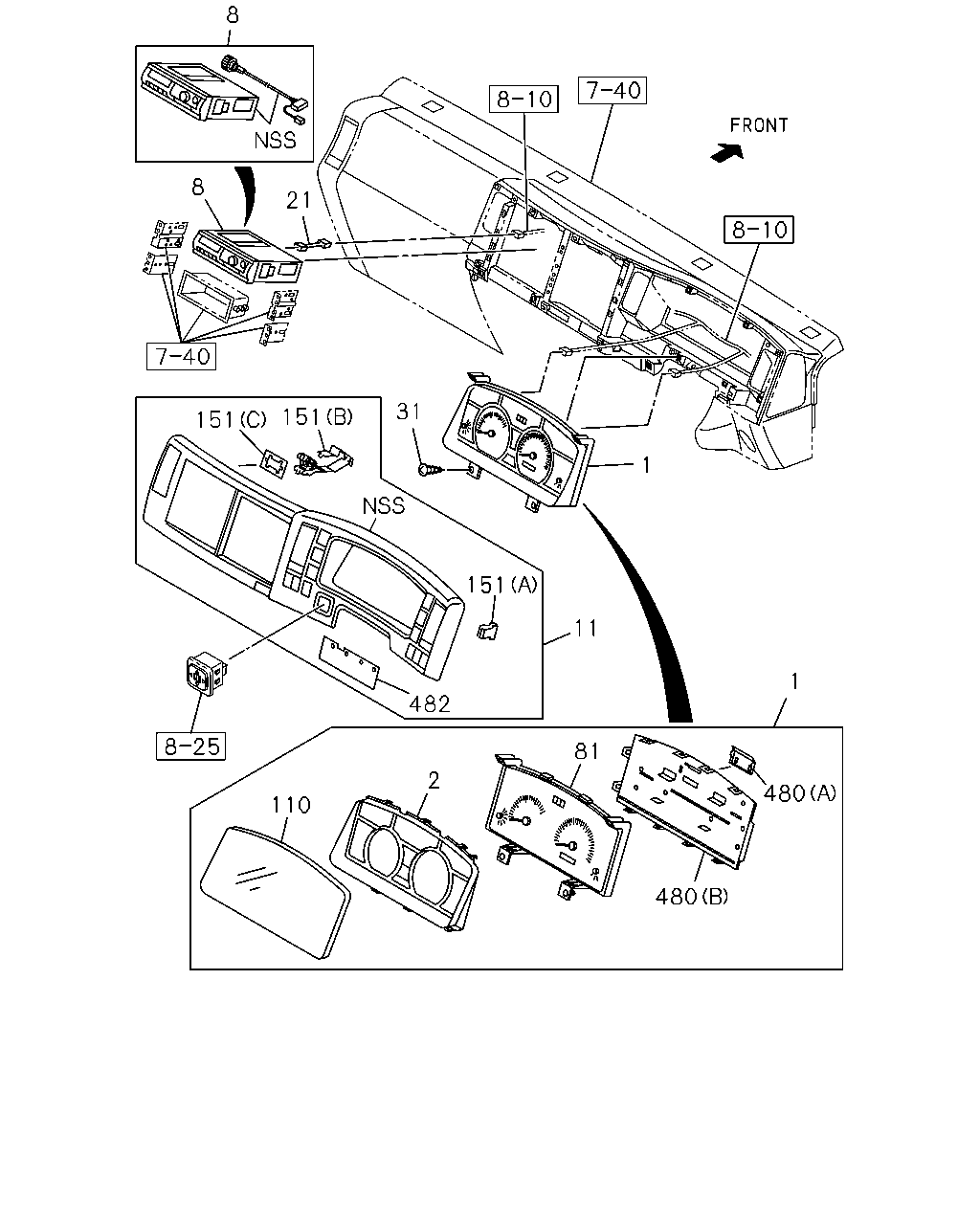

çizim 166593
8 8 21 31 151 151 1 151 11 1 482 81 2 480 110 480
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
KILOMETER SPEEDOMETER<U18> 		8-98064-916-6 01 1 0906-1103 ● ●
1 METER COMPL; CLUSTER
KILOMETER SPEEDOMETER<U18> 		8-98182-220-1 01 1 1104- ● ●
1 METER COMPL; CLUSTER
MILE SPEEDOMETER<UC1> 		8-98064-924-7 01 1 0906-1103 ● ●
1 METER COMPL; CLUSTER
MILE SPEEDOMETER<UC1> 		8-98182-221-1 01 1 1104- ● ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 0906- ● ●
8 TACHOGRAPH; CLUSTER METER 8-98113-386-0 01 1 0906-1008 ● ●
8 TACHOGRAPH; CLUSTER METER 8-98178-335-0 01 1 1009-1107 ● ●
8 TACHOGRAPH; CLUSTER METER 8-98197-456-0 01 1 1108- ● ●
11 CLUSTER ASM; METER
ECE R29<EFE> DARK GRAY 		8-97418-530-1 01 1 1004- ● ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97414-681-2 01 1 0906-1003 ● ●
11 CLUSTER ASM; METER
EXC. ECE R29<EFE> DARK GRAY 		8-97414-681-3 01 1 1004- ● ●
21 HARNESS; TACHOGRAPH 8-98099-111-0 01 1 0906- ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING 		0-72180-516-0 04 1 0906- ● ●
81 METER SUB ASM
KILOMETER SPEEDOMETER<U18> 		8-98079-688-0 01 1 0906-1103 ● ●
81 METER SUB ASM
KILOMETER SPEEDOMETER<U18> 		8-98182-228-0 01 1 1104- ● ●
81 METER SUB ASM
MILE SPEEDOMETER<UC1> 		8-98079-703-0 01 1 0906-1103 ● ●
81 METER SUB ASM
MILE SPEEDOMETER<UC1> 		8-98182-229-0 01 1 1104- ● ●
110 GLASS; CLUSTER METER 8-98054-642-0 01 1 0906- ● ●
151 CLIP; METER CLUSTER
ECE R29<EFE> (A) 		8-98021-271-0 12 1 1004- ● ●
151 CLIP; METER CLUSTER
ECE R29<EFE> (B) 		8-98152-030-0 01 1 1004- ● ●
151 CLIP; METER CLUSTER
ECE R29<EFE> (C) 		8-98152-031-0 01 1 1004- ● ●
480 COVER; METER
(B) BLACK 		8-98054-433-0 01 1 0906- ● ●
480 COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 0906- ● ●
482 SEAL; CLUSTER METER
ECE R29<EFE> 		8-98116-842-0 01 1 1004- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
