Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#62983) — 434 parça

137 137 137 137 137 308 308 308 308 334 334 324 334 335 428 312 312 312

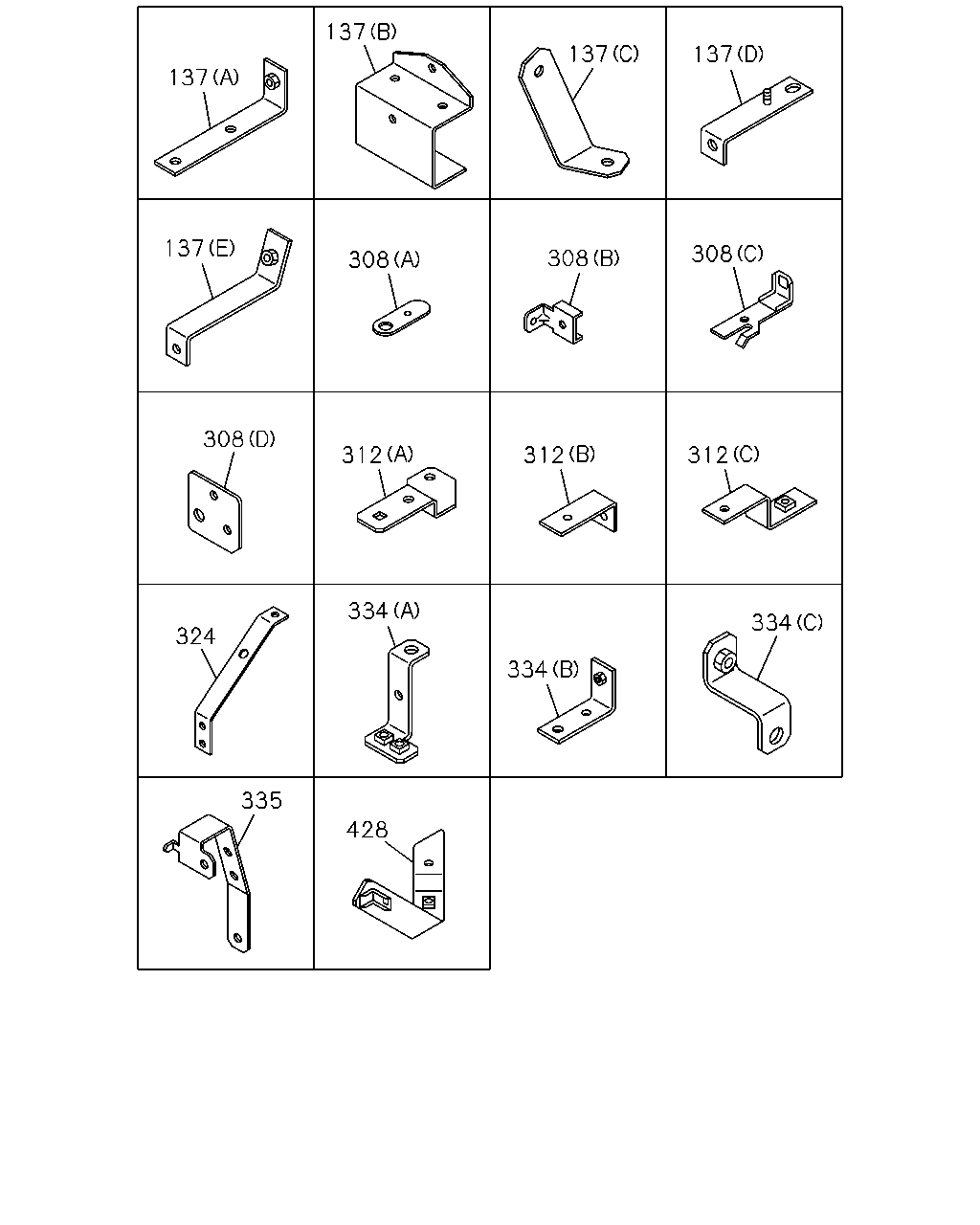

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
137	BRACKET; HARNESS CLAMP (A)	1-82698-140-0	01	1	0906-	●
137	BRACKET; HARNESS CLAMP (E)	1-82698-233-0	01	1	0906-	●	●
137	BRACKET; HARNESS CLAMP (B)	8-97609-797-1	02	1	0906-	●	●
137	BRACKET; HARNESS CLAMP (C)	8-97614-728-1	01	1	0906-	●	●
137	BRACKET; HARNESS CLAMP (D)	8-97624-013-0	01	1	0906-	●	●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	0906-1010	●	●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1011-	●	●
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	0906-	●	●
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	0906-	●	●
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	0906-	●	●
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	0906-	●	●
312	BRACKET; CLIP HARNESS (C)	8-97609-110-1	01	1	0906-	●	●
312	BRACKET; CLIP HARNESS (A)	8-97620-519-0	01	1	0906-	●	●
324	BRACKET; CLIP	1-47479-430-0	02	1	0906-	●	●
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (C)	1-47475-868-0	02	1	0906-	●	●
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (B)	1-47477-698-0	02	1	0906-	●	●
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (A)	1-82699-639-1	01	1	0906-	●	●
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	0906-	●	●
428	BRACKET	8-97620-514-0	01	1	0906-	●	●

235 16 305 48 305 16 37 48 81 223 305 48 48 116 37 223 16 48 16 48 37 16 305 306 305 305

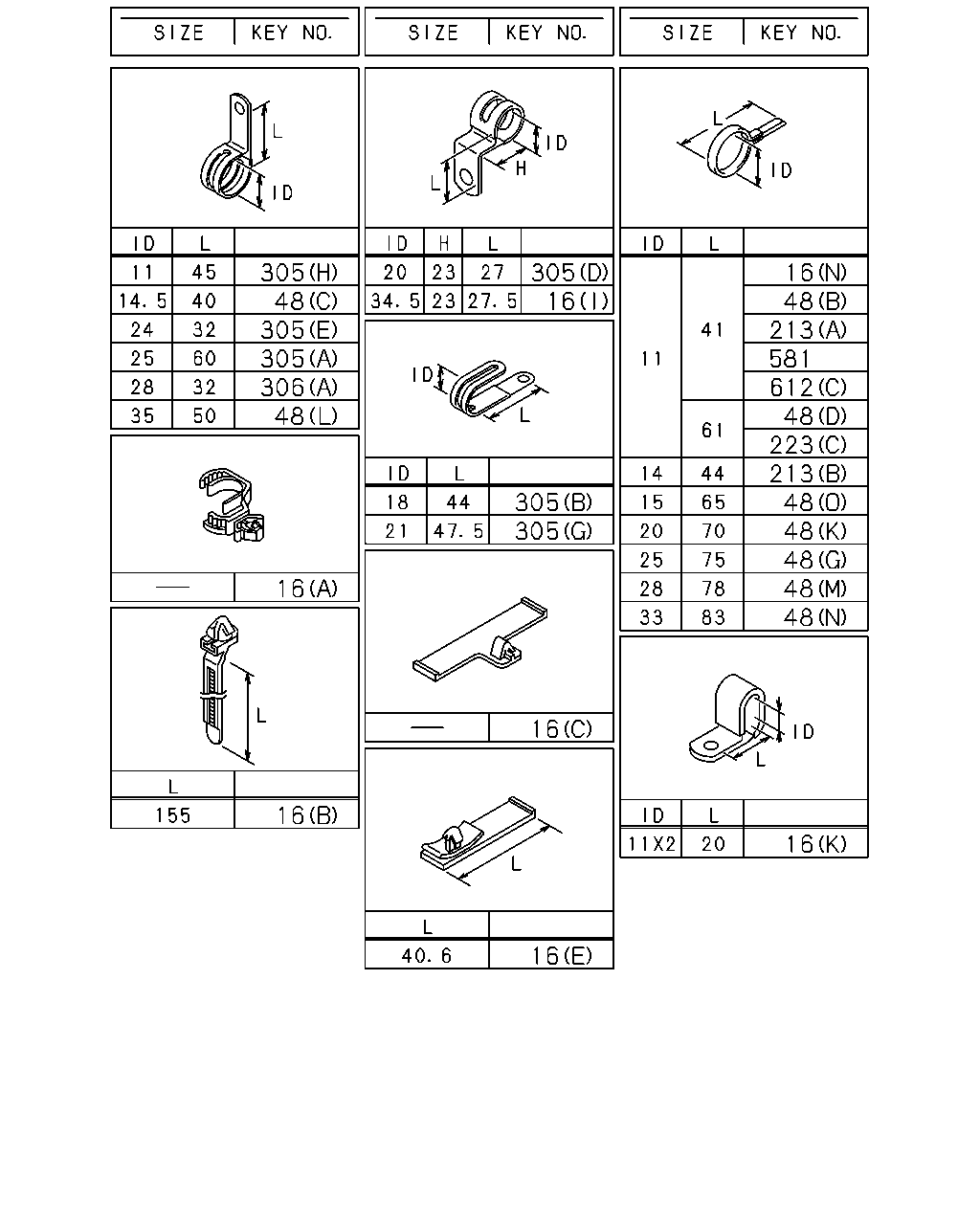

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (N) ID=11 L=41	1-09700-403-0	03	1	1103-	●
16	CLIP; HARNESS (D) L=250	1-09707-126-0	06	1	0906-	●
16	CLIP; HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0906-	●	●
16	CLIP; HARNESS (G) ID=19 L=20	0-95235-836-0	02	1	0906-	●	●
16	CLIP; HARNESS (H) ID=14 H=50 L=20	1-09700-843-0	02	1	0906-	●	●
16	CLIP; HARNESS (K) ID=22X11 L=20	1-09700-871-0	02	1	0906-	●	●
16	CLIP; HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0906-	●	●
16	CLIP; HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0906-	●	●
16	CLIP; HARNESS (D) L=250	1-09707-126-0	01	1	0906-	●	●
16	CLIP; HARNESS (D) L=250	1-09707-126-0	02	1	0906-	●	●
16	CLIP; HARNESS (L) ID=13-18 L=14.5	1-09709-290-0	02	1	0906-	●	●
16	CLIP; HARNESS (F) L=250	5-09707-030-1	03	1	0906-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0906-	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0906-	●	●
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	0906-	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0906-	●	●
16	CLIP; HARNESS (M) ID=11X2 L=50	0-95325-085-0	01	1	0906-		●
16	CLIP; HARNESS (D) L=250	1-09707-126-0	05	1	0906-		●
37	CLIP; HARNESS,POWER TILT (A) ID=11 H=45 L=25	1-09700-866-0	01	1	0906-	●	●
37	CLIP; HARNESS,POWER TILT (B) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-	●	●
37	CLIP; HARNESS,POWER TILT (C) L=250	5-09707-030-1	01	1	0906-	●	●
37	CLIP; HARNESS,POWER TILT (D) OD=9 H=6	8-97368-793-0	02	1	0906-	●	●
48	CLIP; FRAME HARNESS (N) ID=33 L=83	1-09701-291-0	01	1	1306-	●	●
48	CLIP; FRAME HARNESS (D) ID=11 L=61	1-09700-484-0	03	1	1012-1102		●
48	CLIP; FRAME HARNESS MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W) VIN MODEL YEAR 2011<VZB> (D) ID=11 L=61	1-09700-484-0	03	1	1012-1102		●
48	CLIP; FRAME HARNESS DIFF LOCK<C3N> (D) ID=11 L=61	1-09700-484-0	01	1	1103-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) ID=11 L=61	1-09700-484-0	01	1	1103-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (O) ID=15 L=65	1-09700-466-0	04	1	1008-		●
48	CLIP; FRAME HARNESS (O) ID=15 L=65	1-09700-466-0	06	1	0906-	●
48	CLIP; FRAME HARNESS (D) ID=11 L=61	1-09700-484-0	04	1	0906-	●
48	CLIP; FRAME HARNESS (G) ID=25 L=75	1-09701-275-0	02	1	0906-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=11 L=61	1-09700-484-0	09	1	0906-1102	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=11 L=61	1-09700-484-0	08	1	1103-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	21	1	0906-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (K) ID=20 L=70	1-09700-485-0	24	1	0906-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) ID=11 L=61	1-09700-484-0	08	1	0906-1102	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) ID=11 L=61	1-09700-484-0	07	1	1103-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (K) ID=20 L=70	1-09700-485-0	27	1	0906-	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0906-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0906-		●
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	0906-	●	●
48	CLIP; FRAME HARNESS (M) ID=28 L=78	1-09700-858-0	02	1	0906-	●	●
48	CLIP; FRAME HARNESS (L) ID=35 L=50	1-09701-214-0	01	1	0906-	●	●
48	CLIP; FRAME HARNESS (N) ID=33 L=83	1-09701-291-0	03	1	0906-	●	●
48	CLIP; FRAME HARNESS (H) OD=9 H=13.5	1-09709-180-0	01	1	0906-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (H) OD=9 H=13.5	1-09709-180-0	01	1	0906-		●
48	CLIP; FRAME HARNESS (Q) ID=13-18 L=22	1-09709-292-0	01	1	0906-	●	●
48	CLIP; FRAME HARNESS (F) L=250	5-09707-030-1	02	1	0906-	●	●
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (A) ID=16 L=40	0-95235-576-0	03	1	0906-	●	●
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (J) L=180	1-09707-162-1	01	1	0906-	●	●
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6	1-09709-178-0	01	1	0906-	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (I) ID=16X2 L=50	0-95325-586-0	01	1	0906-	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (C) ID=14.5 L=40	1-09701-014-0	01	1	0906-	●	●
48	CLIP; FRAME HARNESS (O) ID=15 L=65	1-09700-466-0	01	1	0906-		●
48	CLIP; FRAME HARNESS (D) ID=11 L=61	1-09700-484-0	01	1	0906-1102		●
48	CLIP; FRAME HARNESS MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W) VIN MODEL YEAR 2011<VZB> (D) ID=11 L=61	1-09700-484-0	03	1	1103-		●
48	CLIP; FRAME HARNESS DIFF LOCK<C3N> (D) ID=11 L=61	1-09700-484-0	03	1	1103-		●
48	CLIP; FRAME HARNESS (D) ID=11 L=61	1-09700-484-0	03	1	0906-1011		●
48	CLIP; FRAME HARNESS MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W) VIN MODEL YEAR 2011<VZB> (D) ID=11 L=61	1-09700-484-0	02	1	1012-		●
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	05	1	0906-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (K) ID=20 L=70	1-09700-485-0	05	1	1008-		●
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	05	1	1008-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (K) ID=20 L=70	1-09700-485-0	07	1	0906-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (O) ID=15 L=65	1-09700-466-0	02	1	1008-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (P) OD=9 H=17.5	1-09709-181-0	01	1	0906-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	12	1	0906-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	08	1	1008-		●
81	CLIP; HARNESS OD=9 H=6	1-09709-178-0	01	1	1006-1102	●	●
116	CLIP; ROOF HARNESS L=20	1-09987-246-2	04	1	0906-	●	●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	0906-	●	●
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-	●	●
223	CLIP; AIR TANK HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	0906-		●
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=11 L=16	0-95235-025-0	02	1	0906-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) L=250	5-09707-030-1	01	1	0906-	●	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0906-	●	●
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0906-	●	●
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	0906-	●	●
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	0906-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0906-	●	●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0906-	●	●
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0906-	●	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0906-	●	●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0906-	●	●
305	CLIP; ENG HARNESS (L) L=140	8-97122-360-0	01	1	0906-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0906-	●	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0906-	●	●
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	0906-	●	●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0906-	●	●

305 48 305 305 306 48 305 16 16 48 213 581 612 48 223 213 48 48 48 48 48 305 305 16 16 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (N) ID=11 L=41	1-09700-403-0	03	1	1103-	●
16	CLIP; HARNESS (D) L=250	1-09707-126-0	06	1	0906-	●
16	CLIP; HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0906-	●	●
16	CLIP; HARNESS (G) ID=19 L=20	0-95235-836-0	02	1	0906-	●	●
16	CLIP; HARNESS (H) ID=14 H=50 L=20	1-09700-843-0	02	1	0906-	●	●
16	CLIP; HARNESS (K) ID=22X11 L=20	1-09700-871-0	02	1	0906-	●	●
16	CLIP; HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0906-	●	●
16	CLIP; HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0906-	●	●
16	CLIP; HARNESS (D) L=250	1-09707-126-0	01	1	0906-	●	●
16	CLIP; HARNESS (D) L=250	1-09707-126-0	02	1	0906-	●	●
16	CLIP; HARNESS (L) ID=13-18 L=14.5	1-09709-290-0	02	1	0906-	●	●
16	CLIP; HARNESS (F) L=250	5-09707-030-1	03	1	0906-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0906-	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0906-	●	●
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	0906-	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0906-	●	●
16	CLIP; HARNESS (M) ID=11X2 L=50	0-95325-085-0	01	1	0906-		●
16	CLIP; HARNESS (D) L=250	1-09707-126-0	05	1	0906-		●
48	CLIP; FRAME HARNESS (N) ID=33 L=83	1-09701-291-0	01	1	1306-	●	●
48	CLIP; FRAME HARNESS (D) ID=11 L=61	1-09700-484-0	03	1	1012-1102		●
48	CLIP; FRAME HARNESS MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W) VIN MODEL YEAR 2011<VZB> (D) ID=11 L=61	1-09700-484-0	03	1	1012-1102		●
48	CLIP; FRAME HARNESS DIFF LOCK<C3N> (D) ID=11 L=61	1-09700-484-0	01	1	1103-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) ID=11 L=61	1-09700-484-0	01	1	1103-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (O) ID=15 L=65	1-09700-466-0	04	1	1008-		●
48	CLIP; FRAME HARNESS (O) ID=15 L=65	1-09700-466-0	06	1	0906-	●
48	CLIP; FRAME HARNESS (D) ID=11 L=61	1-09700-484-0	04	1	0906-	●
48	CLIP; FRAME HARNESS (G) ID=25 L=75	1-09701-275-0	02	1	0906-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=11 L=61	1-09700-484-0	09	1	0906-1102	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=11 L=61	1-09700-484-0	08	1	1103-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	21	1	0906-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (K) ID=20 L=70	1-09700-485-0	24	1	0906-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) ID=11 L=61	1-09700-484-0	08	1	0906-1102	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) ID=11 L=61	1-09700-484-0	07	1	1103-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (K) ID=20 L=70	1-09700-485-0	27	1	0906-	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0906-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0906-		●
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	0906-	●	●
48	CLIP; FRAME HARNESS (M) ID=28 L=78	1-09700-858-0	02	1	0906-	●	●
48	CLIP; FRAME HARNESS (L) ID=35 L=50	1-09701-214-0	01	1	0906-	●	●
48	CLIP; FRAME HARNESS (N) ID=33 L=83	1-09701-291-0	03	1	0906-	●	●
48	CLIP; FRAME HARNESS (H) OD=9 H=13.5	1-09709-180-0	01	1	0906-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (H) OD=9 H=13.5	1-09709-180-0	01	1	0906-		●
48	CLIP; FRAME HARNESS (Q) ID=13-18 L=22	1-09709-292-0	01	1	0906-	●	●
48	CLIP; FRAME HARNESS (F) L=250	5-09707-030-1	02	1	0906-	●	●
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (A) ID=16 L=40	0-95235-576-0	03	1	0906-	●	●
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (J) L=180	1-09707-162-1	01	1	0906-	●	●
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6	1-09709-178-0	01	1	0906-	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (I) ID=16X2 L=50	0-95325-586-0	01	1	0906-	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (C) ID=14.5 L=40	1-09701-014-0	01	1	0906-	●	●
48	CLIP; FRAME HARNESS (O) ID=15 L=65	1-09700-466-0	01	1	0906-		●
48	CLIP; FRAME HARNESS (D) ID=11 L=61	1-09700-484-0	01	1	0906-1102		●
48	CLIP; FRAME HARNESS MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W) VIN MODEL YEAR 2011<VZB> (D) ID=11 L=61	1-09700-484-0	03	1	1103-		●
48	CLIP; FRAME HARNESS DIFF LOCK<C3N> (D) ID=11 L=61	1-09700-484-0	03	1	1103-		●
48	CLIP; FRAME HARNESS (D) ID=11 L=61	1-09700-484-0	03	1	0906-1011		●
48	CLIP; FRAME HARNESS MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W) VIN MODEL YEAR 2011<VZB> (D) ID=11 L=61	1-09700-484-0	02	1	1012-		●
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	05	1	0906-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (K) ID=20 L=70	1-09700-485-0	05	1	1008-		●
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	05	1	1008-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (K) ID=20 L=70	1-09700-485-0	07	1	0906-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (O) ID=15 L=65	1-09700-466-0	02	1	1008-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (P) OD=9 H=17.5	1-09709-181-0	01	1	0906-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	12	1	0906-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	08	1	1008-		●
213	CLIP; END CROSS HARNESS (A) ID=11 L=41	1-09700-403-0	02	1	0906-	●	●
213	CLIP; END CROSS HARNESS (B) ID=14 L=44	9-09917-427-0	07	1	0906-	●	●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	0906-	●	●
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-	●	●
223	CLIP; AIR TANK HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	0906-		●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0906-	●	●
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0906-	●	●
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	0906-	●	●
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	0906-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0906-	●	●
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0906-	●	●
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0906-	●	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0906-	●	●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0906-	●	●
305	CLIP; ENG HARNESS (L) L=140	8-97122-360-0	01	1	0906-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0906-	●	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0906-	●	●
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	0906-	●	●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0906-	●	●
581	CLIP; HARNESS,REAR SUSP DIFF LOCK<C3N> ID=11 L=41	1-09700-403-0	02	1	1103-		●
581	CLIP; HARNESS,REAR SUSP ID=11 L=41	1-09700-403-0	11	1	0906-1102	●
581	CLIP; HARNESS,REAR SUSP ID=11 L=41	1-09700-403-0	07	1	1103-	●
581	CLIP; HARNESS,REAR SUSP ID=11 L=41	1-09700-403-0	03	1	0906-1102		●
581	CLIP; HARNESS,REAR SUSP ID=11 L=41	1-09700-403-0	01	1	1103-	●	●
612	CLIP; HARNESS DPD MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) (C) ID=11 L=41	1-09700-403-0	02	1	1012-	●
612	CLIP; HARNESS DPD MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) (B) L=135	1-09987-143-1	01	1	1012-	●
612	CLIP; HARNESS DPD MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) VIN MODEL YEAR 2011<VZB> (B) L=135	1-09987-143-1	01	1	1012-	●
612	CLIP; HARNESS DPD MZW6P M/T(RSZ) (B) L=135	1-09987-143-1	01	1	1012-		●
612	CLIP; HARNESS DPD MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> (B) L=135	1-09987-143-1	01	1	1012-		●
612	CLIP; HARNESS DPD (C) ID=11 L=41	1-09700-403-0	01	1	0906-1011	●	●
612	CLIP; HARNESS DPD (C) ID=11 L=41	1-09700-403-0	01	1	1012-	●
612	CLIP; HARNESS DPD FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C) ID=11 L=41	1-09700-403-0	01	1	1012-		●
612	CLIP; HARNESS DPD (A) L=135	1-09987-143-1	02	1	0906-1011	●	●
612	CLIP; HARNESS DPD FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) L=135	1-09987-143-1	02	1	1012-	●	●
612	CLIP; HARNESS DPD MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=135	1-09987-143-1	02	1	1012-	●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0906-	●	●

7 53 53 53 53 59 53 59 59 59 59 53 59

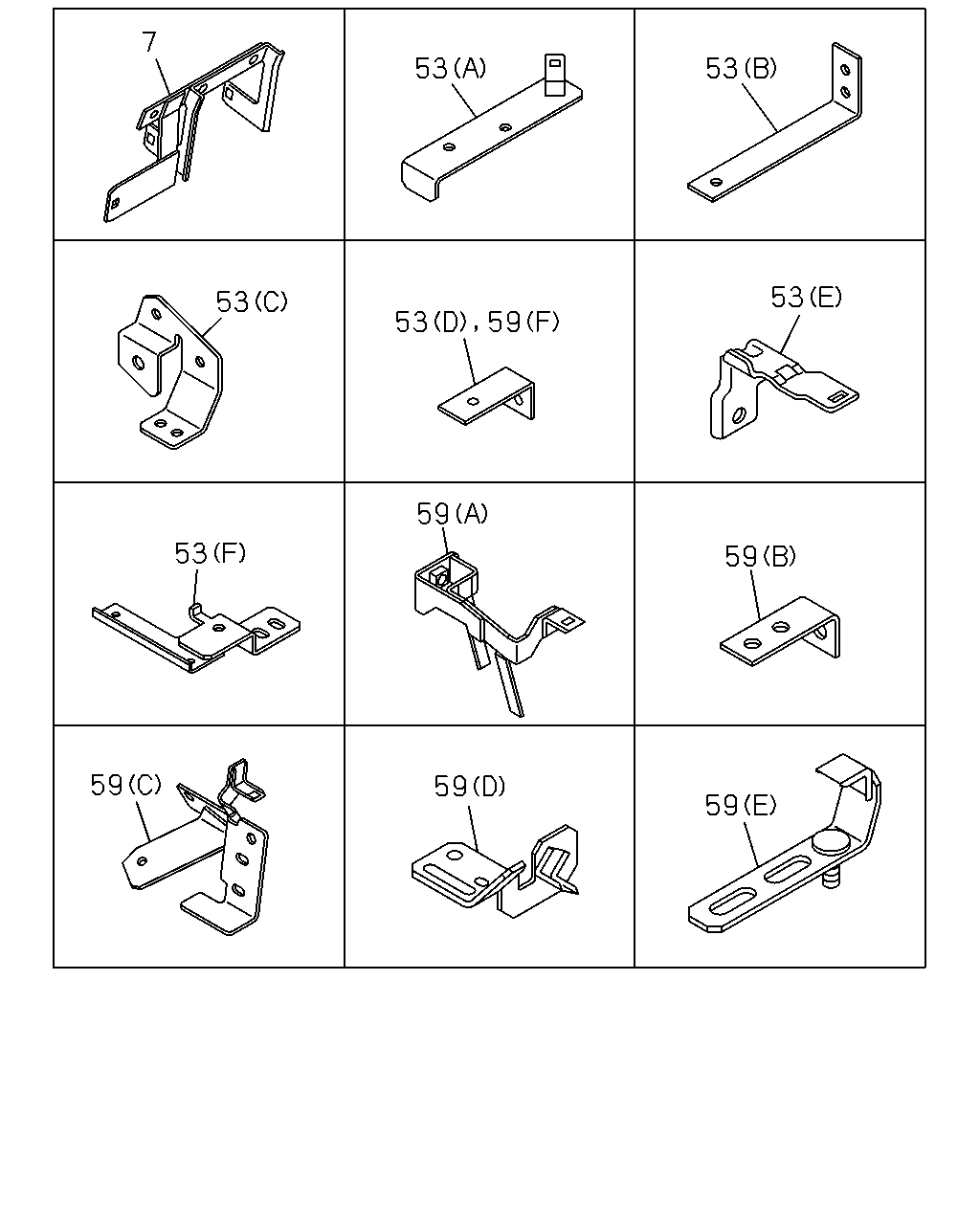

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	0906-	●	●
53	BRACKET; HARNESS (D) L=95	1-82699-085-0	04	1	0906-	●
53	BRACKET; HARNESS (B)	1-47479-674-0	01	1	0906-	●	●
53	BRACKET; HARNESS (A)	8-97616-959-0	01	1	0906-	●	●
53	BRACKET; HARNESS (F)	8-97620-485-0	01	1	0906-1011	●	●
53	BRACKET; HARNESS (F)	8-97620-485-0	01	1	1012-	●	●
53	BRACKET; HARNESS MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F)	8-97620-485-0	01	1	1012-	●
53	BRACKET; HARNESS MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) VIN MODEL YEAR 2011<VZB> (F)	8-97620-485-0	01	1	1012-	●
53	BRACKET; HARNESS MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> (F)	8-97620-485-0	01	1	1012-		●
53	BRACKET; HARNESS (E)	8-98052-458-0	01	1	0906-	●	●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98084-590-0	01	1	0906-	●	●
59	BRACKET; FRAME HARNESS (F) L=75	1-47478-323-0	01	1	0906-	●	●
59	BRACKET; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A)	8-97609-264-2	01	1	0906-1011	●	●
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1012-	●	●
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	0906-	●	●
59	BRACKET; FRAME HARNESS (E)	8-98047-730-0	02	1	0906-	●	●
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	0906-	●	●
59	BRACKET; FRAME HARNESS (B)	1-21464-170-2	01	1	0906-		●

612 48 16 14 14 16 37 48 194 206 217 225 235 612 599 1 1 538 178 178 178 596 530 503

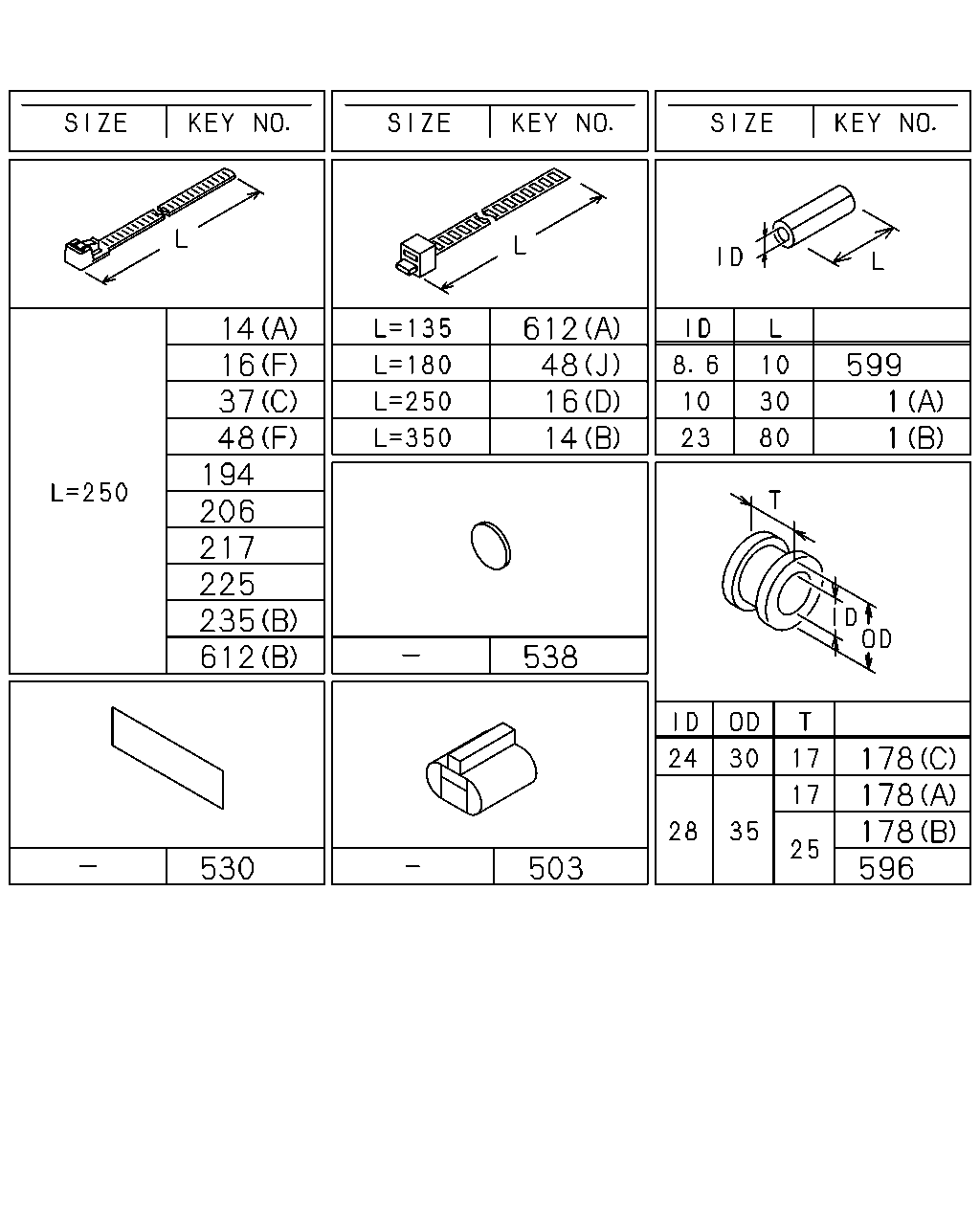

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	0906-	●	●
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0906-	●	●
14	CLIP; BAND,HARNESS MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) (A) L=250	5-09707-030-1	01	1	1012-1112	●
14	CLIP; BAND,HARNESS WHEEL BASE 5500MM(55W) (A) L=250	5-09707-030-1	01	1	1201-	●
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	0906-	●	●
14	CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	13	1	0906-1205	●	●
14	CLIP; BAND,HARNESS (A) L=250	8-98216-430-0	13	1	1206-	●	●
14	CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	30	1	0906-	●	●
16	CLIP; HARNESS (N) ID=11 L=41	1-09700-403-0	03	1	1103-	●
16	CLIP; HARNESS (D) L=250	1-09707-126-0	06	1	0906-	●
16	CLIP; HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0906-	●	●
16	CLIP; HARNESS (G) ID=19 L=20	0-95235-836-0	02	1	0906-	●	●
16	CLIP; HARNESS (H) ID=14 H=50 L=20	1-09700-843-0	02	1	0906-	●	●
16	CLIP; HARNESS (K) ID=22X11 L=20	1-09700-871-0	02	1	0906-	●	●
16	CLIP; HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0906-	●	●
16	CLIP; HARNESS (I) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0906-	●	●
16	CLIP; HARNESS (D) L=250	1-09707-126-0	01	1	0906-	●	●
16	CLIP; HARNESS (D) L=250	1-09707-126-0	02	1	0906-	●	●
16	CLIP; HARNESS (L) ID=13-18 L=14.5	1-09709-290-0	02	1	0906-	●	●
16	CLIP; HARNESS (F) L=250	5-09707-030-1	03	1	0906-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0906-	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0906-	●	●
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	0906-	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0906-	●	●
16	CLIP; HARNESS (M) ID=11X2 L=50	0-95325-085-0	01	1	0906-		●
16	CLIP; HARNESS (D) L=250	1-09707-126-0	05	1	0906-		●
37	CLIP; HARNESS,POWER TILT (A) ID=11 H=45 L=25	1-09700-866-0	01	1	0906-	●	●
37	CLIP; HARNESS,POWER TILT (B) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-	●	●
37	CLIP; HARNESS,POWER TILT (C) L=250	5-09707-030-1	01	1	0906-	●	●
37	CLIP; HARNESS,POWER TILT (D) OD=9 H=6	8-97368-793-0	02	1	0906-	●	●
48	CLIP; FRAME HARNESS (N) ID=33 L=83	1-09701-291-0	01	1	1306-	●	●
48	CLIP; FRAME HARNESS (D) ID=11 L=61	1-09700-484-0	03	1	1012-1102		●
48	CLIP; FRAME HARNESS MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W) VIN MODEL YEAR 2011<VZB> (D) ID=11 L=61	1-09700-484-0	03	1	1012-1102		●
48	CLIP; FRAME HARNESS DIFF LOCK<C3N> (D) ID=11 L=61	1-09700-484-0	01	1	1103-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) ID=11 L=61	1-09700-484-0	01	1	1103-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (O) ID=15 L=65	1-09700-466-0	04	1	1008-		●
48	CLIP; FRAME HARNESS (O) ID=15 L=65	1-09700-466-0	06	1	0906-	●
48	CLIP; FRAME HARNESS (D) ID=11 L=61	1-09700-484-0	04	1	0906-	●
48	CLIP; FRAME HARNESS (G) ID=25 L=75	1-09701-275-0	02	1	0906-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=11 L=61	1-09700-484-0	09	1	0906-1102	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=11 L=61	1-09700-484-0	08	1	1103-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (K) ID=20 L=70	1-09700-485-0	21	1	0906-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (K) ID=20 L=70	1-09700-485-0	24	1	0906-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) ID=11 L=61	1-09700-484-0	08	1	0906-1102	●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) (D) ID=11 L=61	1-09700-484-0	07	1	1103-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (K) ID=20 L=70	1-09700-485-0	27	1	0906-	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0906-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0906-		●
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	01	1	0906-	●	●
48	CLIP; FRAME HARNESS (M) ID=28 L=78	1-09700-858-0	02	1	0906-	●	●
48	CLIP; FRAME HARNESS (L) ID=35 L=50	1-09701-214-0	01	1	0906-	●	●
48	CLIP; FRAME HARNESS (N) ID=33 L=83	1-09701-291-0	03	1	0906-	●	●
48	CLIP; FRAME HARNESS (H) OD=9 H=13.5	1-09709-180-0	01	1	0906-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (H) OD=9 H=13.5	1-09709-180-0	01	1	0906-		●
48	CLIP; FRAME HARNESS (Q) ID=13-18 L=22	1-09709-292-0	01	1	0906-	●	●
48	CLIP; FRAME HARNESS (F) L=250	5-09707-030-1	02	1	0906-	●	●
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (A) ID=16 L=40	0-95235-576-0	03	1	0906-	●	●
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (J) L=180	1-09707-162-1	01	1	0906-	●	●
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6	1-09709-178-0	01	1	0906-	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (I) ID=16X2 L=50	0-95325-586-0	01	1	0906-	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (C) ID=14.5 L=40	1-09701-014-0	01	1	0906-	●	●
48	CLIP; FRAME HARNESS (O) ID=15 L=65	1-09700-466-0	01	1	0906-		●
48	CLIP; FRAME HARNESS (D) ID=11 L=61	1-09700-484-0	01	1	0906-1102		●
48	CLIP; FRAME HARNESS MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W) VIN MODEL YEAR 2011<VZB> (D) ID=11 L=61	1-09700-484-0	03	1	1103-		●
48	CLIP; FRAME HARNESS DIFF LOCK<C3N> (D) ID=11 L=61	1-09700-484-0	03	1	1103-		●
48	CLIP; FRAME HARNESS (D) ID=11 L=61	1-09700-484-0	03	1	0906-1011		●
48	CLIP; FRAME HARNESS MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W) VIN MODEL YEAR 2011<VZB> (D) ID=11 L=61	1-09700-484-0	02	1	1012-		●
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	05	1	0906-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (K) ID=20 L=70	1-09700-485-0	05	1	1008-		●
48	CLIP; FRAME HARNESS (K) ID=20 L=70	1-09700-485-0	05	1	1008-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (K) ID=20 L=70	1-09700-485-0	07	1	0906-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (O) ID=15 L=65	1-09700-466-0	02	1	1008-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (P) OD=9 H=17.5	1-09709-181-0	01	1	0906-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	12	1	0906-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (K) ID=20 L=70	1-09700-485-0	08	1	1008-		●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	1008-	●	●
178	GROMMET; HARNESS WHEEL BASE 6000MM(60W) (C) ID=24 OD=30 T=17	9-09956-092-1	02	1	0906-	●
178	GROMMET; HARNESS (C) ID=24 OD=30 T=17	9-09956-092-1	02	1	0906-		●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	0906-0907	●	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	0908-1007	●	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	0908-1007	●	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	0908-1007	●	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1008-	●	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	0906-0907	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0906-	●	●
178	GROMMET; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0906-	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-	●	●
194	CLIP; BAND L=250	5-09707-030-1	03	1	0906-	●
194	CLIP; BAND L=250	5-09707-030-1	02	1	0906-	●	●
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	0906-	●	●
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0906-1012	●
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1101-	●	●
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1101-	●
217	CLIP; RR BODY HARNESS EXC. REVERSING WARNING BUZZER<YM9> L=250	5-09707-030-1	01	1	0906-	●	●
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	01	1	0906-		●
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	01	1	0906-	●
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	06	1	0906-		●
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=11 L=16	0-95235-025-0	02	1	0906-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) L=250	5-09707-030-1	01	1	0906-	●	●
503	CONNECTOR HEATER & DEFROSTER(C41)	1-82690-668-0	01	1	0906-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0906-1305	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-	●	●
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0906-1305	●	●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0906-	●	●
596	GROMMET ID=28 OD=35 T=25	1-09332-011-1	01	1	0906-1011	●	●
596	GROMMET MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> ID=28 OD=35 T=25	1-09332-011-1	01	1	1012-1012	●	●
596	GROMMET FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=28 OD=35 T=25	1-09332-011-1	01	1	1012-1012	●	●
596	GROMMET 6HK1-TCC ENG(81L) MZW6P M/T(RSZ) ID=28 OD=35 T=25	1-09332-011-1	01	1	1012-	●	●
596	GROMMET FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=28 OD=35 T=25	1-09332-011-1	01	1	1012-	●	●
599	TUBE; DISTANCE ID=8.5 L=10	5-13642-077-0	04	1	0906-	●	●
612	CLIP; HARNESS DPD MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) (C) ID=11 L=41	1-09700-403-0	02	1	1012-	●
612	CLIP; HARNESS DPD MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) (B) L=135	1-09987-143-1	01	1	1012-	●
612	CLIP; HARNESS DPD MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) VIN MODEL YEAR 2011<VZB> (B) L=135	1-09987-143-1	01	1	1012-	●
612	CLIP; HARNESS DPD MZW6P M/T(RSZ) (B) L=135	1-09987-143-1	01	1	1012-		●
612	CLIP; HARNESS DPD MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> (B) L=135	1-09987-143-1	01	1	1012-		●
612	CLIP; HARNESS DPD (C) ID=11 L=41	1-09700-403-0	01	1	0906-1011	●	●
612	CLIP; HARNESS DPD (C) ID=11 L=41	1-09700-403-0	01	1	1012-	●
612	CLIP; HARNESS DPD FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C) ID=11 L=41	1-09700-403-0	01	1	1012-		●
612	CLIP; HARNESS DPD (A) L=135	1-09987-143-1	02	1	0906-1011	●	●
612	CLIP; HARNESS DPD FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) L=135	1-09987-143-1	02	1	1012-	●	●
612	CLIP; HARNESS DPD MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=135	1-09987-143-1	02	1	1012-	●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0906-	●	●

304 139 304 304 139 38 304 313 304 139 516 358 377 386 139 38 242 150 313 139 38 150 313 139 38 313 139 313 139 242 139 139 38 386 38 524 294 219 525 294 47 184

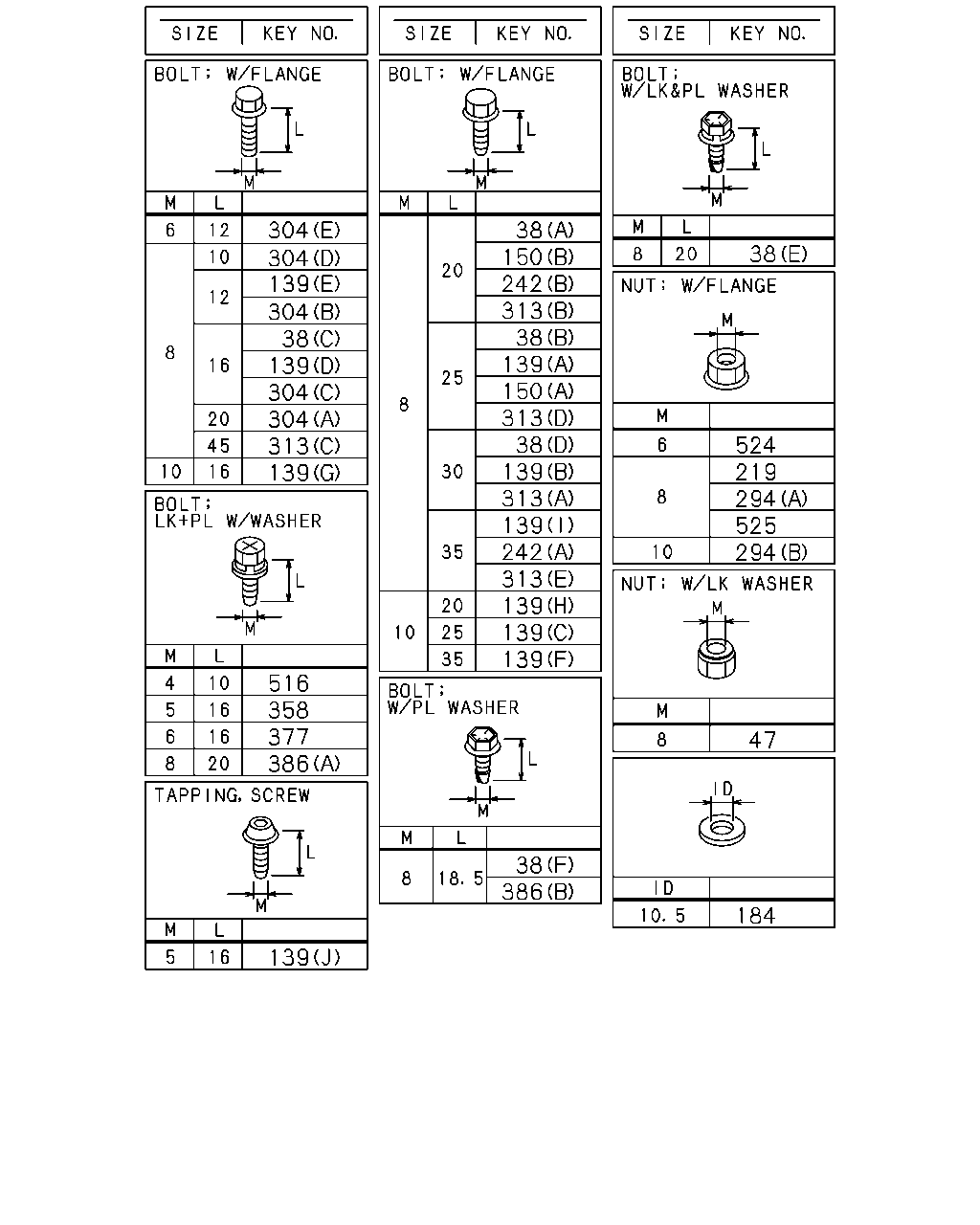

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0906-	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0906-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0906-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0906-		●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	04	1	0906-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	0906-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	0906-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	0906-	●	●
38	BOLT; CLIP,HARNESS (E) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0906-1201	●	●
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-	●	●
38	BOLT; CLIP,HARNESS FULLER FSO5206B OD M/T(Y4V) (C) M8X16 FLANGE	0-28050-816-0	03	1	0906-	●	●
38	BOLT; CLIP,HARNESS ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE	0-28050-816-0	02	1	0906-	●	●
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-	●	●
139	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	02	1	0906-	●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0906-	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0906-	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0906-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0906-1004	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1005-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0906-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	05	1	0906-1004	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1005-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1005-	●	●
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0906-	●	●
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	0906-1005	●	●
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	0906-1005	●	●
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	02	1	1006-	●	●
139	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (G) M10X16 FLANGE	0-28051-016-0	03	1	0906-	●	●
139	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (H) M10X20 FLANGE	0-28751-020-0	01	1	0906-	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (J) M5X16 TAPPING	0-72180-516-0	01	1	0906-	●	●
139	BOLT; BRKT (I) M8X35 FLANGE	0-28650-835-0	01	1	0906-		●
150	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0906-	●	●
150	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	02	1	0906-	●	●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0906-	●	●
219	NUT M8 FLANGE	0-91180-108-0	04	1	1006-	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	0906-1004	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1005-1005	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1005-1005	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1005-1005	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1006-	●	●
219	NUT M8 FLANGE	0-91180-108-0	04	1	0906-1004	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	0906-	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	0906-		●
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28650-820-0	02	1	0906-	●	●
242	BOLT; BRKT,HARNESS (A) M8X35 FLANGE	0-28650-835-0	01	1	0906-1011	●	●
242	BOLT; BRKT,HARNESS (A) M8X35 FLANGE	0-28650-835-0	01	1	1012-	●	●
242	BOLT; BRKT,HARNESS MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X35 FLANGE	0-28650-835-0	01	1	1012-	●
242	BOLT; BRKT,HARNESS MZW6P M/T(RSZ) WHEEL BASE 6000MM(60W) VIN MODEL YEAR 2011<VZB> (A) M8X35 FLANGE	0-28650-835-0	01	1	1012-	●
242	BOLT; BRKT,HARNESS MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> (A) M8X35 FLANGE	0-28650-835-0	01	1	1012-		●
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	0906-1004	●
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1005-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1005-	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0906-1004	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0906-1004	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0906-1004		●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1005-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1005-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1005-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1005-		●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0906-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0906-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	0906-1004	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	0906-1004	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1005-	●	●
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	0906-	●	●
294	NUT FULLER FSO5206B OD M/T(Y4V) (B) M10 FLANGE	0-91180-210-0	01	1	0906-	●	●
304	BOLT; ENG HARNESS CLIP (E) M6X12 FLANGE	0-28050-612-0	01	1	0906-	●	●
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE	0-28050-810-0	01	1	0906-1010	●	●
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	0906-	●	●
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	0906-	●	●
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	0906-	●	●
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	04	1	0906-	●
313	BOLT; BRKT (C) M8X45 FLANGE	0-28050-845-0	01	1	0906-	●	●
313	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0906-	●	●
313	BOLT; BRKT (D) M8X25 FLANGE	0-28650-825-0	01	1	0906-	●	●
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	0906-	●	●
313	BOLT; BRKT (E) M8X35 FLANGE	0-28650-835-0	01	1	0906-	●	●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0906-	●	●
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0906-	●	●
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0906-1202	●	●
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-	●	●
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0906-	●	●
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	0906-	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	0906-	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	0906-	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	0906-	●	●
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	0906-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
