◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10806 - EXZ RHD FUEL TANK 400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36B - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36B — MANUAL TRANSMISSION CONT LINK AND CABLE (#6298) — 115 parça
çizim 6331
496 465 192 509 468
BalonParca AdiParca NoAdetTipApplied Date A B C
192 COVER 1-79907-090-0 01 1 9906- ●
192 COVER
ELECTRONIC GOV RED3(KG5) 		1-79907-090-0 01 1 9906- ● ●
465 BRACKET; CONNECTOR 1-47477-823-1 01 1 9906- ●
465 BRACKET; CONNECTOR
ELECTRONIC GOV RED3(KG5) 		1-47477-823-1 01 1 9906- ● ●
468 NUT; BRKT
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9906- ●
468 NUT; BRKT
ELECTRONIC GOV RED3(KG5) (A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9906- ● ●
468 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 01 1 9906- ● ● ●
496 FASTENER
D8X13.5 		1-09987-248-1 02 1 9906- ●
496 FASTENER
ELECTRONIC GOV RED3(KG5) D8X13.5 		1-09987-248-1 02 1 9906- ● ●
509 SEAL; BRKT 1-47477-825-2 01 1 9906- ●
509 SEAL; BRKT
ELECTRONIC GOV RED3(KG5) 		1-47477-825-2 01 1 9906- ● ●

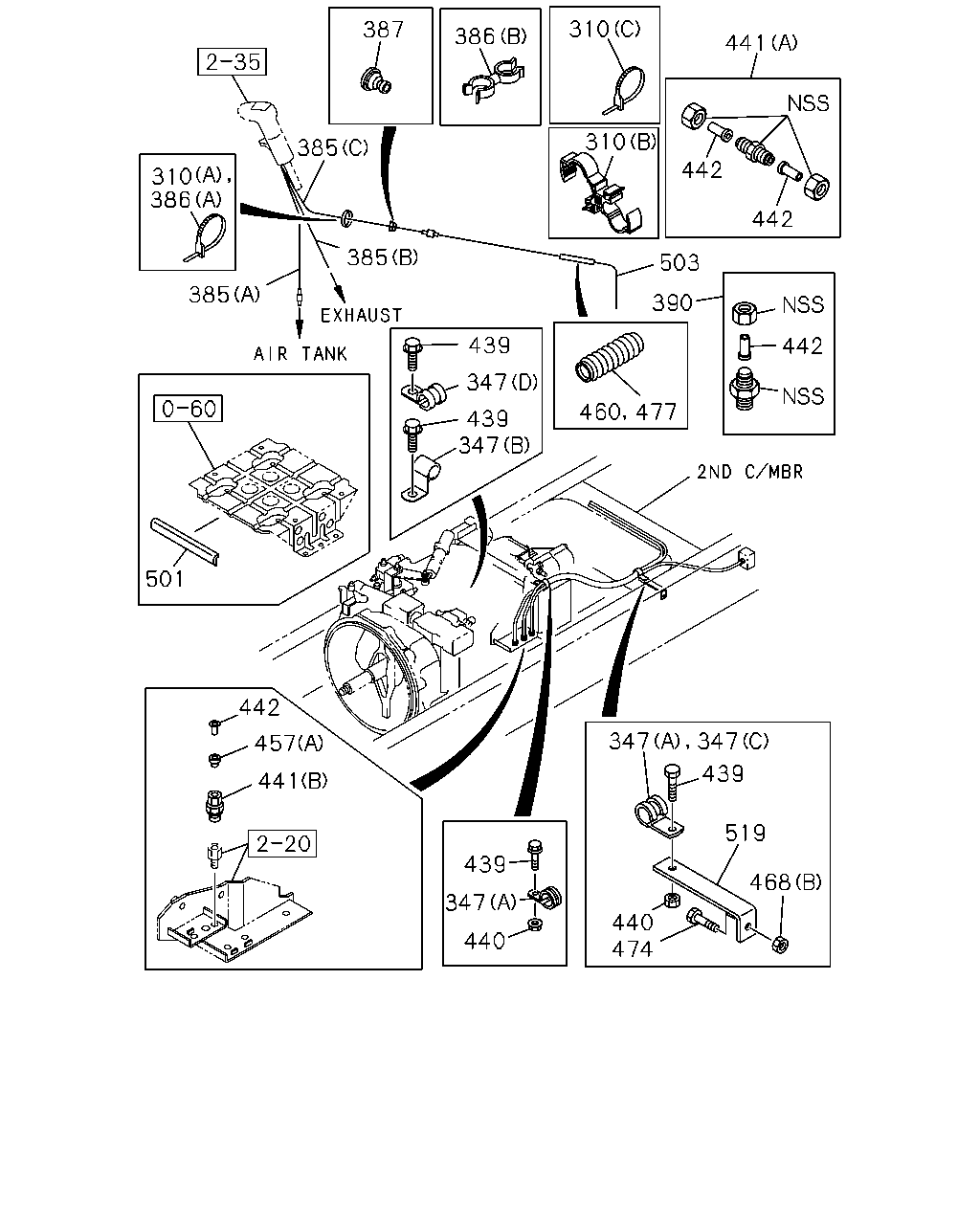

çizim 7032
310 387 386 441 385 310 442 386 442 385 503 385 390 439 442 347 439 347 501 442 347 457 439 441 519 439 468 347 440 474 440 310 460 477 347
BalonParca AdiParca NoAdetTipApplied Date A B C
310 CLIP; TUBE
(C) L=250 		1-09707-126-0 07 1 9906-9910 ● ● ●
310 CLIP; TUBE
(C) L=250 		1-09707-126-0 16 1 9911- ● ●
310 CLIP; TUBE
(A) L=250 		5-09707-030-1 02 1 9906-9910 ● ● ●
310 CLIP; TUBE
(A) L=250 		5-09707-030-1 02 1 9911- ● ●
310 CLIP; TUBE
(A) L=140 		5-09707-031-1 07 1 9906-9910 ● ● ●
310 CLIP; TUBE
(A) L=140 		5-09707-031-1 01 1 9911-0105 ● ●
310 CLIP; TUBE
(A) L=140 		5-09707-031-1 03 1 0106- ● ● ●
310 CLIP; TUBE
(B) ID=12-16 & 12-16 		1-09709-191-0 01 1 0106- ● ● ●
347 CLIP; AIR PIPE
(D) ID=18 L=28 		1-09701-067-0 01 1 9906- ●
347 CLIP; AIR PIPE
PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX) ,PTO TRANS RR RATIO 1.68(BEY) (C) ID=28 L=40 		1-09701-261-0 01 1 9906- ● ●
347 CLIP; AIR PIPE
(A) ID=24 L=27 		1-09700-809-0 02 1 9906-9906 ● ● ●
347 CLIP; AIR PIPE
EXC. PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX),PTO TRANS RR RATIO 1.68(BEY) (A) ID=24 L=27 		1-09700-809-0 01 1 9906- ● ●
347 CLIP; AIR PIPE
(A) ID=24 L=27 		1-09700-809-0 01 1 9906- ● ●
347 CLIP; AIR PIPE
(A) ID=24 L=27 		1-09700-809-0 01 1 9906- ●
347 CLIP; AIR PIPE
PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX) ,PTO TRANS RR RATIO 1.68(BEY) (B) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 9906- ● ● ●
385 TUBE; NYLON
(A) L=1440 SERVICED BY L=8000 		1-09369-762-0 01 1 9906- ● ●
385 TUBE; NYLON
(B) L=150 SERVICED BY L=8000 		1-09369-762-0 01 1 9906- ● ●
385 TUBE; NYLON
(C) L=1650 SERVICED BY L=8000 		1-09369-762-0 01 1 9906- ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=250 		5-09707-030-1 02 1 9906- ● ●
386 CLIP; CONT CABLE & TUBE
(A) L=140 		5-09707-031-1 01 1 9906- ● ●
386 CLIP; CONT CABLE & TUBE
(B) ID=8.3 & 8.3 		8-94426-175-0 01 1 9906- ● ●
387 GROMMET; CONT TUBE,FULLER 1-09332-102-0 01 1 9906- ● ●
390 CONNECTOR; STRAIGHT,TRANS SIDE
DIN4 & PT1/8 STRAIGHT 		1-09660-765-0 01 1 9906- ● ●
439 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9906-9906 ● ● ●
439 BOLT; CLIP,AIR PIPE
PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX) ,PTO TRANS RR RATIO 1.68(BEY) M8X25 FLANGE 		0-28680-825-0 03 1 9906- ● ● ●
439 BOLT; CLIP,AIR PIPE
EXC. PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX),PTO TRANS RR RATIO 1.68(BEY) M8X25 FLANGE 		0-28680-825-0 02 1 9906- ● ● ●
440 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 9906-9906 ● ● ●
440 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 9906- ● ● ●
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-466-0 01 1 9906- ● ●
441 CONNECTOR; NYLON TUBE
(A) DIN4 STRAIGHT 		1-09660-512-0 02 1 9906- ● ● ●
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9906-9910 ● ●
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9906-9910 ● ●
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 05 1 9911- ● ● ●
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 04 1 9906-9910 ● ● ●
442 INSERT; NYLON TUBE
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 9911- ● ●
457 GASKET
(B) 		1-09623-594-0 04 1 9906- ● ● ●
457 GASKET
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9906- ● ●
460 TUBE; CORRUGATE
L=800 		1-83129-031-1 01 1 9906- ● ●
460 TUBE; CORRUGATE
L=900 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 9906- ● ●
460 TUBE; CORRUGATE
L=1300 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 9906- ● ●
468 NUT; BRKT
(A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9906- ●
468 NUT; BRKT
ELECTRONIC GOV RED3(KG5) (A) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9906- ● ●
468 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 01 1 9906- ● ● ●
474 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9906- ● ● ●
477 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87410-085-0 01 1 9906- ● ●
477 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87410-086-0 01 1 9906- ● ●
501 SEAL; HARNESS PROTECTOR
100X40 		1-72498-022-0 04 1 9906- ● ●
503 TUBE; NYLON
SERVICED BY L=2000 OD=4 		1-87410-077-0 01 1 9906- ● ●
503 TUBE; NYLON
SERVICED BY L=6000 OD=4 		1-87410-079-0 01 1 9906- ● ●
519 BRACKET; FRAME
L=125 		1-47475-897-0 01 1 9906- ● ● ●

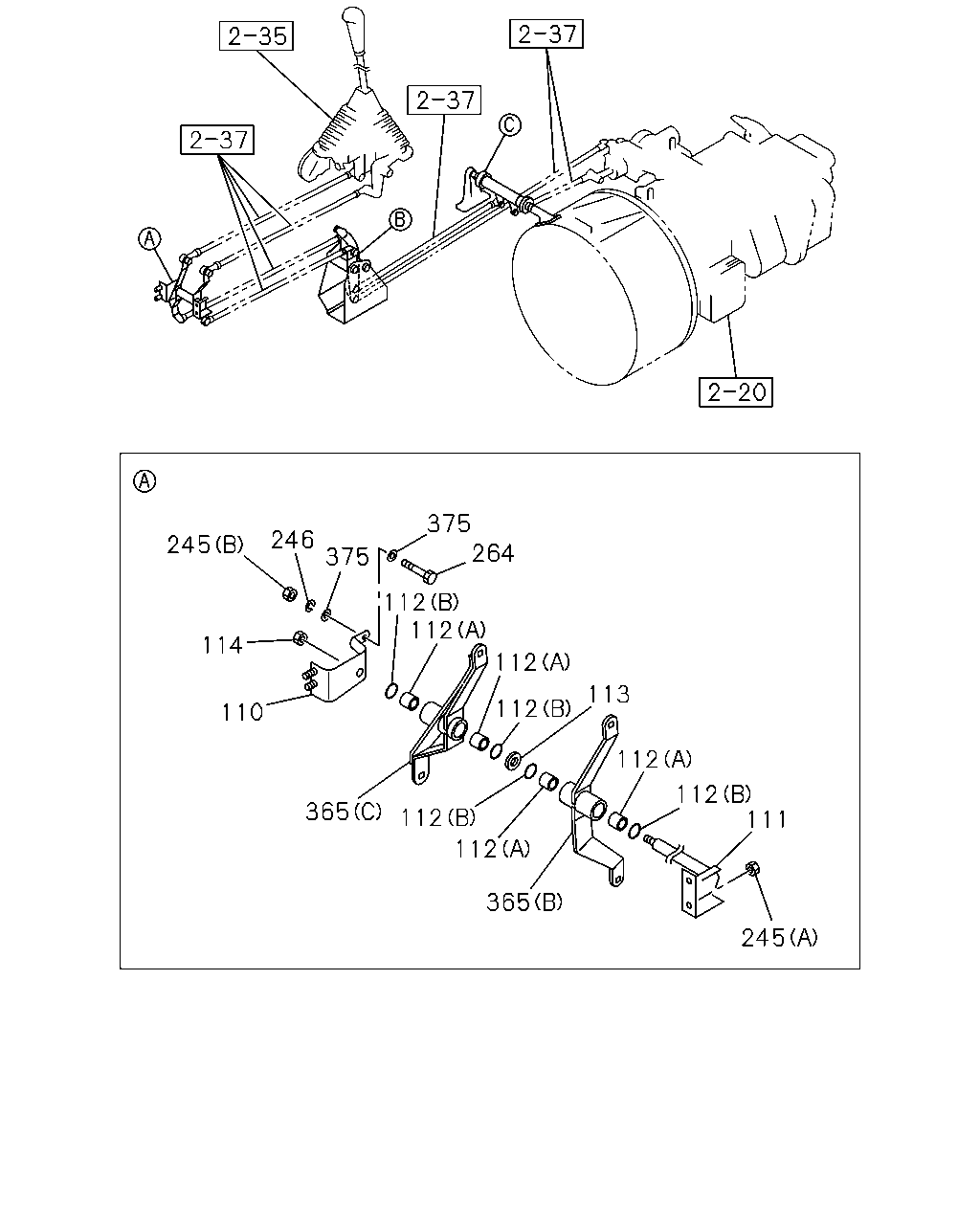

çizim 42959
375 264 246 245 375 112 112 114 112 113 112 110 112 112 111 365 112 112 365 245
BalonParca AdiParca NoAdetTipApplied Date A B C
110 BRACKET; RELAY LEVER,1ST 1-33657-598-0 01 1 9906- ● ● ●
111 SHAFT; RELAY LEVER,1ST 1-33619-468-0 01 1 9906- ● ● ●
112 BUSHING; RELAY LEVER
(A) 		1-09330-119-0 04 1 9906- ● ● ●
112 BUSHING; RELAY LEVER
(B) 		1-09623-594-0 04 1 9906- ● ● ●
113 WASHER; RELAY LEVER
ID=17 		9-09160-516-0 01 1 9906- ● ● ●
114 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 01 1 9906- ● ● ●
245 NUT; BRKT,RELAY LEVER
(A) M10 FLANGE 		0-91150-210-0 02 1 9906- ● ● ●
245 NUT; BRKT,RELAY LEVER
(B) M10 		1-09984-142-0 01 1 9906- ● ● ●
246 WASHER; LK,BRKT,RELAY LEVER
ID=10 		1-09985-185-0 01 1 9906- ● ● ●
264 BOLT; BRKT,RELAY LEVER
M10X100 		1-09980-547-0 01 1 9906- ● ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-628-1 01 1 9906- ● ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-638-0 01 1 9906- ● ● ●
365 LEVER; RELAY,SELECT
(C) 		1-33651-649-0 01 1 9906- ● ● ●
375 WASHER; PL,BRKT,RELAY LEVER
ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 9906- ● ● ●
çizim 44543
507 466 103 35 33 34 162 46 34 71 100 46 242 34 34 71
BalonParca AdiParca NoAdetTipApplied Date A B C
33 BOLT; BRKT,3RD RELAY LEVER
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-N(71L) M10X30 FLANGE 		0-28681-030-0 03 1 9906-9906 ● ● ●
33 BOLT; BRKT,3RD RELAY LEVER
6WA1 TC-C(55L),6WG1 TC-N(71L) M10X30 FLANGE 		0-28681-030-0 03 1 9907- ● ● ●
34 SEAT; BALL,RELAY LEVER 1-33659-165-0 04 1 9906- ● ● ●
35 RING; SNAP,RELAY LEVER
OD=34.4 		9-09180-132-0 01 1 9906- ● ● ●
46 SEAL; DUST,RELAY LEVER 1-33659-166-0 02 1 9906- ● ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
(B) 		1-33657-481-0 01 1 9906- ● ● ●
71 BRACKET; 3RD RELAY LEVER,FRAME
(A) 		1-33657-657-1 01 1 9906- ●
71 BRACKET; 3RD RELAY LEVER,FRAME
CAB UP +110MM<TGG> (A) 		1-33657-657-1 01 1 9906- ● ●
100 SPRING
(A) 		1-09583-351-0 01 1 9906- ● ● ●
100 SPRING
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-N(71L) (B) 		1-09583-319-0 01 1 9906-9906 ● ● ●
100 SPRING
6WA1 TC-C(55L),6WG1 TC-N(71L) (B) 		1-09583-319-0 01 1 9907- ● ● ●
103 NUT
M8 FLANGE 		0-91150-108-0 01 1 9906- ●
103 NUT
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9906- ● ●
162 LEVER; RELAY 1-33651-679-0 01 1 9906- ● ● ●
242 NUT; FLANGE 3RD RELAY LEVER
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-N(71L) M12 FLANGE 		0-91150-212-0 03 1 9906-9906 ● ● ●
242 NUT; FLANGE 3RD RELAY LEVER
6WA1 TC-C(55L),6WG1 TC-N(71L) M12 FLANGE 		0-91150-212-0 03 1 9907- ● ● ●
466 BOLT; FIX
M8X20 FLANGE 		0-28680-820-0 02 1 9906- ●
466 BOLT; FIX
CAB UP +110MM<TGG> M8X20 FLANGE 		0-28680-820-0 02 1 9906- ● ●
507 PROTECTOR; HEAT 1-14181-315-0 01 1 9906- ●
507 PROTECTOR; HEAT
CAB UP +110MM<TGG> 		1-14181-315-0 01 1 9906- ● ●

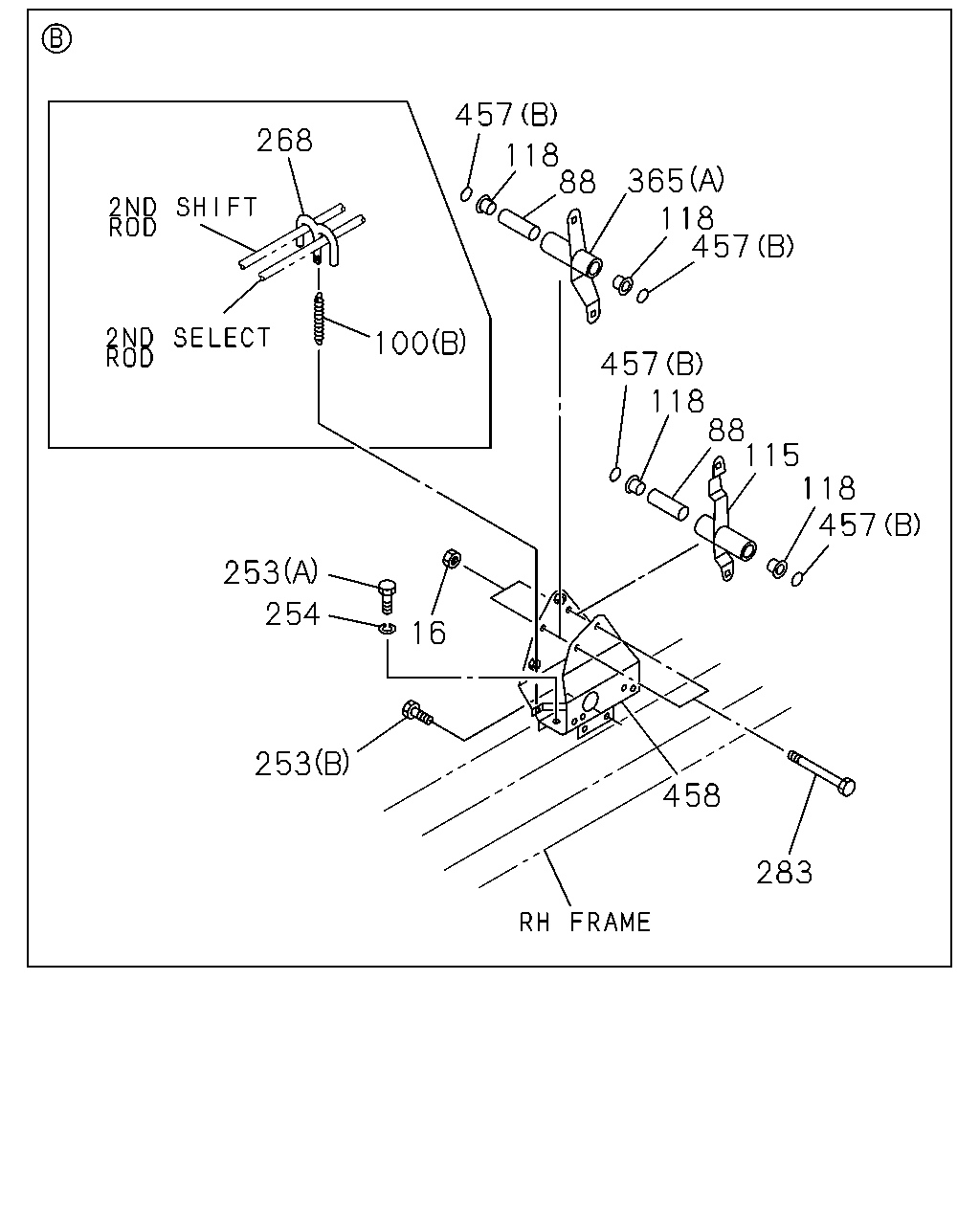

çizim 44663
457 268 118 88 365 118 457 100 457 118 88 115 118 457 253 254 16 253 458 283
BalonParca AdiParca NoAdetTipApplied Date A B C
16 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 02 1 9906- ● ● ●
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 9906- ● ● ●
100 SPRING
(A) 		1-09583-351-0 01 1 9906- ● ● ●
100 SPRING
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-N(71L) (B) 		1-09583-319-0 01 1 9906-9906 ● ● ●
100 SPRING
6WA1 TC-C(55L),6WG1 TC-N(71L) (B) 		1-09583-319-0 01 1 9907- ● ● ●
115 LEVER; RELAY,2ND SHIFT 1-33651-626-0 01 1 9906- ● ● ●
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 9906- ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(A) M14X45 		0-20801-445-0 02 1 9906- ● ● ●
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X35 FLANGE 		0-28681-035-0 02 1 9906- ● ● ●
254 WASHER; LK,RELAY LEVER
ID=14.2 		9-09150-614-0 02 1 9906- ● ● ●
268 BRACKET; LINK ROD 1-33657-216-0 01 1 9906- ● ● ●
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 9906- ● ● ●
365 LEVER; RELAY,SELECT
(A) 		1-33651-628-1 01 1 9906- ● ● ●
365 LEVER; RELAY,SELECT
(B) 		1-33651-638-0 01 1 9906- ● ● ●
365 LEVER; RELAY,SELECT
(C) 		1-33651-649-0 01 1 9906- ● ● ●
457 GASKET
(B) 		1-09623-594-0 04 1 9906- ● ● ●
457 GASKET
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 9906- ● ●
458 BRACKET; 2ND RELAY LEVER 1-33657-664-1 01 1 9906- ●
458 BRACKET; 2ND RELAY LEVER
CAB UP +110MM<TGG> 		1-33657-664-1 01 1 9906- ● ●
458 BRACKET; 2ND RELAY LEVER
EXC. CAB UP +110MM<TGG> 		1-33657-583-1 01 1 9906- ● ●
