Sayfa 2-36A - Isuzu EPC

2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#6297) — 54 parça

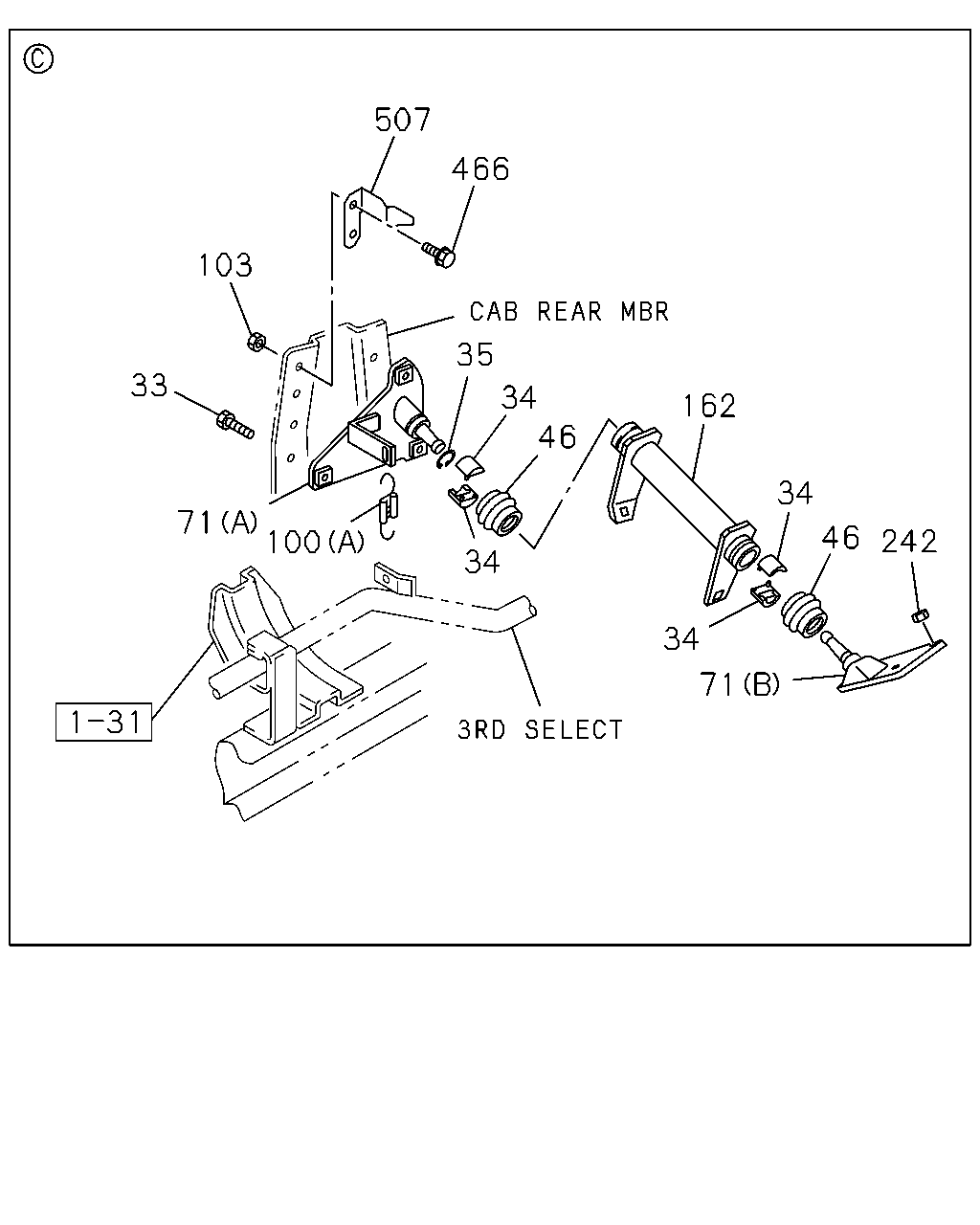

507 466 103 35 33 34 162 46 34 71 100 46 242 34 34 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	BOLT; BRKT,3RD RELAY LEVER 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-N(71L) M10X30 FLANGE	0-28681-030-0	03	1	9906-9906
33	BOLT; BRKT,3RD RELAY LEVER 6WA1 TC-C(55L),6WG1 TC-N(71L) M10X30 FLANGE	0-28681-030-0	03	1	9907-
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	9906-
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	9906-
46	SEAL; DUST,RELAY LEVER	1-33659-166-0	02	1	9906-
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	9906-
71	BRACKET; 3RD RELAY LEVER,FRAME CAB UP +110MM<TGG> (A)	1-33657-657-1	01	1	9906-
71	BRACKET; 3RD RELAY LEVER,FRAME EXC. CAB UP +110MM<TGG> (A)	1-33657-512-0	01	1	9906-
100	SPRING (A)	1-09583-351-0	01	1	9906-
100	SPRING 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-N(71L) (B)	1-09583-319-0	01	1	9906-9906
100	SPRING 6WA1 TC-C(55L),6WG1 TC-N(71L) (B)	1-09583-319-0	01	1	9907-
103	NUT CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	9906-
162	LEVER; RELAY	1-33651-625-0	01	1	9906-
242	NUT; FLANGE 3RD RELAY LEVER 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-N(71L) M12 FLANGE	0-91150-212-0	03	1	9906-9906
242	NUT; FLANGE 3RD RELAY LEVER 6WA1 TC-C(55L),6WG1 TC-N(71L) M12 FLANGE	0-91150-212-0	03	1	9907-
466	BOLT; FIX CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	02	1	9906-
507	PROTECTOR; HEAT CAB UP +110MM<TGG>	1-14181-315-0	01	1	9906-

496 465 192 509 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
192	COVER ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	9906-
465	BRACKET; CONNECTOR ELECTRONIC GOV RED3(KG5)	1-47477-823-1	01	1	9906-
468	NUT; BRKT ELECTRONIC GOV RED3(KG5) (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9906-
496	FASTENER ELECTRONIC GOV RED3(KG5) D8X13.5	1-09987-248-1	02	1	9906-
509	SEAL; BRKT ELECTRONIC GOV RED3(KG5)	1-47477-825-2	01	1	9906-

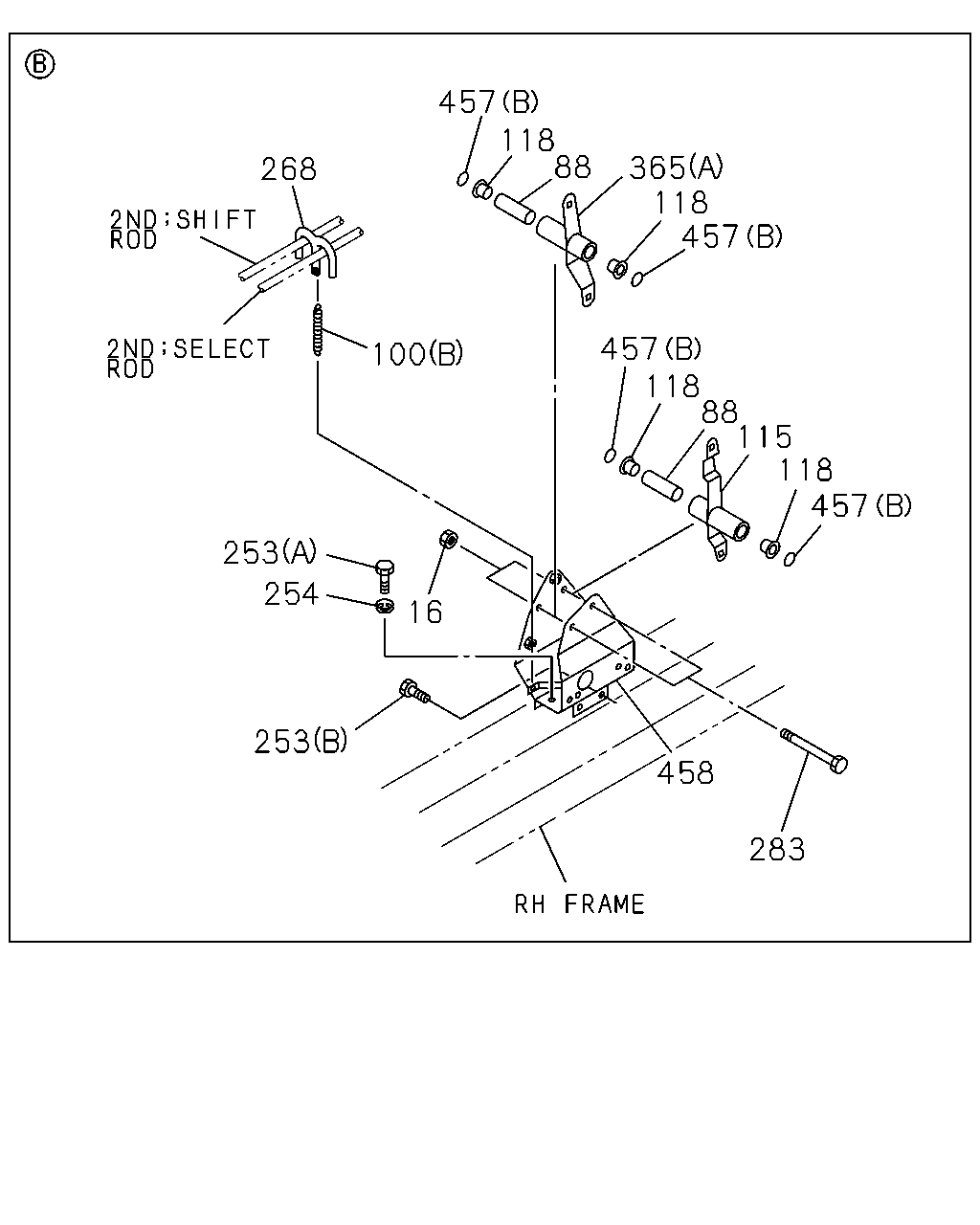

457 118 88 365 118 457 268 457 118 88 115 118 457 100 253 254 16 253 458 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9906-
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9906-
100	SPRING (A)	1-09583-351-0	01	1	9906-
100	SPRING 6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-N(71L) (B)	1-09583-319-0	01	1	9906-9906
100	SPRING 6WA1 TC-C(55L),6WG1 TC-N(71L) (B)	1-09583-319-0	01	1	9907-
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9906-
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9906-
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9906-
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	9906-
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9906-
268	BRACKET; LINK ROD	1-33657-216-0	01	1	9906-
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9906-
365	LEVER; RELAY,SELECT (A)	1-33651-628-1	01	1	9906-
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	9906-
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	9906-
457	GASKET (B)	1-09623-594-0	04	1	9906-
458	BRACKET; 2ND RELAY LEVER CAB UP +110MM<TGG>	1-33657-664-1	01	1	9906-
458	BRACKET; 2ND RELAY LEVER EXC. CAB UP +110MM<TGG>	1-33657-583-1	01	1	9906-

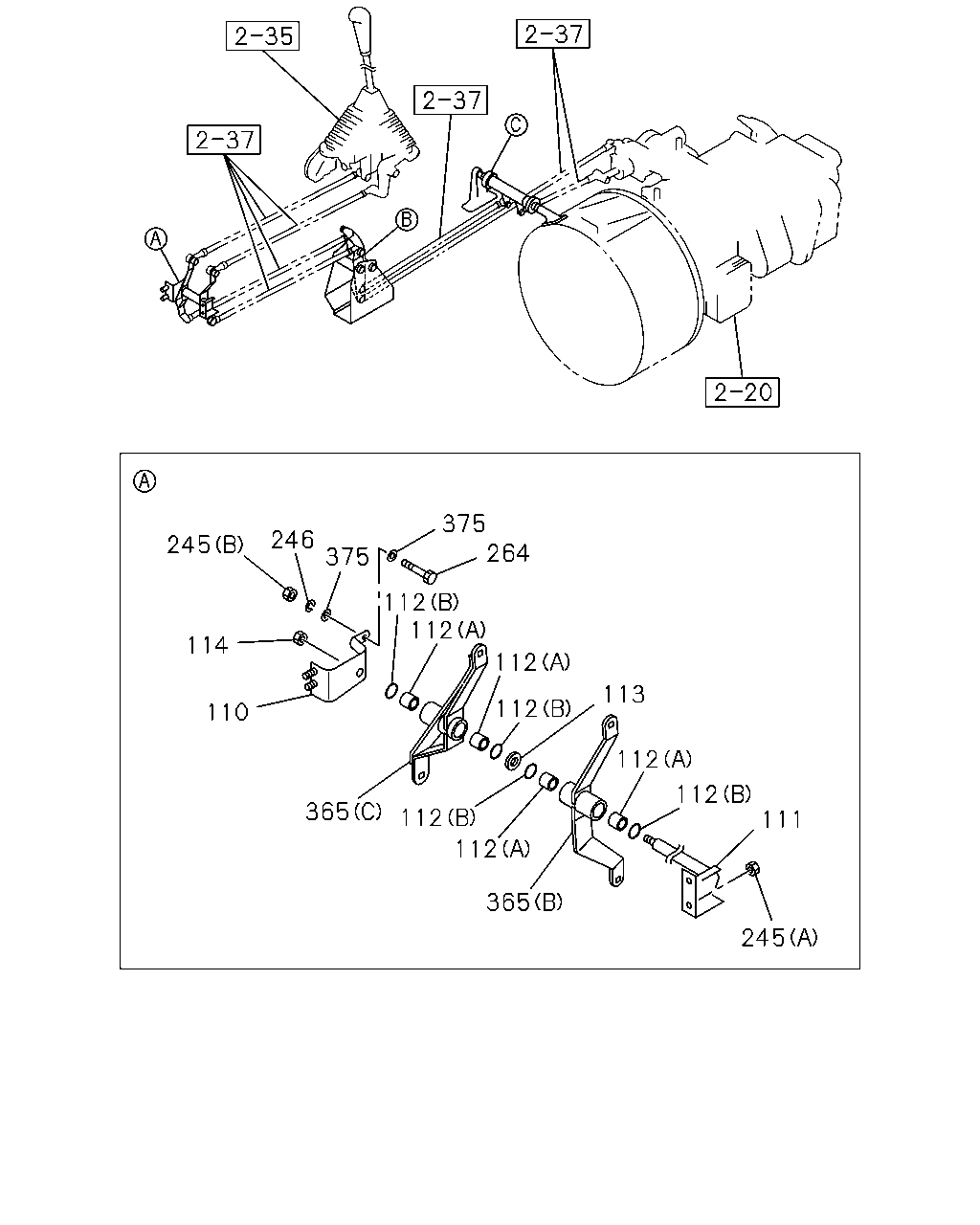

375 264 246 245 375 112 112 114 112 113 112 110 112 112 365 112 111 112 365 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
110	BRACKET; RELAY LEVER,1ST	1-33657-598-0	01	1	9906-
111	SHAFT; RELAY LEVER,1ST	1-33619-468-0	01	1	9906-
112	BUSHING; RELAY LEVER (A)	1-09330-119-0	04	1	9906-
112	BUSHING; RELAY LEVER (B)	1-09623-594-0	04	1	9906-
113	WASHER; RELAY LEVER ID=17	9-09160-516-0	01	1	9906-
114	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	9906-
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91150-210-0	02	1	9906-
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	01	1	9906-
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	01	1	9906-
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	01	1	9906-
365	LEVER; RELAY,SELECT (A)	1-33651-628-1	01	1	9906-
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	9906-
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	9906-
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
