◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11240 - FVR-RHD(EUROPE)EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#62969) — 119 parça

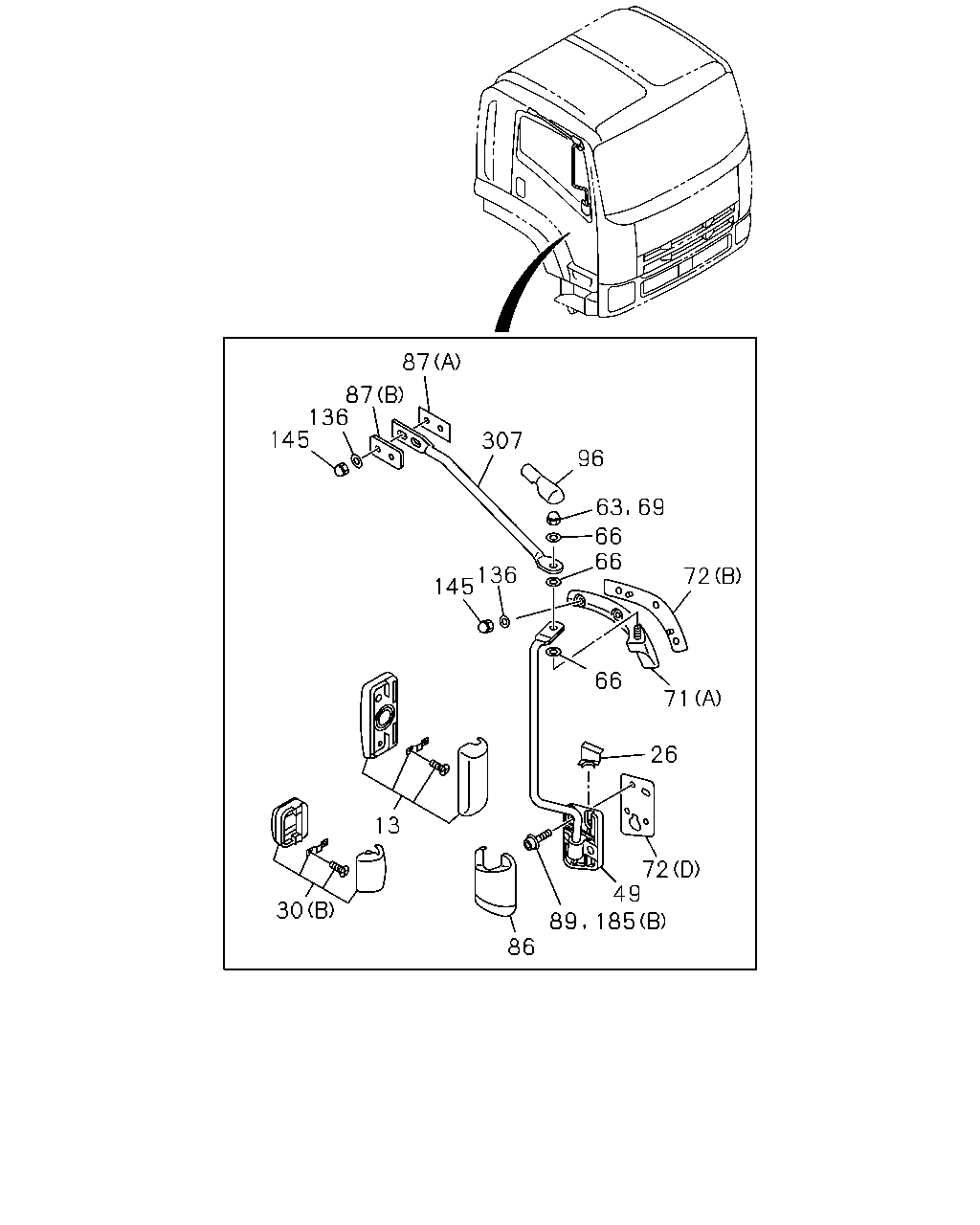

çizim 166542
87 87 136 145 307 96 66 66 136 145 72 66 71 26 13 72 49 185 30 89 86 63 69
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 0906- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 0906- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 0906- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 0906- ● ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 0906- ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 0906- ● ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 0906- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-781-1 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-780-1 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-067-1 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-066-1 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1203- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 0908- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1006-1011 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1012- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 0906-0907 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 08 1 0908-1005 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1006-1011 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1012- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0906-0907 ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 0906- ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 02 1 0906-0907 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0906- ● ●
72 SHEET
(C) 		8-98031-797-0 01 1 0906- ● ●
72 SHEET
(E) 		8-98060-245-1 01 1 0906- ● ●
72 SHEET
(A) 		8-98064-776-0 01 1 0906- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 0906- ● ●
72 SHEET
(B) 		8-98031-796-0 01 1 0906- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 0906- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 0906- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 0906- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 0906- ● ●
87 SPACER
(B) 		8-98063-789-0 01 1 0906- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 0908- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0906- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0906- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 0906- ● ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0906- ● ●
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 0906-0907 ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0906- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0906- ● ●

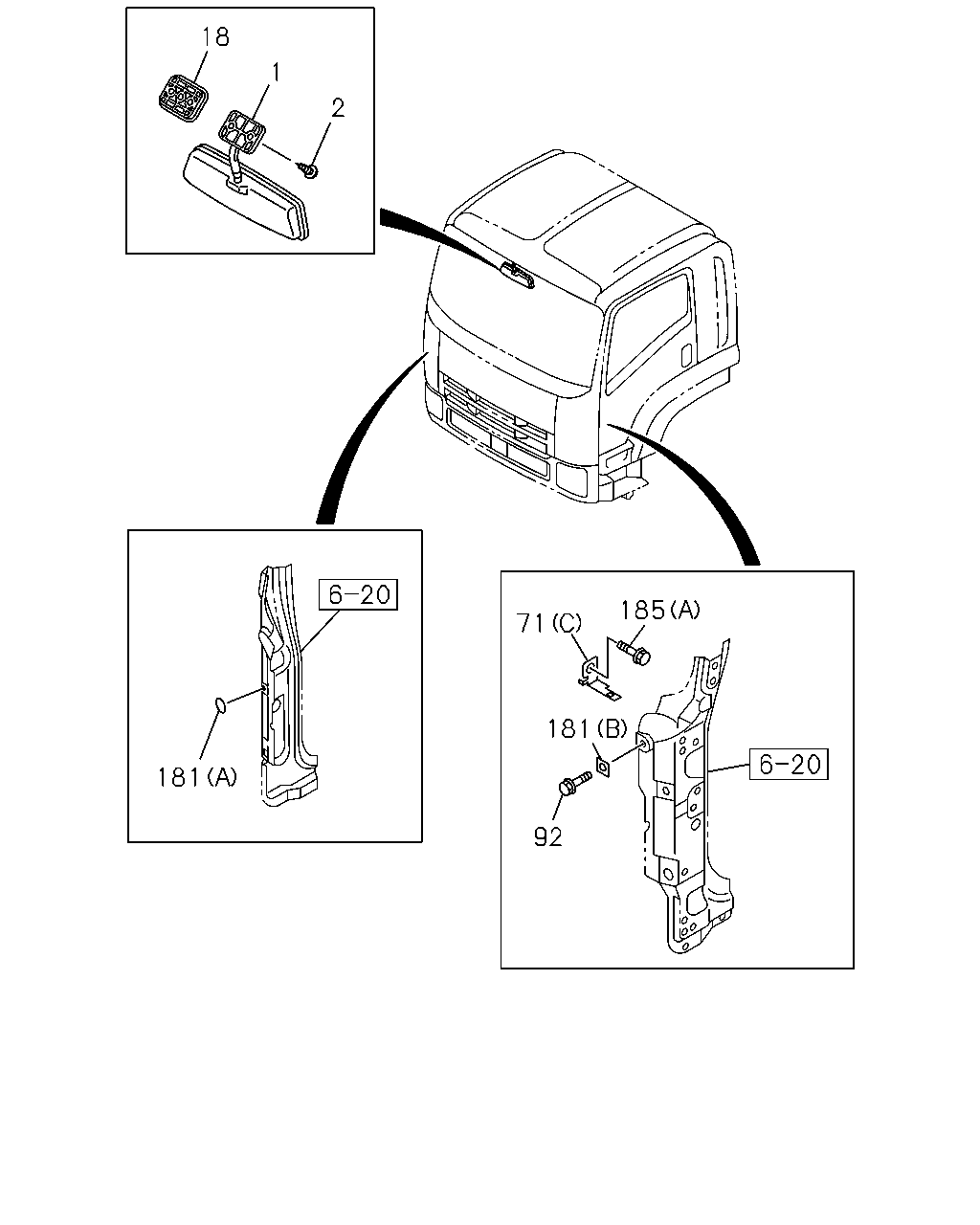

çizim 166613
18 1 2 185 71 181 181 92
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 0906- ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 0906- ● ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0906- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 0906- ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 0906- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 0906- ● ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0906- ● ●
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 0906-0907 ● ●

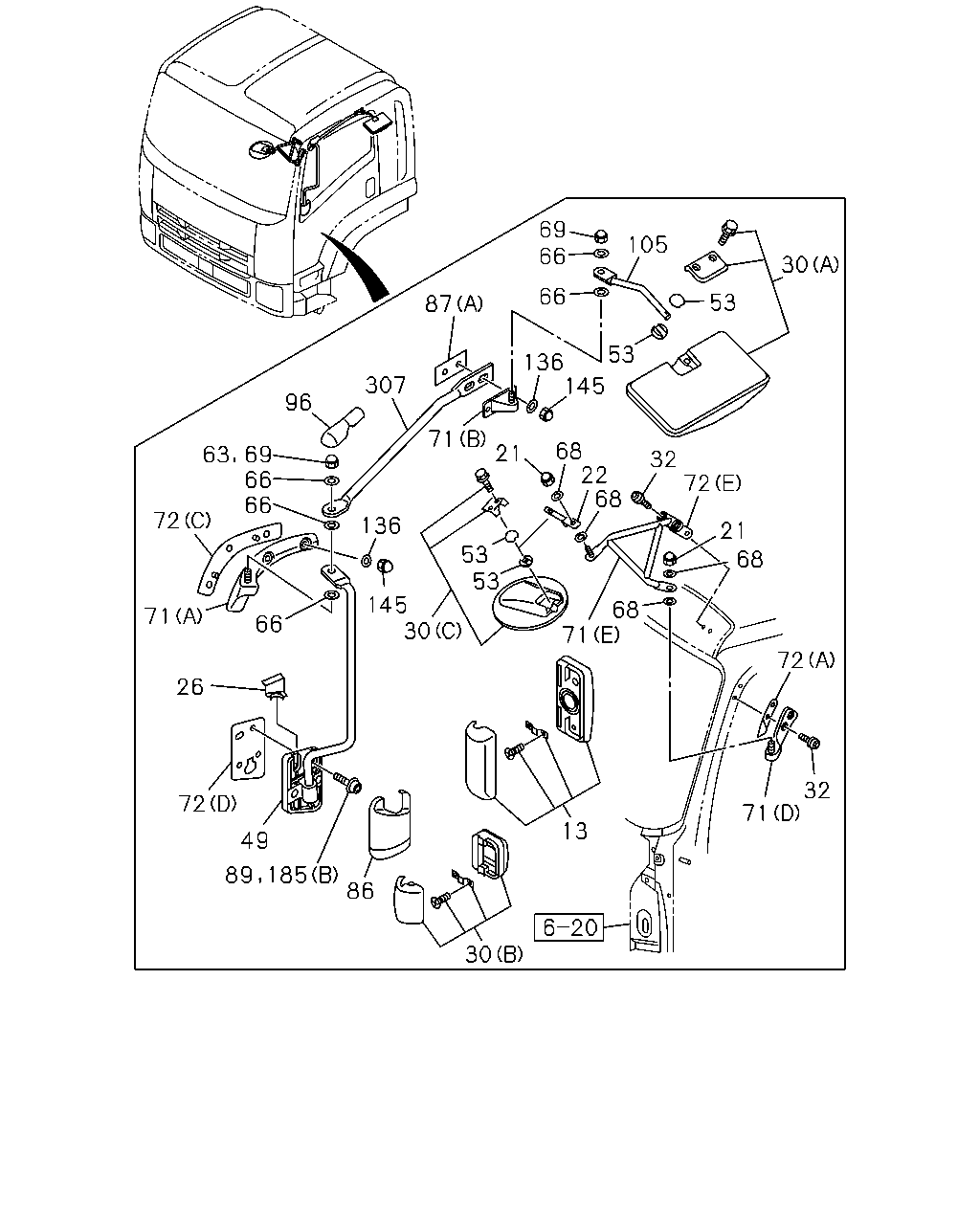

çizim 166636
69 66 105 30 66 53 87 53 136 145 307 96 71 21 68 22 68 66 66 32 72 72 136 21 53 53 68 145 30 68 71 71 66 72 26 32 71 72 13 49 86 30 89 185 63 69
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 0906- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 0906- ● ●
21 NUT; MIRROR
M10 CAP NUT 		1-09984-134-0 02 1 0906- ● ●
22 STAY; OUTSIDE MIRROR 8-98092-493-0 01 1 0906- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 0906- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 0906- ● ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 0906- ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 0906- ● ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 0906- ● ●
32 SCREW; UNDER MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 04 1 0906- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-781-1 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-780-1 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-067-1 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-066-1 01 1 0906-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1203- ● ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 0906- ● ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 0906- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 0908- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1006-1011 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1012- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 0906-0907 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 08 1 0908-1005 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 1006-1011 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1012- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0906-0907 ● ●
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 0906- ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 0906- ● ●
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 02 1 0906-0907 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 0906- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0906- ● ●
72 SHEET
(C) 		8-98031-797-0 01 1 0906- ● ●
72 SHEET
(E) 		8-98060-245-1 01 1 0906- ● ●
72 SHEET
(A) 		8-98064-776-0 01 1 0906- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 0906- ● ●
72 SHEET
(B) 		8-98031-796-0 01 1 0906- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 0906- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 0906- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 0906- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 0906- ● ●
87 SPACER
(B) 		8-98063-789-0 01 1 0906- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 0908- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0906- ● ●
105 STAY; SUB UNDER MIRROR 8-98080-109-2 01 1 0906- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0906- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 0906- ● ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0906- ● ●
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 0906-0907 ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0906- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0906- ● ●
