◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11240 - FVR-RHD(EUROPE)EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#62968) — 32 parça

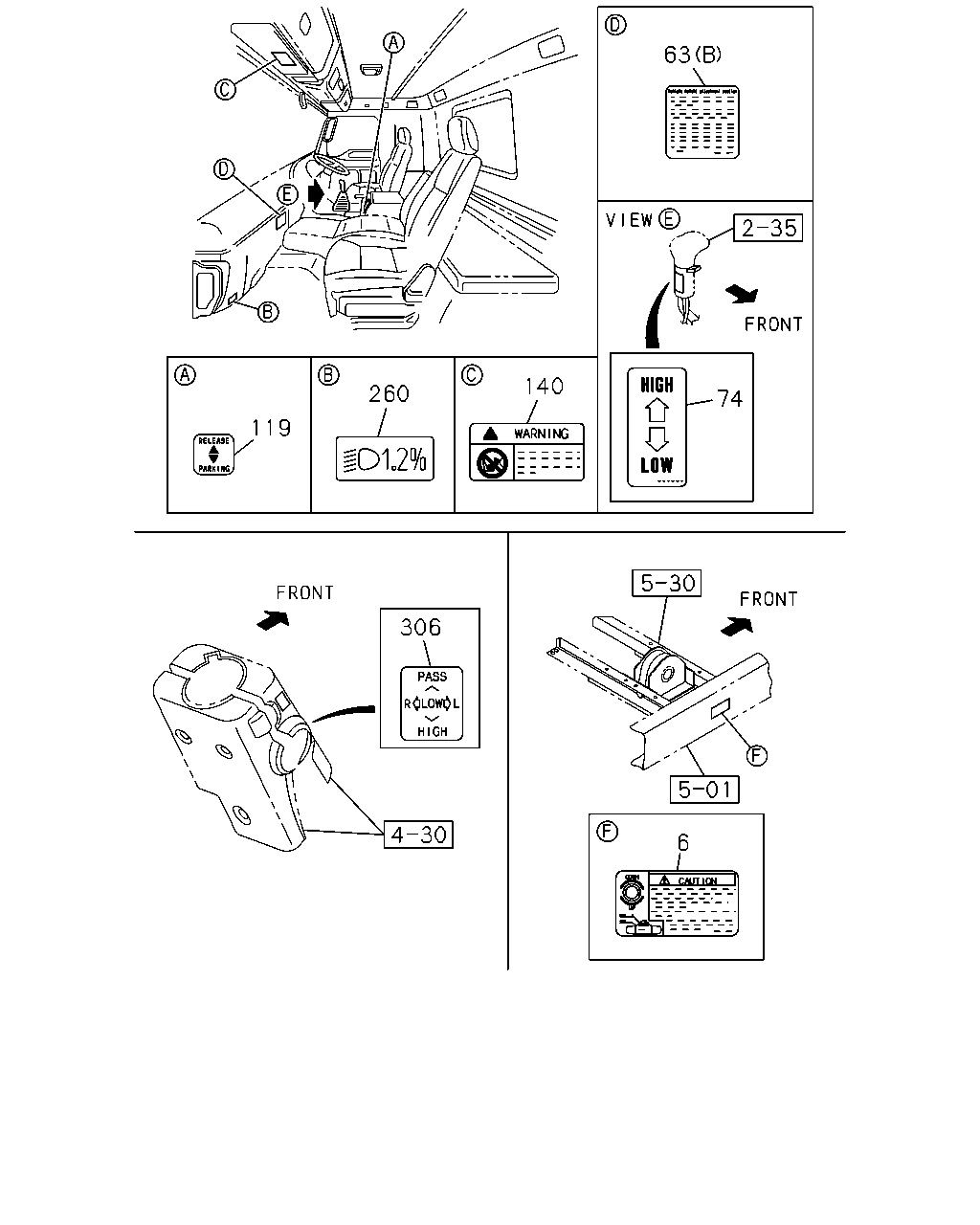

çizim 166548
63 140 260 74 119 306 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> 		8-98082-437-0 01 1 0906- ● ●
63 PLATE; CAUTION,SEAT AIR
(A) 		1-85881-823-0 01 1 0906- ●
63 PLATE; CAUTION,SEAT AIR
(B) 		1-85881-861-0 01 1 0906- ●
74 PLATE; CAUTION,CHANGE LEV
ZF9S1110 M/T(Y5E) 		8-98118-493-0 01 1 0906-1011 ● ●
74 PLATE; CAUTION,CHANGE LEV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98118-493-0 01 1 1012- ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0906- ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 0906- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 0906- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0906- ● ●

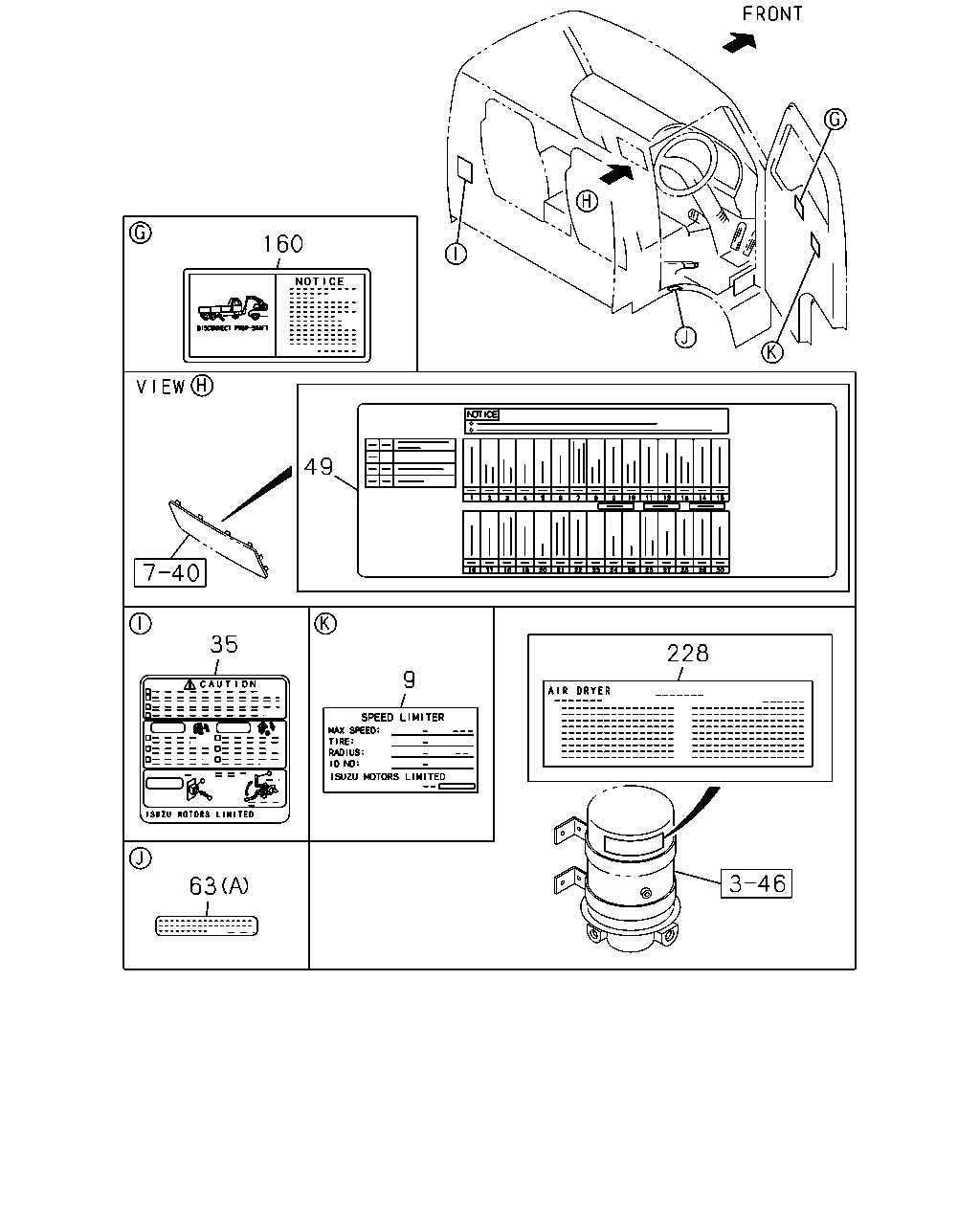

çizim 166634
160 49 35 228 9 63
BalonParca AdiParca NoAdetTipApplied Date A B
9 PLATE; NAME,SPD RANGE
6HK1-TCS ENG(80L) TIRE 11R22.5-148/145K RIB EEC(5K4) AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-997-0 01 1 0906- ● ●
9 PLATE; NAME,SPD RANGE
6HK1-TCS ENG(80L) TIRE 11R22.5-148/145K RIB EEC(5K4) EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-996-0 01 1 0906- ● ●
9 PLATE; NAME,SPD RANGE
6HK1-TCS ENG(80L) TIRE 12R22.5-152/148K RIB EEC(5K5) AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-999-0 01 1 0906- ● ●
9 PLATE; NAME,SPD RANGE
6HK1-TCS ENG(80L) TIRE 12R22.5-152/148K RIB EEC(5K5) EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-998-0 01 1 0906- ● ●
9 PLATE; NAME,SPD RANGE
6HK1-TCS ENG(80L) TIRE 275/70R22.5-148/145M RIB EEC(5L4) AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98143-001-0 01 1 0906- ● ●
9 PLATE; NAME,SPD RANGE
6HK1-TCS ENG(80L) TIRE 275/70R22.5-148/145M RIB EEC(5L4) EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98143-000-0 01 1 0906- ● ●
9 PLATE; NAME,SPD RANGE
6HK1-TCS ENG(80L) TIRE 295/80R22.5-152/148M RIB EEC(55P) AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-995-0 01 1 0906- ● ●
9 PLATE; NAME,SPD RANGE
6HK1-TCS ENG(80L) TIRE 295/80R22.5-152/148M RIB EEC(55P) EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-994-0 01 1 0906- ● ●
9 PLATE; NAME,SPD RANGE
6HK1-TCC ENG(81L) TIRE 11R22.5-148/145K RIB EEC(5K4) AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-989-0 01 1 0906- ● ●
9 PLATE; NAME,SPD RANGE
6HK1-TCC ENG(81L) TIRE 11R22.5-148/145K RIB EEC(5K4) EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-988-0 01 1 0906- ● ●
9 PLATE; NAME,SPD RANGE
6HK1-TCC ENG(81L) TIRE 12R22.5-152/148K RIB EEC(5K5) AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-991-0 01 1 0906- ● ●
9 PLATE; NAME,SPD RANGE
6HK1-TCC ENG(81L) TIRE 12R22.5-152/148K RIB EEC(5K5) EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-990-0 01 1 0906- ● ●
9 PLATE; NAME,SPD RANGE
6HK1-TCC ENG(81L) TIRE 275/70R22.5-148/145M RIB EEC(5L4) AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-993-0 01 1 0906- ● ●
9 PLATE; NAME,SPD RANGE
6HK1-TCC ENG(81L) TIRE 275/70R22.5-148/145M RIB EEC(5L4) EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-992-0 01 1 0906- ● ●
9 PLATE; NAME,SPD RANGE
6HK1-TCC ENG(81L) TIRE 295/80R22.5-152/148M RIB EEC(55P) AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-987-0 01 1 0906- ● ●
9 PLATE; NAME,SPD RANGE
6HK1-TCC ENG(81L) TIRE 295/80R22.5-152/148M RIB EEC(55P) EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-986-0 01 1 0906- ● ●
35 PLATE; CAUTION,CAB 8-98065-363-0 01 1 0908-1006 ● ●
35 PLATE; CAUTION,CAB 8-98017-667-1 01 1 0906- ● ●
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 0906- ● ●
63 PLATE; CAUTION,SEAT AIR
(A) 		1-85881-823-0 01 1 0906- ●
63 PLATE; CAUTION,SEAT AIR
(B) 		1-85881-861-0 01 1 0906- ●
160 PLATE; CAUTION,TOWING
ZF9S1110 M/T(Y5E) 		1-85888-737-1 01 1 0906- ● ●
228 PLATE; CAUTION,AIR DRYER 1-85887-935-0 01 1 0906-1001 ● ●
