◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11240 - FVR-RHD(EUROPE)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#62960) — 21 parça

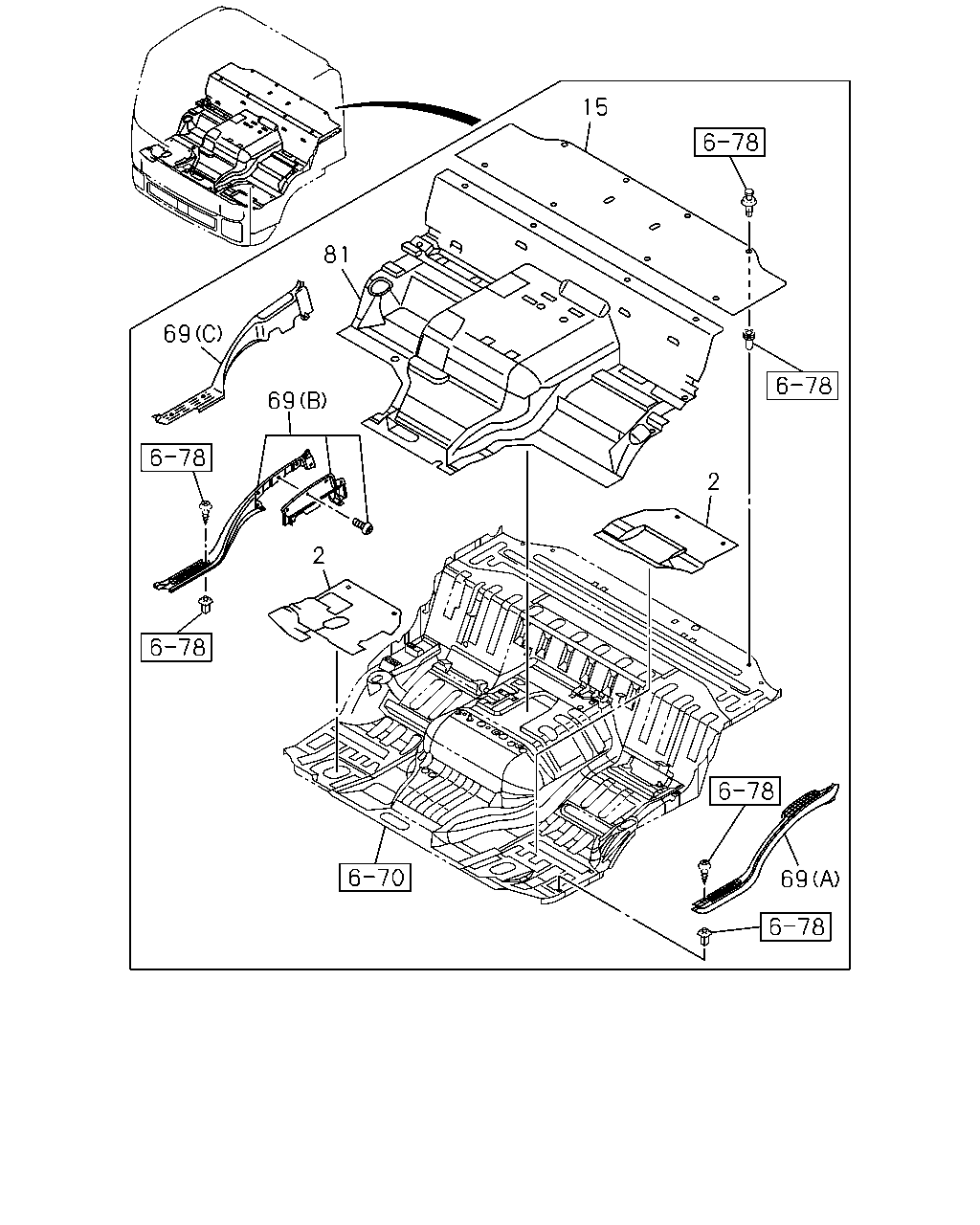

çizim 166550
15 81 69 69 2 2 69
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-751-1 01 1 1004-1005 ● ●
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY 		8-97418-949-0 01 1 1006- ● ●
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97413-021-1 01 1 1004-1005 ● ●
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97422-081-0 01 1 1006- ● ●
2 MAT; FLOOR
GRAY 		8-97407-745-1 01 1 0906-0906 ● ●
2 MAT; FLOOR
GRAY 		8-97407-747-2 01 1 0907-1003 ● ●
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-747-2 01 1 1004- ● ●
2 MAT; FLOOR
GRAY 		8-97413-023-2 01 1 0906-1003 ● ●
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97413-023-2 01 1 1004- ● ●
15 MAT; FLOOR REAR
FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97418-951-0 01 1 1004- ● ●
15 MAT; FLOOR REAR
EXC. FLOOR COVER VAR.2<EFK>,MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> GRAY 		8-97407-397-0 01 1 1004-1005 ● ●
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-404-1 01 1 0906-1003 ● ●
15 MAT; FLOOR REAR
FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-404-1 01 1 1004- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(A) GRAY 		8-97412-927-0 01 1 0906- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (B) GRAY 		8-97412-928-0 01 1 0906- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (C) GRAY 		8-97412-926-0 01 1 0906- ● ●
81 MAT; FLOOR,CENTER
DARK GRAY 		8-97411-651-3 01 1 0906-1003 ●
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY 		8-97411-651-3 01 1 1004- ●
81 MAT; FLOOR,CENTER
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) GRAY 		8-97411-647-3 01 1 0906-1003 ●
81 MAT; FLOOR,CENTER
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97411-647-3 01 1 1004-1005 ●
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> MANUAL TRANSMISSION<X9C> GRAY 		8-97411-647-3 01 1 1006- ●
