◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11240 - FVR-RHD(EUROPE)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#62959) — 63 parça

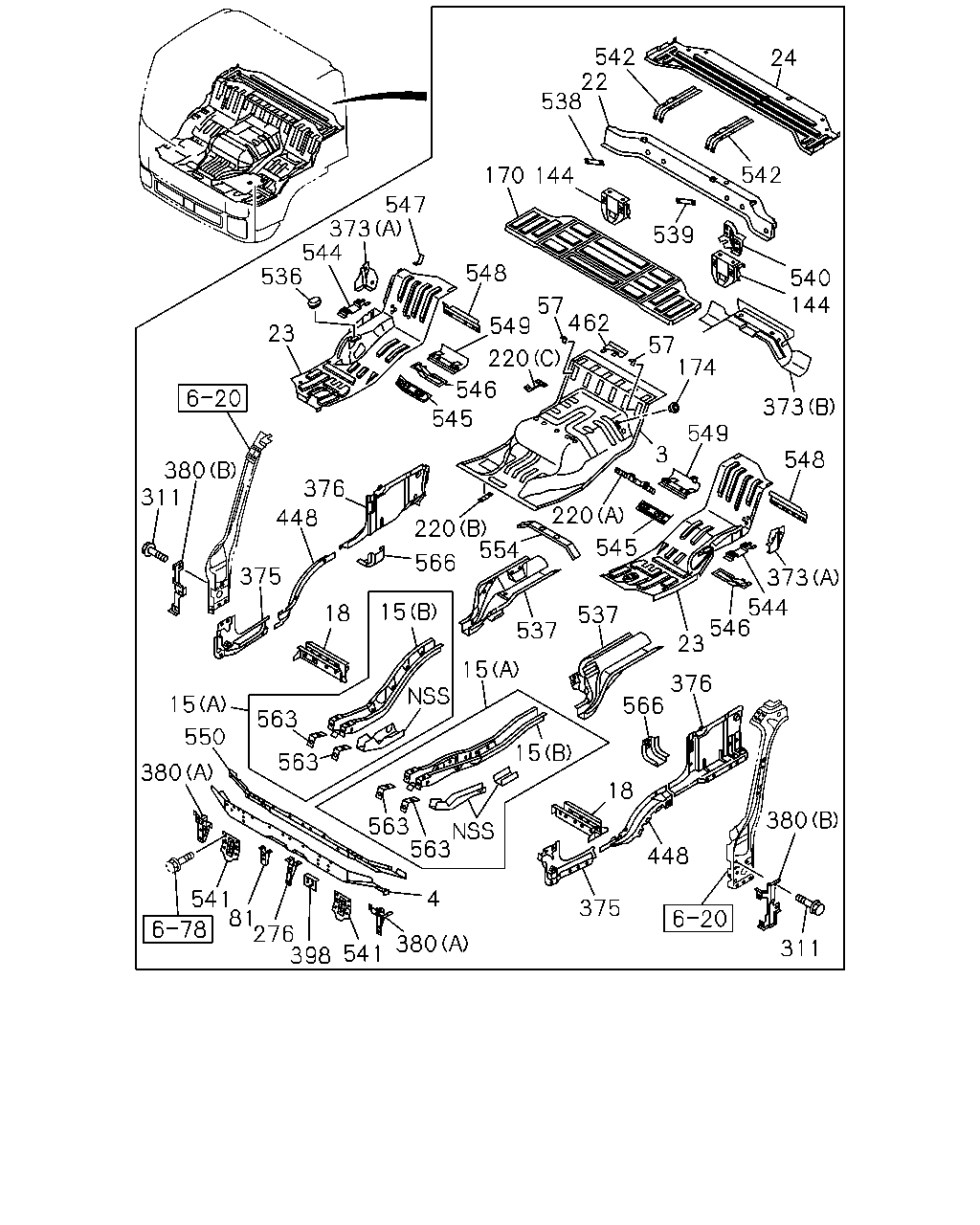

çizim 166551
542 22 538 24 542 170 144 547 373 544 536 539 548 540 144 57 549 462 23 57 174 220 546 373 545 549 3 548 380 311 376 220 448 220 554 545 566 375 373 544 546 23 15 18 537 537 15 376 566 15 563 550 563 15 380 18 563 563 380 448 4 541 81 276 398 375 380 311 541
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
FULLER FSO5206B OD M/T(Y4V) 		8-98081-357-4 01 1 0906-1011 ● ●
3 HOOD ASM; ENG
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) 		8-98081-357-4 01 1 1012- ● ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) 		8-98081-360-4 01 1 0906- ● ●
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 0906- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0906- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 0906- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0906- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 0906- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 0906- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 0906- ● ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 0906- ● ●
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 0906- ● ●
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 0906- ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 0906- ● ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 0906- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0906- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0906- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0906- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 0906- ● ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 0906- ● ●
220 PATCH
(A) 		8-97588-840-4 01 1 0906- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 0906- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 0906- ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0906- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0906- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0906- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0906- ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98081-349-3 01 1 0906- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 0906- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 0906- ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 0906-1403 ● ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 0906- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0906- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0906- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0906- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0906- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0906- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 0906- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 0906- ● ●
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 0906-1002 ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0906- ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 0906- ● ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 0906- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 0906- ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 0906- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0906- ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0906- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 0906- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0906- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0906- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0906- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0906- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 0906- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0906- ● ●
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 0906- ● ●
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 0906- ● ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 0906- ● ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 0906- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 0906- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 0906- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0906- ● ●
566 REINFORCEMENT; FENDER,RR 8-98076-133-0 02 1 0906- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
