◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11240 - FVR-RHD(EUROPE)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#62950) — 85 parça

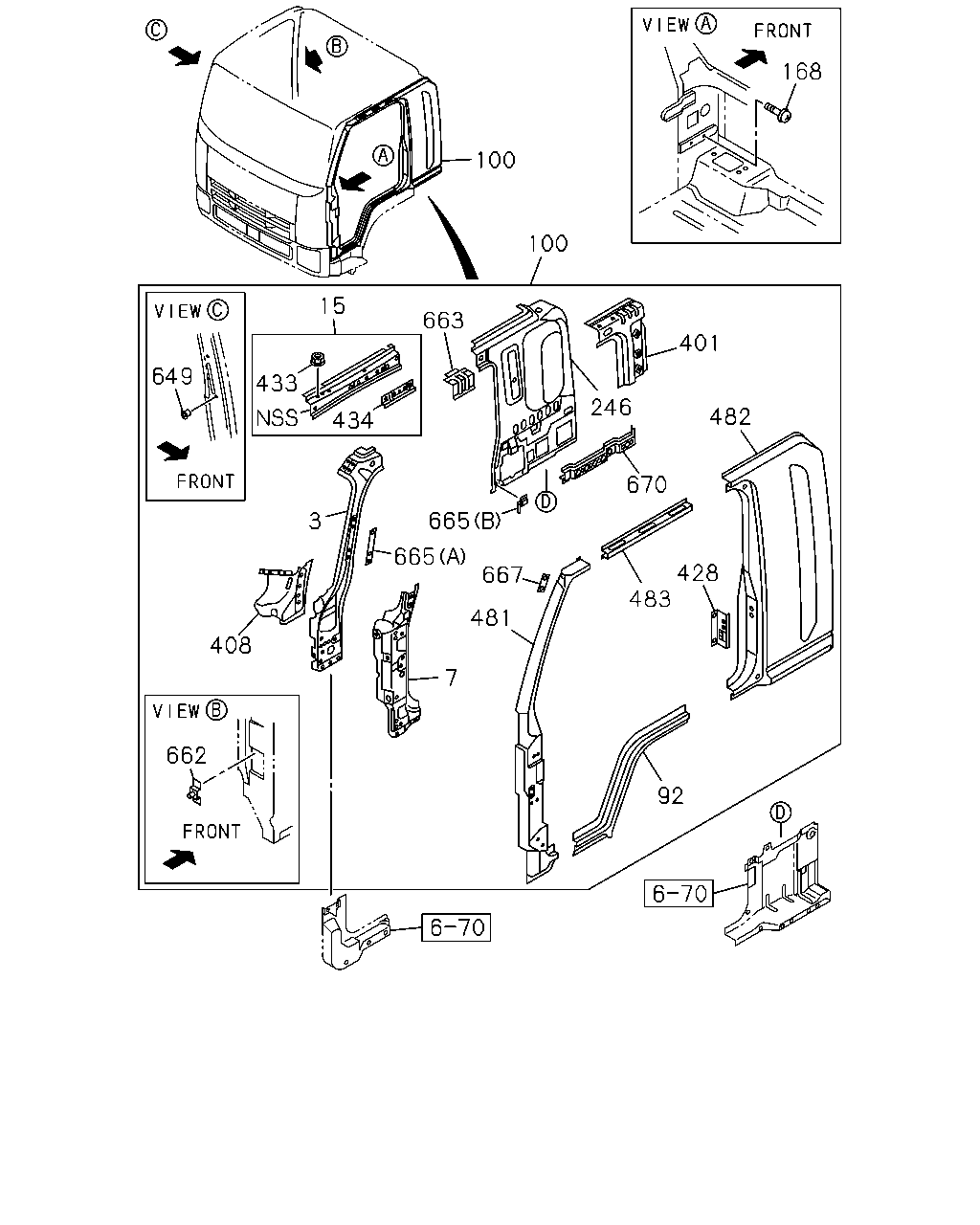

çizim 166528
168 100 100 15 663 401 649 433 434 246 482 670 665 3 665 428 483 667 481 408 7 662 92
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0906- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0906- ● ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 0906- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 0906- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 0906- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 0906- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 0906- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 0906- ● ●
100 PANEL ASM; BODY SIDE 8-97586-079-7 01 1 0906- ● ●
100 PANEL ASM; BODY SIDE 8-98088-579-3 01 1 0906- ● ●
168 BOLT; BODY SIDE PANEL
M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0906- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 0906- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 0906- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 0906- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 0906- ● ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 0906- ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 0906- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 0906- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 0906- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 0906- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 0906- ● ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 0906- ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 0906- ● ●
481 PANEL; SIDE FRT PILLAR 8-98092-915-0 01 1 0906- ● ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0906- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 0906- ● ●
482 PANEL; SIDE RR PILLAR 8-98092-923-0 01 1 0906- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 0906- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 0906- ● ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 0906- ● ●
662 BRACKET; DUCT 8-97584-611-1 01 1 0906- ● ●
663 BRACKET; AIR 8-97585-208-2 01 1 0906- ● ●
663 BRACKET; AIR 8-97585-207-2 01 1 0906- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 0906- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 0906- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 0906- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 0906- ● ●
667 BRACKET; MIRROR 8-98109-948-0 01 1 0906- ● ●
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 0906- ● ●
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 0906- ● ●

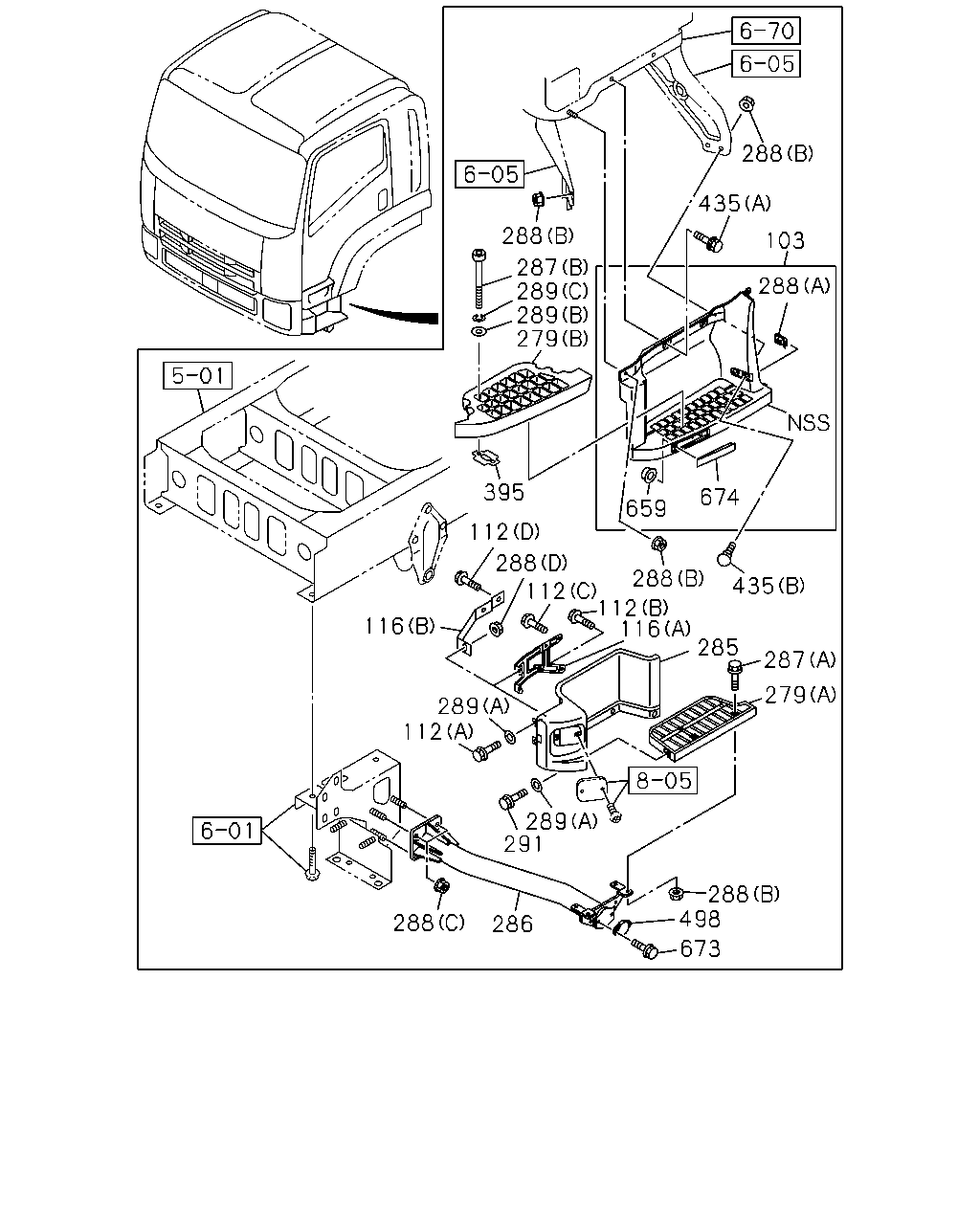

çizim 166544
288 435 288 103 287 289 289 279 288 395 674 659 112 288 112 112 116 288 435 116 285 287 279 289 112 289 291 288 498 288 286 673
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP 8-98069-977-2 01 1 0906- ● ●
103 PLATE; STEP 8-98069-976-2 01 1 0906- ● ●
112 BOLT; 1ST STEP
(A) M6X16 FLANGE 		0-28050-616-0 04 1 0906-1112 ● ●
112 BOLT; 1ST STEP
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1201- ● ●
112 BOLT; 1ST STEP
(B) M6X25 FLANGE 		0-28050-625-0 02 1 0906-1112 ● ●
112 BOLT; 1ST STEP
(D) M8X12 FLANGE 		0-28050-812-0 04 1 1201- ● ●
112 BOLT; 1ST STEP
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0906-1112 ● ●
112 BOLT; 1ST STEP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1201- ● ●
116 STAY; 1ST STEP,FRT
(A) 		8-98062-133-1 01 1 0906-1112 ● ●
116 STAY; 1ST STEP,FRT
(B) 		8-98196-756-0 02 1 1201- ● ●
116 STAY; 1ST STEP,FRT
(A) 		8-98062-134-1 01 1 0906-1112 ● ●
279 BOARD; STEP 1ST
(A) 		1-53414-181-0 01 1 0906- ● ●
279 BOARD; STEP 1ST
(B) 		8-98080-631-0 01 1 0906- ● ●
279 BOARD; STEP 1ST
(A) 		1-53414-180-0 01 1 0906- ● ●
279 BOARD; STEP 1ST
(B) 		8-98080-630-0 01 1 0906- ● ●
285 PLATE; STEP,1ST STEP 8-98017-535-3 01 1 0906- ● ●
285 PLATE; STEP,1ST STEP 8-98017-536-3 01 1 0906- ● ●
286 STEP ASM; 1ST 8-98082-430-2 01 1 0906- ● ●
286 STEP ASM; 1ST 8-98082-431-2 01 1 0906- ● ●
287 BOLT; BOARD STEP
(A) M8X40 FLANGE 		0-28650-840-0 08 1 0906-1107 ● ●
287 BOLT; BOARD STEP
(A) M8X35 FLANGE 		0-28650-835-0 08 1 1108- ● ●
287 BOLT; BOARD STEP
(B) 		8-98112-671-0 08 1 0906-1006 ● ●
287 BOLT; BOARD STEP
(B) 		8-98165-009-0 08 1 1007- ● ●
288 NUT; STEP
(D) M6 FLANGE 		0-91180-106-0 02 1 1201- ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 08 1 1106- ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1005-1005 ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 18 1 0906-1004 ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 08 1 1005-1005 ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 18 1 1006-1105 ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1106- ● ●
288 NUT; STEP
(C) M12 FLANGE 		0-91180-212-0 06 1 0906- ● ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 0906- ● ●
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		0-91610-706-0 10 1 0906- ● ●
289 WASHER; PL,STEP
(B) 		8-98112-672-1 08 1 0906- ● ●
289 WASHER; PL,STEP
(C) 		8-98112-673-1 08 1 0906- ● ●
291 BOLT; STEP PLATE
M6X12 FLANGE 		0-28050-612-0 06 1 0906- ● ●
395 BRACKET; SIDE STEP 8-98080-646-1 04 1 0906- ● ●
435 BOLT; RR STEP
(B) M8X16 		8-98049-538-1 08 1 0906-0907 ● ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 0908- ● ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0906- ● ●
498 REFLECTOR 1-82290-011-1 02 1 0906- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0906- ● ●
673 BOLT; REFLECTOR
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 0906- ● ●
674 COVER; REFLECTOR 8-98092-734-0 01 1 0906- ● ●
674 COVER; REFLECTOR 8-98092-733-0 01 1 0906- ● ●
