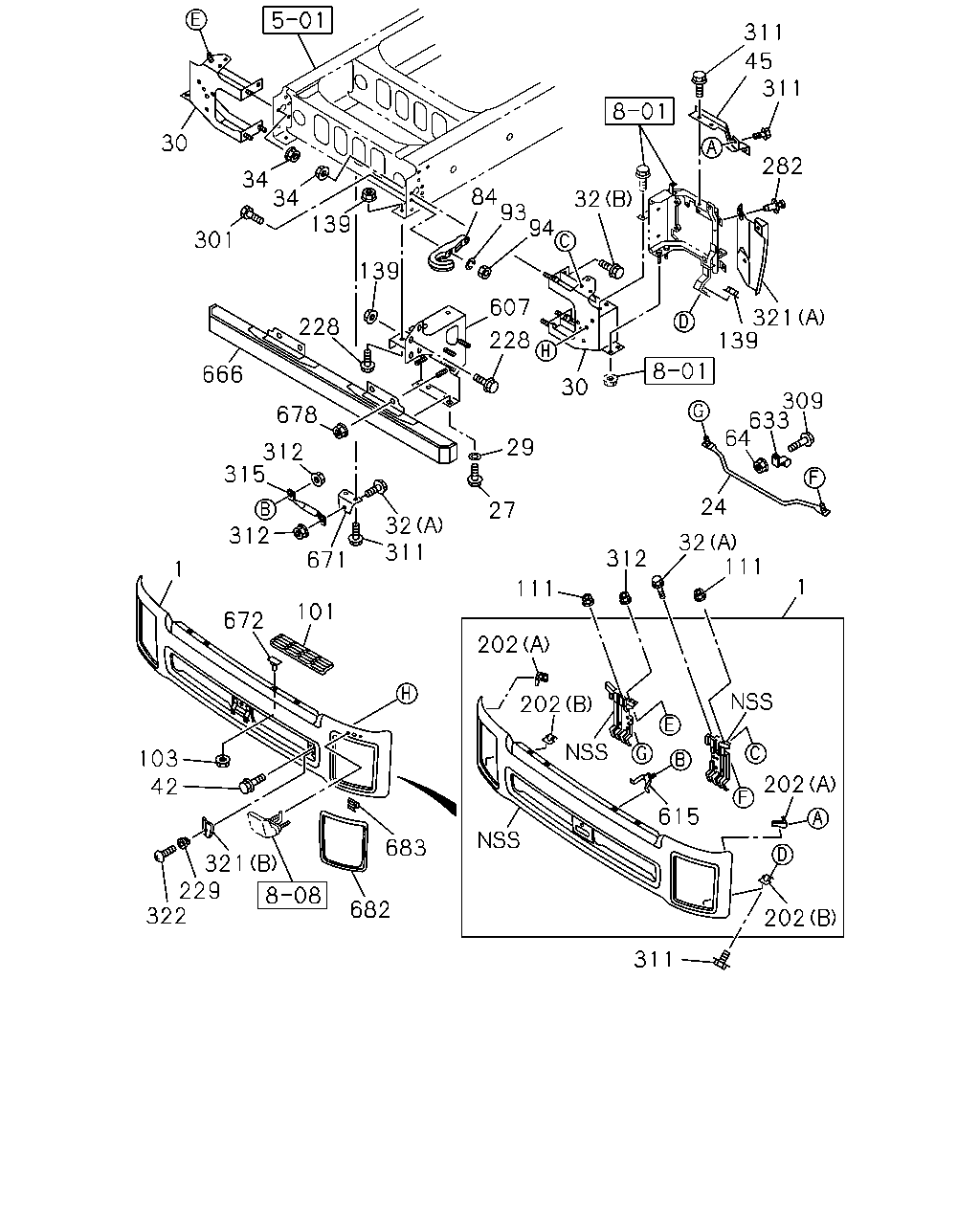

6-01 — FRONT BUMPER (#62945) — 82 parça

311 45 311 30 282 34 34 84 93 94 32 139 301 139 607 321 139 228 228 30 666 309 633 64 678 29 312 315 24 27 312 32 311 32 111 312 671 1 1 111 101 672 202 202 103 42 202 615 683 321 229 322 682 202 311

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT HEAD LAMP WASHER<CE4> WHITE	8-97411-633-1	01	1	0906-	●
1	BUMPER ASM; FRT EXC. HEAD LAMP WASHER<CE4> WHITE	8-97409-903-1	01	1	0906-	●
1	BUMPER ASM; FRT WHITE	8-97409-903-1	01	1	0906-		●
24	BAR; FRT BUMPER	8-97625-359-0	01	1	0906-	●	●
27	BOLT; BUMPER TO BACK BAR M12X30 FLANGE	0-28051-230-0	04	1	0906-1009	●	●
27	BOLT; BUMPER TO BACK BAR M12X35 FLANGE	0-28651-235-0	04	1	1010-	●	●
29	WASHER; FRT BUMPER ID=12.5 OD=32	0-91614-712-0	04	1	1010-1409	●	●
29	WASHER; FRT BUMPER ID=12.5 OD=32	0-91614-712-0	08	1	1410-	●	●
30	BRACKET; FRT BUMPER	8-98034-434-2	01	1	0906-	●	●
30	BRACKET; FRT BUMPER	8-98034-435-2	01	1	0906-	●	●
32	BOLT; BRKT,BUMPER (B) M12X35 FLANGE	0-28051-235-0	02	1	0906-	●	●
32	BOLT; BRKT,BUMPER (A) M10X30	8-94324-205-0	01	1	0906-	●	●
34	NUT; BRKT,BUMPER M12 FLANGE	0-91180-212-0	06	1	0906-	●	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	0906-	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-648-2	01	1	0906-	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-647-2	01	1	0906-	●	●
64	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0906-	●	●
84	HOOK	1-57181-027-1	01	1	0906-1008	●	●
84	HOOK	1-57181-027-1	01	1	1009-	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	0906-	●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	0906-	●	●
101	STEP; BUMPER	8-97611-543-0	01	1	0906-	●	●
101	STEP; BUMPER	8-97611-542-0	01	1	0906-	●	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	0906-	●	●
111	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	0906-	●	●
139	NUT; BRKT FIX M16	0-91110-516-0	02	1	0906-	●	●
139	NUT; BRKT FIX M14 FLANGE	0-91180-214-0	06	1	0906-	●	●
202	BRACKET; BUMPER SIDE (A)	8-97613-636-0	01	1	0906-1005	●	●
202	BRACKET; BUMPER SIDE HEAD LAMP WASHER<CE4> (A)	8-97613-636-0	01	1	0906-1005	●
202	BRACKET; BUMPER SIDE (A)	8-97613-636-0	01	1	1006-	●	●
202	BRACKET; BUMPER SIDE (A)	8-97613-636-0	01	1	1006-	●
202	BRACKET; BUMPER SIDE (A)	8-97613-637-0	01	1	0906-1005	●	●
202	BRACKET; BUMPER SIDE HEAD LAMP WASHER<CE4> (A)	8-97613-637-0	01	1	0906-1005	●
202	BRACKET; BUMPER SIDE (A)	8-97613-637-0	01	1	1006-	●	●
202	BRACKET; BUMPER SIDE (A)	8-97613-637-0	01	1	1006-	●
202	BRACKET; BUMPER SIDE (B)	8-97613-640-1	01	1	0906-1005	●	●
202	BRACKET; BUMPER SIDE HEAD LAMP WASHER<CE4> (B)	8-97613-640-1	01	1	0906-1005	●
202	BRACKET; BUMPER SIDE (B)	8-97613-640-1	01	1	1006-	●	●
202	BRACKET; BUMPER SIDE (B)	8-97613-640-1	01	1	1006-	●
202	BRACKET; BUMPER SIDE (B)	8-97613-641-1	01	1	0906-1005	●	●
202	BRACKET; BUMPER SIDE HEAD LAMP WASHER<CE4> (B)	8-97613-641-1	01	1	0906-1005	●
202	BRACKET; BUMPER SIDE (B)	8-97613-641-1	01	1	1006-	●	●
202	BRACKET; BUMPER SIDE (B)	8-97613-641-1	01	1	1006-	●
228	BOLT; BRKT M16X40	0-20851-640-0	02	1	0906-	●	●
228	BOLT; BRKT M14X45 FLANGE	0-28851-445-0	06	1	0906-	●	●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	0906-	●	●
282	FASTENER; BUMPER FILLER D8X13.5	1-09987-248-1	08	1	0906-	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10861-670-0	01	1	0906-	●	●
301	BOLT; HOOK TO FRAME M16X80	0-10961-680-0	01	1	0906-	●	●
309	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	01	1	0906-	●	●
311	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	06	1	0906-	●	●
311	BOLT; BRKT M10X30	8-94324-205-0	07	1	0906-	●	●
312	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	0906-	●	●
315	STAY; BUMPER	8-97613-645-1	01	1	0906-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-297-1	01	1	0906-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-120-0	01	1	0906-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-296-1	01	1	0906-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-119-0	01	1	0906-	●	●
322	SCREW; COVER FIX M5X16 TAPPING	0-72180-516-0	02	1	0906-	●	●
607	BRACKET TIRE 11R22.5-148/145K RIB EEC(5K4),TIRE 12R22.5-152/148K RIB EEC(5K5),TIRE 295/80R22.5-152/148M RIB EEC(55P)	8-98045-754-1	01	1	0906-1409	●	●
607	BRACKET TIRE 11R22.5-148/145K RIB EEC(5K4),TIRE 12R22.5-152/148K RIB EEC(5K5),TIRE 295/80R22.5-152/148M RIB EEC(55P)	8-98279-066-0	01	1	1410-	●	●
607	BRACKET TIRE 11R22.5-148/145K RIB EEC(5K4),TIRE 12R22.5-152/148K RIB EEC(5K5),TIRE 295/80R22.5-152/148M RIB EEC(55P)	8-98045-753-1	01	1	0906-1409	●	●
607	BRACKET TIRE 11R22.5-148/145K RIB EEC(5K4),TIRE 12R22.5-152/148K RIB EEC(5K5),TIRE 295/80R22.5-152/148M RIB EEC(55P)	8-98279-065-0	01	1	1410-	●	●
607	BRACKET TIRE 275/70R22.5-148/145M RIB EEC(5L4)	8-98045-844-2	01	1	0906-1209	●	●
607	BRACKET TIRE 275/70R22.5-148/145M RIB EEC(5L4)	8-98045-844-2	01	1	1210-1409	●	●
607	BRACKET TIRE 275/70R22.5-148/145M RIB EEC(5L4)	8-98279-074-0	01	1	1410-	●	●
607	BRACKET TIRE 275/70R22.5-148/145M RIB EEC(5L4)	8-98045-843-2	01	1	0906-1209	●	●
607	BRACKET TIRE 275/70R22.5-148/145M RIB EEC(5L4)	8-98045-843-2	01	1	1210-1409	●	●
607	BRACKET TIRE 275/70R22.5-148/145M RIB EEC(5L4)	8-98279-073-0	01	1	1410-	●	●
615	BRACKET; BUMPER CENTER	8-97613-643-1	01	1	0906-1005	●	●
615	BRACKET; BUMPER CENTER HEAD LAMP WASHER<CE4>	8-97613-643-1	01	1	0906-1005	●
615	BRACKET; BUMPER CENTER	8-97613-643-1	01	1	1006-	●	●
615	BRACKET; BUMPER CENTER	8-97613-643-1	01	1	1006-	●
633	CLIP; BUMPER ID=16 H=24 L=20	0-95207-315-0	01	1	0906-	●	●
666	PROTECTOR; UNDER	8-98045-820-2	01	1	0906-1105	●	●
666	PROTECTOR; UNDER	8-98196-475-0	01	1	1106-	●	●
671	BRACKET; STAY	8-97620-889-0	01	1	0906-	●	●
672	STUD; STEP	8-97611-666-0	04	1	0906-	●	●
678	NUT; BUMPER TO BACK BAR M12 FLANGE	0-91180-212-0	04	1	0906-	●	●
682	BEZEL; BUMPER	8-97611-531-2	01	1	0906-	●	●
682	BEZEL; BUMPER	8-97611-530-2	01	1	0906-	●	●
683	CLIP; BEZEL,BUMPER	8-98084-293-0	08	1	0906-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
