Isuzu WW
▶
TRUCKS
▶
FVR
▶
11240 - FVR-RHD(EUROPE)EURO5
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

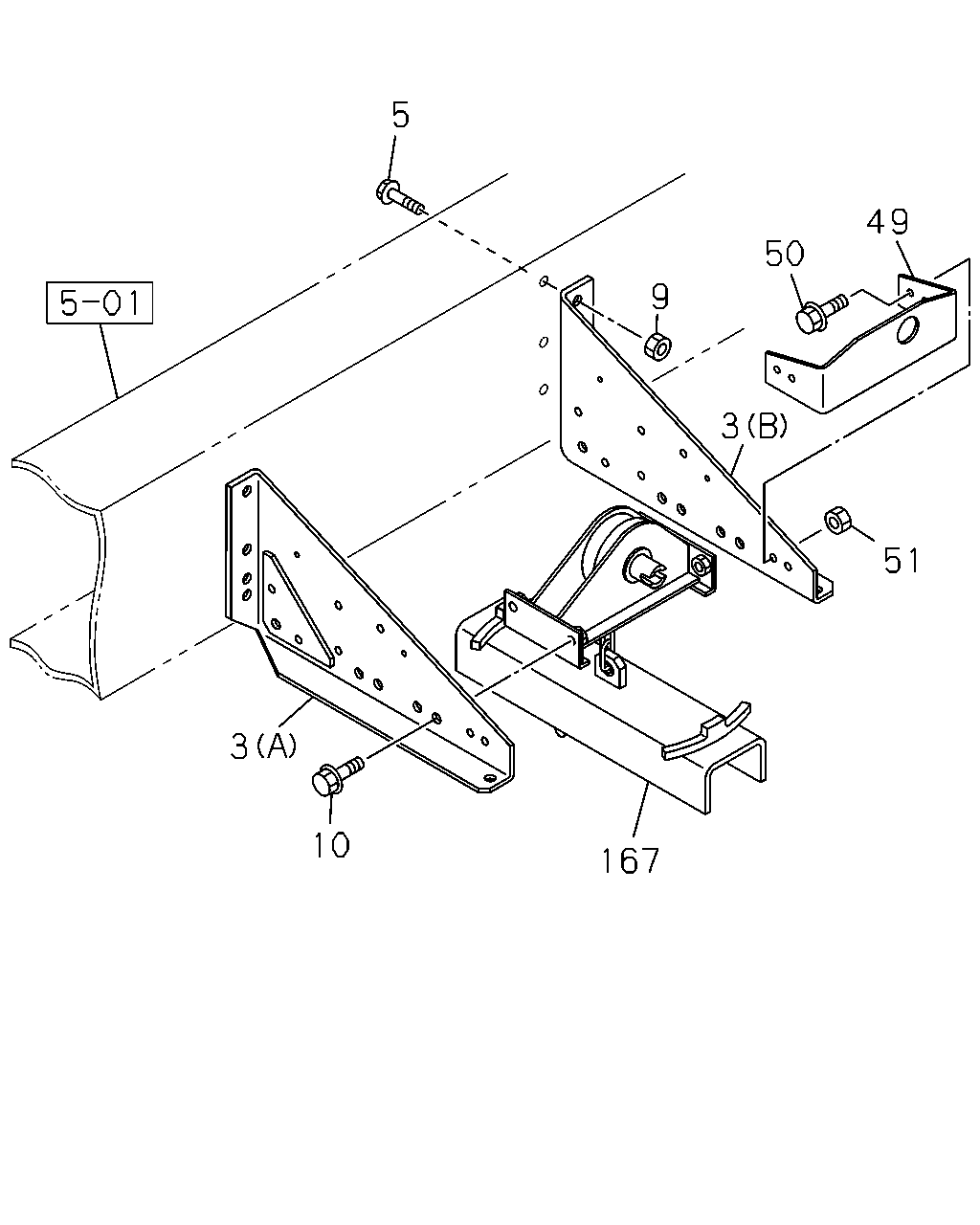

5-30 — SPARE TIRE CARRIER AND COVER
(#62944) — 12 parça
Tümü
A - FGD5MV
B - FGR5MV
5
49
50
9
3
51
3
10
167
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B)
8-98106-690-0
01
1
0906-
●
●
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A)
8-98106-691-0
01
1
0906-
●
●
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE
0-28051-245-0
06
1
0906-
●
●
9
NUT; BRKT TO FRAME
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12
0-91110-512-0
01
1
0906-
●
9
NUT; BRKT TO FRAME
WHEEL BASE 6500MM(65W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12
0-91110-512-0
06
1
0906-
●
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12
0-91110-512-0
06
1
0906-
●
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE
0-28651-230-0
04
1
0906-
●
●
49
STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53631-466-1
01
1
0906-
●
●
50
BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE
0-28650-830-0
04
1
0906-
●
●
51
NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8
0-91110-508-0
04
1
0906-1203
●
●
51
NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE
0-91180-108-0
04
1
1204-
●
●
167
HANGER; TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53630-210-4
01
1
0906-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
