◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11416 - FRR AUSTRALIA EURO4 SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#62942) — 98 parça
çizim 145432
318 97 98 144 98 37 37 192 223
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0710-0803 ● ●
37 UNION; AIR PIPE
MZX6P M/T(RSW) (B) M16 L=74 		0-92123-310-0 01 1 0804-0906 ● ●
37 UNION; AIR PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) M16 L=74 		0-92123-310-0 01 1 0907- ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0710- ● ●
37 UNION; AIR PIPE
MLD6Q M/T(X5J) (A) M16 ELBOW 		0-92135-210-0 01 1 0806- ● ●
97 UNION; AIR PIPE
M16 L=42 		0-92123-010-0 01 1 0710- ● ●
98 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0710- ● ●
144 PIPE; AIR,UNION TO UNION
L=1204 SERVICED BY L=1250 		1-47428-876-0 01 1 0710-0710 ● ●
144 PIPE; AIR,UNION TO UNION
L=1204 SERVICED BY L=1250 		1-47428-876-0 01 1 0710-0803 ● ●
144 PIPE; AIR,UNION TO UNION
MZX6P M/T(RSW) L=1204 SERVICED BY L=1250 		1-47428-876-0 01 1 0804-0906 ● ●
144 PIPE; AIR,UNION TO UNION
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=1204 SERVICED BY L=1250 		1-47428-876-0 01 1 0907- ● ●
144 PIPE; AIR,UNION TO UNION
MLD6Q M/T(X5J) L=1454 SERVICED BY L=1550 		1-47428-879-0 01 1 0806- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 1403- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=15 		1-87411-037-0 AR 1 0710- ● ●
318 PIPE; AIR,UNION TO AIR TANK
L=2004 SERVICED BY L=2100 		1-47428-882-0 01 1 0710-0710 ●
318 PIPE; AIR,UNION TO AIR TANK
L=2070 SERVICED BY L=2100 		1-47428-882-0 01 1 0710- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 3700MM(37W) L=593 SERVICED BY L=600 		1-47428-868-0 01 1 0710- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4000MM(40W) L=784 SERVICED BY L=800 		1-47428-872-0 01 1 0710-0710 ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4000MM(40W) L=858 SERVICED BY L=900 		1-47428-873-0 01 1 0710- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4600MM(46W) L=1383 SERVICED BY L=1400 		1-47428-878-0 01 1 0710-0710 ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4600MM(46W) L=1458 SERVICED BY L=1550 		1-47428-879-0 01 1 0710- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 5300MM(53W) L=2044 SERVICED BY L=2100 		1-47428-882-0 01 1 0710-0710 ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 5300MM(53W) L=2118 SERVICED BY L=2500 		1-47428-883-0 01 1 0710- ●

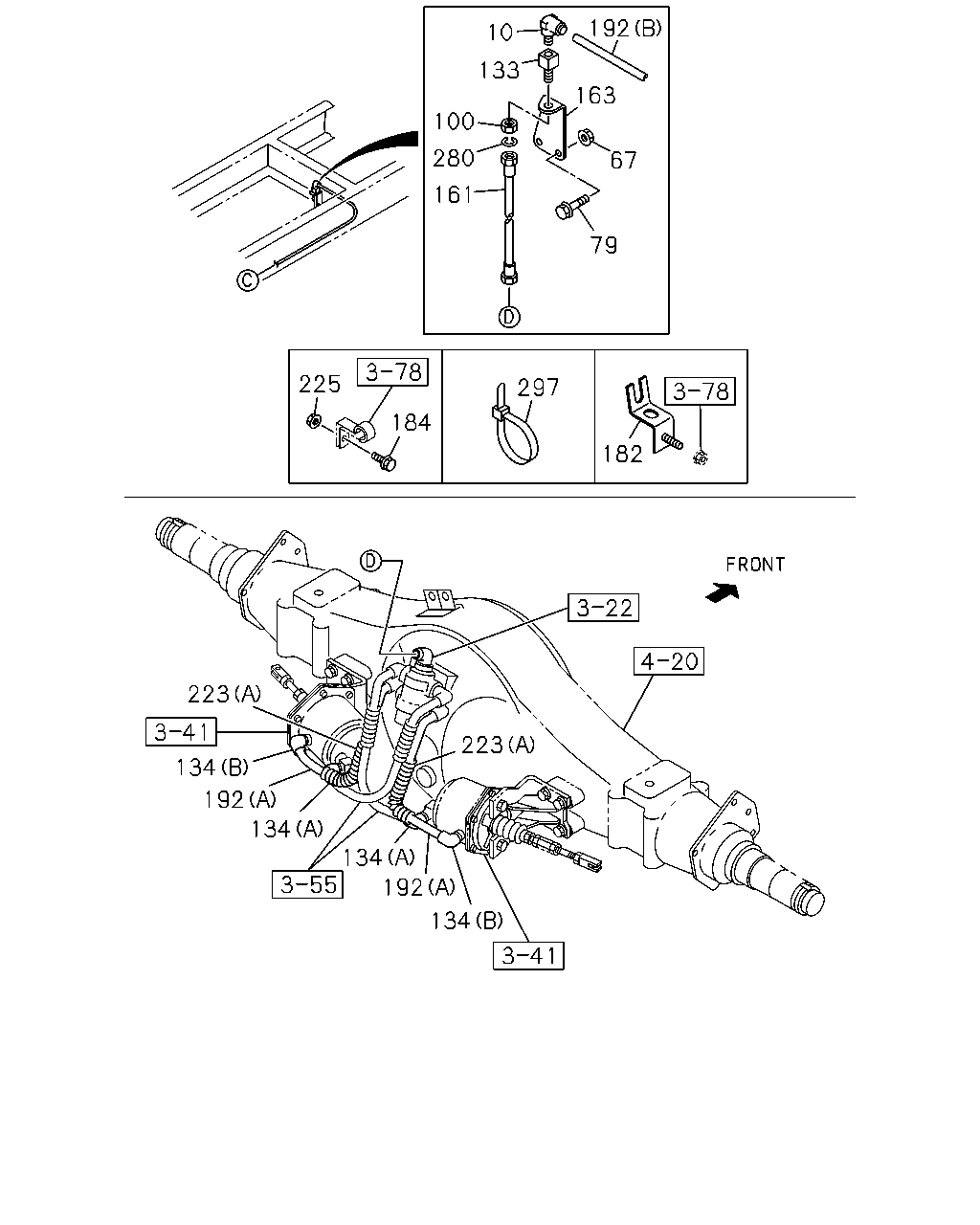

çizim 145435
182 297 225 184 161 280 100 133 10 163 192 67 79 223 134 192 134 134 192 134 223
BalonParca AdiParca NoAdetTipApplied Date A B
10 CONNECTOR; FLEX HOSE
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710- ● ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
100 NUT; UNION
M16 		0-91111-516-0 01 1 0710- ● ●
133 UNION; NIPPLE 1-09654-258-2 01 1 0710-1111 ● ●
133 UNION; NIPPLE 8-98202-001-0 01 1 1112- ● ●
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710- ● ●
134 CONNECTOR
(B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 0710- ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=420 		1-09363-805-0 01 1 0710-0710 ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=420 		1-09363-805-0 01 1 0710- ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=460 		1-09363-963-0 01 1 0710- ●
163 BRACKET; FLEX HOSE 8-98044-842-0 01 1 0710- ● ●
182 BRACKET; TUBE CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) 		8-98096-272-0 01 1 0710- ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 1403- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=15 		1-87411-037-0 AR 1 0710- ● ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
280 WASHER; LK
ID=16.2 		0-91510-816-0 01 1 0710-0808 ● ●
297 CLIP; BAND
L=250 		1-09707-126-0 11 1 0710-1109 ●
297 CLIP; BAND
WHEEL BASE 5300MM(53W) L=250 		1-09707-126-0 11 1 0710-1109 ●
297 CLIP; BAND
WHEEL BASE 5300MM(53W) L=350 		1-09707-183-0 12 1 1110- ●
297 CLIP; BAND
L=350 		1-09707-183-0 12 1 0710-1109 ●
297 CLIP; BAND
WHEEL BASE 5300MM(53W) L=350 		1-09707-183-0 12 1 0710-1109 ●
297 CLIP; BAND
L=350 		1-09707-183-0 01 1 1110- ●
297 CLIP; BAND
WHEEL BASE 3700MM(37W) L=350 		1-09707-183-0 05 1 0710- ●
297 CLIP; BAND
WHEEL BASE 3700MM(37W),WHEEL BASE 4000MM(40W) L=250 		1-09707-126-0 05 1 0710-1109 ●
297 CLIP; BAND
WHEEL BASE 4000MM(40W) L=350 		1-09707-183-0 08 1 0710- ●
297 CLIP; BAND
WHEEL BASE 4600MM(46W) L=250 		1-09707-126-0 10 1 0710-1109 ●
297 CLIP; BAND
WHEEL BASE 4600MM(46W) L=350 		1-09707-183-0 09 1 0710- ●

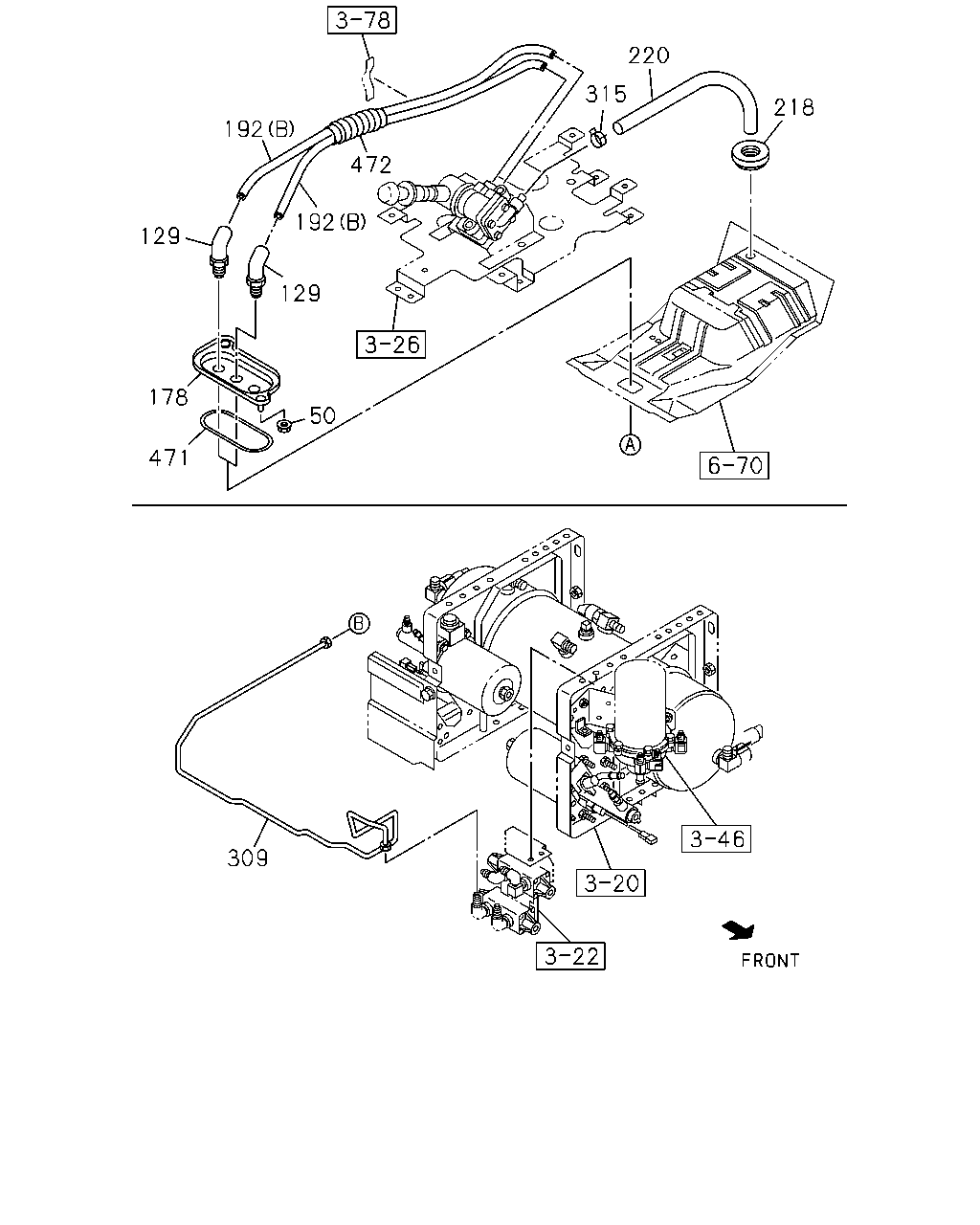

çizim 145438
309 471 178 50 129 129 315 220 218 472 192 192
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
129 CONNECTOR; NYLON TUBE 8-97611-963-1 02 1 0710- ● ●
178 BRACKET; UNION 8-98017-054-1 01 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710- ● ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 0710- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0710- ● ●
309 PIPE; AIR,MPV TO UNION
L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 0710-0803 ● ●
309 PIPE; AIR,MPV TO UNION
MZX6P M/T(RSW) L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 0804-0906 ● ●
309 PIPE; AIR,MPV TO UNION
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 0907- ● ●
309 PIPE; AIR,MPV TO UNION
MLD6Q M/T(X5J) L=626 SERVICED BY L=660 		1-47428-869-0 01 1 0806- ● ●
315 CLIP
ID=14 		8-94238-572-0 01 1 0710- ● ●
471 SEAL; BRKT 1-79738-832-0 01 1 0710- ● ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 0710- ● ●

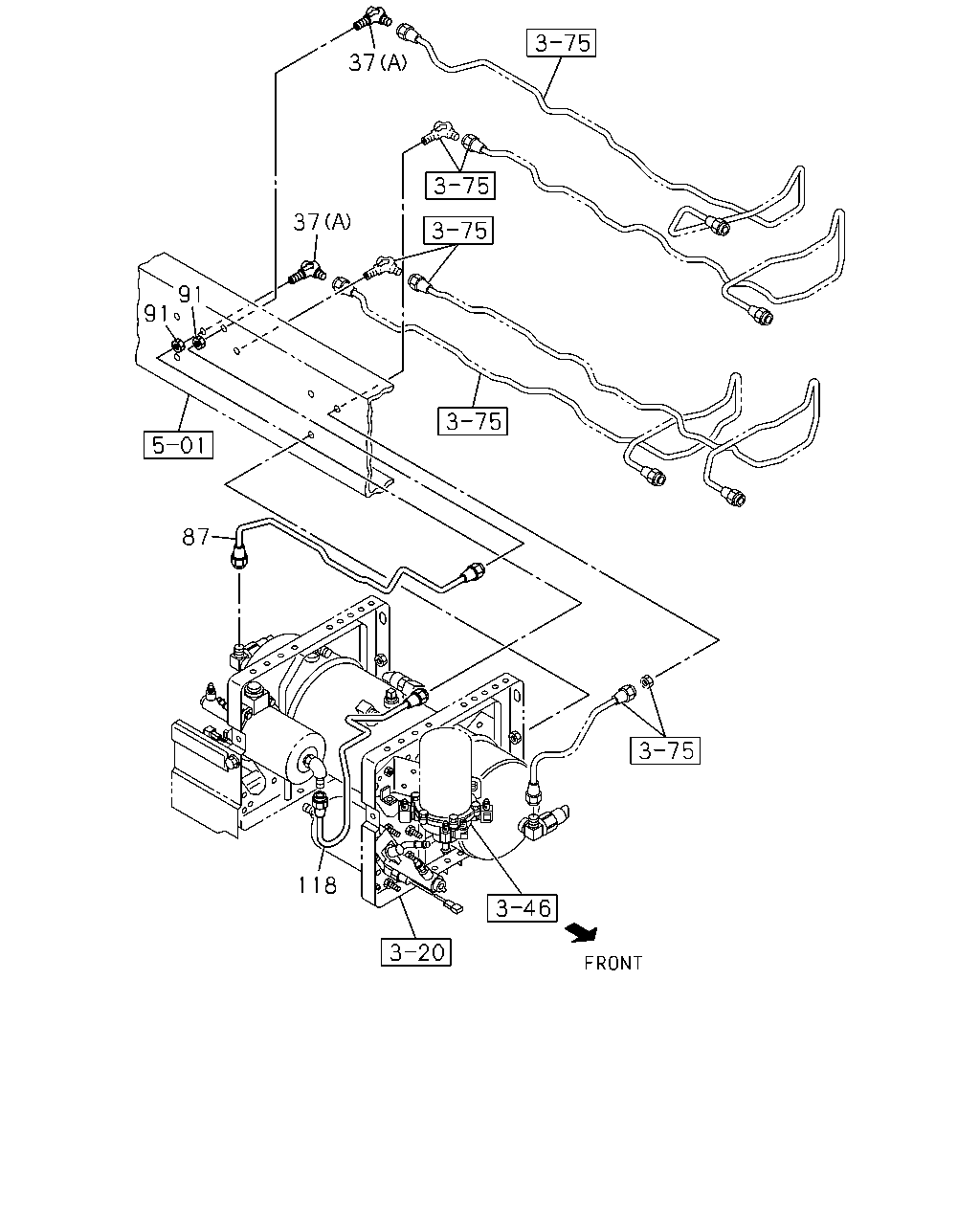

çizim 145465
37 37 91 91 87 118
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0710-0803 ● ●
37 UNION; AIR PIPE
MZX6P M/T(RSW) (B) M16 L=74 		0-92123-310-0 01 1 0804-0906 ● ●
37 UNION; AIR PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) M16 L=74 		0-92123-310-0 01 1 0907- ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0710- ● ●
37 UNION; AIR PIPE
MLD6Q M/T(X5J) (A) M16 ELBOW 		0-92135-210-0 01 1 0806- ● ●
87 PIPE; AIR,AIR TANK TO UNION
L=700 SERVICED BY L=700 		1-47428-870-0 01 1 0710- ● ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 0710- ● ●
118 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=679 SERVICED BY L=700 		1-47428-870-0 01 1 0710-0710 ● ●
118 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=692 SERVICED BY L=700 		1-47428-870-0 01 1 0710- ● ●

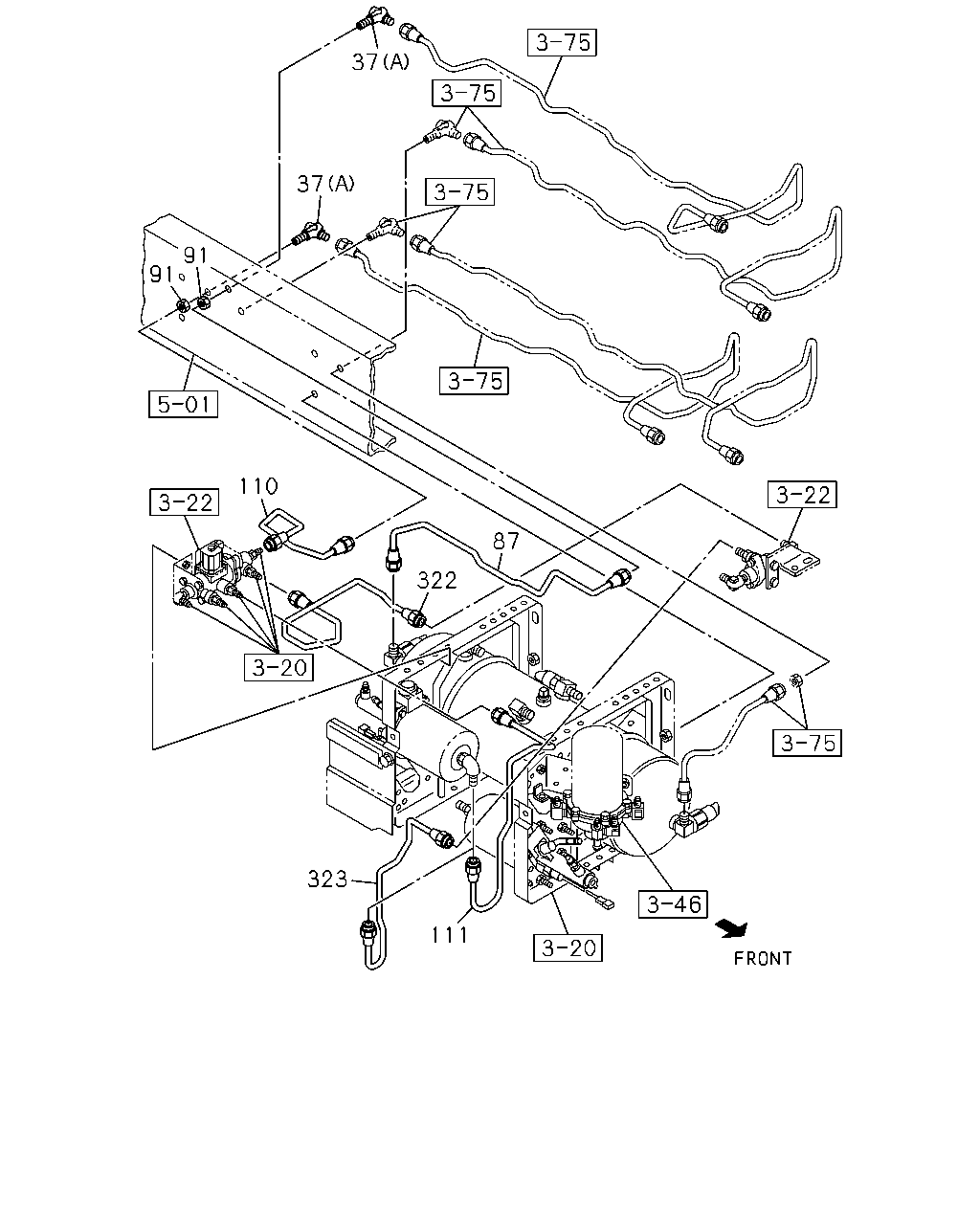

çizim 145471
37 37 91 91 110 87 322 323 111
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 0710-0803 ● ●
37 UNION; AIR PIPE
MZX6P M/T(RSW) (B) M16 L=74 		0-92123-310-0 01 1 0804-0906 ● ●
37 UNION; AIR PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) M16 L=74 		0-92123-310-0 01 1 0907- ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0710- ● ●
37 UNION; AIR PIPE
MLD6Q M/T(X5J) (A) M16 ELBOW 		0-92135-210-0 01 1 0806- ● ●
87 PIPE; AIR,AIR TANK TO UNION
L=700 SERVICED BY L=700 		1-47428-870-0 01 1 0710- ● ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 0710- ● ●
110 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> L=473 		8-98067-756-0 01 1 0710- ● ●
111 PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) L=554 SERVICED BY L=600 		1-47428-868-0 01 1 0710- ● ●
322 PIPE; AIR,HSA VLV TO DBL CHK VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700 		1-47428-870-0 01 1 0710- ● ●
323 PIPE; AIR,DBL CHK VLV
THROTTLE CONTROL SYSTEM(6XH) L=574 SERVICED BY L=600 		1-47428-868-0 01 1 0710- ● ●
