◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11416 - FRR AUSTRALIA EURO4 SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#62941) — 44 parça

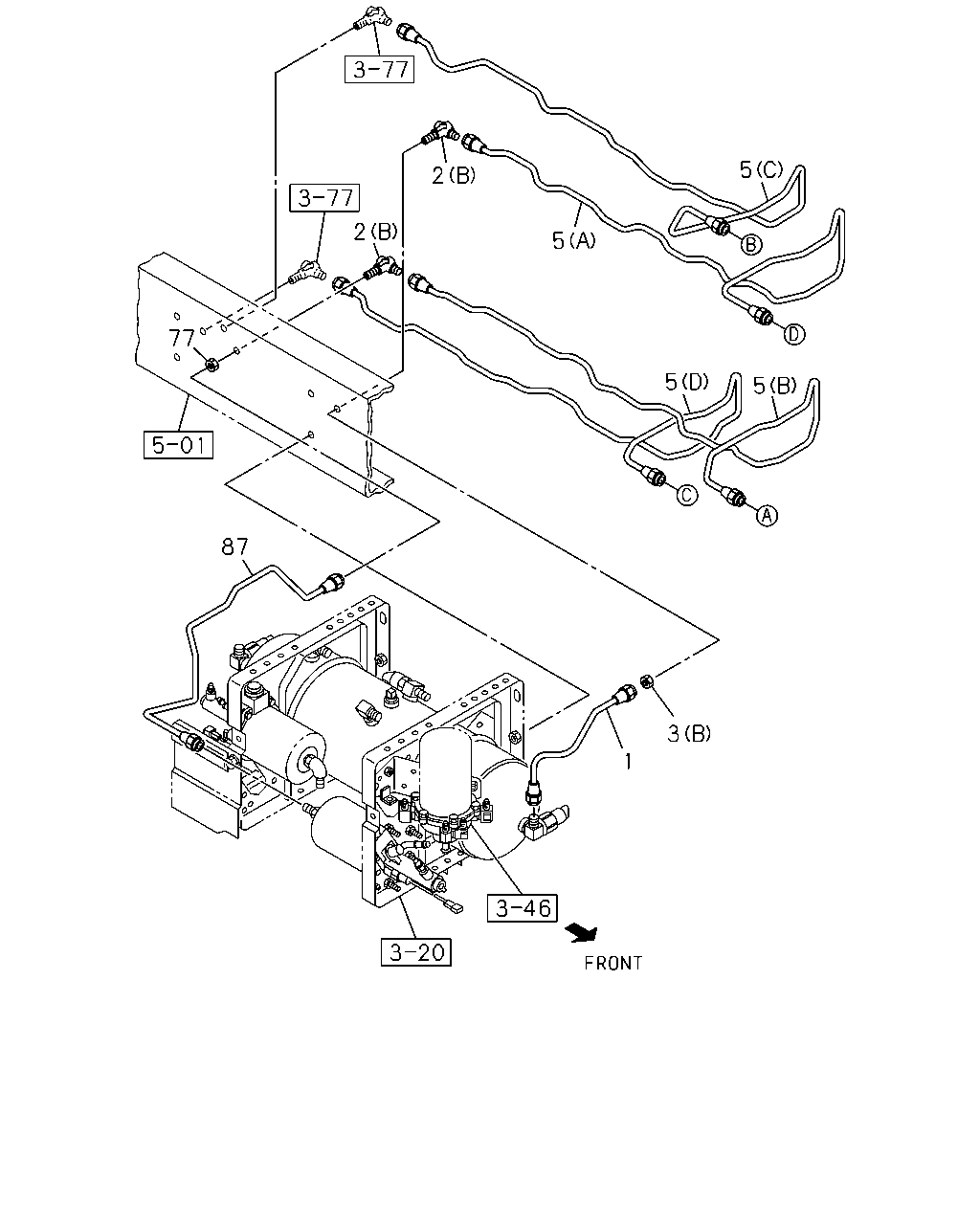

çizim 145433
5 2 2 5 77 5 5 87 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
L=290 		8-98044-172-0 01 1 0710- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0710- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0710- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 0710- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
5 PIPE; AIR,UNION TO UNION
(A) L=2215 SERVICED BY L=2500 		1-47428-883-0 01 1 0710- ● ●
5 PIPE; AIR,UNION TO UNION
(B) L=2708 SERVICED BY L=2900 		1-47428-885-0 01 1 0710- ● ●
5 PIPE; AIR,UNION TO UNION
(D) L=2609 SERVICED BY L=2900 		1-47428-885-0 01 1 0710- ● ●
5 PIPE; AIR,UNION TO UNION
(C) L=2501 		8-98082-095-2 01 1 0710- ● ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0710- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> L=798 SERVICED BY L=800 		1-47428-872-0 01 1 0710- ● ●

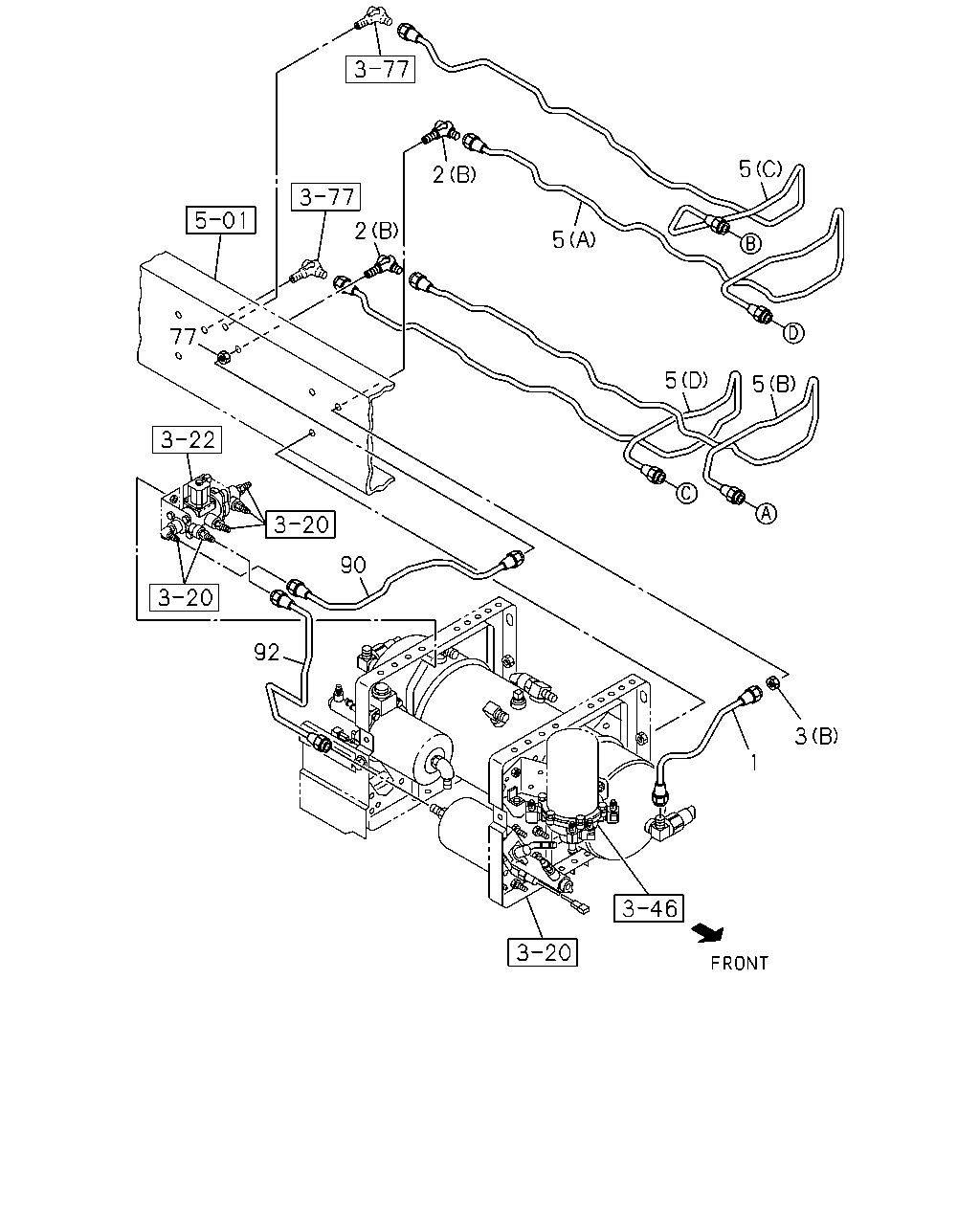

çizim 145437
5 2 2 5 77 5 5 90 92 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
L=290 		8-98044-172-0 01 1 0710- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0710- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0710- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 0710- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
5 PIPE; AIR,UNION TO UNION
(A) L=2215 SERVICED BY L=2500 		1-47428-883-0 01 1 0710- ● ●
5 PIPE; AIR,UNION TO UNION
(B) L=2708 SERVICED BY L=2900 		1-47428-885-0 01 1 0710- ● ●
5 PIPE; AIR,UNION TO UNION
(D) L=2609 SERVICED BY L=2900 		1-47428-885-0 01 1 0710- ● ●
5 PIPE; AIR,UNION TO UNION
(C) L=2501 		8-98082-095-2 01 1 0710- ● ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 0710- ● ●
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=493 		8-98077-878-0 01 1 0710- ● ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> L=513 SERVICED BY L=550 		1-47428-867-0 01 1 0710- ● ●

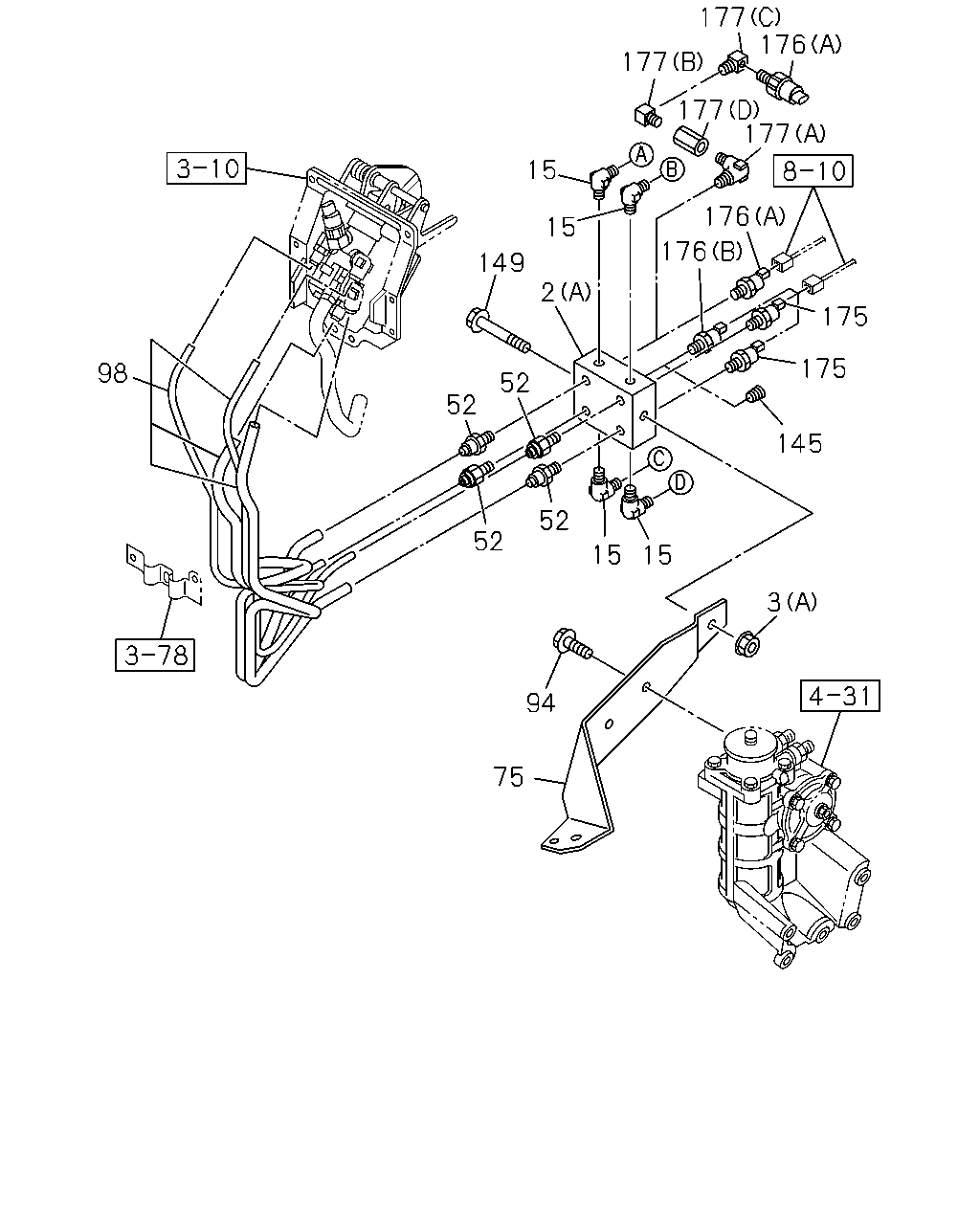

çizim 145453
177 176 177 177 177 15 176 15 176 149 2 175 175 98 52 52 145 52 52 15 15 3 94 75
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0710- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 0710- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 0710- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 0710- ● ●
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 0710- ● ●
75 BRACKET; UNION 8-98066-785-0 01 1 0710- ● ●
94 BOLT; BRKT
M10X16 FLANGE 		0-28151-016-0 02 1 0710-0911 ● ●
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 0912- ● ●
98 TUBE; NYLON 8-98079-175-0 01 1 0710- ● ●
145 PLUG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/4 		9-99204-513-0 01 1 0710- ● ●
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 0710- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0710- ● ●
176 SWITCH; AIR PRESS
(A) STAMP 0.7 		8-97622-710-0 01 1 0710-0710 ● ●
176 SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> (A) STAMP 0.7 		8-97622-710-0 01 1 0710- ● ●
176 SWITCH; AIR PRESS
EXC. H.S.A SYSTEM<6EP> (A) STAMP 0.3 		8-98010-857-0 01 1 0710- ● ●
176 SWITCH; AIR PRESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) STAMP 2.2 		8-98010-858-0 01 1 0710- ● ●
177 CONNECTOR
(A) 		1-09650-433-0 01 1 0710-0710 ● ●
177 CONNECTOR
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 0710-0710 ● ●
177 CONNECTOR
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-0710 ● ●
177 CONNECTOR
(D) 		1-09660-881-0 01 1 0710-0710 ● ●
