◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11416 - FRR AUSTRALIA EURO4 SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#62940) — 172 parça

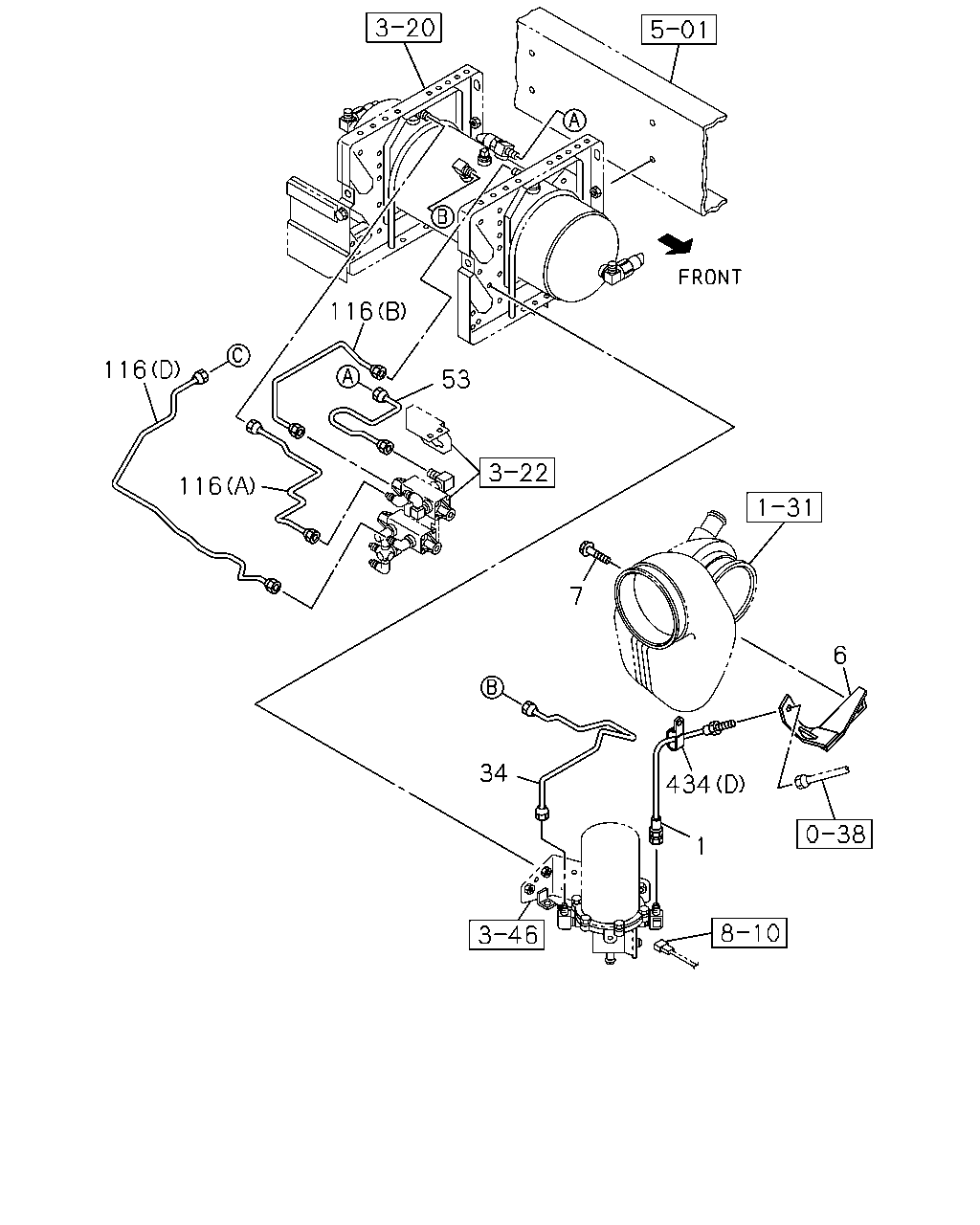

çizim 145439
116 53 116 116 7 6 434 1 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-98066-976-1 01 1 0710- ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98066-976-1 01 1 0710- ●
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98080-163-1 01 1 0710- ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98066-733-1 01 1 0710-1205 ● ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98214-081-1 01 1 1206- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
34 PIPE; AIR
L=673 SERVICED BY L=700 		1-49115-481-0 01 1 0710-0710 ●
34 PIPE; AIR
L=676 SERVICED BY L=700 		1-49115-481-0 01 1 0710-0710 ●
34 PIPE; AIR
L=676 SERVICED BY L=700 		1-49115-481-0 01 1 0710- ● ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98061-086-0 01 1 0710- ● ●
116 PIPE; AIR,PROTECTION VLV
(D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 0710- ● ●
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 0710- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 0710- ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 0710- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 05 1 1203- ●
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 05 1 1203- ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 02 1 1110- ●
434 CLIP
(A) L=250 		1-09707-126-0 04 1 0710-0710 ●
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) L=250 		1-09707-126-0 04 1 0710-0710 ●
434 CLIP
(A) L=350 		1-09707-183-0 04 1 0710-0901 ●
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 04 1 0710-0901 ●
434 CLIP
(A) L=350 		1-09707-183-0 05 1 0902-1202 ●
434 CLIP
(A) L=350 		1-09707-183-0 05 1 0902-1202 ●
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 05 1 0902-1202 ●
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 05 1 0902-1202 ●
434 CLIP
(A) L=350 		1-09707-183-0 04 1 1203- ●
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 04 1 1203- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0710- ● ●
434 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 0710- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 08 1 0710-0710 ● ●
434 CLIP
(E) ID=10 & 12 		1-09709-278-1 01 1 0710-0710 ● ●
434 CLIP
(E) ID=10 & 15 		1-09709-279-1 01 1 0711- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 08 1 0710- ● ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 08 1 0710- ●
434 CLIP
(B) ID=18-24 L=14.5 		1-09709-298-0 01 1 0710-0710 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 05 1 0710-0901 ●
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 05 1 0710-0901 ●
434 CLIP
(B) ID=18-24 L=14.5 		1-09709-298-0 02 1 0710- ● ●
434 CLIP
WHEEL BASE 3700MM(37W) (F) ID=22 L=32 		1-09700-126-1 01 1 0710- ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=250 		1-09707-126-0 08 1 0710-0710 ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 01 1 0710-0710 ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 0710-1109 ● ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 01 1 0710-1109 ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1110- ● ●
434 CLIP
WHEEL BASE 4600MM(46W) (A) L=350 		1-09707-183-0 07 1 0710- ●

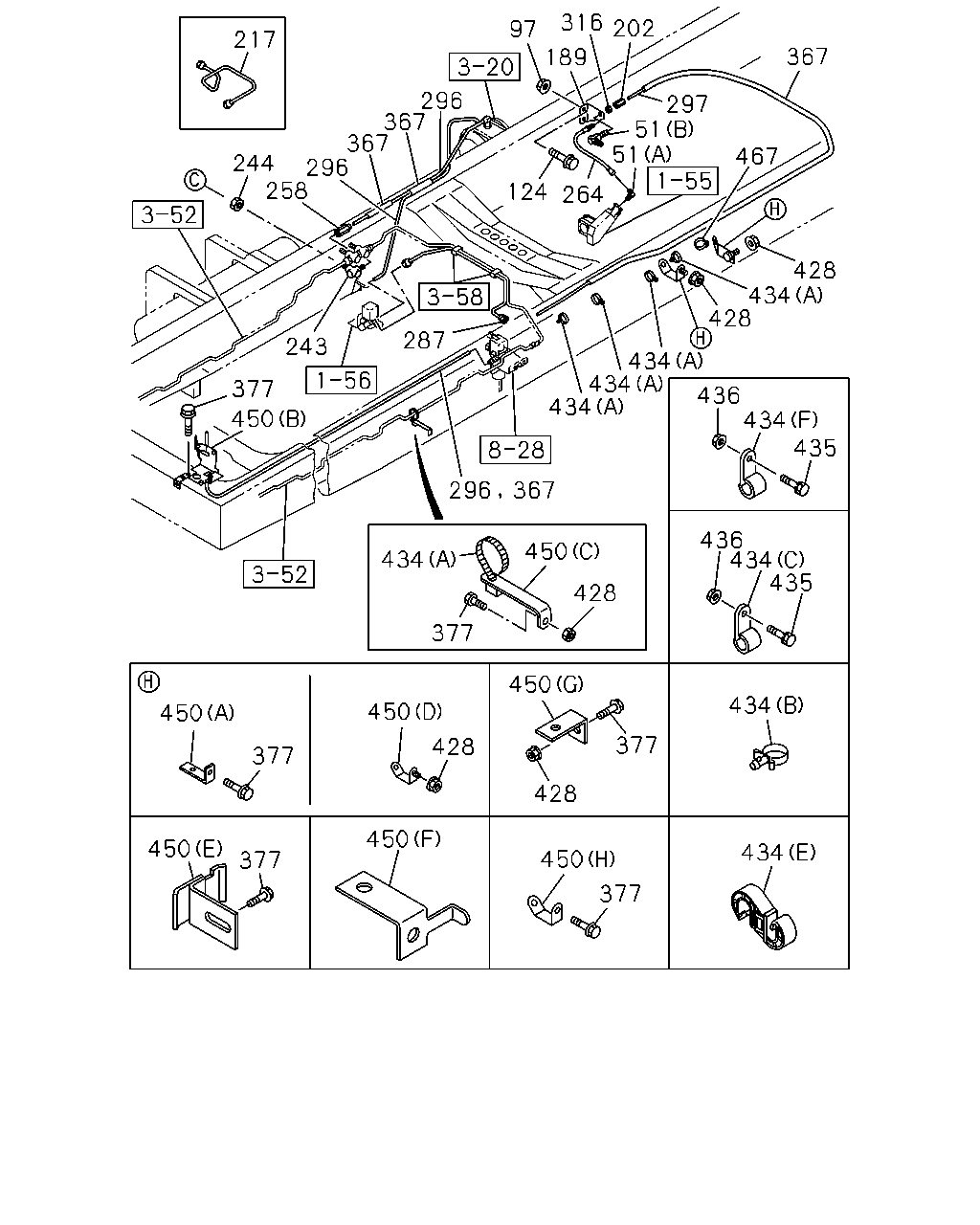

çizim 145444
316 202 97 217 367 189 296 367 367 244 296 258 297 51 51 467 124 264 428 434 428 287 243 434 434 434 377 436 434 435 450 296 367 436 434 435 450 434 428 377 450 434 450 450 377 428 377 428 450 450 434 450 377 377
BalonParca AdiParca NoAdetTipApplied Date A B
51 UNION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710- ● ●
51 UNION
WHEEL BASE 3700MM(37W) (B) M12 ELBOW 		0-92125-006-0 01 1 0710-0710 ●
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
124 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0710- ● ●
189 BRACKET; FLEX HOSE 8-98054-640-0 01 1 0710- ● ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0710- ● ●
217 PIPE; VAC,UNION TO MAG VLV
L=325 		8-98044-559-0 01 1 0710-0710 ● ●
243 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0710- ● ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0710- ● ●
258 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0710- ● ●
264 HOSE; FLEX
L=220 		1-09363-627-0 01 1 0710-0710 ●
264 HOSE; FLEX
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) L=220 		1-09363-627-0 01 1 0710-0710 ●
264 HOSE; FLEX
L=220 		1-09363-627-0 01 1 0710- ● ●
264 HOSE; FLEX
WHEEL BASE 3700MM(37W) L=480 		1-09363-659-0 01 1 0710-0710 ●
287 PIPE; AIR,MAG VLV
L=816 SERVICED BY L=900 		1-47428-813-0 01 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
316 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 		1-87411-020-0 AR 1 0710- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0710- ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ●
377 BOLT; BRKT FIX
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 02 1 0804-0811 ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 02 1 0804-0811 ●
377 BOLT; BRKT FIX
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M10X30 FLANGE 		0-28651-030-0 02 1 0804-0811 ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 03 1 0812- ●
377 BOLT; BRKT FIX
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M10X30 FLANGE 		0-28651-030-0 03 1 0812- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 0710- ●
377 BOLT; BRKT FIX
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 02 1 0812- ● ●
377 BOLT; BRKT FIX
WHEEL BASE 3700MM(37W) M10X30 FLANGE 		0-28651-030-0 01 1 0710- ●
428 NUT; BRKT
M10 FLANGE 		0-91180-110-0 02 1 0710-0710 ●
428 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M10 FLANGE 		0-91180-110-0 02 1 0710-0710 ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710- ●
428 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 01 1 0710- ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0710 ● ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0803 ● ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0803 ●
428 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M10 FLANGE 		0-91180-210-0 02 1 0710-0803 ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0804-0811 ●
428 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M10 FLANGE 		0-91180-210-0 02 1 0804-0811 ●
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0812- ●
428 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M10 FLANGE 		0-91180-210-0 03 1 0812- ●
428 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-110-0 01 1 0710-0710 ●
428 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 01 1 0710- ●
434 CLIP
(A) L=350 		1-09707-183-0 05 1 1203- ●
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 05 1 1203- ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 02 1 1110- ●
434 CLIP
(A) L=250 		1-09707-126-0 04 1 0710-0710 ●
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) L=250 		1-09707-126-0 04 1 0710-0710 ●
434 CLIP
(A) L=350 		1-09707-183-0 04 1 0710-0901 ●
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 04 1 0710-0901 ●
434 CLIP
(A) L=350 		1-09707-183-0 05 1 0902-1202 ●
434 CLIP
(A) L=350 		1-09707-183-0 05 1 0902-1202 ●
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 05 1 0902-1202 ●
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 05 1 0902-1202 ●
434 CLIP
(A) L=350 		1-09707-183-0 04 1 1203- ●
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 04 1 1203- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0710- ● ●
434 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 0710- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 08 1 0710-0710 ● ●
434 CLIP
(E) ID=10 & 12 		1-09709-278-1 01 1 0710-0710 ● ●
434 CLIP
(E) ID=10 & 15 		1-09709-279-1 01 1 0711- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 08 1 0710- ● ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 08 1 0710- ●
434 CLIP
(B) ID=18-24 L=14.5 		1-09709-298-0 01 1 0710-0710 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 05 1 0710-0901 ●
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (A) L=350 		1-09707-183-0 05 1 0710-0901 ●
434 CLIP
(B) ID=18-24 L=14.5 		1-09709-298-0 02 1 0710- ● ●
434 CLIP
WHEEL BASE 3700MM(37W) (F) ID=22 L=32 		1-09700-126-1 01 1 0710- ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=250 		1-09707-126-0 08 1 0710-0710 ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 01 1 0710-0710 ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 0710-1109 ● ●
434 CLIP
WHEEL BASE 3700MM(37W) (A) L=350 		1-09707-183-0 01 1 0710-1109 ●
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1110- ● ●
434 CLIP
WHEEL BASE 4600MM(46W) (A) L=350 		1-09707-183-0 07 1 0710- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0808 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0901 ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0902- ● ●
435 BOLT; CLIP
WHEEL BASE 3700MM(37W) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0808 ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0809- ● ●
435 BOLT; CLIP
WHEEL BASE 3700MM(37W) M8X25 FLANGE 		0-28650-825-0 01 1 0809- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0808 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0808 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0809-0901 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0809-0901 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902-0902 ● ●
436 NUT; CLIP
WHEEL BASE 3700MM(37W) M8 FLANGE 		0-91180-108-0 01 1 0902-0902 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902- ● ●
436 NUT; CLIP
WHEEL BASE 3700MM(37W) M8 FLANGE 		0-91180-108-0 01 1 0902- ●
436 NUT; CLIP
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-110-0 01 1 0710-0901 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0902-0902 ● ●
450 BRACKET; CLIP
(E) 		1-47479-693-0 01 1 0710- ●
450 BRACKET; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (E) 		1-47479-693-0 01 1 0710- ●
450 BRACKET; CLIP
(A) 		8-98097-725-0 02 1 0710-0710 ●
450 BRACKET; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) 		8-98097-725-0 02 1 0710-0710 ●
450 BRACKET; CLIP
(F) 		8-98100-216-1 02 1 0710-0811 ●
450 BRACKET; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (F) 		8-98100-216-1 02 1 0710-0811 ●
450 BRACKET; CLIP
(F) 		8-98100-216-1 03 1 0812- ●
450 BRACKET; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (F) 		8-98100-216-1 03 1 0812- ●
450 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 0710-0806 ● ●
450 BRACKET; CLIP
(G) 		1-47477-694-0 01 1 0807- ● ●
450 BRACKET; CLIP
(D) 		8-98021-994-1 02 1 0710-0803 ● ●
450 BRACKET; CLIP
(H) 		8-98117-686-0 02 1 0804- ● ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0710- ● ●
450 BRACKET; CLIP
WHEEL BASE 3700MM(37W) (A) 		8-98097-725-0 01 1 0710-0710 ●
450 BRACKET; CLIP
WHEEL BASE 3700MM(37W) (F) 		8-98100-216-0 01 1 0710-0710 ●
450 BRACKET; CLIP
WHEEL BASE 3700MM(37W) (F) 		8-98100-216-0 01 1 0710-0710 ●
450 BRACKET; CLIP
WHEEL BASE 3700MM(37W) (F) 		8-98100-216-1 01 1 0710- ●
467 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) L=250 		1-09707-126-0 04 1 0710-0710 ●

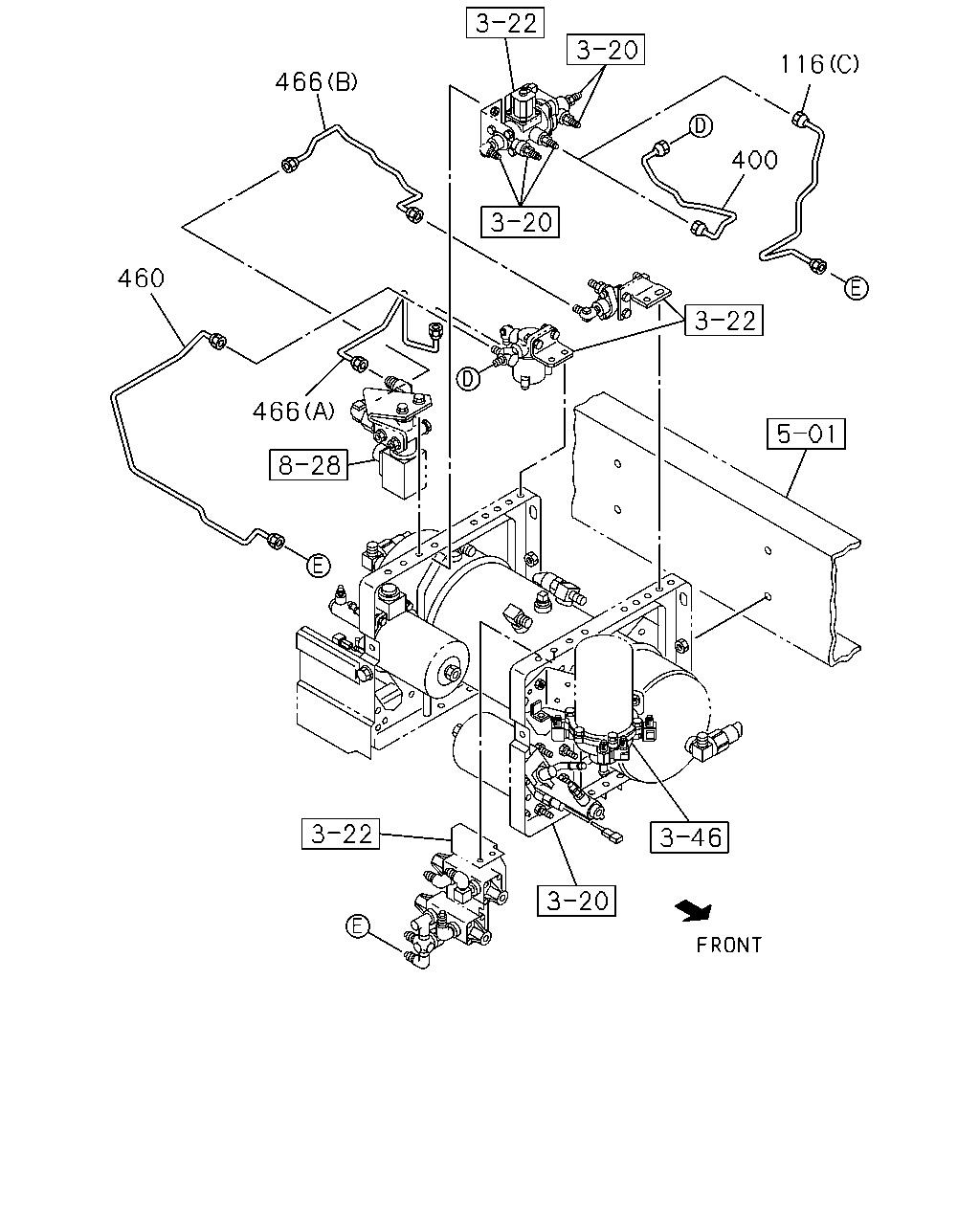

çizim 145449
116 466 400 460 466
BalonParca AdiParca NoAdetTipApplied Date A B
116 PIPE; AIR,PROTECTION VLV
(D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 0710- ● ●
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 0710- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 0710- ● ●
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 0710- ● ●
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 0710- ● ●
460 PIPE; AIR,PROTECTION VALVE
THROTTLE CONTROL SYSTEM(6XH) 		8-98066-846-0 01 1 0710- ● ●
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (B) L=756 SERVICED BY L=800 		1-47428-872-0 01 1 0710- ● ●
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (A) L=492 		8-98077-879-0 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
