Isuzu WW
▶
TRUCKS
▶
FRR
▶
11416 - FRR AUSTRALIA EURO4 SPACECAB
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#62937) — 35 parça
Tümü
A - FCD5CS
B - FCR5CS
◀

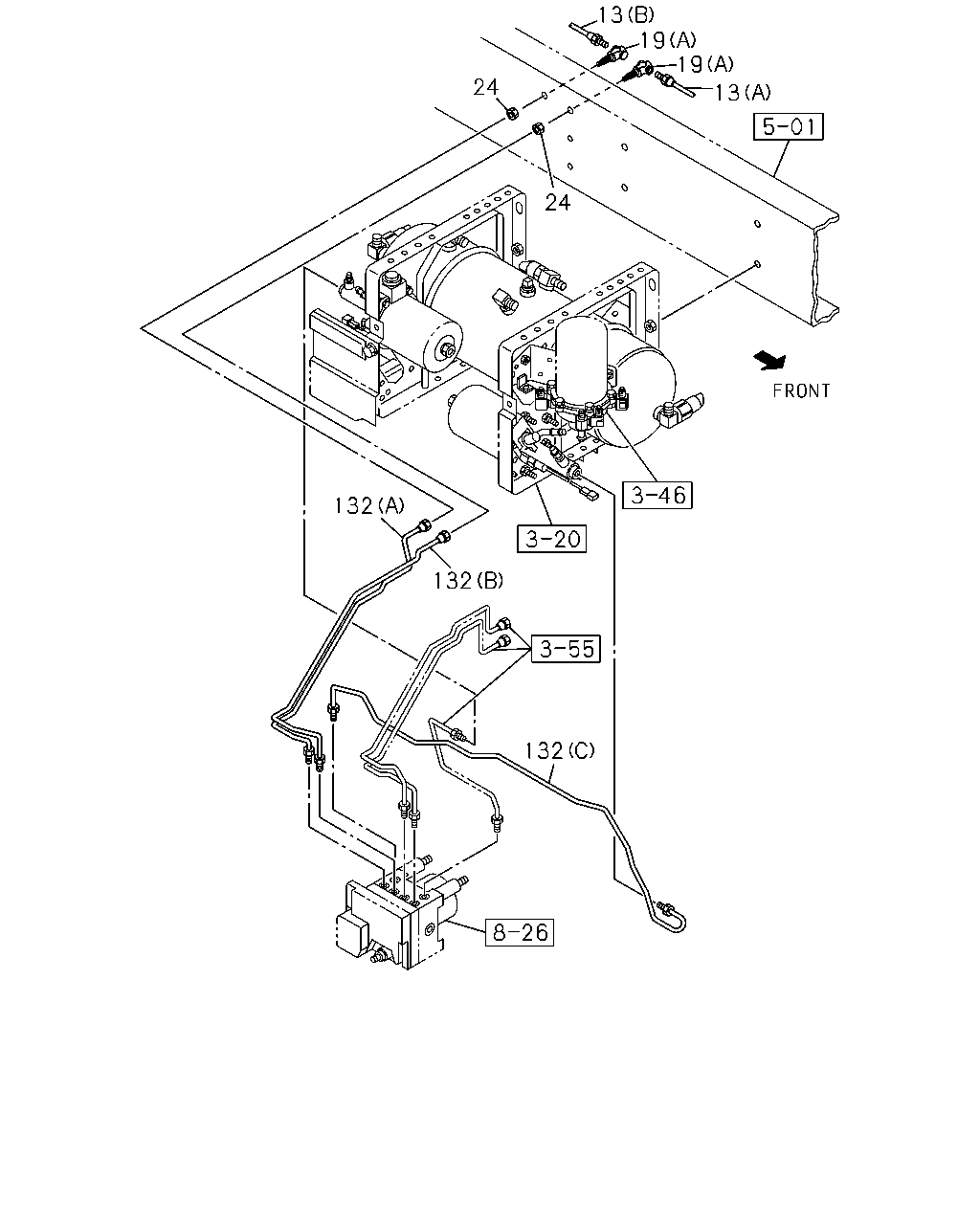

[352A] AIR TANK SIDE (17 parça)

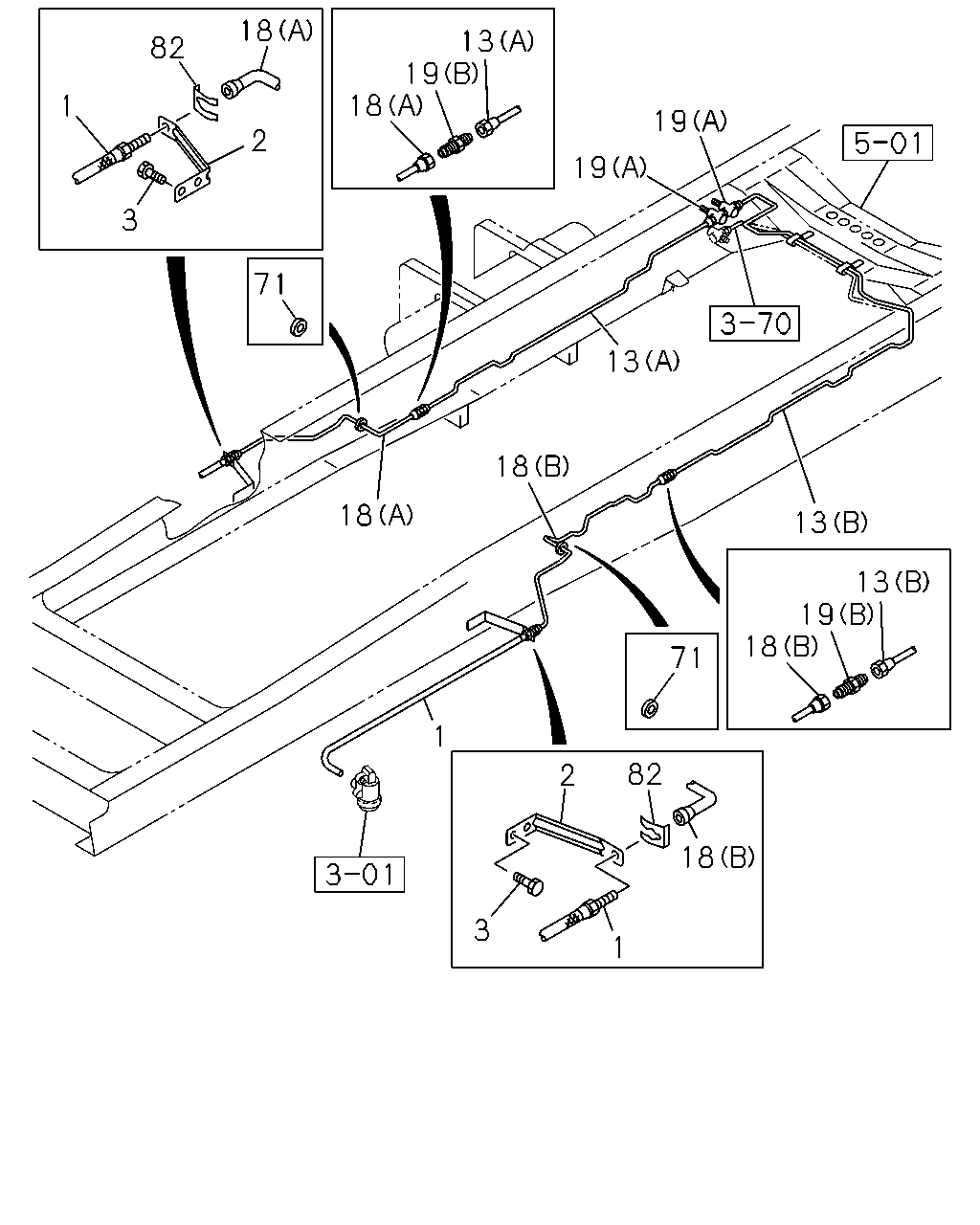

[352A] FRAME SIDE (18 parça)
▶
13
19
19
24
13
24
132
132
132
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
13
PIPE; OIL,UNION TO UNION
(B) LH LINE L=1847
8-98078-163-0
01
1
0710-0911
●
●
13
PIPE; OIL,UNION TO UNION
(B) LH LINE L=1833
8-98158-297-0
01
1
0912-
●
●
13
PIPE; OIL,UNION TO UNION
(A) RH LINE L=967
8-98067-417-0
01
1
0710-0803
●
●
13
PIPE; OIL,UNION TO UNION
MZX6P M/T(RSW) (A) RH LINE L=967
8-98067-417-0
01
1
0804-0906
●
●
13
PIPE; OIL,UNION TO UNION
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) RH LINE L=967
8-98067-417-0
01
1
0907-
●
●
13
PIPE; OIL,UNION TO UNION
MLD6Q M/T(X5J) (A) RH LINE L=995
8-98115-457-0
01
1
0806-0806
●
●
13
PIPE; OIL,UNION TO UNION
MLD6Q M/T(X5J) (A) RH LINE L=976
8-98121-748-0
01
1
0806-
●
●
19
UNION; OIL PIPE
(B) M10 STRAIGHT
0-92107-005-0
02
1
0710-
●
●
19
UNION; OIL PIPE
(A)
8-98018-438-0
02
1
0710-
●
●
24
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
02
1
0710-
●
●
132
PIPE; OIL,BRK,HYD UNIT
(C) L=949
8-98078-732-0
01
1
0710-
●
●
132
PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=621
8-98011-941-0
01
1
0710-0803
●
●
132
PIPE; OIL,BRK,HYD UNIT
(A) LH LINE L=625
8-98116-095-0
01
1
0804-
●
●
132
PIPE; OIL,BRK,HYD UNIT
(A) LH LINE L=645
8-98011-949-0
01
1
0710-0803
●
●
132
PIPE; OIL,BRK,HYD UNIT
MZX6P M/T(RSW) (B) RH LINE L=645
8-98011-949-0
01
1
0804-0805
●
●
132
PIPE; OIL,BRK,HYD UNIT
(B) RH LINE L=645
8-98011-949-0
01
1
0806-
●
●
132
PIPE; OIL,BRK,HYD UNIT
MLD6Q M/T(X5J) (B) RH LINE L=620
8-98115-456-0
01
1
0806-0806
●
●
18
13
19
18
82
1
19
2
19
3
71
13
18
18
13
13
19
18
71
1
82
2
18
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; FLEX,FRT BRK
L=640
8-98085-202-0
02
1
0710-1109
●
●
1
HOSE; FLEX,FRT BRK
L=660
8-98202-875-0
02
1
1110-1210
●
●
1
HOSE; FLEX,FRT BRK
L=660
8-98232-626-0
02
1
1211-
●
●
2
BRACKET; FLEX HOSE,FRT BRK
8-98011-946-1
02
1
0710-
●
●
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE
0-28650-825-0
04
1
0710-
●
●
13
PIPE; OIL,UNION TO UNION
(B) LH LINE L=1847
8-98078-163-0
01
1
0710-0911
●
●
13
PIPE; OIL,UNION TO UNION
(B) LH LINE L=1833
8-98158-297-0
01
1
0912-
●
●
13
PIPE; OIL,UNION TO UNION
(A) RH LINE L=967
8-98067-417-0
01
1
0710-0803
●
●
13
PIPE; OIL,UNION TO UNION
MZX6P M/T(RSW) (A) RH LINE L=967
8-98067-417-0
01
1
0804-0906
●
●
13
PIPE; OIL,UNION TO UNION
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) RH LINE L=967
8-98067-417-0
01
1
0907-
●
●
13
PIPE; OIL,UNION TO UNION
MLD6Q M/T(X5J) (A) RH LINE L=995
8-98115-457-0
01
1
0806-0806
●
●
13
PIPE; OIL,UNION TO UNION
MLD6Q M/T(X5J) (A) RH LINE L=976
8-98121-748-0
01
1
0806-
●
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) LH LINE L=1016
8-98065-376-0
01
1
0710-
●
●
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) RH LINE L=567
8-98067-426-0
01
1
0710-
●
●
19
UNION; OIL PIPE
(B) M10 STRAIGHT
0-92107-005-0
02
1
0710-
●
●
19
UNION; OIL PIPE
(A)
8-98018-438-0
02
1
0710-
●
●
71
GROMMET; OIL PIPE
ID=24 OD=30 T=17
9-09956-092-1
02
1
0710-
●
●
82
PLATE; FLEX HOSE
8-97360-054-0
02
1
0710-
●
●
