3-20 — AIR TANK (#62930) — 160 parça

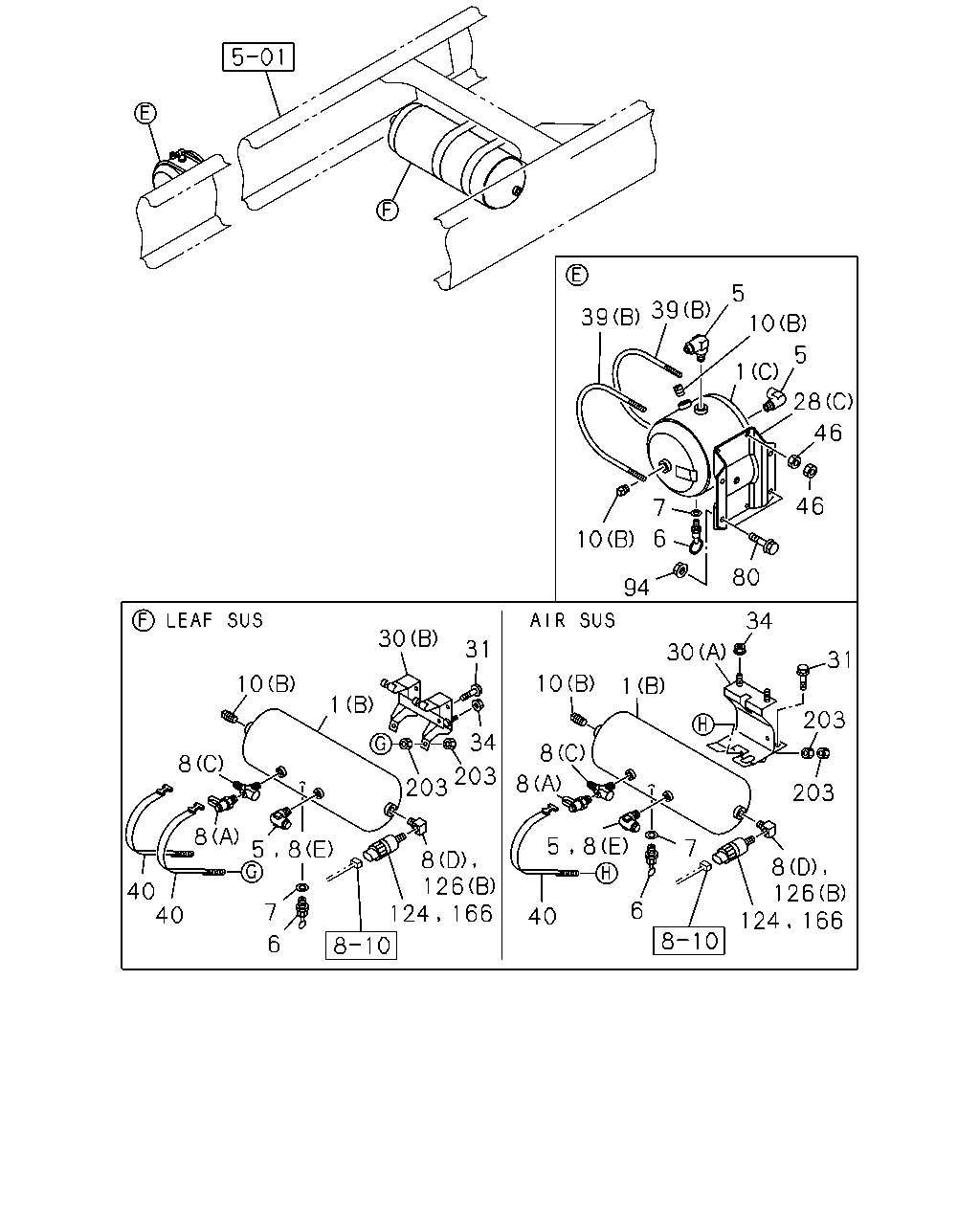

çizim 145780
5 39 39 10 5 1 28 46 46 7 6 10 80 94 34 30 31 30 31 10 10 1 203 1 34 8 8 203 203 8 203 8 5 8 7 5 8 8 126 8 126 40 40 6 7 40 6 124 166 124 166
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(C) 		8-98090-803-0 01 1 0710-0710 ●
1 TANK ASM; AIR
WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (C) 		8-98090-803-0 01 1 0710-0710 ●
1 TANK ASM; AIR
(C) 		8-98090-803-1 01 1 0710-0906 ● ●
1 TANK ASM; AIR
(C) 		8-98081-870-1 01 1 0907- ● ●
1 TANK ASM; AIR
(B) 		1-48370-659-0 01 1 0710-1101 ● ●
1 TANK ASM; AIR
(B) 		8-98166-972-0 01 1 1102- ● ●
1 TANK ASM; AIR
(A) 		8-98018-795-2 01 1 0710- ● ●
5 UNION; AIR TANK
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0710-0710 ●
5 UNION; AIR TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0710-0710 ●
5 UNION; AIR TANK
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0710- ● ●
5 UNION; AIR TANK
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-1101 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710-0710 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710-0710 ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) 		1-48312-015-0 01 1 0710-0710 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 0710- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0710 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0710 ●
7 GASKET; DRAIN COCK
WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) ID=14 		1-09630-145-0 01 1 0710-0710 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 0710- ● ●
8 CONNECTOR; AIR TANK
(C) 		1-09656-462-1 01 1 0710- ● ●
8 CONNECTOR; AIR TANK
(B) 		1-09656-759-0 01 1 0710- ● ●
8 CONNECTOR; AIR TANK
(A) 		1-47459-013-1 01 1 0710- ● ●
8 CONNECTOR; AIR TANK
(A) 		1-47459-013-1 02 1 0710- ● ●
8 CONNECTOR; AIR TANK
(D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1102- ● ●
8 CONNECTOR; AIR TANK
(E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1102- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 0710-0710 ●
10 PLUG; AIR TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (B) PT3/8 		9-09204-517-0 02 1 0710-0710 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 0710- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0710-1101 ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1102- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1102- ● ●
10 PLUG; AIR TANK
(A) PT3/4 		9-09204-526-0 01 1 0710-1101 ● ●
28 BRACKET; AIR TANK
(C) 		8-98088-205-0 01 1 0710-0710 ●
28 BRACKET; AIR TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (C) 		8-98088-205-0 01 1 0710-0710 ●
28 BRACKET; AIR TANK
(C) 		8-98100-165-3 01 1 0710- ● ●
28 BRACKET; AIR TANK
(A) 		8-98021-918-5 01 1 0710- ● ●
28 BRACKET; AIR TANK
(B) 		8-98044-509-5 01 1 0710- ● ●
30 BRACKET; AIR TANK,SUB
(A) 		1-48317-903-0 01 1 0710- ●
30 BRACKET; AIR TANK,SUB
(B) 		1-48317-894-1 01 1 0710- ●
31 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 02 1 0710- ● ●
34 NUT; BRKT,AIR TANK
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0710-0710 ●
39 U-BOLT; AIR TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (B) L=210 		1-48317-458-1 02 1 0710-0710 ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0710- ● ●
39 U-BOLT; AIR TANK
(A) 		8-98022-041-0 02 1 0710- ● ●
40 BAND ASM; AIR TANK 1-48317-893-1 01 1 0710- ●
40 BAND ASM; AIR TANK 1-48317-893-1 02 1 0710- ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710-0710 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710-0710 ●
46 NUT; U-BOLT
WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M8 		0-91110-508-0 08 1 0710-0710 ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710- ● ●
80 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 0710- ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 0710- ● ●
124 SWITCH; AIR PRESSURE 8-97615-622-0 01 1 1102- ● ●
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0710- ● ●
126 CONNECTOR; ELBOW
(B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-1101 ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK 8-97615-622-0 01 1 0710-1101 ● ●
203 NUT
M8 		0-91110-508-0 02 1 0710- ●
203 NUT
M8 		0-91110-508-0 04 1 0710- ●

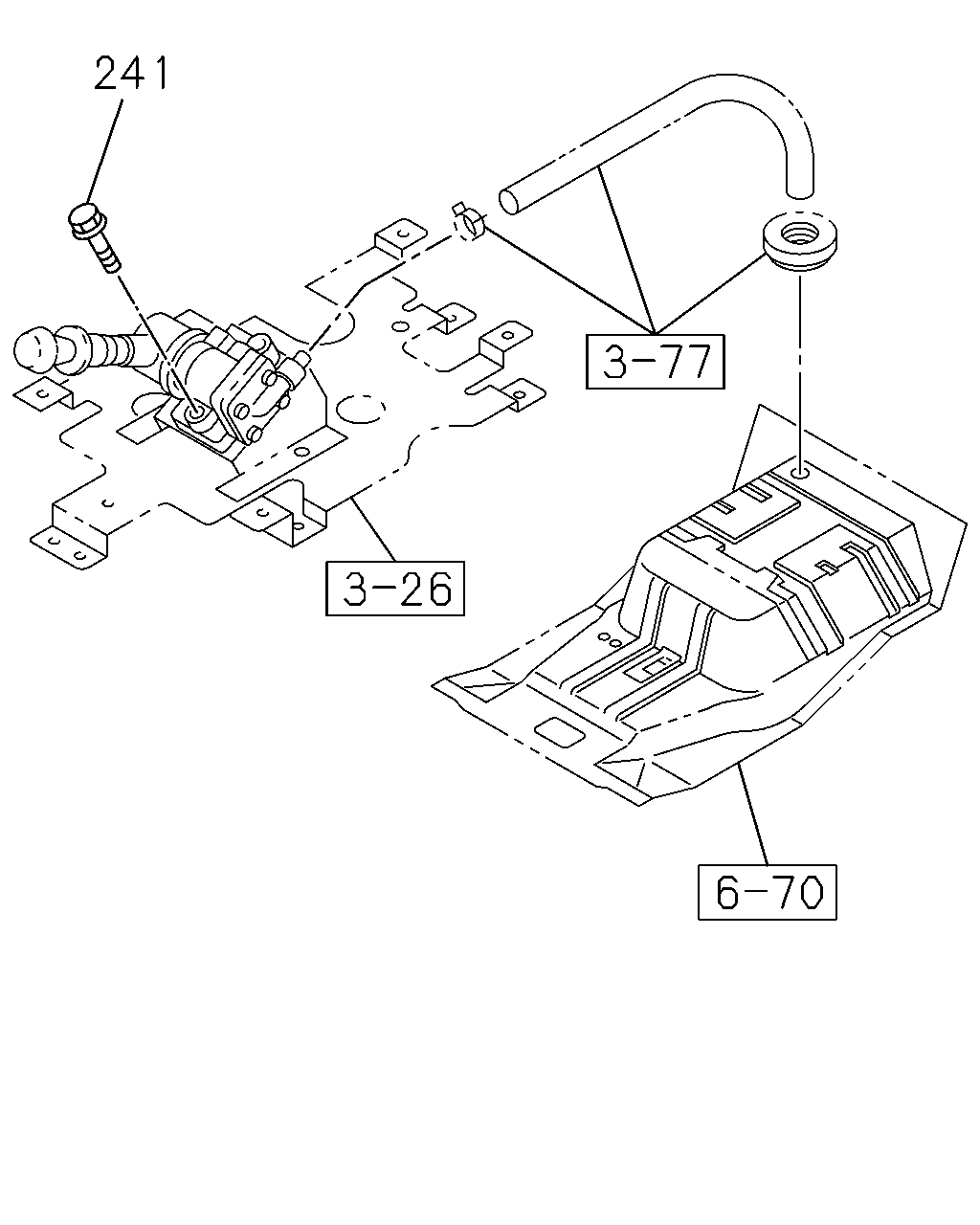

çizim 145781
241
BalonParca AdiParca NoAdetTipApplied Date A B
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 0710- ● ●

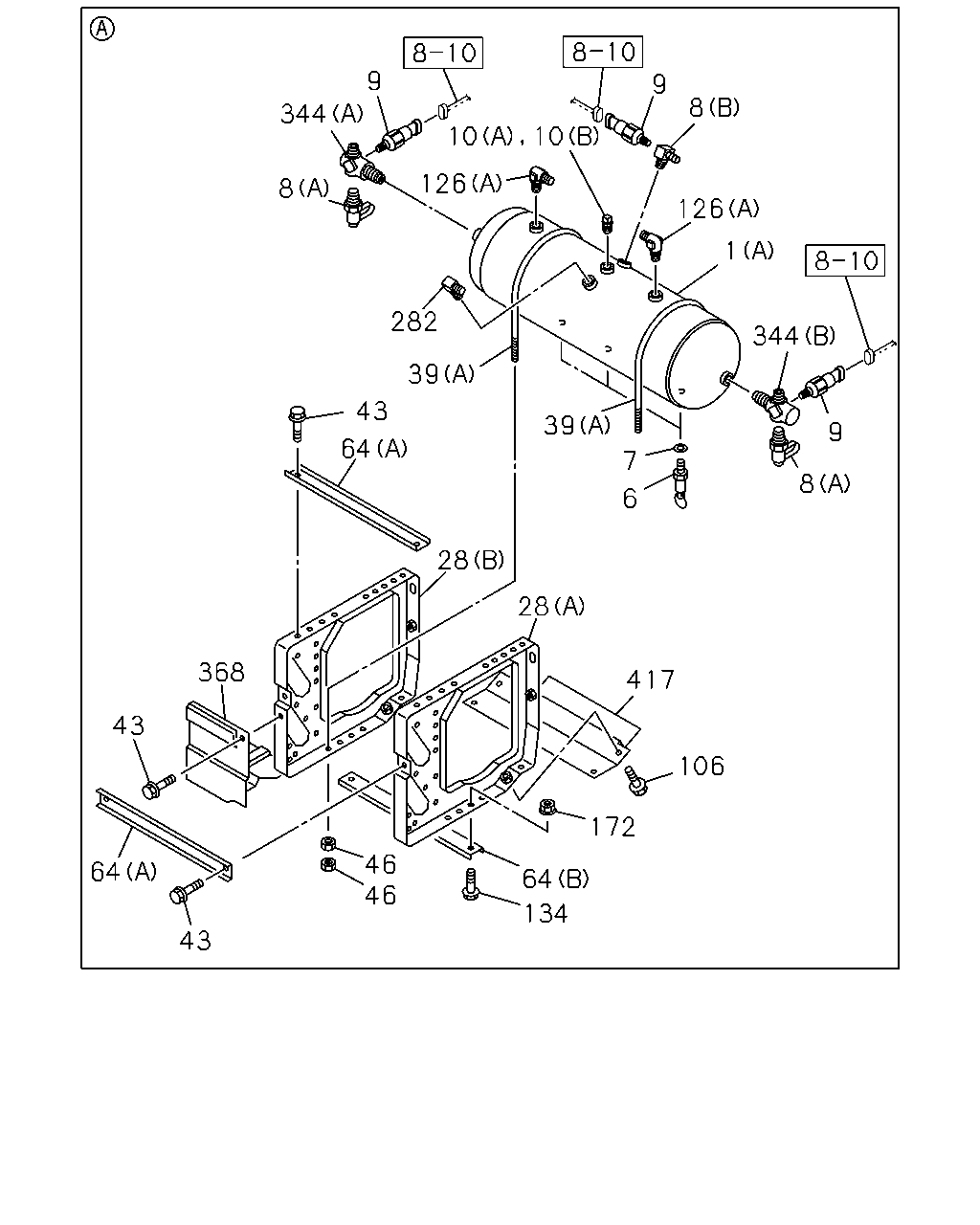

çizim 145783
9 9 8 344 10 10 126 8 126 1 282 344 39 43 39 9 64 7 8 6 28 28 368 417 43 106 172 46 46 64 64 134 43
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(C) 		8-98090-803-0 01 1 0710-0710 ●
1 TANK ASM; AIR
WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (C) 		8-98090-803-0 01 1 0710-0710 ●
1 TANK ASM; AIR
(C) 		8-98090-803-1 01 1 0710-0906 ● ●
1 TANK ASM; AIR
(C) 		8-98081-870-1 01 1 0907- ● ●
1 TANK ASM; AIR
(B) 		1-48370-659-0 01 1 0710-1101 ● ●
1 TANK ASM; AIR
(B) 		8-98166-972-0 01 1 1102- ● ●
1 TANK ASM; AIR
(A) 		8-98018-795-2 01 1 0710- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710-0710 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710-0710 ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) 		1-48312-015-0 01 1 0710-0710 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 0710- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0710 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0710 ●
7 GASKET; DRAIN COCK
WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) ID=14 		1-09630-145-0 01 1 0710-0710 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 0710- ● ●
8 CONNECTOR; AIR TANK
(C) 		1-09656-462-1 01 1 0710- ● ●
8 CONNECTOR; AIR TANK
(B) 		1-09656-759-0 01 1 0710- ● ●
8 CONNECTOR; AIR TANK
(A) 		1-47459-013-1 01 1 0710- ● ●
8 CONNECTOR; AIR TANK
(A) 		1-47459-013-1 02 1 0710- ● ●
8 CONNECTOR; AIR TANK
(D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1102- ● ●
8 CONNECTOR; AIR TANK
(E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1102- ● ●
9 SWITCH; LOW PRESSURE GAGE,AIR TANK 8-97615-622-0 03 1 0710- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 0710-0710 ●
10 PLUG; AIR TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (B) PT3/8 		9-09204-517-0 02 1 0710-0710 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 0710- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0710-1101 ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1102- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1102- ● ●
10 PLUG; AIR TANK
(A) PT3/4 		9-09204-526-0 01 1 0710-1101 ● ●
28 BRACKET; AIR TANK
(C) 		8-98088-205-0 01 1 0710-0710 ●
28 BRACKET; AIR TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (C) 		8-98088-205-0 01 1 0710-0710 ●
28 BRACKET; AIR TANK
(C) 		8-98100-165-3 01 1 0710- ● ●
28 BRACKET; AIR TANK
(A) 		8-98021-918-5 01 1 0710- ● ●
28 BRACKET; AIR TANK
(B) 		8-98044-509-5 01 1 0710- ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0710-0710 ●
39 U-BOLT; AIR TANK
WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (B) L=210 		1-48317-458-1 02 1 0710-0710 ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0710- ● ●
39 U-BOLT; AIR TANK
(A) 		8-98022-041-0 02 1 0710- ● ●
43 BOLT; STAY,AIR TANK,MAIN
M8X16 FLANGE 		0-28050-816-0 06 1 0710- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710-0710 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710-0710 ●
46 NUT; U-BOLT
WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M8 		0-91110-508-0 08 1 0710-0710 ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710- ● ●
64 STAY; AIR TANK,MAIN
(A) 		8-98044-510-3 02 1 0710- ● ●
64 STAY; AIR TANK,MAIN
(B) 		8-98044-511-2 01 1 0710- ● ●
106 BOLT; COVER
M8X16 FLANGE 		0-28050-816-0 04 1 0710- ● ●
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0710- ● ●
126 CONNECTOR; ELBOW
(B) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-1101 ● ●
134 BOLT; COVER FIX
M8X16 FLANGE 		0-28050-816-0 04 1 0710- ● ●
172 NUT; STAY,AIR TANK,MAIN
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
282 UNION; 2 WAY
M20 & PT3/8 ELBOW 		0-92134-312-0 01 1 0710- ● ●
344 CONNECTOR; 4WAY
(A) 		1-09656-726-0 01 1 0710- ● ●
344 CONNECTOR; 4WAY
(B) 		1-09656-767-0 01 1 0710- ● ●
368 COVER; AIR TANK 8-98061-625-3 01 1 0710- ● ●
417 COVER; HARNESS 8-98044-519-2 01 1 0710-0801 ● ●
417 COVER; HARNESS 8-98111-401-0 01 1 0802- ● ●

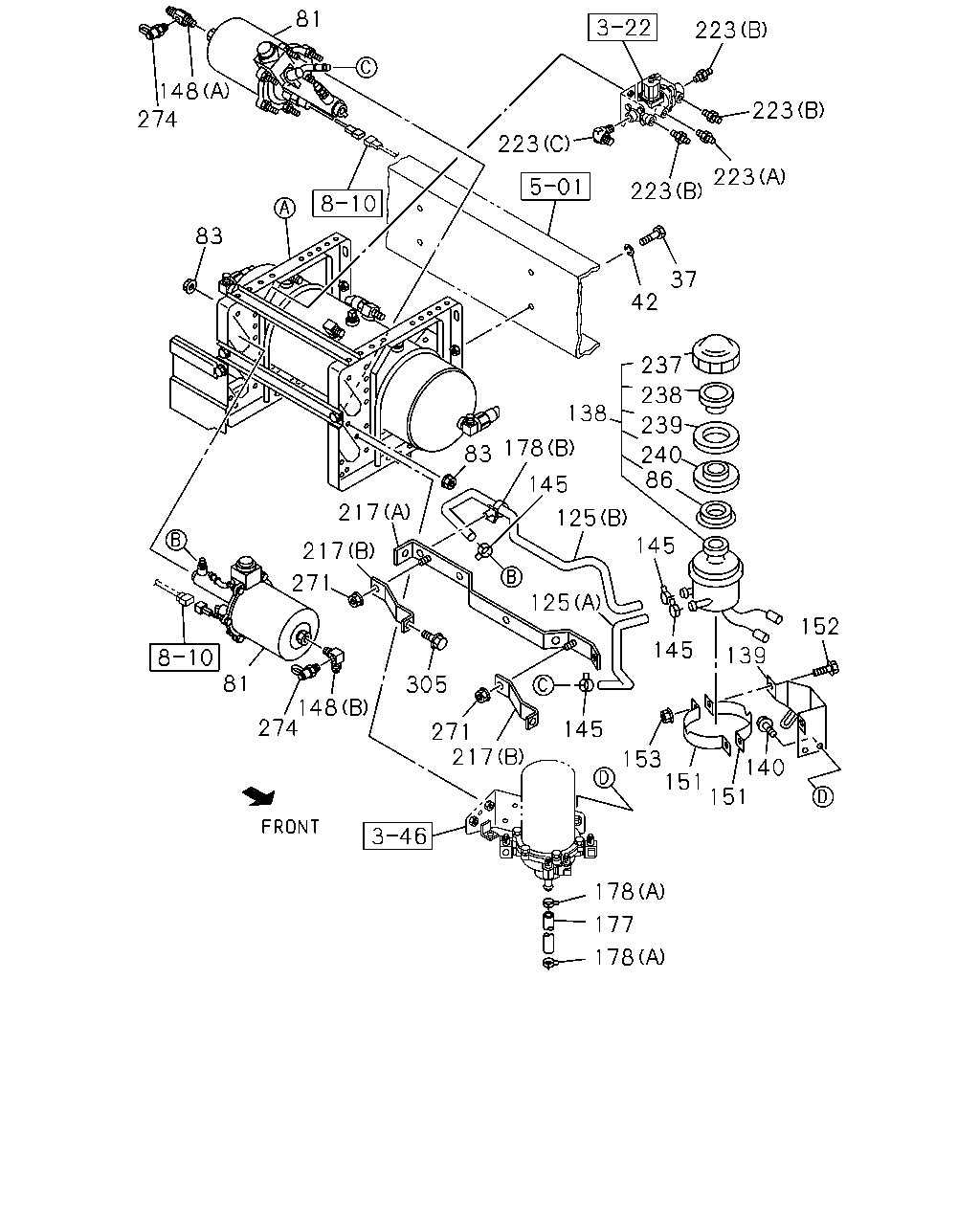

çizim 145784
81 223 148 223 274 223 223 223 83 37 42 237 238 138 239 178 83 240 86 145 217 125 145 217 271 125 152 145 139 81 305 148 274 145 271 217 153 151 140 151 178 177 178
BalonParca AdiParca NoAdetTipApplied Date A B
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 04 1 0710- ● ●
42 WASHER; PL
ID=12.5 OD=32 		0-91614-712-0 04 1 0710- ● ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-777-0 02 1 0710-0905 ● ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-826-0 02 1 0906- ● ●
83 NUT; AIR MASTER
M8 FLANGE 		0-91180-108-0 08 1 0710-0710 ● ●
83 NUT; AIR MASTER
M8 FLANGE 		0-91180-108-0 09 1 0710- ● ●
86 SEAL; DUST 1-47529-019-0 01 1 0710- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(A) 		8-98051-217-0 01 1 0710- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(B) 		8-98051-218-1 01 1 0710- ● ●
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 0710- ● ●
139 BRACKET; OIL TANK 8-98051-105-0 01 1 0710- ● ●
140 BOLT; OIL TANK TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 0710- ● ●
148 CONNECTOR; AIR MASTER
(A) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 0710- ● ●
148 CONNECTOR; AIR MASTER
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 0710- ● ●
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 0710- ● ●
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 0710- ● ●
178 CLIP; HOSE
(B) ID=13-18 L=14.5 		1-09709-290-0 08 1 0710- ● ●
178 CLIP; HOSE
(A) ID=21 		8-94242-034-0 02 1 0710- ● ●
217 BRACKET; RUBBER HOSE
(A) 		8-98082-871-0 01 1 0710- ● ●
217 BRACKET; RUBBER HOSE
(B) 		8-98085-273-1 02 1 0710- ● ●
223 UNION
H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0710- ● ●
223 UNION
H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT 		1-09650-179-1 03 1 0710- ● ●
223 UNION
H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0710- ● ●
237 CAP; OIL TANK 1-47525-030-0 01 1 0710- ● ●
238 PLATE; BAFFLE 1-47529-022-0 01 1 0710- ● ●
239 FILTER; DUST 1-47529-017-0 01 1 0710- ● ●
240 HOLDER; FILTER 1-47529-018-0 01 1 0710- ● ●
271 NUT; BRKT,HOSE
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
274 CONNECTOR; VLV 1-47459-013-1 02 1 0710- ● ●
305 BOLT; BRKT,HOSE
M8X16 FLANGE 		0-28050-816-0 02 1 0710-0710 ● ●
305 BOLT; BRKT,HOSE
M8X16 FLANGE 		0-28050-816-0 01 1 0710-1008 ● ●
